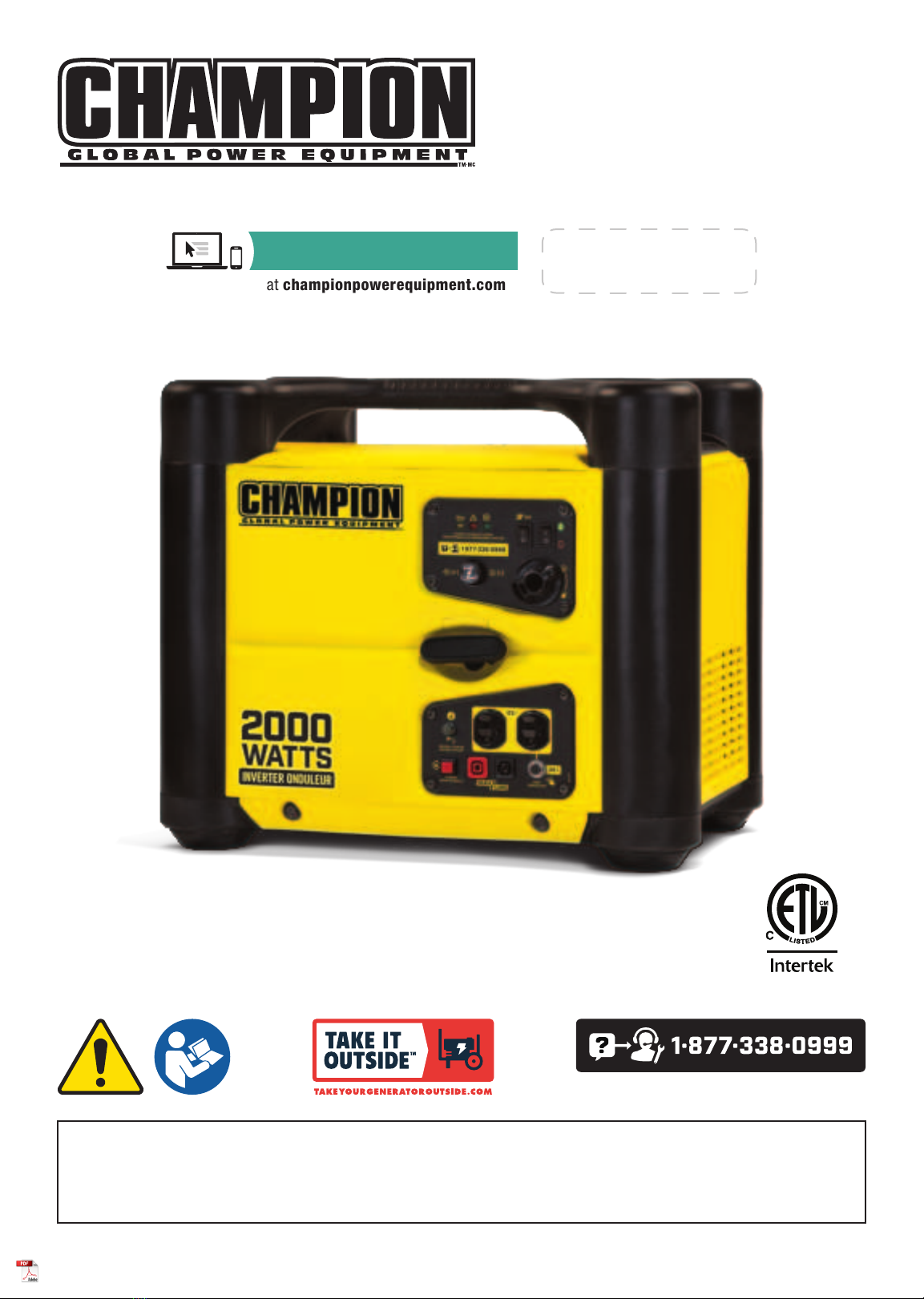

Champion Global Power Equipment 100455 User manual

OPERATOR'S MANUAL
MODEL #100455
2000W PORTABLE
INVERTER GENERATOR
Made in China - REV 20190420 Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
READ AND SAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product.
Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product is rated in accordance with PGMA (Portable Generator Manufacturers’ Association) standard PGMA G300 (Standard for Testing and Validating
Performance of Portable Generators).
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100455 - 2000W PORTABLE INVERTER GENERATOR TABLE OF CONTENTS
2
TABLE OFCONTENTS
Introduction................................................ 3
Safety Definitions ....................................... 3
Important Safety Instructions .................... 4
Fuel Safety ...................................................... 6

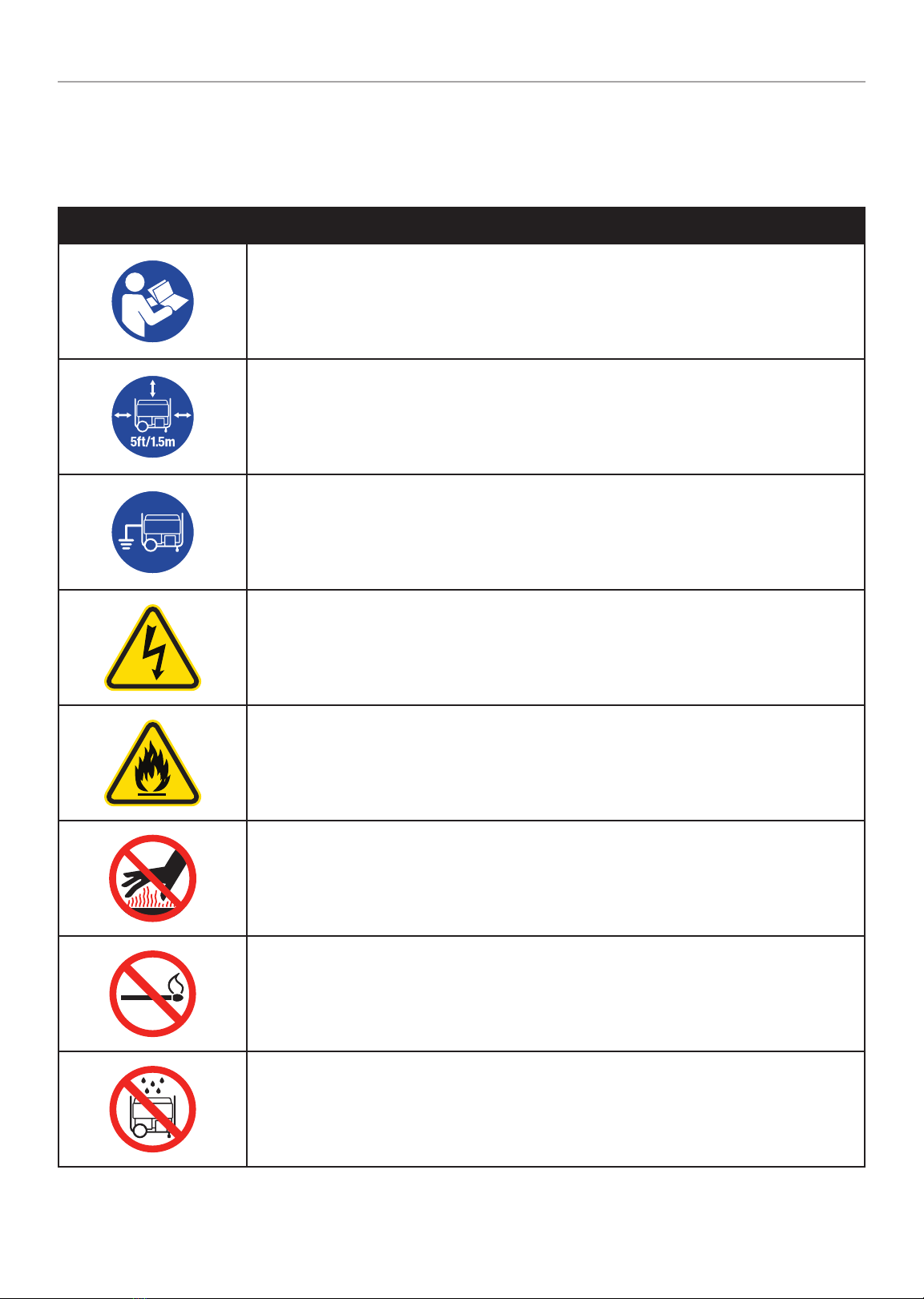

Safety Symbols.................................................. 7

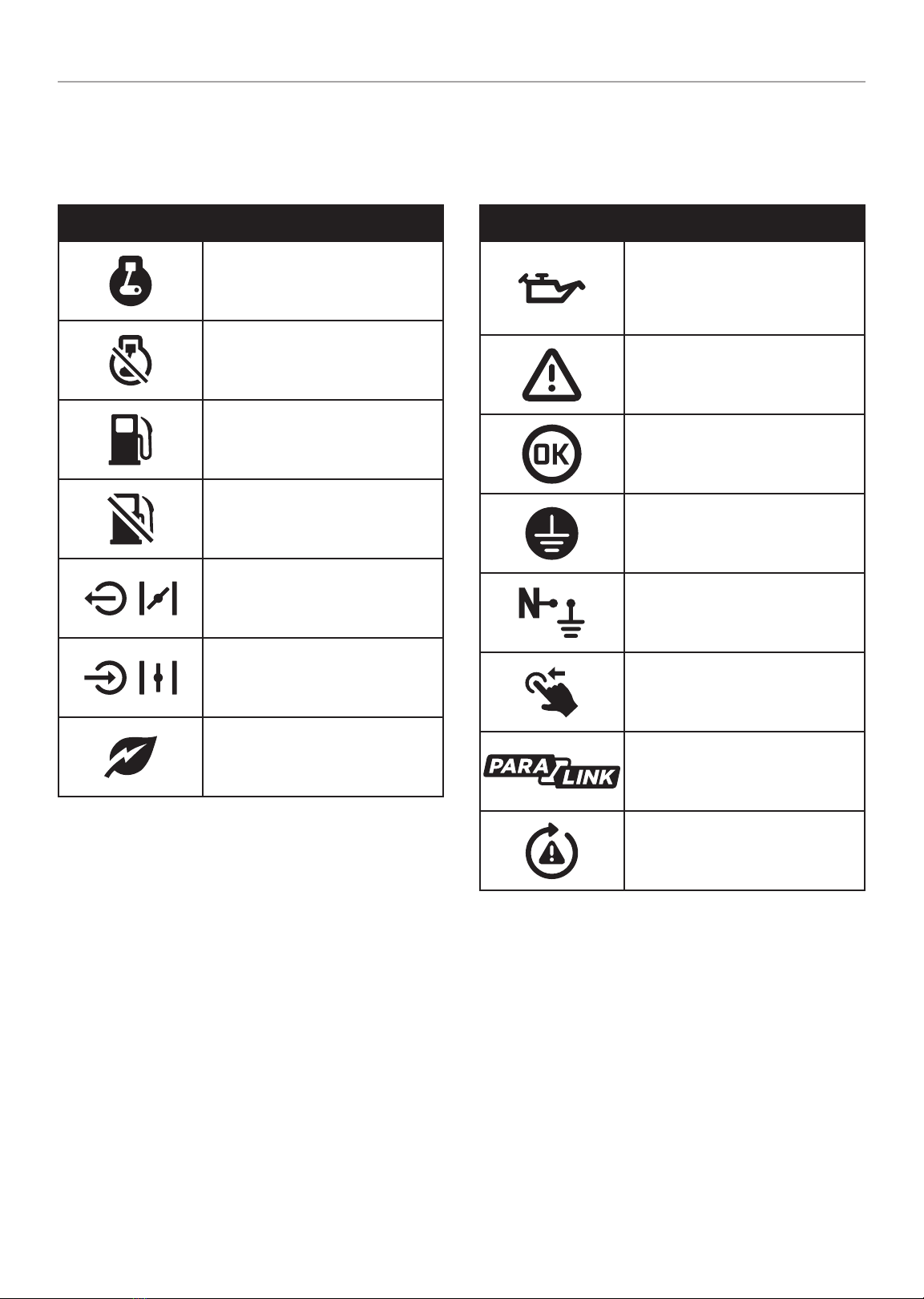

Operation Symbols .............................................. 8
Safety Labels.................................................... 9

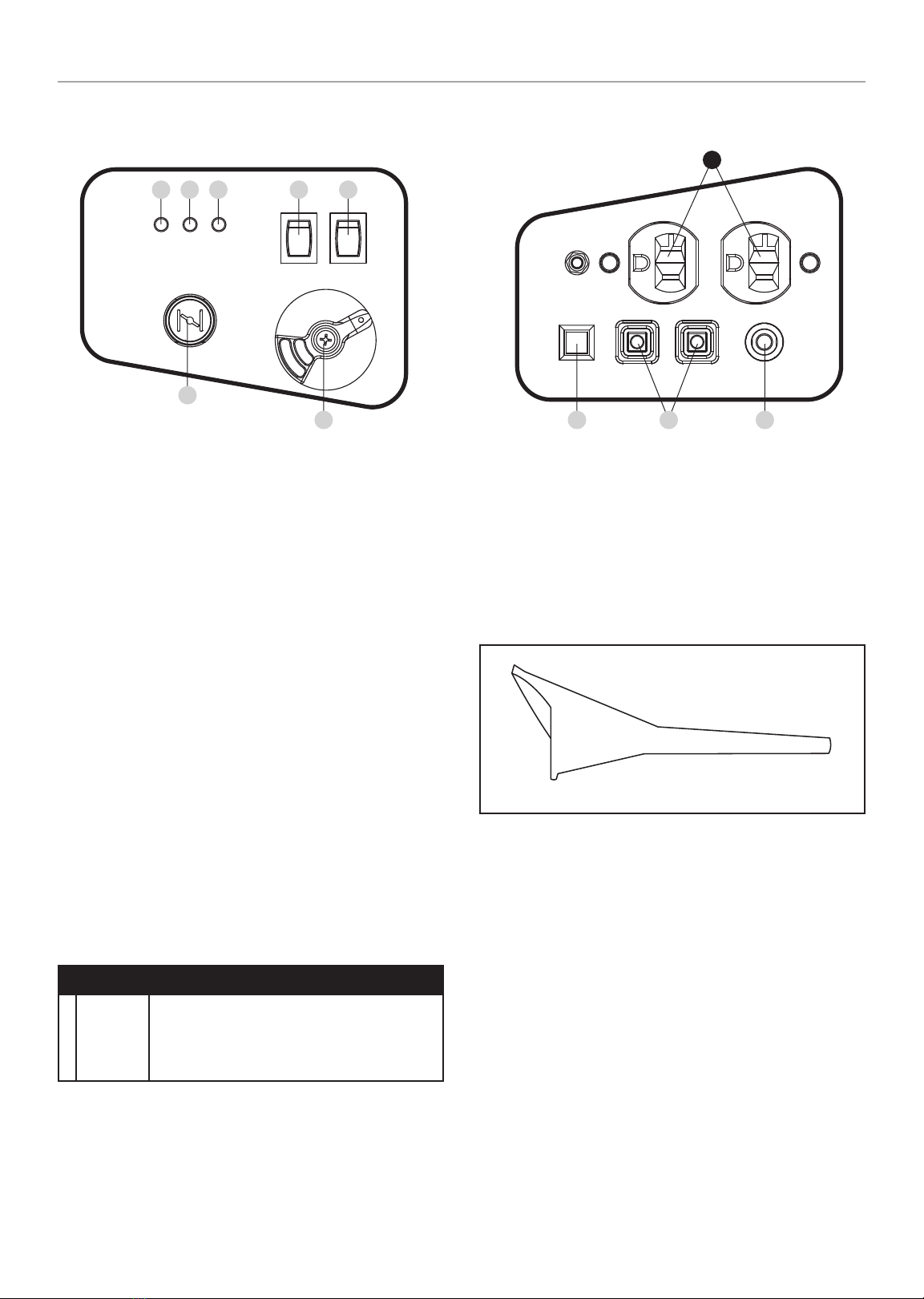

Controls and Features ...............................10
Generator.......................................................10
Control Panel ...................................................11
Parts Included ..................................................11
Tools Needed ...................................................11
Assembly ...................................................12
Unpacking ......................................................12
Add Engine Oil..................................................12
Add Fuel ........................................................13
Grounding ......................................................14
Operation...................................................14
Generator Location.............................................14
Grounding ......................................................14
Surge Protection ...............................................14
Starting the Engine.............................................15
Connecting Electrical Loads ...................................16
Do Not Overload Generator ....................................16
Eco Mode .......................................................16
Parallel Operation ..............................................17
Stopping the Engine............................................17
Maintenance ..............................................17
Cleaning the Generator ........................................17
Changing the Engine Oil .......................................17
Cleaning and Adjusting the Spark Plug(s) .....................18
Cleaning the Air Filter ..........................................18
Cleaning the Spark Arrestor ...................................18
Adjusting the Governor.........................................19
Maintenance Schedule.........................................19
Storage ..................................................... 20
Short Term Storage (up to 1 year) .............................20
Long Term Storage (more than 1 year)........................20
Removing from Storage........................................20
Specifications........................................... 22
Generator Specifications.......................................22
Engine Specifications ..........................................22
Oil Specifications...............................................22
Fuel Specifications .............................................22
Spark Plug Specifications......................................22
Valve Specifications............................................22
Temperature Specifications....................................22
IC Warning......................................................22
Parts Diagram ..................................................23
Parts List .......................................................24
Engine Parts Diagram..........................................25
Engine Parts List ...............................................26
Wiring Diagram.................................................28
Troubleshooting ........................................ 29

100455 - 2000W PORTABLE INVERTER GENERATOR INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly
value your safety and the safety of others, we would like you to
take the time to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable
of the assembly, operation, dangers and maintenance of the
product before use. Fully familiarize yourself, and make sure
others who plan on operating the product fully familiarize
themselves too, with the proper safety and operation
procedures before each use. Please always exercise common
sense and always err on the side of caution when operating
the product to ensure no accident, property damage, or injury
occurs. We want you to continue to use and be satisfied with
your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100455
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
!DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
!WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
"NOTICE
NOTICE is used to address practices not related to physical
injury.

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
!DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start to feel dizzy
or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
!DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.
!DANGER
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
!WARNING
Operation of this equipment may create sparks that can
start fires around dry vegetation.
A spark arrestor may be required. The operator should
contact local fire agencies for laws or regulations relating to
fire prevention requirements.
!DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or
frayed. Use Champion electrical cords only for proper
application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes.
!WARNING
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
!WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
!WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
!CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
!CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then
turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
!CAUTION
Improper treatment or use of the generator can damage it,
shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
!WARNING
Medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or
medical appliances.
Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
Fuel Safety
!DANGER
GASOLINE, GASOLINE VAPORS AND PROPANE (LPG) ARE
HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of
fuel is not turned OFF, then an explosion hazard could be
created.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline
needs room to expand if temperatures rise.
LPG:
–LPG is highly flammable and explosive.
–LPG is under pressure and can cause a fire or explosion if
ignited.
–LPG is heavier than air and can settle in low places while
dissipating.
–LPG has a distinctive odor added to help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless the fuel supply valve is turned OFF. This is because if
a fire is extinguished and a supply of fuel is not turned OFF,
then an explosion hazard could be created.
–When exchanging LPG cylinders, be sure the cylinder valve
is of the same type.
–Always keep the LPG cylinder in an upright position.
–LPG will burn skin if it comes in contact with it. Keep any
and all LPG away from skin at all times.
When adding or removing gasoline:
Turn the generator off and let it cool for at least two minutes
before removing the gasoline cap. Loosen the cap slowly to
relieve pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Use an approved container to transfer the fuel to the
generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gasoline cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Allow spilled gasoline to evaporate fully before attempting to
start the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel valve is in the OFF position, the
gasoline tank is empty.
For LPG compatible models, be sure that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or
have automatic ignitions.
!WARNING
Never use a gasoline container, gasoline tank, LPG
connector hose, LPG cylinder or any other fuel item that is
damaged or appears damaged.

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Clearance. Keep all objects at least 5 feet from this machine. Heat from the muffler and exhaust
gas can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can
cause severe burns or death. Operation of this equipment may create sparks that can start fires
around dry vegetation. A spark arrestor may be required. The operator should contact local fire
agencies for laws or regulations relating to fire prevention requirements.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
START
STOP
Fuel Valve ON.
Fuel Valve OFF.
Choke. Pull choke knob out to
“CHOKE” position.
Choke. Push choke knob in to “RUN”
position.
Economy Mode Switch
SYMBOL MEANING
Low Oil
Overload
Output OK
Ground Terminal
Neutral Floating. Neutral circuit IS
NOT electrically connected to the
frame/ground of the generator.
Circuit Breaker Reset: Push
Parallel Connection(s)
AC Reset

100455 - 2000W PORTABLE INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Top
A
Safety Labels

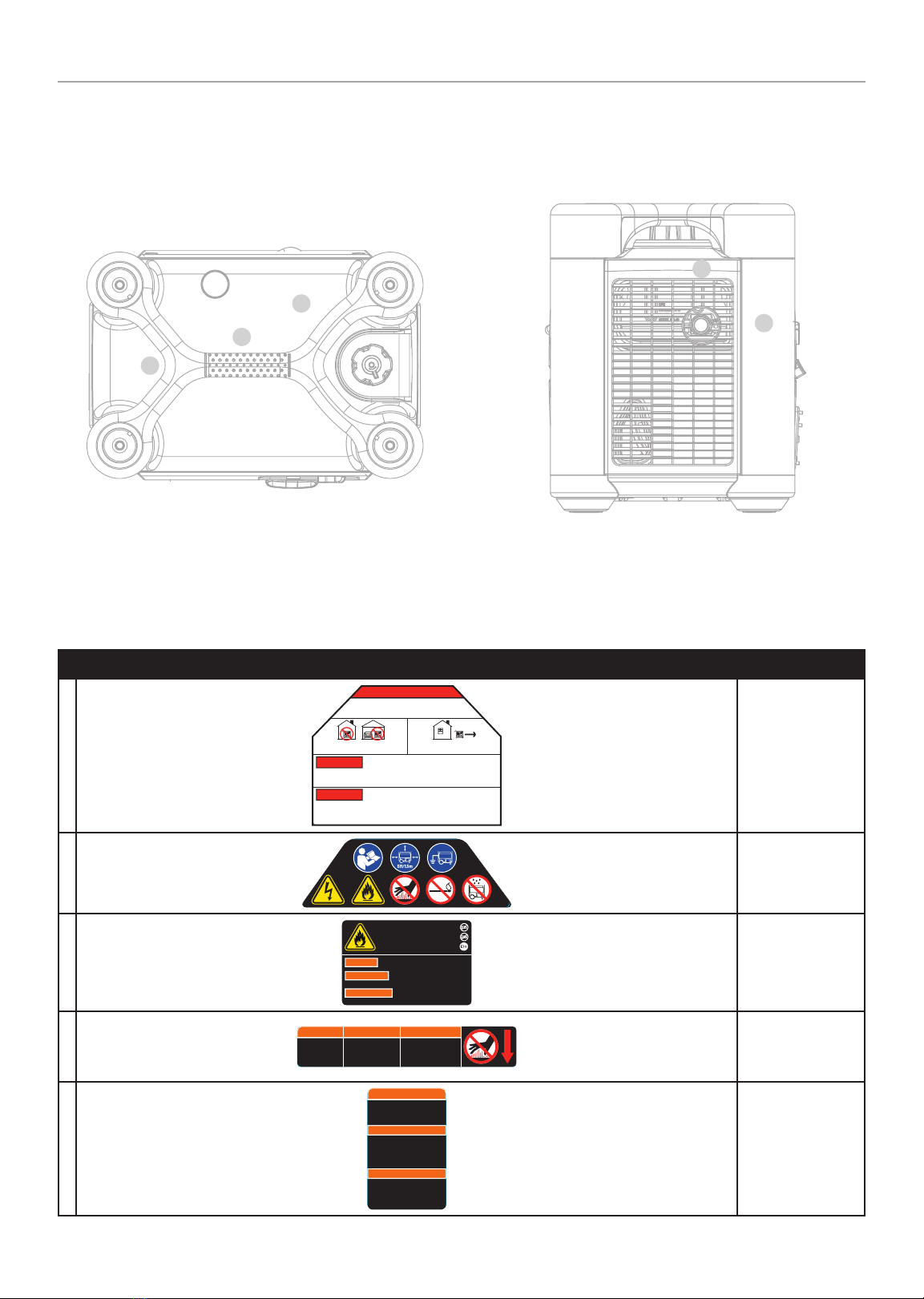

These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Muffler Side
D
E
LABEL DESCRIPTION
A
1162- L-SF- A
El uso de un generador en interiores PUEDE MATARLO EN
MINUTOS. El escape del generador contiene monóxido de
carbono. Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro
del hogar ni el garaje, INCLUSO SI las puertas y ventanas están abiertas. Úselo
SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
Using a generator indoors CAN KILL YOU IN
MINUTES. Generator exhaust contains carbon
monoxide. This is a poison you cannot see or smell.
!DANGER
!PELIGRO
ONLY use OUTSIDE and far away
from windows, doors, and vents.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN
QUELQUES MINUTES. L’éch ap pe me n t du générate ur
contient du monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni
voir ni sentir. Ne l’utilisez JAMAIS dans la maison ou le garage MÊME SI les
portes et les fenêtres sont ouvertes. Utilisez-le UNIQUEMENT À L’EXTÉRIEUR,
loin des fenêtres, portes et trappes de ventilation.
!DANGER
CO Danger
B
1161- L-SF-A
Safety Icons
C
UNLE ADED FUEL O NLY. Minimum octane rating
of 85. Ma ximum 10% ethanol.
GASO LINA REGU LAR SOL AMENTE. 85 octanos
como mínimo. Máximo de etanol de 10%.
ESSE NCE SANS PLO MB SEULEME NT. Indice
d’octane minimal de 85. Maximum 10 % d'éthanol.
1227- L-SF-A
!WARNING To preven t vapor l ock in t he fuel tan k, DO NOT close t he fuel
vent until engine has cooled for at least 15 minutes.
!ADVERTENCIA Para prevenir el bloqueo de vapor en el tanque del
combus tible, NO apague la válvula de ventilación
hasta que el motor se haya enfriado por 15 minutos.
!AVERTISSEMENT Pour empêcher le blocagede la vapeur dans le
réservoir de carburant, NE PAS éteindre la
soupape de ventilation tant que le moteur n'apa s refroidi pendant15 m inut es.
Fuel
D
!WARNING
DO NOT TO UCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
!ADVERTENCIA
¡NO TOC AR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CA LIENTES y
causan quemaduras.
!AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
1224 -L-SF- A
Hot Surface
E
!WARNING
!ADVERTENCIA
!AVERTISSEMENT
La operación de este equipo puede producir
chispas que pueden provocar incendios alrededor
de la vegetación seca. Un supresor de chispas
puede que sea necesario. El operador debe
comunicarse con las agencias locales de bomberos
para las leyes y reglamentos relativos a los
requisitos de prevención de incendios.Si está
instalado, limpie cada 100 horas o cada t emporada.
Cet équipement peut créer des étincelles et
provoquer un incendie dans la végétation sèche. Un
pare-étincelles peut être requis. L’opérateur doit
communiquer avec leser vice d’incendie local pour
connaître les lois et les règlements en matière de
prévention des incendies. Si elle est installée,
nettoyez toutes les 100 heures ou chaque saison.
Operation of this equipment maycreate sparks
that can start fires around dry vegetation. A spark
arrestor may be required. The operator should
contact local fire agencies for laws and regulations
relating to fire prevention requirements. If
installed, clean every 100 hour s or every season.
1223 -L-SF- A
Spark Arrestor
B
C

100455 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
10
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Carrying Handle –Used to lift or carry the unit.
2. Fuel Lever Vent – Turn this valve to the “ON” position to
supply air to the tank.
3. Fuel Cap – Remove to add fuel.
4. Control Panel –See “Control Panel” section.
5. Recoil Starter – Used to manually start the engine
6. Spark Plug Access Cover
7. Maintenance Cover
8. Muffler
1 6
7
8
2 3
4
5

100455 - 2000W PORTABLE INVERTER GENERATOR CONTROLS AND FEATURES
11
Control Panel
1. Oil Warning Indicator Light – When ON engine will shut
down and not run. Check oil level.
2. Overload Indicator Light – When ON generator is
overloaded and power to receptacles is cut.
3. Output Indicator Light – Remains ON during normal
operating conditions. Turns OFF when generator is
overloaded.
4. Economy Mode Switch – Enables/disables automatic idle
control.
5. Engine Switch – Used to START or STOP the generator.
6. Choke – Used to start the engine.
7. Fuel Valve Knob
8. AC Overload Reset Button
9. Parallel Outlets – Used for parallel operation.
10. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
RECEPTACLES
AA
120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single
phase, 60 Hz electrical loads.
Parts Included
Accessories
Oil Funnel..............................................................................1
Tools Needed
–Phillips Screw Driver
1
6
7 8 10
2 3 4 5
9
A

100455 - 2000W PORTABLE INVERTER GENERATOR ASSEMBLY
12
ASSEMBLY
Your generator requires some assembly. This unit ships from
our factory without oil. It must be properly serviced with fuel
and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Using the carrying handles of the unit, carefully remove
the generator from the box (two people lifting is
recommended).
Add Engine Oil
!CAUTION
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failure to
follow these instructions will void your warranty.
"NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
"NOTICE
The recommended oil type is 10W-30 automotive oil.
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Loosen the cover screws and remove the maintenance
cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 0.4 qt. (0.4 L) of oil (not included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.
5. Check engine oil level daily and add as needed.
"NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw in the
dipstick while checking.
"NOTICE
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
!CAUTION
The engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.

100455 - 2000W PORTABLE INVERTER GENERATOR ASSEMBLY
13
"NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary and help seat piston rings. After
the 5 hour break-in period, change the oil.
"NOTICE
Weather will affect engine oil and engine performance.
Change the type of engine oil used based on weather
conditions to suit the engine needs.
"NOTICE
Synthetic oil may be used after the 5 hour initial break-
in period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W-30 oil
will aid in starting in cold ambient <5º C (41º F).
Add Fuel
1. Use clean, fresh, regular unleaded gasoline with a
minimum octane rating of 85 and an ethanol content of
10% or less by volume. ybc
2. DO NOT mix oil with gasoline.
3. Remove the gasoline cap.
4. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼in. (6.4 mm) is recommended.
Gasoline can be forced out of the tank as a result of
expansion if overfilled, and can affect the stable running
condition of the generator.
5. Screw on the gasoline cap and wipe away any spilled fuel.
!CAUTION
Use regular unleaded gasoline with a minimum octane
rating of 85 and an ethanol content of 10% or less by
volume.
DO NOT mix oil and gasoline.
Fill tank to approximately ¼in. (6.4 mm) below the top of
the tank to allow for gasoline expansion.
DO NOT pump gasoline directly into the generator at the
pump. Use an approved container to transfer the gasoline to
the generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
DO NOT overfill the tank.
DO NOT light cigarettes or smoke when filling the tank.
!WARNING
Pouring gasoline too fast through the fuel screen may result
in blow back of gasoline at the operator while filling.
"NOTICE
Our engines work well with 10% or less ethanol blend
gasoline. When using ethanol-gasoline blends there are
some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These blends can eventually separate, leaving water or a
watery goo in the tank, fuel valve and carburetor.
–With gravity-fed supplies, the compromised gasoline can
be drawn into the carburetor and cause damage to the
engine and/or potential hazards.
–There are only a few suppliers of fuel stabilizer that are
formulated to work with ethanol-gasoline blends.
–Any damages or hazards caused by using improper
gasoline, improperly stored gasoline, and/or
improperly formulated stabilizers, are not covered by
manufacturer’s warranty.
It is advisable to always shut off the gasoline supply, run the
engine to starvation and drain the tank when the equipment
is not in use for more than 30 days.

100455 - 2000W PORTABLE INVERTER GENERATOR OPERATION
14
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
!WARNING
Failure to properly ground the generator can result in
electric shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.
OPERATION
Generator Location
NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local
utility. Generators used at construction sites may be subject
to additional rules and regulations. Generators should be on
a flat, level surface at all times. (Even while not in operation)
Generators must have at least 5 ft. (1.5 m) of clearance from
all combustible material. In addition to clearance from all
combustible material, generators must also have at least 3 ft.
(91.4 cm) of clearance on all sides to allow for adequate cooling,
maintenance and servicing. Generators should never be started
or operated in the back of a SUV, camper, trailer, in the bed of
a truck (regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that will not
allow for adequate cooling of the generator and/or the muffler.
DO NOT contain generators during operation. Allow generators
to properly cool before transport or storage.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up in your home
according to the manufacturer’s instructions.
Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
!WARNING
Do not operate or store the generator in rain, snow, or wet
weather.
Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.
!WARNING
During operation the muffler and exhaust fumes produced
will become hot. If adequate cooling and breathing space
are not supplied, or if the generator is blocked or contained,
temperatures can become extremely heated and may lead
to fire.
Grounding
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is
not functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground
of the generator.
–The generator system ground connects lower frame
cross-member below the alternator. The system ground is
connected to the AC neutral wire.
* See your model's control panel for specified type of grounding.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-
duration voltage fluctuations.

100455 - 2000W PORTABLE INVERTER GENERATOR OPERATION
15
Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.
3. Turn the fuel cap vent lever to the “ON” position.
4. Turn the fuel valve to the “ON” position.
5. Pull choke knob out to the “CHOKE” position.
6. Turn the engine switch to the “ON” position.
7. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
8. As engine warms up, push the choke knob in to the “Run”
position.
"NOTICE
Keep choke lever in “CHOKE” position for only 1 pull of the
recoil starter. After first pull, press the choke knob in to the
“Run” position for up to the next 3 pulls of the recoil starter.
Too much choke leads to spark plug fouling/engine flooding
due to the lack of incoming air. This will cause the engine
not to start.
"NOTICE
For gasoline restarts with hot engine in hot ambient
> 30°C (86°F): Keep the choke in 75% of the “CHOKE”
position for only 1 pull of the recoil starter. After first pull,
push choke to the “RUN” position for up to 3 more pulls
of the recoil starter. Too much choke leads to spark plug
fouling/engine flooding due to the lack of incoming air. This
will cause the engine not to start.
"NOTICE
For gas starting in cold ambient <15°C (59°F): The
choke must be in 100% of the “CHOKE” position for recoil
start procedures. Do not over-choke. As soon as engine
starts, push the choke knob in the “RUN” position.
"NOTICE
If the engine starts but does not continue to run make
certain that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will prevent the
engine from running when the oil level falls below a critical
threshold.

100455 - 2000W PORTABLE INVERTER GENERATOR OPERATION
16
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC
single phase, 60 Hz electrical loads.
–DO NOT connect 3-phase loads to the generator.
–DO NOT connect 50 Hz loads to the generator.
–DO NOT overload the generator.
!WARNING
Connecting a generator to your electric utility company’s
power lines or to another power source may be against
the law. In addition this action, if done incorrectly, could
damage your generator and appliances and could cause
serious injury or even death to you or a utility worker who
may be working on nearby power lines. If you plan to run a
portable electric generator during an outage, please notify
your electric utility company immediately and remember to
plug your appliances directly into the generator. Do not plug
the generator into any electric outlet in your home. Doing
so could create a connection to the utility company power
lines. You are responsible for ensuring that your generator’s
electricity does not feed back into the electric utility power
lines.
If the generator will be connected to a building electrical
system, consult your local utility company or a qualified
electrician. Connections must isolate generator power from
utility power and must comply with all applicable laws and
codes.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting
watts necessary for your purposes:
1. Select the electrical devices you plan on running at the
same time.
2. Total the running watts of these items. This is the amount
of power you need to keep your items running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Starting wattage is the extra burst
of power needed to start some electric driven equipment.
Following the steps listed under “Power Management” will
guarantee that only one device will be starting at a time.
Power Management
Use the following formula to convert voltage and amperage to
watts:
Volts ×Amps = Watts
To prolong the life of your generator and attached devices,
follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach the
item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
"NOTICE
Never exceed the specified capacity when adding loads to
the generator.

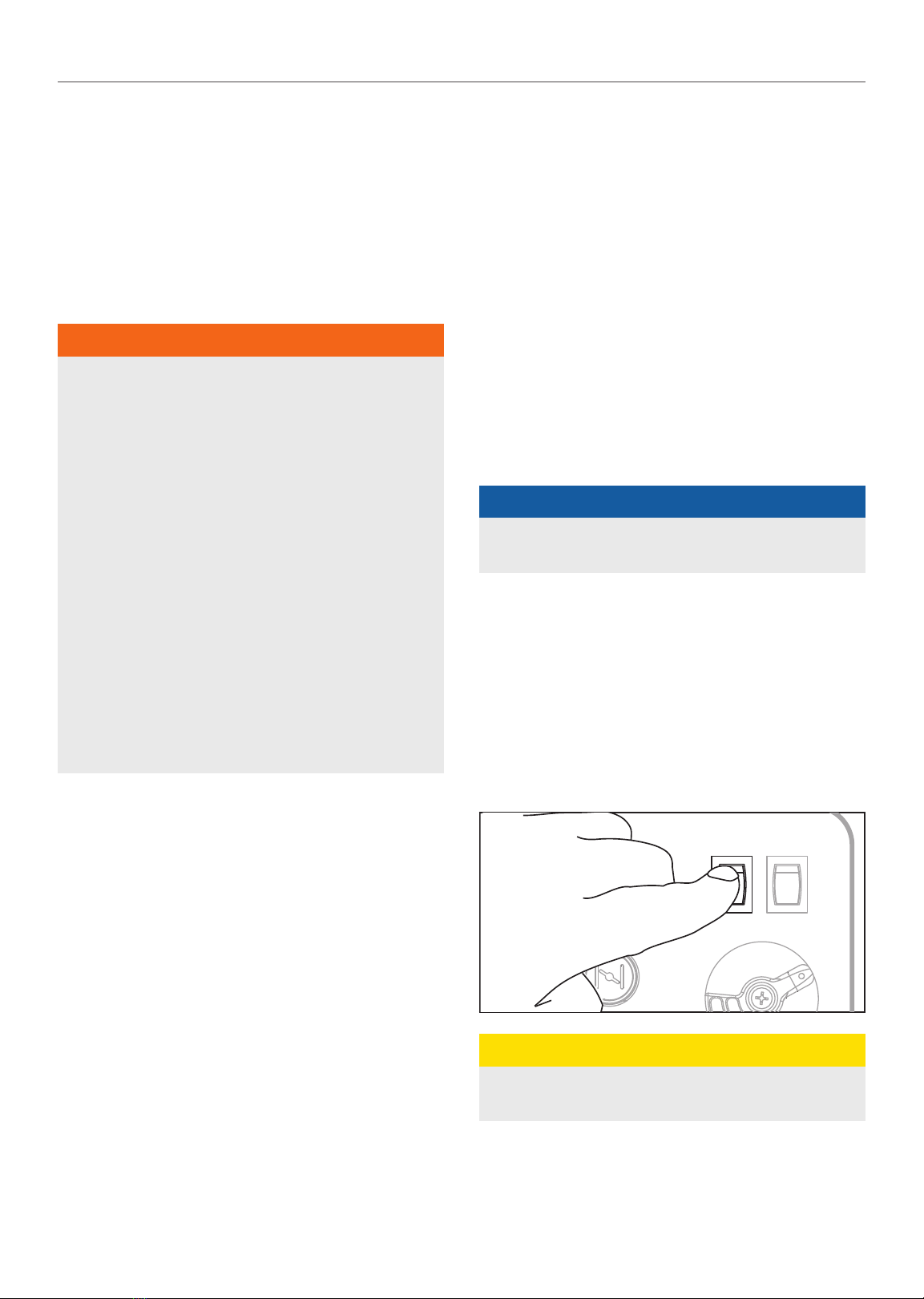

Eco Mode
The Eco Mode switch can be activated to turn on economy
control in order to minimize fuel consumption and noise while
operating the unit during times of reduced electrical output. Eco
Mode allows the engine speed to idle during periods of non-use.
The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at
normal speed continuously.
!CAUTION
For periods of high electrical load or momentary
fluctuations, the Eco Mode should be off.

100455 - 2000W PORTABLE INVERTER GENERATOR MAINTENANCE
17
Parallel Operation
The Champion model 100455 is parallel ready and can be
operated in parallel with another Champion unit to increase
the total available electrical power. A Champion model
100125 parallel kit (optional equipment) is required for parallel
operation. For a list of compatible models or to order a parallel
kit, please call customer service at 1-877-338-0999 or visit
www.championpowerequipment.com.
Detailed instructions for parallel kit installation and operation
of the connected generators are provided in the parallel kit
owner’s manual.
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start or stop
the generator with electrical devices plugged in or turned
on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Turn the fuel valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes.
5. Press the engine switch to the “OFF” position.
6. Turn the fuel cap lever vent to the “Off” position after the
generator has cooled down completely.
Important: Always ensure that the fuel valve and the engine
switch are in the “OFF” position when the generator is not in
use.
"NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
MAINTENANCE
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in a clean,
dry operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.
!WARNING
Never operate a damaged or defective generator.
!WARNING
Improper maintenance will void your warranty.
"NOTICE
Maintenance, replacement, or repair of emission control
devices and systems may be performed by any non-road
engine repair establishment or individual.
The owner/operator is responsible for all periodic maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating th e generator.
For service or parts assistance, contact our
Technical Support Team at 1-877-338-0999.
Cleaning the Generator
!CAUTION
DO NOT spray engine with water.
Water can enter the generator through the cooling slots and
damage the generator windings. It can also contaminate the
fuel system.
1. Use a damp cloth to clean exterior surfaces of the
generator.
2. Use a soft bristle brush to remove dirt and oil.
3. Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
4. Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
To prevent accidental starting, remove and ground the spark
plug wire before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade for your operating
environment.
1. Set the generator on top of a work bench or table.
2. Loosen the cover screws and remove the maintenance
cover.
3. Remove the oil filler cap.
4. Tilt the generator on its side and allow the oil to drain
completely.
5. Add oil according to “Add Engine Oil” on Assembly
section. DO NOT OVERFILL. Oil not included for routine
maintenance.

100455 - 2000W PORTABLE INVERTER GENERATOR MAINTENANCE
18

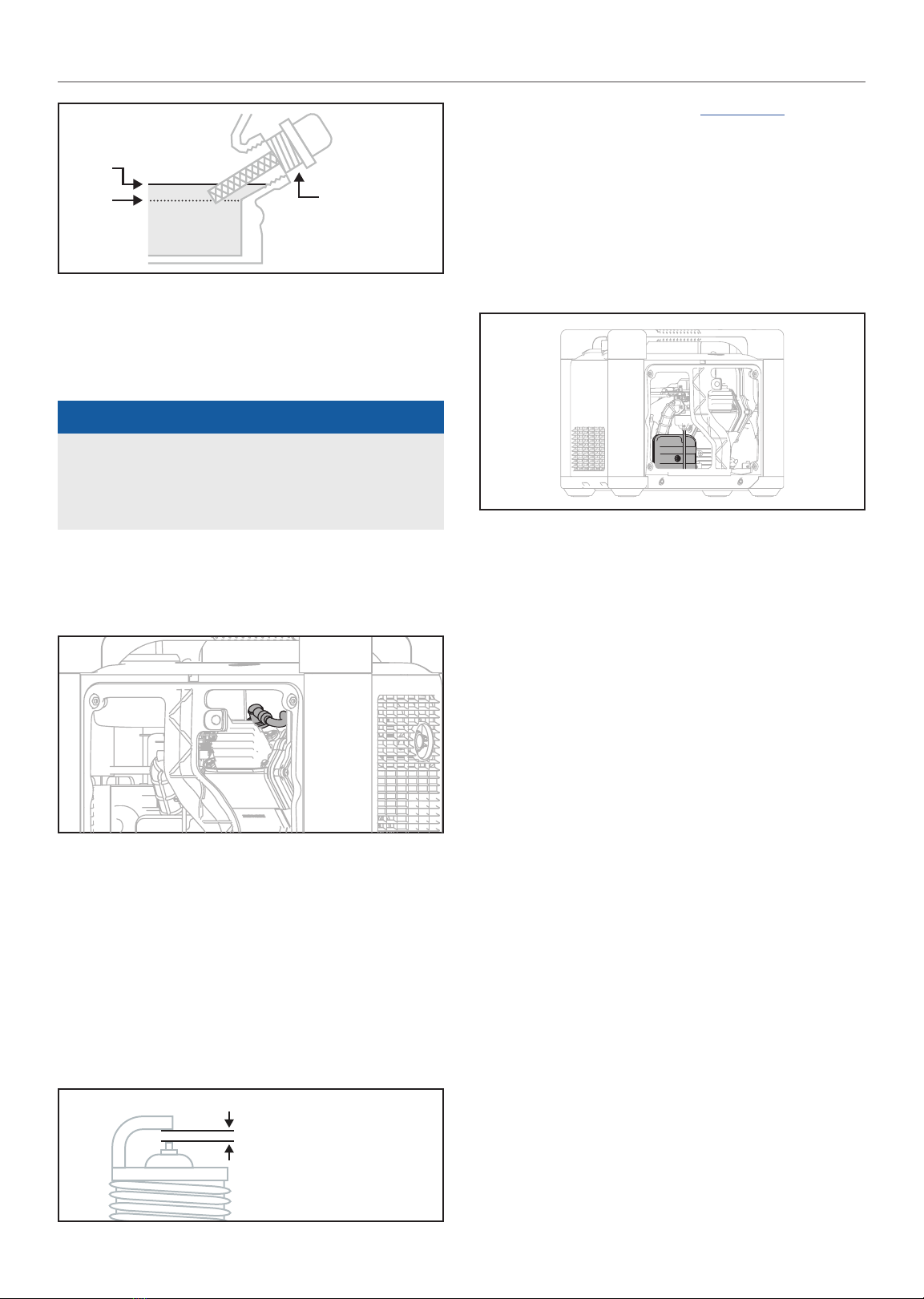

MAX
MIN OIL DIP STICK
6. Reinstall the maintenance cover and tighten the cover
screws.
7. Dispose of used oil at an approved waste management
facility.
"NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole. If using
the dipstick to check oil level, DO NOT screw in the dipstick
while checking.
Cleaning and Adjusting the Spark Plug(s)
1. Remove the maintenance cover.
2. Remove the spark plug cable from the spark plug.
2a. For 2000 Watt Inverters: Remove spark plug access
cap from the top panel.
3. Use a spark plug socket tool (not included), or a
13/16 in. (21 mm) socket (not included) to remove the plug.
4. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition.
5. Make certain the spark plug gap is
0.024-0.028 in. (0.6-0.7 mm).
SPARK PLUG GAP
6. Refer to the spark plug types in Specifications when
replacing the plug.
7. Firmly re-install the plug.
8. Attach the spark plug cable to the spark plug.
9. Reinstall the spark plug access cap (if applicable) and
maintenance cover.
Cleaning the Air Filter
1. Remove the maintenance cover.
2. Locate the air filter plastic cover. Remove the screw using
a Phillips head screwdriver.
3. Remove the foam element.
4. Wash in liquid detergent and water. Squeeze thoroughly dry
in a clean cloth.
5. Saturate in clean engine oil.
6. Squeeze in a clean, absorbent cloth to remove all excess
oil.
7. Place the filter in the assembly.
8. Reattach the air filter cover.
9. Reinstall the maintenance cover and tighten the cover
screw securely.
Cleaning the Spark Arrestor
1. Allow the engine to cool completely before servicing the
spark arrestor.
2. Loosen M6 ×22 bolts to remove two pillars.
3. Remove 4 screws to remove the muffler cover assembly.
4. Loosen the spark arrester clamp, remove the spark
arrester cover, and with a thin blade screwdriver remove
the spark arrester.
5. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.

100455 - 2000W PORTABLE INVERTER GENERATOR MAINTENANCE
19
Type 1 Type 2
* See your model’s parts list for specified type of spark arrestor.
6. Replace the spark arrestor if it is damaged.
7. Reattach spark arrester, cover assembly, and pillars.
!CAUTION
Failure to clean the spark arrestor will result in degraded
engine performance.
Adjusting the Governor
!WARNING
Tampering with the factory set governor will void your
warranty.
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. Contact our
Technical Support Team at 1-877-338-0999 for all other
service and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating in
adverse conditions.
Contact our Technical Support Team at 1-877-338-0999
to locate the nearest CPE certified service dealer for your
generator or engine maintenance needs.
EVERY 8 HOURS OR DAILY
#Check oil level
#Clean around air intake and muffler
FIRST 5 HOURS
#Change oil
EVERY 50 HOURS OR EVERY SEASON
#Clean air filter
#Change oil if operating under heavy load or in hot
environments
EVERY 100 HOURS OR EVERY SEASON
#Change oil
#Clean/adjust spark plug
#Check/adjust valve clearance*
#Clean spark arrestor
#Clean fuel tank and filter*
EVERY 250 HOURS
#Clean combustion chamber*
EVERY 3 YEARS
#Replace fuel line*
* To be performed by knowledgeable, experienced owners or CPE certified
service centers.

100455 - 2000W PORTABLE INVERTER GENERATOR STORAGE
20
STORAGE
!DANGER
Gasoline and gasoline vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death. Only
fill or drain fuel outdoors in a well-ventilated area. DO NOT
pump gasoline directly into the generator. Use an approved
container to transfer the fuel to the generator. Never use
a gasoline container, gasoline tank, or any other fuel item
that is damaged or appears damaged. DO NOT overfill the
gasoline tank. Always keep fuel away from sparks, open
flames, pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
Short Term Storage (up to 1 year)
Gasoline in the gasoline tank has a maximum shelf life of up to
1 year with the addition of properly formulated fuel stabilizers
and if stored in a cool, dry place. Gasoline in the carburetor,
however, may gum up and clog the carburetor if it isn’t used or
drained within 2-4 weeks.
1. Be sure all appliances are disconnected from the generator.
2. Add a properly formulated fuel stabilizer to the gasoline
tank.
3. Turn the fuel valve to the “ON” position.
4. Start and run the generator for 10 minutes so the treated
gasoline cycles through the fuel system and carburetor.
5. Turn engine switch to the “OFF” position and allow
generator to cool completely before continuing.
6. Option 1: Drain Gasoline from Carburetor
6a. Turn the fuel valve to the “OFF”.

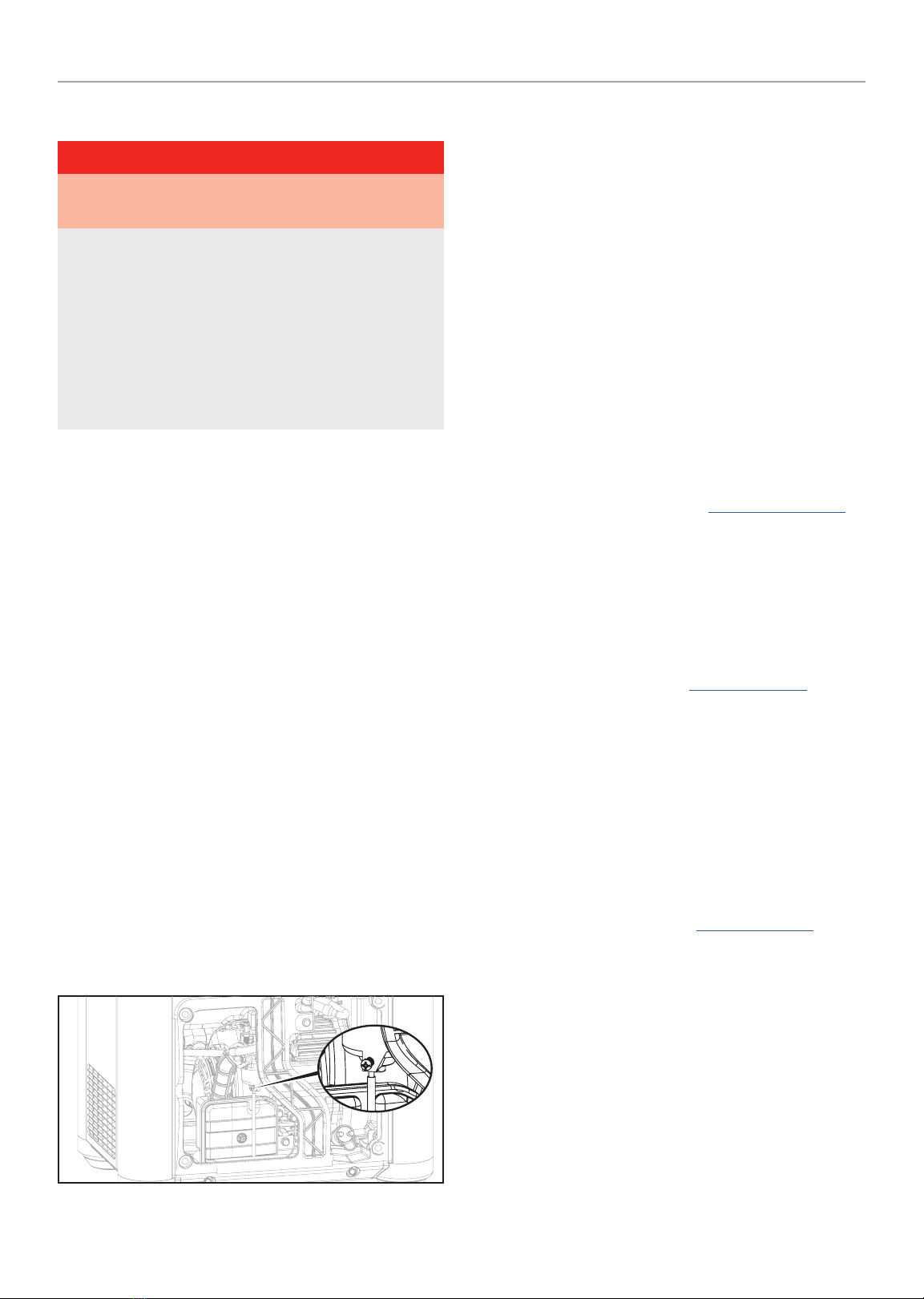

6b. Use the drain bolt on the carburetor to empty any
excess gasoline from the carburetor into an appropriate
container. Use a funnel (and appropriate hose if
necessary) under the carburetor drain bolt to avoid
spillage.
6c. When gasoline stops flowing from the carburetor,
replace and tighten the carburetor drain bolt and
be sure to properly dispose of the drained gasoline
according to local regulations or guidelines.
7. Option 2: Run Dry
7a. Turn engine switch to the “ON” position and start the
generator.
7b. With the generator running, turn the fuel valve to the
“OFF” position and allow the generator to run until the
engine stops from complete fuel starvation. This may
take a few minutes.
7c. Turn engine switch to the “OFF” position and allow
generator to cool completely before continuing.
8. Remove the spark plug cap and spark plug and pour about
a tablespoon of oil into the cylinder.
9. Pull the recoil slowly to crank the engine to distribute the
oil and lubricate the cylinder.
10. Reattach the spark plug and spark plug cap.
11. Clean the generator according to Cleaning the Generator.
12. Store the generator in a cool, dry place out of direct
sunlight.
Long Term Storage (more than 1 year)
For storage over 1 year, the gasoline tank and carburetor must
be completely drained of gasoline.
1. Follow steps 1-5 according to Short Term Storage.
2. Use the drain bolt on the carburetor to empty any excess
gasoline from the gasoline tank and carburetor into an
appropriate container. Use a funnel (and appropriate hose if
necessary) under the carburetor drain bolt to avoid spillage.
3. When gasoline stops flowing from the carburetor, replace
and tighten the carburetor drain bolt and be sure to
properly dispose of the drained gasoline according to local
regulations or guidelines.
4. Turn the fuel valve to the “OFF” position.
5. Follow steps 8-12 according to Short Term Storage.
Removing from Storage
If the generator has been improperly stored for a long period
of time with gasoline in the gasoline tank and/or carburetor, all
fuel must be drained and the carburetor must be thoroughly
cleaned. This process involves technically advanced tasks.
For assistance please call our Technical Support Team at
1-877-338-0999.
