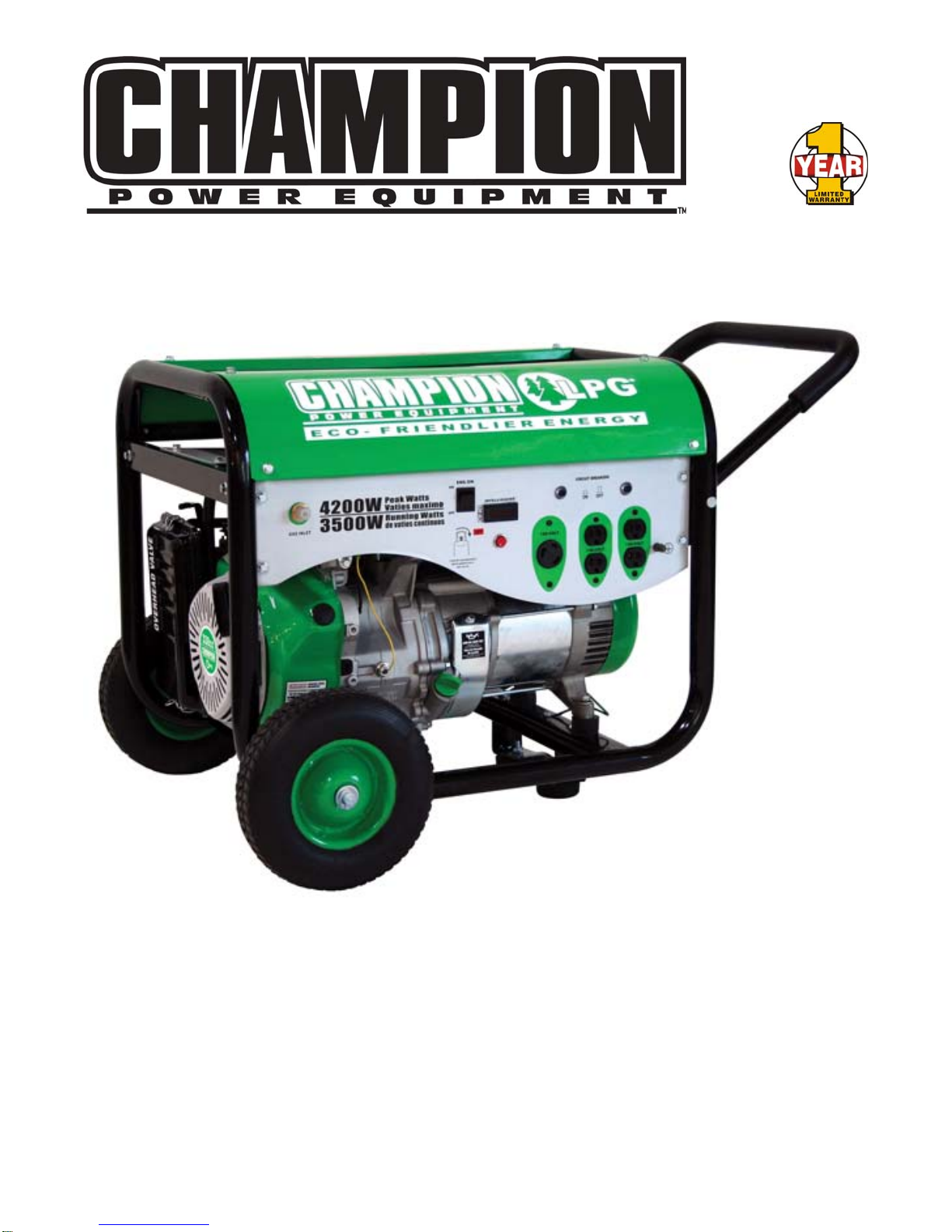

PO OR RT TA AB BL LE E G GE EN NE ER RA AT TO OR R
Owner’sManualandOperatingInstructions

Table of Contents
Introduction ..................................... 1
Portable Power Generator........................ 1
Accessories................................................ 1
This Booklet.............................................. 1
Manual Conventions.........................2
Safety Rules......................................3
Controls and Features.......................5
Generator.................................................. 5
Power Panel ..............................................6
Parts Included .......................................... 7
Assembly ..........................................8
Remove the Generator from
the Shipping Carton..................................8
Install the Wheel Kit.................................8
Install the Support Leg.............................8
Install the Spark Arrester .........................8
Add Engine Oil .........................................8
Connect LPG cylinder...............................9
Grounding.................................................9
Operation .......................................10
Generator Location................................. 10
Grounding............................................... 10
Surge Protection ..................................... 10
Starting the Engine................................. 10
Connecting Electrical Loads................... 10
Stopping the Engine ............................... 10
Do Not Overload Generator ....................11
Capacity................................................11
Power Management .............................11
Wattage Reference Chart........................ 12
Maintenance................................... 13
Engine Maintenance............................... 13
Oil........................................................ 13
Spark Plugs ......................................... 13
Air Filter.............................................. 13
Spark Arrester..................................... 14
Cleaning .............................................. 14
Adjustments........................................ 14
Maintenance Schedule........................ 14
Generator Maintenance.......................... 14
Storage ........................................... 15
Engine Storage........................................ 15
Generator Storage................................... 15
Specifications ................................. 16
Engine Specifications.............................. 16
Generator Specifications......................... 16
Fuel.......................................................... 16
Oil ............................................................ 16
Spark Plugs ............................................. 16
Valve Clearance....................................... 16
Parts Diagram ......................................... 17
Parts List .................................................18
Wiring Diagram ..................................... 20
Troubleshooting ............................. 21
Warranty ........................................22
Warranty Qualifications .........................22
Repair/Replacement Warranty ..............22
Do not return the unit to the place of
purchase..................................................22
Warranty Exclusions...............................22
Normal Wear.......................................22
Installation, Use and Maintenance.....22
Other Exclusions .................................22
Limits of Implied Warranty and
Consequential Damage ...........................22
Contact Information ...............................22
Address................................................22
Customer Service ................................22
Technical Service.................................22
Notes ..............................................26

Introduction
Rev 70008-20071026 1
Introduction
Congratulations on your purchase of a
Champion Power Equipment generator. CPE
designs and builds generators to strict
specifications. With proper use and
maintenance, this generator will bring years
of satisfying service.
Portable Power Generator
This unit is a liquefied petroleum gas (LPG)
engine driven, alternating current (AC)
generator. It is designed to supply electrical
power for lighting, appliances, tools and
similar equipment.
Accessories
Champion Power Equipment manufactures
and sells accessories designed to help you
get the most from your purchase. To find out
more about our covers, power cables and
storm kits, please visit our web site at
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the
accuracy and completeness of the
information in this manual. We reserve the
right to change, alter and/or improve the
product and this document at any time
without prior notice.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
Champion Power Equipment Support
1-877-338-0999
Model Number
70008
Serial Number
Date of Purchase
Purchase Location

Manual Conventions
2 Rev 70008-20071026
Manual Conventions
This manual uses the following symbols to
help differentiate between different kinds of
information. The safety symbol is used with
a key word to alert you to potential hazards
in operating and owning power equipment.
Follow all safety messages to avoid or reduce
the risk of serious injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
NOTE
If you have questions regarding your generator,
we can help. Please call our help line at 1-877-
338-0999.

Safety Rules
Rev 70008-20071026 3
Safety Rules
WARNING
Read this manual thoroughly before operating
your generator. Failure to follow instructions
could result in serious injury or death.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive
harm.
DANGER
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death.
Operate generator outdoors only in a well
ventilated area
DO NOT operate the generator inside any
building, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn,
damaged or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in
damp areas and areas containing conductive
material such as metal decking.
Use approved transfer equipment to isolate
generator from your electric utility and Notify
your utility company before connecting your
generator to your power system.
WARNING
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it
where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat.
Severe burns can occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all
sides to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.

Safety Rules
4 Rev 70008-20071026
DANGER
Propane (LPG) is highly flammable and explosive.
Fire or explosion can cause severe burns or death
if the gas is ignited.
Before starting the generator
Turn the generator off.
Inspect your LPG tank for damage or leaks.
Attach only approved tanks that have been
properly filled by an approved station.
DO NOT light or smoke cigarettes.
Replace the hose at the first sign of a leak or if
age-cracking becomes apparent.
When starting the generator
DO NOT attempt to start a damaged generator.
Make certain that the LPG tank, air filter, spark
plug, fuel lines and exhaust system are properly
in place.
Make certain that the generator resting firmly on
level ground.
When operating the generator:
DO NOT move or tip the generator during
operation.
DO NOT tip the generator or allow oil to spill.
When transporting or servicing the
generator:
Make certain that the LPG tank is disconnected
and properly shut off.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
WARNING
Rapid retraction of the starter cord will pull hand
and arm towards the engine faster than you can
let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to
avoid kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
CAUTION
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it
DO NOT overload the generator.
Start the generator and allow the engine to
stabilize before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect
before stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can
damage it, shorten its life and void your
warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling
slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
Electrical output is lost
Equipment sparks, smokes or emits flames
Equipment vibrates excessively

Controls and Features
Rev 70008-20071026 5
Controls and Features
Read this owner’s manual before operating your generator. Familiarize yourself with the location
and function of the controls and features. Save this manual for future reference.
Generator
(1) Fuel Valve – Turn this valve to the
“On” position to supply fuel to the engine..
(2) Choke – Used to start the engine.
(3) Air Cleaner – Protects the engine by
filtering dust and debris from the intake air.
(4) Gas Hose and Regulator – Protects
the engine by filtering dust and debris from
the intake air.
(5) Recoil Starter – Used to start the
engine
(6) Serial Number – Please have this
number available when calling for
assistance.
(7) Low Oil Sensor – Senses the level of
oil in the crankcase and shuts the engine
down if the level falls too low.
(8) Oil Filler Cap – Check and fill engine
oil level.
(9) Power Panel – See “Power Panel”

Controls and Features
6 Rev 70008-20071026
Power Panel
(1) Gas Inlet – Nipple for LPG hose
connection.
(2) Engine switch – Flip switch to the
“On” position to start the generator. Flip to
the “Off” position to turn off the generator.
(3) Circuit Breakers – Protects the
generator against electrical overload.
(4) Intelligauge – Three mode digital
meter for running hours, voltage and hertz.
(5) Parameter Button – Push-button
selector for the Intelligauge.
(6) 120 V 30 A Twist-Lock – protected by
a 30 A push-to-reset circuit breaker, this
receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 29.2 A or3500
Watts of power.
(7) 120 V 20 A Duplex – each receptacle
is protected by a 20 A push-to-reset circuit
breaker to operate 120 Volt AC, single phase,
60 Hz loads requiring up to 20 A 0r 2400
Watts of power.
(8) Ground Terminal – Consult an
electrician for local grounding regulations.

Controls and Features
Rev 70008-20071026 7
Parts Included
Your Model 70008 Gasoline Powered Generator ships with the following parts:
Wheel Kit
Axle 1 piece
8” Solid Wheel 2 pieces
Support Leg 1 piece
Vibration Mounts 2 pieces
Bolt Kit
Wheel Retaining Pins 2 pieces
Flat Washers 2 pieces
Cap Screws and Nuts 4 sets
Oil Funnel 1 piece
Wrench 1 piece
Spark Plug Socket 1 piece
Spark Arrester Kit
Spark Arrester 1 piece
Cover Plate 1 piece
Screws, Lock Washers 2 pieces
Gas Hose and Regulator 1 piece

Assembly
8 Rev 70008-20071026
Assembly
Your generator requires some assembly.
This unit ships from our factory without oil.
It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the
assembly of your generator, call our help
line at 1-877-338-0999. Please have your
serial number and model number available.
Remove the Generator from
the Shipping Carton
1. Set the shipping carton on a solid, flat
surface.
2. Remove everything from the carton
except the generator.
3. Carefully cut each corner of the box
from top to bottom. Fold each side flat
on the ground to provide a surface area
to install the wheel kit and support leg.
Install the Wheel Kit
CAUTION
The wheel kit is not intended for over-the-road
use.
You will need the following tools to install
the wheels:
12 mm wrench
Socket wrench with a 12 mm socket
Pliers
1. Before adding oil to the engine, tip the
generator slowly so that the engine side
is up.
2. Slide the axle through both mounting
brackets.
3. Slide a wheel onto the axel.
4. Place a washer on the end.
5. Install the cotter pin through the hole on
the end of the axle.
6. Carefully bend the legs of the cotter pin
back around the axle.
7. Repeat steps 3-6 to attach the second
wheel.
Install the Support Leg
1. Attach the rubber vibration mount to
the support leg with a cap screw
(M8x30) and lock nut (M8).
2. Attach the support leg to the generator
frame with cap screws (M8x20) and lock
nuts (M8).
3. Tip the generator slowly so that it rests
on the wheels and support leg.
Install the Spark Arrester
Insert the spark arrester screen into the
muffler outlet. Secure the spark arrester by
placing the cover plate over the end of the
screen, with the lettering facing outward.
Secure the cover plate with the two screws
and lock washers provided with the spark
arrester kit.
NOTE
Federal and local laws and administrative
requirements indicate when and where spark
arresters are required. When ordered, spark
arresters are required for operation of this
generator in National Forest lands. In California,
this generator must not be used on any forest-
covered land, brush-covered land, or grass-
covered land unless the engine is equipped with
a spark arrester.
CAUTION
Failure to install the spark arrester may result in
an increased risk of fire..
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine
before it has been properly filled with the
recommended type and amount of oil. Damage
to the generator as a result of failure to follow
these instructions will void your warranty.
1. Place the generator on a flat, level
surface.
2. Remove oil fill cap/dipstick to add oil.

Assembly
Rev 70008-20071026 9
3. Add 1.16 qt (1.1 L) of oil and replace oil
fill cap/dipstick. See “Specifications” for
oil recommendations based on
operating conditions.
4. Check engine oil level daily and add as
needed.
CAUTION
The engine is equipped with a low-oil-shutoff and
the will stop when the oil level in the crankcase
falls below the threshold level.
NOTE
Check oil often during the break-in period. Refer
to the Maintenance section for recommended
service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated
ball bearing that requires no additional lubrication
for the life of the bearing.
Connect LPG cylinder
This engine is certified to operate on liquid
petroleum gas (lpg).
1. Turn off the fuel valve on the generator.
2. Attach the LPG connector to the gas
inlet.
3. Open the manual shutoff valve on the
LPG cylinder.
4. Open the fuel valve on the generator.
WARNING
Liquefied Petroleum Gas is extremely flammable
and explosive.
If there is a strong smell of gas:
Close off the gas supply at the cylinder.
Use soapy water which will produce a large
bubble at the point of any leak, to check the
cylinder valve, connections and the generator.
Do not smoke or light a cigarette.
Contact a qualified technician to inspect and
repair the LPG system.
CAUTION
Use approved LP cylinders equipped with an OPD
(overfilling prevention device) valve.
Always keep the cylinder in a vertical position
with the valve on top and installed at ground
level on a flat surface
Cylinders must not be installed near any heat
source and should not be exposed to sun, rain,
dust and heat.
Regulators to be used on the cylinders must be
of the diameter as the cylinder valve.
Regulators should always be in the off position
when the cylinder is not in use.
Grounding
Your generator must be properly connected
to an appropriate ground to help prevent
electric shock.
WARNING
Failure to properly ground the generator can
result in electric shock.
A ground terminal connected to the frame of
the generator has been provided on the
power panel. For remote grounding, connect
of a length of heavy gauge (12 AWG
minimum) copper wire between the
generator ground terminal and a copper rod
driven into the ground. We strongly
recommend that you consult with a qualified
electrician to ensure compliance with local
electrical codes.

Operation
10 Rev 70008-20071026
Operation
Generator Location
Please consult your local authority. In some
areas, generators must be registered with
the local utility.
Generators used at construction sites may be
subject to additional rules and regulations.
This generator must have at least five feet of
clearance from combustible material. Leave
at least three feet of clearance on all sides of
the generator to allow for adequate cooling,
maintenance and servicing.
Place the generator in a well-ventilated area.
DO NOT place the generator near vents or
intakes where exhaust fumes could be drawn
into occupied or confined spaces. Carefully
consider wind and air currents when
positioning generator.
Grounding
The generator system ground connects the
frame to the ground terminals on the power
panel. The system ground is connected to
the AC neutral wire.
Surge Protection
CAUTION
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
Electronic devices, including computers and
many programmable appliances use
components that are designed to operate
within a narrow voltage range and may be
affected by momentary voltage fluctuations.
While there is no way to prevent voltage
fluctuations, you can take steps to protect
sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in
surge suppressors on the outlets feeding
your sensitive equipment.
Surge suppressors come in single- or
multi-outlet styles. They’re designed to
protect against virtually all short-
duration voltage fluctuations.
2. Obtain an Uninterruptible Power
Supply (UPS) device.
Most UPS devices come with a
rechargeable battery between the
electronic equipment and power supply
source. The device buffers the voltage
and protects against virtually all short-
duration voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat,
level surface.
2. Disconnect all electrical loads from the
generator. Never start or stop the
generator with electrical devices plugged
in or turned on.
3. Open the manual shutoff valve on the
LPG cylinder.
4. Turn the fuel valve to the “On” position.
5. Move the choke lever to the “Choke”
position.
6. Turn the engine switch on.
7. Pull the starter cord slowly until
resistance is felt and then pull rapidly
8. As engine warms up, move the choke
lever to “Run”.
NOTE
If the engine starts but does not run, make
certain that the generator is on a flat, level
surface. The engine is equipped with a low oil
sensor that will prevent the engine from running
when the oil level falls below a critical threshold.
Connecting Electrical Loads
1. Let the engine stabilize and warm up for
a few minutes after starting
2. Plug in and turn on the desired 120 Volt
AC single phase, 60 Hz electrical loads.
DO NOT connect 3-phase loads to the
generator.
DO NOT connect 50 Hz loads to the
generator.
DO NOT overload the generator.
Stopping the Engine
1. Turn off and unplug all electrical loads.
Never start or stop the generator with
electrical devices plugged in or turned
on.

Operation
Rev 70008-20071026 11
2. Let the generator run at no-load for
several minutes to stabilize internal
temperatures of the engine and
generator.
3. Turn the engine switch to the “Off”
position.
4. Turn the fuel valve to the “Off” position.
5. Close the OPD valve on the LPG
cylinder.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the
running and starting watts necessary for
your purposes.
1. Select the electrical devices you plan on
running at the same time.
2. Total the running watts of these items.
This is the amount of power you need to
keep your items running.
3. Identify the highest starting wattage of
all devices identified in step 1. Add this
number to the number calculated in step
2. Surge wattage is the extra burst of
power needed to start some electric
driven equipment. Following the steps
listed under “Power Management” will
guarantee that only one device will be
starting at a time.
Power Management
Use the following formula to convert voltage
and amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and
attached devices, follow these steps to add
electrical load:
1. Start the generator with no electrical
load attached.
2. Allow the engine to run for several
minutes to stabilize.
3. Plug in and turn on the first item. It is
best to attach the item with the largest
load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional
item.
NOTE
Never exceed the generator capacity when
adding loads.

Operation
12 Rev 70008-20071026
Wattage Reference Chart
Use the chart to determine approximate
wattage requirements for your equipment.
NOTE
Starting watts can exceed three times the
running watts. The values in the following table
are approximate. Refer to your tool or appliance
for actual wattage consumption.
Item Running
Watts Starting Watts
Essentials
Light Bulb 100W 100
Refrigerator/Freezer 1200 2400
Freezer 500 500
Sump Pump 600 1800
Well Pump 1 HP 2000 4000
Water Heater 4000
Security System 180
AM/FM Radio 300
Garage Door Opener 1/2 HP 500 600
Battery Charger 12V DC 110
Heating/Cooling
Air Conditioner 12000 BTU 1700 2500
Fan 300 600
Furnace Fan 1/3 HP 1200 2000
Home Appliances
Microwave 1000W 1000
Electric Range - One Element 1500
Electric Skillet 1250
Coffee Maker 1500
Clothes Washer 1200
Entertainment
CD/DVD Player 100
VCR 100
Stereo Receiver 450
Television 27" 500
PC with 15" Monitor 800
Job Site
Belt Sander 3" 1000 1500
Bench Grinder 6" 700 1500
Circular Saw 1500 1500
Compressor 1 1/2 HP 2500 2500
Edge Trimmer 500 500
Hand Drill 1/2" 1000 1000
Lawn Mower 1200 1800
Paint Sprayer 600 1200
Table Saw 2000 2000

Maintenance
Rev 70008-20071026 13
Maintenance
The owner/operator is responsible for all
periodic maintenance.
WARNING
Never operate a damaged or defective generator.
WARNING
Tampering with the factory set governor will void
your warranty.
WARNING
Improper maintenance will void your warranty.
Complete all scheduled maintenance in a
timely manner. Correct any issue before
operating the generator.
NOTE
For service or parts assistance, contact our help
line at 1-877-338-0999.
Engine Maintenance
To prevent accidental starting, remove and
ground spark plug wire before performing
any service.
Oil
Change oil when the engine is warm. Refer
to the oil specification to select the proper
grade of oil for your operating environment.
1. Remove the oil drain plug with a 15 mm
socket and extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 1.16 qt (1.1 L) of oil and replace oil
fill cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the
spark plug.
2. Use the spark plug tool that shipped
with your generator to remove the plug.
3. Inspect the electrode on the plug. It
must be clean and not worn to produce
the spark required for ignition.
4. Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
5. Refer to the spark plug recommendation
chart when replacing the plug.
6. Carefully thread the plug into the
engine.
7. Use the spark plug tool to firmly install
the plug.
8. Attach the spark plug wire to the plug.
Air Filter
1. Remove the snap-on cover holding the
air filter to the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water.
Squeeze thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to
remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in
place.

Maintenance
14 Rev 70008-20071026
Spark Arrester
1. Allow the engine to cool completely
before servicing the spark arrester.
2. Remove the two screws holding the
cover plate which retains the end of the
spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits
from the spark arrester screen with a
wire brush.
5. Replace the spark arrester if it is
damaged.
6. Position the spark arrester in the
muffler and attach with the two screws.
Cleaning
CAUTION
DO NOT spray engine with water.
Water can contaminate the fuel system.
Use a damp cloth to clean exterior surfaces
of the engine.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the engine.
Adjustments
The air-fuel mixture is not adjustable.
Tampering with the governor can damage
your generator and your electrical devices
and will void your warranty. CPE
recommends that you contact our service
line at 1-877-338-0999 for all other service
and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the
schedule below.
Service your generator more frequently
when operating in adverse conditions.
Contact our help line at 1-877-338-0999 to
locate the nearest Champion Power
Equipment certified service dealer for your
generator or engine maintenance needs.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load
or in hot environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
* To be performed by knowledgeable,
experienced owners or Champion Power
Equipment certified service dealers
Generator Maintenance
Make certain that the generator is kept clean
and stored properly. Only operate the unit
on a flat, level surface in a clean, dry
operating environment. DO NOT expose the
unit to extreme conditions, excessive dust,
dirt, moisture or corrosive vapors.
CAUTION
DO NOT use a garden hose to clean the
generator.
Water can enter the generator through the
cooling slots and damage the generator
windings.
Use a damp cloth to clean exterior surfaces
of the generator.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the generator.
Inspect all air vents and cooling slots to
ensure that they are clean and unobstructed.

Storage
Rev 70008-20071026 15
Storage
The generator should be started at least once
every 14 days and allowed to run for at least
20 minutes. For longer term storage, please
follow these guidelines.
Engine Storage
1. Allow the engine to cool completely
before storage.
2. Clean the engine according to the
instructions in the Maintenance section.
3. Change the oil.
4. Remove the spark plug and pour about
½ ounce of oil into the cylinder. Crank
the engine slowly to distribute the oil
and lubricate the cylinder.
5. Reattach the spark plug.
Generator Storage
1. Allow the generator to cool completely
before storage.
2. Turn off the fuel supply at the fuel valve.
3. Clean the generator according to the
instructions in the Maintenance section.
4. Store the unit in a clean, dry area.
5. Store in a clean, dry place out of direct
sunlight.

Specifications
16 Rev 70008-20071026
Specifications
Engine Specifications
Engine 338 cc OHV CPE
CARB and EPA certified
Generator Specifications
Running Wattage 3500 Watts
Starting Wattage 4200 Watts
AC Load 120 V
Phase Single
Frequency 60 Hz
Fuel Capacity Liquefied Petroleum Gas
Weight 174.17 lbs. (79 kg)
Height 28.35 inches (72.0 cm)
Width 27.28 inches (69.3 cm)
Length 25.79 inches (65.5 cm)
Fuel
Use only an approved LPG cylinder
equipped with an OPD valve.
Flow rate: ≥2.0 kg/hr
Outlet pressure: 2.8 kpa ± 0.5 kpa
Oil
Oil capacity is 1.16 qt (1.1 L).
Spark Plugs
Your generator comes equipped with a ¾”
long reach plug (19mm)
Use only “Green Power” brand replacement
LPG spark plugs.
CAUTION
Failure to use the proper plug may damage your
engine and will void your warranty.
Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
Valve Clearance
Intake: 0.09 - 0.11 mm (.003 - .004 in.)
Exhaust: 0.11 - 0.13 mm (.004 - .005 in.)
