Champion Power Equipment CSA42412 Manual

CSA42412
RevC42412-20081001
10006SantaFeSpringsRoad
SantaFeSprings,CA90670USA
MadeinChina
1500PeakWatts/1200RunningWatts
PORTABLEGENERATOR
Owner’sManualandOperatingInstructions

Table of Contents
Introduction ..................................... 1
Portable Power Generator........................ 1
Accessories................................................ 1
This Booklet.............................................. 1
Manual Conventions.........................2
Safety Rules......................................3
Controls and Features.......................5
Generator..................................................5
Power Panel..............................................6
Parts Included .......................................... 7
Assembly ..........................................8
Remove the Generator from the Shipping
Carton .......................................................8
Add Engine Oil .........................................8
Add Fuel....................................................8
Grounding.................................................9
Operation .......................................10
Generator Location.................................10
Grounding...............................................10
Surge Protection..................................... 10
Starting the Engine.................................10
Connecting Electrical Loads...................10
Stopping the Engine...............................10
Do Not Overload Generator ....................11
Capacity................................................11
Power Management.............................11
Wattage Reference Chart.........................11
Maintenance................................... 12
Engine Maintenance............................... 12
Oil........................................................ 12
Spark Plugs ......................................... 12
Air Filter.............................................. 12
Spark Arrester (if installed)................ 13
Cleaning .............................................. 13
Adjustments........................................ 13
Maintenance Schedule........................ 13
Generator Maintenance.......................... 13
Storage ........................................... 14
Engine Storage........................................ 14
Generator Storage................................... 14
Specifications ................................. 15
Engine Specifications..............................15
Generator Specifications.........................15
Fuel.......................................................... 15
Oil............................................................15
Spark Plugs .............................................15
Valve Clearance....................................... 15
Parts Diagram.........................................16
Parts List ................................................. 17
Wiring Diagram ......................................18
Troubleshooting .............................19
Warranty ........................................20
Warranty Qualifications ........................ 20
Repair/Replacement Warranty............. 20
Do not return the unit to the place of
purchase................................................. 20
Warranty Exclusions.............................. 20
Normal Wear...................................... 20
Installation, Use and Maintenance.... 20
Other Exclusions................................ 20
Limits of Implied Warranty and
Consequential Damage.......................... 20
Contact Information .............................. 20
Address............................................... 20
Customer Service ............................... 20
Technical Service................................ 20
Notes .............................................. 21

Introduction
Rev CSA42412-20081001 1
Introduction
Congratulations on your purchase of a
Champion Power Equipment generator. CPE
designs and builds generators to strict
specifications. With proper use and
maintenance, this generator will bring years
of satisfying service.
Portable Power Generator
This unit is a gasoline engine driven,
alternating current (AC) generator. It is
designed to supply electrical power for
lighting, appliances, tools and similar
equipment.
Accessories
Champion Power Equipment manufactures
and sells accessories designed to help you
get the most from your purchase. To find out
more about our covers, power cables and
storm kits, please visit our web site at
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the
accuracy and completeness of the
information in this manual. We reserve the
right to change, alter and/or improve the
product and this document at any time
without prior notice.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
Champion Power Equipment Support
1-877-338-0999
Model Number
CSA42412
Serial Number
Date of Purchase
Purchase Location

Manual Conventions
2 Rev CSA42412-20081001
Manual Conventions
This manual uses the following symbols to
help differentiate between different kinds of
information. The safety symbol is used with
a key word to alert you to potential hazards
in operating and owning power equipment.
Follow all safety messages to avoid or reduce
the risk of serious injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
NOTE
If you have questions regarding your generator,
we can help. Please call our help line at 1-877-
338-0999.

Safety Rules
Rev CSA42412-20081001 3
Safety Rules
WARNING
Read this manual thoroughly before operating
your generator. Failure to follow instructions
could result in serious injury or death.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive
harm.
DANGER
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death.
Operate generator outdoors only in a well
ventilated area
DO NOT operate the generator inside any
building, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn,
damaged or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in
damp areas and areas containing conductive
material such as metal decking.
Use approved transfer equipment to isolate
generator from your electric utility and Notify
your utility company before connecting your
generator to your power system.
WARNING
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it
where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat.
Severe burns can occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all
sides to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.

Safety Rules
4 Rev CSA42412-20081001
DANGER
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or
death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel
Turn the generator off and let it cool for at least
two minutes before removing the fuel cap.
Loosen the cap slowly to relieve pressure in the
tank.
Only fill or drain fuel outdoors in a well-ventilated
area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark
plug, fuel lines and exhaust system are properly
in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly
on level ground.
When operating the generator:
DO NOT move or tip the generator during
operation.
DO NOT tip the generator or allow fuel or oil to
spill.
When transporting or servicing the
generator:
Make certain that the fuel shutoff valve is in the
off position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
WARNING
Rapid retraction of the starter cord will pull hand
and arm towards the engine faster than you can
let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to
avoid kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
CAUTION
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it
DO NOT overload the generator.
Start the generator and allow the engine to
stabilize before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect
before stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can
damage it, shorten its life and void your
warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling
slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
Electrical output is lost
Equipment sparks, smokes or emits flames
Equipment vibrates excessively

Controls and Features
Rev CSA42412-20081001 5
Controls and Features

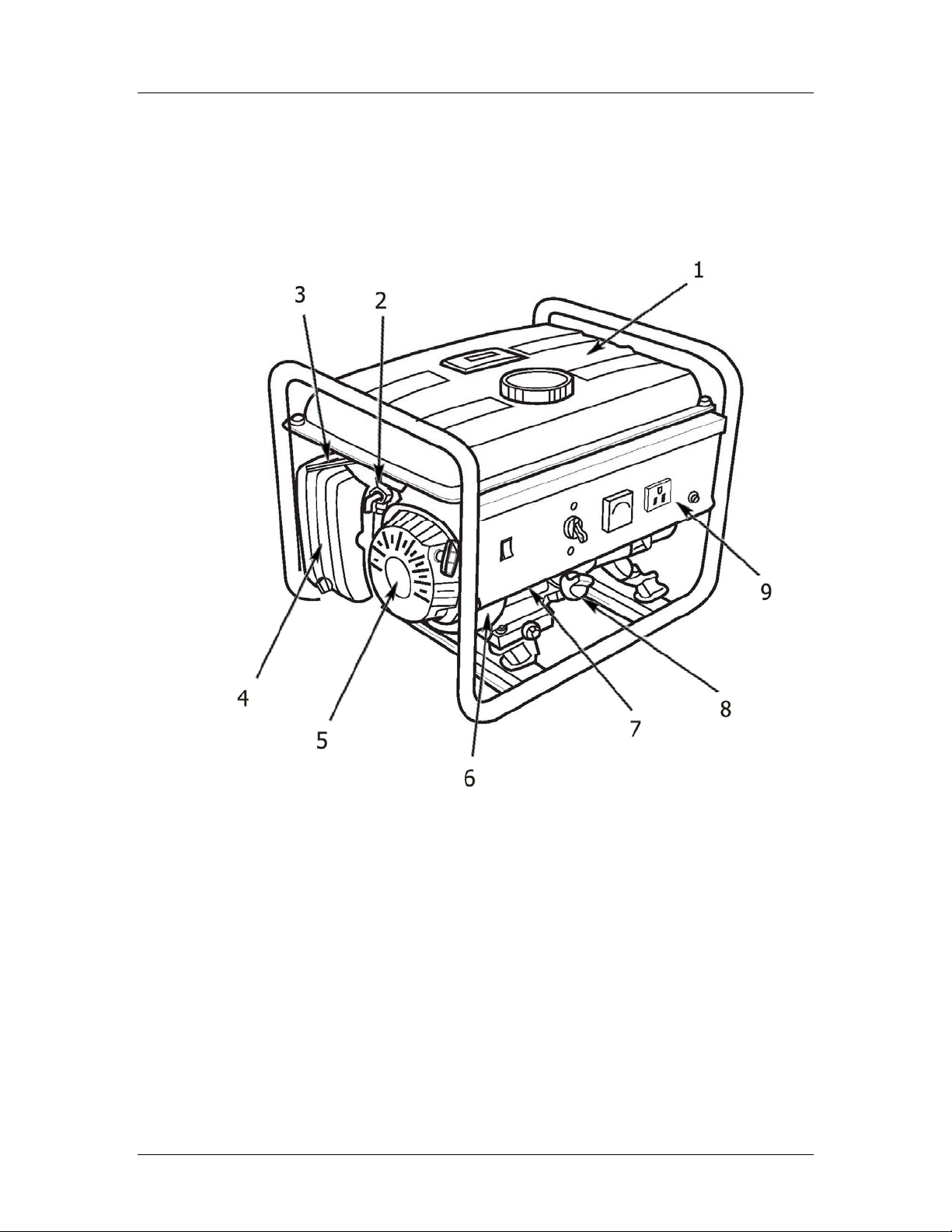

Read this owner’s manual before operating your generator. Familiarize yourself with the location
and function of the controls and features. Save this manual for future reference.
Generator
Fuel Tank (1) – 1.45 gallon (5.5 L) capacity
fuel tank.
Fuel Valve (2) – Turn this valve to the
“On” position to supply fuel to the engine.
Choke (3) – Used to start the engine
Air Cleaner (4) – Protects the engine by
filtering dust and debris from the intake air.
Recoil Starter (5) – Used to start the
engine
Serial Number (6) – Please have this
number available when calling for
assistance.
Low Oil Sensor (7) – Senses the level of
oil in the crankcase and shuts the engine
down if the level falls too low.
Oil Filler Cap (8) – Check and fill engine
oil level.
Power Panel (9) – See “Power Panel”

Controls and Features
6
Power Panel
(1) Engine Switch – Flip the switch to the
“On” position and pull the recoil starter to
start the generator. Turn to the “Off”
position to turn off the generator.
(2) Circuit Breaker – Protects the
generator against electrical overload.
(3) Voltmeter – Displays the output
voltage of the generator.
(4) 120 V 10 A Outlet – Protected by a 10
A circuit breaker. This receptacle powers 120
Volt AC, 60 Hz, single phase loads requiring
up to 10 A or 1200 watts of power.
(5) Ground Bolt - Consult an electrician
for local grounding regulations.

Controls and Features
Rev CSA42412-20081001 7
Parts Included
Your CSA42412 Gasoline Powered Generator ships with the following parts:
Oil Funnel 1 piece
Spark Plug Socket 1 piece

Assembly
8 Rev CSA42412-20081001
Assembly
Your generator requires some assembly.
This unit ships from our factory without oil.
It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the
assembly of your generator, call our help
line at 1-877-338-0999. Please have your
serial number and model number available.
Remove the Generator from
the Shipping Carton
1. Set the shipping carton on a solid, flat
surface.
2. Remove everything from the carton
except the generator.
3. Carefully cut each corner of the box
from top to bottom. Fold each side flat
on the ground to provide a surface area
to install the wheel kit and support leg.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine
before it has been properly filled with the
recommended type and amount of oil. Damage
to the generator as a result of failure to follow
these instructions will void your warranty.
1. Place the generator on a flat, level
surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add 0.42 qt (0.4 L) of oil and replace oil
fill cap/dipstick.
4. Check engine oil level daily and add as
needed.
CAUTION
The engine is equipped with a low-oil-shutoff and
the will stop when the oil level in the crankcase
falls below the threshold level.
NOTE
Check oil often during the break-in period. Refer
to the Maintenance section for recommended
service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated
ball bearing that requires no additional lubrication
for the life of the bearing.
Add Fuel
1. Use clean, fresh, regular unleaded fuel
with a minimum octane rating of 85.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap
5. Slowly add fuel to the tank. DO NOT
overfill. Allow approximately ¼ inch of
space for fuel expansion.
6. Screw on the fuel cap and wipe away any
spilled fuel.

Assembly
Rev CSA42412-20081001 9
CAUTION
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼” below the top of
the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running
or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
Grounding
Your generator must be properly connected
to an appropriate ground to help prevent
electric shock.
WARNING
Failure to properly ground the generator can
result in electric shock.
A ground terminal connected to the frame of
the generator has been provided on the
power panel. For remote grounding, connect
of a length of heavy gauge (12 AWG
minimum) copper wire between the
generator ground terminal and a copper rod
driven into the ground. We strongly
recommend that you consult with a qualified
electrician to ensure compliance with local
electrical codes.

Operation
10 Rev CSA42412-20081001
Operation
Generator Location
Please consult your local authority. In some
areas, generators must be registered with
the local utility.
Generators used at construction sites may be
subject to additional rules and regulations.
This generator must have at least five feet of
clearance from combustible material. Leave
at least three feet of clearance on all sides of
the generator to allow for adequate cooling,
maintenance and servicing.
Place the generator in a well-ventilated area.
DO NOT place the generator near vents or
intakes where exhaust fumes could be drawn
into occupied or confined spaces. Carefully
consider wind and air currents when
positioning generator.
Grounding
The generator system ground connects the
frame to the ground terminals on the power
panel. The system ground is connected to
the AC neutral wire.
Surge Protection
CAUTION
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
Electronic devices, including computers and
many programmable appliances use
components that are designed to operate
within a narrow voltage range and may be
affected by momentary voltage fluctuations.
While there is no way to prevent voltage
fluctuations, you can take steps to protect
sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in
surge suppressors on the outlets feeding
your sensitive equipment.
Surge suppressors come in single- or
multi-outlet styles. They’re designed to
protect against virtually all short-
duration voltage fluctuations.
2. Obtain an Uninterruptible Power
Supply (UPS) device.
Most UPS devices come with a
rechargeable battery between the
electronic equipment and power supply
source. The device buffers the voltage
and protects against virtually all short-
duration voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat,
level surface.
2. Disconnect all electrical loads from the
generator. Never start or stop the
generator with electrical devices plugged
in or turned on.
3. Turn the fuel valve to the “On” position.
4. Turn the engine switch to the “On”
position.
5. Move the choke lever to the “Choke”
position.
6. Pull the starter cord slowly until
resistance is felt and then pull rapidly
7. As engine warms up, move the choke
lever to “Run”.
NOTE
If the engine starts but does not run, make
certain that the generator is on a flat, level
surface. The engine is equipped with a low oil
sensor that will prevent the engine from running
when the oil level falls below a critical threshold.
Connecting Electrical Loads
1. Let the engine stabilize and warm up for
a few minutes after starting
2. Plug in and turn on the 120 Volt AC
single phase, 60 Hz electrical loads.
DO NOT connect 3-phase loads to the
generator.
DO NOT connect 50 Hz loads to the
generator.
DO NOT overload the generator.
Stopping the Engine
1. Turn off and unplug all electrical loads.
Never start or stop the generator with
electrical devices plugged in or turned
on.

Operation
Rev CSA42412-20081001 11
2. Let the generator run at no-load for
several minutes to stabilize internal
temperatures of the engine and
generator.
3. Turn the ignition switch to the “Off”
position.
4. Turn the fuel valve to the “Off” position.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the
running and starting watts necessary for
your purposes.
1. Select the electrical devices you plan on
running at the same time.
2. Total the running watts of these items.
This is the amount of power you need to
keep your items running.
3. Identify the highest starting wattage of
all devices identified in step 1. Add this
number to the number calculated in step
2. Surge wattage is the extra burst of
power needed to start some electric
driven equipment. Following the steps
listed under “Power Management” will
guarantee that only one device will be
starting at a time.
Power Management
Use the following formula to convert voltage
and amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and
attached devices, follow these steps to add
electrical load:
1. Start the generator with no electrical
load attached.
2. Allow the engine to run for several
minutes to stabilize.
3. Plug in and turn on the first item. It is
best to attach the item with the largest
load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional
item.
NOTE
Never exceed the generator capacity when
adding loads.
Wattage Reference Chart
Use the chart to determine approximate
wattage requirements for your equipment.
NOTE
Starting watts can exceed three times the
running watts. The values in the following table
are approximate. Refer to your tool or appliance
for actual wattage consumption.
Item Running
Watts Starting Watts
Essentials
Light Bulb 100W 100
Refrigerator/Freezer 1200 2400
Freezer 500 500
Sump Pump 600 1800
Well Pump 1 HP 2000 4000
Water Heater 4000
Security System 180
AM/FM Radio 300
Garage Door Opener 1/2 HP 500 600
Battery Charger 12V DC 110
Heating/Cooling
Air Conditioner 12000 BTU 1700 2500
Fan 300 600
Furnace Fan 1/3 HP 1200 2000
Home Appliances
Microwave 1000W 1000
Electric Range - One Element 1500
Electric Skillet 1250
Coffee Maker 1500
Clothes Washer 1200
Entertainment
CD/DVD Player 100
VCR 100
Stereo Receiver 450
Television 27" 500
PC with 15" Monitor 800
Job Site
Belt Sander 3" 1000 1500
Bench Grinder 6" 700 1500
Circular Saw 1500 1500
Compressor 1 1/2 HP 2500 2500
Edge Trimmer 500 500
Hand Drill 1/2" 1000 1000
Lawn Mower 1200 1800
Paint Sprayer 600 1200
Table Saw 2000 2000

Maintenance
12 Rev CSA42412-20081001
Maintenance
The owner/operator is responsible for all
periodic maintenance.
WARNING
Never operate a damaged or defective generator.
WARNING
Tampering with the factory set governor will void
your warranty.
WARNING
Improper maintenance will void your warranty.
Complete all scheduled maintenance in a
timely manner. Correct any issue before
operating the generator.
NOTE
For service or parts assistance, contact our help
line at 1-877-338-0999.
Engine Maintenance
To prevent accidental starting, remove and
ground spark plug wire before performing
any service.

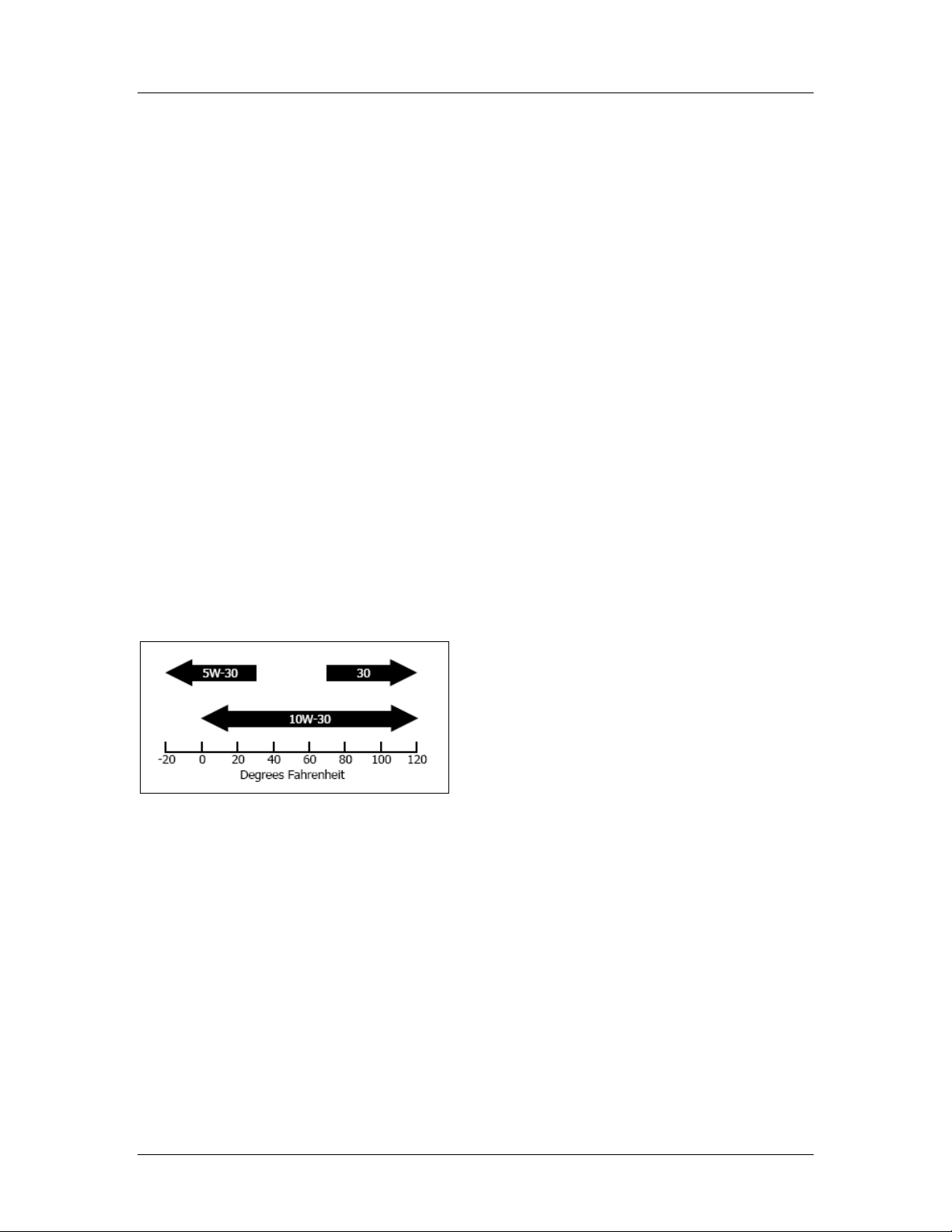

Oil
Change oil when the engine is warm. Refer
to the oil specification to select the proper
grade of oil for your operating environment.
1. Remove the oil drain plug with a 15 mm
socket and extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 0.42 qt (0.4 L) of oil and replace oil
fill cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the
spark plug.
2. Use the spark plug tool that shipped
with your generator to remove the plug.
3. Inspect the electrode on the plug. It
must be clean and not worn to produce
the spark required for ignition.
4. Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
5. Refer to the spark plug recommendation
chart when replacing the plug.
6. Carefully thread the plug into the
engine.
7. Use the spark plug tool to firmly install
the plug.
8. Attach the spark plug wire to the plug.
Air Filter
1. Remove the snap-on cover holding the
air filter to the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water.
Squeeze thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to
remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in
place.

Maintenance
Rev CSA42412-20081001 13
Spark Arrester (if installed)
1. Allow the engine to cool completely
before servicing the spark arrester.
2. Remove the two screws holding the
cover plate which retains the end of the
spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits
from the spark arrester screen with a
wire brush.
5. Replace the spark arrester if it is
damaged.
6. Position the spark arrester in the
muffler and attach with the two screws.
Cleaning
CAUTION
DO NOT spray engine with water.
Water can contaminate the fuel system.
Use a damp cloth to clean exterior surfaces
of the engine.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the engine.
Adjustments
The air-fuel mixture is not adjustable.
Tampering with the governor can damage
your generator and your electrical devices
and will void your warranty. CPE
recommends that you contact our service
line at 1-877-338-0999 for all other service
and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the
schedule below.
Service your generator more frequently
when operating in adverse conditions.
Contact our help line at 1-877-338-0999 to
locate the nearest Champion Power
Equipment certified service dealer for your
generator or engine maintenance needs.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
First 10 hours
Check/Adjust Valve Clearance *
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load
or in hot environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
* To be performed by knowledgeable,
experienced owners or Champion Power
Equipment certified service dealers
Generator Maintenance
Make certain that the generator is kept clean
and stored properly. Only operate the unit
on a flat, level surface in a clean, dry
operating environment. DO NOT expose the
unit to extreme conditions, excessive dust,
dirt, moisture or corrosive vapors.
CAUTION
DO NOT use a garden hose to clean the
generator.
Water can enter the generator through the
cooling slots and damage the generator
windings.
Use a damp cloth to clean exterior surfaces
of the generator.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the generator.
Inspect all air vents and cooling slots to
ensure that they are clean and unobstructed.

Storage
14 Rev CSA42412-20081001
Storage
The generator should be started at least once
every 14 days and allowed to run for at least
20 minutes. For longer term storage, please
follow these guidelines.
Engine Storage
1. Allow the engine to cool completely
before storage.
2. Clean the engine according to the
instructions in the Maintenance section.
3. Drain all fuel completely from the fuel
line and carburetor to prevent gum from
forming.
4. Add a fuel stabilizer into the fuel tank.
5. Change the oil.
6. Remove the spark plug and pour about
½ ounce of oil into the cylinder. Crank
the engine slowly to distribute the oil
and lubricate the cylinder.
7. Reattach the spark plug.
Generator Storage
1. Allow the generator to cool completely
before storage.
2. Turn off the fuel supply at the fuel valve.
3. Clean the generator according to the
instructions in the Maintenance section.
4. Store the unit in a clean, dry area.
5. Store in a clean, dry place out of direct
sunlight.

Specifications
Rev CSA42412-20081001 15
Specifications
Engine Specifications
Engine 80 cc OHV CPE
Generator Specifications
Running Wattage 1500 Watts
Starting Wattage 1200Watts
AC Load 120 V
Phase Single
Frequency 60 Hz
Fuel Capacity 1.45 gallons (5.5 L)
Weight 61.7 lbs. (28 kg)
Height 15 inches (38 cm)
Width 14.6 inches (37 cm)
Length 18.1 inches (46 cm)
Fuel
Fuel capacity is 1.45 US gallons (5.5L). Use
regular unleaded gasoline with a minimum
octane rating of 85.
Oil
Oil capacity is 0.42 qt (0.4 L).
Spark Plugs
Your generator comes equipped with a ¾”
long reach plug (18 mm)
Intermittent use (less than 1 hour/month) or
colder temperatures (below 60°F)
NGK B6ES or equivalent
Moderate use (less than 3 hours/month) or
seasonal temperatures (50-80°F)
NGK B7ES or equivalent
Extreme use (continuous) or hot climates
(80-100°F)
NGK B8ES or equivalent
Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
Valve Clearance
Intake 0.13-0.17mm (0.005 – 0.007 in.)
Exhaust 0.18-0.22mm (0.007 – 0.009 in.)

Specifications
16 Rev CSA42412-20081001
Parts Diagram

Specifications
17
Parts List
No Part # Description Qty
1 GB5781-86-B6-20 Bolt M6x22 1
2 GB859-86-SW6 Spring washerφ6 2
3 GB96-85-FW6 Flat washerφ6 2
4 GB41-86-N6 Nut M6 2
5 ST154FD-4010000-CSA Control panel 1
6 ST168F-1121100-C Engine switch 1
7 GB5789-86-FB6-12 Flange Bolt M6x12 6
8 ST154FD-4070000-CSA AC socket 5-15R 1
9 ST02FD-1151204-CSA Voltage meter 1
10 ST154FD-4000003-CSA Control panel cover 1
11 ST05FD-1151209 Conduit (metal）1
12 1610（CSA）AC circuit breaker(8.7A) 1
13 ST154FD-4040000-CSA Condenser 1
14 GB5789-86-FB6-12 Flange Bolt M6x12 3
15 ST152FD-2001001-CSA Control panel defend board 1
16 ST154FD-2000003 Vibration absorber 2
17 GB/T6177-2000-N8 Nut M8 10
18 GB5789-86-FB8-12 Flange Bolt M8x12 2
19 ST02FD-1151400 Vibration absorber 4
20 ST154FD-2000002 Vibration absorber 1
21 ST154FD-2000001 Vibration absorber 1
22 ST152FD-1000000 Engine 1
23 ST160F-1010002 Exhaust bolt 2
24 ST154FD-1100100 Exhaust gasket 1
25 ST154FD-1110000 Muffler 1
26 GB/T41-2000-N8 Nut M8 2
27 ST168FD-1160400 Fuel cock 1
28 ST168FD-1160100 Fuel meter 1
29 ST154FD-1070200 Fuel filter 1
30 ST168FD-1160200 Fuel tank cap 1
31 GB5789-86-FB6-20 Flange Bolt M6x20 4
32 ST168FD-1160300A Vibration absorber washer 4
33 ST154FD-1070005-CPE Clip 2
34 ST154FD-1070002-CPE Fuel hose 1
35 ST154FD-1070100 Fuel tank 1
36 ST01FD-03081000 Frame 1
37 ST154FD-3000005 Alternator front frame 1
38 GB5789-86-FB8-20 Flange Bolt M8x20 4
39 ST154FD-3001000-CSA Rotor assembly 1
40 ST154FD-3000006 Stator cover 1
41 ST154FD-3002000-CSA Stator assembly 1
42 ST154FD-3000007 Screw M8x170 1
43 ST154FD-11004000 Muffler support 1
44 ST154FD-3000008 Screw M6x90 4
45 GB16674-1996 Screw M5x12 2
46 GB859-87-SW8 Spring washerφ8 2
47 GB97.1-85-FW8 Flat washerφ8 2
48 ST154FD-3000001 Alternator rear cover 1
49 ST02FD-1151207-M Earth line 1
50 GB/T6177-86-N6 Nut M6 1
51 ST154FD-3000004 Rear frame 1
