Champion Power Equipment C44020 Manual

C44020
RevC44020-20080908
10006SantaFeSpringsRoad
SantaFeSprings,CA90670USA
MadeinChina
2”Semi-TrashPump
Owner’sManualandOperatingInstructions

Table of Contents
Introduction ..................................... 1
2” Semi-Trash Pump ................................ 1
Accessories................................................ 1
This Booklet.............................................. 1
Manual Conventions.........................2
Safety Rules......................................3
Controls and Features.......................5
Semi-Trash Pump.....................................5
Parts Included ..........................................6
Assembly ..........................................7
Remove the Semi-trash pump from the
Shipping Carton........................................7
Add Engine Oil .........................................7
Add Fuel....................................................7
Operation .........................................8
Semi-Trash Pump Location......................8
Connecting a Hose Kit..............................8
Starting the Engine...................................9
Stopping the Engine.................................9
Maintenance...................................10
Engine Maintenance...............................10
Oil........................................................ 10
Spark Plugs .........................................10
Air Filter..............................................10
Cleaning ...............................................11
Adjustments.........................................11
Maintenance Schedule.........................11
Storage ........................................... 12
Engine Storage........................................ 12
Semi-trash pump Storage....................... 12
Specifications ................................. 13
Engine Specifications..............................13
Semi-trash pump Specifications.............13
Fuel..........................................................13
Oil............................................................13
Spark Plugs .............................................13
Valve Clearance.......................................13
Parts Diagram.........................................14
Parts List.................................................15
Troubleshooting .............................16
Warranty ........................................ 17
Warranty Qualifications ......................... 17
Limited Repair/Replacement Warranty 17
Do not return the unit to the place of
purchase.................................................. 17
Warranty Exclusions............................... 17
Normal Wear....................................... 17
Installation, Use and Maintenance..... 17
Other Exclusions................................. 17
Limits of Implied Warranty and
Consequential Damage........................... 17
Contact Information ............................... 17
Address................................................ 17
Customer Service ................................ 17
Technical Service................................. 17
Notes ..............................................18

Introduction
Rev C44020-20080908 1
Introduction
Congratulations on your purchase of a
Champion Power Equipment semi-trash
pump. CPE designs and builds semi-trash
pumps to strict specifications. With proper
use and maintenance, this semi-trash pump
will bring years of satisfying service.
2” Semi-Trash Pump
This unit is a gasoline engine driven,
impeller based semi-trash pump. It is
designed to pump clear water with solids not
exceeding 3/16” (.45cm) diameter only.
Accessories
Champion Power Equipment manufactures
and sells accessories designed to help you
get the most from your purchase. To find out
more about our covers, hose kits and other
accessories, please visit our web site at
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the
accuracy and completeness of the
information in this manual. We reserve the
right to change, alter and/or improve the
product and this document at any time
without prior notice.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
Champion Power Equipment Support
1-877-338-0999
Model Number
C44020
Serial Number
Date of Purchase
Purchase Location

Manual Conventions
2 Rev C44020-20080908
Manual Conventions
This manual uses the following symbols to
help differentiate between different kinds of
information. The safety symbol is used with
a key word to alert you to potential hazards
in operating and owning power equipment.
Follow all safety messages to avoid or reduce
the risk of serious injury or death.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided, may result in property damage.
NOTE
If you have questions regarding your semi-trash
pump, we can help. Please call our help line at
1-877-338-0999.

Safety Rules
Rev C44020-20080908 3
Safety Rules
WARNING
Read this manual thoroughly before operating
your semi-trash pump. Failure to follow
instructions could result in serious injury or
death.
DANGER
DO NOT pump gasoline, oil-fuel mixtures,
detergents, acids, chemicals, beverages,
pesticides, fertilizers or any other flammable or
corrosive liquids.
Pumping volatile liquids may result in an
explosion or fire.
These liquids will corrode the pump and void
your warranty.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive
harm.
DANGER
Engine exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death.
Operate semi-trash pump outdoors only in a well
ventilated area
DO NOT operate the semi-trash pump inside any
building, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
The semi-trash pump develops powerful force.
DO NOT move the semi-trash pump when it is in
use.
DO NOT use hoses or connectors that are worn,
damaged or frayed.
DO NOT allow children or unqualified persons to
operate or service the semi-trash pump.
WARNING
DO NOT immerse this unit in water.
WARNING
Sparks can result in fire or electrical shock.
When servicing the semi-trash pump:
Disconnect the spark plug wire and place it
where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.

Safety Rules
4 Rev C44020-20080908
DANGER
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or
death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel
Turn the engine off and let it cool for at least two
minutes before removing the fuel cap. Loosen
the cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated
area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the semi-trash pump
DO NOT attempt to start a damaged semi-trash
pump.
Make certain that the gas cap, air filter, spark
plug, fuel lines and exhaust system are properly
in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the semi-trash pump is resting
firmly on level ground.
When operating the semi-trash pump:
DO NOT move or tip the semi-trash pump during
operation.
DO NOT tip the semi-trash pump or allow fuel or
oil to spill.
When transporting or servicing the
semi-trash pump:
Make certain that the fuel shutoff valve is in the
off position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the semi-trash pump:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
WARNING
Water pumped through this unit shall not be
used as drinking water.
WARNING
DO NOT pump salt, sludge, sewer, sea, or any
other type of water containing solid material
greater than 3/16” (.45cm) in diameter.
WARNING
Rapid retraction of the starter cord will pull hand
and arm towards the engine faster than you can
let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to
avoid kickback.
CAUTION
Exceeding the semi-trash pump’s specification for
maximum head can damage the semi-trash pump
and/or hose kits connected to it
DO NOT modify the semi-trash pump in any way.
DO NOT attempt to exceed the rated flow.
Attempting to increase the rated flow may
damage the unit and/or shorten its life.
CAUTION
Improper treatment or use of the semi-trash
pump can damage it, shorten its life and void
your warranty.
Use the semi-trash pump only for intended uses.
Operate only on level surfaces.
DO NOT expose semi-trash pump to excessive
moisture, dust, or dirt.
DO NOT allow any material to block the cooling
slots.
DO NOT use the semi-trash pump if:
Equipment sparks, smokes or emits flames
Equipment vibrates excessively

Controls and Features
Rev C44020-20080908 5
Controls and Features
Read this owner’s manual before operating your semi-trash pump. Familiarize yourself with the
location and function of the controls and features. Save this manual for future reference.
Semi-Trash Pump
Fuel Tank (1) – 0.6 gallon (2.25 L)
capacity fuel tank
Air Filter (2) – Protects the engine by
filtering dust and debris from the intake air.
Muffler (3)– Full-sized muffler
2” Outlet (4) – 2” NPT outlet connector
Pump Chamber (5) – fill with water prior
to operation
2” Inlet (6) – 2” NPT inlet connector
Pump Housing (7) – Impeller-based
pump
Oil Filler Cap (8) – Check and fill engine
oil level
Serial Number (9) – Please have this
number available when calling for assistance
Recoil Starter (10) – Used to start the
engine
NOT SHOWN:
Throttle – Used to adjust engine speed
Choke – Used to start the engine
Engine Switch – Used to start the engine
Low Oil Sensor– Senses the level of oil in
the crankcase and shuts the engine down if
the level falls too low

Controls and Features
6 Rev C44020-20080908
Parts Included
Your Model C44020 Gasoline Powered Semi-Trash pump ships with the following part:
Oil Funnel 1 piece

Assembly
Rev C44020-20080908 7
Assembly
Your semi-trash pump requires some
assembly. This unit ships from our factory
without oil. It must be properly serviced
with fuel and oil before operation.
If you have any questions regarding the
assembly of your semi-trash pump, call our
help line at 1-877-338-0999. Please have
your serial number and model number
available.
Remove the Semi-trash pump
from the Shipping Carton
1. Set the shipping carton on a solid, flat
surface.
2. Remove everything from the carton
except the semi-trash pump.
3. Carefully cut each corner of the box
from top to bottom. Fold each side flat
on the ground to provide a surface area.
Add Engine Oil
CAUTION
DO NOT attempt to crank or start the engine
before it has been properly filled with the
recommended type and amount of oil. Damage
to the semi-trash pump as a result of failure to
follow these instructions will void your warranty.
1. Place the semi-trash pump on a flat,
level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add 0.63 qt (0.6 L) of oil and replace oil
fill cap/dipstick.
4. Check engine oil level daily and add as
needed.
CAUTION
The engine is equipped with a low-oil-shutoff and
the will stop when the oil level in the crankcase
falls below the threshold level.
NOTE
Check oil often during the break-in period. Refer
to the Maintenance section for recommended
service intervals.
Add Fuel
1. Use clean, fresh, regular unleaded fuel
with a minimum octane rating of 85.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap
5. Slowly add fuel to the tank. DO NOT
overfill. Allow approximately 1/4 inch of
space for fuel expansion.
6. Screw on the fuel cap and wipe away any
spilled fuel.
CAUTION
Use regular unleaded gasoline with a minimum
octane rating of 85.
DO NOT mix oil and gasoline.
Fill tank to approximately1/4” below the top of
the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running
or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.

Operation
8 Rev C44020-20080908
Operation
Semi-Trash Pump Location
Place the semi-trash pump in a well-
ventilated area. DO NOT place the semi-
trash pump near vents or intakes where
exhaust fumes could be drawn into occupied
or confined spaces. Carefully consider wind
and air currents when positioning semi-
trash pump.
This semi-trash pump must have at least five
feet of clearance from combustible material.
Leave at least three feet of clearance on all
sides of the semi-trash pump to allow for
adequate cooling, maintenance and
servicing.
Place the pump on a level surface free from
any obstructions or potential hazards. The
pump should be placed close to the water
level to ensure maximum pump
performance.
Pump output will be affected by the type,
length, and size of the suction and discharge
hoses. The pumping height, also known as
the total head, is the distance from the water
level to the point of discharge. As this
distance increases, pump output decreases.
The discharge capacity is greater than the
suction capacity. Therefore, it is important
that the suction head is less than the
discharge head.
The time required to draw water from the
source to the pump (self-priming time) can
be decreased by minimizing the suction
head.
Connecting Hoses (Not Included)
Hoses are not included the following are
examples of how to connect the hose to the
water pump. Attach and thread the
connector to the threaded flange (Figure 1).
NOTE
Both the intake and discharge ports are 2 in.
NPT. Please insure the connectors to the suction
and discharge hose are 2 in. NPT threaded.
Figure 1
Slide the flexible, outlet hose over connector
and secure with a hose clamp (Figure 2).
Figure 2
Wrap the 2” NPT inlet counterclockwise
with plumber tape (Figure 3) to ensure a
tight fit. Carefully thread the male
connector to the intake port.
Figure 3

Operation
Rev C44020-20080908 9
WARNING
DO NOT run the pump dry.
Running the pump dry can destroy the pump
seals and will void the warranty.
If the pump was running while dry, stop the
engine and allow it to cool thoroughly before
filling the chamber with water.
Starting the Engine
1. Make certain the semi-trash pump is on
a flat, level surface.
2. Turn the fuel valve to the “On” position.
3. Flip engine switch to “ON” position
4. Move the fuel lever (Item C) to the “ON”
position (to the right).
5. Move the choke lever (Item B) to the
“Choke” position (to the left).
6. Pull the starter cord slowly until
resistance is felt and then pull rapidly.
7. As engine warms up, move the choke
lever to “Run” (to the right).
8. Move the throttle lever (Item A) to the
“Fast” position.
NOTE
If the engine starts but does not run make
certain that the semi-trash pump is on a flat,
level surface. The engine is equipped with a low
oil sensor that will prevent the engine from
running when the oil level falls below a critical
threshold.
Pump performance can be adjusted using
the throttle. To decrease pump output, slide
the throttle to the right. To increase it, slide
the throttle to the left.
Stopping the Engine
1. Turn the ignition switch to the “Off”
position.
2. Turn the fuel valve to the “Off” position.
3. Allow the engine to cool thoroughly.
4. Remove the bottom threaded drain plug
from the cooling pump chamber and
allow the pump to drain completely.

Maintenance
10 Rev C44020-20080908
Maintenance
The owner/operator is responsible for all
periodic maintenance.
WARNING
Never operate a damaged or defective semi-trash
pump.
WARNING
Improper maintenance will void your warranty.
Complete all scheduled maintenance in a
timely manner. Correct any issue before
operating the semi-trash pump.
NOTE
For service or parts assistance, contact our help
line at 1-877-338-0999.
Engine Maintenance
To prevent accidental starting, remove and
ground spark plug wire before performing
any service.

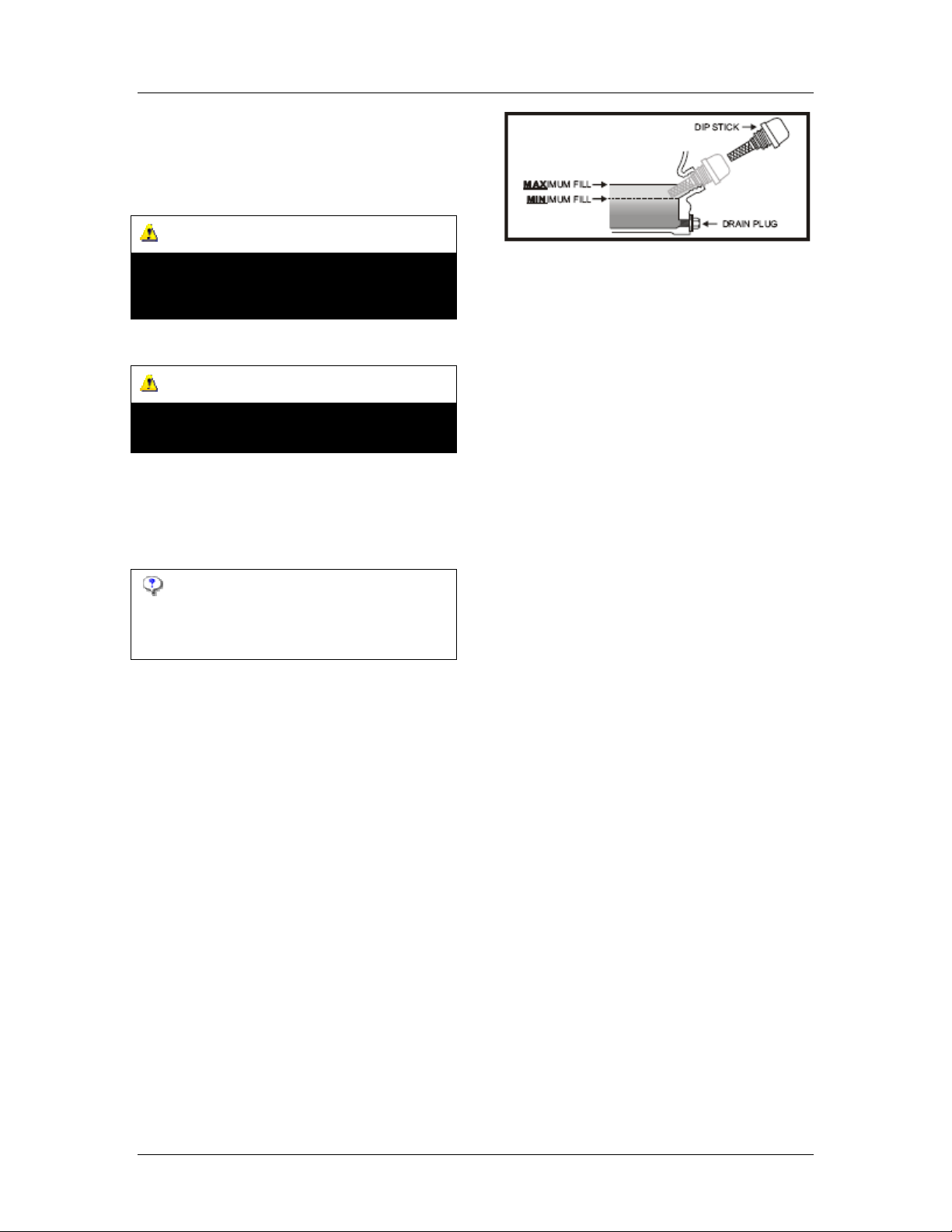

Oil
Change oil when the engine is warm. Refer
to the oil specification to select the proper
grade of oil for your operating environment.
1. Remove the oil drain plug with a 15 mm
socket and extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 0.63 qt (0.6 L) of oil and replace oil
fill cap/dipstick.
6. Dispose of used oil at an approved waste
management facility.
Spark Plugs
1. Remove the spark plug cable from the
spark plug.
2. Use a 13/16” (21mm) long reach spark
plug socket to remove the plug.
3. Inspect the electrode on the plug. It
must be clean and not worn to produce
the spark required for ignition.
4. Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
5. Refer to the spark plug recommendation
chart when replacing the plug.
6. Carefully thread the plug into the
engine.
7. Use a 13/16” (21mm) spark plug tool to
firmly install the plug.
8. Attach the spark plug wire to the plug.
Air Filter
1. Remove the snap-on cover holding the
air filter to the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water.
Squeeze thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to
remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in
place.

Maintenance
Rev C44020-20080908 11
Cleaning
CAUTION
DO NOT spray engine with water.
Water can contaminate the fuel system.
Use a damp cloth to clean exterior surfaces
of the engine.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the engine.
Adjustments
CPE recommends that you contact our
service line at 1-877-338-0999 for all other
service and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the
schedule below.
Service your semi-trash pump more
frequently when operating in adverse
conditions.
Contact our help line at 1-877-338-0999 to
locate the nearest Champion Power
Equipment certified service dealer for your
semi-trash pump or engine maintenance
needs.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
First 10 hours
Check/Adjust Valve Clearance *
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load
or in hot environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean fuel tank and filter *
Every 3 years
Replace fuel line
* To be performed by knowledgeable,
experienced owners or Champion Power
Equipment certified service dealers

Storage
12 Rev C44020-20080908
Storage
For longer term storage, please follow these
guidelines.
Engine Storage
1. Allow the engine to cool completely
before storage.
2. Clean the engine according to the
instructions in the Maintenance section.
3. Drain all fuel completely from the fuel
line and carburetor to prevent gum from
forming.
4. Add a fuel stabilizer into the fuel tank.
5. Change the oil.
6. Remove the spark plug and pour about
½ ounce of oil into the cylinder. Crank
the engine slowly to distribute the oil
and lubricate the cylinder.
7. Reattach the spark plug.
Semi-trash pump Storage
1. Allow the semi-trash pump to cool
completely before storage.
2. Turn off the fuel supply at the fuel valve.
3. Drain the pump chamber thoroughly.
4. Clean the semi-trash pump according to
the instructions in the Maintenance
section.
5. Store the unit in a clean, dry area.
6. Store in a clean, dry place out of direct
sunlight.

Specifications
Rev C44020-20080908 13
Specifications
Engine Specifications
Engine 118 cc OHV CPE
Semi-trash pump
Specifications
Inlet Diameter 2 inch NPT
Outlet Diameter 2 inch NPT
Fuel Capacity 0.6 gallons (2.25 L)
Total Head 98 feet (30 m)
Suction Head 26 feet (8 m)
Max Delivery Volume 158 Gal/min
(600 L/min)
Max Solid Waste 3/16” diameter (.45 cm)
Weight 55.1 lbs. (25 kg)
Height 15.7 inches (40 cm)
Width 17.7 inches (45 cm)
Length 31.1 inches (79 cm)
Fuel
Fuel capacity is 0.6 US gallons (2.25 L). Use
regular unleaded gasoline with a minimum
octane rating of 85.
Oil
Oil capacity is 0.63 qt (0.6 L).
Spark Plugs
To remove the spark plug from your semi-
trash pump use a 13/16” (21mm) long reach
spark plug tool.
Intermittent use (less than 1 hour/month) or
colder temperatures (below 60°F)
NGK B6ES or equivalent
Moderate use (less than 3 hours/month) or
seasonal temperatures (50-80°F)
NGK B7ES or equivalent
Extreme use (continuous) or hot climates
(80-100°F)
NGK B8ES or equivalent
Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
Valve Clearance
Intake 0.13-0.17mm (0.005 – 0.007 in.)
Exhaust 0.18-0.22mm (0.007 – 0.009 in.)

Specifications
14 Rev C44020-20080908
Parts Diagram

Specifications
Rev C44020-20080908 15
Parts List
No Part# Description Qty
1 ST160F-1000000 Engine 1
2 WP-20-1000500 Pump Body 1
3 WP-20-1000502 Pump Body “O” Seal 1
4 WP-20-1000005 Washer 4
5 GB70-86- M8×55 Hexagon Screws M8×55 4
6 WP-20-1000510 Casing Wear Ring 1
7 WP-20-1000402 Impeller Wear Ring 1
8 WP-20-1000403 Impeller Seals 1
9 WP-20-1000401 Impeller 1
10 WP-20-1000302 Spiral Case 1
11 WP-20-1000301 Spiral Case “O” Seal 1
12 WP-20-1000200 Pump Cover 1
13 GB97.1-85-8 Packing8 11
14 GB5780-86- M8×20 Flange Bolt M8×20 4
15 WP-20-1000208 Plug “O” Seal 2
16 WP-20-1000207 Plug 2
17 WP-20-1000209 Non return Vale 1
18 WP-20-1000206- CPE Flume(NPT) 1
19 GB5789-86- M8×20 Flange Bolt M8×20 7
20 WP-20-1000204 Seal Packing 1
21 WP-20-1000203- CPE Elbow Draft Tube(NPT) 1
22 GB5780-86- M8×25 Flange Bolt M8×25 4
23 WP-20-2000001 Flame Rubber 4
24 GB6177-86- M8 Nut M8 4
25 WP-20-2000100- M Flame 1

Troubleshooting
16 Rev C44020-20080908
Troubleshooting
Problem Cause Solution
Semi-trash pump will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Semi-trash pump will not start;
Semi-trash pump starts but runs
roughly
Low oil level Fill crankcase to the proper level
Place semi-trash pump on a flat, level
surface
Choke in the wrong position. Adjust choke.
Spark plug wire loose Attach wire to spark plug
Semi-trash pump shuts down during
operation Out of fuel Fill fuel tank
Low oil level Fill crankcase to the proper level.
Place semi-trash pump on a flat, level
surface
Semi-trash pump overheating or
performing poorly Strainer or hose clogged Remove debris from strainer or hose
Pump not primed Re-prime pump
Suction hose out of water Place suction hose under the surface
of the water
Head limit exceeded Relocate pump so suction head is less
than discharge head (maximum 98
feet)
Air leak Tighten connectors and clamps or
replace seal packing
