Changhong Electric LED28C2200H User manual

TV
Operation Manual
Tel: [phone]
Fax: [phone]
Service E-mail: [email protected]
Web site: www.changhongeurope.com
CHANGHONG EUROPE ELECTRIC S.R.O.
Argentinská 286/38, 170 00 Praha 7, Czech Republic
FR
Z
I
EN
T
C
DE C
H
AT/
()
Model: LED28C2200H
28 S I

Contents
Warning…………………………………………………….…………………………1
Safety instructions………………………………………………………………….3
Getting Started………………………………………………………………………5
Using the remote control…………………………………………………………5
Installing Batteries in the Remote Control……………………………………...5
Battery replacement………………………………………………………………5
Connection and setup……………………………………………………………...6
Cable Installation………………………………………………………………….6
Remote Control……………………………………………………………………...7
Basic Operation……………………………………………………………………..9
QUICK START GUIDE…………………………………………………………...9
Turning on and off the TV………………………………………………………..9
Volume adjustment……………………………………………………………...10
Changing the Input Source……………………………………………………..10
How to Navigate Menus………………………………………………………...10
Menu Operation…………………………………………………………………….11
Configuring the Picture Menu…………………………………………………..11

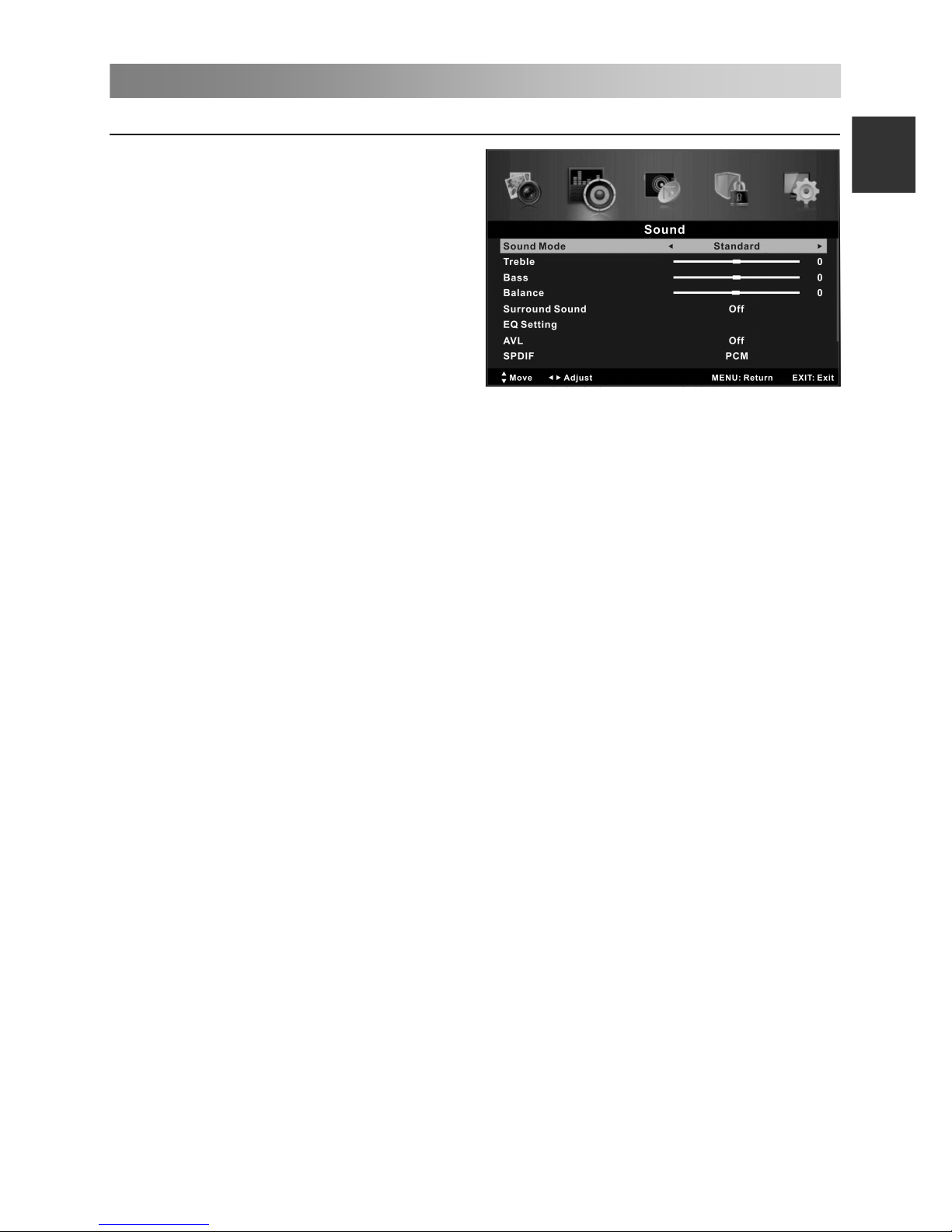

Configuring the Sound Menu…………………………………………………..12

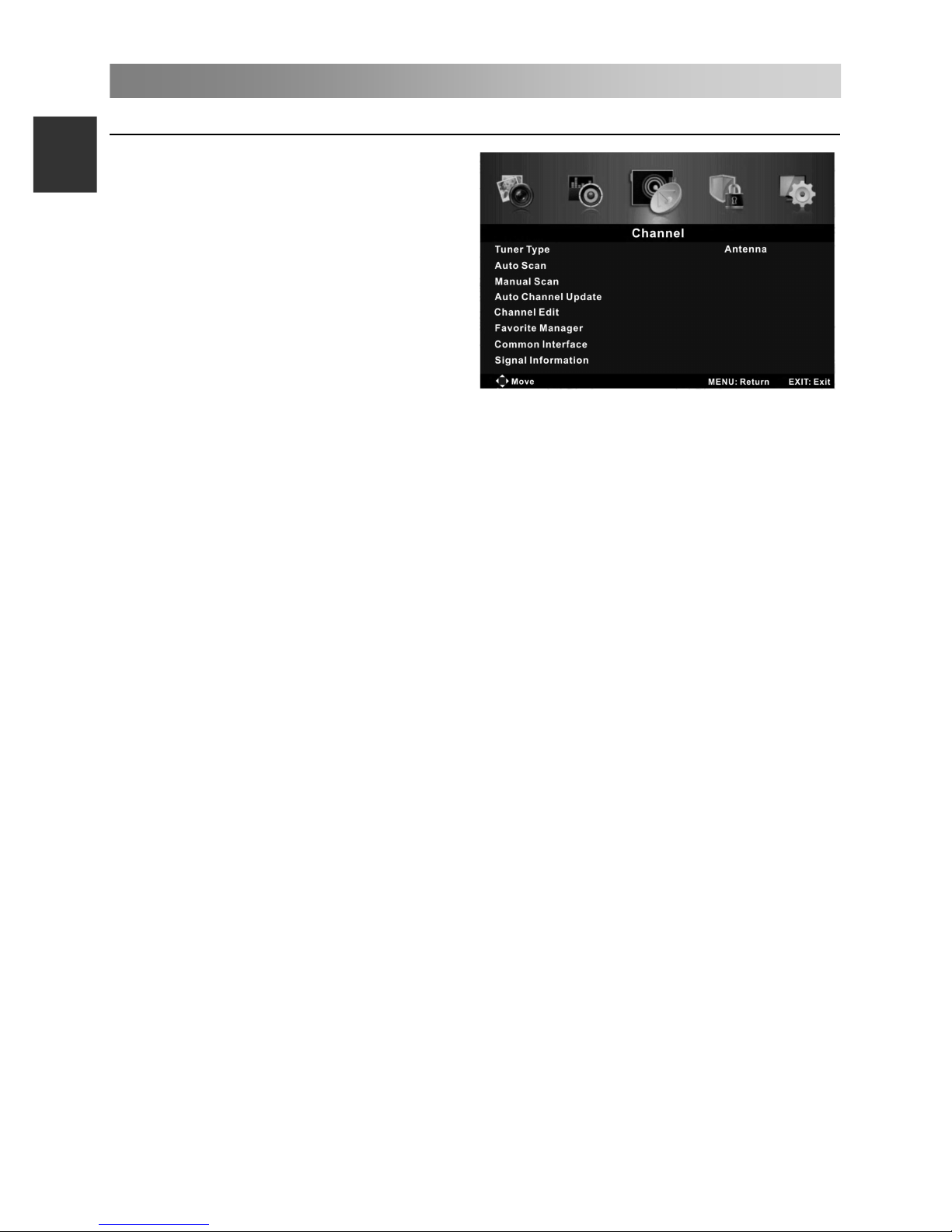

Configuring the Channel Menu………………………………………………...13

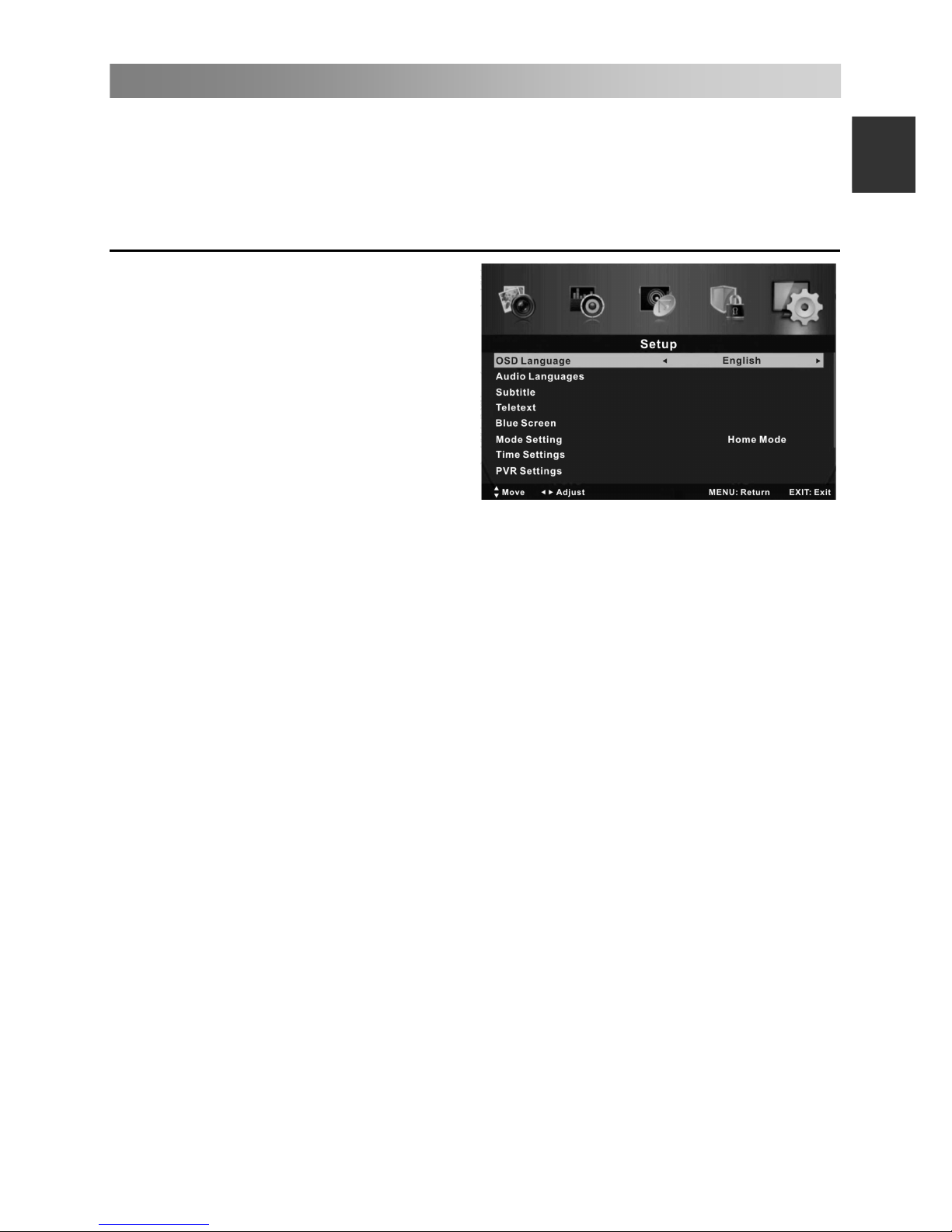

Configuring the Setup Menu……………………………………………………16
Important Unique Buttons………………………………………………………..21
PROGRAM GUIDE……………………………………………………………..21
Channel List……………………………………………………………………...21
Favorite List……………………………………………………………………...21
Teletext………………………………………………………………………………22
Using the teletext feature……………………………………………………….22
Troubleshooting Guide…………………………………………………………...23
Troubleshooting………………………………………………………………….23
Maintenance……………………………………………………………………..24
Specifications………………………………………………………………………25
E
nglish
Programme Selection…………………………………………………......……10
Configuring the Lock System Menu…………………………………………...15
Using MEDIA mode……………………………………………………………..18

Warning
REGULATORY INFORMATION
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
CAUTION
DO not attempt to modify this product in any way without written authorization
from supplier. Unauthorized modification could void the user's authority to operate
this product.
It is not recommended to keep a certain still image displayed on the screen for a
long time as well as displaying extremely bright images on screen.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Figures and illustrations in this User Manual are provided for reference only
and may differ from actual product appearance. Product design and
specifications may be changed without notice.
1
E
ngli
sh

Warning
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To
Rain Or Moisture.
The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.
The Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Attention should be drawn to the environmental aspects of battery disposal. Don’t
throw used batteries in dustbin. Please contact your retailer in order to protect the
environment.
No naked flame sources, such as lighted candles, should be placed on the
apparatus;
To prevent the spread of fire, keep candles or other open flames away from this
product at all times.
The device may be malfunction when under electrostatic discharge. It can be
manually resumed by power off and power on again.
CAUTION connecting the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that appliance and has no additional outlets
or branch circuits.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and its if appearance
indicates damage or deterioration, unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits the appliance.
The MAINS plug is used as the disconnect device, and the disconnect device shall
remain readily operable.
When you install your TV, maintain a distance of at least 4 inches between the TV
and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing
to maintain proper ventilation may result in a fire or a problem with the product
caused by an increase in its internal temperature.
Operating Humidity: ≤80% Storage Humidity: ≤90%
2
U
Operating Temperature: 5°C to 35°C Storage Temperature: -15°C to 45°C
E
nglish

Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
7. Do not block any of the ventilation
openings. Install in accordance with
the manufacturer's instructions.
5. Do not use this apparatus near water.
8. Do not install near any heat source
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
6. Clean only with a dry cloth.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong is provided for your
safety. When the provided plug does
not fit into your outlet, consult an
electrician for replacement of the
obsolete outlet.
3
E
ngli
sh

Safety instructions
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles,
and the point where they exit from
the apparatus.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
11. Only use the attachments/
accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
14. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been
dropped.
ON DISPOSAL
-The fluorescent lamp used in this product contain a small amount of mercury.
-Do not dispose of this product with general household waste.
-Disposal of this product must be carried out in accordance to the regulations of
your local authority.
NOTE
-If the TV feel cold to the touch, there may be a small "flicker" when it is turned on.
This is normal, there is nothing wrong with TV.
-Some minute dot defects may be visible on the screen, appearing as tiny red,
green, or blue spots. However there have no adverse effect on the monitor's
performance.
-Avoid touching the screen or holding your finger(s) against it for long periods of
time. Doing so may produce some temporary distortion effect on the screen.
4
E
nglish

Getting Started
Usingtheremotecontrol
When using the remote control, aim it at remote sensor on the television. If there is an
object between the remote control and the remote sensor on the unit, the unit may no
operate.
Point the remote control at the REMOTE SENSOR located on the television.
When using this television in a very brightly lit area, the infrared REMOTE CONTROL
SENSOR may not work properly.
The recommended effective distance for using the remote control is about 7 metres.
Installing Batteries in the Remote Control
1. Open the cover at the back of the remote control.
2. Install two AAA size batteries. Make sure to match
the “+” and “-” ends of the batteries with the
diagram inside the compartment.
3. Replace the cover.
Batteryreplacement
You will need to install the batteries into the remote control to make it operate following
the instruction below.
When the batteries become weak, the operating distance of the remote control will be
greatly reduced and you will need to replace the batteries.
Notes on Using Batteries:
The use of the wrong type of batteries may cause chemical leakage and/or explosion.
Please note the following:
Always ensure that the batteries are inserted with the + and - terminals in the correct
direction as shown in the battery compartment.
Different types of batteries have different characteristics. Do not mix different types.
Do not mix old and new batteries. Mixing old and new batteries will shorten battery
life and/or cause chemical leakage.
Replace batteries as soon as they do not work.
Chemicals which leak from batteries may cause skin irritation. If any chemical matter
seeps out of the batteries, wipe it up immediately with a dry cloth.
The batteries may have a shorter life expectancy due to storage conditions. Remove
the batteries whenever you anticipate that the remote control will not be used for an
extended period.
The batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION:
It may result in an explosion if batteries are replaced incorrectly.
Only replace batteries with the same or equivalent type.
U
5
E
ngli
sh

Connection and setup
CableInstallation
Please read the relevant content in "Notice for Maintenance and Safety" carefully
before the installation and use.
1. Take out the TV from the package and put it in a drafty and flat place.
NOTE:
When you plug or unplug the TV, computer or other equipments, you must make
sure that the AC power has been already shut down; when unplugging the power
cable or signal cable, please hold the plug (the insulated part), do not draw the body
of the cable.
2. The RF output terminal can be connected with the RF input port of the TV.
3. The output AV terminal of DVD can be connected with the AV input port of the TV
through AV cable.
NOTE:
Component and AV can not be used at same time for they share of one audio
channel.
4. The output COMPONENT(YPbPr) terminal of DVD can be connected with the
COMPONENT(YPbPr) input port of the TV through AV cable.
5. Connect one end of the VGA cable with the VGA port on computer, connect the other
end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on
the each end of VGA cable.
NOTE:
While connecting the 15-pin VGA, please do not insert the plug overexertedly, for
fear the pin might be broken.
6. Connect one end of the HDMI cable with HDMI output port, connect the other end of
the HDMI cable with the HDMI port on the TV.
NOTE:
While connecting the HDMI, please aim at carefully, do not insert overexertedly,
for fear the pin might be broken.
7. Connect SCART socket input or output from an external device to these jacks.
8. Sending the TV's audio signal to external audio equipment via the Digital Audio
Output port.
9. Check and make sure that all AV cables are connected with the corresponding ports
correctly.
10. Connect the AC power cable with 100-240V~ power supply.
NOTE:
The range of power input for the TV is 100-240V~ 50/60Hz, do not connect the TV
power input port with the AC power out of the above range.
Please hold the insulated part of the plug when you are unplugging the power
cable, do not touch directly the metallic part of the cable.
6
E
nglish
If COMPONENT (YPbPr) and AV works as mini terminal, and shared same audio,
please choose to use a one-to-three audio&video cable.

Remote Control
The buttons of the original remote control are as following:
1. : Power, switch on or off TV set.
2.
INFO: Press to display the current
program information on the screen.
i
: Go to the index page.
3. : Press to mute or restore sound.
4.
5.
SOURCE: Press to select signal source.
?
: Reveal the hidden information of
some teletext pages.
7.
MENU: Press to enter the menu screen
for various optional adjustable settings.
8.
EXIT: Exit OSD Menu.
9.
ENTER: Press to execute the selected
10. ▲/▼/◄/►:To select the direction.
11.
INDEX: Press to enter the quick menu.
12.
13.
CH+/CH-: Press to select channels in
ascending or descending order.
14.
VOL+/VOL-: Press to adjust the volume
level up or down.
15.
16.
item in the menu screen
.
(In MEDIA mode) Press to enter the PVR
Settings(In DTV mode).
STILL: Press to hold the picture.
: Hold the teletext page on display,
press again to release.
: Stop (in MEDIA/PVR mode).
COLOR BUTTONS: Red/ green/ yellow/
blue key navigation link.
: Fast reverse (in MEDIA mode).
: Fast forward (in MEDIA mode).
: Previous (in MEDIA mode).
: Next (in MEDIA mode).
: Enter the Teletext, press again for
MIX mode, press this button again to
exit.
RADIO: Press to interchange Radio and
DTV programs when there is Radio
program (In DTV mode).
: Press to select different images
sizes.
: Change size of teletext screen in
display mode.
: Play / Pause (in MEDIA mode).
6.
VOL CH
12 3
456
7 8 9
EXIT
0DVB
EPG
USB
25 26
27 28
7
E
ngli
sh

Remote Control
19.
20.
21.
22.
23.
24.
: Enter subtitle mode or subpage.
25. : Cancel the teletext but not to exit
teletext, press again to exit.
26.
27.
: Press button to start recording. (In
DTV mode).
NOTE:
All pictures in this manual are examples, only for reference, actual product may differ
from the pictures.
The buttons not mentioned here are not used.
17.
18. NUMBER BUTTONS: Choose channels
or password importation.
Audio language in DTV mode.
LIST: Press to call up the channel list.
Press again to exit it.
SLEEP: Press to set the sleep timer.
When the preset length of time has
passed, the TV set enters standby
mode.
: Switch on/off the favorite programs
list.
EPG: Electronic Program Guide, use in
the DTV mode.
: Return to last viewed program.
DualⅠⅡ/Stereo/ Mono and switch+
AUDIO (∞I/II): The button can be used
DVB: Press to select an antenna source.
28.
VOL CH
12 3
456
7 8 9
EXIT
0DVB
EPG
USB
25 26
27 28
to switch between DualⅠ/ DualⅡ/
8
E
nglish
USB: Press to switch to the media mode.

Basic Operation
QUICK START GUIDE
• Connection
1. Connecting the mains and antenna.
• First Time Setup
When the TV is initially powered on, a sequence of on-screen prompts will assist in
configuring basic settings.
OSD Language
Press the◄/►button to select the desired OSD (On Screen Display) language.
LCN
Country
Press the◄/►button to select the country you want to.
Tuner Type
Press the◄/►button to select Antenna or Cable.
Auto Scan
Press the◄/►button to select mode: DTV+ATV, DTV, ATV.
When selecting Cable: A step appears allowing you to set parameters to the channels.
For more information, refer to Channel (Auto Scan).
TurningonandofftheTV
• Turn on the TV
• Turn off the TV
Press the button on the remote control to enter standby mode.
Do not leave your set in standby mode for long periods of time. It is best to unplug the
set from the mains and aerial.
• No signal
There is No Signal menu on screen when there is no input signal. In ATV/DTV mode,
connected, the TV turns on automatically.
button on remote control can turn on TV from standby mode.
Press the
If TV has a power switch, turn it on firstly.
Connect the AC input cable.
if there is no signal in 15 minutes, the TV will turn off automatically. In PC mode, theTV
Press the◄/►button to select On or Off.
Mode Setting
Press the◄/►button to select Home Mode or Store Mode.
9
E
ngli
sh
2. If TV has a power switch, turn it on firstly. Then press Power button on the
remote to turn on the TV.
Auto Channel Update
Press the◄/►button to select On or Off.
set will automatically turn off in 1minute if no input signal. When VGA cable is

Basic Operation
Volumeadjustment
• Press the VOL+/- button to adjust the volume.
• If you want to switch the sound OFF, press the .
• You can release mute by pressing the or increase the volume.
ChangingtheInputSource
You can select the input source by pressing the SOURCE button on the remote control.
Press the▲/▼button to cycle through the input source, and press the ENTER button to
confirm your choice.
HowtoNavigateMenus
Before using the TV follow the steps below to learn how to navigate the menu in order
to select and adjust different functions. The access step may differ depending on the
selected menu.
1. Press the MENU button to display the main menu.
2. Press the◄/►button to cycle through the main menu.
3. Press the▲/▼button to select the desired sub item.
4. Press the ENTER button to access the submenu.
5. Press the ▲/▼/◄/►button to select the desired value. The adjustment in the
OSD may differ depending on the selected menu.
6. Press the MENU button to return to the previous menu.
7. Press the EXIT button exit from the menu.
NOTE:
When an item in MENU is displayed gray, it means that the item is not available or
cannot be adjusted.
Buttons on the TV have the same function as corresponding buttons on the remote
control. If your remote control is lost or couldn’t work, you may use the buttons on the
TV to select menus. This manual focuses on operation of the remote control.
Some items in the menus may be hidden depending on modes or signal sources
used.
U
10
E
nglish
ProgrammeSelection
• Using the CH+/CH- on the panel of TV or on the remote control.
Press CH+ to increase channel number.
Press CH - to decrease channel number.
• Using 0- 9 digital buttons.
You can select the channel number by pressing 0 to 9. (In ATV, DTV mode)
• Example
To select - channel (e.g. Channel 5): Press 5.
To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.

Menu Operation
ConfiguringthePictureMenu
• Picture Mode
You can select the type of picture which
best corresponds to your viewing
requirements.
• Brightness
Adjusts the base level of the signal in the
picture.
• Contrast
Adjusts the signal level between black
and white in the picture.
• Sharpness
Adjusts the level of crispness in the edges between the light and dark areas of the
picture.
• Saturation
Adjusts intensity of all colours.
• Hue (Only in the NTSC mode)
Adjusts the balance between red and green levels.
• Color Temp
Select the color temperature of the picture.
• Aspect Ratio
You can select the picture size which best corresponds to your viewing requirements.
• PC Setup (In PC mode)
Auto Adjust: Adjust the image automatically.
H Position: Centre the image by moving it left or right.
V Position: Centre the image by moving it up or down.
Phase: Minimize horizontal distortion.
Clock: Minimize vertical stripes in the screen image.
• Screen Mode (In HDMI mode)
Press the▲/▼button to select Screen Mode, then press the◄/►button to select Auto,
Video or PC.
• Advanced Settings
NR: Set options to reduce video noise.
Dynamic Contrast: Automatically adjust picture detail and brightness.
11
E
ngli
sh
The manufacture’s recommendation
mode is Standard.

Menu Operation
ConfiguringtheSoundMenu
• Sound Mode
You can select a sound mode to suit
your personal preferences.
• Treble
Adjust the treble effect. Increases or
devreases high-pitched sounds.
• Bass
Adjust the bass effect. Increases or
decreases lower-pitched sounds.
• Balance
You can adjust the sound balance of the
speakers to preferred levels.
• Surround Sound
You can select a desired Surround Sound mode.
• EQ Setting
Adjust the curve of 7 bands equalizer.
EQ Mode: Only in User mode, the following can be manually adjusted.
120Hz/300Hz/500Hz/1.2KHz/3.0KHz/7.5KHz/10KHz: Adjusts the level of specific
bandwidth frequencies.
Based on your favorites about which frequency band need to be adjusted, make small
adjustment with certain frequency band at a time. Suggest NOT making too large
changes.
• AVL
AVL automatically remains on the same level of volume if you change programmes.
Because each broadcasting station has its own signal conditions, volume adjustment
may be needed every time when the channel is changed. This feature allows users to
enjoy stable volume levels by making automatic adjustments for each program.
• SPDIF
You can select a desired SPDIF Output mode.
• Audio Description (In DTV mode)
Press the▲/▼button to select Audio Description, then press the►button to enter
sub-menu.
Press the▲/▼button to select Mode, then press the◄/►button to select On, Off.
When the mode is On, Volume can be adjusted by users.
• Sound Type (In DTV mode)
Press the▲/▼button to select Sound Type, then press the◄/►button to select.
12
E
nglish

Menu Operation
ConfiguringtheChannelMenu
• Tuner Type
Before your TV can begin memorizing
the available channels, you must specify
the type of signal source that is
connected to the TV (i.e. an Antenna or
a Cable system). Wrong setting of signal
type maybe cause finding no channel.
Found numbers do not include
encryption programs.
• Auto Scan
Press the ENTER button to enter
sub-menu.
Tuner Type is Antenna:
Country: Press the◄/►button to select country.
Mode: Press the◄/►button to select Mode: DTV+ATV, DTV, ATV.
Start: Press the ENTER button to start the auto searching.
Tuner Type is Cable:
Country: Press the◄/►button to select country.
Mode: Press the◄/►button to select Mode: DTV+ATV, DTV, ATV.
Scan Type: Press the◄/►button to select Scan Type: Advanced, Quick, Full.
Network ID: Press the◄/►button to select Network ID: Auto or enter digital numbers.
Frequency: Press the◄/►button to select Frequency: Auto or enter digital numbers.
Symbol Rate: Press the◄/►button to select Symbol Rate: Auto or enter digital
numbers.
Start: Press the ENTER button to start the auto searching.
• Manual Scan
Press the ENTER button to enter sub-menu.
- Digital Manual Scan: Press the▲/▼button to select the Digital Manual Scan, then
press the ENTER button to enter sub-menu.
Tuner Type is Antenna:
Digital Scan: Press the◄/►button to select the channel number.
Start: Press the ENTER button to start the channel searching.
Frequency: Display the frequency of current TV signal.
Strength: Display the quality of current TV signal.
Tuner Type is Cable:
Network ID: Press the◄/►button to select Network ID: Auto or enter digital numbers.
Frequency: Enter a user-defined frequency.
Symbol Rate: Press the◄/►button to select Symbol Rate: Auto or enter digital
numbers.
Modulation: Press the◄/►button to select Modulation: Auto, 16QAM, 32QAM,
64QAM, 128QAM, 256QAM.
Start: Press the ENTER button to start the channel searching.
Strength: Display the quality of current TV signal.
13
E
ngli
sh

Menu Operation
- Analog Manual Scan: Press the▲/▼button to select the Analog Manual Scan, then
press the ENTER button to enter sub-menu.
Analog Scan: Press the◄/►button to select Analog Scan.
Channel to Save: Press the◄/►button to select channel.
Color System: Press the◄/►button to select Color System.
Sound System: Press the◄/►button to select Sound System.
AFC: Press the◄/►button to select On or Off.
Start: Press the ENTER button to start the channel searching.
• Channel Edit
First press the▲/▼button to highlight the channel you want to delete,skip, rename
or swap, then: Press the red button to delete the channel.
Press the green button to skip the select channel. (Your TV set will skip the channel
automatically when using CH+/- to view the channels.)
Press the blue button to set the channel to moving state, then press the▲/▼button to
move it to the positon you want to put.
• Common Interface (In DTV mode)
This function enables you to watch some encrypted services (pay services).
Please insert CI card into the PCMCIA slot according to the arrow on the CI card.
NOTE:
The function can only be gotten when CI slot is available.
Please do not insert or pull out the CI card when power on.
Do not insert or pull out the CI card frequently so as to avoid any damages of the TV
and the CI card.
During initialization of the CI card, please don't operate the TV.
• Signal Information (In DTV mode)
Display the current Signal Information.
Press the yellow button to rename the channel.
(In ATV mode)
U
14
E
nglish
• Auto Channel Update
Press the◄/►button to select auto channel update On or Off.
• Favorite Manager
Press red, green, yellow, blue button to select the desired favorite group.
Press the ◄/►button to page up or down the Favorite list.
Press the ▲/▼button to select the items.

Menu Operation
Press the button to select Hotel Model, then press ENTER button to enter Hotel
Model.
- Active Hotel Mode
Set hotel mode On or Off.
NOTE: ◆The following settings work only
when Active Hotel Mode is set to be ON.
- Max Vol.
Set the max volume that you can adjust.
- Default Vol.
Set the Default volume for every time you
open the TV, the default volume is 20.
- Source Lock
To lock the input sources that you want.
- Default source
Set the default input source when turning on your TV.
- Default Dtv program
Only available when the Default Source is set to DTV.
- Default Atv program
Only available when the Default Source is set to ATV.
- Backup to USB
Backup data to USB.
•Hotel Mode
15
E
ngli
sh
ConfiguringtheLockSystemMenu
• Enter Password
The following items are only available if
the password input is correct.
Default password is 0000, and if forget
what you set, please call the service c
Enable
enter.
•
, Parental Rating and Lock
•
ct the channel you want
•
ton to select Parental Rating, then press◄/►button to select.
•
t from being used by young children, or other unexpected usage.
Channel Locks
Keypad are available when Enable is On.
Channel Locks
Press▲/▼to sele
to lock, then press ENTER to set it to lock.
Parental Rating (In DTV mode)
Press the▲/▼but
Lock Keypad
Set to prevent i
•
tton to select New Password, then enter a 4-digital number you want
New Password
Press the▲/▼bu
to set twice.
•
ock System settings to the factory default.
Clear Lock
Restore the L
▲/▼

Menu Operation
C
onfiguringtheSetupMenu
red On Screen
•
audio language.
Rbutton
•▲/▼button to select Subtitle, then press ENTER button to enter sub-menu.
• t
letext settings. Only available under DTV and ATV source.
nter sub-menu.
•
utton to select Time Settings, then press ENTER button to enter
de automatically.
ENTER button to enter
• OSD Language
Select your prefer
Display language.
Audio Languages (In DTV mode)
Select your preferred
(Available for digital channels if multiple
audio languages are broadcasted.)
Press the▲/▼button to select Audio
Languages, then press ENTE
to enter sub-menu.
Press the arrow button to select the
Audio Primary Language and Audio
Secondary Language.
Subtitle (In DTV mode)
Press the
Press the▲/▼button to select Mode, then press◄/►button to select On or Off.
Press the arrow button to select the Subtitle Primary Language and Subtitle
Secondary Language.
Press the▲/▼button to select Hearing Impaired, then press◄/►button to select On
or Off.
Teletex
Adjust Te
Press the▲/▼button to select Teletext, then press ENTER button to e
Under DTV source, press◄/►button to select Digital Teletext Language.
Under ATV source, press◄/►button to select Decoding Page Language.
Time Settings
Press the▲/▼b
sub-menu.
Sleep Timer: Select the time to turn the TV to standby mo
Auto Sleep: Select the Auto Sleep time you want.
Time Zone: Select your time zone.
tTime, then pressTime: Press the▲/▼button to selec
sub-menu. Set Auto Sync to Off, then you can set the time manually.
Note: In the case of loss of power, the clock setting will be lost.
• Mode Setting
16
E
nglish
•Blue Screen
Press the◄/►button to select blue screen On or Off.
- Restore from USB
Restore data from USB.
- Recall
Recall the default settings of Hotel mode.
Press◄/►button to select Store Mode or Home Mode.
OSD Timer: Select On-Screen Menu displaying time.

Menu Operation
• PVR Settings (In DTV mode)
ect PVR Settings, then press ENTER button to enter
lay the Recorded list.
o.
e recording devices
eduled recording.
igital program recording
button to record the current program. During the
roadcast television.
isk at least the capacity with 512MB.
could not be recorded to.
ng is in
f

•
elp you to setup the TV.
•
the system settings to the factory default.
Press the▲/▼button to sel
sub-menu.
It will check the USB.
File Manager: To disp
Replay: Press the red button to replay video.
Delete One: Press the green button to delete a vide
Delete All: Press the yellow button to delete all video.
Device List: When multiple recording devieds are connected, th
are listed. Select one recording device in the Device List.
Format: Press the red button to format USB disk.
Scheduled Record: To set the parameters for sch
Press the ENTER button to set the parameters for recording.
Delete One: Press the green button to delete a video.
Delete All: Press the yellow button to delete all video.
D
1. Insert an U disk, Press
recording, press button to zoom in/out the record menu.
2. Press button to stop recording, it will return to normal b
NOTE:
USB d
Please format the inserted USB disk when it
During the Device formatting, do not disconnect the device while formatti
progress. If you format the device, all files will be deleted. Before formatting your
device to the TV, please back up your files to prevent them from damage or loss o
data. If USB disk in some virus meeting formats turn failure.
If PVR recording system is used all the time, it will exit PVR system automatically.
USB memory must support USB2.0 high-speed specification.
Some of nonstandard USB device may not be supported.
First Time Setup
This is a guide to h
Reset
Restore
of that to perform recording.
When an USB device has several partitions,the PVR system can help to choose
anyone
17
E
ngli
sh
Full: Press the blue button to zoom in the video.
