Changhong Electric UHD42C5500ISX2 User manual

TV
Operation Manual
Tel: [phone]
Fax: [phone]
Service E-mail: [email protected]
Web site: www.changhongeurope.com
CHANGHONG EUROPE ELECTRIC S.R.O.
Argentinská 286/38, 170 00 Praha 7, Czech Republic 42Z
EN
SK
C
()
Model: UHD42C5500ISX2

Contents
Warning…………………………………………………….…………………………1
Main Unit Control………………………………………………………….............6
Getting Started………………………………………………………………………8
Remote Control……………………………………………………………….........10
Basic Operation……………………………………………………………....……12
Menu Operation…………………………………………………………………….15
Safety instructions………………………………………………………………….4
E
nglish
Connection and Setup……………………………………………………………...9
Teletext………………………………………………………………………………50
Troubleshooting Guide…………………………………………………………...51
Installation Instructions for the Flat Panel Support Bracket……..............53

Warning
REGULATORY INFORMATION
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
CAUTION
DO not attempt to modify this product in any way without written authorization from
supplier. Unauthorized modification could void the user's authority to operate this
product.
It is not recommended to keep a certain still image displayed on the screen for a
long time as well as displaying extremely bright images on screen.
Figures and illustrations in this User Manual are provided for reference only
and may differ from actual product appearance. Product design and
specifications may be changed without notice.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated "dangerous
voltage" within the products enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
E
ngli
sh
1

Warning
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To
Rain Or Moisture.
The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.
The Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Attention should be drawn to the environmental aspects of battery disposal. Don’t
throw used batteries in dustbin. Please contact your retailer in order to protect the
environment.
When you install your TV, maintain a distance of at least 4 inches between the TV
and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to
maintain proper ventilation may result in a fire or a problem with the product caused
by an increase in its internal temperature.
No naked flame sources, such as lighted candles, should be placed on the
apparatus.
To prevent the spread of fire, keep candles or other open flames away from this
product at all times.
The device may be malfunction when under electrostatic discharge. It can be
manually resumed by power off and power on again.
CAUTION connecting the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that appliance and has no additional outlets
or branch circuits.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
The MAINS plug is used as the disconnect device, and the disconnect device shall
remain readily operable.
Operating Temperature: 5°C to 35°C Operating Humidity: ≤80%
Storage Temperature: -15°C to 45°C Storage Humidity: ≤90%
This equipment is a Class Ⅱor double insulated electrical appliance. It has
been designed in such a way that it does not require a safety connection to
electrical earth.
E
nglish
2

Warning
is a trademark of SRS Labs, Inc. TruSurround HD technology is
incorporated under license from SRS Labs, Inc.
This DivX Certified®device has passed rigorous testing to ensure it plays DivX®
video.
To play purchased DivX movies, first register your device at vod.divx.com. Find
your registration code in the DivX VOD section of MENU-support.
For HD Test Kit 1080p v1.1 and later:
DivX Certified®to play DivX®video up to HD 1080p, including premium content.
DivX®, DivX Certified®and associated logos are trademarks of DivX, LLC and are
used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
E
ngli
sh
3

Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
7. Do not block any of the ventilation
openings. Install in accordance with
the manufacturer's instructions.
5. Do not use this apparatus near water.
8. Do not install near any heat source
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
6. Clean only with a dry cloth.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong is provided for your
safety. When the provided plug does
not fit into your outlet, consult an
electrician for replacement of the
obsolete outlet.
E
nglish
4

Safety instructions
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles,
and the point where they exit from
the apparatus.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
11. Only use the attachments/
accessories specified by the
manufacturer.
14. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
ON DISPOSAL
-The fluorescent lamp used in this product contains a small amount of mercury.
-Do not dispose of this product with general household waste.
-Disposal of this product must be carried out in accordance to the regulations of
your local authority.
NOTE
-If the TV feels cold to the touch, there may be a small "flicker" when it is turned on.
This is normal; there is nothing wrong with TV.
-Some minute dot defects may be visible on the screen, appearing as tiny red,
green, or blue spots. However there have no adverse effects on the monitor's
performance.
-Avoid touching the screen or holding your finger(s) against it for long periods of
time. Doing so may produce some temporary distortion effect on the screen.
E
ngli
sh
5

Main Unit Control
Front Panel
No. Name Description
1CH+/CH- Changes the channels.
2VOL+/VOL- Adjust the volume.
3MENU Open the menu.
4To switch among the signal source.
5Turns the unit on and off.
6 Power & Sensor Power Indicator and Infrared sensor.
66
3
1
2
4
5
E
nglish
6

Main Unit Control

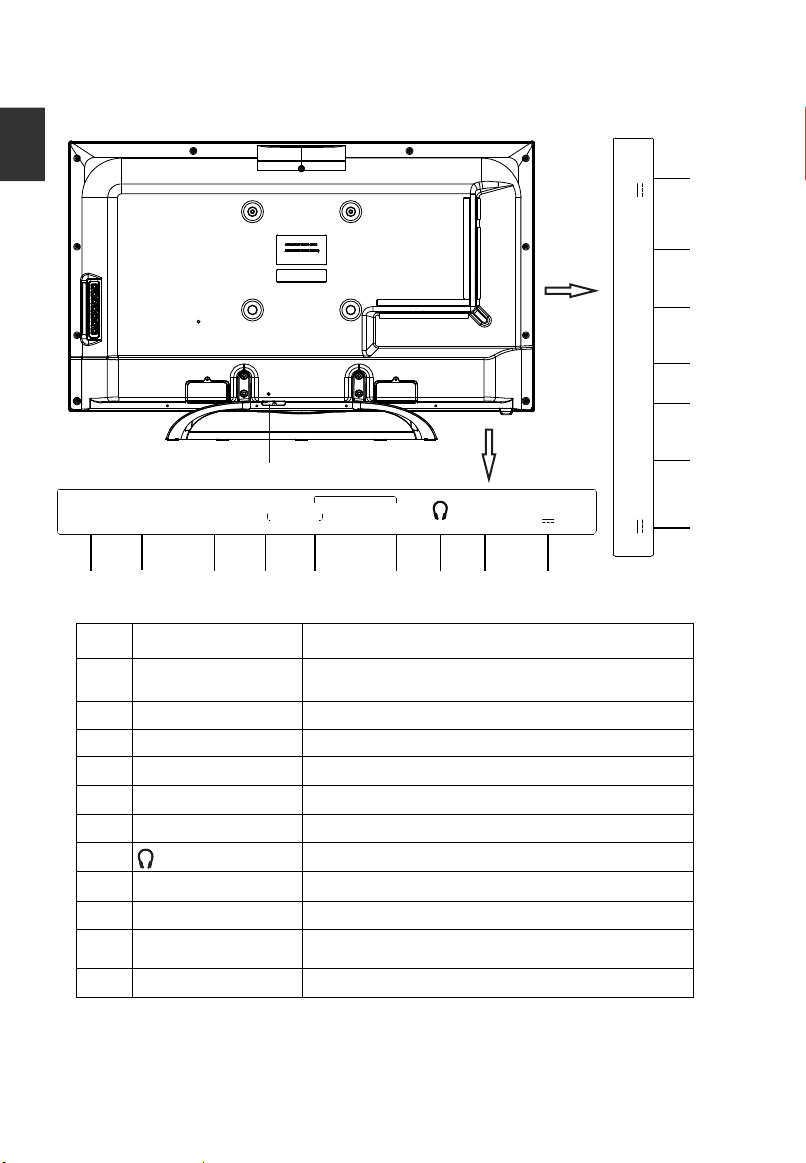

Rear & Sides Panel
USB1
(5V 500mA)
HDMI4/MHL
CI
HDMI3
(4K*2K)
HDMI2
(4K*2K)
(4K*2K)
HDMI1
USB2
(5V 500mA)
LAN DIGITAL
AUDIO OUT PC
COMPONENT
AV AUDIOYPbPr ANT1
SCART
13/18V 400mA
ANT2
(SATELLITE)
8910 11121314
15
16
16
16
17
16
15
7
No. Name Description
7 LAN Local area network (LAN) port. Connect a LAN cable
to this port to connect to the Network.
8 DIGITAL AUDIO OUT Digital audio output.
10
AV AUDIO AV audio/video signal input.
11
12
Ear phone output.
13
SCART input/output.
14 ANT1/2 Antenna input.
15 USB1/2 Connector for USB Play.
16 HDMI1/2/3/4 HDMI1/2/3 input (support UHD (3840x2160));
HDMI4 and MHL share one port.
17 CI Insert CI card.
Main switch
E
ngli
sh
9
PCPC input.
COMPONENT Component input.
14
7
CONVERT TO
CONVERT TO SCART

Getting Started
UsingtheRemoteControl
When using the remote control, aim it at remote sensor on the television. If there is an
object between the remote control and the remote sensor on the unit, the unit may not
operate.
•Point the remote control at the REMOTE SENSOR located on the television.
•When using this television in a very brightly lit area, the infrared REMOTE CONTROL
SENSOR may not work properly.
•The recommended effective distance for using the remote control is about 7 meters.
Installing Batteries in the Remote Control
1. Open the cover at the back of the remote control.
2. Install two AAA size batteries. Make sure to match
the “+” and “-” ends of the batteries with the
diagram inside the compartment.
3. Replace the cover.
BatteryReplacement
You will need to install the batteries into the remote control to make it operate following
the instruction below.
When the batteries become weak, the operating distance of the remote control will be
greatly reduced and you will need to replace the batteries.
Notes on Using Batteries:
The use of the wrong type of batteries may cause chemical leakage and/or explosion.
Please note the following:
•Always ensure that the batteries are inserted with the + and - terminals in the correct
direction as shown in the battery compartment.
•Different types of batteries have different characteristics. Do not mix different types.
•Do not mix old and new batteries. Mixing old and new batteries will shorten battery life
and/or cause chemical leakage.
• Replace batteries as soon as they do not work.
•Chemicals which leak from batteries may cause skin irritation. If any chemical matter
seeps out of the batteries, wipe it up immediately with a dry cloth.
• The batteries may have a shorter life expectancy due to storage conditions. Remove
the batteries whenever you anticipate that the remote control will not be used for an
extended period.
•The batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION:
•It may result in an explosion if batteries are replaced incorrectly.
•Only replace batteries with the same or equivalent type.
E
nglish
8

Connection and Setup
CableInstallation
Before the installation and use, please read carefully the relevant content in “Warning
and Safety instructions”.
1. Take the TV from the wrapping package and put it in a drafty and flat place.
NOTE:
• When you plug or unplug the TV, computer or other equipment, you must make sure
that the power cable has been already shut down;
• When unplugging the power cable or signal cable, please hold the plug (the insulated
part); do not draw the body of the cable.
2. The RF output terminal can be connected with the RF input port of the TV.
3. The output AV terminal of DVD can be connected with the AV input port of the TV
through AV cable.
NOTE:
• COMPONENT (YPbPr),PC and AV cannot be used at same time for they share of
one audio channel.
4. The output COMPONENT (YPbPr) terminal of DVD can be connected with the
COMPONENT (YPbPr) input port of the TV through AV cable.
5. Connect one end of the VGA cable with the VGA port on computer, connect the other
end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on
the each end of VGA cable.
NOTE:
• While connecting the 15-pin VGA, please do not insert the plug overexerted, for fear
the pin might be broken.
6. Connect one end of the HDMI cable with HDMI output port, connect the other end of
the HDMI cable with the HDMI port on the TV.
NOTE:
• While connecting the HDMI, please aim at carefully, do not insert overexerted, for fear
the pin might be broken.
7. Connect SCART socket input or output from an external device to these jacks
8. Sending the TV's audio signal to external audio equipment via the Digital Audio
Output port.
9. Check and make sure that all AV cables are connected with the corresponding ports
correctly.
10. Connect the power cable with 100-240V~ power supply.
NOTE：
• The range of power input for the TV is 100-240V~ 50/60Hz; do not connect the TV
power input port with the power cable out of the above range.
• Please hold the insulated part of the plug when you are unplugging the power cable,
do not touch directly the metallic part of the cable.
If COMPONENT (YPbPr) and AV works as mini terminal, and shared same audio,
•please choose to use a one-to-three audio&video cable.
E
ngli
sh
9

Remote Control

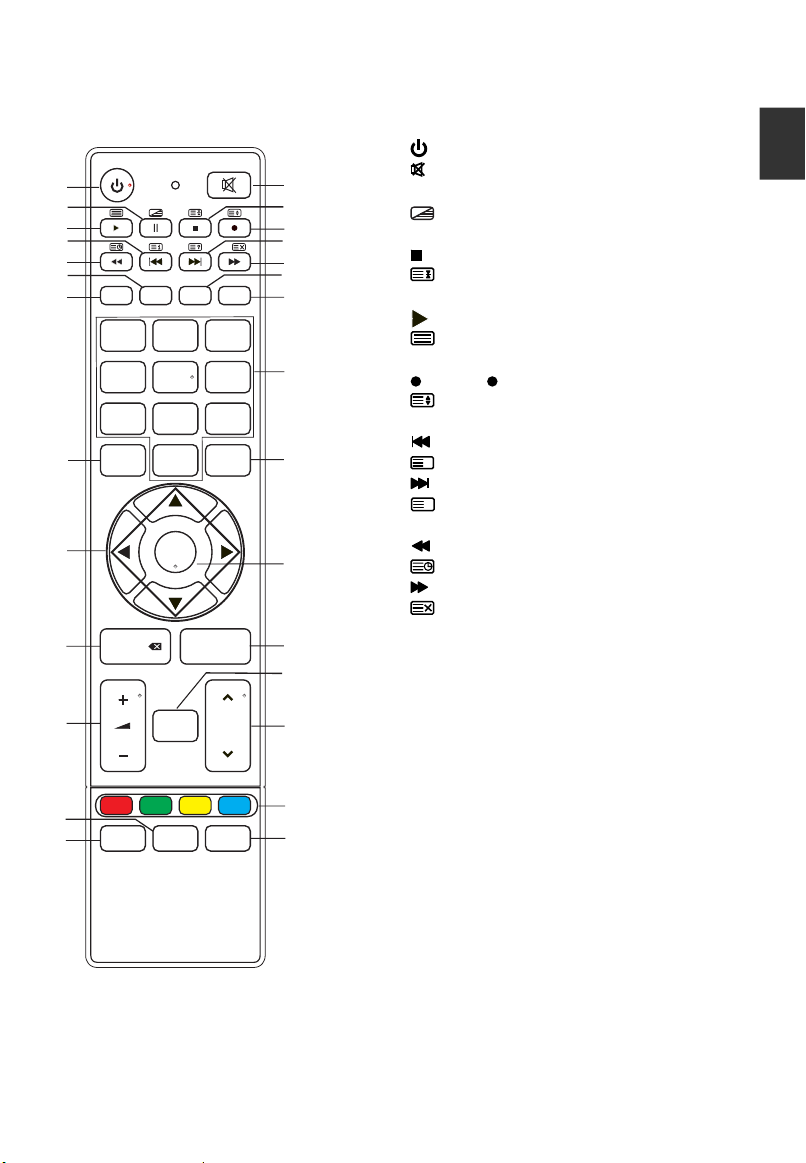

The buttons of the original remote control are as following:
1. : Power, switch on or off TV set.
2. : Press to mute or restore sound.
3. II: Pause (in USB/PVR mode).
: Press to enter the MIX mode in
the teletext.
4. : Stop (in USB/PVR mode).
: Hold the teletext page on display,
press again to release.
5. : Play (in USB/PVR mode).
: Enter the Teletext, and press this
button again to exit.
6. : Press button to start recording.
: Change size of teletext screen in
display mode.
7. : Previous (in USB mode).
i
: Go to the index page.
8. : Next (in USB mode).
?
:Reveal the hidden information of
some teletext pages.
9.
: Enter subtitle mode or subpage.
10.
: Cancel the teletext but not to exit
teletext, press again to exit.
11. EPG: Electronic Programme Guide,
use in the DTV mode.
12. ANT: Press to select an antenna
source.
13. INFO: Press to display the current
program information on the screen.
14. TOOLS: Press to display the Tools
menu.
15. NUMBER BUTTONS: Choose
channels or password importation.
4 5 6
7 8 9
0
OK
MENU EXIT
3D LIST FAV
APPS
P
1 2 3
INFO EPG ANT TOOLS
BACK /
12
3
6
7
4
5
8
910
11 12
13 14
15
16 17
18
19
20 21
22
23
24
25
26
27 28
HOME/
SOURCE
: Fast reverse (in USB mode).
: Fast forward (in USB mode).
E
nglish
10

Remote Control
NOTE:
•All pictures in this manual are examples, only for reference, actual product may differ
from the pictures.
•The buttons not mentioned here are not used.

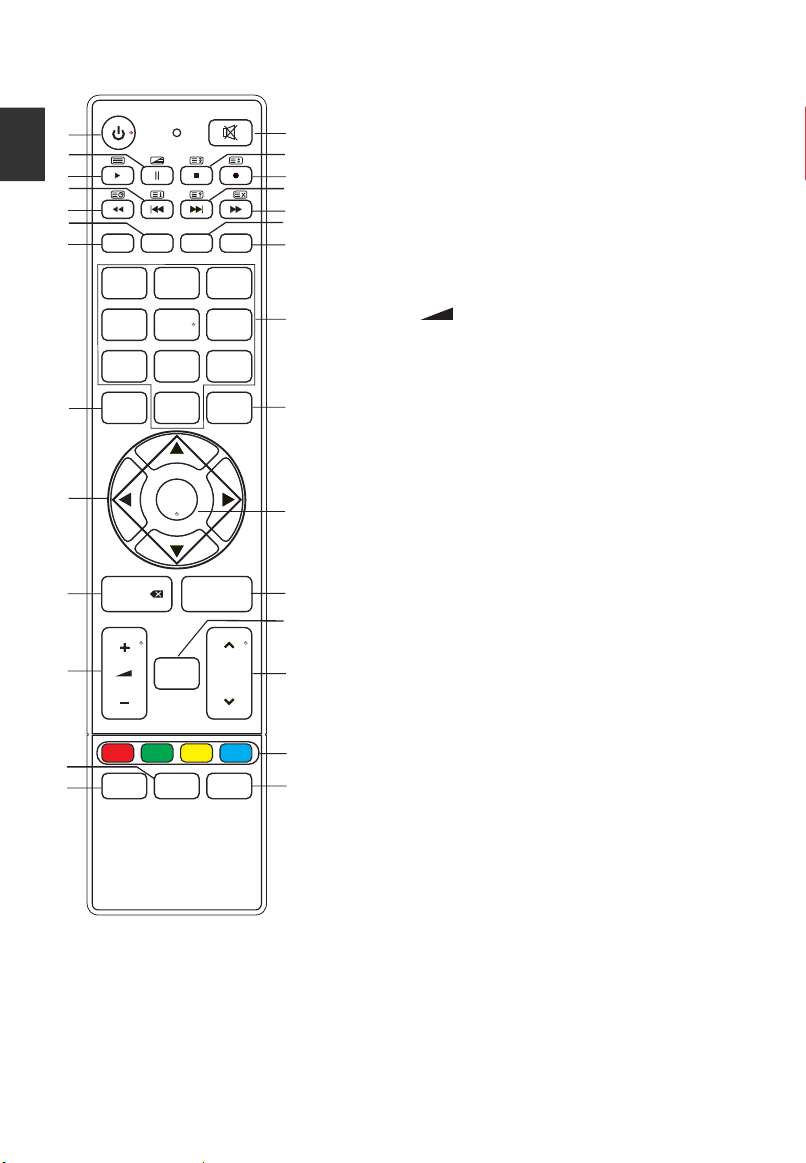

16. MENU: Press to enter the menu screen for
various optional adjustable settings.
17. EXIT: Return the last layer OSD menu or
exit OSD Menu.
18. ▲/▼/◄/►: To select the direction.
19. OK: Press to execute the selected item in
the menu screen.
20. BACK: Return to last viewed program.
21. HOME/SOURCE: Select signal source,
and link to various internet services.
22. + -: Press to adjust the volume level up
or down.
23. APPS: Press to enter APP Store function.
24. ∧P∨: Press to select channels in
ascending or descending order.
25. COLOR BUTTONS: Red/ green/ yellow/
blue key navigation link.
26. LIST: Press to call up the channel list.
Press again to exit it.
28. FAV: Switch on/off the favorite programs
list.
4 5 6
7 8 9
0
OK
MENU EXIT
3D LIST FAV
APPS
P
1 2 3
INFO EPG ANT TOOLS
BACK /
12
3
6
7
4
5
8
910
11 12
13 14
15
16 17
18
19
20 21
22
23
24
25
26
27 28
HOME/
SOURCE
27. 3D: No function.
E
ngli
sh
11

Basic Operation
QUICKSTARTGUIDE
■Initial Setup
1. The first time you power on the TV, the
"Installation Guide" will be shown on the TV
screen. Please follow below procedures to do
first installation including channel searching.
2.
Selecting a Language
Press the ▲/▼/◄/►button to select a
Language, and then press the OK button.
Environment, and then press the OK button.
If you select the “Store”, it will be displayed the
“Yes/No” image.
Installation Guide
Installation Guide
Česko
Deutsch
Italiano
Français
Language
OK
Ack Back
BACK
Select
English
Installation Guide
Store
Home
Environment Select
OK
Ack Back
BACK
Select
Welcome to the installation guide!
Please press [OK] to start the guide!
Slovenčina
Press the ▲/▼/◄/►button to select an
3. Scan the QR code
Please scan the QR code to download
application, and then press the OK button.
Installation Guide
Please scan the QR code to download application.
OK
Ack Back
BACK
For Android and iOS
Please keep your device and TV in the same network.
4.Selecting an Environment
E
nglish
12
(Details please refer to page 15).

Basic Operation
Press the ▲/▼/◄/►button to select a
Country, and then press the OK button.
NOTE:
•If the TV doesn't receive any channels, please check your aerial connection or the
country you selected, and then try an auto search again.
•If the TV just receives some of the channels, it means the aerial's reception isn't good
enough and an antenna service is recommended.
•For this TV set works with Linux operating system, the TV may automatically restart or
the remote control does not respond when it is being used. If the remote control does
not respond, please turn off the power and restart the TV.
Installation Guide
Country
Croatia Czech
France Greece
Denmark
Hungary
Finland
Germany
OK
Ack Back
BACK
Select
Channel Tuning
ATV
:0
Programme(s)
Radio
:0
Programme(s)
Data
:0
Programme(s)
DTV
:0
Programme(s)
10 %... UHF CH 26 DTV

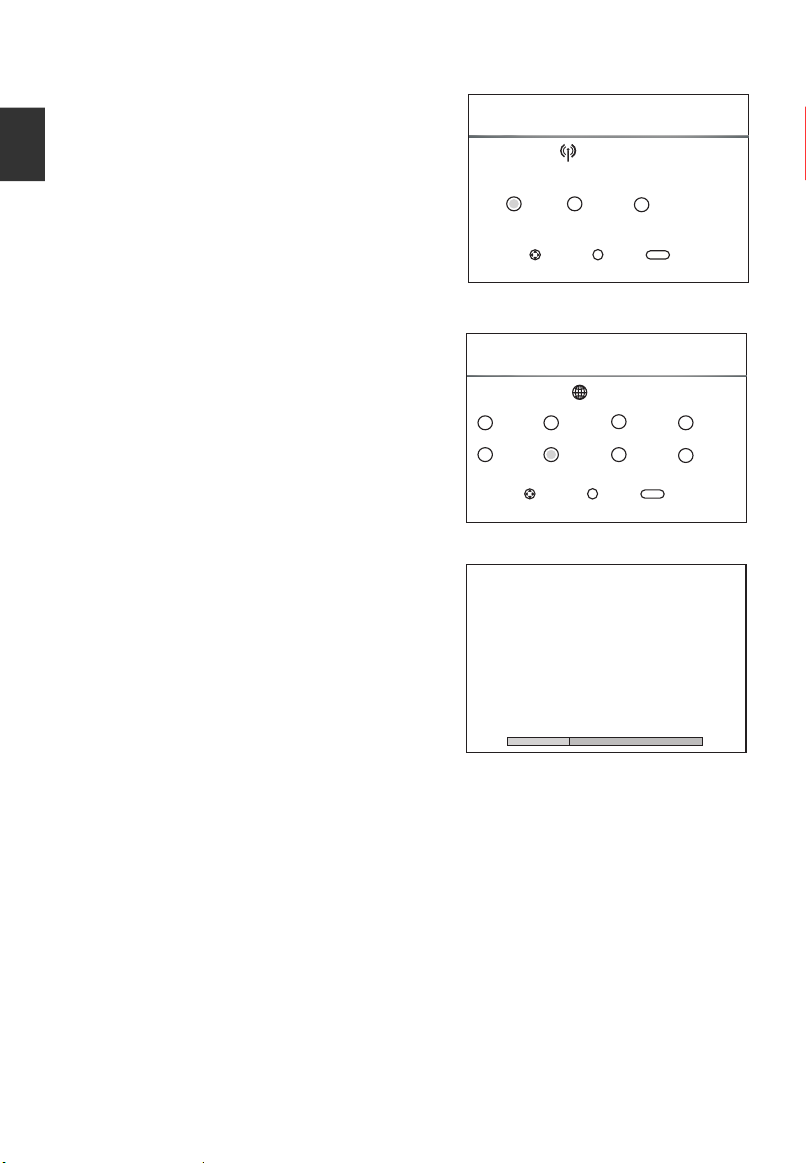

Press the ▲/▼/◄/►button to select an
Antenna, and then press the OK button.
Installation Guide
Cable
Satellite
Air
Antenna Type
OK
Ack Back
BACK
Select
5.Selecting an Antenna
6.Selecting a Country
7. The TV starts Auto Tuning.
E
ngli
sh
13

Basic Operation
TurningonandofftheTV
■Turn on the TV
Connect the power cable, if TV has a power switch, turn it on firstly. Press the
button on remote control can turn on TV from standby mode.
■Turn off the TV
Press the button on the remote control to enter standby mode.
Do not leave your set in standby mode for long periods of time. It is best to unplug the
set from the mains and aerial.
When there is an accident power off, it is recommended to unplug the power cable
from the power socket.
■No signal
There is No Signal menu on screen when there is no input signal. In DTV/ATV mode,
mode, the TV set will automatically turn off in 1 minute if no input signals. When VGA
cable is connected, the TV turns on automatically.
ProgrammeSelection
■Using the CH+/CH- on the panel of TV or ∧P∨on the remote control.
Press CH+/∧to increase channel number.
Press CH-/ ∨to decrease channel number.
■Using 0- 9 Digital Buttons.
You can select the channel number by pressing 0 to 9. (In DTV, ATV mode)
■Example
To select - channel (e.g. Channel 5): Press 5.
To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.
VolumeAdjustment
■Press the VOL+/VOL- on the panel of TV or +
volume.
■If you want to switch the sound OFF, press the .
■You can release mute by pressing the or increase the volume.
ChangingtheInputSource
1. You can select the input source by pressing the HOME/SOURCE button to open
Smart Home interface.
2. Press the ▲/▼button to cycle through the input source, and press the OK button to
confirm your choice.
if there is no signal in 5 minutes, the TV will turn off automatically. In PC-RGB
- on the remote control to adjust the
E
nglish
14

Menu Operation
iSmartTVfunction
E
ngli
sh
■Installation and connection
In order to allow you experience iSmart TV function, you can download application by
scan the QR code from the installation guide, which can be installed to your Android
or iOS mobile device, like smart phone or tablet.
Your TV and mobile phone must be connected in the same network, and the network
needs Internet access. Open the application installed on your handheld device after
the device access to the network; select the TV in the device list to connect.
■Enter iSmart TV World
1. Control by Virtual buttons
You can use Virtual Buttons to control the TV in the application like remote, such as
menu, CH+/-, VOL+/-, etc. In order to achieve the function of arrow keys that right
and left, up and down, you just need to slide in the blank interface of the middle
screen. Let you control the TV without remote.
2. Watch TV any category
iSmart TV will help you to categorize the program after connecting the TV, and
syncing EPG information. You can choose what program you want to watch at the
moment, or book a program for watch later.
3. Quick Settings
In order to reach the best playback effect you want, you can adjust the quality of
pictures and sounds quickly through the shortcut menu, such as brightness, color
temperature, zoom model, sound mode, etc.
4. Media push
iSmart TV will find multimedia files on your mobile phone and help you to
categorize files. You can share these multimedia files to the TV easily by clicking
the file. You can experience excitement and pleasure from the big-screen!
Note:
(1) If there is a mobile version problem cause the application install fails, please
upgrade your phone version.
(2) The EPG information services are from a third party, we do not guarantee the
accuracy and timeliness.
(3) In case of functional changes in the application side, application side shall
prevail.
15

Menu Operation
HowtoNavigateMenus
Please before using the TV follow the steps below to learn how to navigate the menu in
order to select and adjust different functions. The access step may differ depending on
the selected menu.
1. Press the MENU button to display the main menu.
2. Press the ▲/▼/◄/►button to cycle through the main menu. Press the OK button to
access the submenu.
3. Press the ▲/▼button to select the desired sub item, and then press the OK button.
4. Press the ▲/▼/◄/►button to select the desired value. The adjustment in the OSD
may differ depending on the selected menu.
5. Press the MENU button to return to the previous menu.
6. Press the EXIT button to exit from the menu.
NOTE:
•When an item in MENU is displayed gray, it means that the item is not available or
can not be adjusted.
•Buttons on the TV have the same function as corresponding buttons on the remote
control. If your remote control is lost or couldn’t work, you may use the buttons on the
TV to select menus. This manual focuses on operation of the remote control.
•Some items in the menus may be hidden depending on modes or signal sources
used.
Setting
Support
Lock
Time
Network
Channel
Sound
E
nglish
16

Menu Operation
ConfiguringthePictureMenu
■Picture Mode: You can select the type of picture which
best corresponds to your viewing requirements.
The manufacture's recommendation mode is Home.
■User: Contrast, Brightness, Saturation, Sharpness and
Backlight can be adjusted.
■Color Temperature: Select the color temperature of the
picture.
■Aspect Ratio: You can select the picture size which best
corresponds to your viewing requirements.
■Screen (In PC mode):
Auto Adjust: Adjust the image automatically.
Horizontal Pos.: Centre the image by moving it left or
right.
Vertical Pos.: Centre the image by moving it up or down.
Size: Adjust the screen size.
Phase: Adjust when characters have low contrast or
when the image flickers.
■NR: Reduces screen noise without compromising video
quality.
■Dynamic Contrast: Adjusts the contrast to the optimal
level according to the image's brightness.
■OverScan (In DTV mode):
The picture reproduction rate is adjusted.
User >
Picture Mode
Home
< >
Color Temperature >
Aspect Ratio
16:9
< >
NR
On
< >
OverScan
Standard
< >
Dynamic
On
Contrast
>
<
OK
Ack Back
BACK
Adjust
■PC Mode (In PC mode): Switch PC Mode function
On or Off.
■Motion Compensation: Set the Motion Compensation Off, Low, Middle, and High.
Removes blurring and shudders from scenes with rapid movement.
■Picture Reset: Reset all picture settings to the factory defaults.
ConfiguringtheSoundMenu
■Audio Type: You can select an audio type to suit your
personal preferences. Treble and Bass can be adjusted
when the audio type is set to User.
■Balance: You can adjust the sound balance of the
speakers to preferred levels.
■AVL (Auto Volume Level): AVL automatically remains
on the same level of volume if you change programmes.
Because each broadcasting station has its own signal
conditions, volume adjustment may be needed every
time when the channel is changed. This feature allows
users to enjoy stable volume levels by making automatic
adjustments for each program.
Audio Type >
SPDIF Mode
< >
PCM
Off
AD Switch ><
Sound
Balance
><
0
AVL ><
Off
SRS
< >
Off
AD Volume
30
OK
Ack Back
BACK
Adjust
■SRS: To switch the SRS function.
SRS TruSurround HDTM creates an immersive,
feature-rich surround sound experience from two
speakers, complete with rich bass, high frequency detail
and clear dialog.
E
ngli
sh
17
