Changhong Electric LED50C2000IS User manual

TV
Operation Manual
Tel: [phone]
Fax: [phone]
Service E-mail: [email protected]
Web site: www.changhongeurope.com
CHANGHONG EUROPE ELECTRIC S.R.O.
UK
C Z
SK
Model: LED50C2000IS
签名 日期
设计
审核
电路会签
软件会签
工艺会签
结构会签
通知编号
图号
规格
封面纸张
内文纸张
机芯
A5
７０ｇ双胶纸
１５７ｇ铜版纸彩印
广制TZ０６２５Ｒ
ＬＳ１０Ｓ２＋ＳＲＳ 无３Ｄ 内置ｗｉｆｉ
JUC0.018.00097662
50
Argentinská 38, 17000 Praha 7, Czech Republic

Table of Contents
Safety Instructions…………………………………………………………..………….3
Main Unit Control……………………………………………………………..………... 5
Front Panel………………………………………………………………………….……....5
Remote Control…………………………………………………………………..…….. 7
Configuring the Lock Menu……………………………………………………………....
UK
Warning…………..………………………………………………………….................1
Getting Started…………………………………………………………………….…...
9
Using the Remote Control………………………………………………………….…….. 9
Installing Batteries in the Remote Control………...…………………………………..…. 9
Battery Replacement …………………………………………………………………….. 9
Connection and Setup……………………………………………………………….…10
Cable Installation.................…………………………………………………………...….10
Basic Operation…………………………………………………………………………11
QUICK START GUDE……………………………………………………………………...11
Turning on and off the TV………………………………………………………………….12
Programme Selection…………………………………………………………………..…12
Volume Adjustment……………………………………………………………………......12
Changing the Input Source…………………………………………………………….....12
Menu Operation……………………………………………………………………..….13
How to Navigate Menus…………………………………………………………….…….13
Configuring the Channel Menu…………………………………………………….……..13
Configuring the Picture Menu…………………………………………………….………18
Configuring the Sound Menu……………………………………………………….…….19
Network Function Operation Instruction…………………………………………..……..20
To Access/Quit USB mode ……………………………………………………………… 30
HbbTV for Germany……………………………………………………………………….32
Configuring the Option Menu……………………………………………………………. 40
PVR Function Operation Instruction…………………………………………………..… 42
45
Hotel Mode………………………………………………………………………………...46
Important Unique Buttons………………………………………………………….....47
Programme Guide………………………………………………………………………... 47
Channel List………………………………………………………………………………..47
Favorite List…………………………………………………………………………….…. 47
Teletext………………………………………………………………………………....48
Troubleshooting Guide……………………………………………………………..…49
Troubleshooting…………………………………………………………………….……..49
Maintenance……………………………………………………………………….……… 50
Rear & Sides Panel……………………………………………………………………..….. 6
Using the Teletext Feature………………………………………………………….…….48

REGULATORY INFORMATION
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
CAUTION
DO not attempt to modify this product in any way without written authorization from
supplier. Unauthorized modification could void the user's authority to operate this
product.
It is not recommended to keep a certain still image displayed on the screen for a long
time as well as displaying extremely bright images on screen.
Figures and illustrations in this User Manual are provided for reference only and
may differ from actual product appearance. Product design and specifications
may be changed without notice.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning
1

WARNING
-To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To
Rain Or Moisture.
-The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.
-The Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
-Attention should be drawn to the environmental aspects of battery disposal. Don’t
throw used batteries in dustbin. Please contact your retailer in order to protect the
environment.
-No naked flame sources, such as lighted candles, should not be placed on the
apparatus; To prevent the spread of fire, keep candles or other open flames away
from this product at all times.
-The device may be malfunction when under electrostatic discharge. It can be
manually resumed by power off and power on again.
-To avoid any injury caused by overturn of the product, please always ensure the
Whole product was place within the table surface in horizontal.
CAUTION connecting the Power Cord
-Most appliances recommend they be placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that appliance and has no additional outlets
or branch circuits.
-Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and its if appearance indicates
damage or deterioration, unplug it, discontinue use of the appliance, and have the
cord replaced with an exact replacement part by an authorized servicer. Protect the
power cord from physical or mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
-The MAINS plug is used as the disconnect device, and the disconnect device shall
remain readily operable.
is a trademark of SRS Labs, Inc. TruSurround HD technology is
incorporated under license from SRS Labs, Inc.
Warning
-When you install your TV, maintain a distance of at least 4 inches between the TV and
other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to
maintain proper ventilation may result in a fire or a problem with the product caused
by an increase in its internal temperature.
-Operating Temperature: 0°C to 40°C Operating Humidity: ≤80%
Storage Temperature: -20°C to 60°C Storage Humidity: ≤90%
2
UK

IMPORTANT SAFETY INSTRUCTIONS

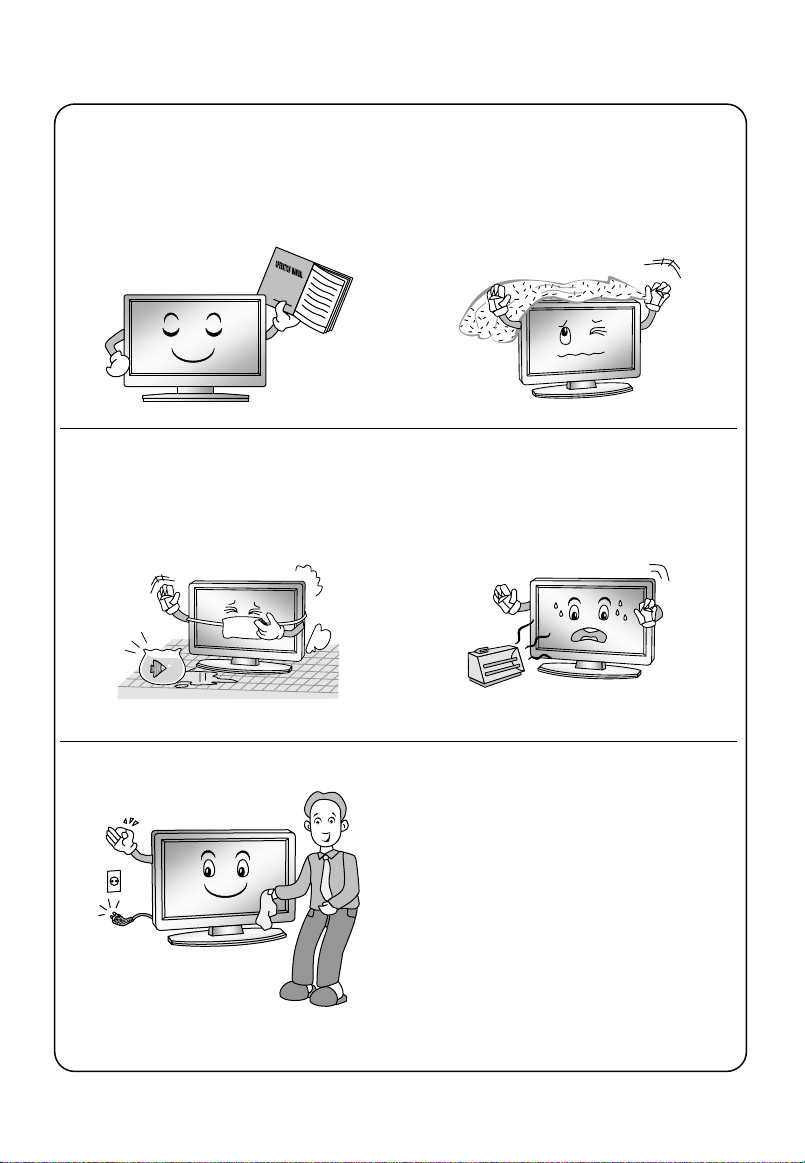

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
7. Do not block any of the ventilation
openings. Install in accordance with
the manufacturer's instructions.
5. Do not use this apparatus near water. 8. Do not install near any heat source
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
6. Clean only with a dry cloth.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong is provided for your
safety. When the provided plug does
not fit into your outlet, consult an
electrician for replacement of the
obsolete outlet.
Safety Instructions
3

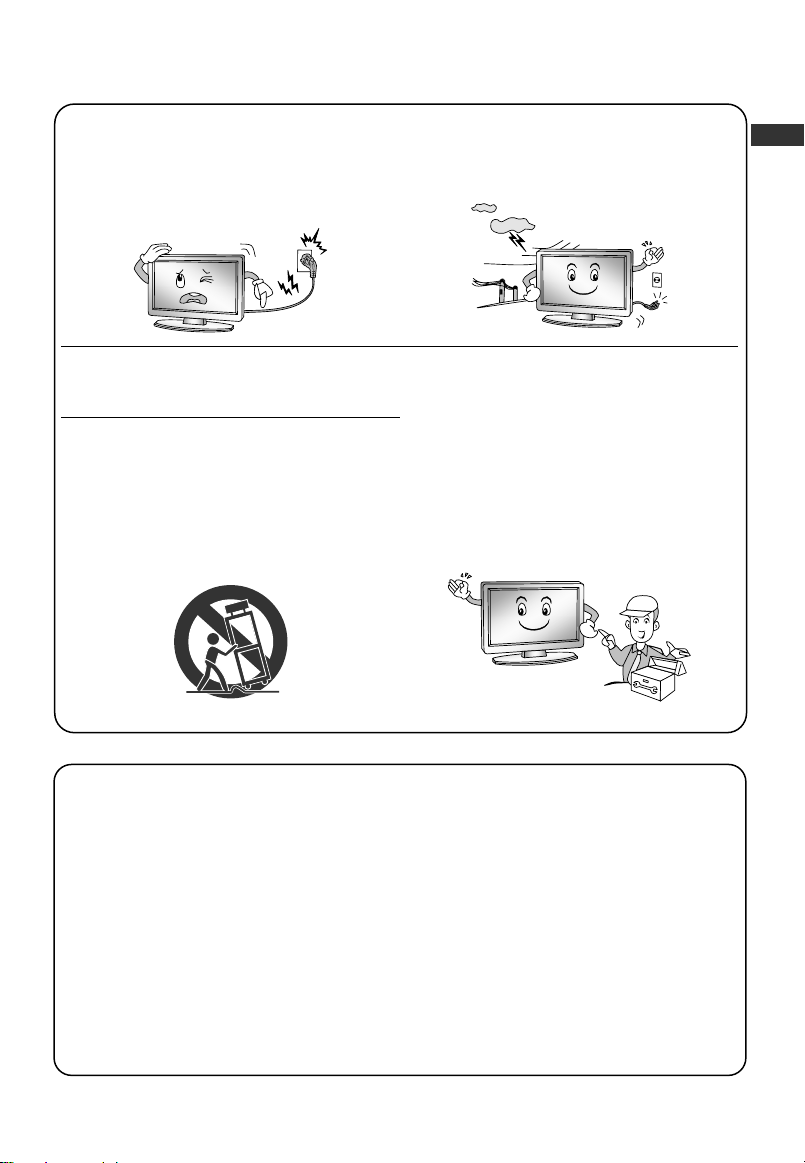

10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
11. Only use the attachments/
accessories specified by the
manufacturer.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been
dropped.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
ON DISPOSAL
-Do not dispose of this product with general household waste.
-Disposal of this product must be carried out in accordance to the regulations of your
local authority.
NOTE
-Some minute dot defects may be visible on the screen, appearing as tiny red,
performance.
-Avoid touching the screen or holding your finger(s) against it for long periods of time.
Doingso may produce some temporarydistortion effect on the screen.
Safety Instructions
-The fluorescent lamp used in this product contains a small amount of mercury.
-If the TV feels cold to the touch, there may be a small "flicker" when it is turned on.
This is normal; there is nothing wrong with TV.
green, or blue spots. However there has no adverse effect on the monitor's
4
UK

Front Panel
Main Unit Control
3
1
2
4
5
6
No. Name Description
1 Changes the channels.
2 Adjusts the volume.
3 MENU Open the menu.
4
To switch the signal source. In the on-screen menu,
use this button as you would use the ENTER button
on the remote control.
5 Turns the unit on and off
6 Power Indicator and Infrared sensor
CH+/CH-
VOL+/VOL-
Power & Sensor
5

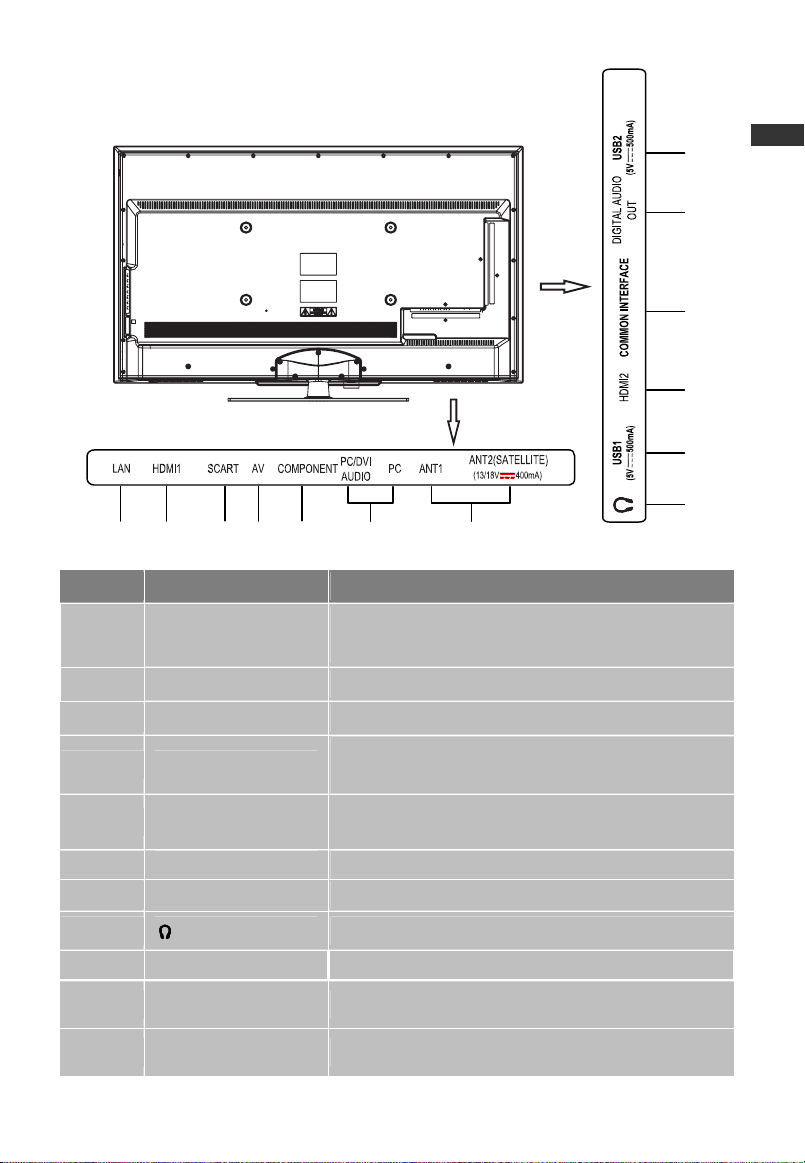

Rear & Sides Panel
Main Unit Control
6
No. Name Description
LAN Local area network (LAN) port. Connect a LAN cable to this
port to connect to the Network.
8 HDMI1/2
9 SCART
10 AV AV audio/video signal input. When connecting, use the
appropriate connector.
11 COMPONENT Component input. When connecting, use the appropriate
connector.
12 PC/DVI AUDIO/ PC
13 ANT1/2 Antenna input.
14 EAR PHONE OUTPUT
15 USB1/2
16 COMMONINTERFACE
17 DIGITAL AUDIO OUT DIGITAL AUDIO OUTPUT
Connector for USB Play.
HDMI input.
SCART input/output.
PC input.
INSERT CI CARD.
.
.
7
712 13
14
8
15
15
16
17
8 9 10 11
UK

Remote Control
The buttons of the original remote control are as following:The buttons of the original remote control are as following:
1
2
3
4
5
6
11 12
13 14
15
16
17 18
19
20 21
22 23
24 25
26
27
28
29
30
1 2 3
456
78 9
0
INFO
SOURCE
AUDIO
INDEX
EPG
MENU
EXIT
CH+ VOL+
CH- VOL-
ENTER
REPEAT
LIST
STILL
RADIO
SUBTITLE
T-Shift
3D
ANT
1. : Power, switch on or off TV set.
2. INFO: Press to display the current
programme information on the screen.
i
: Go to the index page.
: Press to mute or restore sound.
NUMBER BUTTONS: Choose channels
or password importation.
SOURCE: Press to select signal source.
?
: Reveal the hidden information of
some teletext pages.
AUDIO ( ): The button can be used to
switch between NICAM DUALⅠ/ NICAM
DUALⅡ/ NICAM DUALⅠ+Ⅱ/MONO and
switch Audio language in DTV mode.
AUDIO: Select the audio language if
available (in USB mode).
CH+/CH-: Press to select channels in
ascending or descending order. Moves to
the previous or next screen in some list.
VOL+/VOL-: Press to adjust the volume
level up or down.
INDEX: Press to enter the Recorded list.
(In PVR mode) Change the list by TIME or
CHANNEL (In PROGRAMME GUIDE
menu).
: Switch on/off the favorite programs
list.
for various optional adjustable settings.
exit OSD Menu.
item in the menu screen or enter the
desired value in any input mode.
Pressagaintoexitit.
REPEAT: Press to select the repeat play
mode (in USB mode).
the DTV mode.
: Accesses the Home menu.
78
910
31
32
33
34
4.
5. ANT: Press to select an antenna source.
6.
7.
8.
9.
10.
11.
12.
13. MENU: Press to enter the menu screen
14. EXIT: Return the last layer OSD Menu or
15. ▲/▼/◄/►:To select the direction.
16. ENTER: Press to execute the selected
17. LIST: Press to call up the channel list.
18. EPG: Electronic Programme Guide, use in
19.
3. 3D: No function.
7

Remote Control
1
2
3
4
5
6
11 12
13 14
15
16
17 18
19
20 21
22 23
24 25
26
27
28
29
30
1 2 3
456
78 9
0
INFO
SOURCE
AUDIO
INDEX
EPG
MENU
EXIT
CH+ VOL+
CH- VOL-
ENTER
REPEAT
LIST
STILL
RADIO
SUBTITLE
T-Shift
3D
ANT
78
910
31
32
33
34
: Press button to start recording.
20.
: Enter subtitle mode or subpage.
SUBTITLE: Select the subtitle language if
available (in USB mode).
: Press to select different images
display mode.
shift function.
: Return to last viewed program.
blue key navigation link.
: Previous (in USB mode).
: Next (in USB mode).
: Hold the teletext page on display,
press again to release.
: Enter the Teletext, press again for
MIX mode, press this button again to exit.
DTV programs when there is Radio
program (In DTV mode).
: Cancel the teletext but not to exit
teletext, press again to exit.
21. : Fast reverse (in USB mode).
:Pause (in USB/PVR mode).22. : Stop (in USB/PVR mode).23.
: Play (in USB/PVR mode).24. : Fast forward (in USB mode).25.
: Change size of teletext screen in
26.
sizes.
27.
28. T-Shift: Press T-Shift button to start time
29.
30. COLOR BUTTONS: Red/ green/ yellow/
31. STILL: Press to hold the picture.
32.
33. RADIO: Press to interchange Radio and
34.
NOTE:
•All pictures in this manual are examples, only for reference, actual product may differ
from the pictures.
•The buttons not mentioned here are not used.
8
UK

When using the remote control, aim it at remote sensor on the television. If there is an
object between the remote control and the remote sensor on the unit, the unit may not
operate.
•Point the remote control at the REMOTE SENSOR located on the television.
•When using this television in a very brightly lit area, the infrared REMOTE CONTROL
SENSOR may not work properly.
•The recommended effective distance for using the remote control is about 7 meters.
1. Open the cover at the back of the remote control.
2. Install two AAA size batteries. Make sure to match
the “+” and “-” ends of the batteries with the
diagram inside the compartment.
3. Replace the cover.
Battery Replacement
You will need to install the batteries into the remote control to make it operate following
the instruction below.
When the batteries become weak, the operating distance of the remote control will be
greatly reduced and you will need to replace the batteries.
Notes on Using Batteries:
The use of the wrong type of batteries may cause chemical leakage and/or explosion.
Please note the following:
•Always ensure that the batteries are inserted with the + and - terminals in the correct
direction as shown in the battery compartment.
•Different types of batteries have different characteristics. Do not mix different types.
•Do not mix old and new batteries. Mixing old and new batteries will shorten battery life
and/or cause chemical leakage.
• Replace batteries as soon as they do not work.
•Chemicals which leak from batteries may cause skin irritation. If any chemical matter
seeps out of the batteries, wipe it up immediately with a dry cloth.
• The batteries may have a shorter life expectancy due to storage conditions. Remove the
batteries whenever you anticipate that the remote control will not be used for an
extended period.
•The batteries (battery pack or batteries installed) shall not be exposed to excessive heat
such as sunshine, fire or the like.
CAUTION:
•It may result in an explosion if batteries are replaced incorrectly.
•Only replace batteries with the same or equivalent type.
Getting Started
Installing Batteries in the Remote Control
UsingtheRemoteControl
9

CableInstallation
Before the installation and use, please read carefully the relevant content in “Warning and
Safety instructions”.
1. Take out the TV from the wrapping package and put it in a drafty and flat place.
NOTE:
• When you plug or unplug the TV, computer or other equipments, you must make sure
that the AC power has been already shut down;
• When unplugging the power cable or signal cable, please hold the plug (the insulated
part), do not draw the body of the cable.
2. The RF output terminal can be connected with the RF input port of the TV.
3. The output AV terminal of DVD can be connected with the AV input port of the TV
through AV cable.
NOTE:
• Component and AV can not be used at same time for they share of one audio channel.
4. The output COMPONENT (YPbPr) terminal of DVD can be connected with the
COMPONENT (YPbPr) input port of the TV through AV cable.
5. Connect one end of the VGA cable with the VGA port on computer, connect the other
end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on
the each end of VGA cable.
NOTE:
• While connecting the 15-pin VGA, please do not insert the plug overexertedly, for fear
the pin might be broken.
6. Connect one end of the HDMI cable with HDMI output port, connect the other end of
the HDMI cable with the HDMI port on the TV.
NOTE:
• While connecting the HDMI, please aim at carefully, do not insert overexertedly, for fear
the pin might be broken.
7. Check and make sure that all AV cables are connected with the corresponding ports
correctly.
NOTE：
power input port with the AC power out of the above range.
• Please hold the insulated part of the plug when you are unplugging the power cable, do
not touch directly the metallic part of the cable.
Connection and Setup
8. Connect the AC power cable with 100-240V AC power supply.
• The range of power input for the TV is 100-240V~ 50/60Hz, do not connect the TV
10
UK

QUICK STARTGUIDE
■Initial Setup
press the button.
Basic Operation
1.The first time you power on the TV, the
"Installation Guide" will be showen on the TV screen.
Please follow below procedures to do first
installation including channel seaching.
2.Selecting a language
Press the button to select a language, then
▲/▼
►
3.Selecting a Picture Mode
then press the button.
Press the button to select a Picture Mode,
▲/▼
►
press the button.
Press the button to select a Antenna, then
▲/▼
►
4.Selecting a Antenna
press the button.
Press the button to select a Country, then
▲/▼
►
5.Selecting a Country
6.The TV starts Auto Tuning.
NOTE:
•If the TV doesn't receive any channels, please check your aerial connection or the
country you selected, then try an auto search again.
•If the TV just receives some of the channels, it means the aerial's reception isn't good
enough and an antenna service is recommended.
For this TV set works with linux operating system, the TV may automatically restart or
the remote control does not respond when it is being used. If the remote control does
not respond, please turn off the power and restart the TV.
•
11

Turningon andofftheTV
■Turn on the TV
Connect the AC input cable, if TV has a power switch, turn it on firstly. Press the
button on remote control can turn on TV from standby mode.
■Turn off the TV
Press the button on the remote control to enter standby mode.
Do not leave your set in standby mode for long periods of time. It is best to unplug the
set from the mains and aerial.
When there is an accident power off, it is recommended to unplug the power cable
from the power socket.
■No signal
There is No Signal menu on screen when there is no input signal. In ATV/DTV mode, if
there is no signal in five minutes, the TV will turn off automatically. In PC-RGB mode,
the TV set will automatically turn off in 30 seconds if no input signal. When VGA cable
is connected, the TV turns on automatically.
ProgrammeSelection
■Using the CH+/CH- on the panel of TV or on the remote control.
Press CH+ to increase channel number.
Press CH - to decrease channel number.
■Using 0- 9 Digital Buttons.
You can select the channel number by pressing 0 to 9. (In ATV, DTV mode)
■Example
To select - channel (e.g. Channel 5): Press 5.
To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.
VolumeAdjustment
■Press the VOL+/- button to adjust the volume.
■If you want to switch the sound OFF, press the .
■You can release mute by pressing the or increase the volume.
ChangingtheInputSource
1. You can select the input source by pressing the SOURCE
button on the remote control.
2. Press the▲/▼button to cycle through the input source, and
press the ENTER button to confirm your choice.
Basic Operation
12
UK

HowtoNavigateMenus
Before using the TV follow the steps below to learn how to navigate the menu in order to
select and adjust different functions. The access step may differ depending on the
selected menu.
1. Press the MENU button to display the main menu.
2. Press the◄/►button to cycle through the main menu. Press the ENTER button to
access the submenu.
3. Press the▲/▼button to select the desired sub item, then press the ENTER button.
4. Press the ▲/▼/◄/►button to select the desired value. To save the setting, press
ENTER. The adjustment in the OSD may differ depending on the selected menu.
5. Press the MENU button to return to the previous menu.
6. Press the EXIT button exit from the menu.
NOTE:
•When an item in MENU is displayed gray, it means that the item is not available or
cannot be adjusted.
•Buttons on the TV have the same function as corresponding buttons on the remote
control. If your remote control is lost or couldn’t work, you may use the buttons on the
TV to select menus. This manual focuses on operation of the remote control.
•Some items in the menus may be hidden depending on modes or signal sources used.
ConfiguringtheChannel Menu
■Antenna
Selecting an antenna source.
◆When TV signals is Air.

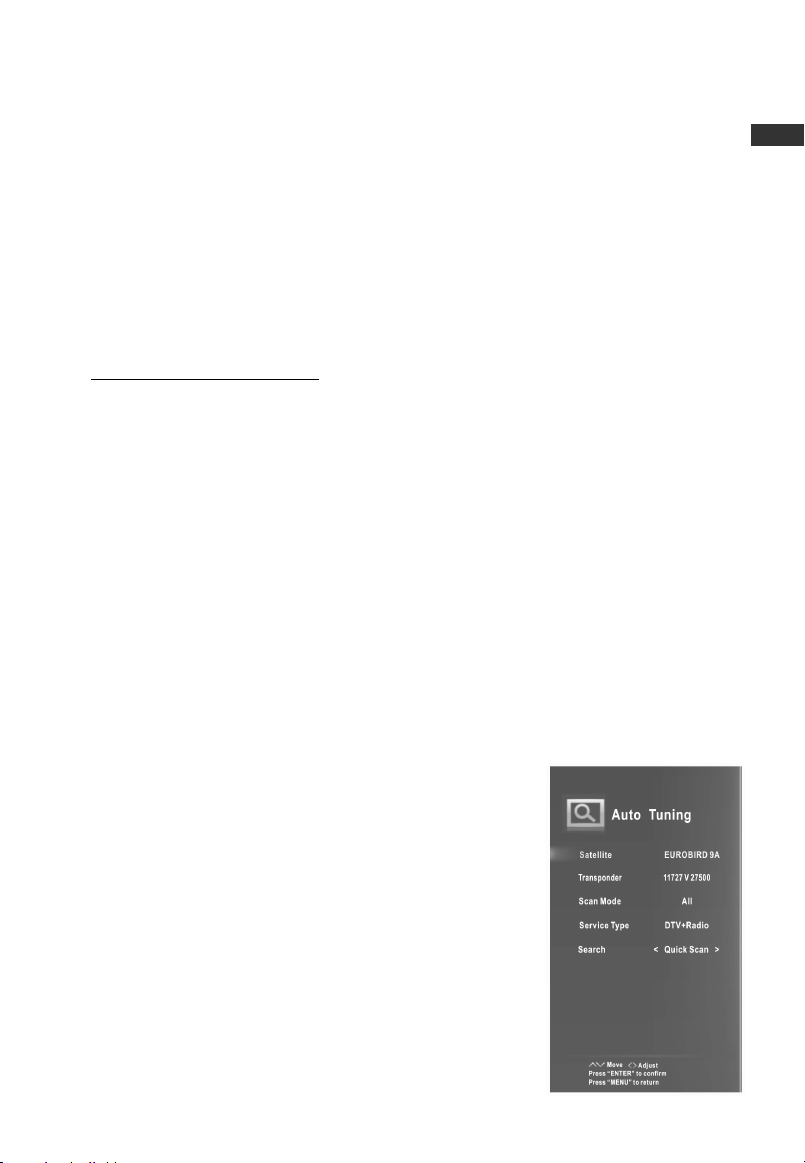

■ Auto Tuning
Select the ENTER button to start Auto Tuning.
1. Select the country and tune type for channels.
2. The TV will begin memorizing all of the available
Channels.
Once the progress bar is full, the found channels will
be stored and the unit will proceed to the search for
TV, DTV, Radio and Data.
If you press the MENU button in DTV searching, the
Channel Tuning will skip to TV searching as the
suggestive picture shows.
Menu Operation
13

■ DTV Manual Tuning
Manual store for digital channels.
1. Press the ◄/►button to select channel.
2. Press the ▲/▼button to select Search, and press ENTER to start channel tuning.
When a channel is found, the searching process will stop, the channel will be saved
with current channel number.
Press the EXIT button to exit.
◆When TV signals is Cable.

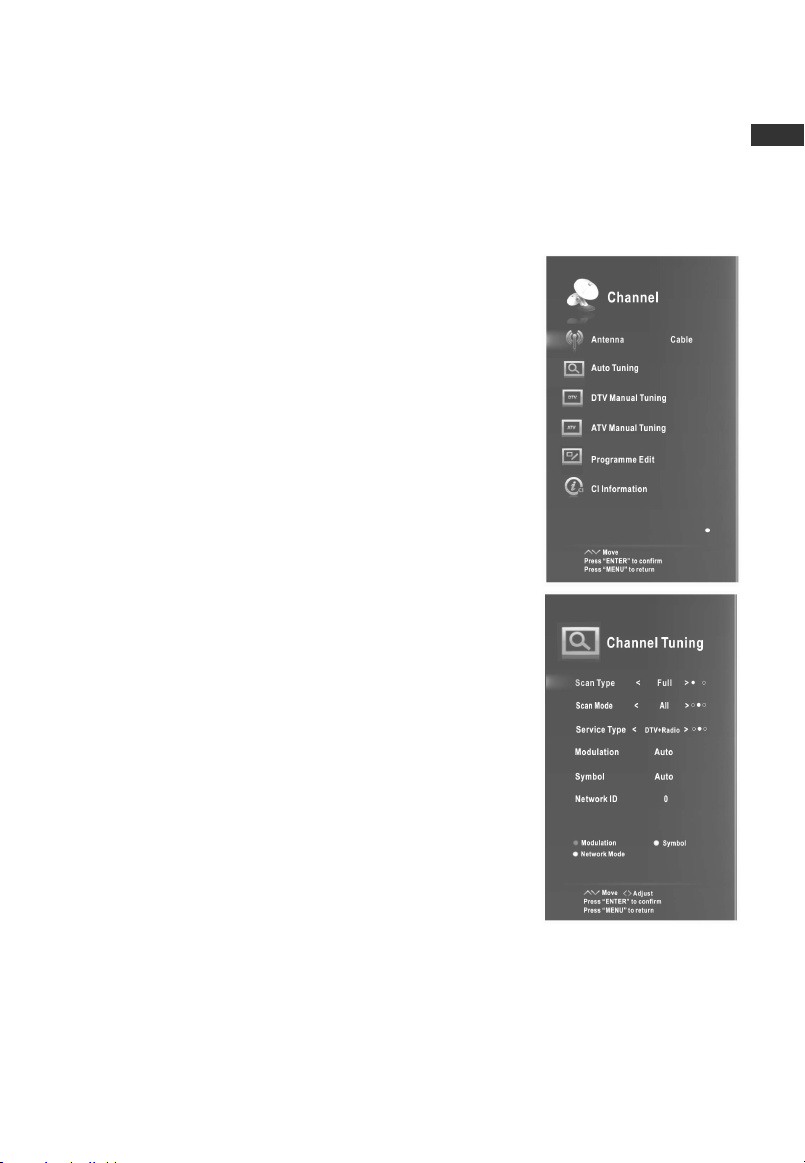

■Auto Tuning
Select the ENTER button to start Auto Tuning.
1. Select the country and tune type for channels.
2. Adjust the Channel Tuning Menu.
- Scan Type: Scans for all active broadcast station
channels and stores them in the TV.
If you select Full, the Auto Tuning will search through
all frequencies to find available channels.
If you select Network, the Auto Tuning will search
through appointed frequencies to find available
channels.
store.
- Service Type: Select the channel type to memorise.
- Modulation: Displays available modulation values.
Press the ▲/▼button to select Modulation. Press the
red button to set up Modulation manually. You can set
up Modulation using the◄/►button. (Modulation:
Loading of audio or video signals onto carrier)
- Symbol: Displays available symbol rates. Press the
▲/▼button to select Symbol. Press the green button
to set up Symbol manually. You can set up Symbol
using the numeric buttons. (Symbol: Speed at which a
device such as modem sends symbols to a channel)
- Network ID: Displays the network identification code.
Press the ▲/▼button to select Network ID. Press the
yellow button to set up Network ID manually. You can set up Network ID using the
numeric buttons.
When you are satisfied with your setting, press the ENTER button. The TV will begin
memorizing all of the available channels.
Menu Operation
- Scan Mode: Select All, Encrypted or Free channels to
14
UK

■DTV Manual Tuning
Frequency, Symbol, Modulation, Scan Mode, and Service Type are needed in order to
add a programme correctly in DVB cable mode. Please inquire of the cable service
provider about the correct values. When setting is completed, select Search and press
ENTER to start channel tuning.
◆When TV signals is Satellite.
■Satellite Setup
- Satellite/Transponder: Press the ▲/▼button to
select the Satellite/Transponder, then press the
ENTER button. Press the ▲/▼button to select the
satellite/transponder from the list.
CH+/CH-: Press the CH+/CH- button to page up or
down the satellite/transponder list.
Delete: Press the red button to delete the current
satellite/transponder.
Edit: Press the green button to edit the current
satellite/transponder.
Add: Press the yellow button to add a new
satellite/transponder.
- LNB Power: Select the power supply type for the
LBN.
- LNB Type:Select the LNB type.
- 22kHz Tone: 22kHz SWITCH. Select the 22KHz depending on the LNB type.
Used to choose proper device.
- DiSEqC1.0: You can choose one of four satellites.
Used to choose proper device.
- Motor: Sets the positioned type between DiSEqC1.2
and USALS.
When motor is set to DiSEqC1.2 or USALS:
Set Limit: Press the green button to set Limits to the
scope of satellite Antenna rotation.
rotation has been completed or stopped manually.
Move Step: Rotates the antenna in accordance with
the step value. Enables the antenna make a fine
adjustment.
Set West Limit: Set the west limit value.
Set East Limit: Set the East limit value.
Goto Reference: Drive antenna to zero position.
Menu Operation
Move Continue: Rotates the antenna until the
- Toneburst: You can choose one of two satellites.
15

Disable Limit: Delete Limit settings. Allows the antenna to rotate over the full arc.
Cancel east limit and west limit.
Set position: Press the red button to set position.
Move Auto: Rotates the antenna automatically.
stopped manually.
Move Step: Rotates the antenna in accordance with the step value. Enables the
antenna make a finer adjustment.
Store Position: Store current position as the selected positioner limit.
Goto Position: Rotates the antenna to the stored satellite position.
Goto Reference: Drive antenna to zero position.
When Motor is set to USALS:
Set Location: Press the yellow button to set Location.
Location: Longitude Direction, Longitude Angle, Latitude Direction, Latitude Angle
can be adjusted When the Location is set to Manual.
Longitude Direction: Sets the Longitude direction for the location.
Longitude Angle: Sets the Longitude angle for the location.
Latitude Direction: Sets the Latitude direction for the location.
Latitude Angle: Sets the Latitude angle for the location.
- Go Search: When setting is completed, select Go Search and press ENTER, Auto
Tuning is started.
- Reset: Satellite setup setting will be reset to the default values. After reset all, you
can reset the county while Auto Tuning.
machine to receive the satellite programs should regularly refer to the related detailed
information in this website: http://www.lyngsat.com/, and please add the new
be influenced.
■Auto Tuning
Press the ENTER button.
1. Select the country for channels.
2. Press the ▲/▼button to select Search, press the
◄/►button to select Quick Scan or Blind Scan, and
then press ENTER to start channel tuning.
3. The TV will begin memorizing all of the available
Channels.
Menu Operation
GotoX: Moves the antenna to the location specified by Set Location.
transponder parameter in the machine in time, otherwise,your program receiving may
Move Continue: Rotates the antenna until the rotation has been completed or
therefore, the program parameter may be partially changed. The users who use this
•The satellite TV company may adjust the transponder during the operation period;
16
UK

■DTV Manual Tuning
Manual store for DVBS2 channels.
Press the ▲/▼button to select the desired sub item.
Press the ◄/►button to select the desired value.
Press the ▲/▼button to select Search, and press
ENTER to start channel tuning.
Press the EXIT button to exit.
■ATV Manual Tuning
Manual store for ATV channels.
Press the ▲/▼button to select the desired sub item.
Press the ◄/►button to select the desired value.
Press the ▲/▼button to select Save, and press
ENTER to save it.
Press the ▲/▼button to select Search, and press the ◄/►button to search the
signal upward or downward, the system will stop after one channel is searched.
Press the EXIT button to exit.
■Programme Edit
1. Press the ◄/►button to select an antenna source.
2. Press the ▲/▼button to select the items.
3. Press the CH+/CH- button to select the following or preceding page.
4. Press the
?
button to enter the Programme Edit.
Delete: Press the red button to delete the channel.
Rename: Press the green button to rename the channel. (In ATV mode)
Move: Press the yellow button to move the channel.
Skip: Press the blue button to skip the channel.
Favorite: Press the button to set the favorite channel. One or more groups can
be select.
i
: Press the
i
button to sort the channels by different types. (Satellite channels
only).
Menu Operation
17
