Changhong Electric EF22H888W User manual

TV
Operation Manual
UK
C Z
SK
PL
Jankovcova 1037/49,170 00 Praha 7,Czech Republic
Tel: [phone]
Fax: [phone]
Service E-mail: [email protected]
Web site: www.changhongeurope.com
CHANGHONG EUROPE ELECTRIC S.R.O.22
Model: EF22H888W
签名 日期
设计
审核
电路会签
软件会签
工艺会签
结构会签
通知编号
图号
规格
封面纸张
内文纸张
机芯
A5
７０ｇ双胶纸
１５７ｇ铜版纸彩印
ＬＳ１Ｂ＋ＣＩ（３０８Ｂ）
JU
广制TZ１１７８
Ｃ
Ｒ
0.018.０００７５０７８

Contents UK
Safety instructions……………………………………………………....…………… 3
Getting Started…………………………...………………………..……..…………… 5
Battery replacement……………………………..……………………….………… 5
Hotel Mode
Warning……………………………………………………………………..…..……… 1
Installing Batteries in the Remote Control……………………………..………… 5
Using the remote control…………………………………………………….……... 5
Cable Installation……………………………………………………………………. 6
Remote Control…………………………..…………………………………………… 7
Connection and setup…………………...…………………………………………... 6
Basic Operation……………………………………………………………………... 9
Turning on and off the TV………………………………………………………….. 9
Programme Selection…………….……………………………………………...... 9
Volume adjustment………………………………………………………………..... 9
Changing the Input Source…..………………………………………………….... 9
QUICK START GUIDE……………….………………………………………….….10
Menu Operation………………………………………………………………………. 11
How to Navigate Menus…………………………………………………………....11
Using USB mode………………………………………………………………..….20
…………………………………………………………………….…..22
MHEG5…………………………………………………………………………….…23
Important Unique Buttons.................................................................................24
PROGRAMME GUIDE………………………………….………………………..…24
Channel List……………………………………………………………………….…24
Teletext……………………………………………………………………………….....25
Using the teletext feature…………………........................................................ 25
Troubleshooting Guide………………………………………………………….......26
Troubleshooting…………….…………………………………………………….....26
Maintenance……………………………………………………………………........27
8Specifications………………………………………………………………………… 2
Favorite List……………………………………………………………………..……24
CHANNEL Menu…………………………………………………………………….12
OPTION Menu…………………………………………………………………….…17
PICTURE Menu………………………………………………………………..……15
SOUND Menu………………………………………………………………………..16
TIMER Menu…………………………………………………………………………16
LOCK Menu…………………………………………………………………...….….19

Warning
REGULATORY INFORMATION
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
CAUTION
DO not attempt to modify this product in any way without written authorization
from supplier. Unauthorized modification could void the user's authority to operate
this product.
It is not recommended to keep a certain still image displayed on the screen for a
long time as well as displaying extremely bright images on screen.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the products enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
1

Warning
WARNING
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To
Rain Or Moisture.
The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, table-cloths, curtains, etc.
The Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
Attention should be drawn to the environmental aspects of battery disposal. Don’t
throw used batteries in dustbin. Please contact your retailer in order to protect the
environment.
Keep minimum distances (5cm) around the apparatus for sufficient ventilation;
(Minimum distance around the apparatus for sufficient ventilation.)
No naked flame sources, such as lighted candles, should be placed on the
apparatus;
To prevent the spread of fire, keep candles or other open flames away from this
product at all times.
The device may be malfunction when under electrostatic discharge. It can be
manually resumed by power off and power on again.
CAUTION connecting the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that appliance and has no additional outlets
or branch circuits.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in electric shock or
indicates damage or deterioration, unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits the appliance.
The MAINS plug is used as the disconnect device, and the disconnect device shall
remain readily operable.
Figures and illustrations in this User Manual are provided for reference only and
may differ from actual product appearance. Product design and specifications may
be changed without notice.
To avoid any injury caused by overturn of the product, please always ensure the
whole product was place within the table surface in horizontal.
fire. Periodically examine the cord of your appliance, and if its appearance
2

Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
7. Do not block any of the ventilation
openings. Install in accordance with
the manufacturer's instructions.
5. Do not use this apparatus near water.
8. Do not install near any heat source
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
6. Clean only with a dry cloth.
9. Do not defeat the safety purpose of
the polarized or grounding type plug.
A polarized plug has two blades with
one wider than other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong is provided for your
safety. When the provided plug does
not fit into your outlet, consult an
electrician for replacement of the
obsolete outlet.
3

Safety instructions
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles,
and the point where they exit from
the apparatus.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
11. Only use the attachments/
accessories specified by the
manufacturer.
12. Use only with a cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
14. Refer all servicing to qualified
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such as
power supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operate normally, or has been
dropped.
ON DISPOSAL
-The fluorescent lamp used in this product containsa small amount of mercury.
-Do not dispose of this product with general household waste.
-Disposal of this product must be carried out in accordance to the regulations of
your local authority.
NOTE
-If the TV feel cold to the touch, there may be a small "flicker" when it is turned on.
This is normal, there is nothing wrong with TV.
-Some minute dot defects may be visible on the screen, appearing as tiny red,
green, or blue spots. However there have no adverse effect on the monitor's
performance.
-Avoid touching the screen or holding your finger(s) against it for long periods of
time. Doing so may produce some temporary distortion effect on the screen.
4

Getting Started
Usingtheremotecontrol
When using the remote control, aim it at remote sensor on the television. If there is an
object between the remote control and the remote sensor on the unit, the unit may not
operate.
Point the remote control at the REMOTE SENSOR located on the television.
When using this television in a very brightly lit area, the infrared REMOTE CONTROL
SENSOR may not work properly.
The recommended effective distance for using the remote control is about 7 metres.
Installing Batteries in the Remote Control

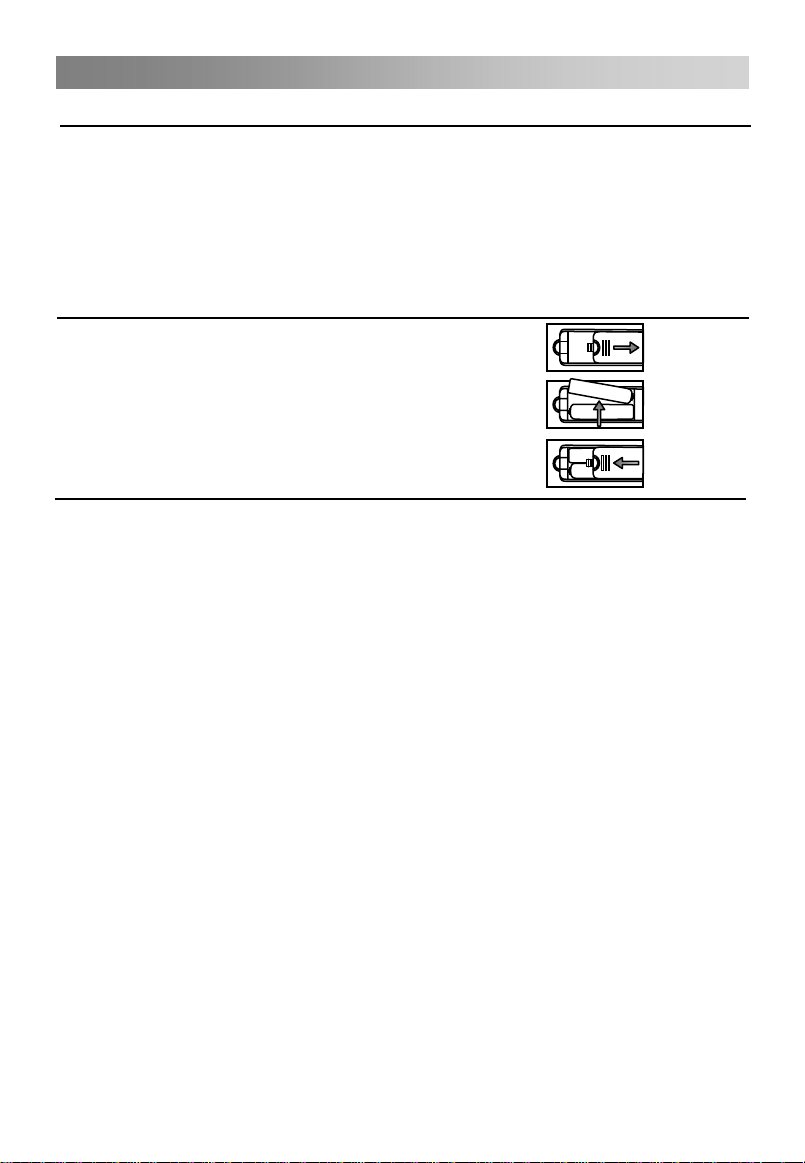

1. Open the cover at the back of the remote control.
2. Install two AAA size batteries. Make sure to match
the “+” and “-” ends of the batteries with the
diagram inside the compartment.
3. Replace the cover.
Batteryreplacement
You will need to install the supplied batteries into the remote control to make it operate
following the instruction below.
When the batteries become weak, the operating distance of the remote control will be
greatly reduced and you will need to replace the batteries.
Notes on Using Batteries:
The use of the wrong type of batteries may cause chemical leakage and/or explosion.
Please note the following:
Always ensure that the batteries are inserted with the + and - terminals in the correct
direction as shown in the battery compartment.
Different types of batteries have different characteristics. Do not mix different types.
Do not mix old and new batteries. Mixing old and new batteries will shorten battery
life and/or cause chemical leakage.
Replace batteries as soon as they do not work.
Chemicals which leak from batteries may cause skin irritation. If any chemical matter
seeps out of the batteries, wipe it up immediately with a dry cloth.
The batteries supplied with the product may have a shorter life expectancy due to
storage conditions. Remove the batteries whenever you anticipate that the remote
control will not be used for an extended period.
The batteries (battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION:
It may result in an explosion if batteries are replaced incorrectly.
Only replace batteries with the same or equivalent type.
5

Connection and setup
CableInstallation
Please read the relevant content in "Notice for Maintenance and Safety" carefully
before the installation and use.
1. Take out the TV from the package and put it in a drafty and flat place.
NOTE:
When you plug or unplug the TV, computer or other equipments, you must make
sure that the AC power has been already shut down; when unplugging the power
cable or signal cable, please hold the plug (the insulated part), do not draw the body
of the cable.
2. The RF output terminal can be connected with the RF input port of the TV.
3. The output AV terminal of DVD can be connected with the AV input port of the TV
through AV cable.
end of the VGA cable with the VGA port on the TV, and tighten the bolts clockwise on
the each end of VGA cable.
NOTE:
While connecting the 15-pin VGA, please do not insert the plug overexertedly, for
fear the pin might be broken.
the HDMI cable with the HDMI port on the TV.
NOTE:
While connecting the HDMI, please aim at carefully, do not insert overexertedly,
for fear the pin might be broken.
correctly.
NOTE:
The range of power input for the TV is 100-240V~ 50/60Hz, do not connect the TV
power input port with the AC power out of the above range.
Please hold the insulated part of the plug when you are unplugging the power
cable, do not touch directly the metallic part of the cable.
8.
Connect the AC power cable with 100-240V~ power supply.
NOTE:
channel.
COMPONENT and AV can not be used at same time for they share of one audio
The output COMPONENT(YPbPr) terminal of DVD can be connected with the
COMPONENT(YPbPr) input port of the TV through AV cable.
4.
Connect one end of the VGA cable with the VGA port on computer, connect the other
5.
Connect one end of the HDMI cable with HDMI output port, connect the other end of
6.
Check and make sure that all AV cables are connected with the corresponding ports
7.
Connect SCART socket input or output from an external device to these jacks.
9.

6

Remote Control

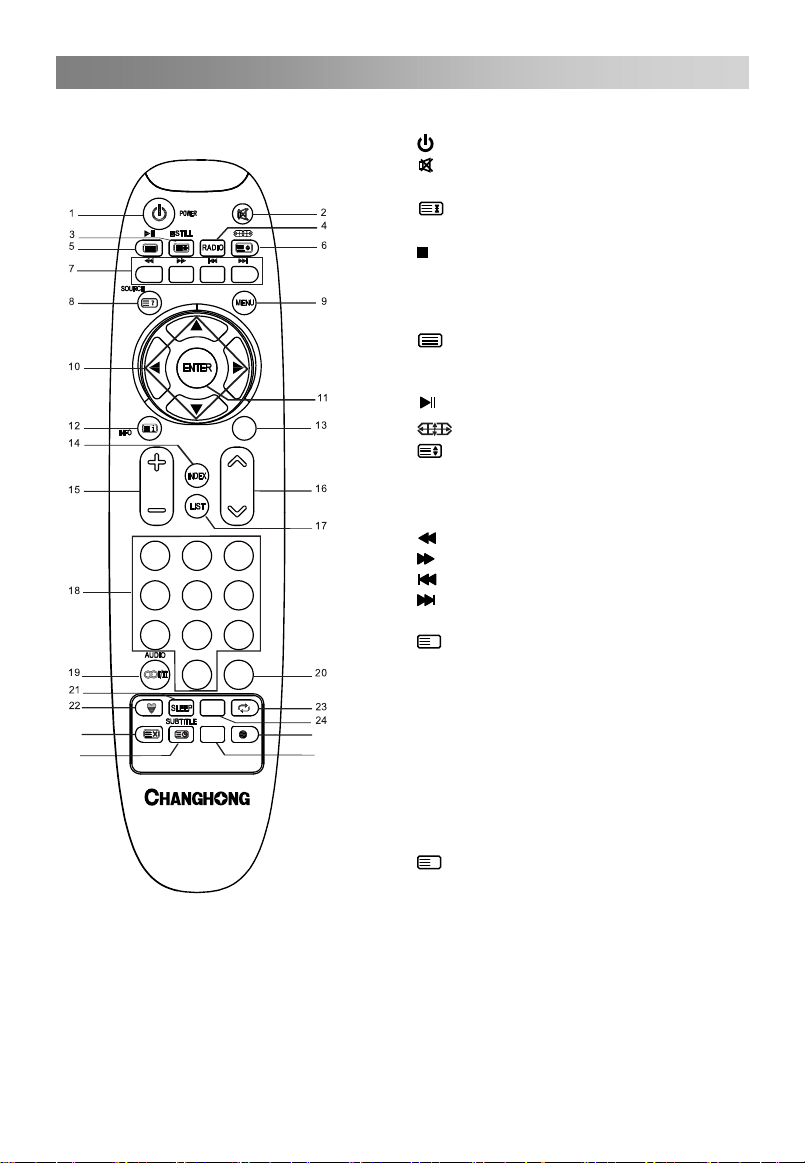

The buttons of the original remote control are as following:
EXIT
:Exit OSD Menu.
INDEX: Press to enter the Recorded list.
(In DTV mode)
7
1. : Power, switch on or off TV set.
INFO: Press to display the current
program information on the screen.
i
: Go to the index page.
: Press to mute or restore sound.
SOURCE: Press to select signal source.
?
: Reveal the hidden information of
some teletext pages.
for various optional adjustable settings.
ENTER: Press to execute the selected
item in the menu screen or enter the
desired value in any input mode.
VOL+/VOL-: Press to adjust the volume
level up or down.
CH+/CH-: Press to select channels in
ascending or descending order.
▲/▼/◄/►:To select the direction.
MENU: Press to enter the menu screen
2.
12.
8.
9.
11.
14.
10.
16.
15.
: Hold the teletext page on display,
press again to release.
: Stop (in USB/PVR mode).
3. STILL: Press to hold the picture.
RADIO: Press to interchange Radio and
DTV programs when there is Radio
program (In DTV mode).
4.
: Enter the Teletext, press again for
MIX mode, press this button again to
exit.
: Play / Pause (in USB/PVR mode).
5.
: Press to select different images sizes.
: Change size of teletext screen in
display mode.
6.
blue key navigation link.
: Fast reverse (in USB mode).
: Fast forward (in USB mode).
: Previous (in USB mode).
: Next (in USB mode).
7. COLOR BUTTONS: Red/ green/ yellow/
13.
VOL CH
12 3
456
7 8 9
EXIT
0DVB
EPG
USB
25 26
27 28

Remote Control
NOTE:
All pictures in this manual are examples, only for reference, actual product may differ
from the pictures.
The buttons not mentioned here are not used.
8
: Enter subtitle mode or subpage.
: Cancel the teletext but not to exit
teletext, press again to exit.
25.
: Press button to start recording.
: Return to last viewed program.
SLEEP: Press to set the sleep timer.
When the preset length of time has
the DTV mode.
: Switch on/off the favorite programs list.
passed, the TV set enters standby mode.
21.
22.
24. EPG: Electronic Program Guide, use in
23.
to switch between NICAM DUALⅠ/
NICAM DUALⅡ/ NICAM DUALⅠ+Ⅱ
/MONO and switch Audio language in
DTV mode.
19. AUDIO(∞I/II): The button can be used
NUMBER BUTTONS: Choose channels
or password importation.
18.
LIST: Press to call up the channel list.
Press again to exit it.
17.
USB: Press to switch to the USB source.
26. Recording in use.
(In PVR mode).
DVB: Press to select an antenna source.
20.
27.
28.
VOL CH
12 3
456
7 8 9
EXIT
0DVB
EPG
USB
25 26
27 28

Basic Operation
TurningonandofftheTV
• Turn on the TV
button on remote control can turn on TV from standby mode.
• Turn off the TV
Press the button on the remote control to enter standby mode.
Do not leave your set in standby mode for long periods of time. It is best to unplug the
set from the mains and aerial.
• No signal
There is No Signal menu on screen when there is no input signal. In TV/DTV mode, if
there is no signal in five minutes, the TV will turn off automatically. In PC-RGB mode,
the TV set will automatically turn off in 16 seconds if no input signal. When VGA cable
is connected, the TV turns on automatically.
ProgrammeSelection
• Using the CH+/CH- on the panel of TV or on the remote control.
Press CH+ to increase channel number.
Press CH - to decrease channel number.
• Using 0- 9 digital buttons.
You can select the channel number by pressing 0 to 9. (In TV, DTV mode)
• Example
To select - channel (e.g. Channel 5): Press 5.
To select -- channel (e.g. Channel 20): Press 2 and 0 in a short time.
Volumeadjustment
• Press the VOL+/- button to adjust the volume.
• If you want to switch the sound OFF, press the .
• You can release mute by pressing the
Press the
If TV has a power switch, turn it on firstly.
ChangingtheInputSource
You can select the input source by pressing the SOURCE button on the remote control.
Press the▲/▼button to cycle through the input source, and press the ENTER button to
confirm your choice.
or increase the volume.
Connect the AC input cable.
9

Basic Operation
QUICK START GUIDE
• Connection
1. Connecting the mains and antenna.
2. If TV has a power switch, turn it on firstly. Then press Power button on the
remote to turn on the TV.

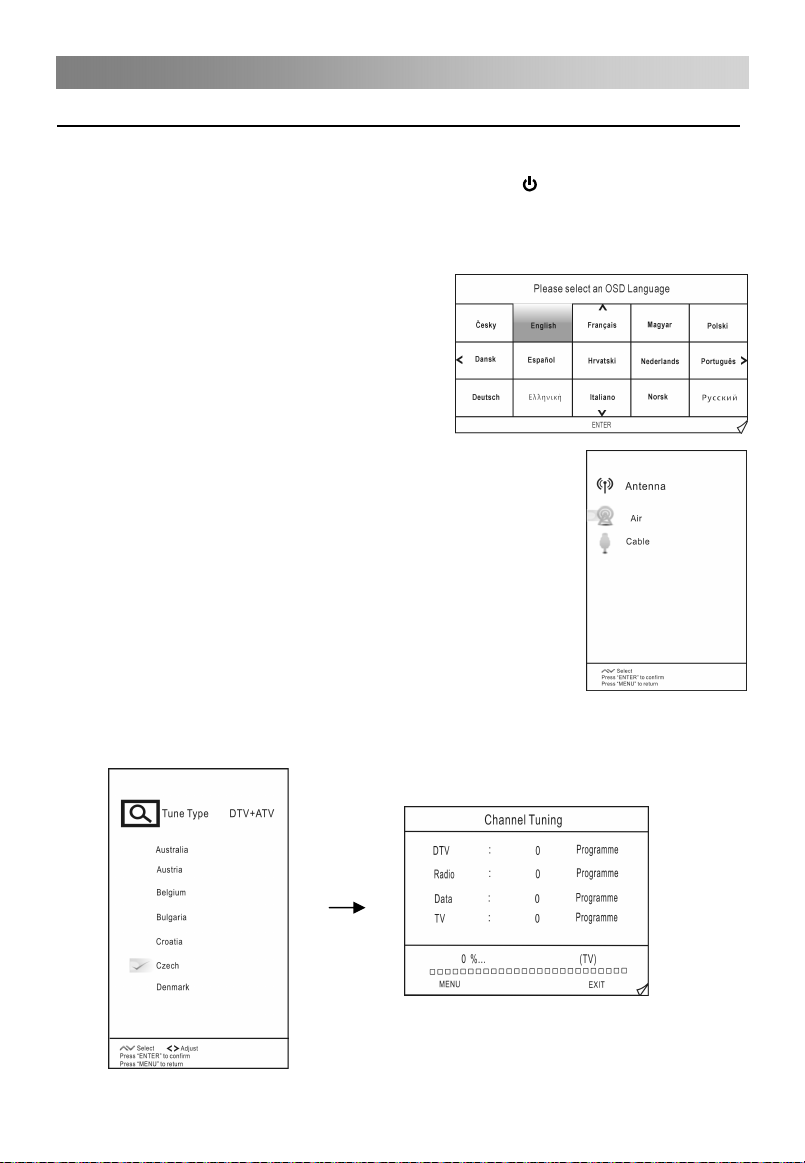

• Initial Setup
1. Selecting a language
Press the▲/▼/◄/►button, then press the
ENTER button.
Select the desired OSD (On Screen
Display) language.
2. Selecting an antenna source
Press the▲/▼button, then press the
ENTER button.
select the appropriate country and tune type.
→Select the ENTER button to start Auto tuning.
When selecting Air
→Press the▲/▼button, then press the ENTER button to
10
When the TV is initially powered on (Or Default), a sequence of on-screen prompts will
assist in configuring basic settings.

When selecting Cable
→A step appears allowing you to set parameters to the channels. For more
information, refer to Channel (Auto Tuning).
appropriate country and tune type.
→Select the ENTER button to start Auto tuning.
HowtoNavigateMenus
Before using the TV,please follow the steps below to learn how to navigate the menu in
order to select and adjust different functions. The access step may differ depending on
the selected menu.
NOTE:
When an item in MENU is displayed gray, it means that the item is not available or
cannot be adjusted.
Buttons on the TV have the same function as corresponding buttons on the remote
control. If your remote control is lost or couldn’t work, you may use the buttons on the
TV to select menus. This manual focuses on operation of the remote control.
1. Press the MENU button to display the main menu.
2. Press the◄/►button to cycle through the main menu.
3. Press the▲/▼button to select the desired sub item.
5.


CHANNEL PICTURE SOUND TIMER OPTION LOCK
Press the ENTER button
to access the submenu.
4.
then press the ENTER button.
Press the MENU button to return to the previous menu.
6. Press the EXIT button to exit from the menu.
Press the ▲/▼/◄/►button to select the desired value.The adjustment in the
OSD may differ depending on the selected menu.
→Press the▲/▼button, then press the ENTER button to select the
11
Menu Operation

Menu Operation
• Auto Tuning
Select the ENTER button to start Auto
Tuning.
channels.
available channels.
Once the progress bar is full, the found channels will
be stored and the unit will proceed to the search for
TV, DTV, Radio and Data.
If you press the MENU button in TV searching, the
Auto tuning will skip to DTV searching as the
suggestive picture shows.
*When TV signals is Air.
CHANNEL
1. Select the country and tune type for
2. The TV will begin memorizing all of the
• DTV Manual Tuning
Manual store for digital channels.
Press the ◄/►button to select channel.
Press the ENTER button to search.
When a channel is found, the searching process will
stop, the channel will be saved with current channel
number.
If the program is not your expected one, please press
the ◄/►button to continue the searching.
Press the EXIT button to exit.
12
Configuringthe Menu

Menu Operation
V.
Quick Scan, you can set up
an
ttons.
channels.
* When TV signals is Cable.
• Auto Tuning
Select the ENTER button to start Auto
Tuning.
Scan type: Scans for all active broadcast
station channels and stores them in the T
If you select
the Frequency, Network ID and Symbol (Ks/s) manually
by pressing the button on the remote control. Quick
Scan can only search DVBC digital programmes, c
not search for ATV programmes.
If you select Full Scan, the Auto Tuning will search
through all or appointed frequencies to find available
channels.
Frequency: Enter a user-defined frequency. (Differs in
each country)
Network ID (Auto/Manual): Selects the Network ID
setting mode among Auto or Manual. When Network
is Manual, you can set up Network ID using the
numeric bu
Symbol (Ks/s): Selects the Symbol (ks/s) setting
mode among Auto or Manual. When Symbol (ks/s) is
Manual, you can set up Symbol (ks/s) using the
numeric buttons.
When you are satisfied with your setting, press
ENTER button.
1. Adjust the Cable Scan Menu.
2. Select the country and tune type for channels.
3. The TV will begin memorizing all of the available
13

Menu Operation
•
d in
order to add a programme correctly in DVB cable mode.
Please inquire of the cable service provider about the
correct values.
•
annels.
Press the▲/▼button to select items.
tton to adjust it.
CADTV Manual Tuning
Frequency, Symbol (ks/s), and QAM Type are neede
ATV Manual Tuning
Manual store for ATV ch
Press the ◄/►bu
Press the red button to save it.
Press the EXIT to exit.
• Programme Edit
Press the▲/▼button select items.
Press the red button to delete the channel.
Press the green button to rename the channel.
Press the yellow button to move the channel.
Press the blue button to skip the channel.
Press the button to set the favorite channel.
The CH+/CH- button can be used to select the following or preceding page.
14
(In ATV mode)

Menu Operation
• CI Information (In DTV mode)
This function enables you to watch some encrypted services (pay services).
Please insert CI card into the PCMCIA slot according to the arrow on the CI card.
NOTE:
The function can only be gotten when CI slot is available.
It is possible for you to change CI (Common Interface) menu screen and service by
consulting your dealer.
Please do not insert or pull out the CI card when power on.
Do not insert or pull out the CI card frequently so as to avoid any damages of the TV
and the CI card.
During initialization of the CI card, please don't operate the TV.
You can select the type of pict
ontrast, Brightness,
•
•
s screen noise without compromising video quality.
•
Centre the image by moving it left or
Centre the image by moving it up or down.
ure which best corresponds to
your viewing requirements. C Saturation
User.
anufacture's recommendation modeThe m
• Colour Temp
temperatureSelect the colour of the picture.
Aspect Ratio
DNR
Reduce
Screen (In PC-RGB mode)
Auto Adjust: Adjust the image automatically.
H Position: right.
V Position:
Size: Adjust the screen size.
Phase: Adjust when characters have low co the image flickers. ntrast or when
,
Sharpness and Tint (NTSC) can be adjusted when the
picture mode is set to
You can select the picture size which best
corresponds to your viewing requirements.
15
Configuringthe
Menu
• Picture Mode
is Vivid.

Menu Operation
C ringthe Menu
onfigu
ass can
•
•
ns, volume adjustment
You can select a sound mode to suit your personal
preferences. Treble and B
User.
Balance
You can adjust the sound balance of the
speakers to preferred levels.
AVL (Auto Volume Level)
AVL automatically remains on the same level
own signal conditio
may be needed every time when the channel
adjustments for each program.
be adjusted when the
sound mode is set to
of volume if you
change programmes.
Because each broadcasting station
has its
is changed.
This feature allows users to enjoy stable volume levels
by making automatic
an auxiliary audio function that provid
les the Audio Stream for the AD (Audio
Main audio from the broadcaster. Users
lume.
• AD Switch (In DTV mode)
This is es an additional audio track for visually
challenged persons. This function hand
Description), when it is sent along with the
e Audio Description On or Off and control the vocan turn th
•Surround Sound
al
•
ime for the TV to switch off.
•
V to turn on.
be in standby mode for the
•
atically.
•
You can display either the DTV Sign
Off Time
Set the t
On Time
Set the time for your T
The TV must On Time to work.
Sleep
Select the time to turn the TV to standby
mode autom
Auto Sleep
Select the Auto Sleep time you want.
enter into standby mode automatically when
there is no any operation in
The TV will
stream Time or set
the System Time.
set time (the set time is
4 hours when leaving the factory).
16
SOUND
• Sound Mode
Configuringthe Menu
• Clock
TIMER
You can select a desired Surround Sound mode.
