Channel Vision AB-203 User manual

AB-908W
A-Bus Single Zone Audio Kit w/Bluetooth
Source & 1 pair In-Wall Speakers
CH A N N E L VI S I O N
Pwr
R
• Intelligent Entertainment • Infrastructure • Security Solutions
Channel Vision
IR Emitters
Audio In
AB-203

23
Simplify your installation with this single zone bluetooth audio package. This single
zone bluetooth® audio package allows you to customize individual rooms and give
anyone in condos, hotels, dorm rooms, and bedrooms control over their own
smartphone or other streaming music in their own space. The AB-908W Kit includes
the AB-203, AB-303, AB-134W, IC603 speakers, and an AB-T2410 power supply.
Product Introduction
1. Read these instructions.
2. Keep these instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this device near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with these
instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. This apparatus must not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the apparatus.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Unplug this apparatus during lightning storms or when unused for long
periods of time
Warning: To reduce the risk of electric shock, do not remove the cover (or back),
no user serviceable parts inside, refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN !
Pwr/Source Button ... Keypad On/Off control and source
selection control when in multi-mode.
Green LEDs...These LED’s illuminate green to
indicate volume level
Volume Controls...
Increase or decrease volume level.
Features:
• Compatible with Channel Vision single source CAT5 audio systems
• Easy to use volume control
Compatibility
How it Works
Basic Operation
The AB-135 is an amplified keypad for single-source CAT5
audio systems. It provides convenient volume control capabilities while its elegant
decorator styling blends seamlessly with other wall switch devices.
Channel Vision’s
The AB-1 adheres
Vision’s other CAT5 audio hubs to ensure maximum
compatibility. Single-source CAT5 audio products from
other manufacturers may not (and typically will not) use the
same control codes for the AB-135 keypad.
35 to the same protocols as Channel
The AB-1 can be used to control a single source with a CAT5 audio hub. T
provides basic controls: volume up, volume down, and power on/off.
35 he unit
Using the AB-135 Amplified keypad...
The Pwr (power) button located at the lower left of the keypad is used to turn the unit
on or off. Press and hold the power button to turn the keypad off.
After volume is changed, the LEDs will stay lit for 5 seconds, showing the current
volume level. Volume adjustments can be made using the up/down buttons to the
right hand side of the keypad.
CH A N N E L VI S I O N
Pwr
Model AB-135W

23
Simplify your installation with this single zone bluetooth audio package. This single
zone bluetooth® audio package allows you to customize individual rooms and give
anyone in condos, hotels, dorm rooms, and bedrooms control over their own
smartphone or other streaming music in their own space. The AB-908W Kit includes
the AB-203, AB-303, AB-134W, IC603 speakers, and an AB-T2410 power supply.
Product Introduction
1. Read these instructions.
2. Keep these instructions for future reference.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this device near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with these
instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. This apparatus must not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the apparatus.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Unplug this apparatus during lightning storms or when unused for long
periods of time
Warning: To reduce the risk of electric shock, do not remove the cover (or back),
no user serviceable parts inside, refer servicing to qualified service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN !
Pwr/Source Button ... Keypad On/Off control and source
selection control when in multi-mode.
Green LEDs...These LED’s illuminate green to
indicate volume level
Volume Controls...
Increase or decrease volume level.
Features:
• Compatible with Channel Vision single source CAT5 audio systems
• Easy to use volume control
Compatibility
How it Works
Basic Operation
The AB-135 is an amplified keypad for single-source CAT5
audio systems. It provides convenient volume control capabilities while its elegant
decorator styling blends seamlessly with other wall switch devices.
Channel Vision’s
The AB-1 adheres
Vision’s other CAT5 audio hubs to ensure maximum
compatibility. Single-source CAT5 audio products from
other manufacturers may not (and typically will not) use the
same control codes for the AB-135 keypad.
35 to the same protocols as Channel
The AB-1 can be used to control a single source with a CAT5 audio hub. T
provides basic controls: volume up, volume down, and power on/off.
35 he unit
Using the AB-135 Amplified keypad...
The Pwr (power) button located at the lower left of the keypad is used to turn the unit
on or off. Press and hold the power button to turn the keypad off.
After volume is changed, the LEDs will stay lit for 5 seconds, showing the current
volume level. Volume adjustments can be made using the up/down buttons to the
right hand side of the keypad.
CH A N N E L VI S I O N
Pwr
Model AB-135W

4
IR Emitters
Audio In
AB-203
AB-203 (front)
Connect a
source to the inputs on the AB-203.
Use an IR-3001 emitter placed over the
IR receiver on your source to allow IR
control through the keypad. (IR option).
udio L/R outputs from your
Connect the output
of the AB-303 to the
system input on
the AB-203.
CD player
5
Features:
Adds Bluetooth streaming capability to existing or new A-BUS systems
h
Functions as a main or local source
h
Operation:
To pair to the AB-303, consult instructions on pairing supplied with your Bluetooth
device. The Bluetooth LIM identification code will have the prefix AB in front of the
individual code number. When pairing occurs, a blue LED will light up on the front
plate. For systems with multiple AB-303s, it is recommended the codes be changed
to easily identify each room before completing installation.
Operating Range:
Bluetooth devices are intended to provide wireless communication between
enabled devices within a room. In ideal conditions, range can be up to 50’
This distance can be reduced significantly by transmission interference from other
communication devices, electrical wiring and room construction materials, such as
brick walls and concrete floors. When the AB-303 is operating near maximum range,
the signal may intermittently drop in and out, as signal strength varies.
Bluetooth Source Volume Level Compatibility:
The audio output level from Bluetooth enabled devices can vary from brand to brand.
Though the AB-303 has been adjusted to be equal to the output of most Bluetooth
devices, in some cases the level may be different. Most devices have their own
adjustable volume level, and it is recommended that this be used to adjust the output
level to match the main audio source’s volume level.
Room Identification:
Pairing each AB-303 requires the identification of an individual code number
beginning with the prefix AB (ABxxx). This code number can be replaced with an
individual room name identification such as Bedroom 1, Study, Patio, etc. prior to
installation. To download the renaming software visit www.a-bus.com/bt. Once
downloaded and installed, connect the AB-303 via the mini USB socket located at
the side of the unit to your PC and start the program, follow the on screen prompts to
rename the device.
The AB-303 A-BUS Bluetooth local input module provides a local wireless input
connection for the purpose of streaming audio from sources such as smart-phones,
tablets and computers, etc with Bluetooth capability to individual A-BUS equipped
rooms. When the AB-303 is paired, it will automatically switch the music source from
the main audio source to the local Bluetooth source. This local connection will remain
until pairing is disconnected, or the Bluetooth device is out of range.
If pairing remains selected on the Bluetooth device, when it comes back into range,
the connection will automatically reconnect and play audio in the zone.
AB-203 Single Source & Main Module. One per system; Connects sources to the
system; Mount the unit near audio components (CD player, receiver, etc.). This device
is designed for your main audio source. Plug the AB-303 to the system/explansion
input of this device, and plug the AB-135W on the system/A-Bus output of this device.
Plug the 24vDC power supply into the power connector.
Model AB-303 Model AB-203

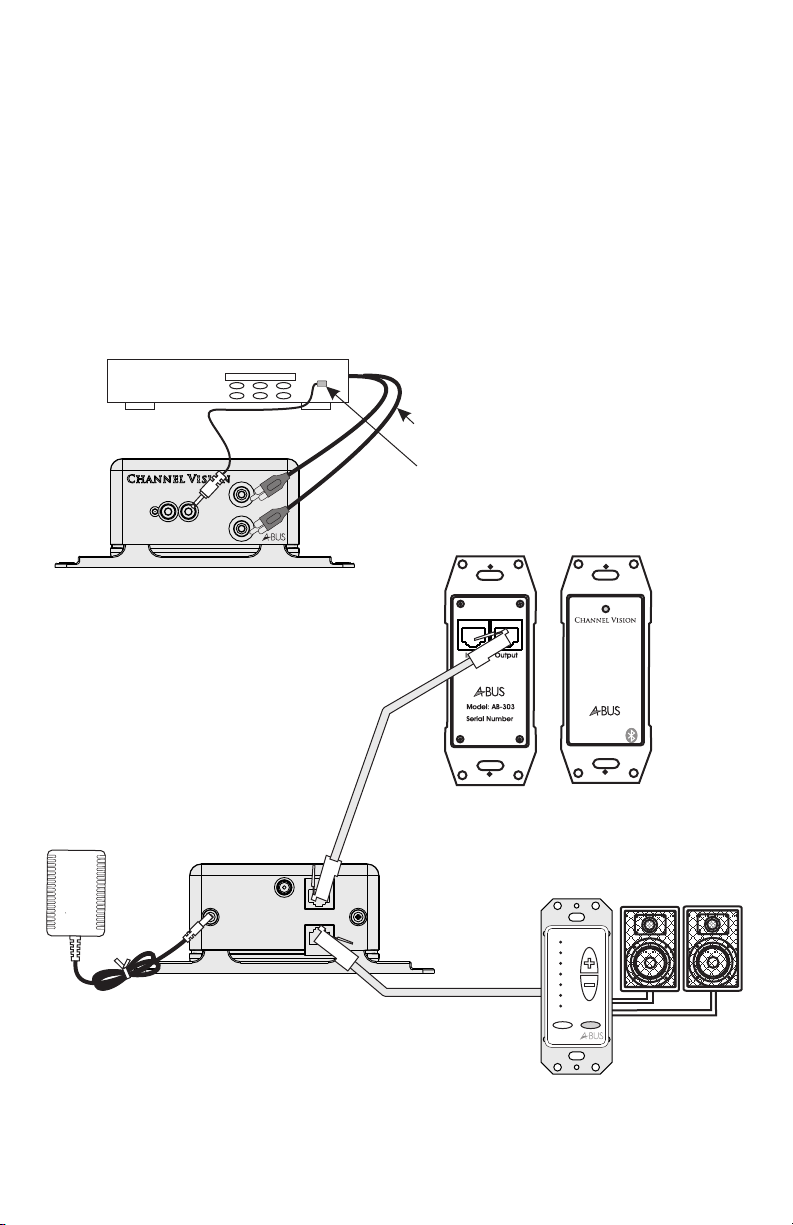

System Diagram
AB-T2410
power supply
24Vdc
Single Room
Power Expansion
Input
A-BUS
Output
US Patent # 7,181,023, 6,389,139
EC Patent # 1004222”
Only one keypad
can be connected
when using the
AB-908 kit.
AB-203 (rear)
AB-135W (front)

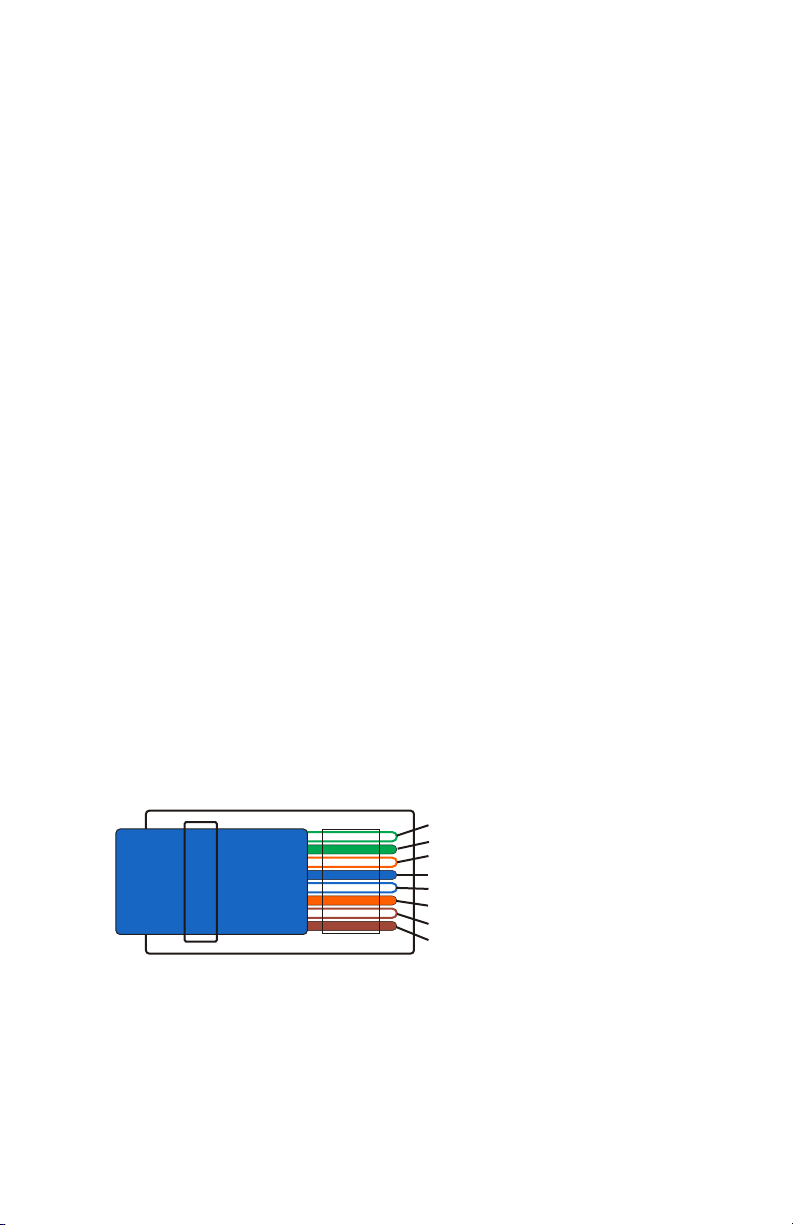

CAT5 250ft.
maximum
Source
CHA NN EL VIS I O N
Pwr
AB-303 (front)
AB-303 (rear)
Warning: Do not adjust the volume all the way up if no audio is present.
Doing so could damage your speakers if audio reconnects.

4
IR Emitters
Audio In
AB-203
AB-203 (front)
Connect a
source to the inputs on the AB-203.
Use an IR-3001 emitter placed over the
IR receiver on your source to allow IR
control through the keypad. (IR option).
udio L/R outputs from your
Connect the output
of the AB-303 to the
system input on
the AB-203.
CD player
5
Features:
Adds Bluetooth streaming capability to existing or new A-BUS systems
h
Functions as a main or local source
h
Operation:
To pair to the AB-303, consult instructions on pairing supplied with your Bluetooth
device. The Bluetooth LIM identification code will have the prefix AB in front of the
individual code number. When pairing occurs, a blue LED will light up on the front
plate. For systems with multiple AB-303s, it is recommended the codes be changed
to easily identify each room before completing installation.
Operating Range:
Bluetooth devices are intended to provide wireless communication between
enabled devices within a room. In ideal conditions, range can be up to 50’
This distance can be reduced significantly by transmission interference from other
communication devices, electrical wiring and room construction materials, such as
brick walls and concrete floors. When the AB-303 is operating near maximum range,
the signal may intermittently drop in and out, as signal strength varies.
Bluetooth Source Volume Level Compatibility:
The audio output level from Bluetooth enabled devices can vary from brand to brand.
Though the AB-303 has been adjusted to be equal to the output of most Bluetooth
devices, in some cases the level may be different. Most devices have their own
adjustable volume level, and it is recommended that this be used to adjust the output
level to match the main audio source’s volume level.
Room Identification:
Pairing each AB-303 requires the identification of an individual code number
beginning with the prefix AB (ABxxx). This code number can be replaced with an
individual room name identification such as Bedroom 1, Study, Patio, etc. prior to
installation. To download the renaming software visit www.a-bus.com/bt. Once
downloaded and installed, connect the AB-303 via the mini USB socket located at
the side of the unit to your PC and start the program, follow the on screen prompts to
rename the device.
The AB-303 A-BUS Bluetooth local input module provides a local wireless input
connection for the purpose of streaming audio from sources such as smart-phones,
tablets and computers, etc with Bluetooth capability to individual A-BUS equipped
rooms. When the AB-303 is paired, it will automatically switch the music source from
the main audio source to the local Bluetooth source. This local connection will remain
until pairing is disconnected, or the Bluetooth device is out of range.
If pairing remains selected on the Bluetooth device, when it comes back into range,
the connection will automatically reconnect and play audio in the zone.
AB-203 Single Source & Main Module. One per system; Connects sources to the
system; Mount the unit near audio components (CD player, receiver, etc.). This device
is designed for your main audio source. Plug the AB-303 to the system/explansion
input of this device, and plug the AB-135W on the system/A-Bus output of this device.
Plug the 24vDC power supply into the power connector.
Model AB-303 Model AB-203
System Diagram
AB-T2410
power supply
24Vdc
Single Room
Power Expansion
Input
A-BUS
Output
US Patent # 7,181,023, 6,389,139
EC Patent # 1004222”
Only one keypad
can be connected
when using the
AB-908 kit.
AB-203 (rear)
AB-135W (front)
CAT5 250ft.
maximum
Source
CHA NN EL VIS I O N
Pwr
AB-303 (front)
AB-303 (rear)
Warning: Do not adjust the volume all the way up if no audio is present.
Doing so could damage your speakers if audio reconnects.

Green/White - Left Channel Audio Ground
Green - Left Channel Audio
Orange/White - Right Channel Audio Ground
Blue - IR Signal
Blue/White - Status
Orange- Right Channel Audio
Brown/White 24vDC Ground
Brown 24vDC
Top view:
67
Specifications Troubleshooting
Problem: Hum in System
Troubleshooting: Plug all parts of the system into the same outlet to see if the hum goes away.
Try lifting the ground with a ground lifting plug.
Possible Cause: The different components in the system are connected to different electrical
grounds. This forces electrical currents to find alternate paths to ground causing an audible 60Hz
hum.
Solution: Plug products into an electrical circuit with a common ground.
Problem: CAT5 audio input (AB-303) is not working.
Troubleshooting: Verify you have plugged the CAT5 output on the AB-303
into the input on the front of the AB-203. Verify you have plugged the system
output of the AB-203 into the input on the back of the AB-135.
Possible Cause: AB-303 not connected properly, wire crimped improperly or plugged into the
wrong terminal.
Solution: Verify wiring, verify RJ-45 crimps
Problem:
Troubleshooting:
1. Restart Bluetooth source device
2. Check Source device is connected to Wifi
3. Check the music source is active before pairing
4. The blue LED indicates when devices are paired
5. Try a different A-BUS source.
6. Make sure Bluetooth device is in play mode
Not linking with Bluetooth device or Linking with no audio is present.
Problem:
Troubleshooting: Verify you have connected the CAT5 cable correctly. Follow the TIA-568A
standard at both ends. Mis-wiring can cause distorted sound, prevent the system from
functioning, or possibly cause damage to the components in the system. Verify you have
connected the speakers in phase. Follow the label on the product. Out of phase speakers can
rob the system of its bass, especially when driving dual-voice-coil speakers.
If no audio is heard, check to make sure that the audio source is playing, then press the power
button on the AB-135 to make sure it is turned on.
Audio quality issues
Problem: RCA Audio input is not working.
Troubleshooting: Verify source audio is playing, or try another audio source Check speaker
wires to verify nothing is backwards or crossed.
Possible Cause: There is no signal (or very weak signal) coming from the source, or source is
not compatible with AB-203.
Solution: Make sure the source audio is playing. Try a different source.
AB-135, AB-203 & AB-303 Specifications: (typical at 77º)
Operating Voltage: 24VDC 1 Amps (one keypad)
Cable requirements: CAT5 or CAT6
Speaker impedance: 6-8 ohm (max two speakers)
IR repeating: 30-60kHz
IR sensor range: 40’@40kHz, 25’@56kHz
Operating Temperature: -10ºC to +50ºC
Line Level input (AB-203): Max 1VRMS
IC603 Specifications: (typical at 77º)
Frequency range: 60Hz - 20kHz
Crossover: Electronic
Sensitivity: 89dB
Power Handling: 120 Watts peak
Drivers: ½”Compliance Polymer Tweeter
Black PP Cone with Rubber Edge (woofer)
Magnet: 10-ounce magnet
Impedance: 8 ohms
Finish: ABS plastic
Dimensions: 12.1 ”H x 8.59” W x 3.7” D
(Depth from surface of wall board)
Hole size: 10.74” x 7.32”
*Specifications subject to change without notice
Pin-out

Green/White - Left Channel Audio Ground
Green - Left Channel Audio
Orange/White - Right Channel Audio Ground
Blue - IR Signal
Blue/White - Status
Orange- Right Channel Audio
Brown/White 24vDC Ground
Brown 24vDC
Top view:
67
Specifications Troubleshooting
Problem: Hum in System
Troubleshooting: Plug all parts of the system into the same outlet to see if the hum goes away.
Try lifting the ground with a ground lifting plug.
Possible Cause: The different components in the system are connected to different electrical
grounds. This forces electrical currents to find alternate paths to ground causing an audible 60Hz
hum.
Solution: Plug products into an electrical circuit with a common ground.
Problem: CAT5 audio input (AB-303) is not working.
Troubleshooting: Verify you have plugged the CAT5 output on the AB-303
into the input on the front of the AB-203. Verify you have plugged the system
output of the AB-203 into the input on the back of the AB-135.
Possible Cause: AB-303 not connected properly, wire crimped improperly or plugged into the
wrong terminal.
Solution: Verify wiring, verify RJ-45 crimps
Problem:
Troubleshooting:
1. Restart Bluetooth source device
2. Check Source device is connected to Wifi
3. Check the music source is active before pairing
4. The blue LED indicates when devices are paired
5. Try a different A-BUS source.
6. Make sure Bluetooth device is in play mode
Not linking with Bluetooth device or Linking with no audio is present.
Problem:
Troubleshooting: Verify you have connected the CAT5 cable correctly. Follow the TIA-568A
standard at both ends. Mis-wiring can cause distorted sound, prevent the system from
functioning, or possibly cause damage to the components in the system. Verify you have
connected the speakers in phase. Follow the label on the product. Out of phase speakers can
rob the system of its bass, especially when driving dual-voice-coil speakers.
If no audio is heard, check to make sure that the audio source is playing, then press the power
button on the AB-135 to make sure it is turned on.
Audio quality issues
Problem: RCA Audio input is not working.
Troubleshooting: Verify source audio is playing, or try another audio source Check speaker
wires to verify nothing is backwards or crossed.
Possible Cause: There is no signal (or very weak signal) coming from the source, or source is
not compatible with AB-203.
Solution: Make sure the source audio is playing. Try a different source.
AB-135, AB-203 & AB-303 Specifications: (typical at 77º)
Operating Voltage: 24VDC 1 Amps (one keypad)
Cable requirements: CAT5 or CAT6
Speaker impedance: 6-8 ohm (max two speakers)
IR repeating: 30-60kHz
IR sensor range: 40’@40kHz, 25’@56kHz
Operating Temperature: -10ºC to +50ºC
Line Level input (AB-203): Max 1VRMS
IC603 Specifications: (typical at 77º)
Frequency range: 60Hz - 20kHz
Crossover: Electronic
Sensitivity: 89dB
Power Handling: 120 Watts peak
Drivers: ½”Compliance Polymer Tweeter
Black PP Cone with Rubber Edge (woofer)
Magnet: 10-ounce magnet
Impedance: 8 ohms
Finish: ABS plastic
Dimensions: 12.1 ”H x 8.59” W x 3.7” D
(Depth from surface of wall board)
Hole size: 10.74” x 7.32”
*Specifications subject to change without notice
Pin-out

500-372 rev A
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
Tested To Comply
With FCC Standards
A-BUS is a registered trademark of LeisureTech Electronics Pty Ltd.
This product may be covered by one of the following patents:
US patent no. 7,181,023, 6,389,139 EP 1004222, AU 739808, NZ 502982, Mexico
Z41196, Canada CA2301062.
234 Fischer Avenue, Costa Mesa, California 92626 USA
[phone] [phone] [phone] fax
email: [email protected]
• Intelligent Entertainment • Infrastructure • Security Solutions
ww w. ch an ne lv i s i o n . c o m
Channel Vision Technology will repair or replace any defect in material or
workmanship which occurs during normal use of this product with new or
rebuilt parts, free of charge in the USA, for one year from the date of original
purchase. This is a no hassle warranty with no mail in warranty card needed.
This warranty does not cover damages in shipment, failures caused by other
products not supplied by Channel Vision Technology, or failures due to
accident, misuse, abuse, acts of God, or alteration of the equipment. This
warranty is extended only to the original purchaser when purchased through
an authorized reseller. A purchase receipt, invoice, or other proof of original
purchase date will be required before warranty repairs are provided. Mail in
service can be obtained during the warranty period by calling [phone].
A Return Authorization number must be obtained in advance and can be
marked on the outside of the shipping carton. This warranty gives you
specific legal rights and you may have other rights (which vary from state to
state). If a problem with this product develops during or after the warranty
period, please contact Channel Vision Technology, your dealer or any
factory-authorized service center. Channel Vision products are not intended
for use in medical, lifesaving, life sustaining or critical environment
applications. Channel Vision customers using or selling Channel Vision
products for use in such applications do so at their own risk and agree to
fully indemnify Channel Vision for any damages resulting from such improper
use or sale.
One Year Limited Warranty
