Line Dancer User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Unpacking Instructions
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
Claims
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetdj.com.
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2017 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States ofAmerica.
CHAUVET, the Chauvet logo, and Line Dancer are registered trademarks or trademarks of Chauvet &
Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company
and product names and logos referred to herein may be trademarks of their respective companies.
• Line Dancer
•PowerCord • Warranty Card • Quick Reference Guide
Convention Meaning
1–512 Arange of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
ON A value to be entered or selected
Symbol Meaning
Electrical warning. Not following these instructions may cause electrical damage to
the product, accessories, or the user.
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.

Page 2 of 14
Before You Begin
Line Dancer User Manual Rev. 1
Product at a Glance
Safety Notes
Use on Dimmer Auto Programs 
Outdoor Use Auto-ranging Power Supply 
Sound-Active Replaceable Fuse 
DMX User-Serviceable 
Master/Slave 
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect the product from the power source before cleaning or replacing the
fuse.
• Avoid direct eye exposure to the light source while the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect the product from power cord by pulling or tugging on the cord.
• If mounting the product overhead, always secure to a fastening device using a safety cable.
• Make sure there are no flammable materials close to the product when operating.
• Do not touch the product’s housing when operating because it may be very hot.
• Always make sure that the voltage of the outlet to which you are connecting the product is
within the range stated on the decal or rear panel of the product.
• The product is for indoor use only! (IP20)To prevent risk of fire or shock, do not expose the
product to rain or moisture.
• Alwaysinstall theproduct in a location with adequate ventilation,at least 20 in (50 cm) from
adjacent surfaces.
• Be sure that no ventilation slots on the product’s housing are blocked.
• Never connect the product to a dimmer.
• Make sure to replace the fuse with another of the same type and rating.
• Never carry the product from the power cord or any moving part. Always use the hanging/
mounting bracket.
• The maximum ambient temperature (Ta) is 104 °F (40 °C). Do not operate the product at
higher temperatures.
• In the event of a serious operating problem, stop using the product immediately.
• Never try to repair the product. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Keep this User Manual for future use. If you sell the product to someone else, be sure that
they also receive this document.

Page 3 of 14
Line Dancer User Manual Rev. 1
Introduction
2. Introduction
Product Overview
Product Dimensions
Indicator LEDs
Microphone
DMX In/Out
Fuse Holder
Power In
Menu Buttons Power Out
LED Display
Sensitivity Knob
Safety Loop
10 in
253 mm
9.3 in
237 mm
10.4 in
264 mm

Page 4 of 14
Setup
Line Dancer User Manual Rev. 1
3. Setup
AC Power
The Line Dancer has an auto-ranging power supply and it can work with an input voltage range of 100 to
240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and
wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s
specifications chart. The listed current rating indicates the product’s average current draw under normal
conditions.
Fuse Replacement
1. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
2. Pry the fuse holder out of the housing.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Insert the fuse holder back in place and reconnect power.
Power Linking
The product provides power linking via the Edison outlet located in the back of the product. Please see the
diagram below for further explanation.
Power Linking Diagram
• Always connect the product to a protected circuit (a circuit breaker or fuse).
Make sure the product has an appropriate electrical ground to avoid the risk of
electrocution or fire.
• To eliminate unnecessary wearand improve itslifespan, during periods ofnon-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if
the rheostat or dimmer channel serves only as a 0 to 100% switch.
Disconnect the product from the power outlet before replacing the fuse.
You can power link up to 12 Line Dancer products on 120 VAC or up to
25 Line Dancer products on 230 VAC.
The power linking diagram corresponds to the North American version of the
product ONLY! If using the product in other markets, you must consult with the local
Chauvet distributor as power linking connectors and requirements may differ in
your country or region.
Safety cap
Spare fuse holder
(inside safety cap)
Installed fuse
(held by plastic clip)
1st Product 2nd Product 3rd Product Additional
Products
Power
Source

Page 5 of 14
Line Dancer User Manual Rev. 1
Setup
Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
Orientation
The Line Dancer may be mounted in any position; however, make sure adequate ventilation is provided
around the product.
Rigging
• Before deciding on a location, always make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the
product’s weight. (see the Technical Specifications)
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the
knobs.

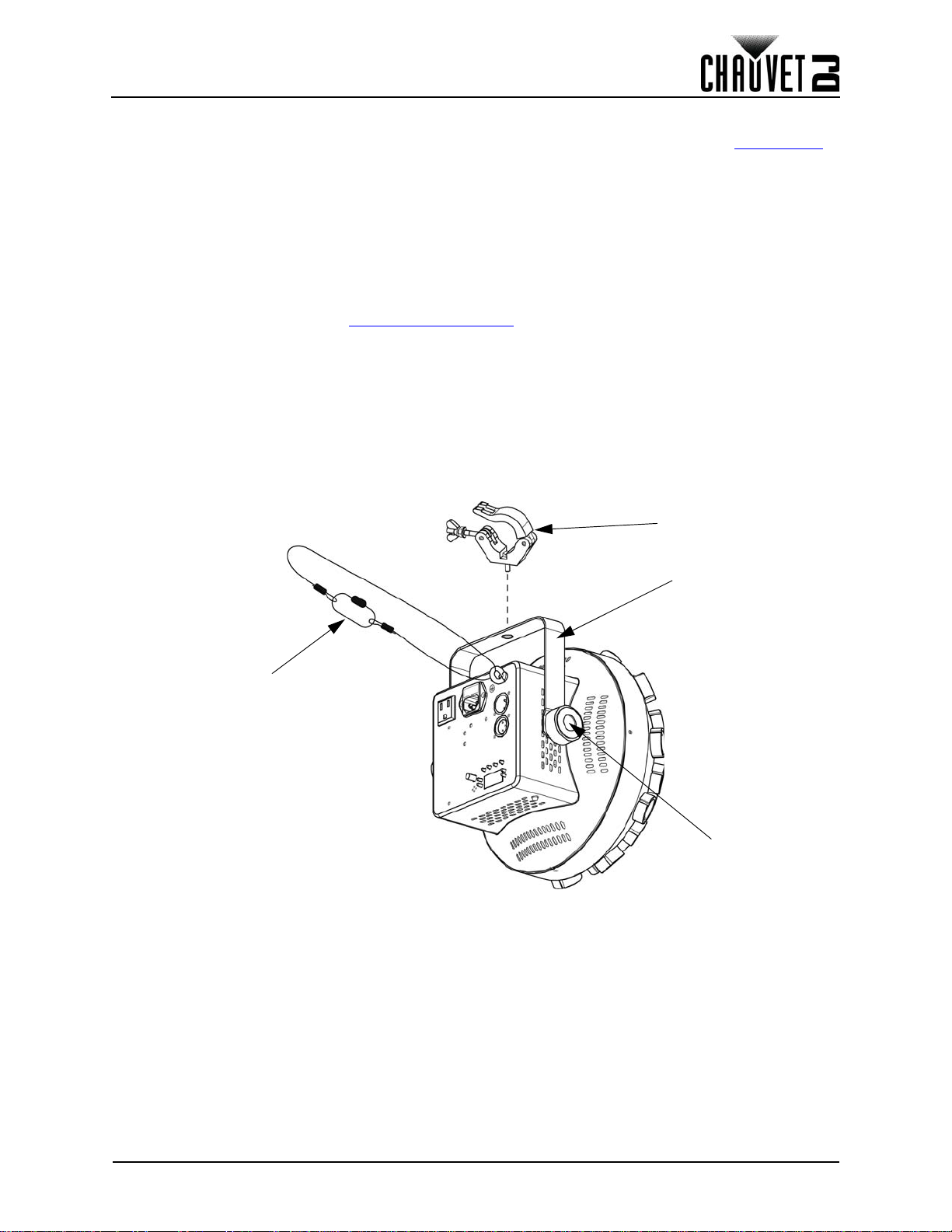

Mounting Diagram
Mounting Bracket
Safety Cable
(such as CH-05 from
Chauvet)
Mounting Clamp
(such as CLP-15 or CLP-15N
from Chauvet)
Bracket
Adjustment Knob

Page 6 of 14
Operation
Line Dancer User Manual Rev. 1
4. Operation
Control Panel Operation
To access the control panel functions, use the four buttons located underneath the display. Please refer to
the Product Overview to see the button locations on the control panel.
Menu Map
Configuration (DMX)
The Line Dancer works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer,
which is available from the Chauvet website http://www.chauvetlighting.com/downloads/
DMX_Primer_rev05_WO.pdf.
Starting Address
When selecting a starting DMX address, always consider the number of DMX channels the selected DMX
mode uses. If you choose a starting address that is too high, you could restrict the access to some of the
product’s channels.
The Line Dancer uses up to 6 DMX channels, which defines the highest configurable address as 507.
If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetdj.com.
To select the starting address, do the following:
1. Press <MENU> repeatedly until 3Ch or 6Ch shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select the starting address, from d 1–510.
4. Press <ENTER>.
Button Function
<MENU> Press to find an operation mode or to back out of the current menu option
<UP> Press to scroll up the list of options or to find a higher value
<DOWN> Press to scroll down the list of options or to find a lower value
<ENTER> Press to activate a menu option or a selected value
Mode Programming Levels Description
DMX Mode 3Ch d001–510 3-channel DMX mode
6Ch d001–507 6-channel DMX mode
Static Colors C-- C 1–7 Static colors
Automatic
Programs P-- P 1–13 Automatic programs
Auto Speed S-- S. 1–100 Program speed for P1–13
Motor Speed M-- M. 0–100 Motor speed
Sound-Active
Mode Snd Snd1–13 Sound-active programs
Infrared
Mode SEt on Turns infrared on or off
oFF

Page 7 of 14
Line Dancer User Manual Rev. 1
Operation
DMX Channel Assignments and Values
6Ch
Channel Function Value Percent/Setting
1 Static Color
000 005 No function
006 045 Red
046 086 Green
087 127 Blue
128 168 Yellow
169 209 Magenta
210 250 Cyan
251 255 Red, green, and blue
2 Zone Control
000 062 All zones
063 125 Zone 1
126 188 Zones 2
189 255 Zones 3
3Strobe 000 005 No function
006 250 Strobe, slow to fast
251 255 Sound-active strobe
4 Auto Programs
000 005 No function
006 024 Auto program 1
025 044 Auto program 2
045 064 Auto program 3
065 084 Auto program 4
085 104 Auto program 5
105 124 Auto program 6
125 144 Auto program 7
145 164 Auto program 8
165 184 Auto program 9
185 204 Auto program 10
205 224 Auto program 11
225 244 Auto program 12
245 255 Auto program 13
5AutoSpeed 000 250 Auto program speed, slow to fast
251 255 Sound-active program
6 Motor Speed 000 001 No function
002 255 Motor speed, slow to fast

Page 8 of 14
Operation
Line Dancer User Manual Rev. 1
3Ch
Configuration (Standalone)
Set the product in one of the standalone modes to control without a DMX controller.
Automatic Programs
To run the Line Dancer in automatic mode, follow the instructions below:
1. Press <MENU> repeatedly until P-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select an automatic program, from P 1–13.
4. Press <ENTER>.
Auto-Program Speed
To change the auto-program speed on the Line Dancer, do the following:
1. Press <MENU> repeatedly until S-- shows on the display.
2. Use <UP> or <DOWN> to increase or decrease the program speed, from S. 1–100.
3. Press <ENTER>. The product will return to the last selected mode.
Motor Speed
To set the motor speed in stand-alone mode, follow the instructions below:
1. Press <MENU> repeatedly until M-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to increase or decrease the motor speed, from M. 0–100.
Channel Function Value Percent/Setting
1 Auto Programs
000 005 No function
006 024 Auto program 1
025 044 Auto program 2
045 064 Auto program 3
065 084 Auto program 4
085 104 Auto program 5
105 124 Auto program 6
125 144 Auto program 7
145 164 Auto program 8
165 184 Auto program 9
185 204 Auto program 10
205 224 Auto program 11
225 244 Auto program 12
245 255 Auto program 13
2AutoSpeed 000 250 Auto program speed, slow to fast
251 255 Sound-active program
3 Motor Speed 000 001 No function
002 255 Motor speed, slow to fast
Never connect a product that is operating in any standalone mode to a DMX string
connected to a DMX controller. Products in standalone mode may transmit DMX
signals that could interfere with the DMX signals from the controller.

Page 9 of 14
Line Dancer User Manual Rev. 1
Operation
Sound-Active Mode
To run the Line Dancer in sound-active mode, do the following:
1. Press <MENU> repeatedly until Snd shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select a sound-active program, from Snd1–13.
4. Press <ENTER>.
5. Turn the sensitivity knob up until the product responds to the beat of the music.
Preset Color Mode
To run the Line Dancer on a static color, follow the instructions below:
1. Press <MENU> repeatedly until C-- shows on the display.
2. Press <ENTER>.
3. Use <UP> or <DOWN> to select a static color, from C 1–7.
4. Press <ENTER>.
IRC-6 Infrared Remote Control
The Line Dancer is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode,
follow the instructions below:
1. Press <MENU> repeatedly until SEt shows on the display.
2. Press <ENTER> to accept.
3. Press <UP> or <DOWN> to select on or oFF.
4. Press <ENTER>.
IRC-6 Operation
The product will only respond to low frequencies of music (bass and drums).
Automatic Mode
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode:
1. Press <AUTO> on the IRC-6.
2. Press <+> or <–> to choose between the different auto programs.
To adjust the speed of the automatic program:
1. Press <SPEED> on the IRC-6.
2. Press <+> or <–> to increase or decrease the speed of the program.
Sound-Active Mode
Sound-Active mode will enable the product to respond to the music.
To turn on Sound-Active mode:
1. Press <SOUND> on the IRC-6.
2. Press <+> or <–> to select a sound-active program.
Manual Color Control
To choose a specific color with the IRC-6:
1. Press <R> for red, <G> for green, <B> for blue, <A> for yellow, <P/UV> for
magenta, or <W> for red, green, and blue.
2. Press <+> or <–> to select a color from C 1–7.
Strobe
To adjust the strobe rate of the static color:
1. Press <STROBE> on the IRC-6.
2. Press <+> or <–> to increase or decrease the strobe rate, from St.00–
St.27.
3. Set to St.00 to turn off the strobe.
Black Out
To black out the lights:
1. Press <BLACK OUT> on the IRC-6.
This will turn off all the lights until the button is pressed again.
NOTE: The IRC-6 will not respond to any inputs when Black Out is activated. If the
remote does not respond when a button is pressed, try pressing <BLACK OUT>.
You may have inadvertently activated Black Out.

Page 10 of 14
Operation
Line Dancer User Manual Rev. 1
Master/Slave Mode
The Master/Slave mode allows a single Line Dancer product (the “master”) to control the actions of one or
more Line Dancer products (the “slaves”) without the need of a DMX controller. The master product will be
set to operate in either Stand-Alone mode or with the IRC-6, while the slave products will be set to operate
in Slave mode. Once set and connected, the slave products will operate in unison with the master product.
Configure the products as indicated below.
Slave products:
1. Press <MENU> repeatedly until 3Ch or 6Ch shows on the display.
2. Press <ENTER> to accept.
3. Set the DMX address to 001.
4. Connect the DMX input of the first slave product to the DMX output of the master product.
5. Connect the DMX input of the subsequent slave products to the DMX output of the previous slave
product.
6. Finish setting and connecting all the slave products.
Master product:
1. Set the master product to operate in Stand-Alone mode or with the IRC-6.
2. Make the master product the first product in the DMX daisy chain.
• Configure all the slave products before connecting the master to the daisy chain.
• Never connect a DMX controller to a DMX string configured for Master/Slave
operation because the controller may interfere with the signals from the master.
• Do not connect more than 31 slaves to the master.

Page 11 of 14
Line Dancer User Manual Rev. 1
Maintenance
5. Maintenance
Product Maintenance
Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of
the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean
your lighting products at least twice a month. However, be aware that usage and environmental conditions
could be contributing factors to increase the cleaning frequency.
To clean the product, follow the instructions below:
1. Unplug the product from power.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external
surface/vents.
4. Clean all transparent surfaces with a mild soap solution, ammonia-free glass cleaner, or isopropyl
alcohol.
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue.
6. Softly drag any dirt or grime to the outside of the transparent surface.
7. Gently polish the transparent surfaces until they are free of haze and lint.
Always dry the transparent surfaces carefully after cleaning them.

Page 12 of 14
Technical Specifications
Line Dancer User Manual Rev. 1
6. Technical Specifications
Dimensions and Weight
Note: Dimensions in inches rounded to the nearest decimal digit.
Power
Light Source
Photometrics
Thermal
DMX
Ordering
Length Width Height Weight
9.3 in (237 mm) 10.4 in (264 mm) 10 in (253 mm) 2.6 lb (1.2 kg)
Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging
Parameter 120 V, 60 Hz 230 V, 50 Hz
Consumption 36W 35 W
Operating Current 0.6 A 0.3 A
Power linking current (products) 8 A (12 products) 8 A (25 products)
Fuse T 1.6 A, 250 V T 1.6 A, 250 V
Power I/O U.S./Worldwide UK/Europe
Power input connector IEC IEC
Power output connector Edison IEC
Power Cord plug Edison (U.S.) Local Plug
Type Color Quantity Power Current Lifespan
LED Tri-color RGB 27 1.5 W 0.6 A 50,000 hours
Strobe Rate Coverage Angle
0 to 20 Hz 116°
Maximum External Temperature Cooling System
104 °F (40 °C) Convection
I/O Connector Channel Range
3-pin XLR 3 or 6
Product Name Item Code UPC Number
Line Dancer 10051412 781462217600

Page 13 of 14
Line Dancer User Manual Rev. 1
Returns
Returns
In case you need to get support or return a product:
• If you are located in the U.S., contact Chauvet World Headquarters.
• If you are located in the UK or Ireland, contact Chauvet Europe Ltd.
• If you are located in Mexico, contact Chauvet Mexico.
• If you are located in Benelux, contact Chauvet Europe BVBA.
• If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local
distributor. See www.chauvetdj.com for distributors outside the U.S., UK, Ireland, Mexico, or
Benelux.
Call the corresponding Chauvet Technical Support office and request a Return Merchandise Authorization
(RMA) number before shipping the product. Be prepared to provide the model number, serial number, and
a brief description of the cause for the return.
To submit a service request online, go to www.chauvetdj.com/service-request.
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet
will not issue call tags.
Clearly label the package with the RMAnumber. Chauvet will refuse any product returned without an RMA
number.
Before sending the product, clearly write the following information on a piece of paper and place it inside
the box:
• Your name
• Your address
• Your phone number
• RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be
your responsibility. FedEx packing or double-boxing are recommended.
If you are located outside the U.S., UK, Ireland, Mexico, or Benelux, contact your
distributor of record and follow their instructions on how to return Chauvet products to
them. Visit our website www.chauvetdj.com for contact details.
Write the RMA number on a properly affixed label. DO NOT write the RMA number
directly on the box.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).

Page 14 of 14
Contact Us
Line Dancer User Manual Rev. 1
Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Follow the
instructions to request support or to return a product. Visit our website for contact details.
World Headquarters
General Information Technical Support
Address: 5200 NW 108th Ave. Voice: [phone]
Sunrise, FL 33351 Fax: [phone]
Voice: [phone] Email: [email protected]
Fax: [phone] Website
Toll Free: [phone] www.chauvetlighting.com
EUROPE
General Information Technical Support
Address: Stokstraat 18 Email: [e-mail]
9770 Kruishoutem
Belgium Website
Voice: [phone] www.chauvetlighting.eu
General Information Technical Support
Address: Unit 1C Email: [e-mail]
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website
NG16 6NT www.chauvetlighting.co.uk
Voice: [phone]
Fax: [phone]
MEXICO
General Information Technical Support
Address: Av. de las Partidas 34 - 3B
(Entrance by Calle 2) Email: [email protected]
Zona Industrial Lerma
Lerma, México, C.P. 52000 Website
Voice: [phone] www.chauvet.com.mx
