PR Lighting PR-8102 User manual

DIAMOND（3W X 108）RGBWA ZOOM
PR-8102
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/22
INDEX
SAFE USAGE OF THE PROJECTOR 3
INSTALLING THE PROJECTOR 4
POWER SUPPLY – MAINS 5
CONTROL CONNECTIONS 5
DMX TERMINATOR 6
SETUP OPTIONS-PROJECTOR CONFIGURATION 6
TO SET THE DMX START ADDRESS 6
MASTER/SLAVE MODE 7
STAND-ALONE MODE 7
OPERATION MENU 8
REPLACING GOBOS 12
DMX PROTOCOL 13
INDICATION OF LED DIGITAL TUBE 12
MAINTENANCE 16
LUBRICATION 16
KEEPING THE PROJECTOR CLEAN 16
TROUBLESHOOTING 17
TECHNICAL DATA 18
ELECTRICAL DIAGRAM 20
COMPONENT ORDER CODES 21
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without
notice. Whilst every care is taken in the preparation of this manual we reserve the right to change specifications in the course of
product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence
arising from them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the
unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
ACCESSORIES
These items are packed together with the projector:
Name Quantity Unit Remark
G clamps 2 Pcs
Ω clamps 2 Pcs Optional
XLR cable 1 Pc With Plug
Safety cord 1 Pc
This manual 1 Pc

3/22
SAFE USAGE OF THE PROJECTOR
When unpacking and before disposing of the carton check there is no transportation damage before using the projector.
Should there be any damage caused by transportation, consult your dealer and do not use the apparatus.
The projector is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with water or any other liquids.
DO NOT mount the projector directly onto inflammable surface
The projector is only intended for installation, operation and maintenance by qualified personnel.
The projector must be installed in a location with adequate ventilation, at least 50cm from adjacent wall surfaces. Be sure
that no ventilation slots are blocked.
Do not project the beam onto inflammable surfaces, minimum distance is 5m. 5m
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle and/or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the power-cord come into contact
with other cables. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.
The projector should always be installed with a secondary safety fixing. A safety cord is supplied for this; it should be
attached as shown in “installing the projector” section.
Shields and lens shall be changed if they have become visibly damaged to such an extent than their effectiveness is
impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 45℃, when steady state is achieved 50℃,
There is no user serviceable parts inside the projector, do not open the housing and never operate the projector with the
covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work!

4/22
INSTALL THE PROJECTOR
可伸缩式提手
请把安全绳穿过此保险
绳连接孔以确保安全
警告
吊钩
保险绳
保险绳连接孔
Take 2 clamps and 1 safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers
attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the
WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid
vibration and slipping whilst functioning. Always ensure that the structure that you are going to mount the projector is
secure and is strong enough to support a weight of each projector.
WARNING:
1. The projector MUST be lifted or carried by the HANDLES instead of clamps.
2. For safety the safety cord should afford 10 times of the unit’s weight.

5/22
POWER SUPPLY-MAINS
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked
on the panel of the projector. It is recommended that each projector be supplied separately so that they may be
individually switched on and off.
IMPORTANT
It is essential that each projector is correctly earthed and the electrical installation conforms to all relevant
standards.
CONTROL CONNECTION
Connection between controller and projector and between one projector and another must be made with a 2
core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via
cannon 5 pin (which are included with the projector) or 3 pin XLR plugs and sockets. The XLR's are connected as shown
in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. The body of
the plug is not connected in any way. The projector accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the second fixture’s input
and connect the rest fixtures in the same way. Eventually connect the last fixture’s output to a DMX terminator as shown
in the figure below.
接控制器
DMX IN
DMX OUT DMX IN DMX OUT DMX IN
接回路插

6/22

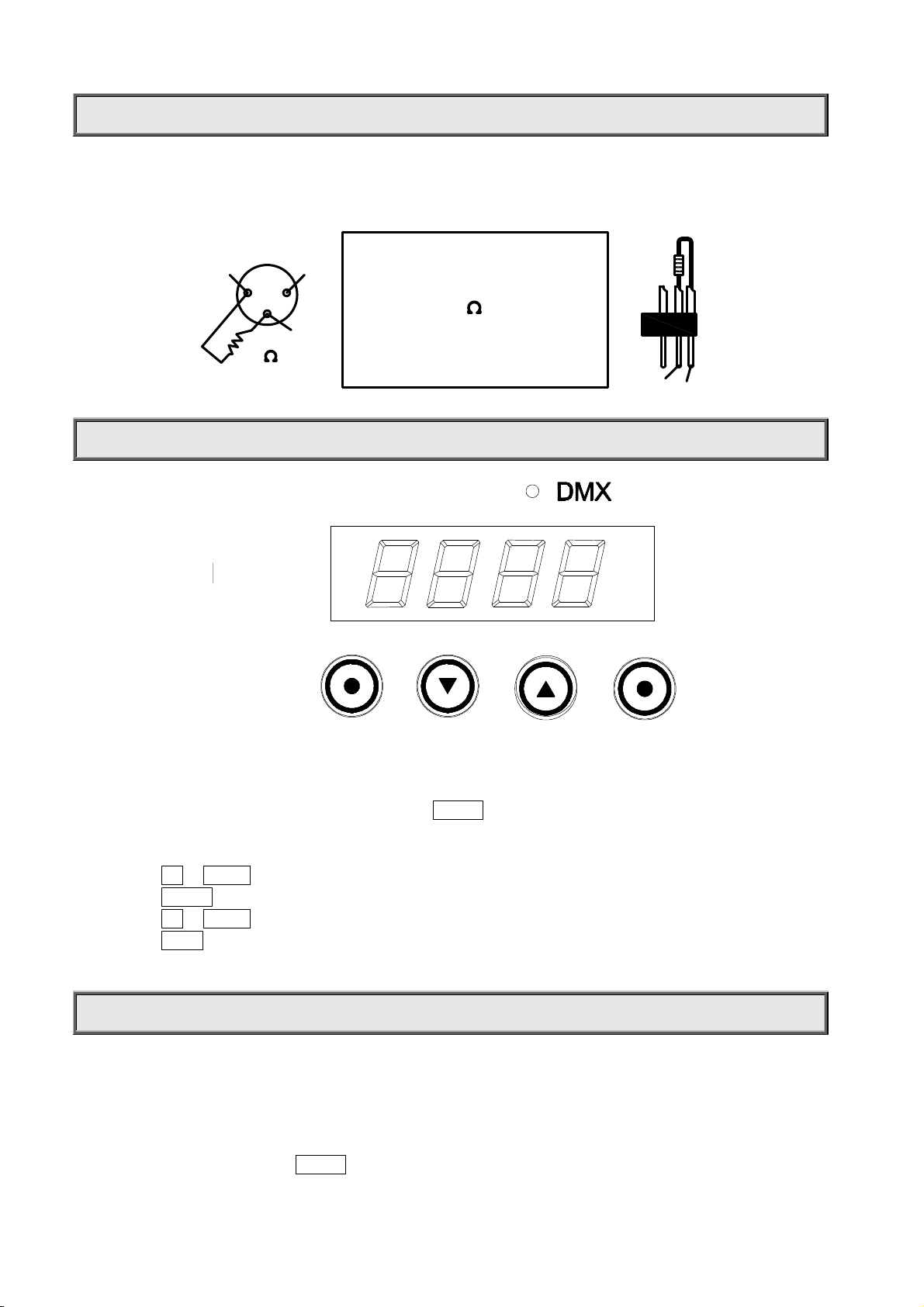

DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This
prevents electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is
then plugged into the output socket on the last projector in the chain. The connections are illustrated below.
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
SETUP OPTIONS-PROJECTOR CONFIGURATION
Projector configuration can be set conveniently via press button switch and LCD display.
To browse or change its setup options, Press button ENTER more than 5 seconds to unlock panel. Menu will be
displayed on the screen, each menu has it own sub-menu. Each menu has specific function, Please refer to “Operation
Menu” for details.
Press button UP or DOWN if you want to browse or change through the various Setup Options.
Press button ENTER to save your settings or enter the next menu.
Press button UP or DOWN to change values.(Add or subtract)
Press button FUNC, it will return to the upper menu one by one. If you stay for minutes defaulted will show display status
automatically.
TO SET THE DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals.
This DMX start address is the channel number from which the projector starts to “listen” to the digital control information
being sent out from the controller. The fixture have 3 DMX modes. There are standard mode, extended mode and short
mode. For example standard mode has 16 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address
017, No. 3 projector’s address 033, No. 4 projector’s address 049, and so on.
Launch the projector. Press button ENTER more than 5 seconds to unlock panel.
ENTER
UP
DOWN
FUNC
PR
-
8151

7/22
Press button FUNC to display DMX address;
Press button UP and DOWN, you can set the address;
Press button ENTER to confirm;
Press button FUNC, it will return to the upper menu one by one.

8/22
OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5
th
Level 6
th
Level
AddR
DMX Address
DMX Address
XXX
Reset Reset
Are You Sure
CNFG
Config Settings
DMX mode
DMX Mode
Standard 16
DMX Mode
Extended 16
DMX Mode
Short 8
Factory settings
Fixture type
Press
DOWN,UP,ENTER
Together
FIXTURE
TYPE=
XLED 3108 ZOOM
XLED 590 ZOOM W
XLED 3108 ZOOM
W
XLED 590
XLED 390
XLED 590 white
Loss of DMX
When DMX is Lost
Normal Time Out
When DMX is Lost
Hold Last Value
Option Settings
Pan DMX Invert
Pan DMX Invert
OFF
Pan DMX Invert
ON
Tilt DMX Invert
Tilt DMX Invert
OFF
Tilt DMX Invert
ON
Pan Tilt Swap Pan Tilt Swap
OFF
Pan Tilt Swap
ON
Dimmer Invert
Dimmer Invert
OFF
Dimmer Invert
ON
Defaults Defaults

9/22
Off
Defaults
Restore Defaults
Display Options
Display Mode
Display
On Always
Display
Off After Delay
Display Invert
Display Invert
Off
Display Invert
On
Display Dimming
Disp Dim Level
Min
Disp Dim Level
1
Disp Dim Level
2
Disp Dim Level
3
Disp Dim Level
4
Disp Dim Level
5
Disp Dim Level
6
Disp Dim Level
7
Disp Dim Level
8
Dis
p Dim Level
9
Disp Dim Level
Full
Display Contrast
Display Contrast
XX（1-20）
Information
LED Hours
LED Hours =
******
Power On Hours
Power On Hours =
******
Temperature Driver Board
Driver Board =
XX℃

10/22
Head Sensor
Head Sensor =
XX℃
Software Version Display Board
Display Board =
*.*.*
View DMX Values
DMX Channel
XXX=XXX
Electronic SN
Electronic SN =
************
Test Modes
Factory Setup
Factory Setup
OFF
Factory Setup
ON( UP,DOWN,ENTER
pressed together to
enter Color Calibration
Menu
Calibration Menu
Red
Red
XX
Calibration Menu
Green
Green
XX
Calibration Menu
Blue
Blue
XX
Self Test Self Test
OFF
Self Test
ON
Operation Mode
Operation Mode =
DMX Operation
Operation Mode =
Master Mode
Select Memory
User Memory 1
Select Memory
User Memory 2
Select Memory
Preset Memory 1
Select Memory
Preset Memory2
Select Memory
Preset Memory 3
Operation Mode =
Slave Mode
Select Memory
User Memory 1
Select Memory
User Memory 2
Select Memory
Preset Memory 1
Select Memory
Preset Memory 2

11/22
Select Memory
Preset Memory 3
Operation Mode =
Static Scene
User Memories
Edit User Memory
User Memory
1
Scene
XX
Dimmer Dimmer
XXX
Color Temp. Color Temp.
XXX
RGB Macros RGB Macros
XXX
Red Red
XXX
Green Green
XXX
Blue Blue
XXX
white white
XXX
Amber Amber
XXX
Zoom Zoom
XXX
Strobe Strobe
XXX
Pan Coarse Pan Coarse
XXX
Pan Fine Pan Fine
XXX
Tilt Coarse Tilt Coarse
XXX
Tilt Fine Tilt Fine
XXX
M-Speed M-Speed
XXX
Delay Delay
X.XX Seconds
Link To Step Link To Step
XX

12/22
User Memory
2
Scene
XX
Dimmer Dimmer
XXX
Color Temp. Color Temp.
XXX
RGB Macros RGB Macros
XXX
Red Red
XXX
Green Green
XXX
Blue Blue
XXX
white white
XXX
Amber Amber
XXX
Zoom Zoom
XXX
Strobe Strobe
XXX
Pan Coarse Pan Coarse
XXX
Pan Fine Pan Fine
XXX
Tilt Coarse Tilt Coarse
XXX
Tilt Fine Tilt Fine
XXX
M-Speed M-Speed
XXX
Delay Delay
X.XX Seconds
Link To Step Link To Step
XXX
Static Scene
Dimmer Dimmer
XXX
Color Temp. Color Temp.
XXX
RGB Macros RGB Macros
XXX

13/22
Red Red
XXX
Green Green
XXX
Blue Blue
XXX
white white
XXX
Amber Amber
XXX
Zoom Zoom
XXX
Strobe Strobe
XXX
Pan Coarse Pan Coarse
XXX
Pan Fine Pan Fine
XXX
Tilt Coarse Tilt Coarse
XXX
Tilt Fine Tilt Fine
XXX
M-Speed M-Speed
XXX
Delay Delay
X.XX Seconds
Link To Step Link To Step
XXX
Init User Memory Reset User
Memory 1
Reset User 1
Unlock 2 3 4（UP、
DOWN、ENTER）
Reset User
Memory 1
Reset User 2
Unlock 2 3 4（UP、
DOWN、ENTER）
Reset
Static Scene
Reset Static Scene
Unlock 2 3 4
（UP、DOWN、
ENTER）

14/22
DMX PROTOCOL
Short
mode
Standard
mode
Extended
mode FUNCTION DMX DESCRIPTION
1 1 1 Dimmer 000-255 Dimming from dark to light (0-100%)
2 Dimmer Fine 000-255 Dimmer in 16 Bit precision
2 3
Colour
Temperature
000-255 CT Adjustment
3 4 Macro
Channel
000-016 Light Control by RGB channel
017-024 White(10000K)
025-032 White(7200K)
033-040 White(5600K)
041-048 White(3200K)
049-056 Cyan
057-064 Yellow
065-072 Magenta
073-080 Red
081-088 Green
089-096 Blue
097-104 Light Green
105-112 Amber
113-120 Orange
121-128 Pink
129-255 Change of Colors between R,G and B
2 4 5 RED 000-255 Linear adjustment from black to light
6 RED Fine 000-255 Adjustment in 16bit precision
3 5 7 GREEN 000-255 Linear adjustment from black to light
8 GREEN Fine 000-255 Adjustment in 16bit precision
4 6 9 BLUE 000-255 Linear adjustment from black to light
10 BLUE Fine 000-255 Adjustment in 16bit precision
6 7 Amber 000-255 Linear adjustment from black to
light
5 8 White 000-049 Linear adjustment from black to light
7 9 15 Zoom 000-255 Linearly Zooming(0°-100 °)
8 10 16 Strobe 000-009 No Strobe
010-255 Strobe from slow to fast
9 11 17 PAN 000-255 Pan( 0°~540°)
12 18 Pan Fine 000-255 Pan in 16bit precision
10 13 19 Tilt 000-255 Tilt(0°~270°)
14 20 Tilt Fine 000-255 Tilt in 16bit precision
15 21 Pan & Tilt
Speed
000 No Effect
001-015 Speed 1 ,Fastest
016-031 Speed 2
032-047 Speed 3

15/22
048-063 Speed 4
064-079 Speed 5
080-095 Speed 6
096-111 Speed 7
112-127 Speed 8
128-143 Speed 9
144-159 Speed 10
160-175 Speed 11
176-191 Speed12
192-207 Speed 13
208-223 Speed 14
224-239 Speed 15
240-255 Speed 16,Slowest
11 16 22 Control
000-047 Reserved
048-080 Reset
081-255 Reserved
INDICATION OF LED DIGITAL TUBE
Green LED Indication
On DMX signal OK
Off No DMX signal
Flash DMX signal Error
Yellow LED Indication On Menu Setup
Blue LED Indication On Power Connection
Red/Green LED Indication Red Slave Mode or Self Test Mode
Green Master Mode
MAINTENANCE
If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by
fuses of the same specification. Should these be damaged call a qualified technician before replacement. The projector
has thermal protection device that will switch off the projector in case of overheating, should either of these operate,
check that the fans are not blocked, and if they are dirty clean them before switching on the projector again. Check that
the fans are operational, if not call a qualified technician.
Any maintenance work should only be carried out by qualified technicians.
KEEPING THE PROJECTOR CLEAN
To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every
15 days. The lens should also be regularly cleaned to maintain an optimum light output.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics. A soft cloth and typical glass cleaning products
should be used in cleaning. It is recommended to clean the external optics at least once every 20 days .
Do not use any organic solvent, e.g. alcohol, to clean t housing of the apparatus.

16/22
TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on  Check the fuse on the power socket.
The lamp comes on but the projector
doesn’t respond to the controller
 Make sure that the projector is correctly configurated.
 Replace or repair the DMX cable.
The beam appears dim  Check the optics is clean.

17/22
TECHNICAL DATA
VOLTAGES:
100V/120V/200V/220V/230V/240V AC，50/60Hz
POWER CONSUMPTION:
360W@220V
LED:
Model OSRAM OSTAR CP7P
Power consumption 3W
Quantity 108（24R＋24G＋24B+24W+12A）
Manufacturers Rated LED Life 50000 Hours
COLOURS:
RGBW linear color mixing with Macro
COLOR TEMPERATURE CORRECTION
Linear color temperature correction from 3200K to 10000K
DIMMER:
0-100% linearly adjustable
STROBE:
Electronic Strobe 0 ~25F.P.S
PAN AND TILT
PAN(0°~540°) and TILT(0°~270) with Auto Position Correction Function
LIGHT ANGLE
Linearly Zooming (11.03°~19.56°)
CONTROL:
DMX512, 3 pin interfaces
RDM Control Protocol
11 channels in short mode, 12channels in standard mode, and 22 channels in extended mode
Master/Salve Synchronous Control Mode
Static Scene Mode
Single Mode

18/22
Self Test Mode
OTHER FUNCTIONS:
Pan & Tilt Speed adjustable
Auto speed adjustment of Fans
LED Lamp Overheating Protection
Display’s Brightness and Contrast adjustable
Lamp/Projector use Time display
DMX512 Channel Value Display
Menu Invert
HOUSING:
High temperature ABS +die-casting aluminum, IP20
WORK ENVIRONMENT TEMPERATURE:
-20°C~40°C
WEIGHT:
Net weight :13.35Kg Gross Weight: 17.4 Kg

19/22
LIGHT OUTPUT:
2m
6m 7m
5m
3m
1m
4m
0m
2m
4m
1m
3m
5m
6m
7m
8m
8m
DISTANCE(m)
23°DIAMETER(m)
35°DIAMETER(m)
0m
0
0
10m
4.16
3.10
15m
6.24
6.20
20m
8.32
9.30
25m
10.40
12.41 15.51
30m
12.48
18.61
35°LUX
23°LUX
5m
2.08
1728
3631
432
908
192
403
108
227
69
145
48
101
PR-8102
19.56°11.03°

20/22
