Char-Broil VERTICAL GAS SMOKER 600 User manual

VERTICAL GAS
SMOKER 600
11/07/14 • 42804875
If you have questions or need assistance
during assembly, please call 1-800-241-7548
Si tiene alguna pregunta o si Necesita
ayuda durante el Ensamblado, llámenos Al
1-800-241-7548
Serial number | Número de serie
Date purchased | Fecha de compra
See rating Label on unit for serial number.
El número de serie se encuentra en la etiqueta de
especificaciones de la unidad.
15202032
Tools Required for Assembly:
#2 Phillips or Standard Flat blade Screwdriver (Not Provided)
Small Adjustable Wrench (Not Provided)
7/16” Combination Wrench (Not Provided)
Herramientas necesarias para el armado:
Destornillador No. 2, Philips o de hoja plana (que no viene incluido)
Llave inglesa pequeña (que no viene incluida)
Llave mixta de 7/16" (que no viene incluida)

2
If during operation the flames go out (You smell gas or
cannot see the flame)
1. Turn the burner controls OFF
2. Open the door.
3. Wait 5 minutes and repeat the lighting procedure.
If the burner goes out, gas will continue to flow out of the
burner and could accidently ignite with risk of injury.
DANGER
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor or
moderate injury.
Safety Symbols
The symbols and boxes shown below explain what each
heading means. Read and follow all of the messages found
throughout the manual.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING
This instruction manual contains important information
necessary for the proper assembly and safe use of the
appliance.
Read and follow all warniongs and instructions before
assembling and using the appliance.
Follow all warnings and instructions when using the
appliance.
TABLE OF CONTENTS
Product Record Information..............................................1
For Your Safety................................................................. 2
Safety Symbols ................................................................2
Installation Safety Precautions......................................... 3
Food Safety...................................................................... 4
Use and Care...............................................................4-10
Limited Warranty.............................................................11
Parts Diagram.................................................................22
Parts List.........................................................................23
Assembly Steps.........................................................25-34
Troubleshooting........................................................ 35-36
Registration Card........................................................... 39
DANGER
THIS APPLIANCE IS FOR OUTDOOR
USE ONLY.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance
and immediately call your fire department.
Failure to follow these instructions could result in fire
or explosion, which could cause property damage,
personal injury or death.
DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10ft (3m) of
any structure, combustible material or other gas
cylinder.
3. Never operate this appliance within 25 ft (7.5 m)
of any flammable liquid.
4. If a fire should occur, keep away from the
appliance and immediately call your fire
department.
Failure to follow these instructions could result in fire,
explosion or burn hazard, which could cause property
damage, personal injury or death.
WARNING
Do not attempt to repair or alter the hose/valve/regulator
for any “assumed” defect. Any modification to this
assembly will void your warranty and create the risk of
a gas leak and fire. Use only authorized replacement
parts supplied by manufacturer.

3

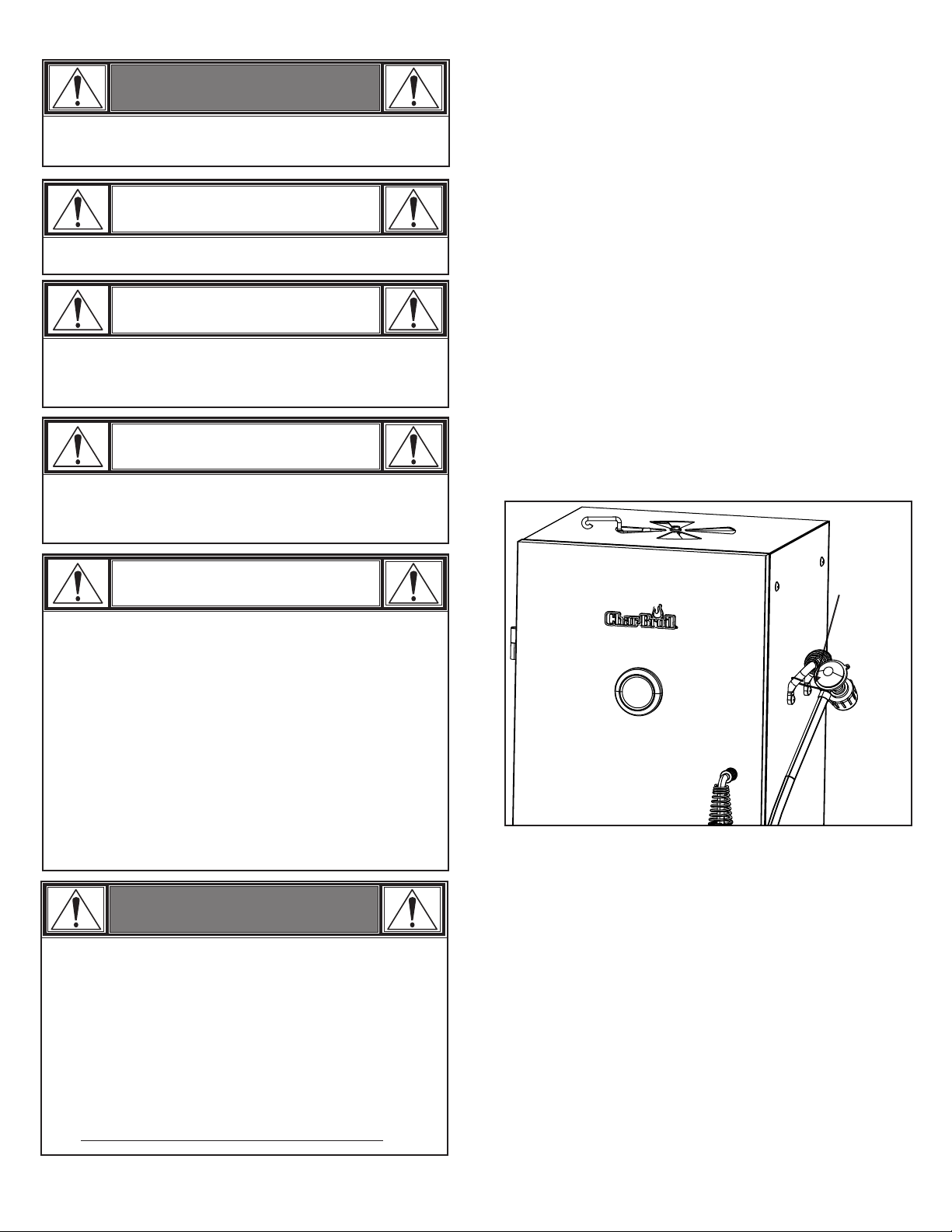

Read and follow all safety statements, assembly instructions,
and use and care directions before attempting to assemble
and cook.
Failure to follow all manufacturer’s instructions could result
in serious personal injury and/or property damage.
Some parts may contain sharp edges. Wear protective
gloves if necessary.
For residential use only. Do not use for commercial cooking.
WARNING
CAUTION
CAUTION
CAUTION
WARNING
CALIFORNIA PROPOSITION 65
1. Combustible by-products produced when using this
product contains chemicals known to the State of
California to cause cancer, birth defects, or other
reproductive harm.
2. This product contains chemicals, including lead and
lead compounds, known to the State of California to
cause cancer, birth defects or other reproductive harm.
Wash your hands after handling this product.
CAUTION
Grease Fires
Installation Safety Precautions
• Use your appliance, as purchased, only with LP (propane)
gas and the regulator/valve assembly supplied.
• The appliance installation must conform with local codes, or in
their absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/ NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, and Propane Storage and
Handling, CSA B149.2, Canadian Electrical Code, CSA C22.1
or the Standard for Recreational Vehicles, ANSI A 119.2/NFPA
1192, and CSA Z240 RV Series, Recreational Vehicle Code,
as applicable.
• This appliance is not for use in or on recreational vehicles
and/or boats.
• This appliance is safety certified for use in the United States
and/or Canada only. Do not modify for use in any other
location. Modification will result in a safety hazard.
Storing Your Appliance
• Clean cooking grates.
• Store in dry location.
• When LP cylinder is connected to appliance, store outdoors in
a well-ventilated space and out of reach of children.
• If the regulator is disconnected from the LP cylinder, a hook is
provided to hang the regulator from the handle as shown.
• Cover appliance if stored outdoors. Choose from a variety of
covers offered by the manufacturer.
• Store indoors ONLY if LP cylinder is turned off and is
disconnected, removed from appliance and stored outdoors.
• When removing appliance from storage, follow “Cleaning the
Burner Assembly” instructions before starting.
Regulator
Hook
• Do not use water on a grease fire. Personal injury may
result. If a grease fire develops, turn knobs and LP tank
off.
• If unit has not been regularly cleaned, a grease fire can
occur that may damage the product. Pay close attention
while preheating or burning off food residue to insure
that a grease fire does not develop.
• The best way to prevent grease fires is regular cleaning
of the unit following instructions on general appliance
cleaning and cleaning the burner assembly to prevent
grease fires.

4
24”
USDA Recommended
Internal Cooking Temperatures
Ground Meat
Beef, Pork, Veal, Lamb......................................160°F
Turkey, Chicken.................................................165°F
Fresh Beef, Veal, Lamb
Medium Rare.......................................................145°F
(let stand 3 minutes before cutting)
Medium................................................................160°F
Well Done............................................................170°F
Poultry
Chicken & Turkey, whole.....................................165°F
Poultry Parts.......................................................165°F
Duck & Goose....................................................165°F
Fresh Pork
Medium Rare......................................................145°F
(let stand 3 minutes before cutting)
Medium..............................................................160°F
Well Done..........................................................170°F
Food Safety
Food safety is a very important part of enjoying the outdoor
cooking experience. To keep food safe from harmful bacteria,
follow these four basic steps:
Clean: Wash hands, utensils, and surfaces with hot soapy water
before and after handling raw meat and poultry.
Separate: Separate raw meats and poultry from ready-to-eat
foods to avoid cross contamination. Use a clean platter and
utensils when removing cooked foods.
Cook: Cook meat and poultry thoroughly to kill bacteria. Use a
thermometer to ensure proper internal food temperatures.
Chill: Refrigerate prepared foods and leftovers promptly.
For more information call: USDA Meat and Poultry Hotline at
1-800-535-4555 In Washington, DC [phone],
10:00 am-4:00 pm EST.
How To Tell If Meat Is Cooked Thoroughly
• Meat and poultry cooked in the appliance often browns very
fast on the outside. Use only thawed meat and a meat
thermometer to be sure food has reached a safe internal
temperature, and cut into food to check for visual signs of
doneness.
• We recommend food to be at least 40°F before cooking in
your appliance.
• Whole poultry should reach 165° F. Juices should run clear
and flesh should not be pink.
• Beef, veal and lamb steaks, roasts and pork chops can be
cooked to 145° F.
• NEVER partially cook meat or poultry and finish cooking later.
Cook food completely to destroy harmful bacteria.
• Use a meat thermometer to ensure proper internal food
temperatures.
DANGER
USE AND CARE
• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a hazard
due to possible gas release from the safety relief valve.
This could cause an intense fire with risk of property
damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately get
away from the LP cylinder/appliance and call your fire
department.
• Keep LP tank at a minimum distance of 24” (inches)
away from appliance at all times.
LP Cylinder Removal, Transport and Storage
• Turn OFF all control knobs and LP cylinder valve. Turn
coupling nut counterclockwise by hand only - do not use tools
to disconnect. Loosen cylinder screw beneath bottom shelf or
disconnect other retention means, then lift LP cylinder up and
and out of cart. Install safety cap onto LP cylinder valve.
Always use cap and strap supplied with valve. Failure to use
safety cap as directed may result in serious personal
injury and/or property damage.
• A disconnected LP cylinder in storage or being transported
must have a safety cap installed (as shown). Do not store an
LP cylinder in enclosed spaces such as a carport, garage,
porch, covered patio or other building. Never leave an LP
cylinder inside a vehicle which may become overheated by
the sun.
• Do not store an LP cylinder in an area where children play.

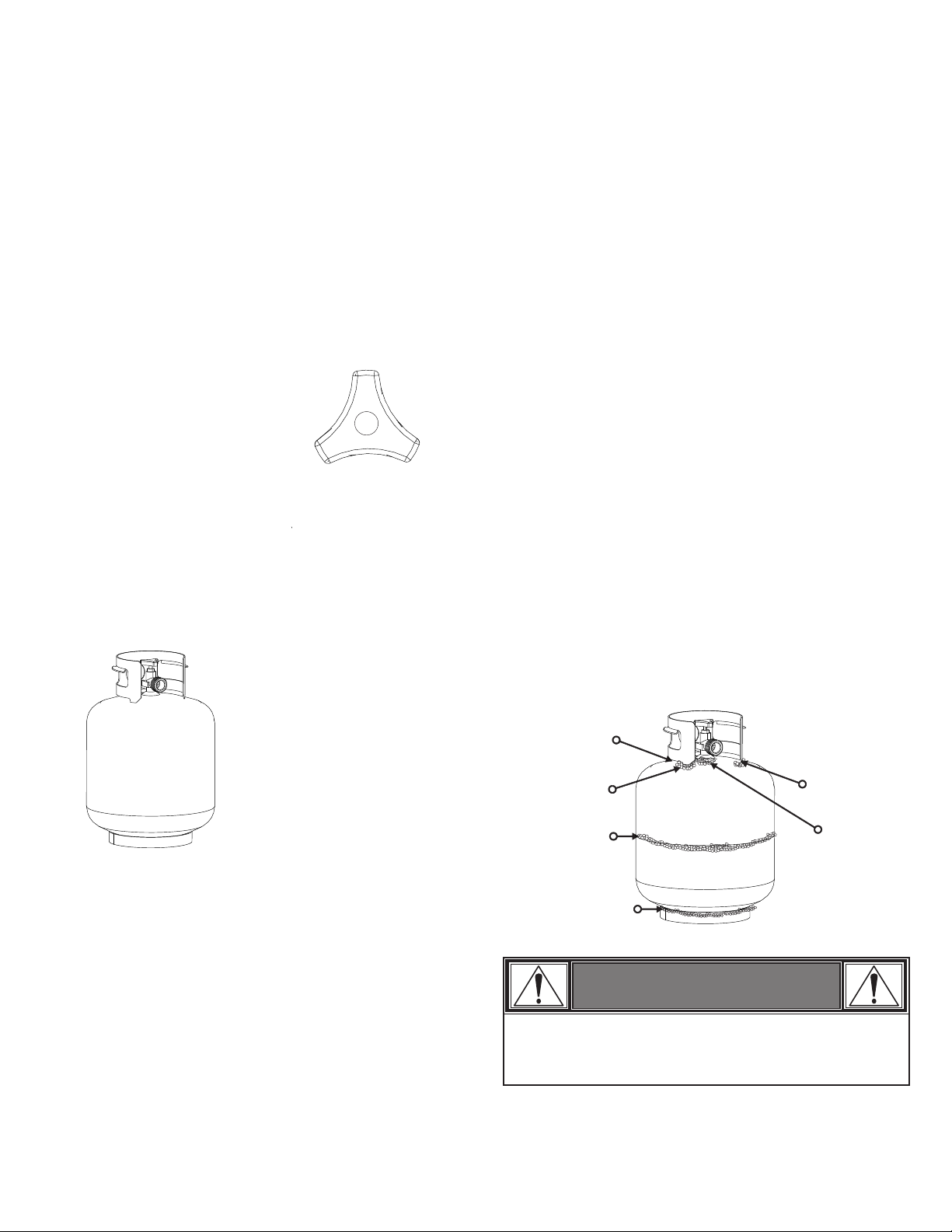

LP Cylinder Valve
Safety Cap
Retainer Strap

5
LP (Liquefied Petroleum Gas)
• LP gas is nontoxic, odorless and colorless when produced.
For Your Safety, LP gas has been given an odor (similar to
rotten cabbage) so that it can be smelled.
• LP gas is highly flammable and may ignite unexpectedly
when mixed with air.
LP Cylinder
• The LP cylinder used with your unit must meet the
following requirements:
• Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
• LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or for Canada, CAN/CSA-B339,
cylinders, spheres and tubes for transportation of dangerous
goods, Transport Canada (TC). See LP cylinder collar for
marking.
•LP cylinder valve must have:
•Type 1 outlet compatible with
regulator or unit.
•Safety relief valve.
•UL listed Overfill Protection Device (OPD). This
OPD safety feature is identified by a unique
triangular hand wheel. Use only LP cylinders
equipped with this type of valve.
OPD Hand
Wheel
•LP cylinder must be for vapor withdrawal and include upright
collar to protect LP cylinder valve. Always keep LP cylinders in
upright position during use, transit or storage.
LP cylinder in upright position
for vapor withdrawal
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
•A frosty regulator indicates gas overfill. Immediately close
LP cylinder valve and call local LP gas dealer for assistance.
•Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
•To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.
WARNING
If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire department!
LP Cylinder Exchange
LP Cylinder Leak Test
For your safety
•Many retailers that sell units offer you the option of replacing
your empty LP cylinder through an exchange service. Use only
those reputable exchange companies that inspect, precision fill,
test and certify their cylinders. Exchange your cylinder only
for an OPD safety feature-equipped cylinder as described
in the "LP Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to unit.
•Place safety cap on cylinder valve outlet whenever the cylinder
is not in use. Only install the type of safety cap on the cylinder
valve outlet that is provided with the cylinder valve. Other types
of caps or plugs may result in leakage of propane.
•Leak test must be repeated each time LP cylinder is
exchanged or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Unit must be leak tested outdoors in a well-ventilated area,
away from ignition sources such as gas fired or electrical
appliances. During leak test, keep unit away from open flames
or sparks.
•Use a clean paintbrush and a 50/50 mild soap and water
solution. Brush soapy solution onto areas indicated by arrows in
figure below.
• Do not use household cleaning agents. Damage to gas train
components can result.
