Chariot Chariot 86037880 User manual

86037880 CHARIOT EXTRACTOR 01/16/07
PARTS

BUMPER
86037880 CHARIOT EXTRACTOR 01/16/07
5-1
710 910 7
11
6
6
2
1
5
1
4
3
8

BUMPER
86037880 CHARIOT EXTRACTOR 01/16/07 5-2
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO. FROM NOTES:
1 86276890 70752 6 SCR, 5/16-18X3/4 PTHMS SS
2 86007070 70849 2 SCR, #12 X 1.25 PPHMS SS
3 86063230 140813 1 BUMPER , LEFT
4 86063240 140814 1 BUMPER, RIGHT
5 86071020 140783 1 BRKT, FRONT BUMPER
6 86270830 57023 4 NUT, 5/16-18 HEX NYLOCK SS
7 86010670 87029 4 WASHER, 5/16 FLAT SS
8 86070730 140729 2 BRKT, BUMPER MOUNT, SIDE
9 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
10 86279130 87083 4 WASHER, 5/16 SPLIT LOCK PLTD
11 86251750 67602 2 RISER, BUMPER

CONTROL PANEL- UPPER
86037880 CHARIOT EXTRACTOR 01/16/07
5-3
13
13
18
7
19 15
9
2
13
4
8
10
6
3
14
11
1
16
17
18
3
12
16
2
1
5
13

CONTROL PANEL - UPPER
86037880 CHARIOT EXTRACTOR 01/16/07 5-4
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86002010 14942 2 BOOT, 3/8 CIRCUIT BREAKER
2 86008900 80845 5 BOOT, SEAL-PUSH BUTTON 7/16-28
3 86007130 72128 1 SWITCH, DPDT 2-POSITION ROCKER
4 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
5 86007180 72160 1 SWITCH, EMERGENCY STOP
6 86007190 72161 1 SWITCH KEY DPST
7 86246930 54144 1
METER, 36V BATTERY CHARGE
LEVEL
8 86257140 72196 1 SWITCH ASM, SEALED PB RND BRN
9 86257280 81371 1 SWITCH, PUSH BUTTON
10 86257110 72189 1 SWITCH, 4P3T FIXED POS ROCKER
11 86005530 54154 1 METER, 12-48 VDC LED HOUR
12 86251410 67506 1 RELAY, 15A 36V MINI
13 86255900 73538 8 STANDOFF, 6-32 X 5/8 HEX NYL
14 86273990 70067 10 SCR, 6-32 X 3/8 PPHMS
15 86279300 87134 10 WASHER, #6 LOCK
16 86002000 14717 2 BREAKER, 3 AMP
17 86001920 14607 2 BREAKER, 25A 50 VDC CIRCUIT
18 86001910 14606 3 BREAKER, 30A 50VDC CIRCUIT
19 86229770 140805 1 BLOCK, SHUNT MOUNT

CONTROL PANEL- LOWER
86037880 CHARIOT EXTRACTOR 01/16/07
5-5
6
13
13
12
6
87
9
2
1
3
5
11 10
4
14

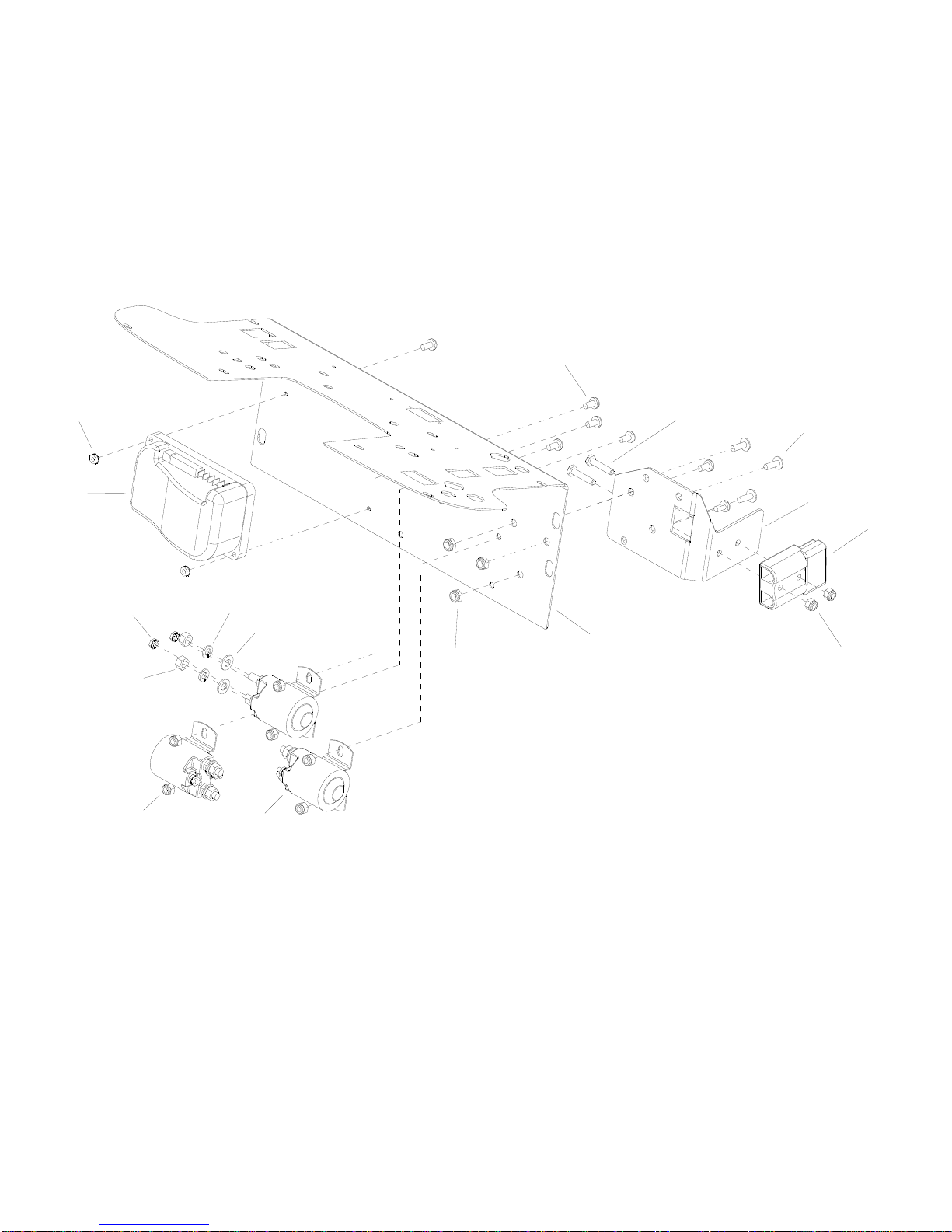

CONTROL PANEL-LOWER
86037880 CHARIOT EXTRACTOR 09/21/07 5-6
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86223740 70872 6 SCR, 1/4-20 X .59 PPHMS SS C
2 86273820 70019 2 SCR, 1/4-20 X 1.25 HHCS
3 86277480 70850 3 SCR, 5/16-18 X 1/2 PTHMS SS
4 86070720 140728 1 BRKT, BATT CONN, BASIC
5 86008760 80682 1 CONN, 175 DCA GRY W/O TERMS
6 86005810 57245 8 NUT, 1/4-20 HEX NYLOCK SS
7 86075310 61039 1 CONTROL PANEL, EXTRACTOR
8 86271840 57285 3 NUT, 5/16-18 HEX NYLOCK THIN SS
9 86006370 67315 3 RELAY, 36VDC 100AMP HVY DUTY
10 86010670 87029 6 WASHER, 5/16 FLAT SS
11 86279130 87083 6 WASHER, 5/16 SPLIT LOCK PLTD
12 86271120 57125 6 NUT, 5/16-18 BRASS
13 86005700 57104 8 NUT, 10-32 W/STAR WASHER PLTD
14 86027740 27911 1 CONTROLLER, GEAR DRIVE BASIC

CONTROL PANEL HOUSING
86037880 CHARIOT EXTRACTOR 01/16/07
5-7
4
9
10
8
7
1
11
2
3
3
65

CONTROL PANEL HOUSING
86037880 CHARIOT EXTRACTOR 02/20/07 5-8
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86005810 57245 4 NUT, 1/4-20 HEX NYLOCK SS
2 86290540 - 6 SCR, 10-32 X 1/2 TORX SS BLK NP
3 86277480 70850 6 SCR, 5/16-18 X1/2 PTHMS SS
4 86070710 140726 1 BRKT, LEFT CONSOLE MOUNT
5 86237900 35278 3 GASKET, .125 X .25W X 23L
6 86031730 270084 1 CONSOLE
7 86070700 140725 1 BRKT, RIHGT CONSOLE MOUNT
8 86279750 87252 4 WASHER, RET, PUSHNUT, 5/16 BOLT
9 86089650 78524 4 TUBE, 5/8 OD X .357 ID X 1.57
10 86277420 70841 4 SCR, 5/16-18 X 2.5 PTHMS SS
11 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS

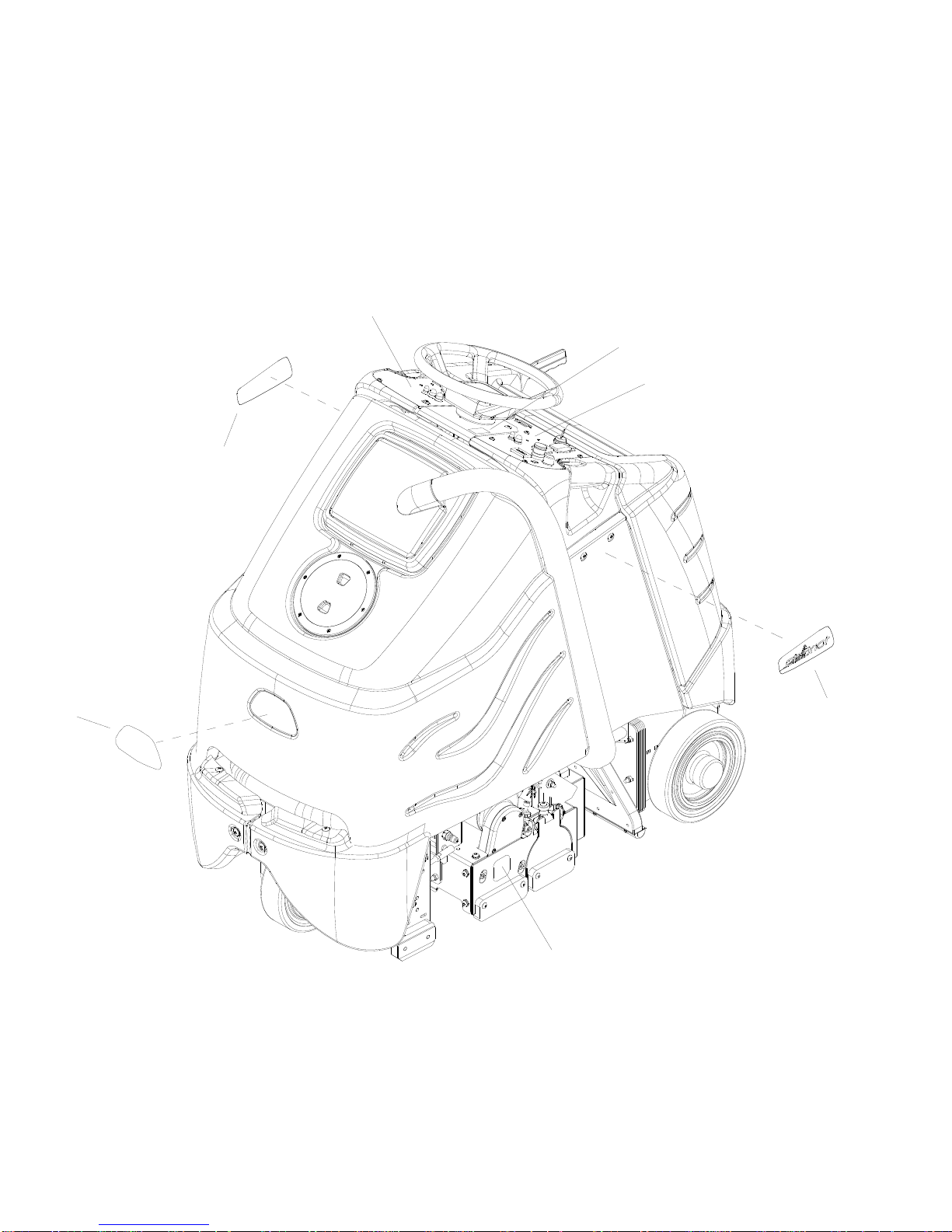

DECAL
86037880 EXTRACTOR 01/06/09
5-9
4
1
5
3
7
2
8

DECAL
86037880 CHARIOT EXTRACTOR 01/06/09 5-10
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86004970 50990 1 LABEL, WINDSOR LOGO DOMED
2 86244820 501230 1 DECAL, CHARIOT IEXTRACT LT
3 86244190 500882 1 LABEL, PANEL BASIC LEFT
4 86243990 500780 1 LABEL, COVER PANEL
5 86244510 501108 1 LABEL, PANEL, EXTRACTOR, RT
6 OPEN
7 86244830 501231 1 DECAL, CHARIOT IEXTRACT RT
8 86298970 - 1 LABEL, CLEAN BRUSHES AND DECK
NOTE: See “SAFETY LABEL LOCATION” page for safety label information.

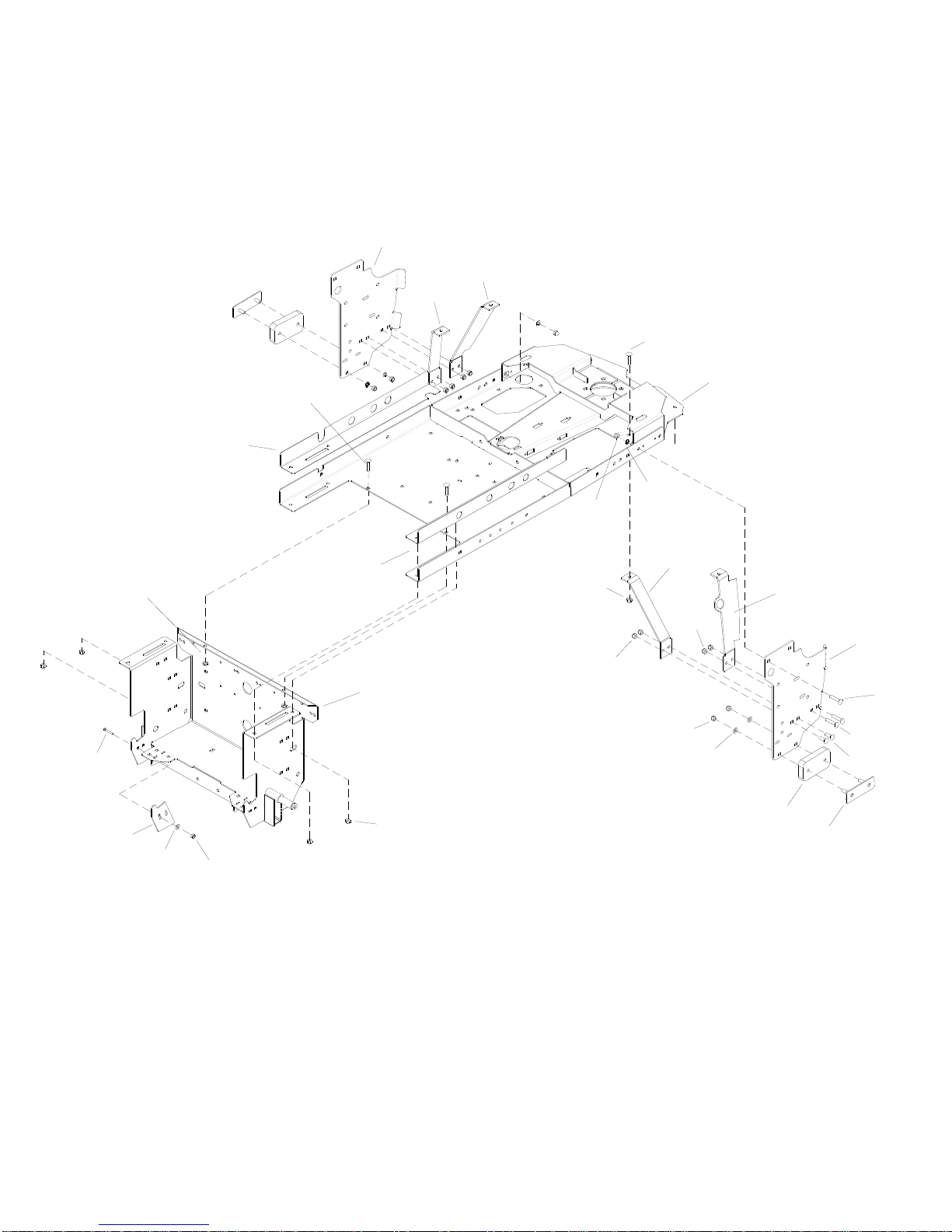

FRAME-LOWER
86037880 CHARIOT EXTRACTOR 01/16/07
5-11
8
19 20
18
21
814
11
4
4
13
4
12
8
8
15
1
23
8
810
9
7
16
17
4
4
5
6

FRAME-LOWER
86037880 CHARIOT EXTRACTOR 01/16/07 5-12
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86070750 140731 1 BRKT, LINKAGE, LEFT
2 86071130 140812 1 BRKT, TIP BRACE, LEFT, REAR
3 86070760 140733 1 BRKT, BRACE, LEFT FRONT
4 86276070 70593 16 SCR, 5/16-18 X 3/4 CARRIAGE SS
5 86092500 34428 1 FRAME, MAIN
6 86197040 57264 4 NUT, 5/16-18 HEX ACORN PLTD
7 86279130 87083 4 WASHER, 5/16 SPLIT LICK PLTD
8 86270830 57023 20 NUT, 5/16-18 HEX NYLOCK SS
9 86071120 140811 1 BRKT, TIP BRACE, RIGHT, REAR
10 86071430 140863 1 BRKT, BRACE, RGT FRONT
11 86070740 140730 1 BRKT, LINKAGE, RIGHT
12 86079320 620101 2 PLATE, PAD RETAINER
13 86064300 140790 2 PAD, TIPPING BAR
14 86010670 87029 4 WASHER, 5/16 FLAT SS
15 86091420 05251 1 AXLE, REAR WELDMENT
16 86088760 75458 1 TRAY, SLIDE, LEFT
17 86088750 75457 1 TRAY, SLIDE, RIGHT
18 86079290 620097 2 PLATE, REAR COVER ADJ.
19 86010630 87013 4 WASHER, 1/4 ID X 5/8 OD SS
20 86271870 57290 4 NUT, 1/4-20 HEX NYLOCK THIN SS
21 86276950 70772 4 SCR, 1/4-20 X 3/4 CARRIAGE SS

FRAME-UPPER
86037880 CHARIOT EXTRACTOR 01/16/07
5-13
4
432
5
7
12
32
4
2
4
6SEE
VACUUM SHOE
LIFT GROUP

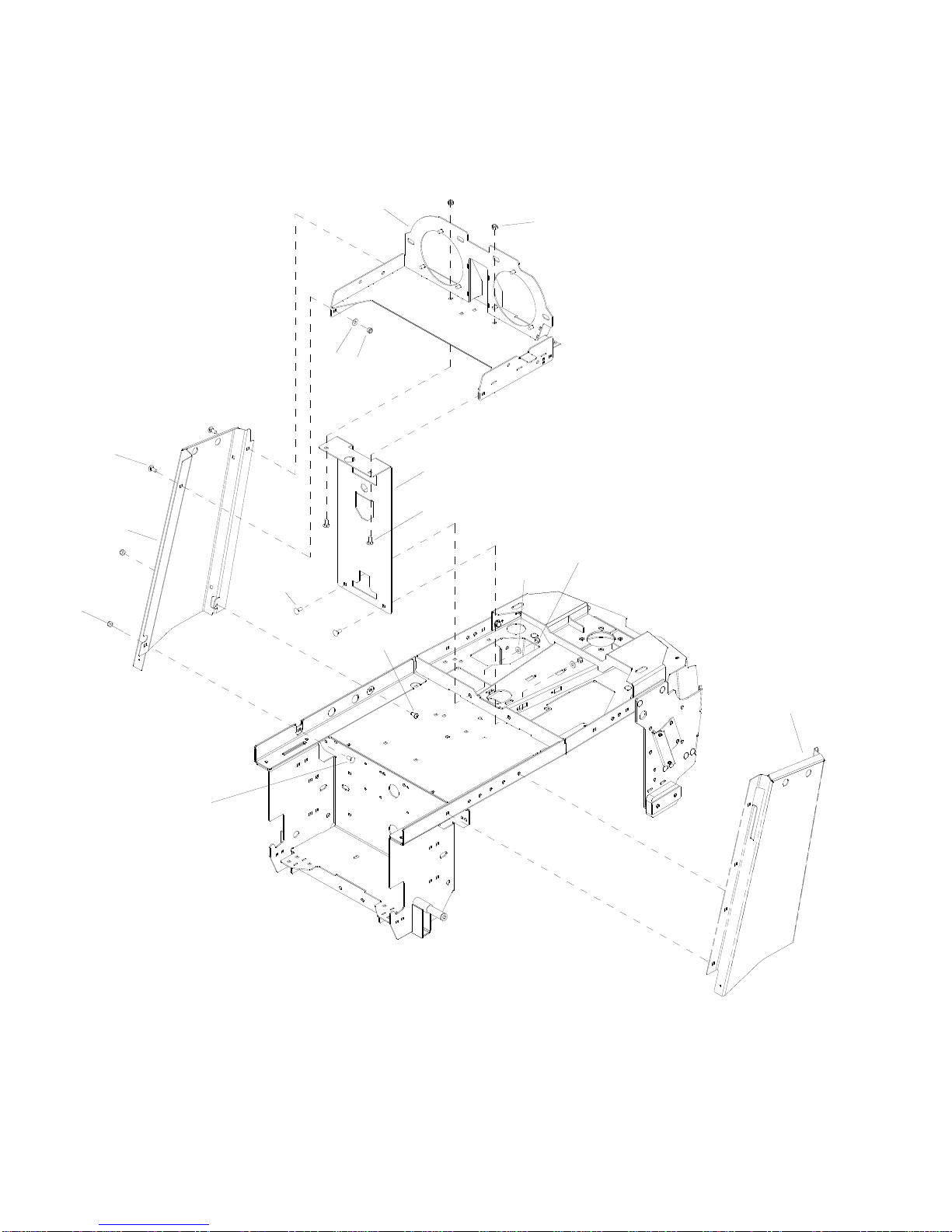

FRAME-UPPER
86037880 CHARIOT EXTRACTOR 01/16/07 5-14
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86091610 140129 1 BRKT, HORIZ ELECT, EXTRACTOR
2 86270830 57023 8 NUT, 5/16-18 HEX NYLOCK SS
3 86010670 87029 5 WASHER, 5/16 FLAT SS
4 86276070 70593 7 SCR, 5/16 X 3/4 CARRIAGE SS
5 86083080 66437 1 PLATE, VERT BEARING SUPPORT
6 86277460 70847 1 SCR, 5/16-18 X 5/8 BSHCS SS
7 86073500 270090 1 BRKT, SIDE CHANNEL L

PEDAL PLATFORM
86037880 CHARIOT EXTRACTOR 10/04/07
5-15
32
31
12
11
10
20
17
17
9
1
2
3
456
7
8
9
10
11
12
13
14
15
16
17
18 19
20
21
22 23
24
25
26 27
28
29
30

PEDAL PLATFORM
86037880 CHARIOT EXTRACTOR 01/16/07 5-16
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO. FROM NOTES:
1 86217650 34432 1 DIVIDER
2 86222700 34429 1 PLATFORM
3 86216380 140713 2 BUSHING, 8MM X 10LG CLY
4 86007110 72123 2 SWITCH, 25A SPST 125-250V SNAP
5 86279720 87248 4 WASHER, M4 INT STAR
6 86272040 57503 4 NUT, M3.5 X 2.8 HEX
7 86223580 67502 2 ROD, PIVOT, 8.5MM X 77
8 86222520 34431 1 PEDAL, BRAKE
9 86277390 70836 4 SCR, M3.5 X 38 PHMS
10 86233170 20054 3 CLAMP, 3/8 NYLON UL/CSA
11 86279730 87249 4 WASHER, M5 INT STAR
12 86277380 70835 4 SCR, M4.8 X 16 PHTF
13 86222510 34430 1 PEDAL, THROTTLE
14 86254970 730304 2 SPRING, COMP 18MM OD X 83 X 2
15 86222780 620047 2 PLATE, PIVOT
16 86277360 70833 2 SCR, M6 X 10 PH
17 86274340 70179 11 SCR, M6 X 16 PH
18 86224360 730325 2 SPACER 12.7MM ID X 2.78W X 6L
19 86222810 620050 1 PLATE, COVER
20 86279140 87085 9 WASHER, M6 SPLIT LOCK DIN127B
21 86288720 57277 2 NUT, M6 NYLOCK PLATED
22 86250280 66135 1 POTENTIOMETER, 5K OHMS
23 86222790 620048 1 PLATE, THROTTLE
24 86278060 70759 2 SET SCR, M4 X 4MM NP
25 86224350 730305 1 SPACER, 8MM 16L
26 86277370 70834 1 SCR, M5 X 30 SHCS
27 86221850 34433 1 LINK, THROTTLE
28 86218810 23717 1 HARNESS, TWISTER PEDAL
29 86136310 57086 1 NUT, M5 HEX
30 86264920 27049 1 CABLE TIE, 7” UL/CSA
31 86224750 73993 1 SPRING, COMP, .48OD X 91L
32 86223260 66085 1 PLUNGER, PLATFORM SWITCH
NOTE: Complete platform assembly is available, Part No. 86028310, PRV No. 41532

PEDAL PLATFORM
86037880 CHARIOT EXTRACTOR 01/16/07
5-17
18
15
8
13 5
5
5
6
16
17
8
14
4
6
8
7
10
11
5
12
9
3
1
2

PEDAL PLATFORM
86037880 CHARIOT EXTRACTOR 01/16/07 5-18
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO. FROM NOTES:
1 86248920 66487 1 PIN, CLEVIS 1/2 X 2.25
2 86274690 70258 2 SCR, 5/16-18 X 1.5 HHCS GR5PLT
3 86264920 27049 3 CABLE TIE, 7” UL/CSA
4 86231070 730328 2 BUMPER, 1 X 1.375 RUBBER
5 86010670 87029 5 WASHER, 5/16 FLAT SS
6 86259430 87485 4 M12 FLAT WASHER
7 86010770 87143 2 WASHER, 7/16ID X1D.08 FLT SS
8 86270830 57023 5 NUT, 5/16-18 HEX NYLOCK SS
9 86256470 70852 2 STUB AXLE, M12-1.75 X 45MM
10 86278850 80613 2 WASHER, .506ID X .94D X .064 NYL
11 86008680 80607 1 COTTER, 1/2” RING
12 86064480 629993 1 PLATE, SWITCH BASE
13 86276980 70775 1 SCR, 5/16-18 X 2 HHCS SS
14 86007780 73576 1 SPRING, COMP .60D X2.0L X .045W
15 86279630 87212 1 WASHER, .344ID X 1.13OD X .09T PLT
16 86259440 87486 2 WASHER, M12 SPRING LOCK
17 86271190 57142 2 NUT, M12 X 1.75 HEX DIN934 PLT
18 86256130 730402 1 STRAP, STATIC .2T X 1W X 3L

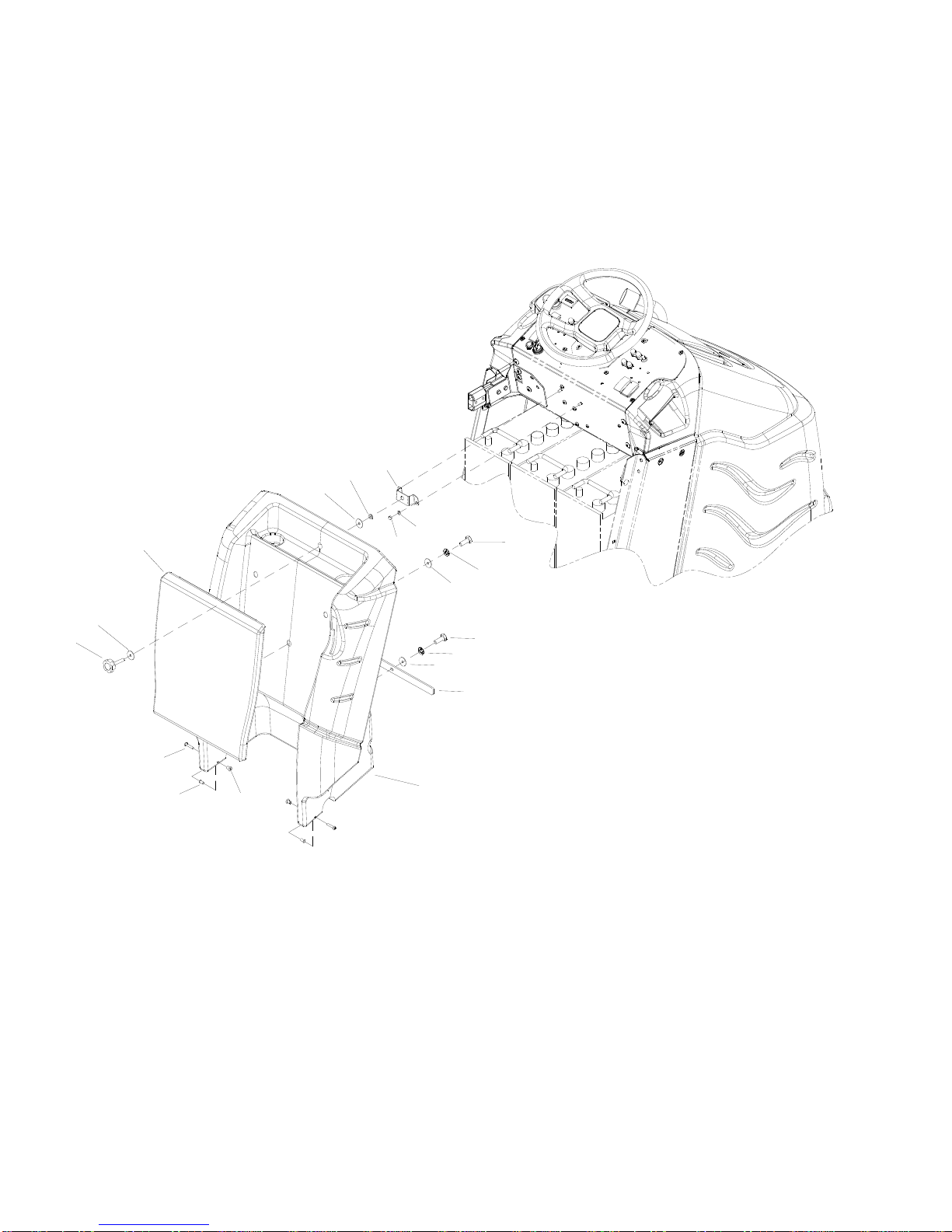

REAR COVER
86037880 CHARIOT EXTRACTOR 01/16/07
5-19
15
2
316
4
14
12
11
9
65
7
10
9
8
32
1
13
