Chariot Chariot Scrubber 10061090 User manual

Operating Instructions (ENG)
MODELS: CSX24
10061090
CSX26SP
10061160
Read these instructions before using the machine
iScrub
86317500-A
11/15/08

MACHINE DATA LOG/OVERVIEW
86317500 CHARIOT SCRUBBER 11/15/08
2
OVERVIEW
The Chariot Scrubber is a battery powered, stand-on, hard floor scrubber intended for commercial
use. The appliance applies a cleaning solution onto a hard floor, scrubs the floor with brushes or
pads, and then vacuums the soiled water back into the recovery tank.

TABLE OF CONTENTS
86317500 CHARIOT SCRUBBER 11/15/08 3
Machine Data Log/Overview................................2
Table Of Contents................................................3
HOW TO USE THIS MANUAL
How To Use This Manual.....................................1-1
SAFETY
Important Safety Instructions ............................2-1
Hazard Intensity Level.......................................2-2

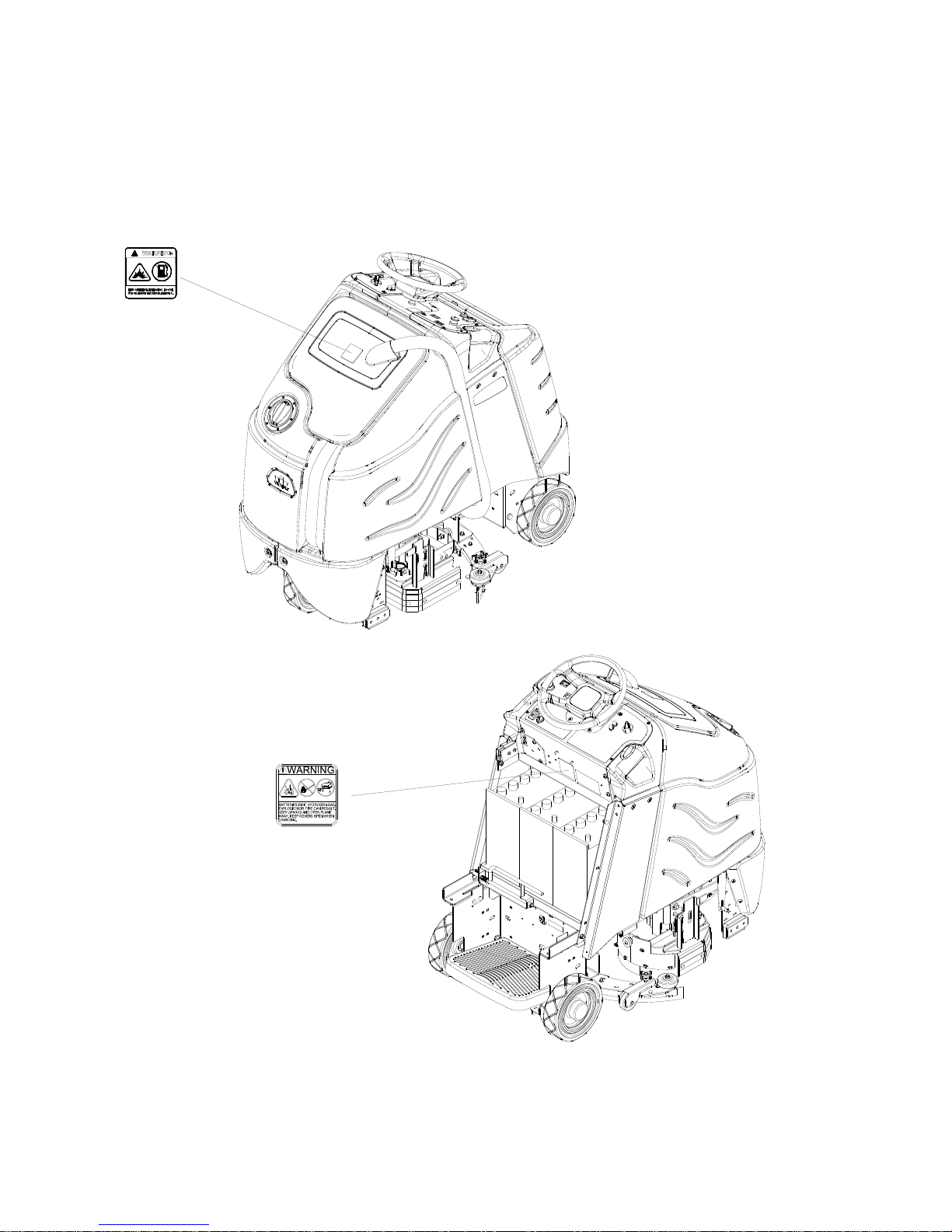

Safety Label Location........................................2-3
OPERATIONS

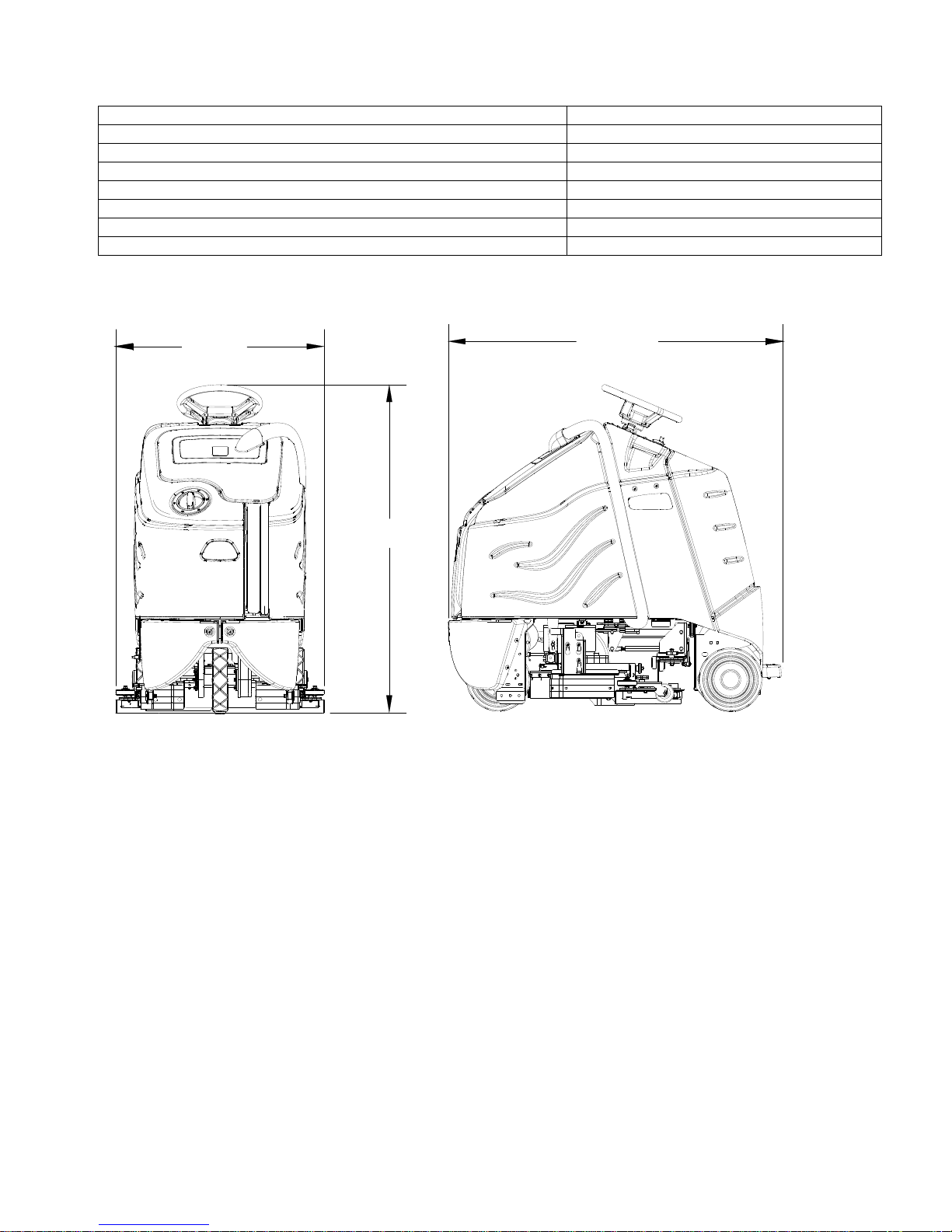

Technical Specifications....................................3-1
How The Machine Works..................................3-3
Components......................................................3-4
Drive Controls....................................................3-5
Scrub Controls...................................................3-9
Scrub Controls-Squeegee.................................3-11
Machine Operation............................................3-13
Pre-Run Machine Inspection........................3-13
Starting Machine ..........................................3-13
Emergency Stop Procedures .......................3-13
Filling Solution Tank.....................................3-14
Normal Scrubbing.........................................3-14
To Begin Scrubbing......................................3-15
Priming Pump...............................................3-15
To Stop Scrubbing........................................3-16
Double Scrub................................................3-16
Emptying And Cleaning Tanks.....................3-17
MAINTENANCE
Service Schedule ..............................................4-1
Batteries............................................................4-2
Squeegee..........................................................4-6
Scrub Brushes...................................................4-9
Scrub Deck-Disk................................................4-10
Circuit Protection...............................................4-13
Solution Strainer & Pump..................................4-14
Vacuum & Float Shut-Off ..................................4-17
Drive Motor & Brake..........................................4-19
Bag Replacement..............................................4-22
Transporting Machine........................................4-23
Machine Troubleshooting..................................4-24
GROUP PARTS LIST
Bumper..............................................................5-1
Control Panel.....................................................5-3
Control Panel Housing.......................................5-5
Decal..................................................................5-7
Frame-Lower .....................................................5-9
Frame-Upper .....................................................5-11
Pedal Platform...................................................5-13
Rear Cover ........................................................5-17
Scrub Brush/Pad Driver-Disk.............................5-19
Scrub Brush/Pad-Cylindrical..............................5-21
Scrub Deck - Disk..............................................5-23
Scrub Deck – Cylindrical ...................................5-25
Scrub Deck Mounting-Cylindrical......................5-27
Scrub Deck Lift-Disk..........................................5-29
Scrub Deck Actuator-Cylindrical........................5-31
Scrub Deck Skirts-Disk......................................5-33
Scrub Deck Aqua-Mizer™.................................5-35
Solution-Disk......................................................5-37
Solution-Cylindrical............................................5-39
Squeegee - Disk................................................5-41
Squeegee – Cylindrical......................................5-43
Squeegee Lift-Disk............................................5-45
Squeegee Lift-Cylindrical...................................5-47
Squeegee Swing ...............................................5-49
Steering .............................................................5-51
Tank...................................................................5-53
Vacuum..............................................................5-55
Wheel-Front Drive .............................................5-57
Wheel-Rear........................................................5-59
Wiring-Batteries.................................................5-60
Wiring-Components...........................................5-63
Wiring-Control Panel .........................................5-65
Wiring-Disk ........................................................5-67
Wiring-Cylindrical...............................................5-70
Wiring-Drive Motor.............................................5-73
Wiring-Main Harness.........................................5-75
Wiring-Pedal Platform........................................5-77
Hose Diagram-Disk ...........................................5-79
Hose Diagram-Cylindrical..................................5-80
Suggested Spare Parts .....................................5-81
OPTIONS
Battery Cart – Option.........................................6-1
Seat – Option.....................................................6-5
Warning Light – Option......................................6-7
Serial Numbers..................................................6-9
Warranty

HOW TO USE THIS MANUAL
86317500 CHARIOT SCRUBBER 11/15/08
1-1
This manual contains the following sections:
-HOW TO USE THIS MANUAL
-SAFETY
-OPERATIONS
-MAINTENANCE
-PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the
machine model and machine serial number are

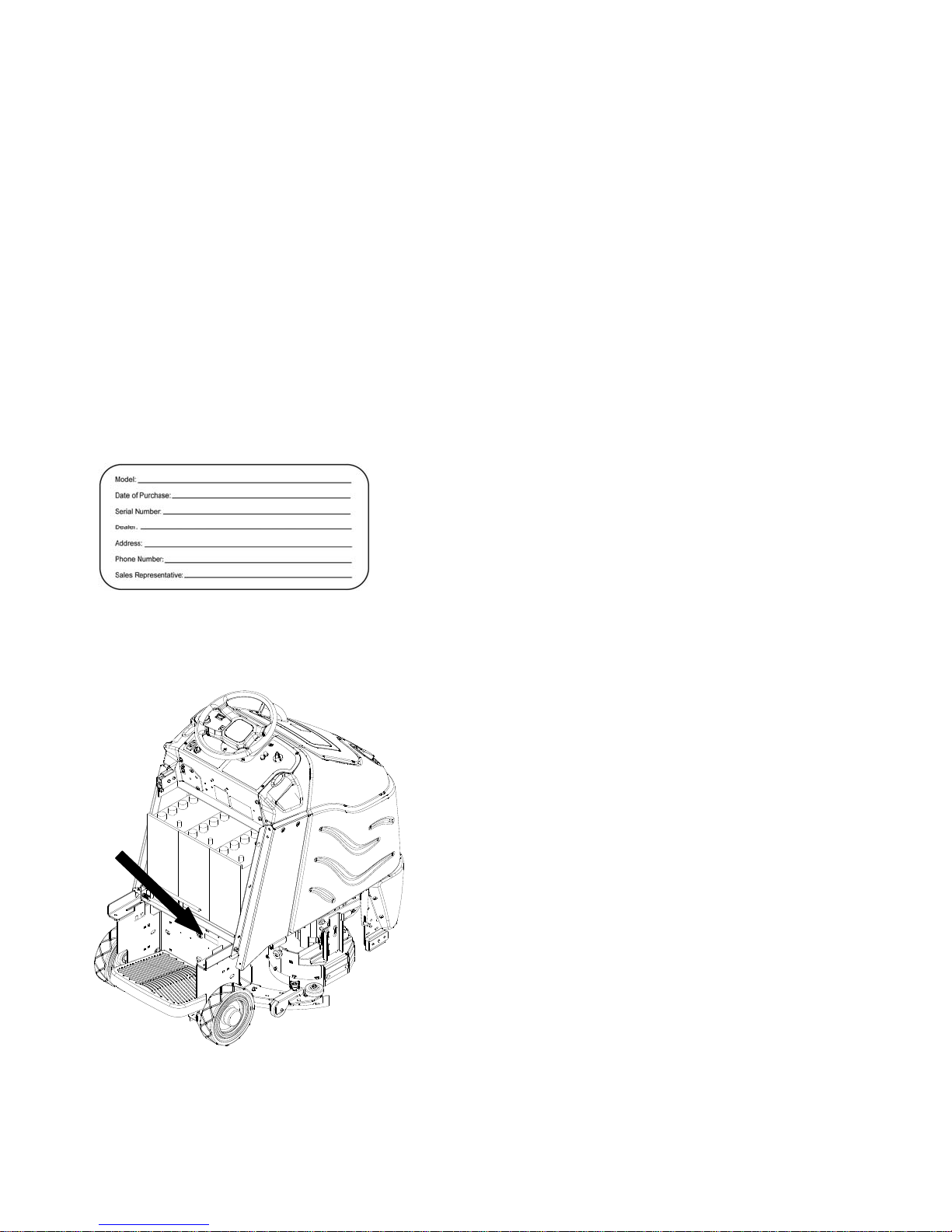

important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside of
the front cover of this manual.
The model and serial number of your machine are
located below the battery compartment of the
machine.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards are identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition. They are
listed in this general order:
-Batteries
-Scrub Brushes
-Adjusting Squeegee
-Service Schedule
-Machine Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
-REF – column refers to the reference
number on the parts illustration.
-PART NO. – column lists the part
number for the part.
-PRV NO. - Reference No.
-QTY – column lists the quantity of the
part used in that area of the machine.
-DESCRIPTION – column is a brief
description of the part.
-SERIAL NO. FROM – If this column has
an (*) and a Reference number, see the
SERIAL NUMBERS page in the back of
your manual. If column has two asterisk
(**), call manufacturer for serial number.
The serial number indicates the first
machine the part number is applicable
to. The main illustration shows the most
current design of the machine. When a
boxed illustration is shown, it displays
the older design.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The number on the lower left corner of the
front cover is the part number for this manual.

86317500 CHARIOT SCRUBBER 11/15/08
2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an battery powered appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is not suitable for picking up hazardous dust.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
Disconnect battery before cleaning or servicing.
Before the machine is discarded, the batteries must be removed and properly disposed of.
Make sure all warning and caution labels are legible and properly attached to the machine.
During operation, attention shall be paid to other persons, especially children.
Before use all covers and doors shall be put in the positions specified in the instructions.
When leaving unattended, secure against unintentional movement.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, switch off or lock the main power switch to prevent unauthorized use.
Only chemicals recommended by the manufacturer shall be used.
This appliance has been designed for use with the brushes specified by the manufacturer. The fitting of other
brushes may affect its safety.
Do not use on surfaces having a gradient of over 10% (6 degrees).
SAVE THESE INSTRUCTIONS

HAZARD INTENSITY LEVEL
86317500 CHARIOT SCRUBBER 11/15/08
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on
the machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use
Windsor approved replacement parts.
Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and open flame away. Keep
solution tank in raised position when charging. Keep sparks and flames away from the batteries. Do not
smoke around batteries.
Disconnect batteries before working on machine. Only qualified personnel should work inside machine.
Always wear eye protection and protective clothing when working on or near batteries. Avoid skin contact
with the acid contained in the batteries.
Never allow metal to lie across battery tops.

SAFETY LABEL LOCATION
86317500 CHARIOT SCRUBBER 11/15/08 2-3
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
PRV NO. 80885
86252520
BATTERY
CAUTION
PRV NO. 500955
86244300
WARNING LABEL

TECHNICAL SPECIFICATIONS
86317500 CHARIOT SCRUBBER 11/15/08
3-1
ITEM DIMENSION/CAPACITY
Nominal power 1800 W
Rated Voltage 36 Volts DC
Rated Amperage 50 amps
Batteries 3 X12 Volt 195-215 AH @ 20 hr. rate
Battery Compartment Dimensions 21 in. x 16 in. x 17 in. tall
(533mm x 406mm x 432mm)
Scrub Brush Motors - Disk Machine 2 x .3 HP (190 W)
Scrub Brush Motors - Cylindrical Machine 2 x .75 HP (560 W)
Vacuum Motor(s) .63 HP (470 W)
Maximum flow rate of vacuum motor 72 cfm (33.98 liters per second)
Maximum suction of vacuum motor 47.3 inches of water (11.7 kPa)
Propelling Motor .75 HP (560 W)
Mass (GVW) 1245 lbs (565 kg)
Weight empty without batteries 558 lbs (253 kg)
Solution Control 1.3 GPM pump, fully variable with automatic shut-off
in neutral
Solution capacity 25 gal (95 L)
Recovery capacity 25 gal (95 L)
Scrub brush diameter - Disk Machine 12 inch (305 mm)
Scrub brush diameter - Cylindrical Machine 4.1 inch (105 mm)
Scrub brush pressure 0-150lbs (0-667N)
Scrub brush speed - Disk Machine 300 rpm
Scrub brush speed - Cylindrical Machine 500 rpm-slow, 800 rpm-medium, 1300rpm-fast
Tires 10 in. (254mm) Solid Scrubber Compound
Foundation Pressure 104 psi (715 Kpa)
Maximum Speed 3.5 miles/hour (5.6 Km/hour)
Theoretical Coverage 24,200 ft²/hr @ 2.5 mph with 2 in. overlap
Frame Construction Powder coated steel
Brake Electrical parking brake, sets automatically whenever
operator steps off platform or engages emergency
stop.
Minimum aisle u-turn width 56 in. (1425 mm)
Maximum rated climb and descent angle 7.5 degrees

TECHNICAL SPECIFICATIONS
86317500 CHARIOT SCRUBBER 11/15/08 3-2
WIDTH LENGTH
HEIGHT
ITEM MEASURE
Height 50.6 inches (1285 mm)
Length 52.5 inches (1330 mm)
Width without squeegee 26.5 inches (670 mm)
Width of squeegee - Disk Machine 32.7 inches (830 mm)
Width of squeegee - Cylindrical Machine 37 inches (970 mm)
Width of scrub path - Disk Machine 24 inches (610 mm)
Width of scrub path - Cylindrical Machine 26 inches (650 mm)
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance.

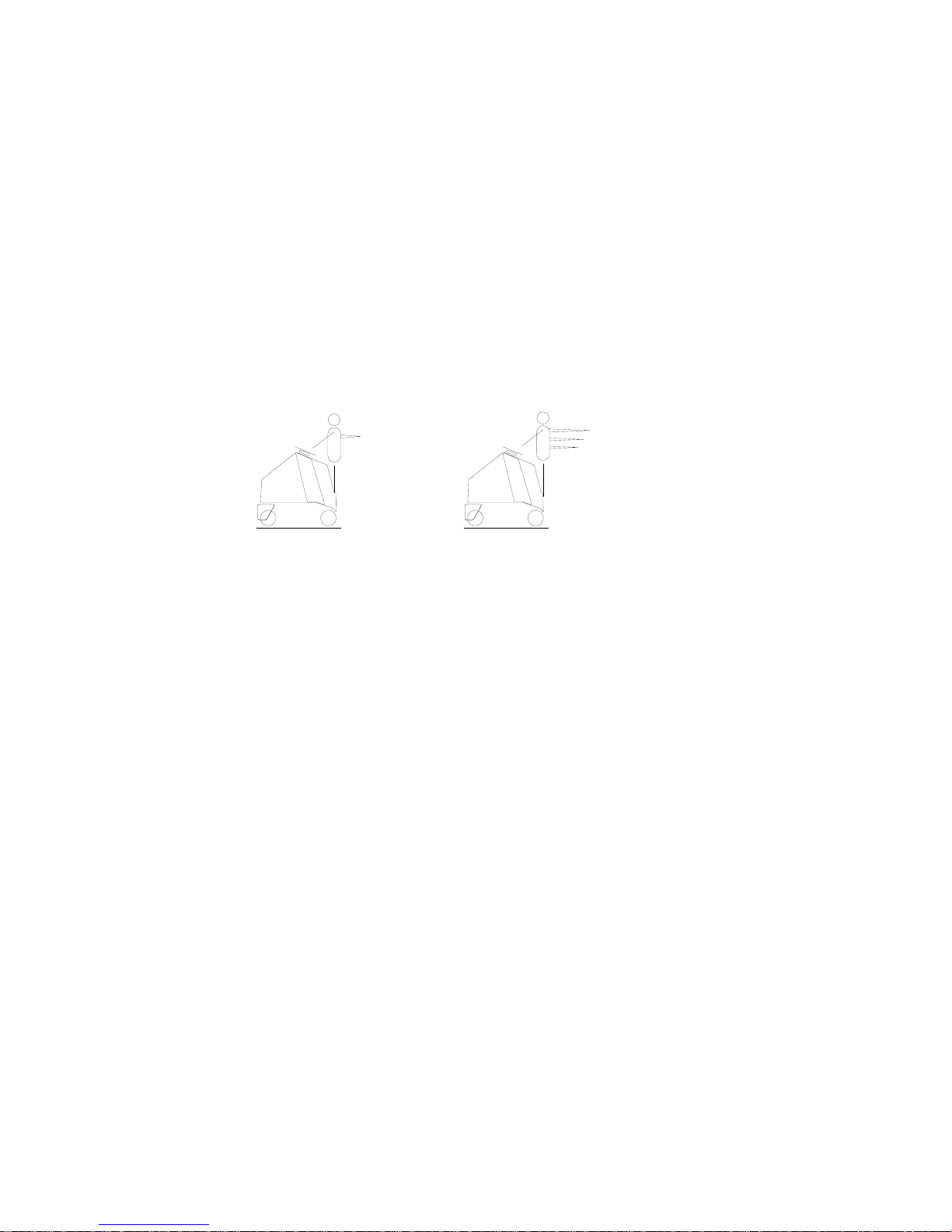

SPECIAL NOTES:
The sound pressure level at the operator’s ear was
measured to be 68 dBA (Disk), 76dBA (cylindrical).
This was a nearfield, broad-band measurement taken
in a typical industrial environment on a tile floor. This
appliance contains no possible source of impact noise.
The instantaneous sound pressure level is below
63 Pa.
The weighted root mean square acceleration at the
operator’s arms was measured to be below 2.5m/s2 .
This was a tri-axial, third-octave-band measurement
made during normal operation on a composite tile floor.
The measurement and related calculations were made
in accordance with ANSI S3.34-1986.

HOW THIS MACHINE WORKS
86317500 CHARIOT SCRUBBER 11/15/08
3-3
The Chariot® is a battery powered, self-propelled,
hard floor scrubber intended for commercial use.
The appliance applies a cleaning solution onto a
hard floor, scrubs the floor with brushes, and then
vacuums the soiled water back into the recovery
tank.
The machine's primary systems are the solution
system, scrub system, recovery system, and
operator control system.
The function of the solution system is to store
cleaning solution and deliver it to the scrub system.
The solution system consists of the solution tank,
strainer, pump, valve. The solution tank stores
cleaning solution (water and detergent) until it is
delivered to the scrub system. The strainer protects
the pump from debris. The valve automatically
prevents solution flow unless the scrub brushes are
turned on and the machine is being propelled.
The function of the scrub system is to scrub the
floor. The disk scrub system consists of two rotary
type disk scrub brushes, motors, scrub deck skirt
and lift actuator. The brushes scrub the floor as the
motors drive the brushes. The brush drive hubs
allow the scrub brushes to follow irregularities and
changes in the floor without loosing contact with the
floor. The scrub deck skirts control the cleaning
solution on the floor so that the squeegee can pick it
up.
The scrub plus system consists of two cylindrical
type brushes, motors, scrub deck side squeegees,
hopper, lift actuator. The cylindrical scrub head is
designed to eliminate debris that may be caught in
the squeegee while scrubbing. Water is applied to
the first scrubbing brush turning in a clockwise
rotation when viewed from the right side of machine.
The first brush scrubs dirt and debris between the
brushes. The second scrubbing brush, turning in a
counter clockwise rotation, picks up debris and
throws it into a removable hopper. Water is allowed
to drain out the hopper into the squeegee path
where it is recovered from the floor.
The scrub deck side squeegees control the cleaning
solution on the floor so that the squeegee can pick it
up.
The function of the recovery system is to vacuum
the soiled water back into the recovery tank. The
recovery system consists of the squeegee, vacuum
motor, float ball filter, recovery bag. The squeegee
wipes the dirty solution off the floor as the machine
moves forward. The vacuum motor provides suction
to draw the dirty solution off the floor and into the
recovery bag. The float ball filter protects the
vacuum fan from debris and foam. The recovery
bag stores the dirty solution.
The function of the operator control system is to
control the direction and speed of the machine. The
directional control system consists of the direction
control drive reset switch, throttle pedal, emergency
stop/brake switch, steering wheel, propel controller,
and drive wheel. The directional control drive reset
switch signals forward or reverse direction and
makes sure the operator is on platform before
machine will propel. The controller interprets signals
from the throttle pedal to command the drive wheel
to propel or slow the machine. The steering wheel
points the drive wheel in the direction desired by the
operator. The parking brake automatically engages
when the operator steps off the platform. The
emergency stop/brake can be used to hold the
machine on slopes.

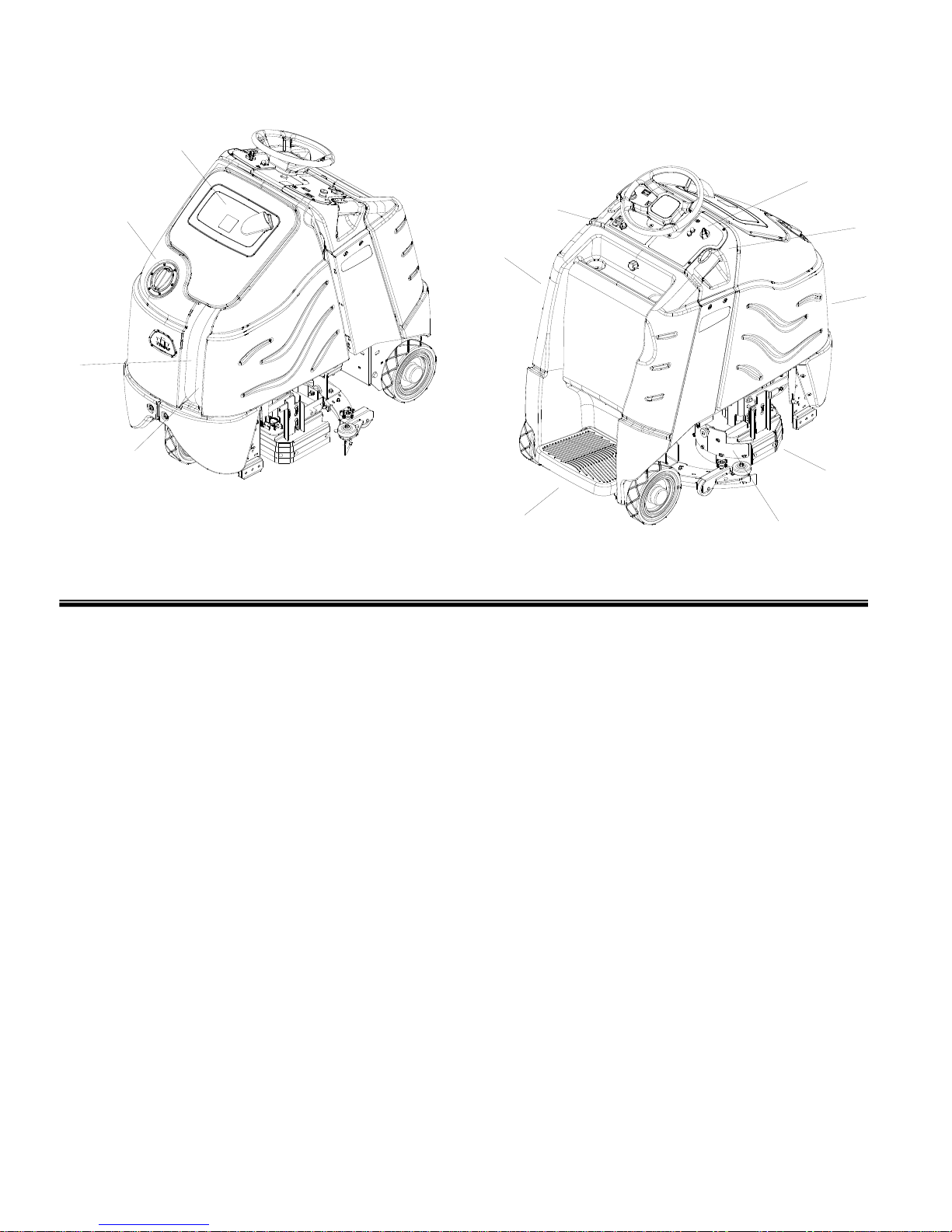

COMPONENTS
86317500 CHARIOT SCUBBER 11/15/08 3-4
1. Control Panel-Drive
2. Control Panel-Scrub
3. Control Housing
4. Pedal Platform
5. Rear Cover
6. Tank
7. Recovery Dome
8. Recovery Drain Hose
9. Scrub Deck Aqua-Mizer™
10. Scrub Deck Skirts/Side Squeegees
11. Solution Cover
12. Solution Drain Hose
1
2
3
4
5
6
7
8
9
10
12
11

DRIVE CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08
3-5
1
2
3
4
5
6
8
9
7

DRIVE CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08 3-6
1. Key Switch
2. Emergency Stop/Brake Switch
3. Directional Control / Drive Reset Switch
4. Throttle Pedal
5. Horn Button
6. Steering Wheel
7. Speed Control
8. Battery Discharge Indicator
9. Hour Meter
1. KEY SWITCH
Controls the power for machine functions.
To turn the machine power on, rotate key clockwise.
To turn the machine off, rotate key counterclockwise.
When the key is turned on the battery symbol will flash while the system runs self-diagnostics and returns
scrub deck and squeegee to their raised positions, if necessary. The controller will not respond to other
commands until this routine is complete.
2. EMERGENCY STOP/BRAKE SWITCH
This safety feature is designed to cut all power to the machine at any time and apply parking brake.
To shut the machine power off, push the Emergency Stop Switch, this will also engage the parking brake and
cause the machine to stop immediately.
To reset the machine, rotate the switch clockwise.
3. DIRECTIONAL CONTROL / DRIVE RESET SWITCH
This safety feature is designed to ensure safe engagement of propel drive. Each time the machine power is
turned on, or each time an operator steps on to the platform, the Drive Reset Switch must be pushed before
machine will propel.
Controls the direction of travel of the vehicle. The lit arrow on the switch indicates direction of travel.
To travel forward, press the top of the switch.
To travel in reverse, press the bottom of the switch.
4. THROTTLE PEDAL
Controls the speed of the vehicle within the speed control setting selected. Pressing the pedal causes the
machine to travel in the direction selected by the Directional Control Switch.
To increase speed, increase pressure on the pedal.
To decrease speed, decrease pressure on the pedal.

DRIVE CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08
3-7
SLOW FAST
5. HORN BUTTON
The horn is activated by pressing the horn button.
6. STEERING WHEEL
The steering wheel turns the front wheel causing the machine to change direction.
7. SPEED CONTROL
Controls the maximum speed of the machine. There are two transport settings, slow and fast.
To change speed, rotate the dial to either slow or fast position. The slow position is to the left
(counterclockwise), fast to the right (top position).
The throttle pedal will always regulate the speed between 0 and maximum.

DRIVE CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08 3-8
8. BATTERY CHARGE LEVEL INDICATOR
Indicates the charge level of the batteries.
The meter display is divided into 10 vertical bars. Bars illuminated on the far right indicate full charge. Bars
flashing near the left side indicate the batteries should be recharged. Further operation of the machine
could damage the machine or the batteries.
When the machine is left overnight with less than a full charge, the display may initially indicate a full
charge. It will also indicate a full charge if the batteries are disconnected, then reconnected. After a few
minutes of operation the meter will give the correct charge level.
9. HOUR METER
Records the number of hours the machine has been in scrubbing operation. This information is useful in
determining when to service the machine.

SCRUB CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08
3-9
A1
A2
A3
B
C
1
1. FUNCTION MODE SWITCH
The first two positions are for transport only. See drive controls section.
A1 – Daytime cleaning/light cleaning
This mode is used for light cleaning. In this mode the machine will propel at a maximum of medium
speed. The scrub deck will automatically lower to a lower down pressure setting. The water will flow at a
low rate. Water will automatically shut off in neutral and restart when pressure resumes. The squeegee
will automatically lower and vacuum will continue on at a low flow. (Squeegee will continue to lower and
the vacuum will continue to run in neutral. The squeegee will raise in reverse.)
A2 – Medium scrub level cleaning
This mode is used for medium level cleaning. In this mode the machine will propel at a maximum of
medium speed. The scrub deck will lower to a medium down pressure. The water will flow at a medium
rate. The vacuum will flow at a medium rate.

SCRUB CONTROLS
86317500 CHARIOT SCRUBBER 11/15/08 3-10
A3 – Heavy scrub level cleaning
This mode is used for heavy level cleaning. In this mode the machine will propel at a maximum of slow
speed. The scrub deck will lower to a heavy down pressure. The water will flow at a high rate. The
vacuum will flow at a high rate.
B – Vacuum only mode
This mode is used for picking up solution only. The brushes and water will both be up and off. In this
mode the machine will propel at a maximum of medium speed. The squeegee will automatically lower
and the vacuum will come on. The vacuum will flow at a high rate. The squeegee will raise during
reverse propelling. The squeegee and vacuum will remain down and on in neutral propel.
C – Double Scrub cleaning
This mode is used for putting down solution and scrubbing without picking it back up. In this mode the
machine will propel at a maximum speed of slow. The scrub deck will automatically lower to a heavy
scrub level. The solution will flow at a high rate. The brushes and water will shut off and raise when
the machine is in neutral. They will resume when propelling is resumed.

SCRUB CONTROLS-SQUEEGEE
86317500 CHARIOT SCRUBBER 11/15/08
3-11
1
2
1. Squeegee Deflection Adjustment Knobs
2. Squeegee Pitch Adjustment Rod

SCRUB CONTROLS-SQUEEGEE
86317500 CHARIOT SCRUBBER 11/15/08 3-12
1. SQUEEGEE DEFLECTION ADJUSTMENT
KNOBS (DISK SCRUBBER)
Adjusts the deflection along the entire length of
the squeegee.
To increase squeegee blade deflection, turn the
two knobs at the ends of the squeegee
counterclockwise.
To decrease squeegee deflection, turn the two
knobs at the ends of the squeegee clockwise.
2. SQUEEGEE PITCH ADJUSTMENT ROD
(DISK SCRUBBER)
Adjusts the deflection at the ends of the
squeegee.
To increase squeegee blade deflection at the
ends, turn rod counterclockwise.
To decrease squeegee blade deflection at the
ends, turn rod clockwise.
3. SQUEEGEE DEFLECTION ADJUSTMENT
(CYLINDRICAL SCRUBBER)
Adjusts the deflection along the entire length of
the squeegee.
To increase squeegee blade deflection, loosen
the bolt at the wheel axle and raise in the slots.
To decrease squeegee deflection, lower the
wheel axle in the slots.
4. SQUEEGEE PTICH ADJUSTMENT
(CYLINDRICAL SCRUB)
No adjustments are necessary for this squeegee
style.

MACHINE OPERATION
86317500 CHARIOT SCRUBBER 11/15/08
3
-
1
3
PRE-RUN MACHINE INSPECTION
Do a pre-run inspection to find possible problems
that could cause poor performance or lost time from
breakdown. Follow the same procedure each time to
avoid missing steps.
NOTE: See maintenance section for pre-run
machine inspection checklist items.
STARTING MACHINE
NOTE: Perform pre-run machine check before
operating machine.
FOR SAFETY: Before starting machine, make
sure that all safety devices are in place and
operating properly.
1. The operator should be on the pedal platform.
The throttle pedal must be in the neutral
position.
2. Turn the machine power on by turning key
switch clockwise to the “ON” position.
3. Check the position of the Directional Control
Switch to make sure the machine will travel in
the direction intended.
4. Press the Drive Reset Directional Control Switch
to reset and set the intended direction for travel.
5. Press lightly on the throttle pedal with right foot.
EMERGENCY STOP PROCEDURES
1. Push in emergency stop button. This will also
engage the parking brake and cause the
machine to stop immediately.
