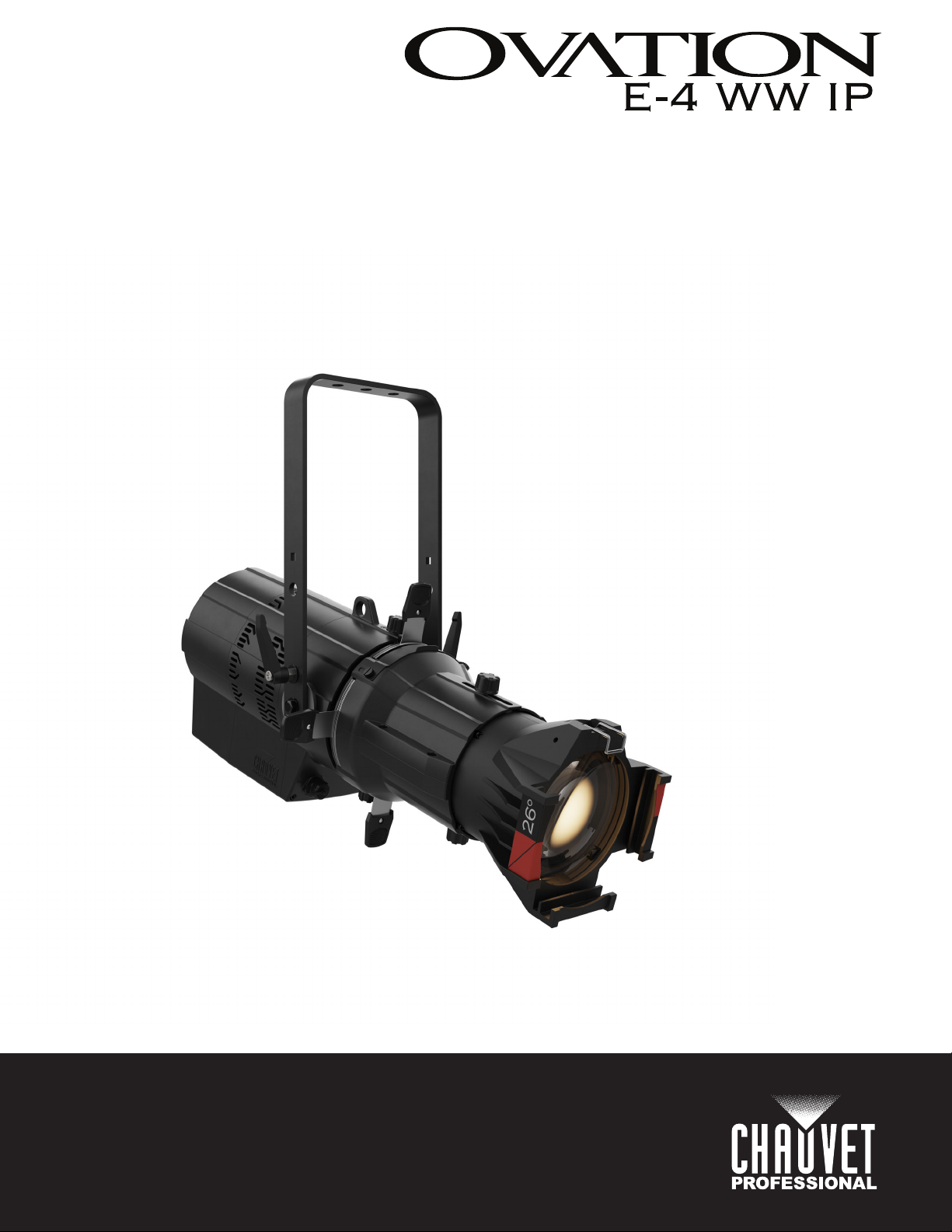

Chauvet Professional OVATION E-4WW IP User manual

Model ID: OVATIONE4WWIP
User Manual
*Lens tube sold separately

Ovation E-4WW IP User Manual Rev. 1
Edition Notes
The Ovation E-4WW IP User Manual includes a description, safety precautions, installation, programming,
operation and maintenance instructions for the Ovation E-4WW IP as of the release date of this edition.
Trademarks
Chauvet, Chauvet Professional, the Chauvet logo and Ovation are registered trademarks or trademarks of
Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
Other company and product names and logos referred to herein may be trademarks of their respective
companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2023 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information purposes
only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this
manual or its content for any other purpose without written consent from Chauvet.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4
paper (210 x 297 mm), configure the printer to scale the content accordingly.
Intended Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide
that shipped with the product, as well as this manual, before installing, operating, or maintaining this
product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetprofessional.com.
Document Revision
This Ovation E-4WW IP User Manual is the 1st edition of this document. Go to
www.chauvetprofessional.com for the latest version.

Ovation E-4WW IP User Manual Rev. 1
Table of Contents
i
TABLE OF CONTENTS
1. Before You Begin ....................................................................... 1
What Is Included ........................................................................................... 1
Claims ........................................................................................................... 1
Manual Conventions ..................................................................................... 1
Symbols ........................................................................................................ 1
FCC Statement of Compliance ..................................................................... 2
Safety Notes.................................................................................................. 2
Expected LED Lifespan................................................................................. 3
2. Introduction ................................................................................ 4
Description .................................................................................................... 4
Features........................................................................................................ 4
Lens Tube ..................................................................................................... 4
Product Overview.......................................................................................... 5
Product Dimensions ...................................................................................... 6
3. Setup ........................................................................................... 7
AC Power...................................................................................................... 7
AC Plug .............................................................................................................. 7
Fuse Replacement ............................................................................................. 7
Power Linking..................................................................................................... 7
DMX Linking.................................................................................................. 7
DMX Personalities.............................................................................................. 8
Remote Device Management (RDM) ................................................................. 8
Master/Slave Connectivity............................................................................. 8
USB Software Update ................................................................................... 8
Soft Focus Filter............................................................................................ 9
Manual Beam Focus Control......................................................................... 9
Rotating the Barrel Assembly............................................................................. 9
Accessory Slot ................................................................................................... 10
Mounting ....................................................................................................... 11
Orientation.......................................................................................................... 11
Rigging ............................................................................................................... 11
Procedure........................................................................................................... 11
Adjustable Yoke ................................................................................................. 11
4. Operation .................................................................................... 12
Control Panel Description ............................................................................. 12
Control Options ............................................................................................. 12
Programming................................................................................................. 12
Control Panel Lock........................................................................................ 12
Passcode ...................................................................................................... 12
Menu Map ..................................................................................................... 13
Configuration (Standalone) ........................................................................... 14
Static Mode ........................................................................................................ 14
Focus Mode ....................................................................................................... 14
Auto Programs ................................................................................................... 14
Gobo Rotator...................................................................................................... 14

Table of Contents
Ovation E-4WW IP User Manual Rev. 1
ii
Master/Slave ...................................................................................................... 15
Dimmer Curve .................................................................................................... 15
Dimmer Profiles.................................................................................................. 15
LED Frequency .................................................................................................. 15
Fan Mode ........................................................................................................... 15
Back Light .......................................................................................................... 15
System Information ............................................................................................ 15
Factory Reset..................................................................................................... 15
Configuration (DMX) ..................................................................................... 16
DMX Personalities.............................................................................................. 16
DMX Control....................................................................................................... 16
DMX Values .................................................................................................. 16
5. Maintenance................................................................................ 17
Product Maintenance .................................................................................... 17
6. Technical Specifications ........................................................... 18
Contact Us ...................................................................................... 19
Warranty & Returns....................................................................................... 19

1
Ovation E-4WW IP User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Claims
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate a claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Manual Conventions
Symbols
• Ovation E-4WW IP
• Seetronic Powerkon power cable
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
<SET> A button on the product’s control panel
Settings A product function or a menu option
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Any reference to data or power connections in this manual assumes the use of
Seetronic IP rated cables.
The term “DMX” used throughout this manual refers to the USITT DMX512-A
digital data transmission protocol.

2
Before You Begin
Ovation E-4WW IP User Manual Rev. 1
FCC Statement of Compliance
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Safety Notes
Read all the following safety notes before working with this product. These notes contain important
information about the installation, usage, and maintenance of this product.
• The luminaire is intended for professional use only.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer
than 10 ft (3.0 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special
cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service
agent or a similar qualified person.
• CAUTION:
• This product’s housing may be hot when operating. Mount this product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm
humid ballroom) condensation may form on the internal electronics of the product. To avoid causing
a failure, allow the product to fully acclimate to the surrounding environment before connecting it to
power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding
notification of strobe use.
• ALWAYS:
• Disconnect from power before cleaning the product or replacing the fuse.
• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power
and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in
use.
• Replace the fuse with the same type and rating.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.
•DONOT:
• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained, certified technicians. Do not open the housing
or attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.

3
Ovation E-4WW IP User Manual Rev. 1
Before You Begin
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
• Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation
is fine.
• Permanently install outdoors in locations with extreme environmental conditions. This includes, but
is not limited to:
• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
• Locations where normal temperatures exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
• Other areas where the product will be subject to extreme radiation or caustic substances.
• ONLY use the hanging/mounting bracket to carry this product.
• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher
temperatures.
• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower
temperatures.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
• In the event of a serious operating problem, stop using immediately.
Expected LED Lifespan
Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than
single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is
40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit
the overall intensity.
If a Chauvet product requires service, contact Chauvet Technical Support.

4
Introduction
Ovation E-4WW IP User Manual Rev. 1
2. Introduction
Description
The Ovation E-4WW IP is a high-powered warm white ellipsoidal light that projects a flat, even field.
Standard framing shutters, a gobo/effect slot, and interchangeable lens barrels provide versatility to fit any
application. The Ovation E-4WW IP is IP65 rated and features IP rated power and DMX connections.
Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional
theatre ellipsoidal lights.
Features
• Operating modes:
• 2-channel: dimmer control, gobo rotate
• 3-channel: dimmer and fine dimmer control, gobo rotate
• 4-channel: dimmer, fine dimmer, and strobe control, gobo rotate
• 7-channel: dimmer, fine dimmer, strobe control, auto programs, auto speed, control, gobo
rotate
• Warm white ERS-style fixture with output exceeding a tungsten 750 W source
• Fully IP65 rated for seasonal use indoors or out
• Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to
the fixture
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Lens Tube
The following lens tubes are available for purchase:
• 5° w/ Gel frame(14 in/356 mm accessories)
• 10° w/ Gel frame (12 in/304 mm accessories)
• 14° w/ Gel frame (7.5 in/191 mm accessories)
• 19° w/ Gel frame (6.25 in/159 mm accessories)
• 26° w/ Gel frame (6.25 in/159 mm accessories)
• 36° w/ Gel frame (6.25 in/159 mm accessories)
• 50° w/ Gel frame (6.25 in/159 mm accessories)
• 15°–30° w/ Gel frame (7.5 in/191 mm accessories)
• 25°–50° w/ Gel frame (7.5 in/191 mm accessories)

5
Ovation E-4WW IP User Manual Rev. 1
Introduction

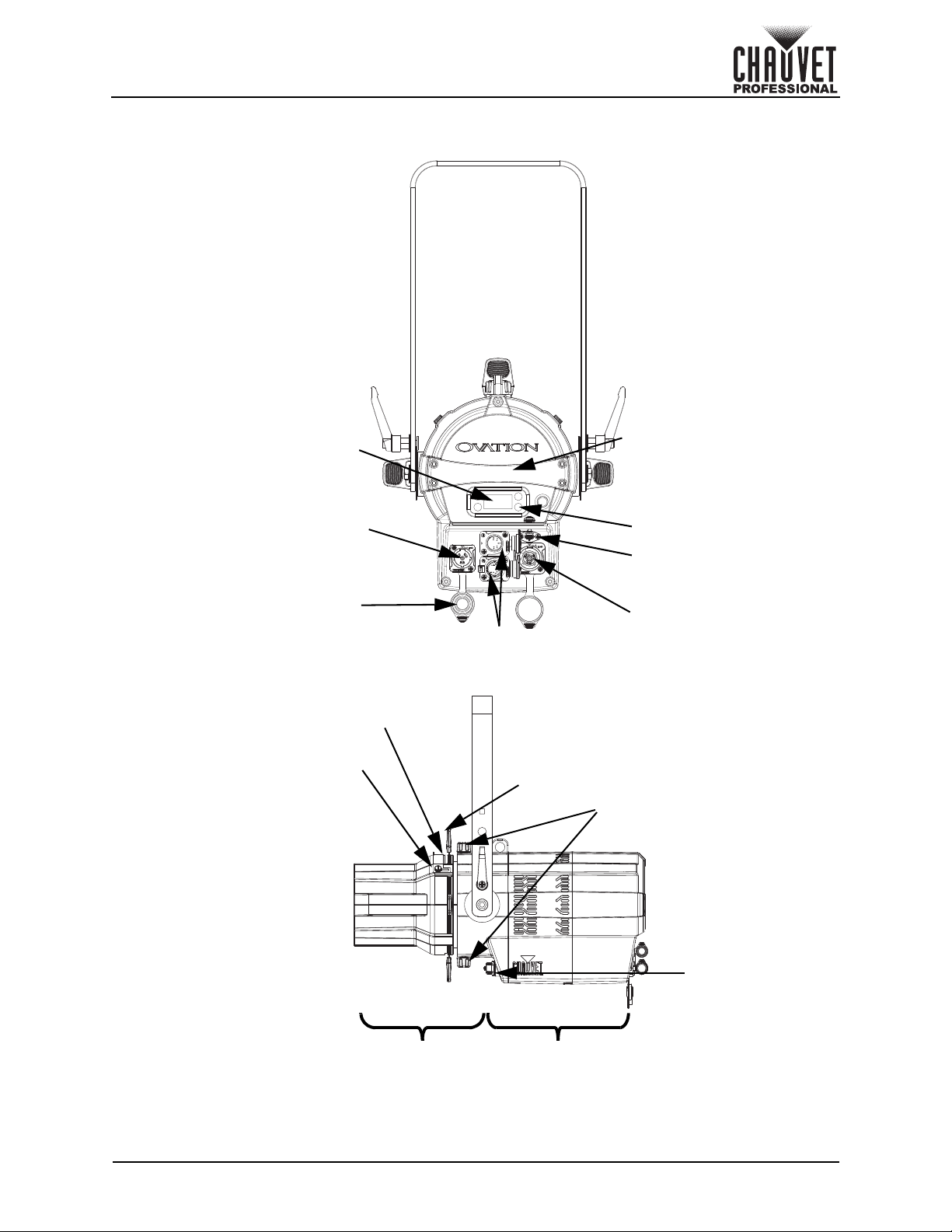

Product Overview
Barrel rotation knobs
Pattern holder slot
(A-size holder for 3-in patterns.
B-size holder for 2.5-in and 2.75-
in patterns, sold separately)
Framing shutter (x4)
Accessory slot
Light engine
Barrel
assembly
Ovation GR-1 IP
power/signal
out
Display
Seetronic Powerkon in
Handle
Menu buttons
Seetronic Powerkon out
DMX
in/out
IP-rated plug cover
USB port

6
Introduction
Ovation E-4WW IP User Manual Rev. 1
Product Dimensions
14.96 in
487mm
11.9 in
302 mm
26 in
660 mm
11.9 in
302 mm

7
Ovation E-4WW IP User Manual Rev. 1
Setup
3. Setup
AC Power
The Ovation E-4WW IP has an auto-ranging power supply and it can work with an input voltage range of
100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
AC Plug
The Ovation E-4WW IP comes with a power input cable terminated with a Seetronic Powerkon A
connector on one end and an Edison plug on the other end (U.S. market). If the power cable which came
with the product has no plug, or if the plug needs to be changed, use the table below to wire a plug.
Fuse Replacement
1. Disconnect this product from the power outlet.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with another fuse of the same type and rating (T 3.15 A, 250 V).
4. Screw the fuse holder cap back in place and reconnect power.
Power Linking
It is possible to power link Ovation E-4WW IP products. See the table below for the current draw at each
voltage and frequency:
Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.
DMX Linking
The Ovation E-4WW IP can be linked to a DMX controller using a 5-pin DMX connection. If using other
DMX-compatible products with this product, it’s possible to control each individually with a single DMX
controller.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Ensure the
product has an appropriate electrical ground to avoid the risk of electrocution or fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz 230 V, 50 Hz 240 V, 60 Hz
Current Draw 4.34 A 3.57 A 2.0 A 1.81 A 1.73 A
• To preserve the IP65 rating and the warranty of this product Seetronic Powerkon cables
must be used.
• Insert the attached IP65 rated plugs into the corresponding power/data connections
when not in use.

8
Setup
Ovation E-4WW IP User Manual Rev. 1
DMX Personalities
The Ovation E-4WW IP uses a 5-pin DMX data connection for the 2 Ch, 3 CH, 4 Ch, and 7 Ch, DMX
personalities.
• Refer to the Introduction for a brief description of each DMX personality.
• Refer to the Operation chapter to learn how to configure the Ovation E-4WW IP to work in these
personalities.
•TheDMX Personalities section provides detailed information regarding the DMX personalities.
Remote Device Management (RDM)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate
bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the
manufacturer as not all DMX controllers have this capability. The Ovation E-4WW IP supports RDM
protocol that allows feedback to make changes to menu map options.
Master/Slave Connectivity
The Master/Slave mode allows an Ovation E-4WW IP (the master) to control one or more Ovation E-4WW
IP products (the slaves) without a DMX controller. Once Ovation E-4WW IP becomes the master when
running an auto or custom program, or in Static mode.
Each slave’s control panel must be configured to operate in Slave mode. During Master/Slave operation,
the slaves will operate in unison with the master.
USB Software Update
The Ovation E-4WW IP allows for software update through USB using the built-in USB port. To update the
software using a USB flash drive, do the following:
1. Power on the product and plug the flash drive into the USB port.
2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press
<ENTER>. If a different message appears on the display, search for the updated software in the
menu (Updated Firmware) and select from Only This Fixture, Multiple Fixture, or Other
Fixture Type. A list of the updated software files will be displayed.
3. Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press
<ENTER>.
4. If the selected file is correct, the update will be completed. Restart the product.
If the selected file is incorrect, the update will fail, and the display will go back to the main interface.
Repeat steps 1–3 using the correct file.
For information about DMX standards, Master/Slave connectivity, or the DMX cables
needed to link this product to a DMX controller, download the DMX Primer from the
Chauvet website: www.chauvetprofessional.com.
DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX
controller signals may interfere with the signals from the master.
•TheOperation section of this manual provides detailed instructions on how to
configure the master and slaves.
•For more information about DMX standards or the DMX cables needed to link this product
to a DMX controller, download the DMX primer from the Chauvet website:
www.chauvetprofessional.com.
• To preserve the IP65 rating and the warranty of this product, IP65 data cables must be used.
• Insert the attached IP65 rated plugs into the corresponding power/data connections
when not in use.
The “Other Fixture Type” option can only be selected for connected products compatible
with the Upload 03 (the first 2 digits of the item code must be 03).
The product's USB port supports up to 32GB capacity and only works with FAT32 file
format.

9
Ovation E-4WW IP User Manual Rev. 1
Setup
Soft Focus Filter
The Ovation E-4WW IP comes with a soft focus filter. To keep the soft focus filter in good condition:
• Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and
eventually warp.
• When placing the filter in the holder, follow the orientation direction printed on the filter.
• When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The
deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected on to
the filter, causing it to warp and potentially adhere to the shutter blades.
Manual Beam Focus Control
The Ovation E-4WW IP has a manual focus, which is adjusted as follows:
1. Locate the focus knobs at the bottom of the product.
2. Loosen the knobs by turning them counterclockwise.
3. Slide the lens tube forward or backward until the desired focus or beam edge is achieved.
4. Tighten the knobs by turning them clockwise, which locks the lenses in position.
Rotating the Barrel Assembly
The Ovation E-4WW IP allows manual rotation of the barrel assembly, as follows:
1. Locate the barrel rotation knobs at the top and bottom of the light engine.
2. Loosen the knobs by turning them counter-clockwise.
• Note: Do not remove the knobs.
3. Rotate the barrel to the desired position, up to 25° in either direction from the centered position.
4. Tighten the knobs by turning them clockwise, which lock the barrel’s position.
If there is a protective film on the soft-focus filter, it must be removed before use. The filter
is in a holder in the metal gobo slot.
To avoid changing menu settings while focusing the Ovation E-4WW IP, press and hold
the <FOCUS MODE> button for 3 seconds. This will put the product in Focus Mode, by
increasing the intensity to 100%. To exit out of Focus Mode, press <MENU>.
Make sure the barrel assembly is oriented with the pattern holder and accessory slots at
the top of the product.

10
Setup
Ovation E-4WW IP User Manual Rev. 1
Accessory Slot
The Ovation E-4WW IP has an accessory slot, which holds a drop-in iris, a motorized pattern device, or
various other optional accessories (sold separately).
1. Loosen the thumbscrews on the slot cover.
•Note: Do not remove the thumbscrews.
2. Slide the cover forward.
3. Insert an accessory.
•Note: Make sure to insert the accessory correctly. For example, make sure the iris handle
extends upward from the slot.
4. Slide the cover back. Make sure any handles or adjustment tools that stick out the top are able to
function correctly.
5. Tighten the thumbscrews to secure the cover.
• When not using the accessory slot, replace and secure the slot cover to prevent light
leakage during operation.
• When obtaining any optional accessories, be sure the items are compatible with the
Ovation E-4WW IP.
Iris handle
Thumb screws
Accessory
slot cover
Sample
drop-in iris

11
Ovation E-4WW IP User Manual Rev. 1
Setup

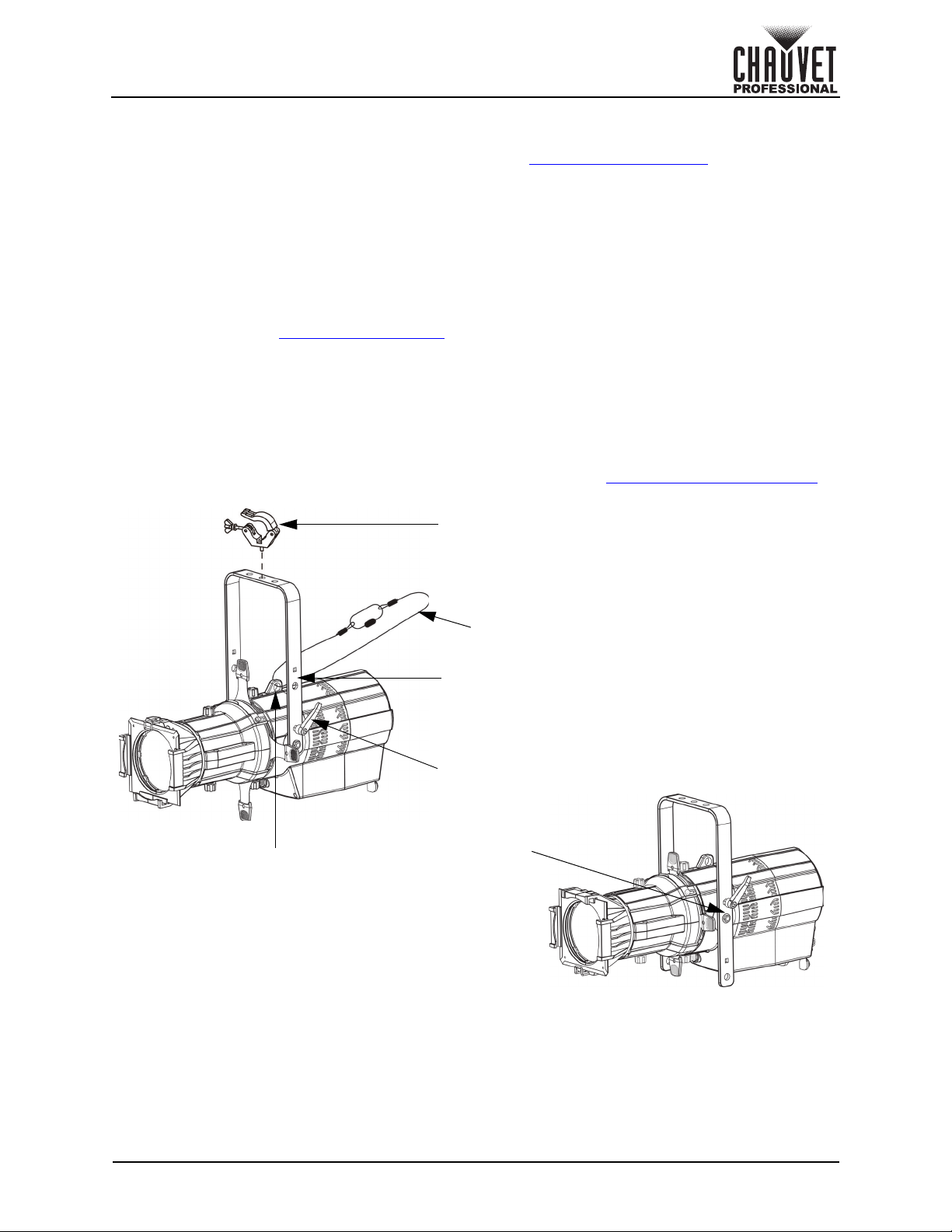

Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes.
For our Chauvet Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position, making sure there is adequate room for ventilation,
configuration, and maintenance.
Rigging
Chauvet recommends using the following general guidelines when mounting this product.
• Before deciding on a location for the product, make sure there is easy access to the product for
maintenance and programming purposes.
• Make sure that the structure onto which the product is being mounted can support the product’s
weight. See the Technical Specifications for weight information.
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
Procedure
The Ovation E-4WW IP comes with a hanging/mounting bracket to which a mounting clamps can be
attached. The bracket has 13-mm holes, which are appropriate for this purpose. Make sure the clamp is
capable of supporting the weight of this product. Use at least one mounting point per product where
necessary. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products.
Mounting Diagram
Adjustable Yoke
The Ovation E-4WW IP comes with an adjustable yoke for mounting in low-clearance areas. To modify the
height of the yoke, do the following:
1. Loosen the yoke adjustment knob.
2. On each side of the product remove the bolt attaching the plate to the yoke.
3. Adjust the position of the yoke to one of the two mounting points.
4. Put the bolts back in place, and tighten them and the yoke adjustment knobs.
Safety cable
Mounting clamp
Mounting bracket
Bracket adjustment knob
*Secure the safety cable using the
passageway on the top of the product
Alternate yoke
attachment

12
Operation
Ovation E-4WW IP User Manual Rev. 1
4. Operation
Control Panel Description
Control Options
Set the Ovation E-4WW IP starting address in the 001-512 DMX range. This enables control of up to 85
products in the 7-channel 7Ch personality.
Programming
Refer to the Menu Map to understand the menu options. The menu map shows the main level and a
variable number of programming levels for each option.
• To go to the desired main level, press <MENU> repeatedly until the option shows on the display.
Press <ENTER> to select. This will take you to the first programming level for that option.
• To select an option or value within the current programming level, press <UP> or <DOWN> until
the option shows on the display. Press <ENTER> to select. In this case, if there is another
programming level, you will see that first option, or you will see the selected value.
• Press <MENU> repeatedly to exit to the previous main level.
Control Panel Lock
This setting enables you to activate or disable the control panel lock, which keeps unauthorized users from
changing the product’s settings.
1. Go to the Key Lock main level.
2. Select On or Off.
Passcode
After being prompted to enter the passcode:
Press <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>.
Button Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the selected value into the function
<UP> Navigates upwards through the menu list or increases the value when in a function
<DOWN> Navigates downwards through the menu list or decreases the value when in a function
When the control panel lock is activated, in order to access the products main
programming level, the product will prompt for the passcode. Enter the
passcode as described below.

13
Ovation E-4WW IP User Manual Rev. 1
Operation
Menu Map
Refer to the Ovation E-4WW IP product page on www.chauvetprofessional.com for the latest menu map.
Main Level Programming Levels Description
DMX Address <001–512> Selects DMX address (highest channel restricted
to personality chosen).
DMX Channel
2 Ch 2-channel: dimmer, gobo rotate
3 Ch 3-channel: 16-bit dimmer, gobo rotate
4 Ch 4-channel: 16-bit dimmer, strobe, gobo rotate
7 Ch 7-channel: 16-bit dimmer, strobe, auto programs,
auto speed, cover, gobo rotate
Static Dimmer <0–255> Sets the intensity of the light output
Strobe Sets the strobe rate
Auto Show Auto 1–4 <1–100> Selects automatic programs and speed
Gobo Rotator <0–255> Rotating gobo index
Master/Slave
Mode
Master Master mode
Slave DMX slave mode
Dimmer Curve
SCurve
Sets the dimmer curve
Linear
Square
Inverse Square
Dimmer Mode
Off Linear dimming
Dimmer 1–3 Dimming curves: Dimmer 1 (fast) to Dimmer 3
(slow)
LED
Frequency
600Hz
PWM frequency
1200Hz
2000Hz
4000Hz
6000Hz
25KHz
Fan Mode
Auto Sets the fan to auto mode
On Sets the fan to always on
Off Sets the fan to always off
Silent Sets the fan to silent
Back Light
10S
Turns off display backlight after 10 seconds of
inactivity
30S
Turns off display backlight after 30 seconds of
inactivity
2Min
Turns off display backlight after 2 minutes of
inactivity
Always On Display backlight always on
Key Lock On Locks display (password is <UP>, <DOWN>,
<UP>, <DOWN>, <ENTER>)
Off
Gobo Power On
Enables or disables gobo power output
Off
Information
Fixture Hours _ _ _ _H
Shows total hours the product has been powered
on
LED Hours _ _ _ _H Shows total hours the LED has been powered on
Version V_._ Shows installed software version
UID
_ _ _ _ _ _ _ _ _ _ _ _ Shows product ID

14
Operation
Ovation E-4WW IP User Manual Rev. 1
Configuration (Standalone)
Use standalone configuration to operate the product without a DMX controller.
Static Mode
The Static mode allows for permanent dimmer and strobe presets without a DMX controller.
1. Go to the Static main level.
2. Select Dimmer or Strobe.
3. Select the desired value (0–255).
Focus Mode
Focus mode allows for focusing of the Ovation E-4WW IP without changing any menu settings.
1. Press and hold <ENTER> for 3 seconds. The output intensity will increase to 100%.
2. Press <MENU> to exit focus mode and restore the settings.
Auto Programs
Auto programs allow for dynamic blinder effects without a DMX controller.
1. Go to the Auto Show main level
2. Select the desired auto (Auto 1–4).
3. Select the desired speed (1–100).
Gobo Rotator
The gobo rotator mode controls the Ovation GR-1 IP rotation speed (for use with Ovation GR-1 IP, sold
separately).
1. Go to the Gobo Rotator main level.
2. Select the desired value (0–255).
Upgrade
Firmware
Only This
Fixture
_ _ _ _ _ _.CHL Selects an update file for this product, or shows
“No such file!”
...
Multiple
Fixture
_ _ _ _ _ _.CHL Selects an update file for this and connected
Ovation E-4WW IP products, or shows “No such
file!
...
Other Fixture
Type
_ _ _ _ _ _.CHL Selects an update file for other connected
products, or shows “No such file!”
...
Reset Factory No Reset to factory defaults
Yes
When operating in Fan Mode: Off and Fan Mode: Silent, the fixture will become hotter to
the touch than when using other fan modes. Use proper protective equipment to prevent
burns. Keep a safe distance from flammable objects.
When operating in Fan Mode: Off and Fan Mode: Silent, output of the fixture will be
reduced and will not reach the same levels as when using other fan modes.
The auto programs cannot be edited.
Main Level Programming Levels Description

15
Ovation E-4WW IP User Manual Rev. 1
Operation
Master/Slave
The Master/Slave mode allows a group of Ovation E-4WW IP products (the slaves) to simultaneously
duplicate the output of another Ovation E-4WW IP (the master) without a DMX controller.
To set each of the slaves:
1. Go to the Master/Slave main level
2. Select Slave.
To set the master:
1. Go to the Master/Slave main level
2. Select Master.
3. Select an auto program as explained in Auto Programs, or a static setting.
Dimmer Curve
To set the dimmer curve, follow the instructions below:
1. Go to the Dimmer Curve main level.
2. Select the desired option (SCurve, Linear, Square, or Inverse Square).
Dimmer Profiles
This setting determines how fast the output of the Ovation E-4WW IP changes when you modify the output
value. This setting provides four different options to simulate the dimming curve of an incandescent lighting
product.
• Go to the Dimmer Mode main level.
• Select a dimmer curve (OFF, Dimmer 1, Dimmer 2, or Dimmer 3).
LED Frequency
This option changes the Pulse Width Modulation (PWM) frequency of the LEDs on the Ovation E-4WW IP.
1. Go to the LED Frequency main level.
2. Select PWM Frequency (600Hz, 1200Hz,2000Hz,4000Hz, 6000Hz, or 25Khz).
Fan Mode
This setting determines how the fan speed on the Ovation E-4WW IP is set.
1. Go to the Fan Mode main level
2. Select a fan mode (Auto, On, Off, or Silent).
Back Light
This setting allows for selection of the amount of time the backlight on the Ovation E-4WW IP’s display
stays on after the last button is pressed on the control panel.
1. Go to the Back Light main level.
2. Select 10S (10 seconds), 30S (30 seconds), 2Min (2 minutes), or Always On (remains on).
System Information
This option displays the total number of hours the product has run, the installed software version, and the
product’s UID.
1. Go to the Information main level.
2. Select Fixture Hours, LED Hours, Version, or UID.
Factory Reset
This option restores the Ovation E-4WW IP to factory default settings.
1. Go to the Reset Factory main level.
2. Select No or Yes.
• The master is the one that runs a program whether in Auto or Static mode.
• Do not connect a DMX controller to the products configured for Master/Slave
operation. The DMX controller may interfere with signals from the master.
• The master should be the first product in the daisy chain.
OFF: The output is proportional (linear) to the dimmer channel value.
Dimmer 1-3: The output follows the dimmer value based on the corresponding dimmer
curve, DIM1 being the fastest.

16
Operation
Ovation E-4WW IP User Manual Rev. 1
Configuration (DMX)
Use DMX configurations to operate the product with a DMX controller.
DMX Personalities
This setting allows you to choose a particular DMX personality.
1. Go to the DMX Channel main level.
2. Select the desired personality (2 Ch, 3 Ch, 4 Ch, or 7 Ch).
DMX Control
In this mode, each product will respond to a unique starting address from the DMX controller. All products
with the same starting address will respond in unison.
1. Select a DMX personality as shown in DMX Personalities.
2. Set the starting address:
a. Go to DMX Address main level.
b. Select the starting address (001–512).
The highest recommended starting address for each DMX mode is as follows:
DMX Values
•SeetheDMX Values section for the highest starting address you can select for
each personality.
• Make sure that the starting addresses on the various products do not overlap due
to the new personality setting.
DMX Personality DMX Address
2511
3 510
4 509
7 506
2 Ch 3 Ch 4 Ch 7 Ch Function Value Percent/Setting
1111Dimmer 000
255 0–100%
– 2 2 2 Fine Dimmer 000 255 0–100%
– 3 3 Strobe 000 010
011 255
No function
Strobe, slow to fast
–––4AutoProgram
000 010
011 070
071 130
131 190
191 255
No function
Auto 1, slow to fast
Auto 2, slow to fast
Auto 3, slow to fast
Auto 4, slow to fast
– – – 5 Auto Speed 000 255 Slow to fast
–––6
Control
(hold for 3 seconds)
000 007
008 015
016 023
024 031
032 039
040 047
048 055
056 063
064 071
072 079
080 087
088 095
096 103
104 111
112 255
No function
Dimmer reset
S-curve dimmer
Linear dimmer
Square dimmer curve
Inverse square dimmer curve
Dimmer speed mode OFF
Dimmer speed 1 (fastest)
Dimmer speed 2
Dimmer speed 3 (slowest)
Fan auto
Fan on
Fan off
Fan silent
Reserved for future use
2 3 4 7 Gobo Rotator
000 127
128 190
191 192
193 255
Index
CW Fast to Slow
Stop
CCW Slow to Fast
