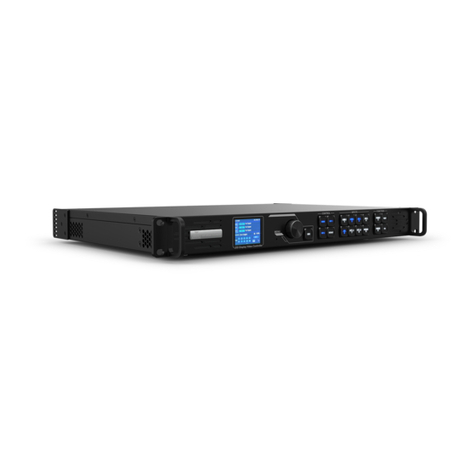

Chauvet Professional VIP DRIVE 10-5 Nova User manual
User Manual
V1.0.B0.CTM0101
Model ID: VIPDRIVE105NOVA
VIP Drive 10-5 Nova User Manual Rev. 1
Edition Notes
The VIP Drive 10-5 Nova User Manual includes a description, safety precautions, installation,
programming, operation and maintenance instructions for the VIP Drive 10-5 Nova as of the release date
of this edition.
Trademarks
CHAUVET, the Chauvet logo and VIP Drive 10-5 Nova are registered trademarks or trademarks of
Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
Other company and product names and logos referred to herein may be trademarks of their respective
companies.
Copyright Notice
The works of authorship contained in this manual, including, but not limited to, all design, text and images
are owned by Chauvet.
© Copyright 2022 Chauvet & Sons, LLC. All rights reserved.
Electronically published by Chauvet in the United States of America.
Manual Use
Chauvet authorizes its customers to download and print this manual for professional information purposes
only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this
manual or its content for any other purpose without written consent from Chauvet.
Document Printing
For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4
paper (210 x 297 mm), configure the printer to scale the content accordingly.
Intended Audience
Any person installing, operating, and/or maintaining this product should completely read through the guide
that shipped with the product, as well as this manual, before installing, operating, or maintaining this
product.
Disclaimer
Chauvet believes that the information contained in this manual is accurate in all respects. However,
Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,
damage or disruption caused by any errors or omissions in this document, whether such errors or
omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the
content of this document without any obligation to notify any person or company of such revision, however,
Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest
version from www.chauvetprofessional.com.
Document Revision
This VIP Drive 10-5 Nova User Manual is the 1st edition of this document. Go to
www.chauvetprofessional.com for the latest version.
VIP Drive 10-5 Nova User Manual Rev. 1
Table of Contents
i
TABLE OF CONTENTS
1. Before You Begin ......................................................................................... 1
What Is Included ...................................................................................................... 1
Claims ...................................................................................................................... 1
Text Conventions ..................................................................................................... 1
Symbols ................................................................................................................... 1
Safety Notes............................................................................................................. 2
Personal Safety.............................................................................................................. 2
Mounting and Rigging .................................................................................................... 2
Power and Wiring........................................................................................................... 2
Operation ....................................................................................................................... 2
2. Introduction................................................................................................... 3
Description ............................................................................................................... 3
Features ................................................................................................................... 3
Product Overview..................................................................................................... 4
Front Panel Overview..................................................................................................... 4
Control Panel Description ........................................................................................ 4
Rear Panel Overview ..................................................................................................... 5
Rear Panel Description............................................................................................ 5
Product Dimensions ................................................................................................. 6
3. Setup.............................................................................................................. 7
AC Power ................................................................................................................. 7
AC Plug .......................................................................................................................... 7
Mounting .................................................................................................................. 7
Signal Connections .................................................................................................. 7
Video Source Connection .............................................................................................. 7
NovaLCT Connection..................................................................................................... 7
Input Connections Diagram............................................................................................ 8
Output Connections Diagram......................................................................................... 8
Cascading Connection ................................................................................................... 9
Cascading USB Connection Diagram...................................................................... 9
GenLock Synchronization .............................................................................................. 9
GenLock Connection Diagram ................................................................................ 9
Fiber Optic Connection via SFP Modules ...................................................................... 10
Fiber Converter Mode.............................................................................................. 10
Fiber Optic Backup .................................................................................................. 11
Fiber Optic Copy...................................................................................................... 12
4. Operation....................................................................................................... 13
Control Panel Description ........................................................................................ 13
Programming............................................................................................................ 13
Menu Lockout Function.................................................................................................. 13
Menu Map ................................................................................................................ 13
Operating Settings Configuration............................................................................. 22
Home Screen ................................................................................................................. 22
Screen Brightness.......................................................................................................... 23
Screen Configuration ..................................................................................................... 23
Quick Configuration ................................................................................................. 23
More Settings .......................................................................................................... 25
Layer Settings ................................................................................................................ 27
Layer Status ............................................................................................................ 28
Input Source ............................................................................................................ 28
Scaling Mode........................................................................................................... 28
Layer Priority ........................................................................................................... 28
Layer Input Crop...................................................................................................... 29
Layer Opacity .......................................................................................................... 29
Input Settings ................................................................................................................. 29
HDMI and DVI EDID Settings .................................................................................. 29
Input Color Settings ................................................................................................. 31
Color Space/Sample Rate ....................................................................................... 31
Convert Limited RGB to Full RGB ........................................................................... 31
Input MOSAIC ......................................................................................................... 32
Table of Contents
VIP Drive 10-5 Nova User Manual Rev. 1
ii
Preset Settings............................................................................................................... 33
Save Preset ............................................................................................................. 33
Load Preset ............................................................................................................. 33
Clear Preset............................................................................................................. 33
Copy Preset............................................................................................................. 33
Image Mosaic................................................................................................................. 34
Total Image Mosaic Pixels....................................................................................... 34
Load Area Dimensions ............................................................................................ 34
Load Area Offset ..................................................................................................... 34
Image Mosaic Reset ................................................................................................ 34
Display Control............................................................................................................... 35
Output Status........................................................................................................... 35
Test Pattern ............................................................................................................. 35
Main Layer Transition .............................................................................................. 36
Transition Duration .................................................................................................. 36
Fade To Black Duration........................................................................................... 36
Advanced Settings ......................................................................................................... 37
Device Backup......................................................................................................... 37
Input Backup............................................................................................................ 37
Synchronization ....................................................................................................... 38
HDMI Output............................................................................................................ 38
Audio Settings ......................................................................................................... 39
Input High-Bandwidth Digital Content Protection..................................................... 39
Latency Reduction................................................................................................... 39
3D Mode .................................................................................................................. 40
OPT 2 Mode ............................................................................................................ 41
System Settings ............................................................................................................. 41
Shortcut Button <FN> .............................................................................................. 41
Home Screen Timeout............................................................................................. 41
Diagnostics .............................................................................................................. 41
Firmware Version .................................................................................................... 42
Factory Reset................................................................................................................. 42
Communication .............................................................................................................. 42
Communication Mode.............................................................................................. 42
Network ................................................................................................................... 42
Working Mode ................................................................................................................ 43
Fiber Converter Menu.............................................................................................. 44
语言/Language ............................................................................................................... 44
NovaLCT Software................................................................................................... 45
Software Setup............................................................................................................... 45
Screen Configuration ..................................................................................................... 45
Sending Card Tab ................................................................................................... 46
Receiving Card Tab ................................................................................................. 46
Screen Connection Tab ........................................................................................... 47
VIP Drive 10-5 Nova Firmware Update Through NovaLCT ........................................... 48
Video Product Firmware Update Through NovaLCT ..................................................... 48
Standalone Video Product Update .......................................................................... 49
5. Maintenance.................................................................................................. 50
Product Maintenance ............................................................................................... 50
6. Technical Specifications.............................................................................. 51
Returns.............................................................................................................. 52
Contact Us......................................................................................................... 53
Page 1 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Before You Begin
1. Before You Begin
What Is Included
Claims
Carefully unpack the product immediately and check the container to make sure all the parts are in the
package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier
immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed
damage, file a claim with Chauvet within 7 days of delivery.
Text Conventions
Symbols
• VIP Drive 10-5 Nova
• IEC power cord
• USB cable
• HDMI signal cable
• DVI signal cable
• Cat5e ethernet 3 ft jumper cable
• Quick Reference Guide
Convention Meaning
1–512 A range of values
50/60 A set of values of which only one can be chosen
Settings A menu option not to be modified
<ENTER> A key to be pressed on the product’s control panel
Symbol Meaning
Critical installation, configuration, or operation information. Not following these
instructions may make the product not work, cause damage to the product, or cause
harm to the operator.
Important installation or configuration information. The product may not function
correctly if this information is not used.
Useful information.
Page 2 of 53
Before You Begin
VIP Drive 10-5 Nova User Manual Rev. 1
Safety Notes
Read all the following safety notes before working with this product. These notes contain important
information about the installation, usage, and maintenance of this product.
Personal Safety
• Always connect the product to a grounded circuit to avoid the risk of electrocution.
• Do not touch the product’s housing when operating because it may be very hot.
Mounting and Rigging
• This product is for indoor use only! To prevent risk of fire or shock, do not expose this product to
rain or moisture. (IP20)
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to
warm, humid ballroom) condensation may form on the internal electronics of the product. To avoid
causing a failure, allow product to fully acclimate to the surrounding environment before connecting
it to power.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces.
• Make sure there are no flammable materials close to the product when operating.
Power and Wiring
• Make sure the power cord is not crimped or damaged.
• Always make sure you are connecting this product to the proper voltage in accordance with the
specifications in this manual or on the product’s specification label.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
• Never connect this product to a dimmer pack or rheostat.
• Never disconnect this product by pulling or tugging on the power cable.
Operation
• Do not operate this product if there is damage on the housing or cables. Have the damaged parts
replaced by an authorized technician at once.
• Do not cover the ventilation slots when operating to avoid internal overheating.
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C).
• In the event of a serious operation problem, stop using this product immediately!
This product contains no user-serviceable parts. Any reference to servicing in this User
Manual will only apply to properly trained, certified technicians. Do not open the housing or
attempt any repairs.
All applicable local codes and regulations apply to proper installation of this product.
If your Chauvet product requires service, contact Chauvet Technical Support.
Page 3 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Introduction
2. Introduction
Description
The VIP Drive 10-5 Nova is an all-in-one video processor that outputs signal to any NovaStar video panel.
The integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options. Standalone
mapping configures most video walls without a computer, and the custom mapping function provides on-
screen visual feedback. The VIP Drive 10-5 Nova supports 4K at 6.55 million LED resolution with 10
Ethernet video outputs.
Features
• Video wall processor that outputs video signal to any NovaStar video panel
• Integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options
• Automatically scales to the wall detected
• Powerful standalone mapping configures most video walls without a computer
• Custom MAPPING function makes setting up your wall fast and easy with on-screen visual
feedback
• Specialized on-screen mapping overlay makes mapping fast and easy by identifying the port and
order of each video panel live, while video continue to play in the background.
• 10 Ethernet video outputs support 4K at 6.55 million LED resolution
• Works with NovaLCT software for complex configurations and panel calibration
• Compact 1U packaging eases transportation and integration into your existing setup
• Fiber SFP output for all 10 ports of the processor (primary and backup)
• 1 of the fiber SFP ports may be used as a direct video input
• Mode selection in menu allows the processor to function as a regular video controller to screen, a
fiber converter to input fiber and output to your screen from another video controller, or in Bypass
mode for automatic fault detection and backup from another primary video controller
• GenLock input and loop supports synchronizing multiple VIP processors and with your video source
(switcher) to eliminate scan lines on camera.
• MOSAIC function allows you to use multiple video inputs on the screen at the same time (2x DVI or
2x HDMI)
• Video backup settings allow you to designate backup video inputs for increased stability
• HDMI Video output enables previewing video sources and monitoring screen output locally
• Image Mosaic function supports synchronizing multiple VIP Drive 10-5 Nova processors, up to
32,768 x 32,768 total resolution
• Supports output LED screen refresh rate 23.98 - 120 Hz
• Low latency, 3D features supported in the drive
Page 4 of 53
Introduction
VIP Drive 10-5 Nova User Manual Rev. 1
Product Overview
Front Panel Overview
Control Panel Description
#Name Function
1
<MENU>
Knob
Rotate to navigate upwards or downwards through the menu list, and
increase or decrease a selected numeric value. Push to enable the
currently displayed menu option or set the currently selected value into the
selected function.
2 <ESC> Exits the current menu or function
3CONTROL
buttons
<MAIN> Accesses the layer menus (Main, PIP1, and PIP2) and displays the layer
status.
• On (blue light) – Layer is opened.
• Flashing (blue light) – Layer is being edited.
• On (white light) – Layer is closed.
<PIP1>
<PIP2>
<SCALE>
Fills the entire screen with the lowest-priority layer:
• On (blue light) – Full-screen scaling activated.
• On (white light) – Full-screen scaling deactivated.
4INPUTS
buttons
<HDMI 1 / 1>
Switches the layer input source (or enters the corresponding number) and
displays the status of the input source:
• On (blue light) – Input source in use
• Flashing (blue light) – Input source used by the layer
• On (white light) – Input source not in use or not normal
<HDMI 2 / 2>
<DVI 1 / 3>
<DVI 2 / 4>
<SDI / 6>
<OPT 1-1 / 7>
<OPT 1-2 / 8>
<MOSAIC / 9>
5
FUNCTION
buttons
<PRESET / 5> Navigates to the Preset Settings menu or enters the number 5
<TEST> Navigates to the Test Pattern menu
<FREEZE / 0> Freezes video output or enters the number 0
<FN> Customizable function
23 4LCD Display 15
Page 5 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Introduction
Rear Panel Overview
Rear Panel Description
#Name Function
1 ETHERNET RJ45 port for connecting to a personal computer
2GENLOCK IN Locking BNC connectors for signal synchronization of devices with an
external video switcher or clock generator
GENLOCK LOOP
33G-SDI IN 3G-SDI video port supporting deinterlacing processing but not input
resolution or bit depth settings
3G-SDI LOOP 3G-SDI video loop output port
4 OUTPUT 1–10 RJ45 ports for output to LED video products. Ports 1 and 2 have audio output
support for use with a multifunction card to parse audio.
5
USB (Type A) USB type A output port for cascading to other devices
USB (Type B) USB type B input port for cascading from other devices or connecting to a
personal computer
6HDMI 1.4 1 IN HDMI video input port supporting interlaced signal inputs. Supports mosaic of
2 HDMI 1.4 inputs.
HDMI 1.4 1 LOOP HDMI 1.4 video loop output port for the HDMI1 input
7HDMI1.42
HDMI video input port supporting interlaced signal inputs. Supports mosaic of
2 HDMI 1.4 inputs.
8DVI (HDMI 1.4) 1 IN DVI video input port supporting interlaced signal inputs. Supports mosaic of 2
HDMI 1.4 inputs.
DVI (HDMI 1.4) 1 LOOP DVI video loop output port for the DVI1 input
9 DVI (HDMI 1.4) 2 DVI video input port supporting interlaced signal inputs. Supports mosaic of 2
HDMI 1.4 inputs.
10 OPT 1-1 SFP ports (master and backup) for sending/receiving fiber optic data at
distance via SFP modules
OPT 1-2
11 HDMI 1.3 HDMI 1.3 video output port for monitor
12 3
56 1189
4Power Switch
Power Input
107
Page 7 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Setup
3. Setup
AC Power
The VIP Drive 10-5 Nova has an auto-ranging power supply and it can work with an input voltage range of
100 to 240 VAC, 50/60 Hz.
To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current
value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
The listed current rating indicates the product’s average current draw under normal conditions.
AC Plug
The VIP Drive 10-5 Nova comes with a power input cord terminated with an IEC connector on one end and
an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no
plug, or if you need to change the plug, use the table below to wire the new plug.
Mounting
The VIP Drive 10-5 Nova fits nicely on a standard 19” rack, or it can be placed on its rubber feet on a flat
level surface.
Signal Connections
The VIP Drive 10-5 Nova uses the NOVA control protocol to send video signal to the connected panels.
The VIP Drive 10-5 Nova has USB and Ethernet ports for interfacing with a computer, HDMI, DVI, SDI and
fiber optic ports for sending/receiving at distance, as well as 10 RJ45 out ports and GenLock in and loop
connectors.
Video Source Connection
You can link the VIP Drive 10-5 Nova directly to a video source using a DVI connection, an HDMI
connection, or an SDI connection.
NovaLCT Connection
You can link the VIP Drive 10-5 Nova to a computer running the NovaLCT software using a USB (type A
or B) connection or an ethernet cable. This will provide control options for the VIP Drive 10-5 Nova through
a computer interface.
• Always connect the product to a protected circuit (a circuit breaker or fuse). Make sure
the product has an appropriate electrical ground to avoid the risk of electrocution or
fire.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the
rheostat or dimmer channel serves only as a 0 to 100% switch.
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
Page 8 of 53
Setup
VIP Drive 10-5 Nova User Manual Rev. 1
Input Connections Diagram
Output Connections Diagram
#Purpose Connections
1Interface with a computer running NovaLCT software USB type A and B, Ethernet
2Link to another VIP Drive 10-5 Nova USB Type B
3
Synchronize with a video switcher, a clock generator, another
VIP Drive 10-5 Nova, or another compatible product connected to the
aforementioned
GENLOCK IN
4Link to a video device, such as a camera or a DVD player 3G-SDI, HDMI 1.4
5Link to a computer video output HDMI 1.4, DVI
6Receive processed video output from another VIP Drive 10-5 Nova at
distance via SFP modules and fiber optic cable OPT (SFP Port)
7Receive AC power IEC
#Receiving Device Connections
1Another VIP Drive 10-5 Nova or another product to be synchronized to
the same video switcher or clock generator GENLOCK LOOP
2Another VIP Drive 10-5 Nova 3G-SDI LOOP
3LED video panels, such as the F2 from CHAUVET RJ45
4Another VIP Drive 10-5 Nova USB type A
5Another VIP Drive 10-5 Nova HDMI 1.4 LOOP
6Another VIP Drive 10-5 Nova DVI (HDMI 1.4) LOOP
7Another VIP Drive 10-5 Nova via SFP modules and fiber optic cable OPT (SFP Port)
8Preview monitor HDMI 1.3
USB
type B
RJ45 SDI
HDMI
DVI
GENLOCK
IN
1
+
2
3
4
+
5
4
51 7
USB
type A
OPT
6
4
+
5
5
1
HDMI
DVI
12
4
3
5678
Page 9 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Setup
Cascading Connection
Multiple VIP Drive 10-5 Nova products can be linked together in a cascading connection using the USB
type A and B ports on the rear panel of the product. This will allow all products to be programmed at once.
Cascading USB Connection Diagram
GenLock Synchronization
The VIP Drive 10-5 Nova has 2 locking BNC connectors for GenLock synchronization.
• GENLOCK IN is for receiving the synchronization signal from a video switcher or a clock generator
either directly or via another product.
• GENLOCK LOOP is for sending a synchronization signal to another product, such as a camera.
This function is essential for systems with multiple VIP Drive 10-5 Nova products and/or for systems being
filmed.
GenLock Connection Diagram
Any input source can be used as a synchronization source. See Synchronization for more
information.
To more VIP Drive 10-5 Nova
products
USB
type
A
USB
type
B
1st VIP Drive 10-5 Nova
2nd
3rd
Computer
running
NovaLCT
To more VIP Drive 10-5 Nova
products (or other products)
GENLOCK LOOPGENLOCK IN
2nd
From video switcher
or clock generator
3rd
1st VIP Drive 10-5 Nova
Page 10 of 53
Setup
VIP Drive 10-5 Nova User Manual Rev. 1
Fiber Optic Connection via SFP Modules
The VIP Drive 10-5 Nova has 2 SFP ports (labeled OPT) which are compatible with SFP modules which fit
the following specifications:
• Module Type: SFP
• Wavelength: 1310-nm
• Data Rate: 10Gb/s
• Fiber Type: Dual LC Single-mode fiber
• Temperature: 0-70°C
• Distance: 10km
• Hot Pluggable
• 20-pin connector
Fiber Converter Mode
One VIP Drive 10-5 Nova can be set up to send processed video data via a fiber optic connection over
distance, while another VIP Drive 10-5 Nova can be set up to receive fiber optic data and output to
connected video products.
• Set the Device Backup for the sending VIP Drive 10-5 Nova products to Primary.
• Set the OPT 2 Mode for the sending VIP Drive 10-5 Nova products to Copy.
• Set the Working Mode for the sending VIP Drive 10-5 Nova products to Video Controller.
• Set the Working Mode for the receiving VIP Drive 10-5 Nova to Fiber Converter.
Fiber Converter Mode Diagram
When in Fiber Converter mode, the OPT 2 SFP port is intended to be used as a redundant
backup. This is automatic and no extra configuration is needed.
VIP Drive 10-5 Nova
in Video Controller mode
VIP Drive 10-5 Nova
in Fiber Converter mode
SFP module
(plugged in)
SFP module
(plugged in)
Fiber optic cable
SFP module
(plugged in)
Another VIP Drive 10-5 Nova
in Video Controller mode (backup)
SFP module
(plugged in)
To video product assembly
Fiber optic cable
Page 11 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Setup
Fiber Optic Backup
A VIP Drive 10-5 Nova can receive a backup signal from the OPT 2 SFP port of another VIP Drive 10-
5 Nova.
• Set the Device Backup for the sending VIP Drive 10-5 Nova to Primary.
• Set the OPT 2 Mode for the sending VIP Drive 10-5 Nova to Backup.
• Set the Working Mode for the sending VIP Drive 10-5 Nova to Video Controller.
• Set the Working Mode for the backup VIP Drive 10-5 Nova to Fiber Converter.
Fiber Optic Backup Diagram
Primary port 1
Backup port 1
Primary port 2
Backup port 2
Primary port 3
Backup port 3
VIP Drive 10-5 Nova
(Primary)
SFP module
(plugged in)
To video product assembly
Fiber optic cable
SFP module
(plugged in)
To video product assembly
VIP Drive 10-5 Nova
in Fiber Converter mode
Page 12 of 53
Setup
VIP Drive 10-5 Nova User Manual Rev. 1
Fiber Optic Copy
At the same time as a VIP Drive 10-5 Nova is sending its output to a connected video product assembly, it
can copy that output data and send it to another VIP Drive 10-5 Nova via the OPT 2 SFP port. This way
multiple video product assemblies can display the same content.
• Set the OPT 2 Mode for the sending VIP Drive 10-5 Nova to Copy.
• Set the Working Mode for the sending VIP Drive 10-5 Nova to Video Controller.
• Set the Working Mode for the receiving VIP Drive 10-5 Nova to Fiber Converter.
Fiber Optic Copy Diagram
VIP Drive 10-5 Nova
(Primary)
SFP module
(plugged in)
To video product assembly 1
Fiber optic cable
SFP module
(plugged in)
To video product assembly 2
VIP Drive 10-5 Nova
in Fiber Converter mode
Page 13 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Operation
4. Operation
Control Panel Description
See the Product Overview for a detailed description of the control panel.
Programming
Refer to the Menu Map to understand the menu options. The menu map shows the main level and a
variable number of programming levels for each option.
• To access the menu from the Home Screen, press the <MENU> knob.
• To scroll through the options on each level of the menu, turn the <MENU> knob. Turn it clockwise
to scroll down, and turn it counter-clockwise to scroll up.
•Pressthe<MENU> knob to select the highlighted option. This will take you to the next programming
level for that option, or it will highlight a value that can be edited.
• To increase a selected number value, turn the <MENU> knob clockwise. To decrease a selected
number value, turn the <MENU> knob counter-clockwise.
• Press <ESC> to exit to the previous main level, press repeatedly to return to the Home Screen.
Menu Lockout Function
To prevent accidental changes to the menu or functions, lock the menu by pressing and holding the
<MENU> knob and <ESC> for 4-5 seconds. Repeat to unlock the menu.
Menu Map
Refer to the VIP Drive 10-5 Nova product page on
www.chauvetvideo.com
for the latest menu map.
Main Level Programming Levels Description
Screen
Brightness 0–100% Controls total output level
Screen
Configuration
Quick
Configuration
Cabinet Row
Qty 1–64*
Sets number of rows in video
assembly. *Range based on
Column Qty and connected
products.
Cabinet
Column Qty 1–80*
Sets number of columns in
video assembly. *Range
based
on
Row Qty and connected
products.
Port1
Cabinet Qty 1*–46*
Sets number of video products
connected to Output Port 1.
*Range
varies by panel used,
from one tenth of
total
connected products to 40*.
Data Flow
(Front View)
Sets start point and path for
data flow in video product
assembly
Send RCFGx Files No Files
Sends RCFGx files to the
receiving cards of the
connected assembly
Save to RV Card No Permanently saves uploaded
firmware to connected products
Yes
More
Settings
Advanced
Configuration
No Accesses the Advanced
Configuration menu
Yes
Status On Enables/disables separate
configuration for each port
Off
Ethernet
Port 1–10 Selects the port to configure
Cabinet Row
Qty 1–40 Sets number of rows from the
selected port
Page 14 of 53
Operation
VIP Drive 10-5 Nova User Manual Rev. 1
Screen
Configuration
(cont.)
More
Settings
(cont.)
Advanced
Configuration
(cont.)
Cabinet
Column Qty 1–40 Sets number of columns from
the selected port
Horizontal
Offset 0–10112
Sets horizontal offset for the
selected port. *Range based on
Column Qty.
Vertical
Offset 0–8064
Sets vertical offset for the
selected port. *Range based on
Row Qty.
Data Flow
(Front View
Sets start point and path for
data flow from the selected port
Apply Applies the selected
configuration
Reset Resets the advanced
configuration
Mapping Off Enables/disables mapping
function
On
LED Screen
Color
Gamma 1.0–4.0 Sets the Gamma value
Temperature
Standard
Sets the color temperature
mode of the output
Cool
Warm
Custom
R
000–255 Sets the custom color
temperature values
G
B
Reset Resets the screen color settings
Output
Frame Rate
23.98
Selects preset output frame rate
24
25
29.97
30
47.95
48
50
59.94
60
71.93
72
75
85
100
119.88
120
Main Level Programming Levels Description
Page 15 of 53
VIP Drive 10-5 Nova User Manual Rev. 1
Operation
Layer
Settings
Main Layer
PIP1
PIP2
Status On Activates/deactivates the
selected layer
Off
Input Source
HDMI1
Sets the input source for the
selected layer
HDMI2
DVI1
DVI2
SDI
OPT1-1
OPT1-2
MOSAIC
Scaling
Mode
Full Screen Scales the layer to the entire
connected video assembly
Pixel to Pixel Scales the layer 1:1
Custom Scales the layer manually
H Width 64–32768 Sets the layer width
V Height 64–32768 Sets the layer height
Initial X -32768–32768 Sets the layer’s horizontal offset
Initial Y -32768–32768 Sets the layer’s vertical offset
Priority 1–3 Sets the layer’s priority level
Input Crop
Status On Activates/deactivates the
cropping function
Off
H Width 64–32768 Sets the layer’s crop width
V Height 64–32768 Sets the layer’s crop height
Initial X
-32768–32768
Sets the horizontal crop offset
Initial Y
-32768–32768
Sets the vertical crop offset
Opacity 0–100% Sets the layer’s transparency
Input
Settings
HDMI1
HDMI2
DVI1
DVI2
EDID
(Extended
Display
Identification
Data)
Mode Standard Uses standard resolution
Custom Allows a custom resolution
Resolution
(Standard)
1024 x 768 Standard EDID resolution.
Available frame rates (Hz): 48, 50,
59.94, 60, 75, 85
1280 x 720 Available frame rates (Hz): 23.98,
24, 25, 29.97, 30, 48, 50, 59.94, 60
1280 x 1024 Available frame rates (Hz): 48, 50,
59.94, 60, 75, 85
1366 x 768 Available frame rates (Hz): 50,
59.94, 60
1440 x 900 Available frame rates (Hz): 60, 75,
85
1600 x 1200 Available frame rates (Hz): 48, 50,
59.94, 60
1680 x 1050 Available frame rates (Hz): 60
1920 x 1080 Available frame rates (Hz): 23.98,
24, 25, 29.97, 30, 48, 50, 59.94, 60
1920 x 1200 Available frame rates (Hz): 50,
59.94, 60
1920 x 2160 Available frame rates (Hz): 23.98,
24, 25, 29.97, 30, 48, 50, 59.94, 60
2048 x 1080 Available frame rates (Hz): 30, 48,
50, 59.94, 60
2048 x 1152 Available frame rates (Hz): 30, 60
Main Level Programming Levels Description
Page 16 of 53
Operation
VIP Drive 10-5 Nova User Manual Rev. 1
Input
Settings
(cont.)
HDMI1
(cont.)
HDMI2
(cont.)
DVI1
(cont.)
DVI2
(cont.)
EDID
(Extended
Display
Identification
Data, cont.)
Resolution
(Standard,
cont.)
2560 x 1080 Available frame rates (Hz): 50,
59.94, 60
2560 x 1600 Available frame rates (Hz): 50,
59.94, 60
3840 x 1080 Available frame rates (Hz): 30, 50,
59.94, 60
3840 x 2160 Available frame rates (Hz): 30
Frame Rate
(Hz)
(Standard)
23.98
Preset EDID frame rate.
Availability based on selected
resolution.
24
25
29.97
30
48
50
59.94
60
75
85
Width
(Custom) 800–4092 Custom EDID resolution width.
Range depends on height.
Height
(Custom) 600–3981 Custom EDID resolution height.
Range depends on width.
Frame Rate
(Hz)
(Custom)
23.98
Custom EDID frame rate.
Availability based on selected
resolution.
24
25
29.97
30
47.95
48
50
59.94
60
72
75
85
100
120
Apply Applies selected EDID settings
Input Color
Brightness
0–100
Adjusts the input brightness
Contrast Adjusts the input contrast
Saturation Adjusts the input saturation
Hue -180–180 Adjusts the input hue
Reset Resets the input color settings
Color/
Sample RGB 4:4:4 Displays color space and
sample rate of the input source
Limited to
Full
On Activates/deactivates color
range conversion from RGB
Limited to RGB Full
Off
Main Level Programming Levels Description
