Ovation E-910FC QRG EN
2
About This
Guide
The Ovation E-910FC Quick Reference Guide (QRG) has basic product
information such as connection, mounting, menu options, and DMX values.
Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change
without notice.
Safety Notes
•DO NOT open this product. It contains no user-serviceable parts.
•DO NOT look at the light source when the product is on.
•To eliminate unnecessary wear and improve its lifespan, during periods of
non-use completely disconnect the product from power via breaker or by
unplugging it.
•CAUTION: When transferring product from extreme temperature
environments, (e.g. cold truck to warm humid ballroom) condensation may
form on the internal electronics of the product. To avoid causing a failure,
allow product to fully acclimate to the surrounding environment before
connecting it to power.
•CAUTION: This product’s housing may be hot when lights are operating.
•Mount this product in a location with adequate ventilation, at least
20 in (50 cm) from adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product while
operating or connected to power.
•USE a safety cable when mounting this product overhead.
•DO NOT operate this product outdoors or in any location where dust,
excessive heat, water, or humidity may affect it. (IP20)
•DO NOT operate this product if the housing, lenses, or cables appear
damaged.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•ONLY use the hanging/mounting bracket or the handles to carry this
product.
•In the event of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 113 °F (45 °C). Do not operate this
product at higher temperatures.
Contact
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your
distributor to request support or return a product. From inside the U.S.
, UK,
Ireland, Mexico, or Benelux, use the information in Contact Us
at the end of this
QRG.
What Is
Included
•Ovation E-910FC
•Neutrik powerCON power cord
•
Soft Focus Filter
•Warranty Card
•Quick Reference Guide

Ovation E-910FC QRG EN
3
AC Power
This product has an auto-ranging power supply that can work with an input voltage
range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 6 Ovation E-910FC products at 120 V, 11 products at 208 V, or
12 products
at 230 V. Never exceed this number. Power linking cords can be
purchased separately.
AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green
To eliminate unnecessary wear and improve its lifespan, during periods of
non-
use completely disconnect the product from power via breaker or by
unplugging it.
Replacing The
Fuse
1. Disconnect this product from power.
2. Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.
DMX Linking
The Ovation E-910FC will work with a DMX controller using a 3- or 5-pin DMX
serial connection. A DMX Primer is available from
www.chauvetprofessional.com.
DMX Connection
The Ovation E-910FC uses a 3- or 5-pin DMX data connection for its DMX
personalities: 3Ch, 5Ch, 7Ch, 10Ch, 12Ch, 13Ch, and 15Ch
. See the User
Manual for information about connecting and configuring the product
for DMX
operation.
Master/Slave
Connection
The Ovation E-910FC uses the DMX data connection for its Master/Slave mode.
See the User Manual for information about connect and configure the product
for
master/slave operation.
RDM
(Remote
Device
Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled
devices to communicate bi-
directionally along existing DMX cabling. The
Ovation E-
910FC supports RDM protocol that allows feedback to monitor
temperature and changes to DMX Address and DMX Channel
menu map
options. Download the User Manual from www.chauvetprofessional.com
for more
details.

Ovation E-910FC QRG EN
4
Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting
point per product. Make sure the mounting clamps are capable of supporting the
weight of the product. For our CHAUVET Professional
line of mounting clamps,
go to http://trusst.com/products/.

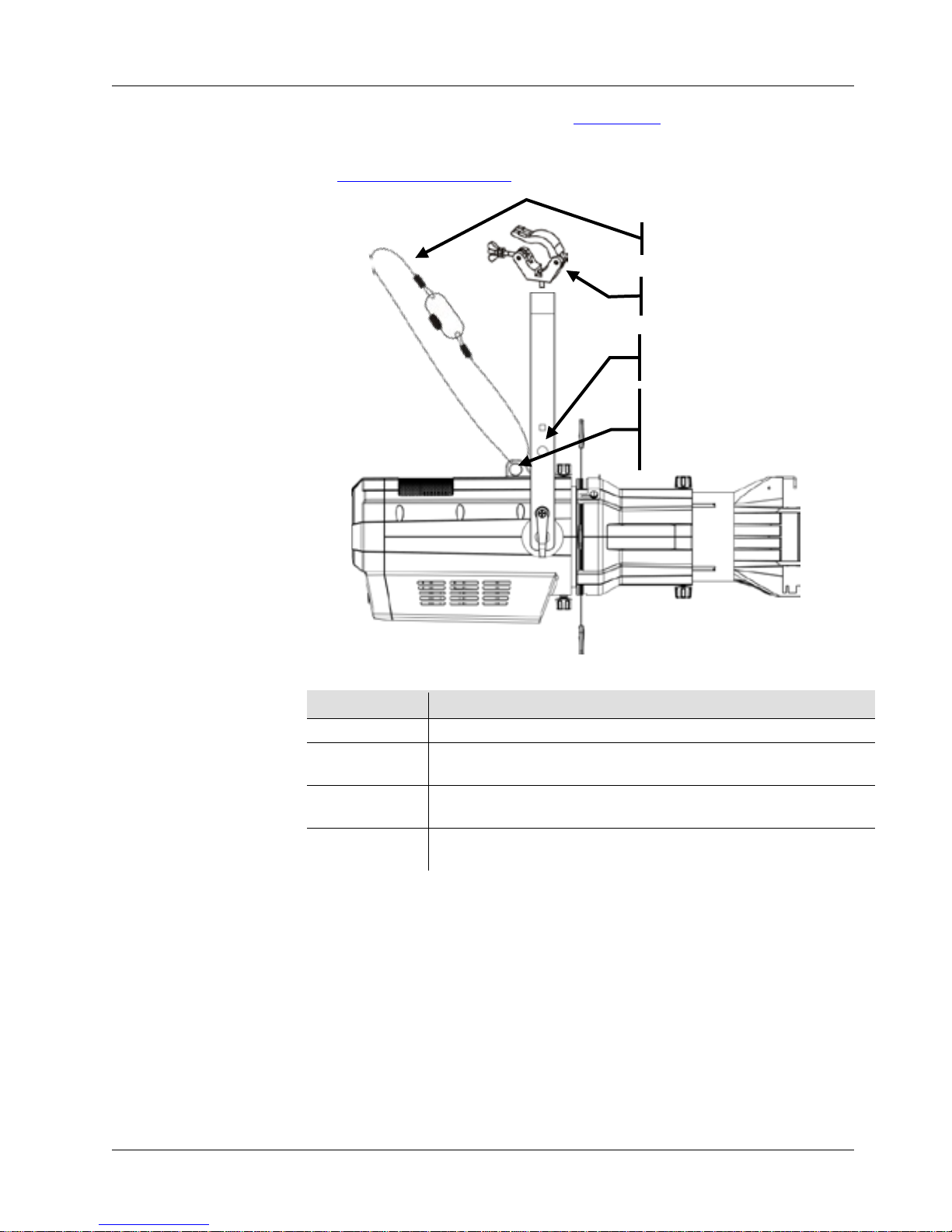

Product
Mounting
Diagram
Control Panel
Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently
selected value into the selected function
<UP>
Navigates upwards through the menu list or increases the
numeric value when in a function
<DOWN>
Navigates downwards through the menu list or decreases
the numeric value when in a function
Overhead Mounting
*
Lens tubes sold separately
Secure the safety cable
using the passageway on
the back of the product.
Alternate Yoke Attachment
Safety Cable
Mounting Clamp

Ovation E-910FC QRG EN
5
Virtual
Color
Wheel
The Ovation E-910FC includes a feature called the Virtual Color Wheel (VCW). This
feature is available as a stand-
alone control mode for manual use and also as a control
channel in select DMX personalities. Over 30 pre-
mixed colors, custom blended by our
engineers, are available to call up for easier programming.
The DMX values used to mix these colors are provided below. You may adjust the overall
intensity of the Ovation fixture in order to more closely replicate colors you are familiar
with. A chart is available on our website www.chauvetprofessional.com to compare our pre-
mixed colors with popular gel colors. This chart is for comparison purposes only and is not
a representation that our pre-mixed colors match any of the gel colors listed.
Virtual Color
Wheel Chart
DMX
Channel
Value
Display Readout Red
Value Green Value Blue Value Amber Value Lime Value
000ó005
006ó013
014ó021
022ó028
029ó035
036ó043
044ó051
052ó059
060ó067
068ó075
076ó083
084ó091
092ó099
100ó107
108ó115
116ó121
122ó130
131ó138
139ó146
147ó154
155ó162
163ó170
171ó178
179ó186
187ó194
195ó202
203ó210
211ó218
219ó226
227ó234
235ó242
243ó250
251
ó
255
--
C3050 - Md Yellow
C3040 - Lt Yellow
C3240 - Amb Yellow
C2340 - VLt Amber
C2040 - Lt Amber
C2050 - Md Amber
C2060 - Dk Amber
C1050 - Lt Red
C1080 - Md Red
C1020 - NC Pink
C1030 - Md Pink
C1630 - Dk Pink
C1250 - Md Red Amber
C1060 - Dk Red Amber
C1650 - Magenta
C6170 - Dk Magenta
C6020 - Lt Lavender
C5030 - Lt Blue
C5020 - VLt Blue
C5430 - Lt Blue 2
C5070 - Blue
C5050 - Md Blue
C5060 - Dk Blue
C5690 - Indigo
C5080 - VDk Blue
C5081 - VDk Blue 2
C4370 - Yel Green
C4070 - Green
C4550 - Turquoise
C4560 - Aqua
C4570 - Blue Green
--
000
233
224
180
245
230
255
255
255
255
238
255
250
255
255
255
255
127
000
158
000
043
000
000
065
000
040
027
049
060
020
000
000
000
163
158
060
107
130
000
000
037
004
135
131
165
000
000
050
035
122
255
255
255
255
255
210
000
203
199
255
255
230
240
255
000
000
020
047
000
081
062
025
024
027
017
129
120
123
041
045
115
117
142
197
189
180
210
218
206
210
230
240
028
055
109
126
079
000
000
123
255
245
255
255
255
255
030
000
255
255
255
195
120
255
000
251
100
000
000
043
000
000
040
000
000
016
120
000
036
030
000
000
255
231
255
213
155
194
150
038
000
255
195
210
055
030
115
000
255
255
255
243
036
181
118
055
040
045
104
090
245
255
053
000
Note: The colors above are simulated renditions of the color output produced as
compared to other similar incandescent products. Chauvet makes no guarantee of the
color output accuracy.

Ovation E-910FC QRG EN
6
Preset Color
Temperature
Chart
DMX
Channel
Value
Display Readout Red
Value Green Value Blue Value Amber Value Lime Value
000ó005
006ó025
026ó050
051ó075
076ó100
101ó125
126ó150
151ó175
176ó200
201ó225
226
ó
255
--
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
--
000
255
253
234
204
181
160
138
147
142
000
000
199
247
255
255
248
255
255
255
251
000
000
107
129
141
156
166
180
191
193
197
000
000
253
255
253
243
224
241
241
203
187
000
000
255
255
255
255
255
255
255
255
255
000
Note: The color temperatures above are simulated renditions of the color output
produced as compared to a tungsten lamp at the specified color temperature
. Chauvet
makes no guarantee of the color output accuracy.
Menu Map
Main Level
Programming Levels
Description
DMX
Address <001–512>
Selects DMX address (highest
channel restricted to personality
chosen)
DMX
Channel
3Ch
3-channel: dimmer, virtual color
wheel, color temperature
5Ch
5-channel: RGBAL control
7Ch
7-channel: RGBAL control, dimmer,
strobe
10Ch
10-channel: RGBAL control, 16-bit
dimmer, strobe, virtual color wheel,
color temperature
12Ch
12-channel: RGBAL control,
dimmer, strobe, virtual color wheel,
color temperature, auto programs,
auto speed, dimmer mode
13Ch
13-channel: 16-bit RGBAL,
dimmer, strobe
15Ch
15-channel: 16-bit RGBAL and
dimmer, strobe, virtual color wheel,
color temperature
Virtual
Color
Wheel
Virtual
Color
Wheel
C3050 - Md Yellow
Dimmer <000–255>
Virtual Color Wheel simulates the
output of each gel color. Refer to
the Virtual Color Wheel Chart
section for specific values
C3040 - Lt Yellow
C3240 - Amb Yellow
C2340 - VLt Amber
C2040 - Lt Amber
C2050 - Md Amber
C2060 - Dk Amber
C1050 - Lt Red

Ovation E-910FC QRG EN
7
Main Level
Programming Levels
Description
Virtual
Color
Wheel
(cont.)
Virtual
Color
Wheel
(cont.)
C1080 - Md Red
Dimmer <000–255>
Virtual Color Wheel simulates the
output of each gel. Refer to the
Virtual Color Wheel Chart section
for specific values
C1020 - NC Pink
C1030 - Md Pink
C1630 - Dk Pink
C1250 - Md Red
Amber
C1060 - Dk Red
Amber
C1650 - Magenta
C6170 - Dk Magenta
C6020 - Lt Lavender
C5030 - Lt Blue
C5020 - VLt Blue
C5430 - Lt Blue 2
C5070 - Blue
C5050 - Md Blue
C5060 - Dk Blue
C5690 - Indigo
C5080 - VDk Blue
C5081 - VDk Blue 2
C4370 - Yel Green
C4070 - Green
C4550 - Turquoise
C4560 - Aqua
C4570 - Blue Green
Color
Temperature
2800K
Dimmer <000–255>
Preset white color temperatures.
Emulates a tungsten lamp at the
specified color temperature. Refer
to the Preset Color Temperature
Chart section for specific values
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
Manual Color
Mixer
Red
<0–255> Combine red, green, blue, amber,
and lime to make a custom color
(0–100%)
Green
Blue
Amber
Lime

Ovation E-910FC QRG EN
8
Main Level
Programming Levels
Description
Auto Show
Auto 1
<1–100> Selects automatic programs and
auto program speed
Auto 2
Auto 3
Auto 4
Auto 5
Master/Slave
Master
DMX mode (Master)
Slave
Slave mode
Dimmer Mode
Off
No dimmer
Dimmer 1–3
Dimming curves Dimmer 1 (fast) to
Dimmer 3 (slow)
White Balance
OFF
Uses factory default white setting
Manual
Red
<125–255>
Sets red LED maximum value
Green
Sets green LED maximum value
Blue
Sets blue LED maximum value
LED Frequency
600Hz
Selects the PWM output frequency
1200Hz
2000Hz
4000Hz
6000Hz
25KHz
Fan Mode
Auto
Sets the fan to auto mode
On
Sets the fan to always on
Back Light
On
Display backlight always on
10S
Turns off display backlight after 10
sec of inactivity
20S
Turns off display backlight after 20
sec of inactivity
30S
Turns off display backlight after 30
sec of inactivity
Information
Fixture Hours
<_ _ _ _H>
Shows total product hours
Version
<V_._>
Shows installed software version
UID:
_ _ _ _ _ _ _ _ _ _ _ _
Shows product UID

Ovation E-910FC QRG EN
9
DMX Values
15Ch
Channel
Function
Value
Percent/Setting
1
Dimmer
000ó255
0–100%
2
Dimmer Fine
000ó255
0–100%
3
Red
000ó255
0–100%
4
Red Fine
000ó255
0–100%
5
Green
000ó255
0–100%
6
Green Fine
000ó255
0–100%
7
Blue
000ó255
0–100%
8
Blue Fine
000ó255
0–100%
9
Amber
000ó255
0–100%
10
Amber Fine
000ó255
0–100%
11
Lime
000ó255
0–100%
12
Lime Fine
000ó255
0–100%
13 Strobe
000ó010
011ó255
No function
Strobe, slow to fast
14 Virtual Color Wheel
000ó255
Refer to the Virtual Color Wheel Chart section
for specific values
15 Color Temperature 000ó255
Refer to the Preset Color Temperature Chart
section for specific values
13Ch
Channel
Function
Value
Percent/Setting
1
Dimmer
000ó255
0–100%
2
Dimmer Fine
000ó255
0–100%
3
Red
000ó255
0–100%
4
Red Fine
000ó255
0–100%
5
Green
000ó255
0–100%
6
Green Fine
000ó255
0–100%
7
Blue
000ó255
0–100%
8
Blue Fine
000ó255
0–100%
9
Amber
000ó255
0–100%
10
Amber Fine
000ó255
0–100%
11
Lime
000ó255
0–100%
12
Lime Fine
000ó255
0–100%
13 Strobe
000ó010
011ó255
No function
Strobe, slow to fast

Ovation E-910FC QRG EN
10
12Ch
Channel
Function
Value
Percent/Setting
1
Dimmer
000ó255
0–100%
2
Red
000ó255
0–100%
3
Green
000ó255
0–100%
4
Blue
000ó255
0-100%
5
Amber
000ó255
0–100%
6
Lime
000ó255
0-100%
7 Strobe
000ó010
011ó255
No function
Strobe, slow to fast
8 Virtual Color Wheel
000ó255
Refer to the Virtual Color Wheel Chart section
for specific values
9 Color Temperature 000ó255
Refer to the Preset Color Temperature Chart
section for specific values
10 Auto Programs
000ó010
011ó060
061ó110
111ó160
161ó210
211ó255
No function
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
11
Auto Speed
000ó255
Slow to fast
12 Dimmer Speed
000ó051
052ó101
102ó152
153ó203
204ó255
Preset dimmer speed from display menu
Dimmer speed mode off
Dimmer speed mode 1 (fastest)
Dimmer speed mode 2
Dimmer speed mode 3 (slowest)
10Ch
Channel
Function
Value
Percent/Setting
1
Dimmer
000ó255
0–100%
2
Dimmer Fine
000ó255
0–100%
3
Red
000ó255
0–100%
4
Green
000ó255
0–100%
5
Blue
000ó255
0-100%
6
Amber
000ó255
0–100%
7
Lime
000ó255
0-100%
8 Strobe
000ó010
011ó255
No function
Strobe, slow to fast
9 Virtual Color Wheel
000ó255
Refer to the Virtual Color Wheel Chart section
for specific values
10 Color Temperature 000ó255
Refer to the Preset Color Temperature Chart
section for specific values
