Chefmate CC12 User manual

Instruction Manual for Meat* Chopper Models
CC12 and CC22
Model CC12
This manual contains important safety instructions which
must be strictly followed when using this equipment.
* The CC12 and CC22 are for grinding MEAT ONLY. Do not use
the choppers for any other types of products.
For Service on Your Meat Chopper
1. Visit our website at www.globeslicers.com (select Service button)
2. Or...Call Globe service department at 937-297-7247 and ask for the contact
information for your local service company
Model #:
Serial #:
Visit our website for information on additional products available from Globe.
www.globeslicers.com
Slicers, Mixers, Vegetable Cutters, Meat Choppers, and Scales
- IMPORTANT SAFETY NOTICE -

ATTENTION OWNERS AND OPERATORS...................................................................................................4
KEY COMPONENTS OF THE CHOPPER.....................................................................................................5
INSTALLATION AND PROPER GROUNDING ..............................................................................................6-7
OPERATING INSTRUCTIONS.......................................................................................................................8-9
CLEANING.....................................................................................................................................................10
TROUBLE SHOOTING ..................................................................................................................................11
CHOPPER ACCESSORIES...........................................................................................................................12
LIMITED CHOPPER WARRANTY.................................................................................................................13
GLOBE FOOD EQUIPMENT COMPANY
P.O. BOX 3209
DAYTON, OH 45401
PHONE: [phone]
FAX: [phone]
E-MAIL: [email protected]
WEBSITE: www.globeslicers.com
© Globe Food Equipment Company, 2006
Printed in USA
INDEX

Page 4
This equipment is designed to provide safe and productive processing of food products as long as the equipment
is used in accordance with the instructions in this manual and is properly maintained. Importantly, unless the
operator is adequately trained and supervised there is a possibility of serious injury. Owners of this equipment
bear the responsibility to make certain that this equipment is used properly and safely. Strictly following all the
instructions contained in this manual and the requirements of local, state or federal law.
Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately
trained and supervised, and have read and understood this manual. Owners should also ensure that no
customers, children, visitors or other unauthorized personnel come in contact with this equipment. Please
remember that we cannot anticipate every circumstance or environment in which our equipment will be operated.
It is the responsibility of the owner and the operator to remain alert to any hazards posed by the function of this
equipment and all moving parts. If you are ever uncertain about a particular task or the proper method of operating
this equipment, ask your supervisor.
Throughout the manual you will see warnings to help alert you to potential hazards and to help promote safe use of
this equipment.
Warnings affecting your personal safety are indicated by:
Warnings related to possible damage to the equipment are indicated by:
Make certain that this manual is available for easy reference by any operator. A warning label in the English
language has been placed on the choppers. If the warning label or this manual are misplaced, damaged, or
illegible, or if you require additional copies, please contact your nearest representative or the factory directly for
these items at no charge.
Please remember that this manual and the warning labels do not replace the need to be alert, properly train and
supervise operators, and use common sense when using this equipment.
or
ATTENTION OWNERS AND OPERATORS

Page 5
KEY COMPONENTS OF THE CHOPPER
Feed Pan
FRONT VIEW
RIGHT SIDE VIEW
Feed Stomper
Adjusting Ring
Chopper Plate
Control Switch
Handle
Thumb Screw
Reset Button
Feed Chute
Rubber Feet
Hub Drive

Page 6
INSTALLATION AND PROPER GROUNDING
UNPACKING:
1. Unpack the chopper immediately after receipt. If the machine is found to be damaged, save the packaging
material and contact the carrier within fifteen (15) days of delivery. Immediately contact your source of the
equipment. You have no recourse to damage after fifteen (15) days.
2. You should receive with the chopper, rubber feet, knife, (2) chopper plates, feed chute, feed pan, feed
stomper, handle, allen wrench, warranty card, and an instruction manual. Contact the factory or your local
supplier if you did not receive all of these materials or if you need additional chopper plates.
TO AVOID SERIOUS PERSONAL INJURY PROPERLY
INSTALL THE CHOPPER IN AN ADEQUATE WORK AREA
• ALWAYS install equipment in a work area with adequate light and space.
• ONLY operate on a solid, level, nonskid surface.
• NEVER bypass, alter, or modify this equipment in any way from its original condition. Doing so may create
hazards and will void the warranty.
• NEVER operate the chopper without the feed chute and feed pan securely installed.
• NEVER operate the chopper without all warnings attached.
INSTALLATION:
1. Read this manual thoroughly before installation and operation. DO NOT proceed with installation and
operation if you have any questions or do not understand anything in the manual. Contact your local
representative or the factory first.
2. Remove the two screws from the top of the chopper by using the allen wrench that was included with the unit.
3. Place the handle on top of the chopper, insert the two screws into the holes of the handle, and secure the
handle to the unit by tightening the screws with the allen wrench.
4. Remove the chopper from the corrugated box.
5. Make sure the rubber feet are firmly tightened to the chopper.
NEVER USE CHOPPER WITHOUT THE RUBBER FEET INSTALLED.
6. Select a location for the chopper that has a level, solid, nonskid surface and is a well-lighted work area away
from children and visitors.
USE AT LEAST TWO PEOPLE TO LIFT THE CHOPPER UP TO ITS OPERATING LOCATION. NEVER
ATTEMPT TO LIFT THE CHOPPER ALONE.

Page 7
THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG. THE OUTLET TO WHICH
THIS PLUG IS CONNECTED MUST BE PROPERLY GROUNDED. IF THE RECEPTACLE IS NOT THE
PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT UNDER ANY CIRCUMSTANCES
CUT OR REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER
PLUG (Figure 7-1 and Figure 7-2).
7. Inspect the chopper to ensure all parts have been provided.
8. Make sure the warning label is properly positioned and legible and the instruction manual is available near
the chopper.
9. Complete the warranty card and mail it to the factory.
10. Clean the chopper using the procedures outlined in the cleaning section on page 10 prior to using the chopper.
11. Contact your local representative or the factory directly if you have any questions or problems with the
installation or operation of this chopper.
INSTALLATION AND PROPER GROUNDING

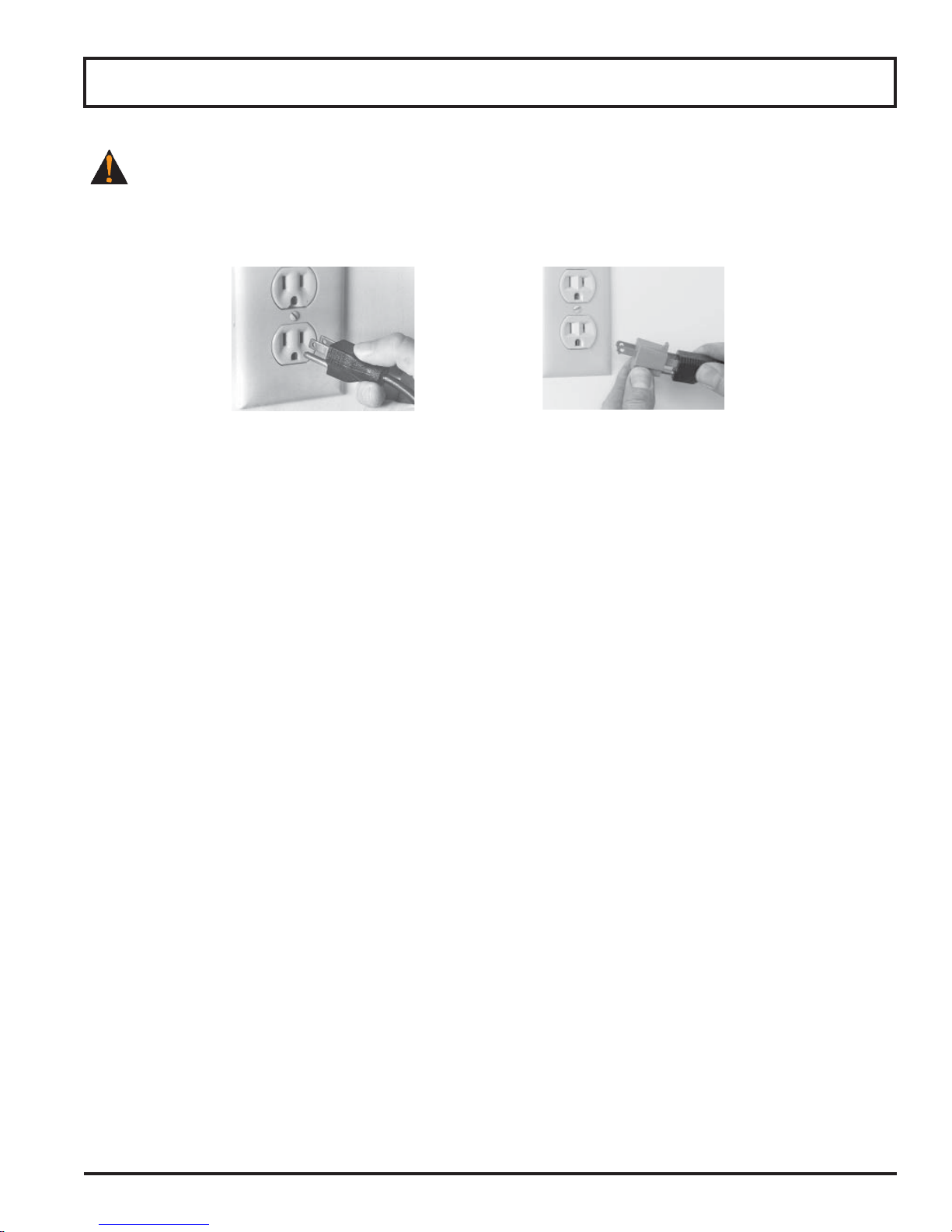

Figure 7-1 Correct Figure 7-2 Incorrect

Page 8

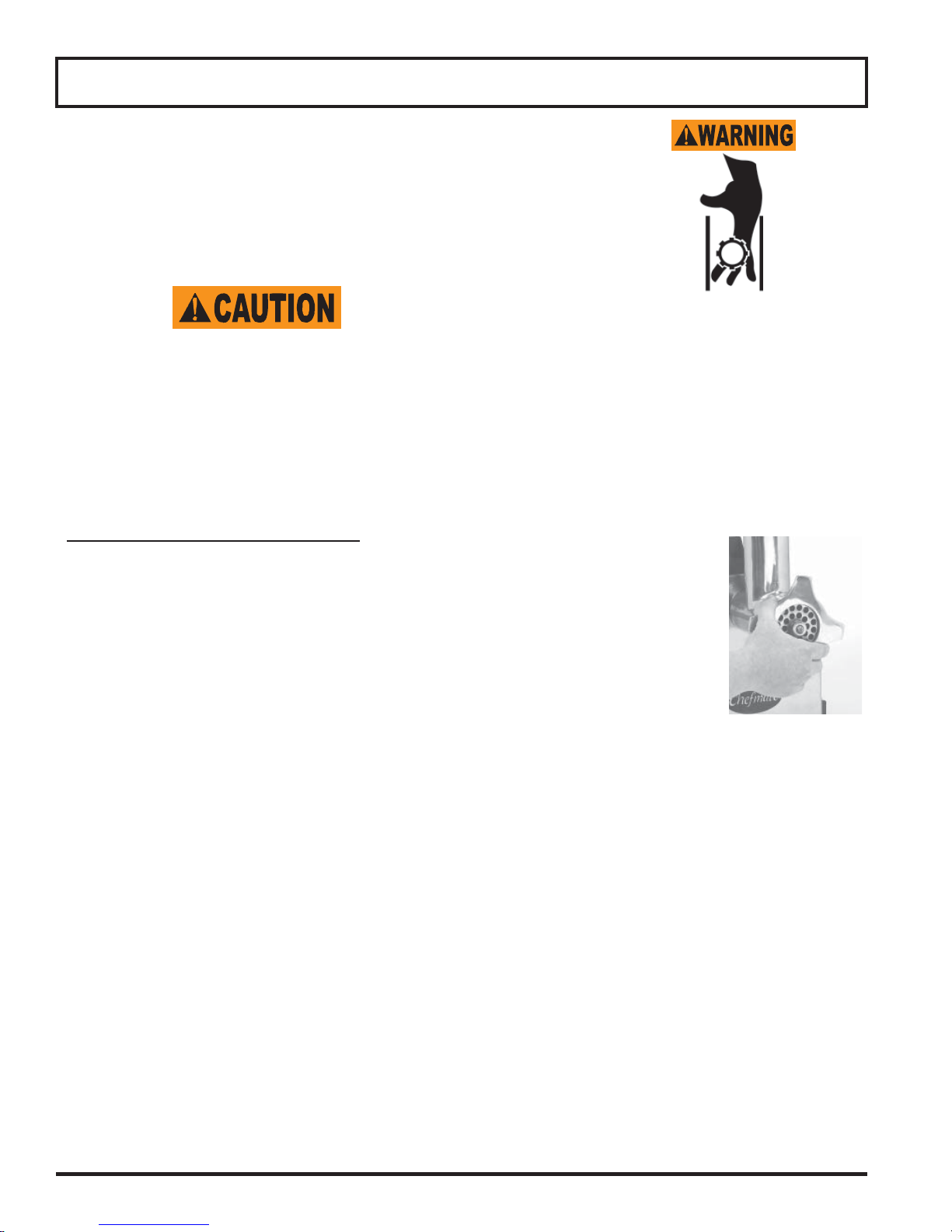

OPERATING INSTRUCTIONS
TO AVOID SERIOUS PERSONAL INJURY:
• NEVER touch the chopper without training and authorization from your
supervisor or if you are under 18 years old. Read the instruction manual first.
• ONLY install the chopper on a level nonskid surface in a clean, well-lighted
work area away from children and visitors.
• ALWAYS ground the chopper utilizing the proper power source.
• NEVER OPERATE the chopper without the feed chute and feed pan securely installed.
• NEVER put fingers into the feed chute during operation. ONLY USE THE FEED STOMPER, NOT YOUR
HAND, to push meat into the chopper.
• BEFORE CLEANING, SERVICING, OR REMOVING ANY PARTS, always turn the chopper off and unplug it.
• KEEP the unit UNPLUGGED when not in use to prevent accidental start up.
The chopper is for grinding MEAT ONLY. DO NOT use for any other types of products.
NEVER operate the chopper without having meat in the feed chute.
This will damage the unit and void the warranty.

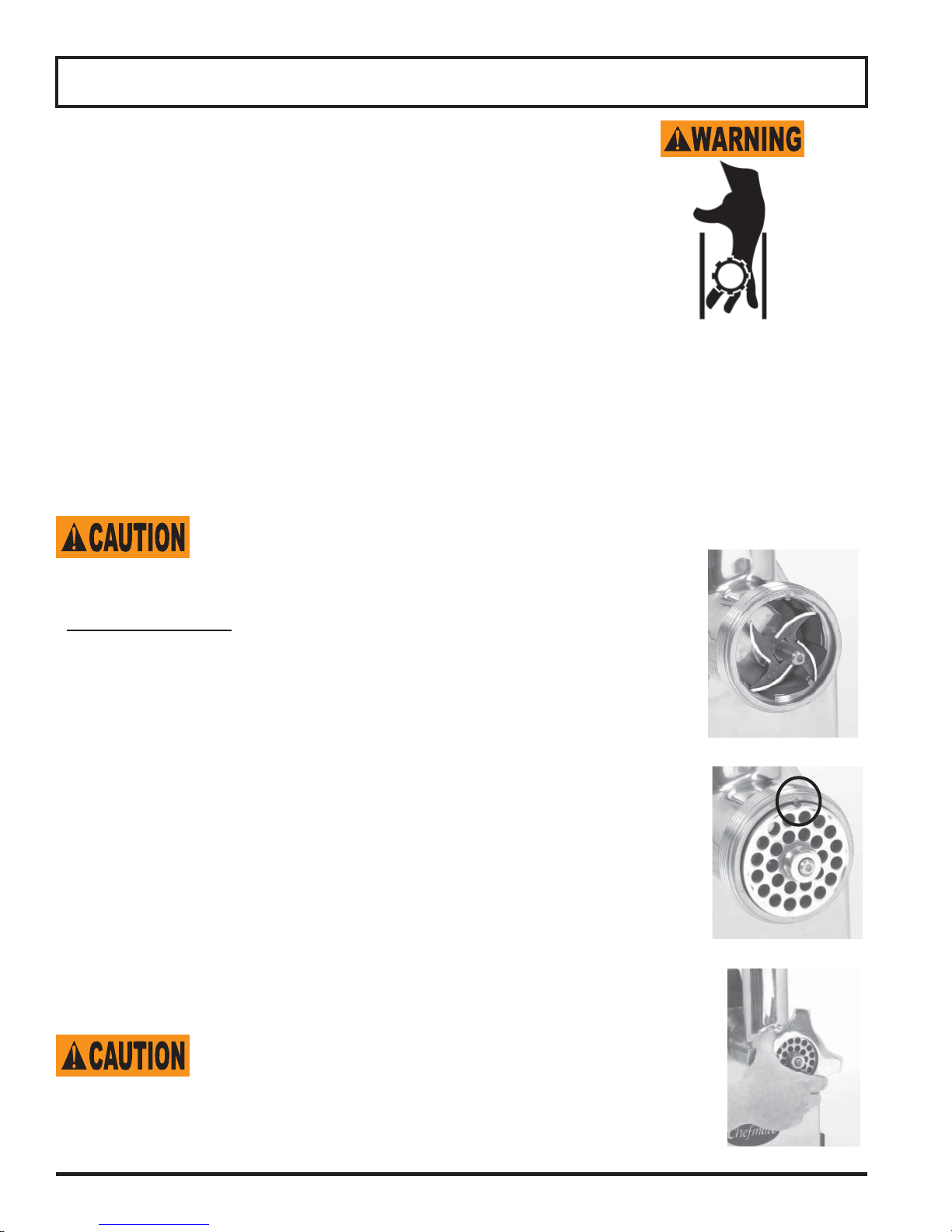

CHOPPER ASSEMBLY
NOTE: Additional chopper plate sizes are available (see page 12).
1. Unplug the chopper.
2. Insert the feed chute into the hub and tighten the thumb screw clockwise until it is
secure. Do not us a tool or over tighten.
3. Slide the worm into the feed chute and rotate it until the worm locks into the hub drive.
4. Place the knife onto the worm with the cutting edges facing out (see figure 8-1).
5. Place the chopper plate onto the worm and rotate it until the notch in the plate lines up
with the pin on the cylinder (see figure 8-2).
6. Place the adjusting ring onto the feed chute.
7. Hand tighten the adjusting ring and then rotate it back (counterclockwise) about
one inch (see figure 8-3).
IMPORTANT: The adjusting ring should not be securely tightened or
snug. Over tightening the adjusting ring will damage the unit.
8. Place the feed pan onto the feed chute.
9. Make sure the control switch is in the OFF position and plug the chopper in.
Figure 8-1
Figure 8-2
Figure 8-3

Page 9
OPERATING INSTRUCTIONS
TO AVOID SERIOUS PERSONAL INJURY:
• NEVER OPERATE the chopper without the feed chute and feed pan
securely installed.
• NEVER put fingers into the feed chute during operation. ONLY USE THE
FEED STOMPER, NOT YOUR HAND, to push meat into the chopper.
This chopper is intended for grinding MEAT ONLY. DO NOT
use for any other types of products. DO NOT use frozen meat.
Meat must be completely thawed.
CHOPPER OPERATION
1. Prepare meat for grinding by removing all skin and bones. Then cut the meat into appropriately sized pieces
for grinding.
2. Place the meat into the feed pan and place a container under the feed chute to catch the ground meat.
3. Turn the control switch to the forward (FOR) position.
4. Feed the meat into the feed chute using only the feed stomper.
NOTES: During grinding, meat should be discharged from the grinder smoothly. If the meat being discharged
is not smooth, or if it is in the form of a paste, turn the control switch to OFF and review the trouble shooting
section on page 11 for possible causes and solutions.
If the meat works back in the feed chute, turn the control switch to OFF and review the plate and knife for
wear. If they are worn thin replace them. Plates and knives should be replaced at the same time.
If the chopper makes a metal grinding noise or shuts off during operation, review the trouble shooting
section on page 11.
5. When all of the meat has been ground turn the control switch to the OFF position and unplug the chopper.
IMPORTANT: It is important that you disassemble the unit and wash all parts thoroughly after each
use to prevent contamination!
PROCEDURE FOR STUFFING SAUSAGE
IMPORTANT: The stuffing plate must be used and installed without the knife when stuffing sausage.
1. Place the preferred plate and knife in the feed chute and grind the meat to the desired size.
2. In a large container, mix spices and other ingredients to the ground meat.
3. Place the stuffing plate (3 large openings) and the stuffing tube in the feed chute. DO NOT install the knife.
4. Run the ground meat through the unit again with a casing placed over the stuffing tube.

Page 10
CLEANING
TO AVOID SERIOUS PERSONAL INJURY:
• BEFORE CLEANING, SERVICING, OR REMOVING ANY PARTS, always
turn the chopper off and unplug the unit
• NEVER attempt to clean the chopper while the chopper is in operation.
• DO NOT put components in the dishwasher or immerse the base in water.
• Dilute detergent per supplier’s instruction. Products containing sodium hypochlorite should not be used on
the chopper.
• DO NOT hose down, pressure wash, or pour water on the chopper.
• NEVER use a scrubber pad, steel wool, or abrasive material to clean the chopper.
CHOPPER DISASSEMBLY & CLEANING
1. Make sure the unit is turned off and unplugged.
2. Remove the feed pan from the feed chute.
3. Remove the adjusting ring by rotating it counterclockwise (see figure 10-1).
4. Pull the chopper plate off of the worm and then pull the knife off of the worm.
5. Remove the worm from the feed chute.
6. Loosen the thumb screw by rotating it counterclockwise 2 to 3 times. Do not remove the thumb screw.
7. Pull the feed chute out of the hub.
8. Clean the disassembled components and the base of the chopper with a mild detergent and warm water
solution. Allow parts to air dry.
NOTE: Do not wash the knife or plate with steam or hot water after grinding chilled meat.
9. Clean the plate holes with a wire brush to remove any particles of meat. Do not hit the plate against a hard
surface to remove particles of meat. Doing so may damage the plate.
NOTE: Do not store the knives and plates while they are still wet.
10. Globe recommends wiping the plates and knives with mineral oil if they are not going to be used immediately.
11. Make sure that all surfaces are dry before reassembling the unit.
Figure 10-1

Page 11
TROUBLE SHOOTING
SYMPTOM
During grinding the meat being
discharged is not smooth or is
in the form of paste.
During grinding the meat works
back in the feed chute.
During grinding the chopper
makes a metal grinding noise.
Motor quits during grinding.
Motor sounds like it is straining.
CAUSE
Adjusting ring is on too tight.
Chopper plate is blocked.
Knife blade or plate edges have dulled.
Knife or plate is worn thin.
Adjusting ring is on too tight.
Overloading of meat.
Adjusting ring is on too tight.
Trying to grind frozen meat.
Adjusting ring is on too tight.
Knife or plate edges have dulled.
SOLUTION
Loosen the adjusting ring. Hand
tighten it then rotate the adjusting
ring back about one inch.
Turn the control switch to the
reverse (REV) position. Clean out
plate.
Replace the knife and plate.
Replace the knife and plate.
Loosen the adjusting ring. Hand
tighten it then rotate the adjusting
ring back about one inch.
Turn the control switch to OFF. Let
the unit cool off for several minutes
before starting up again. Press the
reset button.
Turn the control switch to OFF. Let
the unit cool off for several minutes.
Loosen the adjusting ring. Hand
tighten it then rotate the adjusting
ring back about one inch. Press the
reset button.
Remove the meat from the chopper
and let the meat completely thaw
before continuing to grind the
product.
Loosen the adjusting ring. Hand
tighten it then rotate the adjusting
ring back about one inch.
Replace the knife and plate.

Page 12
CC12 ACCESSORIES
Part No. Description
CMCA-12 #12 Meat Chopper Head Assembly (included in CC12)
(includes knife, pan, pusher, 1/4”plate, and 5/16” plate)
CP00-12 Stuffing Plate, (0mm)
CP02-12 Chopper Plate, 1/16” (2mm)
CP04-12 Chopper Plate, 5/32” (4mm)
CP06-12 Chopper Plate, 1/4” (6mm)
CP08-12 Chopper Plate, 5/16” (8mm)
CP10-12 Chopper Plate, 3/8” (10mm)
CP12-12 Chopper Plate, 1/2” (12mm)
CP14-12 Chopper Plate, 9/16” (14mm)
CP16-12 Chopper Plate, 5/8” (16mm)
CP18-12 Chopper Plate, 11/16” (18mm)
CK-12 Chopper Knife
CC1243 Stuffing Tube
CSKIT-12 Stuffing Kit (includes a stuffing plate and stuffing tube)
CC22 ACCESSORIES
Part No. Description
CMCA-22 #22 Meat Chopper Head Assembly (included in CC22)
(includes knife, pan, pusher, 1/4”plate, and 5/16” plate)
CP00-22 Stuffing Plate, (0mm)
CP02-22 Chopper Plate, 1/16” (2mm)
CP04-22 Chopper Plate, 5/32” (4mm)
CP06-22 Chopper Plate, 1/4” (6mm)
CP08-22 Chopper Plate, 5/16” (8mm)
CP10-22 Chopper Plate, 3/8” (10mm)
CP12-22 Chopper Plate, 1/2” (12mm)
CP14-22 Chopper Plate, 9/16” (14mm)
CP16-22 Chopper Plate, 5/8” (16mm)
CP18-22 Chopper Plate, 11/16” (18mm)
CP20-22 Chopper Plate, 3/4” (20mm)
CK-22 Chopper Knife
CC2237 Stuffing Tube
CSKIT-22 Stuffing Kit (includes a stuffing plate and stuffing tube)
CHOPPER ACCESSORIES

Page 13
LIMITED CHOPPER WARRANTY
GFE warrants to the original purchaser of new equipment that said equipment, when installed in accordance with
our instructions within North America and subjected to normal use, is free from defects in material or workmanship
for a period of 1 year on parts (excludes wear/expendable parts). The labor warranty is 1 year on labor from
original installation, or 18 months from actual shipment date, whichever date occurs first.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. GFE
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESS OR IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
GFE’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING
AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP
WITHIN THEAPPLICABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by
an Authorized Designated GFE Service Location during normal working hours. IN NO EVENT SHALL GFE BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY, INCLUDING,
WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR
OTHER ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES, WHETHER IN NEGLIGENCE,
WARRANTY, STRICT LIABILITY, OR OTHERWISE.
This Warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent
transferees.
This Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to
excess water, fire, normal wear, improper set up and use. Periodic maintenance is not covered.
This Warranty is not in force until such time as a properly completed and signed Installation/Warranty Registration
has been received by GFE within 30 days from the date of installation.
THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN
THE BUYER AND SELLER. GFE NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TO ASSUME FOR
ITANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT.
Example of items not covered under warranty, but not limited to just these items:
1. Acts of God, fire, water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after market parts.
5. Repairs made by anyone other than a GFE designated servicer.
6. Lubrication.
7. Expendable wear parts.
8. Cleaning of equipment.
9. Misuse or abuse.
