Chicago Electric 93808 User manual

CORDLESS 18V CIRCULAR SAW
WITH LASER
Model 93808
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at http://www.harborfreight.com
®
Copyright©2005 by Harbor Freight Tools®. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353.
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 2
English
PRODUCT SPECIFICATIONS
rotoMtloV81,MPR0024
snoitacificepSedalB /MPR0005/piTedibraCT42
61/2xretemaiD" 5/8robrA"
selgnAdnashtpeDgnittuC 1;°09@"2 1/4°54@"
leveBmumixaM°05
yrettaB ,yrettaBhMiNtloV81
emiTegrahCruoHenO
thgieWyrettaBhtiw.sbl5.9
tupnIesaBregrahCz
H06,CAV011
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and assembly
diagram. Keep your invoice with this manual. Write the invoice number on the inside of the
front cover. Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES FOR ALL BATTERY OPERATEDTOOLS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may
result in electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may ignite
the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
E194601

SKU 93808 For technical questions, please call 1-800-444-3353. Page 3
English
ELECTRICAL SAFETY
1. Do not abuse the cord. Never use the cord to carry the tool. Keep cord away
from heat, oil, sharp edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
2. A battery operated tool with integral batteries or a separate battery pack must
be recharged only with the specified charger for the battery. A charger that may
be suitable for one type of battery may create a risk of fire when used with another
battery.
3. Use battery operated tool only with specifically designated battery pack. Use
of any other batteries may create a risk of fire.
PERSONAL SAFETY
1. Stay alert, watch what you are doing, and use common sense when operating
a power tool. Do not use tool while tired or under the influence of drugs, alcohol,
or medication. A moment of inattention while operating power tools may result in
serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is in the locked or off position before
inserting battery pack. Carrying tools with your finger on the switch or inserting
the battery pack into a tool with the switch on invites accidents.
4. Remove adjusting keys or wrenches before turning the tool on. A wrench or a
key that is left attached to a rotating part of the tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enable better control of the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, nonskid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
TOOL USE AND CARE
1. Use clamps or other practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against your body is unstable and
may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct tool will
do the job better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it on or off. A tool that cannot be controlled
with the switch is dangerous and must be repaired.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 4
English
4. Disconnect battery pack from tool or place the switch in the locked or off
position before making any adjustments, changing accessories, or storing
the tool. Such preventive safety measures reduce the risk of starting the tool
accidentally.
5. Store idle tools out of reach of children and other untrained persons.Tools are
dangerous in the hands of untrained users.
6. When battery pack is not in use, keep it away from other metal objects like:
paper clips, coins, keys, nails, screws, or other small metal objects that can
make a connection from one terminal to another. Shorting the battery terminals
together may cause sparks, burns, or a fire.
7. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
tools with sharp cutting edge are less likely to bind and are easier to control.
8. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have the
tool serviced before using. Many accidents are caused by poorly maintained tools.
9. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may create a risk of injury
when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instructions
in the Maintenance section of this manual. Use of unauthorized parts or failure to
follow Maintenance Instructions may create a risk of shock or injury.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 5
English
SPECIFIC SAFETY RULES
1. DANGER! Keep hands away from cutting area and blade. Keep your second
hand on auxiliary handle or motor housing. If both hands are holding the saw,
they cannot be cut by the blade.
Keep your body positioned to either side of the saw blade, but not in line with
the saw blade. KICKBACK could cause the saw to jump backwards. (See
KICKBACK)
Do not reach underneath the work. The guard can not protect you from the blade
below the work.
2. Check lower guard for proper closing before each use. Do not operate saw if
lower guard does not move freely and close instantly. Never clamp or tie the
lower guard into the open position. If saw is accidentally dropped, lower guard
may be bent. Raise the lower guard with the Retracting Handle and make sure it
moves freely and does not touch the blade or any other part, in all angles and depths
of cut.
3. Check the operation and condition of the lower guard spring. If the guard and
the spring are not operating properly, they must be serviced before use. Lower
guard may operate sluggishly due to damaged parts, gummy deposits, or a buildup
of debris.
4. Lower guard should be retracted manually only for special cuts such as
“Pocket Cuts”and “Compound Cuts.”Raise lower guard by Retracting Handle.
As soon as blade enters the material, lower guard must be released. For all
other sawing, the lower guard should operate automatically.
5. Always observe that the lower guard is covering the blade before placing saw
down on bench or floor. An unprotected, coasting blade will cause the saw to
walk backwards, cutting whatever is in its path. Be aware of the time it takes for the
blade to stop after switch is released.
6. NEVER hold piece being cut in your hands or across your leg. It is important to
support the work properly to minimize body exposure, blade binding, or loss of
control.
7. Hold tool by insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring. Contact with a “live” wire will also
make exposed metal parts of the tool “live” and shock the operator.
8. When ripping always use a rip fence or straight edge guide. This improves the
accuracy of cut and reduces the chance for blade binding.
9. Always use blades with correct size and shape (diamond vs. round) arbor
holes. Blades that do not match the mounting hardware of the saw will run
eccentrically, causing loss of control.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 6
English
10. Never use damaged or incorrect blade washers or bolts. The blade washers
and bolt were specially designed for your saw, for optimum performance and safety
of operation.
11. Causes and Operator Prevention of Kickback:
Kickback is a sudden reaction to a pinched, bound, or misaligned saw blade, causing
an uncontrolled saw to lift up and out of the workpiece toward the operator. When
the blade is pinched or bound tightly by the kerf closing down, the blade stalls and
the motor reaction drives the unit rapidly back toward the operator. If the blade
becomes twisted or misaligned in the cut, the teeth at the back edge of the blade
can dig into the top surface of the wood causing the blade to climb out of the kerf
and jump back toward the operator.
Kickback is the result of tool misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below:
12. Maintain a firm grip on the saw and position your body and arm in a way that
allows you to resist KICKBACK forces. KICKBACK forces can be controlled by
the operator, if proper precautions are taken.
13. When blade is binding, or when interrupting a cut for any reason, release the
trigger and hold the saw motionless in the material until the blade comes to a
complete stop. Never attempt to remove the saw from the work or pull the saw
backward while the blade is in motion or KICKBACK may occur. Investigate
and take corrective actions to eliminate the cause of blade binding.
14. When restarting a saw in the workpiece, center the saw blade in the kerf and
check that teeth are not engaged into the material. If saw blade is binding, it
may walk up or KICKBACK from the workpiece as the saw is restarted.
15. Support large panels to minimize the risk of blade pinching and KICKBACK.
Large panels tend to sag under their own weight. Supports must be placed under
the panel on both sides, near the line of cut and near the edge of the panel.
16. Do not use dull or damaged blade. Unsharpened or improperly set blades produce
narrow kerf causing excessive friction, blade binding, and KICKBACK.
17. Blade depth and bevel adjusting locking levers must be tight and secure before
making cut. If blade adjustment shifts while cutting, it will cause binding and
KICKBACK.
18. Use extra caution when making a “Pocket Cut” into existing walls or other
blind areas. The protruding blade may cut objects that can cause KICKBACK.
19. WARNING! People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
20. WARNING! Some dust created by power sawing, grinding, drilling, and other
construction activities, contain chemicals known (to the State of California) to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals

SKU 93808 For technical questions, please call 1-800-444-3353. Page 7
English
are: lead from lead-based paints, crystalline silica from bricks and cement or other
masonry products, arsenic and chromium from chemically treated lumber. Your risk
from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work
with approved safety equipment, such as those dust masks that are specially
designed to filter out microscopic particles. (California Health & Safety Code §
25249.5,
et seq. )
21. WARNING! The warnings, precautions, and instructions discussed in this manual
cannot cover all possible conditions and situations that may occur. The operator
must understand that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
SYMBOLOGY
BATTERY PRECAUTIONS
1. Proper Battery Care: Battery (H) leakage may occur under extreme usage or
temperature conditions. If Battery fluid comes in contact with skin, wash with soap
and water and rinse with lemon juice and vinegar. If the fluid comes in contact with
eyes, flush with water for several minutes and contact a doctor immediately. Never
burn the Battery, as it can explode in a fire. Do not attempt to charge a leaking
Battery. Contact local solid waste authorities for instructions on correct disposal or
recycling of the Battery.
2. Do not allow children to handle or play with these products.
3. Industrial applications must follow OSHA requirements.
4. Check for damaged parts. Before using these products, carefully check that they
will operate properly and perform their intended function. Check for damaged parts
and any other conditions that may affect the safe operation of these products. Replace
or repair damaged or worn parts immediately.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 8
English
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List and the
assembly diagram on page 21 and 22 are included. If any parts are missing or broken,
please call Harbor Freight Tools at the number listed on the front cover of this manual.
5. Replacement parts and accessories: When servicing, use only identical
replacement parts. Only use accessories intended for use with this product.
6. Use the right tool or attachment for the right job. There are certain applications
for which this product was designed. It will do the job better and more safely at the
rate for which it was intended. Do not modify this product, and do not use this product
for a purpose for which it is not intended.
7. NEVER charge the Battery (H) more than two hours continuously.
8. Always switch to a fresh Battery when tool performance begins to diminish.
Severe heat is most destructive to a Battery. The more heat generated, the faster the
Battery loses power. A Battery that gets too hot can be permanently damaged. Never
over-discharge a Battery by using the tool even after tool performance is decreasing.
Never attempt to discharge a tool’s Battery by continuing to pull the tool trigger.
When tool performance begins to diminish stop the tool, recharge the Battery and
use the fresh Battery for optimal performance.
9. Read all instructions and warnings on the battery before charging the battery.
10. To avoid accidents, charge the supplied battery only. Do not use a different
charger with this battery.
11. Do not expose the battery to rain or wet conditions.
12. To avoid damage of cable and plug, never pull the cable to disconnect the
charger.
13. Do not use the charger if the cable or plug are damaged.
14. Repairs should be carried out only by qualified service technicians.
15. Do not touch the battery poles with any conductive source.
16. Do not store the battery in a box with other metal objects.
17. NiMh Battery must be recycled or disposed of properly. Do not throw the battery
in a fire.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 9
English
CHARGING BATTERY
NOTE: Refer to page 18, Figure 3 to help identify parts discussed below. Use the

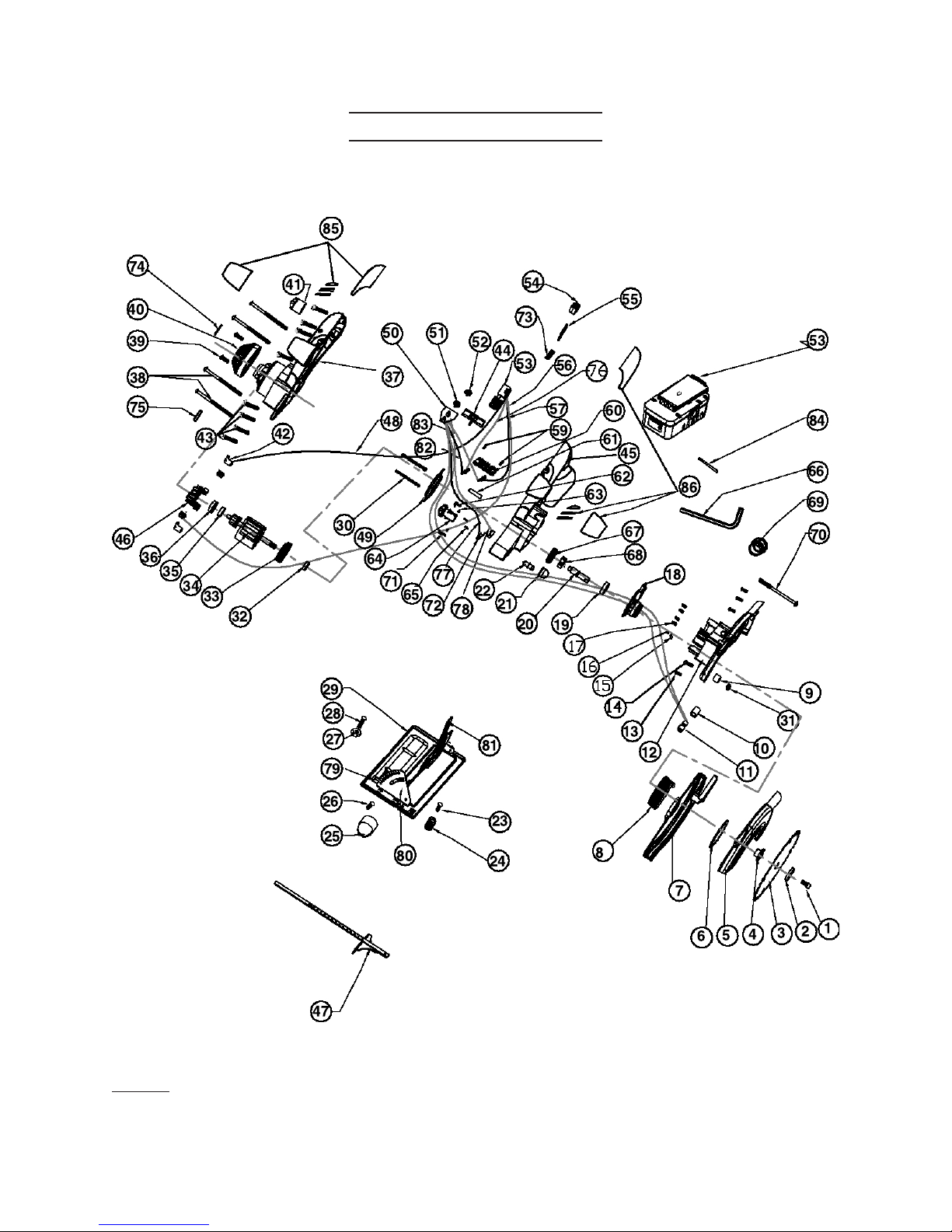

part numbers in the Parts List on page 21 and shown on the Assembly Diagram
on page 22 to identify and order replacement parts.
NOTE: The Battery does not come charged from the factory. Charge before using.
Charging room temperature: 50° F - 104° F.
1. Plug the Charger Base (O) into a wall socket. Note: The Charger Base (O) has both
an ON red light, and an OFF green light.
2. When the Charger Base (O) is plugged into a wall socket, the RED light will come
on and stay on steadily. This shows that all circuitry is working properly and the
Charger Base is ready to charge.
3. Slide the Battery (H) forward until it firmly seats into the Charger Base (O). The
GREEN light will go on and begin to flash. This indicates the battery is charging.
4. The charging period takes approximately one hour for a fully discharged battery
and less for a battery not fully discharged. When the Battery (H) has been fully
charged the Charger Base (O) will beep once and the GREEN light will stay on
steadily.
5. Remove the Battery (H) from the Charger Base (O) and insert the Battery (H) into
the base of the tool.
6. Press the test button on the Battery (H) to verify the battery is fully charged.
7. All four lights lit represent a full charge of the Battery.
INSTALLING & REMOVING THE BATTERY PACK
Warning! Do not touch the Trigger Switch (B) or the Trigger Release Button (A) while
installing the Battery.

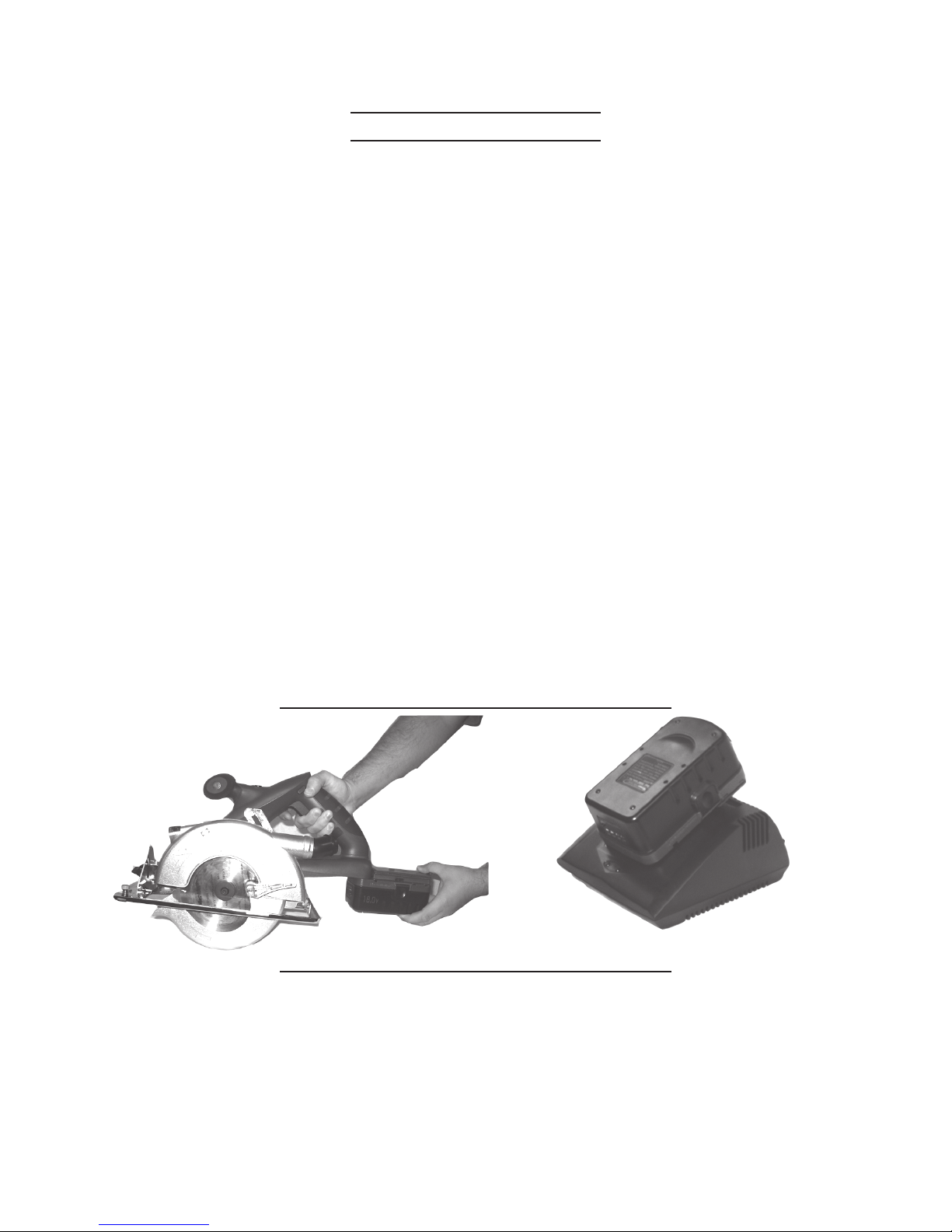

Insert the Battery (H) into the saw body as shown in Fig. 1. Fig. 2 shows the Battery (H)
correctly inserted in the Charger Base (O).
FIGURE 1 FIGURE 2
Charger Base

SKU 93808 For technical questions, please call 1-800-444-3353. Page 10
English
NOTE: When removing the Battery Pack from the saw body, press in on the two locking
tabs located on each side of the Battery Pack and pull straight out from the body.
Warning! If two or more batteries are to be charged, allow the Charging Base time
to cool down between charges.
WORK LIGHT AND LASER GUIDE
Your 18 Volt Cordless Circular Saw has an integrated Work Light and a Laser Guide.
The Work Light (F) is activated and deactivated by depressing the Work Lamp Switch (C)
located on the top of the saw. The Laser Guide (E) is activated by pulling the trigger and
can be activated no other way.
NOTE: The Work Light and Laser Guide are aids and are not intended to function in
any manner other than that described in this manual.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 11
English
OPERATION
Install the Saw Blade. Prepare and secure the material to be cut before turning on
saw. The Battery (H) should have a full charge before using saw. Remove battery before
making any adjustments. Refer to Figure 3, on page 18.
INSTALLING CUTTING BLADE
NOTE: The Lock Bolt is a reverse thread.
1. Remove The Battery (O) before making any adjustments.
2. Press on the Spindle Lock Button (J) to keep the Saw Blade from moving while
turning the Blade Bolt (I).
3. Using the Hex Key (P), loosen and remove Lock Bolt (I) and Outer Flange (I).
4. Rotate the Lower Blade Guard (K), counterclockwise to allow entry of the Saw Blade.
5. Insert Saw Blade through the Base Plate (M) until blade fits on the motor spindle.
Notice the arrow on the Lower Blade Guard (K) and the arrow on the Saw
Blade. They should be pointing in the same direction.
6. Replace the Outer Flange (I) and Blade Bolt (I). Tighten with the Hex Key (P) while
pressing on the Spindle Lock Button (J). Verify that the Spindle Lock Button (J) is
in the up (unlocked) position.
7. Replace the Hex Key (P) to its storage hole in the housing of the saw.
ADJUSTING THE SAW PRIOR TO CUTTING
1. To adjust the angle of blade, loosen the Bevel Cut Adjustment Knob (G) and move
Base Plate (M) while observing the degree scale located next to the Bevel Cut
Adjustment Knob (G).
2. To adjust the depth of the cut, loosen the Depth Adjustment Knob (N), which is
located next to the motor housing, and move the Base Plate (M) while observing the
amount of Saw Blade exposed under Base Plate. Tighten the Depth Adjustment
Knob (N) after making the adjustment.
3. Rip Fence installation and adjustment:
The Rip Fence can be inserted into either the left or right side at the toe of the Base
Plate (M). Insert the Rip Fence into the fence guides until it contacts the Retention
Bolt (Q). Loosen the Retention Bolt (Q) until the fence can slide through then secure
it by turning the Retention Bolt (Q) clockwise. The Rip Fence is adjustable from 0”-
5”. ( Refer to Page 18, Fig. 3)

SKU 93808 For technical questions, please call 1-800-444-3353. Page 12
English
FUNCTIONS

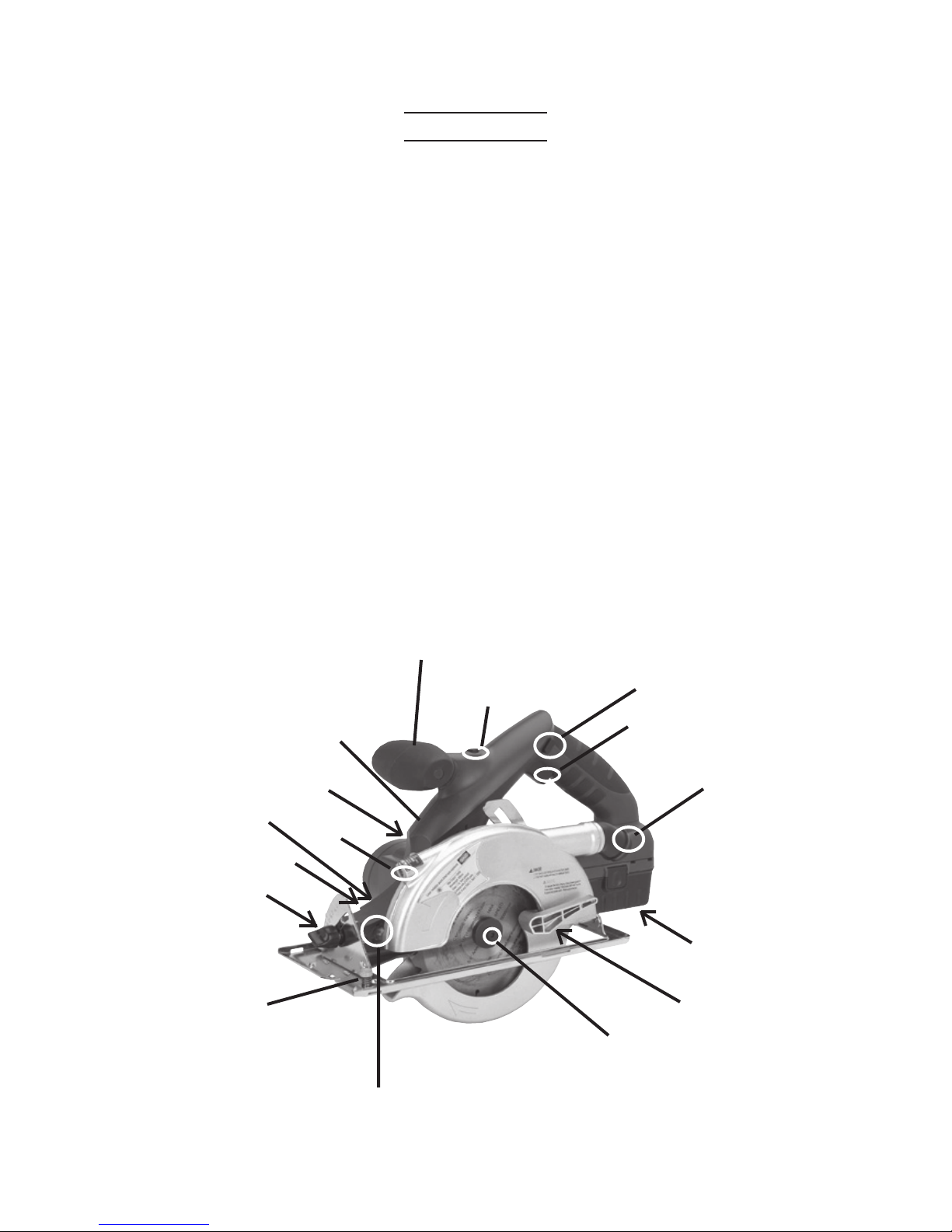

The 18 Volt Cordless Circular Saw has the following features, as shown
in Fig. 3 below.
(K) Lower Blade Guard
(L) Light Holder
(M) Base Plate
(N) Depth Adjustment Knob
(next to the motor of the saw
not shown)
(O) Charger Base (shown on
page 16)
(P) Hex Key (Inserted in Saw
Body next to motor)
(Q) Retention Bolt
(R) Dust Port
(A) Trigger Release Button
(B) Trigger Switch
(C) Work Lamp Switch
(D) Off hand handle
(E) Laser Guide
(F) Work Light
(G) Bevel Cut Adjustment Knob
(H) 18 volt NiMh Battery
(I) Blade Flange and bolt
(J) Spindle Lock for blade change
(between saw body and upper
blade guard)
A
H
C
B
F
I
G
Figure 3
J
E
K
L
N
D
Q
P
R

SKU 93808 For technical questions, please call 1-800-444-3353. Page 13
English
PREPARE MATERIAL BEFORE CUTTING
1. Support large panels to minimize risk of blade pinching and saw kickback.
2. Use a rip fence or secured straight edge guide when ripping material.
3. Securely clamp material to be cut to work bench.
4. Make sure saw does not cut into supports or workbench.
5. Use the appropriate type of blade for the material you are cutting.
CUTTING
Warning: The user can be seriously injured if the tool is not used properly.
Read this entire manual before using. Verify that the Saw Blade is securely
tightened and both angle and height adjustment knobs are tight before
proceeding. See Page 17.
1. Mark the line you will be cutting.
2. Place the Base Plate (M) on material to be cut. Align the front notch of the Base
Plate (right edge aligns with saw blade) on the cut line. Make Sure the Saw Blade
is NOT touching the material you will be cutting at this point or the saw will
kickback!
3. To start the saw, depress the Trigger Release Button ( A) and squeeze the Trigger
Switch (B).
4. With the saw at full speed, move the saw slowly forward to complete the cut.
5. When the cut is complete, release the Trigger Switch (1) and the electric brake will
stop the blade instantly. Do not set the saw down until the blade stops turning.
6. Once the blade stops and work is complete, remove the battery and store the Circular
Saw in a safe location, out of reach of children.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 14
English
INSPECTION, MAINTENANCE, AND CLEANING
WARNING! Always make sure theTrigger Switch (2) is in its “OFF”position,
and remove the Battery before performing any inspection, adjustments,
maintenance, or cleaning.
1. Keep the Circular saw clean; remove all sawdust that has accumulated.
2. Regularly inspect all mounting screws and knobs to ensure that they are properly
tightened.
3. Keep saw blades clean and sharp. Sharp blades minimize stalling and kickback.
4. Keep guards in good working order.
5. Keep motor air vent clean of dust and debris. Vacuum periodically.
6. If the tool is not operating normally, making unusual noises, appears defective or if
any other problem with the tool exists, stop using it immediately and get it repaired
by a qualified service technician.
7. Clean tool with a damp cloth and light detergent. Do not use solvents as they can
damage and crack the plastic parts.
8. If the tool does not start or operate at full power with a fully charged battery pack,
contacts on the battery pack may need to be cleaned.
9. Check for cracks or damage to the tool before using it.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS DIAGRAM IN THIS
MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES
ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALI-
FIED TO MAKE ANY REPAIRS TO THE PRODUCT OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTI-
FIED AND LICENSED TECHNICIANS AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACE-
MENT PARTSTHERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS
THERETO.

SKU 93808 For technical questions, please call 1-800-444-3353. Page 15
English
PARTS LIST
traPnoitpircseD.ytQtraPnoitpircseD.ytQ
1wercSkcoL144bonKhsuP2
2egnalFedistuO154ydoBtfeL1
3edalB164kcaRhsurBnobraC1
4egnalFedis
nI174ecneFediuG1
5revoCdrauGdexiF184eriWkcalB1
6gnirpS194revoC1
7drauGedalBrewoL105draoBBCP1
8gnirpS115nottuBthgiL1
9rebbuRelffaB125no
ttuBresaL1
01eveelSrebbuR135hctiwS1
11thgiLresaL145nottuBkcoLeldnipS1
21drauGedalBreppU155kcoLeldnipS1
31wercS465eriWdeR1
41werc
S475eriWkcalB1
51etalPeriW185kcaPyrettaB1
61wercS195gnirpS2
71wercS406esaBnoitcennoC1
81revoCxoBraeG116eloPrebbuR1
91gniraeB126etalPed
onAthgiL1
02sixAtuptuO136noiP1
12revoCthgiL146esaBthgiL1
22thgiL156wercS1
32wercSkcoL166rennapSmm61
42rehsaW176raeGgiB2
52bonK186nottuBsi
xAkcoL1
62wercS196troPtsuD1
72tuN107wercS1
82wercS117DEL1
92etalPesaB127thgiLrotatS1
03wercS137gnirpS1
13tuN147lebaLraeR1
23gniraeB157lebaLpoT1
3
3naFrotoM167eriW1
43rotoRrotoM177eriWkcalB1
53gniraeB187erIWdeR1
63reffuBrebbuR197etalPtnorF1
73rebbuR/wydoBthgiR108etalPediuG1
83we
rcS518lebaLtfeL1
93wercS228lebaLtfeL1
04revoCkcaB138rebbuR/wydoBtfeL1
14bonK148ebuT1
24hsurBnobraCroFrotatS258pirGtfoSthgiR1
34werc
SydoB868pirGtfoStfeL1

SKU 93808 For technical questions, please call 1-800-444-3353. Page 16
English
ASSEMBLY DIAGRAM
NOTE: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.

SANS CORDON 18V LE SCIER
CIRCULAIRE AVEC LE LASER
Modèle 93808
ASSEMBLAGE ET MODE DE FONCTIONNEMENT
En raison des améliorations continuantes, le produit réel peut différer légèrement du produit décrit ici.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visitez notre Site Internet à http://www.harborfreight.com
Le Copyright © 2005 par le Harbor Freight Tools®.Tous droits réservés. Aucune portion de ce manuel ou
de n’importe quel travail d’art contenu ici ne peut être reproduite dans aucune forme ou formulaire sans le
consentement rapidement écrit de Harbor FreightTools.
Pour les questions techniques et les pièces détachées, appelez-vous s’il vous
plaît 1-800-444-3353.
PR
É
VENIR LA BLESSURE S
É
RIEUSE,
LISEZ ET COMPRENEZTOUS LES AVERTISSEMENTS
ET LES INSTRUCTIONS AVANT L’UTILISATION.

Modèle Pour les questions techniques, appelez-vous s’il vous plaît 1-800-444-3353. Page 2
93808 Français
SPÉCIFICATIONS DE PRODUIT
ruetoMstlov81,nim-rt0024
emaLedsnoitacificépS /nim-rt0005/tneDederubraCedtuoB42 ellennoTal"8/5xertèmaiDel
mm561
selgnAsedtesruednoforPsederupuoCaL °54mm23;°09mm05 etuaesiBmumixaM°05
eirettaB ,stlov81edhMiN erueH'd
egrahCedspmeTnU
sdioPeirettaBalcevagk3.4
ruegrahCedesaBednoitcudorpedruetcaFH06,CAV011
SAUVEZ CE MANUEL
Vous aurez besoin de ce manuel pour les avertissements de sécurité et les
précautions, l’assemblage, le fait de faire marcher, l’inspection, la maintenance et le
nettoyage des procédures, la liste de parties et le diagramme d’assemblage.Gardez votre
facture avec ce manuel. Écrivez le nombre de facture sur l’intérieur de la couverture de
devant.Gardez ce manuel et facture dans un coffre-fort et un endroit sec pour la référence
future.
RÈGLES DE SÉCURITÉ GÉNÉRALES POUR TOUS LES
OUTILS À BATTERIE
AVERTISSEMENT ! VOUS DEVEZ LIRE ET COMPRENDRE
TOUTES LES INSTRUCTIONS.
Le non-respect, même partiel, des instructions ci-après
entraîne un risque de choc électrique, d’incendie et/ou de
blessures graves.
CONSERVEZ CES INSTRUCTIONS
Aire de travail
1. Veillez à ce que l’aire de travail soit propre et bien éclairée. Le désordre et le
manque de lumière favorisent les accidents.
2. N’utilisez pas d’outilsélectriques dans une atmosphère explosive,par exemple
en présence de liquides, de gaz ou de poussières inflammables. Les outils
électriques créent des étincelles qui pourraient enflammer les poussières ou les
vapeurs.
3. Tenez à distance les curieux, les enfants et les visiteurs pendant que vous
travaillez avec un outil électrique. Ils pourraient vous distraire et vous faire faire
une fausse manoeuvre.
E194601

Modèle Pour les questions techniques, appelez-vous s’il vous plaît 1-800-444-3353. Page 3
93808 Français
Sécuritéélectrique
1. Ne maltraitez pas le cordon. Ne transportez pas l’outil par son cordon.
N’exposez pas le cordonà la chaleur, à des huiles, à des arêtes vives ou à des
pièces en mouvement. Remplacez immédiatement un cordon endommagé.
Un cordon endommagé peut constituer un risque d’incendie.
2. Un outil à bloc-batterie amovible ou à batterie intégrée ne doitêtre rechargé
qu’avec le chargeur prévu pour la batterie. Un chargeur qui convient à tel type
de batterie peut présenter un risque d’incendie avec tel autre type de batterie.
3. N’utilisez un outil qu’avec un bloc-batterie conçu spécifiquement pour lui.
L’emploi d’un autre bloc-batterie peut créer un risque d’incendie.
Sécurité des personnes
1. Restez alerte,concentrez-vous sur votre travail et faites preuve de jugement.
N’utilisez pas un outil électrique si vous êtes fatigué ou sous l’influence de
drogues, d’alcool ou de médicaments.Un instantd’inattentionsuffitpourentraîner
des blessures graves.
2. Habillez-vous convenablement. Ne portez ni vêtements flottants ni bijoux.
Confinez les cheveux longs. N’approchez jamais les cheveux, les vêtements
ou les gants des pièces en mouvement. Des vêtements flottants, des bijoux ou
des cheveux longs risquent d’être happés par des pièces en mouvement.
3. Méfiez-vous d’un démarrage accidentel. Avant d’insérer un bloc-batterie,
assurez-vous que l’interrupteur de l’outil est sur ARRÊT.Le fait de transporter
unoutilavecledoigtsurladétenteoud’insérerunbloc-batteriealorsquel’interrupteur
est en position MARCHE peut mener tout droit à un accident.
4. Enlevez les clés de réglage ou de serrage avant de démarrer l’outil. Une clé
laissée dans une pièce tournante de l’outil peut provoquer des blessures.
5. Ne vous penchez pas trop en avant. Maintenez un bon appui et restez en
équilibre en tout temps. Un bonne stabilité vous permet de mieux réagirà une
situation inattendue.
6. Utilisez des accessoires de sécurité. Portez toujours des lunettes ou une
visière.Selon les conditions, portez aussi un masque antipoussière, des bottes de
sécurité antidérapantes, un casque protecteur et/ou un appareil antibruit.
Utilisation et entretien des outils
1. Immobilisez le matériau sur une surface stable au moyen de brides ou de
toute autre façon adéquate. Le fait de tenir la pièce avec la main ou contre votre
corps offre une stabilité insuffisante et peut amener un dérapage de l’outil.

Modèle Pour les questions techniques, appelez-vous s’il vous plaît 1-800-444-3353. Page 4
93808 Français
2. Ne forcez pas l’outil. Utilisez l’outil approprié à la tâche.L’outilcorrectfonctionne
mieux et de façon plus sécuritaire. Respectez aussi la vitesse de travail qui lui est
propre.
3. N’utilisez pas un outil si son interrupteur est bloqué. Un outil que vous ne
pouvez pas commander par son interrupteur est dangereux et doit être réparé.
4. Retirez le bloc-batterie ou mettez l’interrupteur sur ARRÊT ou en position
verrouillée avant d’effectuer un réglage,de changer d’accessoire ou de ranger
l’outil.De telles mesures préventives réduisent le risque de démarrage accidentel
de l’outil.
5. Rangez les outils hors de la portée des enfants et d’autres personnes
inexpérimentées. Les outils sont dangereux dans les mains d’utilisateurs novices.
6. Lorsque le bloc-batterie n’est pas en service, tenez-le à l’écart d’autres objets
métalliques (trombones,pièces de monnaie, clés,clous,vis,etc.) susceptibles
d’établir un contact électrique entre les deux bornes. La mise en court-circuit
des bornes de la batterie peut produire des étincelles et constitue un risque de
brûlures ou d’incendie.
7. Prenez soin de bien entretenir les outils. Les outils de coupe doivent être
toujours bien affûtés et propres.Des outils bien entretenus, dont les arêtes sont
bien tranchantes, sont moins susceptibles de coincer et plus faciles à diriger.
8. Soyez attentif à tout désalignement ou coincement des pièces en mouvement,
à tout bris ou à toute autre condition préjudiciable au bon fonctionnement de
l’outil. Si vous constatez qu’un outil est endommagé, faites-le réparer avant
de vous en servir.De nombreux accidents sont causés par des outils en mauvais
état.
9. N’utilisezque desaccessoires que le fabricant recommande pour votremodèle
d’outil.Certains accessoires peuvent convenir àunoutil,maisêtredangereux avec
un autre.
Réparation
1. La réparation des outils électriques doit être confiée à un réparateur qualifié.
L’entretien ou la réparation d’un outilélectrique par un amateur peut avoir des
conséquences graves.
2. Pour laréparation d’unoutil,n’employez quedes piècesde rechange d’origine.
Suivez les directives données à la section « Réparation» de ce manuel.L’emploi
de pièces non autorisées ou le non-respect des instructions d’entretien peut créer
un risque de choc électrique ou de blessures.
