Chicago Electric 93881 User manual

GENERATOR
2.4 HP - 1000 WATT
Model 93881
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
Copyright ©
2006 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Due to continuing improvements, actual product may differ slightly from the product described herein.
WARNING!
Your Warranty Is Voided If:

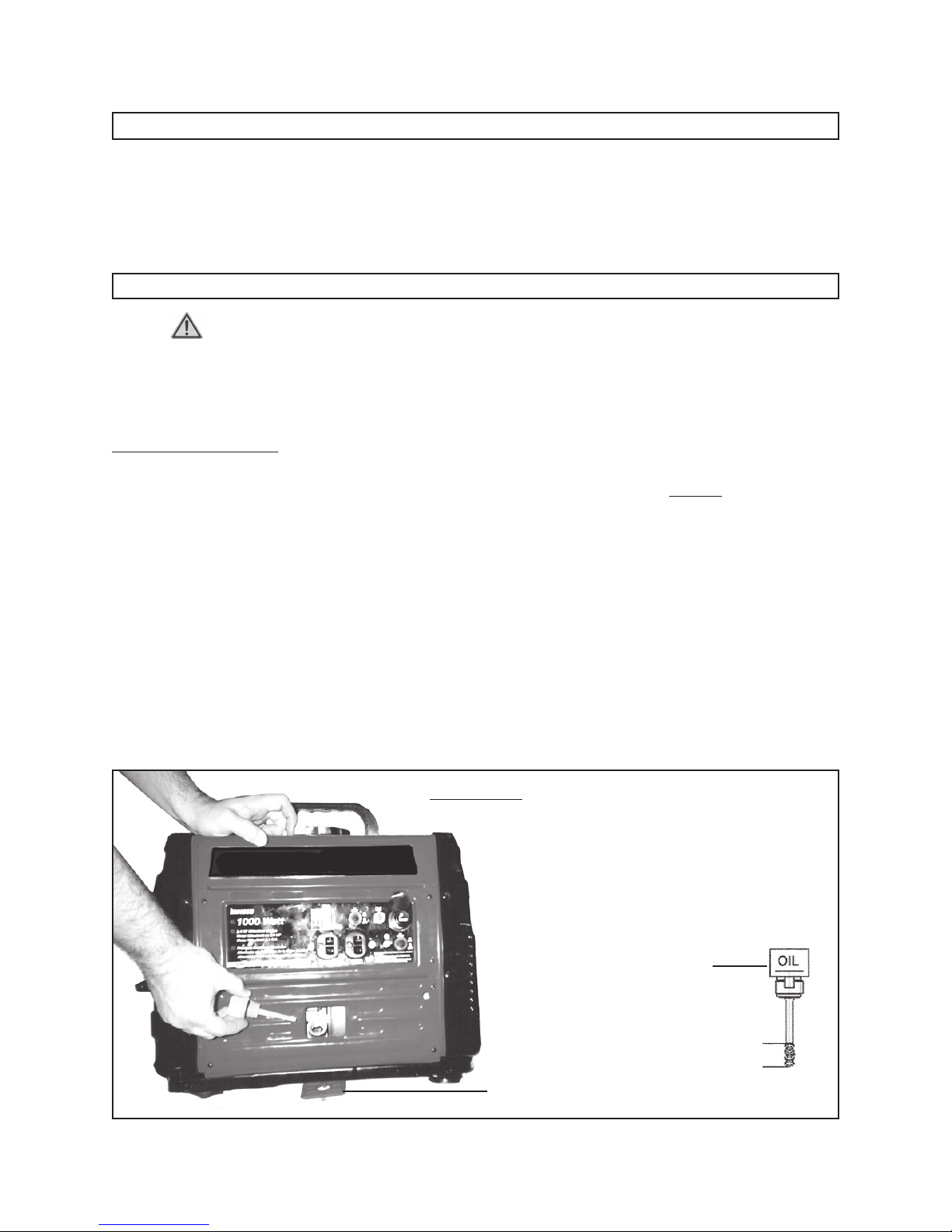

You do not put engine oil in the Engine’s crankcase prior to its first use.
Before each use, check the oil level. Never run the Engine with low or no engine oil.
Running the Engine with low or no oil will permanently damage the unit.

PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front cover.
Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES AND PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create
sparks which may ignite the dust or fumes.
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 2
NOTE: Not CARB - approved for use in California.
Item Description
Electrical Requirements 1,000 Watts Maximum Output
120 VAC, 3-Prong, Outlet (Qty. 2) With 8 AMP, Push Button, Circuit Breaker Protection
12 VDC Outlet (Qty. 1) With 12 AMP, Push Button, Circuit Breaker Protection
Generator Type: Brushless, Revolving Field, Self-Exciting, 2-Pole, Single Phase
Engine 2.4 HP / Air Cooled OHV Mitsubishi Engine GT240 – EPA approved.
4-Stroke / Recoil Start / 3,600 RPM
Unleaded Gasoline Powered / MTI
Fuel Tank Capacity: 1.2 Gallon (Approx.) – use unleaded gasoline
Engine Oil Capacity: 1/2 Quart (Approx.) / Recommended Oil: 10W – 30W
Approximate Run Time: 5 Continuous Hours @ Full Tank
Additional Features: Automatic Low Oil Shutdown
Operating Noise Level 63 Db
Accessories Spark Plug Wrench (Qty. 1) / Screwdriver (Qty. 1)
Overall Dimensions 17-3/8” L x 13” W x 14-1/2” H
Net Weight 67 Pounds

PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when
operating a power tool. Do not use a power tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 3
3. Avoid accidental starting. Be sure the Power Switch (14) is in its “OFF”
position before moving the Generator
and before performing any service,
maintenance, or cleaning procedures on the unit.
4. Remove adjusting keys or wrenches before turning the Generator on. A
wrench or a key that is left attached to a rotating part of the machine may result
in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
6. Use safety equipment. Always wear eye protection. Always wear
ANSI-approved safety impact goggles when using this product. ANSI-
approved hearing protection must also be used.
TOOL USE AND CARE
1. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
2. Do not use the Generator if the Engine’s Power Switch (14) does not
turn it on or off. Any tool that cannot be controlled with its power switch is
dangerous and must be replaced.
3. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
4. Maintain tools with care. Properly maintained tools are less likely to malfunction
and are easier to control. Do not use a damaged tool. Tag damaged tools “Do
not use” until repaired.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Provide barriers or shields as
needed.

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 4
6. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the
“Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES AND PRECAUTIONS
1. WARNING! Your Warranty is voided if:
A. You do not put engine oil in the Engine’s crankcase prior to its first use.
Before each use, check the oil level. Never run the Engine with low or no
engine oil. Running the Engine with low or no oil will permanently damage the
unit.
2. Maintain labels and nameplates on the Generator. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
5. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly
maintained tools.
3. Make sure the Generator is located on a flat, level, sturdy surface capable
of supporting the weight of the Generator and any additional tools and
equipment.
4. Industrial applications must follow OSHA guidelines.
5. Never stand on the Generator. Serious injury could result if the Generator
is tipped.
6. Never leave the Generator unattended when it is running. Turn off the
Engine before leaving.

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 5
8. This Generator is designed for outdoor use only. Do not operate the
Generator in a closed area or in a poorly ventilated area. When running, the
Engine of this Generator produces carbon monoxide, a colorless, odorless,
toxic fume that, when inhaled, can cause serious personal injury or death.
Whenever possible, use a carbon monoxide detector (not included) to
detect excessive carbon monoxide fumes in the work area and in the
surrounding area.
9. Do not force the Generator. This tool will do the work better and safer at the
speed and capacity for which it was designed.
FIRE AND EXPLOSION PRECAUTIONS
1. Gasoline fuel and fumes are flammable, and potentially explosive. Use
proper fuel storage and handling procedures. Always have multiple ABC class
fire extinguishers nearby.
2. Keep the Generator, its Engine, and surrounding areas clean at all times.
3. When spills of fuel or oil occur, they must be cleaned up immediately.
Dispose of fluids and cleaning materials as per any local, state, or federal codes
and regulations. Store oil rags in a covered metal container.
4. Never store fuel or other flammable materials near the Generator.
5. Do not smoke, or allow sparks, flames, or other sources of ignition around
the Generator.
7. Do not allow children and other unauthorized people to handle or play with
the Generator.
6. Keep grounded conductive objects, such as tools, away from exposed, live
electrical parts and connections to avoid sparking or arcing. These events
could ignite fumes or vapors.
7. Do not refill the Fuel Tank while the Engine is running or while the Engine is
still hot. Do not operate the Generator with known leaks in the fuel system.
8. Use only Engine manufacturer recommended fuel and oil.
MECHANICAL PRECAUTIONS
1. Prior to performing service, maintenance, or cleaning procedures, always
make sure the Engine’s Power Switch (14) is in its “OFF” position. Allow

the Engine and Generator to completely cool. Then, remove the spark
plug from the Engine.
2. Do not alter or adjust any part of the Generator or Engine that is assembled
and supplied by the manufacturer.
3. Always follow and complete scheduled Generator and Engine maintenance.
CHEMICAL PRECAUTIONS
1. Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.
2. Avoid body contact with fuels, oils, and lubricants used in the Generator
and Engine. If swallowed, seek medical treatment immediately. Do not induce
vomiting if fuel is swallowed. For skin contact, immediately wash with soap and
water. For eye contact, immediately flush eyes with clean water.
NOISE PRECAUTIONS
1. Prolonged exposure to high noise levels is hazardous to hearing.
Always wear ANSI approved hearing protection when operating or working
around the Generator when it is running.
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 6
ELECTRICAL PRECAUTIONS
1. All connections and conduits from the Generator to the load must only be installed
by trained and licensed electricians, and in compliance with all relevant
local, state, and federal electrical codes and standards, and other
regulations where applicable.
2. The Generator must be earth-grounded in accordance with all relevant electrical
codes and standards before operation.

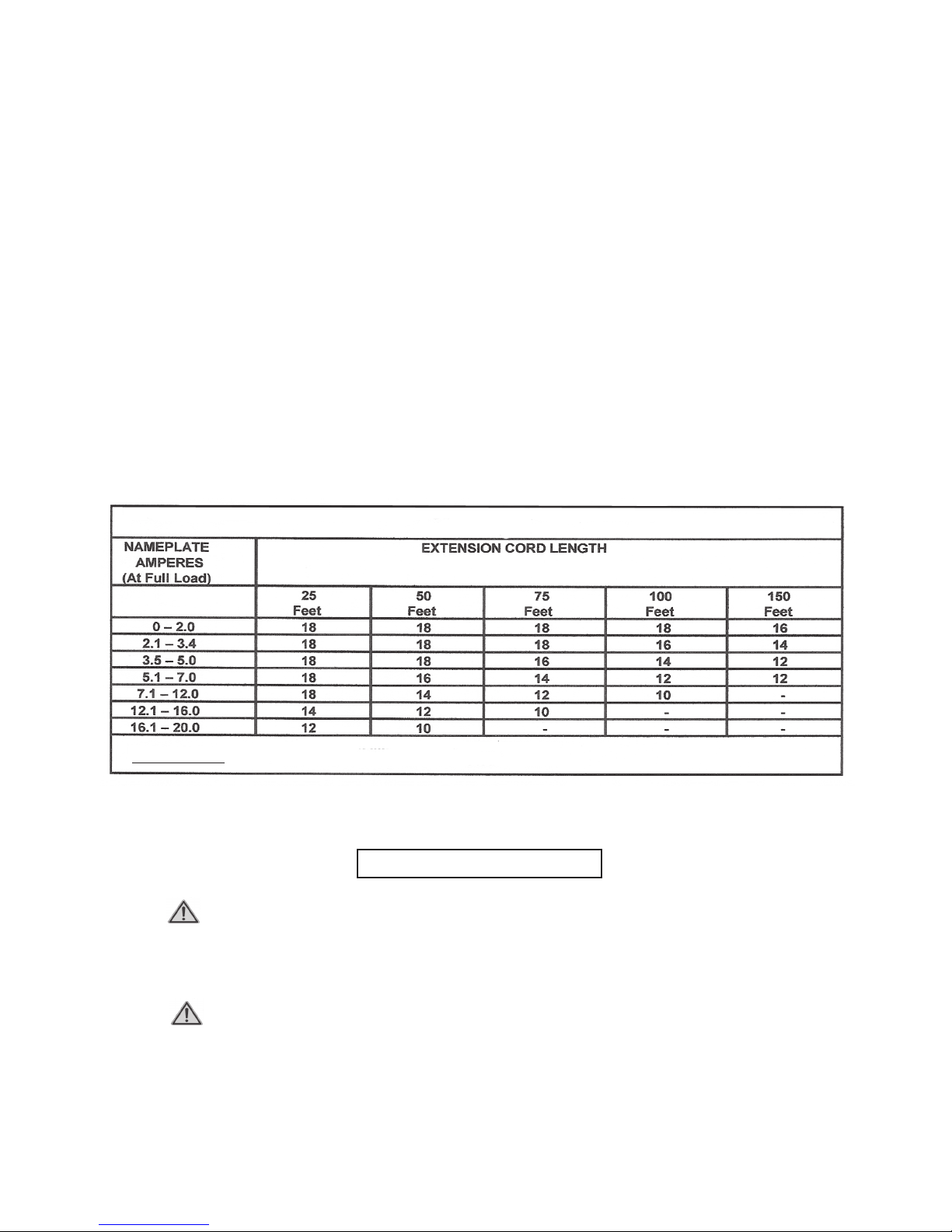

3. If an extension cord (not included) is used, make sure to use only UL listed cords
having the correct gauge and length. (See Figure A, next page.)
4. Do not attempt to connect or disconnect load connections while standing in
water, or on wet or soggy ground.
5. Do not touch electrically energized parts of the Generator and interconnecting
®
cables or conductors with any part of the body, or with any non-insulated
conductive object.

MISC. PRECAUTIONS
1. WARNING! People with pacemakers should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to
a heart pacemaker could cause interference to or failure of the pacemaker.
2. WARNING! The warnings and precautions discussed in this manual cannot
cover all possible conditions and situations that may occur. It must be understood
by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 7
6. Connect the Generator only to a load or electrical system (120 volt) that is
compatible with the electrical characteristics and rated capacities of the
Generator.
7. Be sure the Power Switch (14) is in its “OFF” position before moving the
Generator
and before performing any service, maintenance, or cleaning
procedures on the unit.
8. Keep all electrical equipment clean and dry. Replace any wiring where the
insulation is cracked, cut, abraded, or otherwise degraded. Replace terminals
that are worn, discolored, or corroded. Keep terminals clean and tight.
9. Insulate all connections and disconnected wires.
10. Guard against electric shock. Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerator enclosures.
11. Use only Class BC or Class ABC fire extinguishers on electrical fires.
RECOMMENDED MINIMUMWIRE GAUGE FOR EXTENSION CORDS (120VOLT)*
FIGURE A *Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.

UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on pages 17,
18, and 19 are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
1. CAUTION! Always make sure the Power Switch (14) of the Engine is in its
“OFF” position prior to performing any service, maintenance, or cleaning of the
Generator or Engine.
To Add Engine Oil:
1. IMPORTANT! Prior to first using the Generator, the Engine MUST be filled with
a high quality 10W-30 grade engine oil. (See Figure B.)
2. To do so, remove the Oil Dipstick Cover (12B). Then, unscrew and remove the
Engine Oil Dipstick. Pour approximately 1/2 quart of engine oil into the Dipstick
Hole. Do not overfill.
(See Figure B.)
3. Clean the Oil Dipstick. Then screw the Dipstick fully back into the Dipstick Hole.
Unscrew and remove the Oil Dipstick again, and observe the level of engine oil
on the Dipstick. The oil level should appear between the “MINIMUM” and
“MAXIMUM” indicator marks on the Oil Dipstick. (See Figure B.)
MAXIMUM OIL LEVEL
MINIMUM OIL LEVEL
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 8
OIL DIPSTICK COVER (12B)
OIL DIPSTICK
FIGURE B

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 9
4. If necessary, continue adding engine oil, while rechecking the Oil Dipstick, until
the oil level reaches the “MAXIMUM” indicator on the Oil Dipstick.
Do not exceed the “MAXIMUM” indicator mark on the Oil Dipstick.
(See Figure A.)
5. When finished adding engine oil, carefully screw the Oil Dipstick back into the
Dipstick Hole. Then, replace the Oil Dipstick Cover (12B). (See Figure B.)
To Fill The Fuel Tank:
1. Prior to first using the Generator, the Fuel Tank (19B) MUST be filled with
unleaded gasoline. (See Figure C.)
2. To do so, remove the Fuel Tank Cap (5B) and fill the Fuel Tank with unleaded
gasoline. Then, replace the Fuel Tank Cap. Thereafter, check the Fuel Tank
(19B) for the amount of unleaded gasoline. When necessary, refill the Fuel Tank.
(See Figure C.)
3. NOTE: Periodically, make sure to check the Fuel Filter (4B) for excessive dirt
and debris. If necessary, remove the Fuel Filter and clean with compressed air.
(See Figure C.)
FUEL FILTER
(4B) FUELTANK CAP
(5B)
FIGURE C
Installation:
1. Electrical and other permits may be required for the installation of emergency or
portable power systems. Investigate the local building and electrical codes
before installing this unit.
2. Prior to providing Generator power to tools and equipment, make sure the
Generator’s rated voltage, wattage, and amperage capacity is adequate to

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 10
supply all electrical loads the unitwill power. If powering exceeds the Generator’s
capacity, it may be necessary to group one or more of the tools/equipment for
connection to a separate Generator.
General Location:
1. It is recommended to locate the Generator (outdoors only) where cooling air is
readily available. Locate the Generator so that the air inlets and outlets are not
blocked by obstructions such as bushes, trees, or snow drifts. Locating it in the
path of heavy winds or snowdrifts may require the placement of a barrier for
protection. The air inlet, in normal weather conditions, should face the prevailing
wind direction.
2. Locate the Generator on a concrete slab or other area where rain drainage or
flood waters can not reach it.
3. Generator placement should allow four feet of access to all sides for maintenance
and for proper air cooling.
4. Place the Generator as close as possible to the electrical tools and equipment
being powered to reduce the length of extension cords.
Grounding The Generator:
1. NOTE: It is recommended that only a trained and licensed electrician perform
this procedure.
2. Connect a #6 AWG grounding wire (not included) from the Grounding Nut (7) on
the Generator to a grounding rod (not included) that has been driven at least 24
inches deep into the earth. The grounding rod must be an earth-driven copper
or brass rod (electrode) which can adequately ground the Generator.
(See Figure D.)
GROUNDING NUT (7)
#6 AWG WIRE
(NOT INCLUDED)
GROUNDING ROD
(NOT INCLUDED)
FIGURE D

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 11
PRODUCT FEATURES
FUEL CAP
(5B)
AC
CIRCUIT
BREAKERS
(12) POWER ON LIGHT
(13)
120 VOLT AC OUTLET
(4)
ENGINE POWER SWITCH
(14)
OIL DIPSTICK COVER
(12B)
GROUNDING NUT
(7)
ENGINE PULL-START CORD
DC CIRCUIT BREAKER
(10)
12V DC OUTLET
(8)
FIGURE E
1. Engine Power Switch (14): Starts and stops the Gasoline Engine.
(See Figure E.)
2. Fuel Cap (5B): NEVER run the Engine with the Fuel Cap removed.
(See Figure E.)
3. AC Circuit Breakers (12): Each of the
two 120 Volt AC Outlets has a Circuit
Breaker to protect the Generator from overloading. Should a Circuit Breaker
“trip”, unplug all electrical loads from the Generator. Allow the Generator to cool
down. Then, push the Circuit Breaker and restart the Engine. (See Figure E.)
4. Power On Light (13): Indicates voltage is being provided by the Generator.
(See Figure E.)
5. 12V DC Outlet (8): Supplies voltage to 12 volt DC appliances such as radios,
emergency lights, etc. IMPORTANT: This Outlet is designed for operating 12
volt DC appliances only. Do not attempt to charge batteries with this Outlet.
(See Figure E.)
6. DC Circuit Breaker (10): The 12 Volt DC Outlet has a Circuit Breaker to protect
the Generator from overloading. Should a Circuit Breaker “trip”, unplug all
electrical loads from the Generator. Allow the Generator to cool down. Then, push

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 12
the Circuit Breaker and restart the Engine. (See Figure E.)
7. Grounding Nut (7): Use this feature to attach a ground wire to an external earth
ground. (See Figures D and E.)
8. Oil Dipstick Cover (12B): Remove this Cover to fill and check the level of
Engine oil. (See Figures B and E.)
9. Engine Pull-Start Cord: Grasp the Handle of the Pull-Start Cord and rapidly
pull the Handle to start the Engine. It may take one or more pulls on the Handle
to start the Engine. (See Figure E.)
10. 120V AC Outlet (4): Two 120 Volt Outlets supply power to 120 volt appliances,
tools, and equipment. (See Figure E.)
OPERATING INSTRUCTIONS
IMPORTANT:
Before operation, it will be necessary to refer to the Engine
manufacturer’s “Operation, Maintenance, and Parts” manual (included) for
detailed information about starting, running, stopping, and maintaining the Engine.
1. Check to make sure the Engine Power Switch (14) is in its “OFF” position.
(See Figure E.)
2. CAUTION! Make sure to unplug any load from the Generator before
starting to prevent permanent damage to any appliances, tools, or equipment.
3. CAUTION! Engine oil MUST be added to the Engine’s crankcase
prior to starting and running the Engine. Failure to add oil, according to the
Engine manufacturer’s recommendations, will damage the Engine and void its
warranty. (See page 8, and Figure B.)
4. Before the first use, the Fuel Tank (19B) must be filled with unleaded gasoline.
(See page 9, and Figure C.)
A. WARNING! Never fill the Fuel Tank (19B) completely. Fill the Fuel Tank
to 1/2” below the bottom of the filler neck to provide space for fuel
expansion. Wipe any fuel spills from the Engine and Generator before
starting the Engine.
B. WARNING! Never fill the Fuel Tank (19B) when the Engine is running
or hot. Do not smoke when filling the Fuel Tank.

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 13
To Start The Engine/Generator:
1. Turn the Engine Fuel Valve Lever to its “OPEN” position. Then, turn the Engine
Choke Lever to its “CHOKE” position. NOTE: No choke is required if the Engine
is warm. Make sure the Engine Choke Lever is in the “RUN” position when
starting a warm Engine. (See Figure F.)
ENGINE
CHOKE
LEVER
ENGINE
FUEL
VALVE
LEVER
FIGURE F
2. Turn the Engine Power Switch (14) to its “ON” position. (See Figure G.)
3. Grasp the Handle on the Engine Pull-Start Cord and pull slowly until resistance is
felt. Allow the Cord to rewind slowly. Then, pull the Handle with a rapid, full arm
stroke. Allow the Cord to rewind slowly. If necessary, repeat this procedure until
the Engine starts. (See Figure G.)
4. When the Engine starts, slowly turn the Engine Choke Lever to its “RUN”
position. (See Figure G.)
5. IMPORTANT: Allow the Generator to run at no load for five minutes after each
start-up so that the Engine and Generator can stabilize.
FIGURE G
ENGINE
CHOKE
LEVER
ENGINE
PULL-START
CORD
ENGINE
POWER
SWITCH
(14)

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 14
To Connect Electrical Loads:
1. Start the Engine, and allow the Engine and Generator to run and warm up for
five minutes after starting with no electrical load.
2. WARNING! Connect 120V AC appliances, tools, and equipment only to the
two 120V AC Outlets. Connect 12V DC appliances, tools, and equipment only to
the 12V DC Outlet. (See Figure E.)
3. CAUTION! Never exceed the rated capacity for this Generator, as serious
damage to the Generator and/or appliances, tools, and equipment could result
from an overload. Starting and running wattage requirements should always be
calculated when matching this Generator’s wattage capacity to the appliance,
tool, or equipment.
4. Most appliances, tools, and equipment will list on the motor nameplate the
starting and running voltage and amperage requirements. Use the following
formula to convert voltage and amperage to wattage:
Volts x AMP = Watts (example: 120 volts x 3 AMPs = 360 Watts)
5. To determine the approximate wattage requirement for most appliances, tools,
and equipment with “inductive” type motors, multiply the wattage that was
calculated by 2 times to assure adequate Generator capacity.
6. NOTE: The starting and running wattage for “resistant” loads are the same.
Example: a 100 Watt light bulb requires only 100 Watts to start. Most resistant
loads will be listed in wattage.
7. Always power the largest electric motor first. Then, plug in other appliances,
tools, and equipment one at a time.
A. Connect “inductive” load appliances, tools, and equipment first. Inductive
loads consist of small hand tools and some small appliances. Connect the items
that require the most wattage first.
B. Connect any lights next.
C. Voltage sensitive appliances, tools, and equipment should be the last to be
connected to the Generator. Plug voltage sensitive items such as T.V.’s, VCR’s,
microwaves, and cordless telephones into a UL listed voltage surge protector
(not included). Then, connect the UL Listed surge protector into the Generator.
8. CAUTION! Failure to connect and operate appliances, tools, and equipment
in this sequence can cause damage to the Generator, appliances, tools, and
equipment and will void the warranty on this Generator.
®
®

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 15
9. Once the Engine is running, simply connect the 120 volt appliances, tools, and
equipment into the 120V AC Outlets (4) and/or connect a 12 volt appliance, tool,
or equipment into the 12V DC Outlet (8). (See Figure E.)
10. IMPORTANT: If Engine speed or voltage fluctuates with a load below 250
Watts, move the Engine Choke Lever to the “HALF-CHOKE” position.
(See Figure G.)
11. When finished using the Generator, disconnect all electrical loads. Turn the
Engine Power Switch (14) to its “OFF” position to stop the Engine. Then, close
the Engine Fuel Valve Lever. (See Figures E and F.)
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always make sure the Power Switch (14) of the Engine is in its
“OFF” position prior to performing any service, maintenance, or cleaning of the
Generator or Engine. (See Figure E.)
2. Before each use, inspect the general condition of the Generator and Engine.
Check for loose screws, misalignment or binding of moving parts, cracked or
broken parts, loose hose connections, and any other condition that may affect
the safe operation of the Generator and Engine. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Do not use damaged equipment.
3. Generator maintenance: Keep the Generator clean and dry at all times. The
Generator should not be operated or stored in locations that include excessive
moisture, dust, flammable or corrosive vapors. If these substances are on the
Generator, clean with a cloth or soft brush. Do not use a garden hose or anything
with liquid to clean the Generator. Liquid may enter the cooling air slots and could
damage the interior workings of the Generator.
4. Engine maintenance: Refer to the Engine manufacturer’s
“Operation,
Maintenance, and Parts”
manual (included) for detailed information about starting,
running, stopping, and maintaining the Engine.
5. When storing the Generator, make sure to store the unit in a clean, dry, safe
location out of reach of children and other unauthorized people.
6. CAUTION! All maintenance, service, or repairs not mentioned in this
manual must only be performed by a qualified service technician.

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 16
TROUBLESHOOTING
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFAC-
TURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACE-
MENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY
THE BUYER. THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF
HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Problem Possible Ca use Possible Solution
Engine will not start. 1. Low on fuel or oil.
2. Engine power switch is in the
OFF position.
3. Faulty spark plug.
4. Choke in wrong position.
5. Fuel valve lever in CLOSED
position.
6. Generator loaded during start-up.
7. Spark plug wire loose.
8. Fuel line clogged.
9. Faulty ignition system.
1. Add fuel or oil. (See pages 8 & 9.)
2. Turn engine power switch to the
ON position. (See page 11.)
3. Replace spark plug.
(See Engine manual.)
4. Properly adjust choke.
(See page 13.)
5. Turn fuel valve lever to OPEN
position. (See page 13.)
6. Remove load from Generator.
(See page 14.)
7. Attach wire to spark plug.
(See Engine manual.)
8. Clean fuel line and fuel filter.
(See Engine manual.)
9. Have a qualified technician check
ignition system.
No e lectrical output. 1. Faulty outlet.
2. Circuit breaker tripped.
3. Defective capacitor.
4. Faulty power cord.
1. Have a qualified technician check
outlets.
2. Depress circuit breaker and reset.
(See page 11.)
3. Have a qualified technician check
capacitor.
4. Repair or replace cord.
Repeated circuit breaker
tripping.
1. Overload.
2. Faulty cords or equipment.
1. Reduce load. (See pa ge 14 .)
2. Check for damaged, bare, or frayed
wires on equipment. Repair or
replace.
Generator overhea ting. 1. Generator overloaded.
2. Insufficient ventilation.
1. Reduce load. (See pa ge 14 .)
2. Move to adequate supply of fresh
air. (See pa ge 1 0.)

PARTS LIST & ASSEMBLY DIAGRAM - CONTROL PANEL
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 17
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Pa rt # De scription Qty. Part # Description Q ty.
1 Wiring Harness Assy. 1 8 12V DC Outlet 1
2 Capacitor 1 9 Control Panel 1
3 Screw (ST4.2x13) 4 10 DC Circuit Breaker 1
4 120V AC Outlet 2 11 Ground Bolt (M4x12) 1
5 Screw (M4x10) 2 12 AC Circuit Breaker 1
6 Circuit Breaker Nut 2 13 Power On Light 1
7 Grounding Nut (M4) 2 14 Engine Power Switch 1

PARTS LIST & ASSEMBLY DIAGRAM - GENERATOR ASSY.
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 18
Pa rt # De scription Qty. Part # Description Qty.
1A Flange Bolt (M5x10) 2 8A Rotor Assy. 1
2A End Cover 1 9A Rectifier 1
3A Flange Bolt (M6x85) 4 10A Screw 1
4A Rear Cover 1 11A Bearing (6202) 1
5A Flange Bolt (M8x20) 4 12A Stator Assy. 1
6A Front Cover 1 13A Flange Bolt (M8x175) 1
7A Fan Blade 1
1A 2A 3A
4A
5A
6A
7A
8A
9A
10A
11A12A
13A

NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
Pa rt # Description Qty. Part # Description Qty.
1B Left Housing 1 23B Screw (M4x10) 1
2B Screw (ST4.2x13) 16 24B Nut (M6) 4
3B Fuel Tank 1 25B Air Shroud (1) 1
4B Fuel Filter 1 26B Air Shroud (2) 1
5B Fuel Cap 1 27B Nut (M5) 5
6B Handle 1 28B Air Shroud (3) 1
7B Screw (M6x25) 2 29B Nut (M8) 21
8B Cover (1) 1 30B Base 1
9B Cover (2) 2 31B Insulator 4
10B Right Housing 1 32B Bolt (M8x25) 4
11B Bolt (M6x16) 4 33B Rubber Spacer 8
12B Oil Dipstick Cover 2 34B Screw (M6x20) 8
13B Screw (ST4.2x13) 12 35B Bolt (M8x20) 2
14B Fuel Cock 1 36B Screw (M5x12) 5
15B Fuel Hose (1) 1 37B Bolt (M8x40) 2
16B Clip 6 38B Throttle Lever Enclosure 1
17B Fuel Hose (2) 1 39B Pull String Guide 1
18B Fuel Hose 1 40B Choke Label 1
19B Fuel Tank 1 41B Run/Stop Label 1
20B Fuel Hose (3) 1 42B Spark Plug Wrench 1
21B Engine Air Shroud 1 43B Screwdriver 1
22B Bolt (M6x10) 3

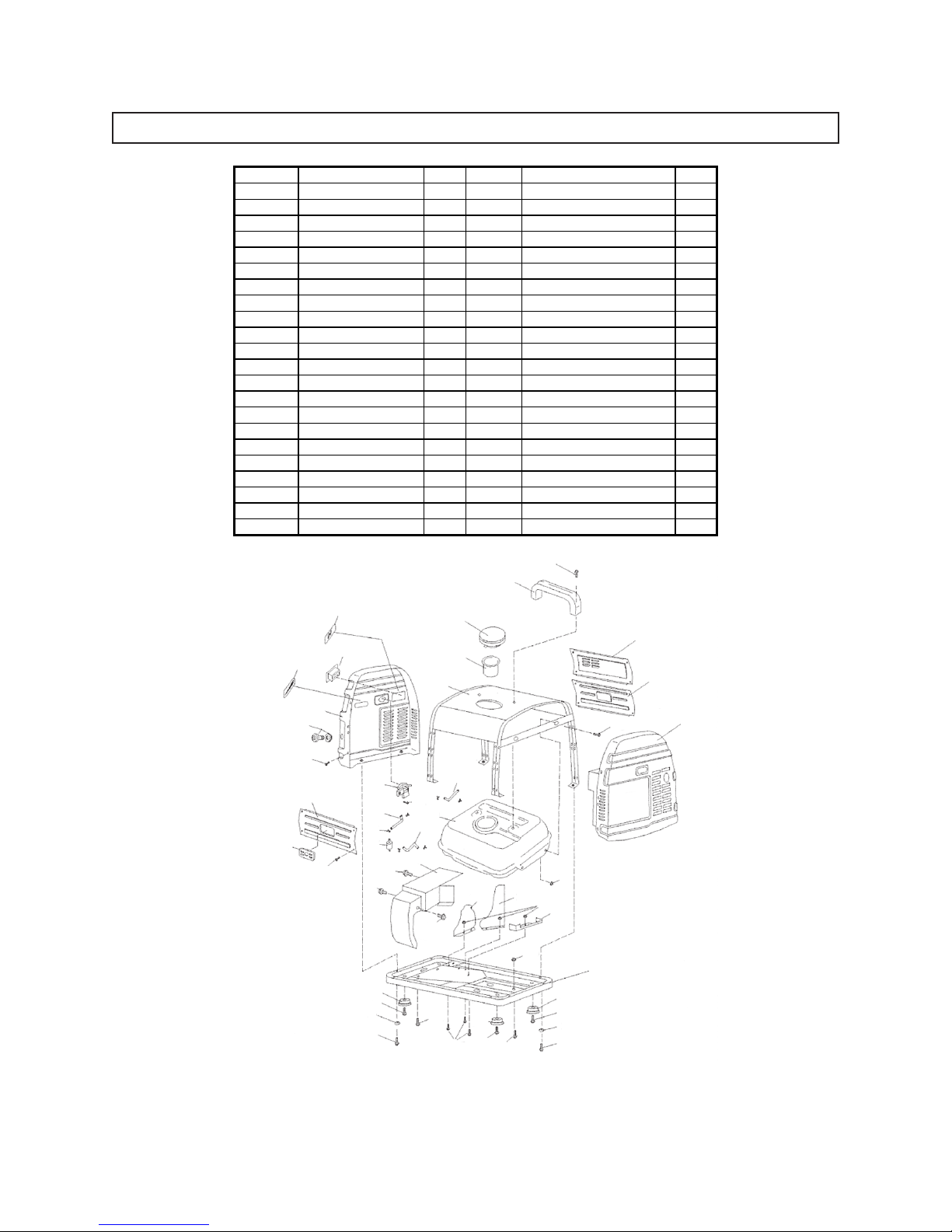

PARTS LIST & ASSEMBLY DIAGRAM - BODY/FUEL TANK ASSY.
42B: Spark Plug Wrench Not Shown.
43B: Screwdriver Not Shown.
1B
2B
3B
4B
5B
6B
7B
8B
9B
10B
11B
12B
13B
14B
15B
16B
17B
18B
19B
20B
21B
22B
22B
22B
23B
24B
25B 26B
27B
28B
29B
30B
31B
32B
33B
34B
35B
34B 36B 37B
38B
32B
33B
32B
31B
39B
40B
41B
SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 19

SKU 93881 For technical questions, please call 1-800-444-3353 PAGE 20
ITEM 93881
1000W1000WATTTT
GENERA
GENERATOOR
Engine: Mitsubishi®Model MH82, 2.4 HP, 4-stroke,
OHV, 3600 RPM, Recoil Start, CDI;
Generator Output: 120 VAC, 60 Hz;
950 Watt Rated; 1000 Watt Maximum;
Fuel Capacity: 1.18Gallons, Gasoline Fuel,
Approximately 5 Hour Run Time for FullTank
02/06 Engine made in Japan. Generator made in China.
DO NOT REMOVE THIS WARNING LABEL.
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for
the period of ninety days from the date of purchase. This warranty does not apply to damage due directly or
indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, or to lack of
maintenance.We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation of exclusion may not apply to you.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our
inspection verifies the defect, we will either repair or replace the product at our election or we may elect to
refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-33533491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • (800) 444-33533491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
LIMITED 90 DAY WARRANTY
