Chicago Electric 98839 User guide

5500 RATED WATTS/6500 MAX. WATTS
PORTABLE GENERATOR
98839
SET UP, OPERATING, AND SERVICING INSTRUCTIONS
Using a generator indoors CAN KILL YOU IN
MINUTES.
Generatorexhaustcontainscarbonmonoxide.
This is a poison you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
Only use OUTSIDE
and far away from
windows, doors, and
vents.
CAUTION!
Your Warranty Is Voided If:
You do not put engine oil in the Engine’s crankcase prior to its rst use. Be-
fore each use, check the oil level. Never run the Engine with low or no engine oil.
Running the Engine with low or no oil will permanently damage the unit.
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10e

Page 2SKU 98839 For technical questions, please call 1-800-444-3353.
SPECIFICATIONS
Electrical
Specications
Alternator Type: 2-Pole, Single Phase
Output Frequency: 60 Hz
Output: 5,500 Rated Watts / 6,500 Max. Watts
AC Receptacles: 4 NEMA 120V, 20 Amp grounded receptacles
1 NEMA 240V 4 Prong, twist lock receptacle
DC Receptacle: 12V Terminal with Cap Screws
Circuit Breakers: 20 Amp, Qty. 2 / 25 Amp, Qty. 2
Fuse Type: F10A250V
Overload Protection: Resettable Circuit Protection for AC outlets, and Fuse for DC outlet
Engine
Specications
13 HP / 4-Cycle / Electronic Ignition & Recoil Start
Engine Speed: 3,600 RPM
Required Fuel Type: Unleaded Gasoline
Fuel Capacity: 6.5 Gal.
Recommended Oil Type: SAE 10W-30
Automatic Low Oil Shut-Down: Yes
EPA and CARB Approved
Weight 175 Pounds
The Emission Control System for this generator’s engine is warranted for standards set by
the U.S. Environmental Protection Agency and by the California Air Resources Board (also
known as CARB). For warranty information, refer to the back two pages of this manual.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.
Keep your invoice with this manual. Write the invoice number on the inside of the front
cover. Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES AND PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, re, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit.1. Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in
the presence of ammable liquids, gases, or dust. Power tools cre-
ate sparks which may ignite the dust or fumes.
REV 09h

Page 3SKU 98839 For technical questions, please call 1-800-444-3353.
Keep bystanders, children, and visitors away while operating a power tool.3. Dis-
tractions can cause you to lose control. Provide barriers or shields as needed.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense when operat-1.
ing a power tool. Do not use a power tool while tired or under the inuence
of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.2.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Be sure the Engine Ignition (2) is in its “OFF”3.
position before moving the Generator and before performing any service,
maintenance, or cleaning procedures on the unit.
Remove adjusting keys or wrenches before turning the Generator on.4. A
wrench or a key that is left attached to a rotating part of the machine may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times.5. Proper footing
and balance enables better control of the power tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Always wear
ANSI approved safety impact goggles when using this product. ANSI
approved hearing protection must also be used.
TOOL USE AND CARE
Do not force the tool. Use the correct tool for your application.1. The correct
tool will do the job better and safer at the rate for which it is designed.
Do not use the Generator if the Engine’s Ignition (2) does not turn it on or off.2.
Any tool that cannot be controlled with its power switch is dangerous and must be
replaced.
Store idle tools out of reach of children and other untrained persons.3. Tools
are dangerous in the hands of untrained users.
Maintain tools with care.4. Properly maintained tools are less likely to malfunction
and are easier to control. Do not use a damaged tool. Tag damaged tools “Do
not use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any5.
other condition that may affect the tool’s operation. If damaged, have the tool
serviced before using. Many accidents are caused by poorly maintained tools.

Page 4SKU 98839 For technical questions, please call 1-800-444-3353.
Use only accessories that are recommended by the manufacturer for your6.
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
CAUTION: This generator is not intended to power sensitive electronic equip-7.
ment* without the addition of an appropriate line conditioner and surge pro-
tector (both not included). Sensitive electronic equipment should be operated
on approved inverter type generators or pure sine wave generators.
If the plugged in product operates abnormally or unusually slow, immediately stop
using the generator as a power source. Always read and adhere to the instruction
manual of the product to be powered, to make sure that it can be safely and efciently
powered by a portable generator.
Note: When using a generator to provide home standby electricity, a transfer switch
(sold separately) is needed to prevent back feeding power into the utility line.
Connections for standby power to a building electrical system must be made by a
qualied electrician. The connection must isolate the generator power from utility
power, and must comply with all applicable laws and electrical codes.
WARNING: Improper connections to a building electrical system can allow electrical
current from the generator to backfeed into the utility lines. Such backfeed may
electrocute utility company workers or others who contact the lines during a power
outage, and the generator may explode, burn, or cause res when utility power is
restored. Consult the utility company or a qualied electrician.
*Sensitive electronic equipment includes, but is not limited to, audio/video
equipment, some television sets, computers, and printers.
AC APPLICATIONS
Before connecting an appliance or power cord to the generator: Make sure that it1.
is in good working order. Faulty appliances or power cords can create a potential
for electrical shock.
If an appliance begins to operate abnormally, becomes sluggish or stops suddenly,2.
turn it off immediately. Disconnect the appliance, and determine whether the
problem is the appliance, or if the rated load capacity of the generator has been
exceeded.
Make sure that the electrical rating of the tool or appliance does not exceed that of3.
the generator. Never exceed the maximum power rating of the generator. Power
levels between rated and maximum may be used for no more than 30 minutes.
Substantial overloading will open the circuit breaker. Exceeding the time limit for4.
maximum power operation or slightly overloading the generator may not switch
the circuit breaker or circuit protector OFF, but will shorten the service life of the
generator.

Page 5SKU 98839 For technical questions, please call 1-800-444-3353.
SERVICE
Tool service must be performed only by qualied repair personnel. 1. Service or
maintenance performed by unqualied personnel could result in a risk of injury.
When servicing a tool, use only identical replacement parts. Follow instruc-2.
tions in the “Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create
a risk of electric shock or injury.
SPECIFIC SAFETY RULES AND PRECAUTIONS
Your Warranty is voided if1. you do not put engine oil in the Engine’s crankcase
prior to its rst use. Before each use, check the oil level. Never run the Engine
with low or no engine oil. Running the Engine with low or no oil will permanently
damage the unit.
Maintain labels and nameplates on the Generator.2. These carry important infor-
mation. If unreadable or missing, contact Harbor Freight Tools for a replacement.
Make sure the Generator is located on a at, level, sturdy surface capable of 3.
supporting the weight of the Generator and any additional tools and equip-
ment.
Industrial applications must follow OSHA guidelines.4.
Never stand on the Generator.5. Serious injury could result if the Generator is
tipped.
Never leave the Generator unattended when it is running.6. Turn off the Engine
before leaving.
Do not allow children and other unauthorized people to handle or play with7.
the Generator.
8. This Generator is designed for outdoor use only. Do not operate the
Generator in a closed area or in a poorly ventilated area. When run-
ning, the Engine of this Generator produces carbon monoxide, a
colorless, odorless, toxic fume that, when inhaled, can cause seri-
ous personal injury or death. Whenever possible, use a carbon monoxide
detector (not included) to detect excessive carbon monoxide fumes in the
work area and in the surrounding area.
Do not force the Generator.9. This tool will do the work better and safer at the speed
and capacity for which it was designed. Do not overload the generator. Know the
total running wattage necessary to power the desired items.

Page 6SKU 98839 For technical questions, please call 1-800-444-3353.
FIRE AND EXPLOSION PRECAUTIONS
Gasoline fuel and fumes are ammable, and potentially explosive. 1. Use proper
fuel storage and handling procedures. Always have multiple ABC class re extin-
guishers nearby.
Keep the Generator, its Engine, and surrounding areas clean at all times.2.
When spills of fuel or oil occur, they must be cleaned up immediately.3. Dis-
pose of uids and cleaning materials as per any local, state, or federal codes and
regulations. Store oil rags in a covered metal container.
Never store fuel or other ammable materials near the Generator.4.
Do not smoke, or allow sparks, ames, or other sources of ignition around 5.
the Generator.
Keep grounded conductive objects, such as tools, away from exposed, live6.
electrical parts and connections to avoid sparking or arcing. These events
could ignite fumes or vapors.
Do not rell the Fuel Tank while the Engine is running or while the Engine is 7.
still hot. Do not operate the Generator with known leaks in the fuel system.
Use only Engine manufacturer recommended fuel and oil.8.
Operation of this equipment may create sparks that can start res around dry 9.
vegetation. A spark arrestor may be required. The operator should contact local
re agencies for laws or regulations relating to re prevention requirements.
MECHANICAL PRECAUTIONS
Prior to performing service, maintenance, or cleaning procedures, always1.
make sure the Engine’s Ignition (2) is in its “OFF” position. Allow the Engine
and Generator to completely cool. Then, remove the spark plug from the
Engine.
Do not alter or adjust any part of the Generator or Engine that is assembled2.
and supplied by the manufacturer.
Always follow and complete scheduled Generator and Engine maintenance.3.
CHEMICAL PRECAUTIONS
Avoid contact with hot fuel, oil, exhaust fumes, and solid surfaces.1.
Avoid body contact with fuels, oils, and lubricants used in the Generator and2.
Engine. If swallowed, seek medical treatment immediately. Do not induce vomiting
if fuel is swallowed. For skin contact, immediately wash with soap and water. For
eye contact, immediately ush eyes with clean water.

Page 7SKU 98839 For technical questions, please call 1-800-444-3353.
NOISE PRECAUTION
Prolonged exposure to high noise levels is hazardous to hearing. Wear hearing
protection when operating or working around the Generator when it is running.
ELECTRICAL PRECAUTIONS
All connections and conduits from the Generator to the load must only be1.
installed by trained and licensed electricians, and in compliance with all
relevant local, state, and federal electrical codes and standards, and other
regulations where applicable.
The Generator must be earth-grounded in accordance with all relevant electri-2.
cal codes and standards before operation.
If an extension cord (not included) is used, make sure to use only UL listed3.
cords having the correct gauge and length. (See TABLE A, next page.)
Do not attempt to connect or disconnect load connections while standing in4.
water, or on wet or soggy ground.
Do not touch electrically energized parts of the Generator and interconnect-5.
ing cables or conductors with any part of the body, or with any non-insulated
conductive object.
Connect the Generator only to a load or electrical system (120 volt, 240 volt,6.
or 12 volt) that is compatible with the electrical characteristics and rated ca-
pacities of the Generator.
Be sure the Engine’s Ignition (2) is in its “OFF” position before moving the7.
Generator and before performing any service, maintenance, or cleaning pro-
cedures on the unit.
Keep all electrical equipment clean and dry.8. Replace any wiring where the in-
sulation is cracked, cut, abraded, or otherwise degraded. Replace terminals that
are worn, discolored, or corroded. Keep terminals clean and tight.
Insulate all connections and disconnected wires.9.
Guard against electric shock.10. Prevent body contact with grounded surfaces such
as pipes, radiators, ranges, and refrigerator enclosures.
Use only Class BC or Class ABC re extinguishers on electrical res.11.
Unconditioned electrical output can damage sensitive equipment.12. Do not use
to power sensitive electronic equipment without appropriate line conditioner (sold
separately).

Page 8SKU 98839 For technical questions, please call 1-800-444-3353.
RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*
(120 OR 240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD LENGTH
25 Feet 50 Feet 75 Feet 100 Feet 150 Feet
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 -
12.1 – 16.0 14 12 10 - -
16.1 – 20.0 12 10 - - -
TABLE A * Based on limiting the line voltage drop to ve volts at 150% of the rated amperes.
MISC. PRECAUTIONS
WARNING!1. People with pacemakers should consult their physician(s) before us-
ing this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference to or failure of the pacemaker.
WARNING!2. The warnings and precautions discussed in this manual cannot cover
all possible conditions and situations that may occur. It must be understood by the
operator that common sense and caution are factors which cannot be built into this
product, but must be supplied by the operator.

Page 9SKU 98839 For technical questions, please call 1-800-444-3353.
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts Lists on
pages 20 and 22 are included. If any parts are missing or broken, please call Harbor
Freight Tools at the number shown on the cover of this manual as soon as possible.
ASSEMBLY INSTRUCTIONS
CAUTION! Make sure Engine’s Ignition (2) is in its “OFF” position prior to per-
forming any service, maintenance, or cleaning of Generator or Engine. Always
wear ANSI- approved safety impact eye goggles when assembling and using
the Generator.
To Install The Battery (not included):
NOTE: For proper operation, you must install a DC 12V, 18-35 Amp-hour Battery.
POSITIVE BATTERY CABLE
(63)
NEGATIVE BATTERY CABLE
(64)
BATTERY GUARD PLATE (44)
(FACTORY PRE-INSTALLED)
BATTERY TRAY (48)
(FACTORY PRE-INSTALLED)
BATTERY
(45)
Not included
BATTERY BRACKET
(47)
BOLT W/LOCK WASHER
(46) FIGURE A
1. Remove the packing from the Battery (45). Then, locate the factory pre-installed
Battery Guard Plate (44) and Battery Tray (48) beneath the Control Panel (4) of the
Generator unit. (See Figure A, previous page.)
Slide the Battery (45) into the Battery Guard Plate (44), with the Battery’s terminals2.
facing outward and with the Battery’s negative (–) terminal facing left.
(See Figure A.)
Align the two mounting holes in the Battery Bracket (46) with the two threaded mount-3.
ing holes in the Battery Guard Plate (44). Then secure the Battery Bracket to the
Battery Guard Plate, using two Bolts with Lock Washers (46). (See Figure A.)

Page 10SKU 98839 For technical questions, please call 1-800-444-3353.
Connect the end of the Positive Battery Cable (63) to the Battery’s positive4. (+) ter-
minal. Then connect the Negative Battery Cable (64) to the Battery’s negative (–)
terminal. (See Figure A.)
INSTALLATION INSTRUCTIONS
Electrical and other permits may be required for the installation of emergency or1.
portable power systems. Investigate the local building and electrical codes before
installing this unit.
Prior to providing Generator power to tools and equipment, make sure the Gen-2.
erator’s rated voltage, wattage, and amperage capacity is adequate to supply all
electrical loads the unit will power. If powering exceeds the Generator’s capacity,
it may be necessary to group one or more of the tools/equipment for connection to
a separate Generator.
General Location:
It is recommended to locate the Generator (outdoors only) where cooling air is1.
readily available. Locate the Generator so that the air inlets and outlets are not
blocked by obstructions such as bushes, trees, or snow drifts. Locating it in the path
of heavy winds or snowdrifts may require the placement of a barrier for protection.
The air inlet (on Air Filter Cover 18a), in normal weather conditions, should face
the prevailing wind direction.
Locate the Generator on a concrete slab or other area where rain drainage or ood 2.
waters can not reach it.
Generator placement should allow four feet of access to all sides for maintenance3.
and for proper air cooling.
Place the Generator as close as possible to the electrical tools and equipment be-4.
ing powered to reduce the length of extension cords.

Page 11SKU 98839 For technical questions, please call 1-800-444-3353.

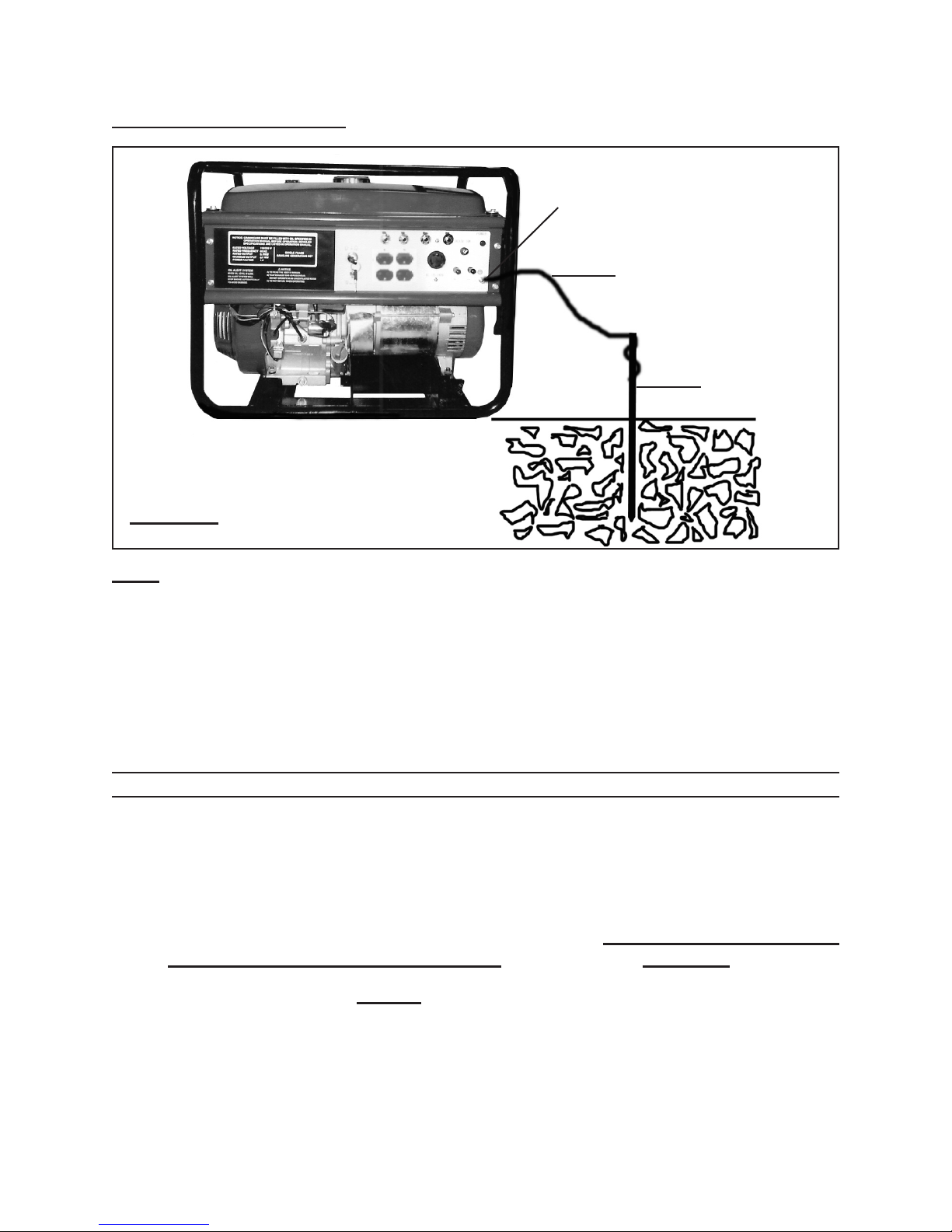

Grounding The Generator:
GROUNDING TERMINAL
(9)
#6 AWG GROUNDING WIRE
(NOT INCLUDED)
GROUNDING ROD
(NOT INCLUDED)
FIGURE B
Note: It is recommended that only a trained and licensed electrician perform this proce-
dure.
Connect a #6 AWG grounding wire (not included) from the Grounding Terminal (9)
on the Generator to a grounding rod (not included) that has been driven at least 24
inches deep into the earth. The grounding rod must be an earth-driven copper or
brass rod (electrode) which can adequately ground the Generator.
(See Figure B.)
CONTROL PANEL FEATURES
Engine Ignition (2):1. Starts and stops the Gasoline Engine. To start the Engine
using power from the Battery (45), insert the Ignition Key (65) and turn the Engine
Ignition to its “START” position. To start the Engine manually using the Starter
Rope (40A) and Starter Handle (41A), insert the Ignition Key and turn the Engine
Ignition to its “RUN” position. Then pull briskly on the Starter Handle. To stop the
Engine, turn the Engine Ignition to its “OFF” position. Always remove the Ignition
Key when the Generator is not in use. (See Figure C, next page.)
Fuel Tank Cap (34):2. NEVER run the Engine with the Fuel Tank Cap removed.
(See Figure C.)
120 Volt NEMA AC Outlets (5):3. The Generator is equipped with four 3-hole 120
volt AC outlets to power 120 volt tools and equipment. (See Figure C.)
REV 09h

Page 12SKU 98839 For technical questions, please call 1-800-444-3353.
(2)
(65)
(34)
(5) (6)
(3)
(7)
(10)
(8)
FIGURE C
4. 120 Volt AC Circuit Breakers (3): Each of the four 120 Volt AC Outlets have a
Circuit Breaker to protect the Generator from overloading. Should a Circuit Breaker
“trip”, unplug all electrical loads from the Generator. Allow the Circuit Breaker to
cool down. Then, push the 120 volt Circuit Breakers. (See Figure C.)
240 Volt AC Outlet (6):5. The Generator is equipped with one 4-blade twist lock 240
Volt AC Outlet to power 240 volt tools and equipment. (See Figure C.)
240 Volt AC Circuit Breaker (3):6. The 240 Volt AC Outlet has two Circuit Break-
ers to protect the Generator from overloading. Should the Circuit Breakers “trip”,
unplug all electrical loads from the Generator. Allow the Circuit Breakers to cool
down. Then, push the 240 volt Circuit Breakers. (See Figure C.)
12 VDC Terminal (7):7. Supplies voltage to 12 volt DC appliances such as radios,
emergency lights, etc. To power a 12 volt DC appliance, connect the positive (+)
lead from the appliance to the positive (Red +) 12 VDC Terminal on the Genera-
tor. Then connect the negative (–) lead from the appliance to the negative (Black
–) 12 VDC Terminal on the Generator. IMPORTANT: This Outlet is designed for
operating 12 volt DC appliances only. Do not attempt to charge batteries with this
Outlet. (See Figure C.)
REV 09h

Page 13SKU 98839 For technical questions, please call 1-800-444-3353.
12 Volt DC Fuse (8):8. The 12 Volt DC Outlet has one Fuse (8) to protect the Gen-
erator from overloading. The Generator is equipped with the following size and type
of Fuse: F10A250V. Should a 12 VDC output exceed the fuse’s rating, always
check to see if the Fuse has “blown” (a melted lament within the Fuse). If neces-
sary, unplug all electrical loads from the Generator, replace with a new Fuse, and
reattach a reduced load to the generator. (See Figure C.)
Power-On Light (10):9. Indicates voltage is being provided by the Generator.
(See Figure C.)
PRE-START INSTRUCTIONS
To Add Engine Oil:
CAUTION!1. Your warranty is voided if you do not put engine oil in the Engine’s
crankcase prior to its rst use. Before each use, check the oil level. Never run the
Engine with low or no engine oil. Running the engine with low or no oil will perma-
nently damage the Engine.

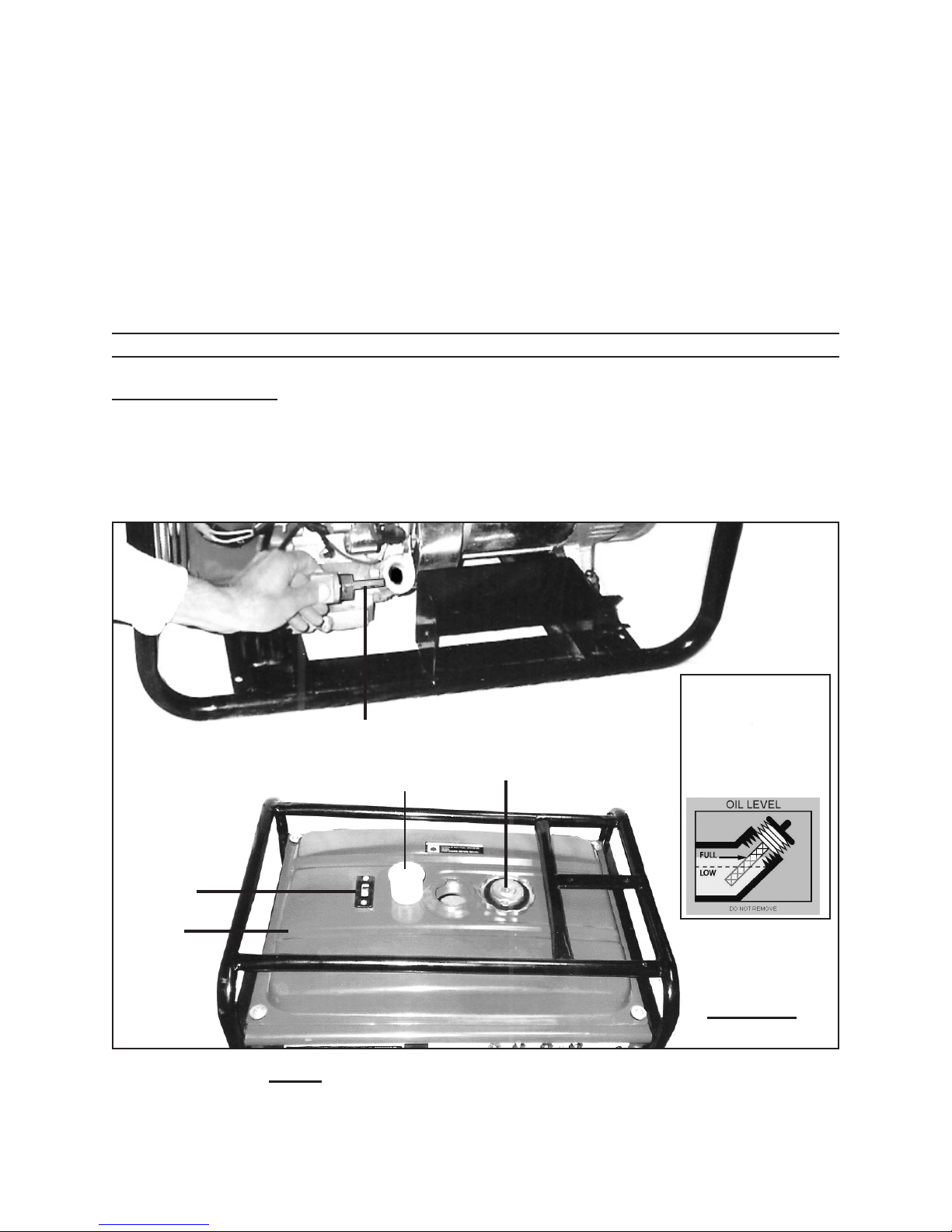

OIL DIPSTICK
(65A)
FUEL TANK
(31)
FUEL GAUGE
(35)
FUEL FILTER
(32)
FUEL TANK CAP
(34)
FIGURE D
2. The Engine MUST be lled with a high quality grade engine oil. If the Engine will
be run in temperatures above 32 degrees Fahrenheit, use SAE 10W-30 weight oil.
THIS GENERATOR
HAS AN AUTO-
SHUTDOWN OIL
SENSOR. IF
ENGINE STOPS OR
WILL NOT START,
CHECK OIL LEVEL.

Page 14SKU 98839 For technical questions, please call 1-800-444-3353.
If the Engine will be run in temperatures below 32 degrees Fahrenheit, use SAE
5W-30 weight oil. (See Figure D, prior page.)
To do so,3. unscrew and remove the Oil Dipstick (65A). Pour engine oil into the oil
ll hole until the level of oil is even with the bottom edge of the oil ll hole (if you
cannot see the oil through the oil ll hole, then the oil is too low and more oil must
be added). (See Figure D.)
Make sure to screw the Oil Dipstick (65A) rmly back into its Dipstick Hole. 4.
(See Figure D.)
To Fill The Fuel Tank:
Prior to rst using the Generator, the Fuel Tank (31) 1. must be lled with high octane
unleaded gasoline. (See Figure D.)
To do so, remove the Fuel Tank Cap (34) and ll the Fuel Tank (31) with unleaded 2.
gasoline. Then, replace the Fuel Tank Cap. Thereafter, check the Fuel Gauge (35)
for the amount of unleaded gasoline. When necessary, rell the Fuel Tank.
(See Figure D.)
NOTE: Periodically, make sure to check the Fuel Filter (32) for excessive dirt and debris.
If necessary, remove the Fuel Filter and clean with compressed air.
(See Figure D.)
REV 09h
THIS UNIT CAN POWER THE FOLLOWING ITEMS
NOTE: Wattages listed above are estimates. Check nameplate wattages on all loads
before connecting to Generator.
ITEM RUNNING
WATTS
START-UP
WATTS
1 HP Air Compressor 1600 4500
Belt Sander 1200 2400
Pressure Washer 1200 3600
Refrigerator/Freezer 700 2200
1/2 HP Sump Pump 1050 2150
1/2 HP Well Pump 1000 2100
Miter Saw 1650 3000
1-1/2 HP Capacitor Start &
Run Motor
1400 3100
Central AC-32, 000 BTU 5000 6500
10” Table Saw 1800 4500

Page 15SKU 98839 For technical questions, please call 1-800-444-3353.
OPERATING INSTRUCTIONS
Check to make sure the Engine Ignition (2) is in its1. “OFF” position.
(See Figure C.)
CAUTION!2. Make sure to unplug any load from the Generator before starting to
prevent permanent damage to any appliances, tools, or equipment.
CAUTION! Engine oil MUST be added to the Engine’s crankcase prior to start-3.
ing and running the Engine. Failure to add oil will damage the Engine and void
its warranty. (See pages 13 and 14, and Figure D.)
Before the rst use, the Fuel Tank (31) must be lled with a high octane, unleaded 4.
gasoline. (See pages 13 and 14, and Figure D.)
WARNING!a. Never ll the Fuel Tank (31) completely. Fill the Fuel Tank to 1/2”
below the bottom of the ller neck to provide space for fuel expansion. Wipe
any fuel spills from the Engine and Generator before starting the Engine.
WARNING!b. Never ll the Fuel Tank (31) when the Engine is running or hot. Do
not smoke when lling the Fuel Tank.
To Start The Engine/Generator:
FUEL VALVE
(41)
CHOKE LEVER (21A)
(IN “CHOKE” POSITION)
CHOKE LEVER (21A)
(IN “RUN” POSITION)
FIGURE E
ON
OFF
1. Turn the Engine Fuel Valve (41) to its “OPEN” position. Then, turn the Engine
Choke Lever (21A) to its “CHOKE” position. NOTE: No choke is required if the
Engine is warm. Make sure the Engine Choke Lever is in the “RUN” position when
starting a warm Engine. (See Figure E.)
To start the Engine, using the Battery (45) for cranking power, insert the Ignition Key2.
(65) and turn the Engine Ignition (2) to its “START” position. NOTE: To prolong
starter life, use short starting cycles (5 seconds maximum, then wait one minute
before attempting to again start). (See Figure C.)

Page 16SKU 98839 For technical questions, please call 1-800-444-3353.
To start the Engine manually, using the Starter Handle (41A) and Starter Rope3.
(40A), insert the Ignition Key (65) and turn the Engine Ignition (2) to its “RUN” po-
sition. Grasp the Starter Handle (41A) on the Starter Rope (40A) and pull slowly
until resistance is felt. Allow the Rope to rewind slowly. Then, pull the Handle with
a rapid, full arm stroke. Allow the Rope to rewind slowly. If necessary, repeat this
procedure until the Engine starts.
When the Engine starts, slowly move the Choke Lever (21A) to its4. “RUN” position.
(See Figure E.)
IMPORTANT:5. Allow the Generator to run at no load for ve minutes after each
start-up so that the Engine and Generator can stabilize.
To Connect Electrical Loads:
Start the Engine, and allow the Engine and Generator to run and warm up for ve 1.
minutes after starting with no electrical load.
2. WARNING! Connect 120 VAC appliances, tools, and equipment only to the
four 120 VAC Outlets (5). Connect 240 AC appliances, tools, and equipment only
to the one 240 VAC Outlet (6). Connect 12 VDC appliances, tools, and equipment
only to the 12 VDC Terminal (7). (See Figure C.)
3. CAUTION! Never exceed the rated capacity for this Generator, as serious dam-
age to the Generator and/or appliances, tools, and equipment could result from an
overload. Starting and running wattage requirements should always be calculated
when matching this Generator’s wattage capacity to the appliance, tool, or equip-
ment.
Most appliances, tools, and equipment will list on the motor nameplate the starting4.
and running voltage and amperage requirements. Use the following formula to
convert voltage and amperage to wattage:
Volts x Amps = Watts (example: 120 volts x 3 amps = 360 watts)
To determine the approximate wattage requirement for most appliances, tools, and5.
equipment with “inductive” type motors, multiply the wattage that was calculated by
2 times to ensure adequate Generator capacity for motor load starting current.
NOTE:6. The starting and running wattage for “resistant” loads are the same. Ex-
ample: a 100 Watt light bulb requires only 100 Watts to start. Most resistant loads
will be listed in wattage.
Always power the largest electric motor rst. Then, plug in other appliances, tools, 7.
and equipment one at a time.
Connect “inductive” load appliances, tools, and equipment rst. Inductive loads a.
consist of small hand tools and some small appliances. Connect the items that
require the most wattage rst.
Connect any lights next.b.

Page 17SKU 98839 For technical questions, please call 1-800-444-3353.
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always make sure the Engine’s Ignition (2) is in its “OFF” position
prior to performing any service, maintenance, or cleaning of the Generator or En-
gine. (See Figure C.)
Before each use,2. inspect the general condition of the Generator and Engine. Check
for loose screws, misalignment or binding of moving parts, cracked or broken parts,
loose hose connections, and any other condition that may affect the safe opera-
tion of the Generator and Engine. If abnormal noise or vibration occurs, have the
problem corrected before further use.
Do not use damaged equipment.
Generator maintenance:3.
Keep the Generator clean and dry at all times.a.
The Generator should not be operated or stored in locations that include exces-b.
sive moisture, dust, ammable or corrosive vapors. If these substances are on
the Generator, clean with a cloth or soft brush.
Do not use a garden hose or anything with liquid to clean the Generator. Liquidc.
may enter the cooling air slots and could damage the interior workings of the
Generator.
Voltage sensitive appliances, tools, and equipment should be the last to be con-c.
nected to the Generator and the rst to be disconnected. Plug voltage sensitive
items such as T.V.’s, VCR’s, microwaves, and cordless telephones into a UL
listed voltage surge protector (not included). Then, connect the UL Listed surge
protector into the Generator.
8. CAUTION! Failure to connect and operate appliances, tools, and equipment in
this sequence can cause damage to the Generator, appliances, tools, and equip-
ment and will void the warranty on this Generator.
Once the Engine is running, simply connect the 120 volt appliances, tools, and9.
equipment into the 120 VAC Outlets (5). Connect a 240 volt appliance, tool, or
equipment into the 240 VAC Outlet (6). Or connect a 12 volt appliance, tool, or
equipment into the 12 VDC Outlet (8). (See Figure C.)
IMPORTANT:10. If Engine speed or voltage uctuates with a load below 250 Watts,
move the Engine Choke Lever (21A) to the “HALF-CHOKE” position.
(See Figure E.)
NOTE: Do not allow the generator to completely run out of fuel with devices at-
tached. A generator’s output may sharply spike as it runs out of fuel, causing
damage to attached devices.
When nished using the Generator, disconnect all electrical loads. Turn the Engine 11.
Ignition (2) to its “OFF” position to stop the Engine. Then, close the Engine Fuel
Valve (41). (See Figures C and E.)
REV 10e

Page 18SKU 98839 For technical questions, please call 1-800-444-3353.
Engine maintenance:4.
After rst 5 to 8 hours of use: a. Change oil. Then, change oil every 50 hours
of use. Change oil every 25 hours of use when operating the Engine under a
heavy load or in high temperatures. To change the oil, remove the Plug (59A)
and allow the old oil to drain in a proper container. Once drained, replace the
Plug. If the Engine will be run in temperatures above 32° Fahrenheit, use SAE
10W-30 weight oil. If the Engine will be run in temperatures below 32° Fahr-
enheit, use SAE 5W-30 weight oil. To ll the Engine crankcase with new oil,
unscrew and remove the Oil Dipstick (65A). Pour engine oil into the oil ll hole
until the level of oil is even with the bottom edge of the oil ll hole (if you cannot
see the oil through the oil ll hole, then the oil is too low and more oil must be
added). Make sure to screw the Oil Dipstick (65A) rmly back into its Dipstick
Hole. Also, make sure to dispose of the old oil according to local waste disposal
requirements.(See Figure F.)

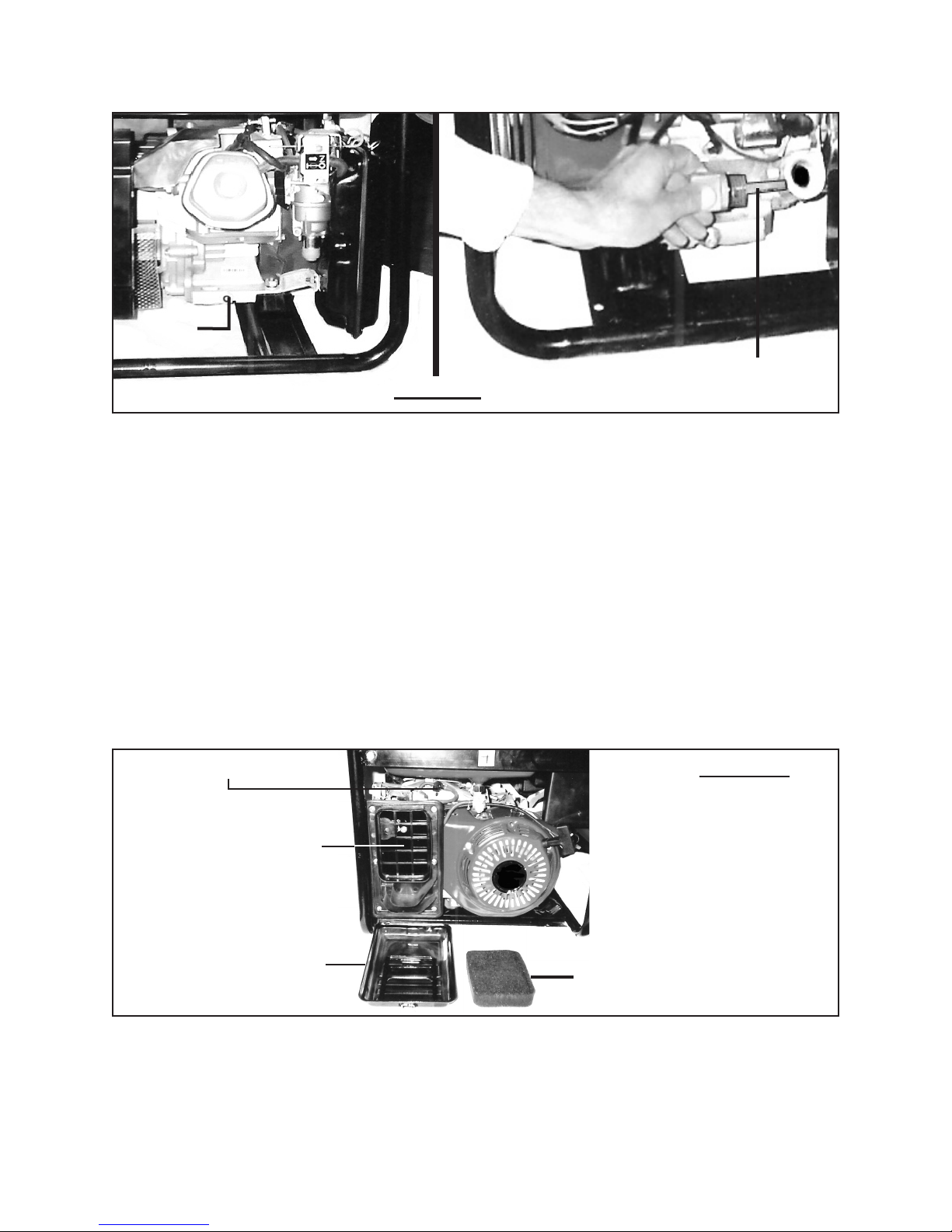

AIR FILTER COVER
(18A) AIR FILTER ELEMENT
(19A)
AIR FILTER SEPARATOR
(20A)
FIGURE G
SPARK PLUG (28A)
SPARK PLUG WIRE (36A)
b. After every 25 hours of use: Service the Air Filter Element (19A) and Air Filter
Separator (20A). To do so, remove the Air Filter Cover (18A). Remove the Air
Filter Element. Immerse the Air Filter Element in a mild solvent and squeeze
the Element several times to clean. Remove the Element from the solvent
FIGURE F
OIL DIPSTICK
(65A)
PLUG
(59A)

Page 19SKU 98839 For technical questions, please call 1-800-444-3353.
and squeeze thoroughly to dry. Then, squirt several drops of a light weight oil
onto the Element. Use compressed air to clean the Air Filter Separator. Then
replace the Air Filter Separator, Air Filter Element, and Air Filter Cover. Clean
more often under dusty conditions or when airborne debris is present. Replace
Air Filter parts if necessary. (See Figure G.)
After every 100 hours of use:c. Replace the Spark Plug (28A). To do so, remove
the Spark Plug Wire (36A). Use the accessory Spark Plug Wrench Kit (86A) to
remove the old Spark Plug. Install a new Spark Plug. Then, replace the Spark
Plug Wire. (See Figure G.)
FUEL FILTER
(32)
FUEL TANK CAP
(34)
FUEL TANK
(31)
FIGURE I
d. Daily: Inspect the Fuel Filter (32): To do so, remove the Fuel Tank Cap (34).
Remove the Fuel Filter from the Fuel Tank (31). If necessary, use compressed
air to remove any dirt and debris from the Fuel Filter. Then replace the Fuel
Filter and Fuel Tank Cap. (See Figure H.)
When storing the Generator,5. make sure to store the unit in a clean, dry, safe loca-
tion out of reach of children and other unauthorized people.
6. CAUTION! All maintenance, service, or repairs not mentioned in this manual
must only be performed by a qualied service technician.

Page 20SKU 98839 For technical questions, please call 1-800-444-3353.

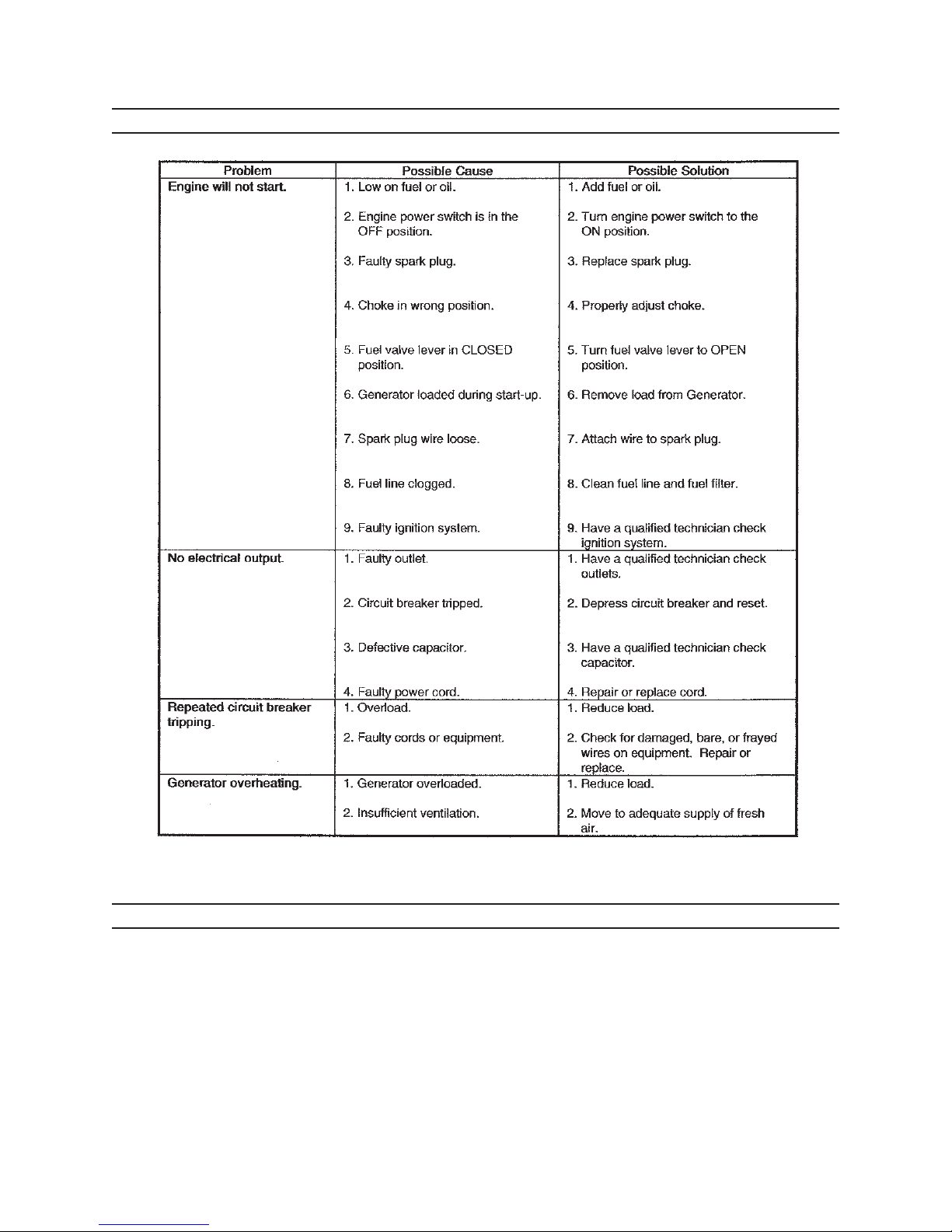

TROUBLESHOOTING
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER
AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER.
THE BUYER ASSUMES ALL RISKS AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE
ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER
INSTALLATION OF REPLACEMENT PARTS THERETO.
