Operator's Manual
Read this manual completely before operating or maintaining this machine.
Failure to follow safety precautions could result in serious injury or death.
Keep this manual for future reference by you and by all those who operate
and maintain this machine.
Off-road Rubber Track Carrier
BP31
Operator's Manual
3584 5111 000 00

Notice to Users and Maintenance Personnel
• This machine can be very dangerous if the safety precautions in this manual
and on labels attached to this machine are not followed. Read and understand
this manual and safety labels on machine thoroughly before using this machine.
Always follow the instructions and safety precautions, or serious injury or
death could result.
• This machine should only be used for its intended purpose: hauling and
dumping. Any other use could be dangerous.
• This machine may not be operated on public road or what is considered to
be public road. It is the sole responsibility of the operator to consult the local
regulations.
• Do not modify this machine, or do not operate this machine with safety covers
removed or open. A serious accident could result.
Thank you for purchasing this machine.
This manual provides information needed for safe and effective use of this machine to
those who operate or maintain this machine. Make sure to read and understand this manual
thoroughly before operating this product. Also make sure to read the separate operator's
manual for the engine.
• Store this manual in a safe, accessible place for easy reference.

Warning Term Denition
Indicates an imminently hazardous situation which will result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in death or serious injury if the user does not follow the
procedures or the instructions.
Indicates a potentially hazardous situation which could result
in minor to moderate injury or damage to the machine if the
user does not follow the procedures or the instructions.
Indicates important information which needs particular
attention.
In this manual, the following four warning terms are used to signal the four levels of hazard (or
seriousness of possible accidents). Read and understand what they mean and always follow
the instructions in this manual.
Warning Terms Used in this Manual
NOTE
Notice to Owner
• Be sure that everyone who uses this machine, including those who rent or
lease this machine, receives a copy of this Operator's Manual and understands
the importance of reading and following the information in this manual.

Warranty and After-Sales Service
Warranty
After-Sales Service

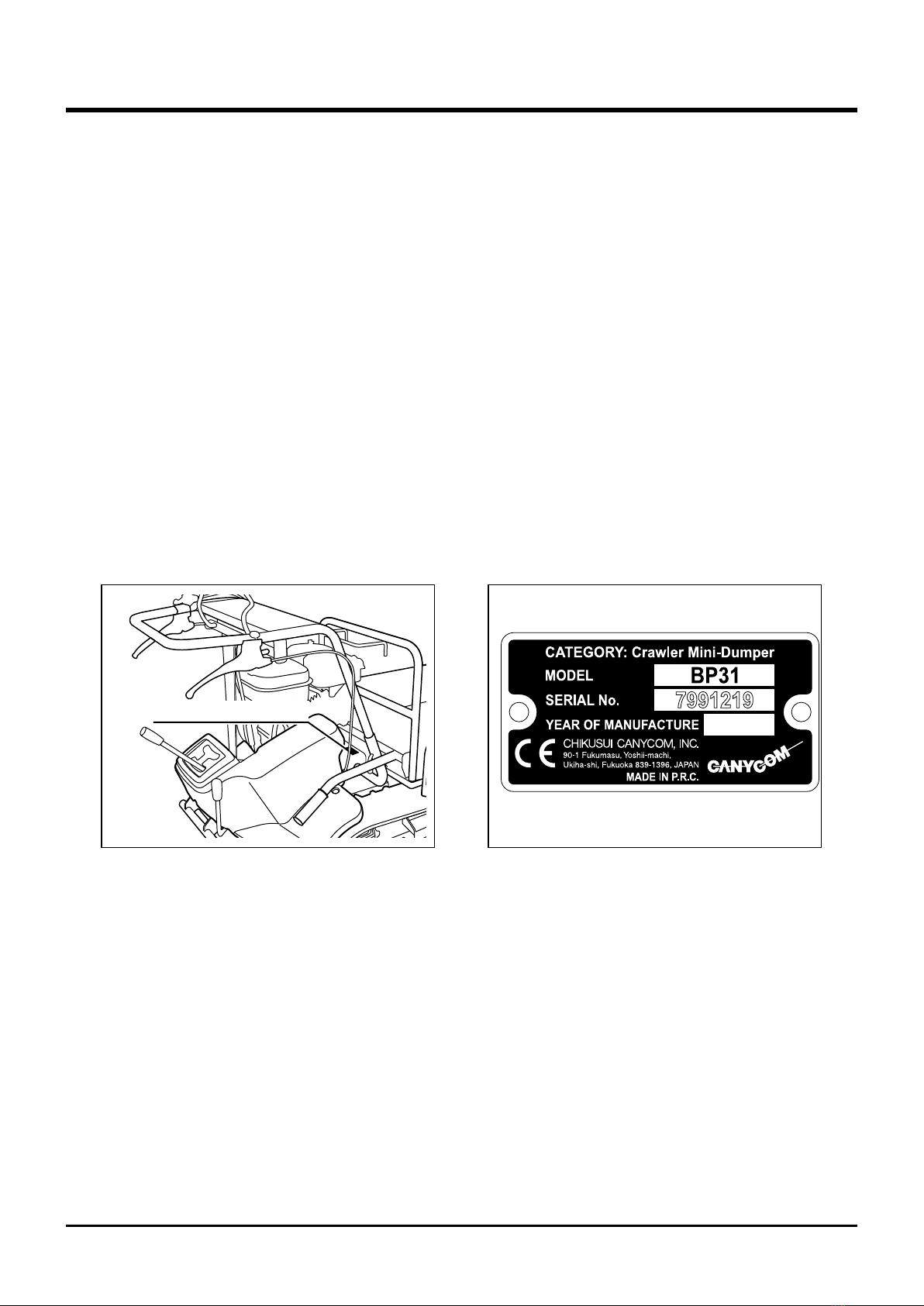

Location of Model Label Model Label
The replacement or repair parts for this product shall remain available for seven years after
the production of this type of machine is discontinued.
Availability of Spare Parts
Consult your local CANYCOM dealer or our company’s sales department regarding service
orders or any questions or problems that may arise when using this machine. Please make
sure to have the product name, serial number, and the make and type of the engine handy at
the time of contact. The model and serial number can be found on the model label as shown
below, and the make and type of the engine can be found in Chapter 3 "Specications" of
this manual (Page10).
3584M-0005-022
3584M-0005-012E
Location of Model Label
CHIKUSUI CANYCOM, INC. guarantees this product, based on the terms of warranty.

Contents
1. Safety 1
Safety Labels ...................................1
Safety Precautions...............................2
Training .......................................................2
Preparation ....................................................3
Operation .....................................................4
Servicing ......................................................7
2. Controls and Components 8
Name and Function of Controls ....................8
3. Specications 10
Product Specications ..........................10
Contents of the Tool Bag ........................11
4. Operation 12
Preparation ....................................12
Pre-start up Inspection .........................................12
Checking and Filling Fuel .......................................12
Driving........................................13
Starting ......................................................13
Driving .......................................................16
Stopping .....................................................18
Shifting ......................................................19
Parking ......................................................20
Working .......................................22
Dumping .....................................................22
Using Loading Deck Fixing Rod ..................................23
Using Slide Frame .............................................24

5. Maintenance 25
Maintenance Schedule ..........................25
Engine .......................................................25
Chassis ......................................................26
List of Fluids and Lubricants .....................27
Greasing Points ................................28
Greasing Points ...............................................28
List of Consumables and Spares ..................29
Removing and Installing Body Panels ..............30
Fender .......................................................30
Engine ........................................31
Engine Oil ....................................................31
Air Cleaner ...................................................33
Spark Plug ...................................................34
Drive Train.....................................35
Track. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Transmission Oil...............................................36
Drive Belt .....................................................37
Parking Brake .................................................38
Side Clutch ...................................................39
After Use Care .................................40
After Normal Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
After Cold Weather Use .........................................40
Storage.......................................................41
6. Troubleshooting 42
Troubleshooting ................................42

7. Transporting 45
Hauling .......................................45
Loading and Unloading .........................................45
Appendix
• Operator's Manual for the Engine
* Be sure to read and understand it together with this manual .
Noise and Vibration Levels
Noise and vibration levels are stated in the end of this manual.

Safety 1
-1-
Safety Labels
The safety label shown below is attached to the machine. See the illustration below for the
location and content of the label on the machine.
• Locate all the warning labels attached to this machine. Read and follow the
instructions and precautions in them. Failure to do so could result in serious injury
or death to the operator or bystanders.
• Keep the labels clean and legible. Do not use solvents or gasoline to clean the
labels.
• Replace these labels immediately if they have been removed, have fallen off or
become illegible. Use the part number, on the label or shown in this manual, to
order a replacement label from your CANYCOM representative.
1.9kw
/ 3200rpm 3200rpm
3584M-0101-011E
1
1 3584 5017 000
Supplementary (correction) label 3584 5017 100 pasted over this area.

Safety
-2-
1
This section contains safety precautions to follow when operating and maintaining machine.
Read and understand the precautions in this section as well as throughout this manual and
follow them when operating or maintaining machine. Failure to follow safety precautions
could result in property damage, serious injury or death to the operator or bystanders.
Safety Precautions
• It is essential to familiarize yourself with controls, safety labels and the proper use
of machine.
• Never allow people unfamiliar with these instructions to operate or service machine.
Do not let anyone under 18 years of age to operate this machine. Local regulations
may restrict the minimum age for operating a machine. Consult your local authority.
• This machine is not intended to carry a person. Do not ride or carry a person.
• The operator is responsible for the accidents or hazards caused to other people or
their property.
• Always keep in mind that care and concentration is required when working with a
load-carrying machine.
• Loss of control on a slope cannot be regained by the application of brake. Main
reasons for the loss of control are:
→ insufcient grip of tracks.
→ excessive speed.
→ misjudging of the ground conditions, especially inclination.
→ excessive load.
→ incorrect distribution of load.
Training
All operators should be familiar with the following issues when using this machine. In case
machine is used by a hired worker or is rented, the employer or renter shall give practical
instructions covering the following issues to the user.

Safety 1
-3-
• Always wear protective footwear, long trousers, hardhat, safety glasses and ear
protection when operating or servicing machine. Proper clothing will minimize
the chance of injury. Do not operate machine if you have long hair, loose clothing,
or jewelry; all of which can get tangled in moving parts. Do not operate machine
barefoot or with open sandals.
• Prepare beforehand the working rules and procedures such as signaling and trac
control for the work place. Following such rules will reduce the risk of accidents.
• Perform daily pre-startup inspection (see Preparation, page 12) before starting
machine. Repair or replace damaged parts before starting machine.
• Fuel is highly flammable. See Checking and Filling Fuel, page 12, for important
safety information on handling fuel; keep fire and spark away. Stop engine when
refueling.
• Never handle oil or grease, service engine, or recharge battery in the presence of
re or spark.
Preparation

Safety
-4-
1
Operation
This machine is intended for carrying grains, produce, dirt and similar materials. Carrying
other objects may damage machine. Avoid carrying liquid concrete. That will damage
machine.
The stability of machine is affected by speed, rate of steering, terrain and load. Always pay
close attention to these factors or loss of control or tipping over could occur, resulting in
property damage, serious injury or death.
General Driving
• Do not operate engine in a confined space where dangerous carbon monoxide
fumes can accumulate.
• Do not touch engine, mufer or exhaust pipe while engine is running or soon after it
has stopped. These areas will be very hot and can cause burns.
• Do not operate machine under the influence of alcohol or drugs. Do not operate
machine when you are tired, ill, or not t to operate machine.
• Before starting engine and moving machine, scan around your surroundings and
make sure all persons and other vehicles are a safe distance away from machine.
• Never operate on terrain that you are not comfortable with. Avoid terrain that is so
rough, slippery or loose that you feel like you could tip over.
• Always check for obstacles before operating on new terrain. Travel slowly and
use extra caution when operating on unfamiliar terrain. Be alert when traveling on
changing terrain.
• Always hold handle grips with both hands to keep a posture when operating
machine.
• Drive at a safe speed, taking into account surface gradient, surface conditions and
load.

Safety 1
-5-
• Do not make sudden maneuvers. Sudden start, stop, or turn can make machine lose
control and could cause a tip over. Be especially cautious when traveling on soft or
wet ground.
• On a slippery surface, travel slowly and exercise caution to reduce the chance of
skidding or sliding out of control. Never operate on ice.
• Always make certain that there is no obstacle or person behind machine when
backing up. Make certain that it is safe to back up, then move slowly and avoid
sharp turns.
• To reduce the risk of tipping over, pay special attention when encountering an
obstacle or a slope, or when braking on a slope or during a turn. See Driving on a
Slope below.
• Never attempt to drive over a large obstacle such as rock or fallen tree.
• Do not operate machine near the edge of a cliff, an overhang or a landslide area.
• Use an observer to help direct machine when visibility is poor, terrain is rugged or
hilly, or maneuvering room is limited. An observer should be able to see machine
and its immediate surroundings, and should give pre-arranged signals to direct the
operator.
Driving on a Slope
• Driving on a slope can be dangerous. It can result in a tip over and cause serious
injury or death. Always follow proper procedures for driving on a slope as described
in this manual.
• When carrying no load, do NOT use machine on a slope steeper than 25 degrees.
When carrying a load, observe the load limit according to the inclination (see
Loading and Driving with the Load, page 6). Do not dump on a slope.
• Driving on a slope in a wrong manner can cause a loss of control or a vehicle tip
over. Check terrain carefully before attempting to drive on a slope.
• Never drive on a slope that you are not comfortable with. Avoid a slope that is so
rough, slippery, or loose that you feel like you could tip over.

Safety
-6-
1
• When driving down a slope, stop and shift to one of the rst three gears (auxiliary
transmission in Low). Go down at a reduced speed. Use engine speed to help keep
machine speed low.
• When driving up a slope, proceed at a steady rate of speed and throttle position.
• Never move throttle lever or operate side clutch suddenly.
• Drive straight up or down a slope. Avoid turning on a slope. Avoid driving machine
across a slope.
• If engine stalls or loses traction during a climb and cannot make it to the top of a
slope, do not try to turn machine around. Carefully back down slowly, straight down
a slope.
• When going over the top of a slope, go slow; an obstacle, a sharp drop, or another
vehicle or person could be on the other side of the crest.
• Without a load, drive machine backwards up a slope (operator's handle toward the
top) when climbing, and drive it forward when going down a slope.
• With a load, drive machine forward up a slope (operator's handle away from the
top) when climbing, and drive it backwards when going down a slope. Be especially
cautious when operating on a slope with a load.
Loading and Driving with a Load
• The maximum payload for this machine is 300kg. Do not exceed this maximum
payload under any circumstance.
• Do not operate on a slope steeper than 20 degrees when carrying a load. Do not
carry more than 150kg when operating on a slope between 15 and 20 degrees.
• Place a load in loading deck so that the weight is evenly distributed. When carrying
a load, strap it to loading deck to prevent it from shifting. Ensure that the load does
not obstruct the operator's eld of view.
• When carrying a load, drive at a reduced speed. Allow greater distance for braking.

Safety 1
-7-
• Before crossing a bridge or an overpass, make certain that the total combined
weight of machine, load and operator is within the stated weight limit of the bridge
or the overpass. Then, proceed carefully and at a constant speed.
Parking
• Park machine on a at, level and stable surface. Do not park in a dangerous place.
Never park machine on a slope steeper than 15 degrees. Avoid parking on a slope
less than 15 degrees. If parking on a slope less than 15 degrees is unavoidable,
block tracks at the lower end of machine.
→ Without a load, park machine with operator's handle uphill
→ With a load, park machine with operator's handle downhill
→ Do not park sideways on a slope.
• Observe all the previous precautions for general driving, driving on a slope, loading
and driving with a load.
• Whenever you park machine, disengage clutch and stop engine.
• Gasoline is highly ammable and can be explosive. When parking machine indoors,
make certain that the building is well ventilated and that machine is not close to any
source of ame or spark, including appliances with pilot lights.
Servicing
• Do not service machine when engine is running. If it is absolutely necessary to run
engine while servicing, keep hands, feet, clothing and any part of the body away
from any moving part, especially belts at the side of engine.
• Do not operate engine in a confined space where dangerous carbon monoxide
fumes can accumulate.
• Check all fuel lines on a regular basis for fit and wear. Tighten or repair them as
needed.
• Do not touch engine, mufer, or exhaust pipe while engine is running or soon after
it has stopped. These areas will be very hot and can cause burns.
• Engine must be shut off before checking or adding oil.

Controls and Components
-8-
2
Name and Function of Controls
1 Throttle Lever . . . . . . . . . . . . Throttle Lever is used to control engine speed.
2 Drive Clutch Lever . . . . . . . . Drive Clutch Lever is used to engage or disengage drive
clutch.
3 Side Clutch Lever . . . . . . . . Side Clutch Lever is used to steer machine by engaging
side clutch.
4 Main Switch . . . . . . . . . . . . . Main Switch is used to start or stop engine.
5 Choke Lever . . . . . . . . . . . . . Choke Lever is used to help start engine by closing choke
valve.
Forward
Backward
3584M-5111-0201-010
1
2
3
3
7
8
10
9
4
6
5

-9-
Controls and Components 2
6 Starter Handle. . . . . . . . . . . . Starter Handle is used to start engine.
7 Shift Lever. . . . . . . . . . . . . . . Shift Lever is used to shift gears.
8 Auxiliary Transmission . . . . Auxiliary Transmission Shift Lever is used to select fast or
slow driving mode.
9 Loading Deck . . . . . . . . . . . . Loading Deck Fixing Rod is used to fix loading deck.
Remove this rod when dumping loading deck. Use this rod
as a sfety prop when working under loading deck.
10 Dump Lever . . . . . . . . . . . . . Dump Lever is used to raise or lower loading deck for
dumping.
Shift Lever
Fixing Rod

Specications
-10-
3
· Use this product properly after understanding its specications thoroughly.
Product Specications
Model and Type BP31
Slide Frame
Machine Mass kg 130
Maximum Payload kN(kg) 2.94 (300)
Dimensions
Overall Length mm 1620
Overall Width mm 650
Overall Height mm 970
Track Contact Length mm 650
Track Gauge mm 410
Ground Clearance mm 40
Loading Deck Height mm 295
Loading Deck
Type Slide Frame
Inside
Dimensions
Length mm 850 <1000>
Width mm 520 <740>
Height mm 210
Dumping System Manual
Dumping Angle degrees 60
Engine
Model HONDA GP160H
Type Air-cooled, 4-stroke inclined gasoline(OHV)
Cylinder (Bore×Stroke) mm 68×45
Displacement cm3(cc) 163
Rated Output
kW(PS)/rpm 2.9 (3.9)/3600*1
Set Rotation Speed
rpm 3000
Maximum Torque
N･m(kgf･m)/rpm 10.3 (1.05)/2500
Starter System Recoil
Fuel Automotive Unleaded Gasoline
Fuel Consumption
g/kW•h (g/PS •h ) 395(290)
Fuel Tank Capacity L3.1
Oil Capacity L0.58
Ignition System Transistor type magnet
Spark Plug NGK BPR6ES
*1 The power rating of the engine indicated in this document is the net power output tested on a
production engine for the engine model and measured in accordance with SAE j1349 at 3,600 rpm (net
power) and at 2,500 rpm(max net torque).

-11-
Specications 3
No. Content Quantitiy Note
1 Operator's Manual 1 This Manual
2Operator's Manual for the Engine 1
3Engine Service Tool 1
for Servicing the Engine
4 Trough 1 for changing engine oil
Contents of the Tool Bag
Model and Type BP31
Slide Frame
Performance
Speed
Forward 1st km/h 0.4
Forward 2nd km/h 0.7
Forward 3rd km/h 1.2
Forward 4th km/h 1.7
Forward 5th km/h 2.8
Forward 6th km/h 4.6
Reverse 1st km/h 0.6
Reverse 2nd km/h 2.1
Minimum Turning Radius m 1.15
Gradeability Degrees 25 (unloaded)
Drivetrain
Clutch Belt Tension
Main Transmission Gear Slide
Auxiliary Transmission Gear Slide
Steering Mechanism Dog Clutch
Brake Internally Expanding
Transmission Oil Capacity L 1.5
< > indicates when slide frames are extended.
*These specications are subject to change without notice.

Operation
-12-
4
• Keep re and spark away when handling fuel.
• Always stop engine before refueling.
• Keep the fuel level below the bottom of fuel lter inside fuel ller. Do not overll
fuel so that fuel will not overow. In case fuel is spilt, wipe out immediately.
Pre-start up Inspection
Preparation
Always perform an inspection before use.
Refer to "Maintenance Schedule" (page 25) for the inspection schedule and procedure.
Checking and Filling Fuel
1. Check fuel visually. If fuel level is low, ll fuel.
2. Open fuel ller cap and ll fuel.
3. Close fuel ller cap securely.
• Fuel to Use: Automotive Unleaded Gasoline
• Capacity: 3.1L
NOTE
Fuel Filler Cap
3584M-0401-010E

-13-
Operation 4
Driving
• Always start and run engine in a well ventilated place.
• Always make certain of the safety of your surroundings when starting engine.
• Do not use this machine in temperatures above 40ºC or below -15ºC. This
machine cannot perform adequately in these temperature ranges. Using this
machine under such conditions may result in an accident or cause damage to
machine.
• In the winter or cold climate, warm up engine thoroughly before driving
machine. A cold engine delivers poor performance, which may result in an
accident. It also causes excessive wear.
• Do not use this machine in dusty places such as desert. Dust may clog
air cleaner or enter engine, which may reslt in loss of performance and an
accident. It also causes excessive wear.
• Do not use this machine in the altitude above 1500m in its original conguration.
This machine cannot perform adequately above that altitude. Using this
machine under such conditions may result in an accident or cause damage
to machine. If you need to use this machine above that altitude, contact your
CANYCOM representative.
Starting
