LED ceiling lights "Salao" with HF-BWM & IP54 Salao lights with HF-BWM
Product description:

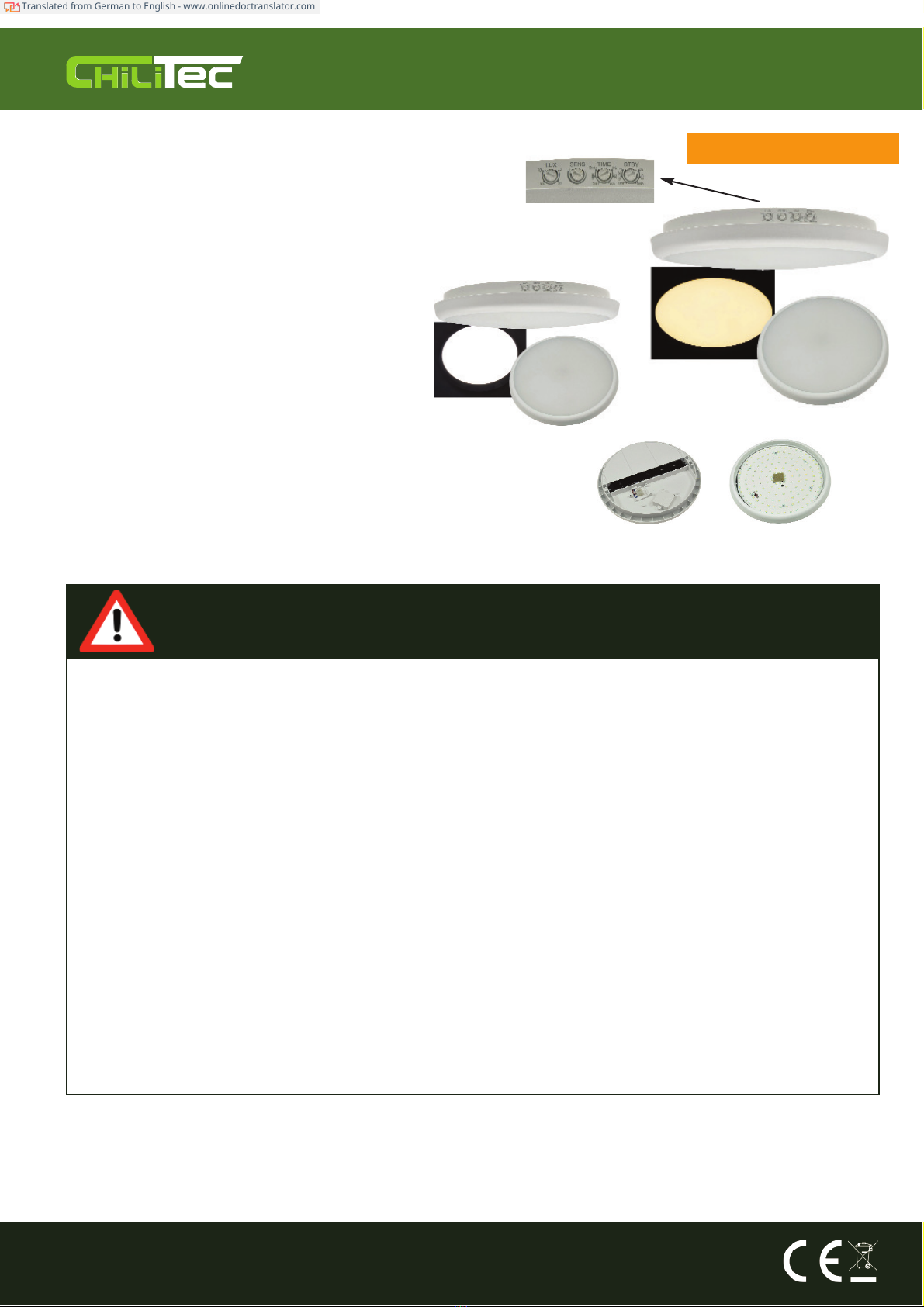

Elegant ceiling light in a flat design with high-quality microwave
motion detector and elegant UV-resistant plastic housing with
an elegant matt cover and white outer ring.
Common technical details:
• Operation on 230V / 50Hz • 140 SMD LEDs
• StandBy breakdown <approx. 0.9 watts
• 100% bright 0.2 sec. • Installation height 2-4m
• Detection area and light duration adjustable
• Detection range: 360 °, 1-8m radius
• Burn time 10sec - 12min • On / Off 20,000x
• Burn time 30,000 hours • Power factor> 0.8
• Night light function with 20% brightness 5 seconds to permanent
• Light sensitivity 3-2000 LUX
• for indoor and outdoor use IP54
Safety instructions and important information!
In order to guarantee safety at all times and to use the full range of functions of the device, please
read the safety instructions carefully and carefully!
The product must not be modified technically or mechanically, otherwise the operating license and conformity will
expire with immediate effect! The nameplate / imprint must not be removed under any circumstances! Check the
product for damage before each use. If the product is damaged, it must be checked, repaired or replaced by a
specialist company and disposed of in accordance with the applicable guidelines (footer page 1). Under no
circumstances may a damaged or defective product continue to be used! Please make sure to secure all packaging
material and accessories, especially small parts such as screws and foils, from children and animals. Suffocation
hazard! In the event of non-compliance with the instructions or improper use, the manufacturer Any misuse or
changes made to the product assume no liability for damage to property or personal injury. This product must
never be operated, kept, stored or stored in the reach of children or animals. If this product is passed on, the
instructions and packaging must be included. Thanks! We reserve the right to make misprints or changes to
packaging, the product or the instructions.
Separate safety instructions for 230V installations
The installation or the intervention in the power grid can lead to very serious injuries up to a fatal electric shock. •
Connection or installation may only be carried out by qualified personnel / electricians in a voltage or current-free
state! For all work, completely switch off the circuit in which the installation is being carried out at the main fuse!
Otherwise there is a DANGER TO LIFE !!. To connect all 230V ~ / 50Hz components, the minimum cross-section
(1.5mm²) of the connection cable must never be undershot. Be sure to use a cable and tool that has been expressly
approved for this use. There are no serviceable parts inside this product. The correct connection must be checked;
the voltage may only be switched on again when the installation is correct.
Electronic products that are marked with the crossed-out garbage can do not belong in the household waste! You can hand these products in free of
charge at the municipal collection points. Inquire here at your local authority, the responsible town hall or a local or municipal waste disposal
company. Thanks very much. Used batteries should not be put in the household garbage. Consumers are legally obliged to bring batteries to a
suitable collection point at the trade or local authority. Old batteries may contain pollutants or heavy metals that can be harmful to the environment
and human health. The symbols under the label (garbage can) stand for: Pb: battery contains lead, Cd: battery contains cadmium Hg: battery
contains mercury. The environment and ChiliTec say thank you.
Reproduction only with permission from
ChiliTec GmbH, Bäckerberg 12, 38165 Lehr
EAR (WEEE): DE25841852
LUCID Packaging Act: DE5562476395648
GRS (UBA register) no .: 21003466
Translated from German to English - www.onlinedoctranslator.com

Status: 10/2021 - Version 1.00
Page 2
Details variants: (EEKL = energy efficiency class according to 2019/2020 / EU & 2019/2015 / EU) Salao lights with HF-BWM
Item No. Color / type power Consumption / 1000h Lumens Kelvin EEKF dimmable Outside dimension / Ø Mounting height
22752 Salao 16ww 16 watts 16kWh 1500lm 3000K E. no 265mm 40mm
22753 Salao 22ww 22 watts 22kWh 2200lm 3000K E. no 300mm 40mm
22853 Salao 16nw 16 watts 16kWh 1500lm 4000k E. no 265mm 40mm
22854 Salao 22nw 22 watts 22kWh 2200lm 4000K E. no 300mm 40mm
Installation instructions and explanations for the table
All “Salao” lights may only be installed by qualified electricians - electricity is dangerous.
Separate safety instructions for LED lighting
Never look directly or unprotected into the light or the glowing LEDs. The brightness can dazzle you, you risk
injuries and possible permanent damage to the eyes or the retina. Never point the light at people or animals (... if
the light is mobile)! The product must never be covered during operation and the possibility of heat dissipation into
the environment must be guaranteed. Fire hazard!
L: lead phase
Setting options
left to right:
LUX: light sensitivity 3-2000 LUX SENS:
1-8m range (radius) TIME: light duration
10sec - 12min STBY: 0s, 90s, 5min, 10min,
30min, 8h.
N: Lead neutral
The power supply may only be switched on again after the luminaire has been properly wired and screwed tightly to
the wall or bracket.
For testing in daylight, LUX controller to sun, Time to 10 seconds.

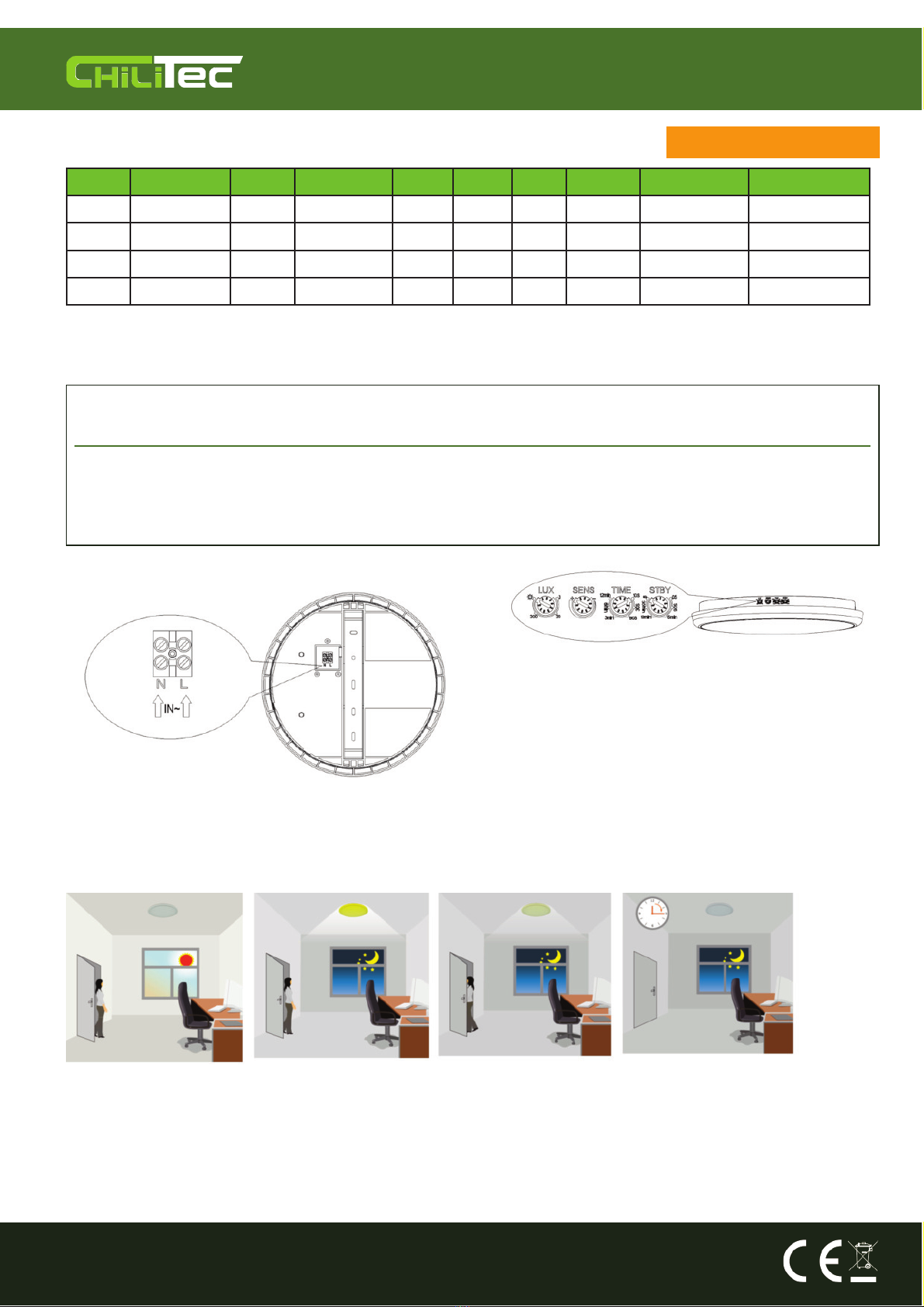

Due to the adjustable twilight value, the luminaire only reacts at night, for example. Off during the day (picture 1) and
on at night when you enter the room (picture 2). The adjustable standby function lowers the brightness to 20% when
leaving the room for the set time. After the set standby time has elapsed, the light switches off completely.
