USER’ S MANUAL release 2.0
This manual must be considered an integral part of the projector.

1
BEFORE CONNECTING AND USING THE PROJECTOR, IT IS IMPORTANT TO READ CAREFULLY ALL THE
INSTRUCTIONS IN THIS MANUAL.
QUALIFIED PERSONNEL ONLY, IN COMPLIANCE WITH ALL THE SECURITY LAWS, CAN DO THE
INSTALLATION, THE MAINTENANCE AND THE UTILISATION OF THIS PROJECTOR.
BEFORE CONNECTING THE PROJECTOR, MAKE SURE THAT THE FREQUENCY AND THE VOLTAGE
VALUES ARE SUITABLE AS SPECIFIED ON THE PROJECTOR.
FOR ANY DOUBT, CONTACT YOUR SUPPLIER OR SEND AN E-MAIL TO:
[email protected]
LED RADIATION, DO NOT STARE INTO BEAM, CLASS 2 LED PER IEC 60825-1.
For additional information on these led devices with regard to the IEC 60825-1 standard, contact SEOUL Semiconductors.
SOLID: Dust-tight
WATER: Protected against heavy seas
Suitable for direct mounting on normally flammable surfaces
Minimum distance from lighted objects (0.3 meters)
Rated maximum ambient temperature (indoor without high-temperature control)
Connection must be made to a power supply system fitted with efficient
earthing (EN60598-1 – Class I fixture)
Replace any cracked protective shield, dichroic filter or lens
Index
Dimensions and weight -------------------------------------------------------------------------------- page 2
Technical data ------------------------------------------------------------------------------------------- page 2
Storage ---------------------------------------------------------------------------------------------------- page 2
Admissible environmental conditions --------------------------------------------------------------- page 2
Installation ----------------------------------------------------------------------------------------------- page 3
Example of installation --------------------------------------------------------------------------------- page 3
Signal cable selection ----------------------------------------------------------------------------------- page 4
EIA485 specifications ----------------------------------------------------------------------------------- page 4
Power supply connection ------------------------------------------------------------------------------ page 5
DMX signal connection -------------------------------------------------------------------------------- page 5
Schematic menu ----------------------------------------------------------------------------------------- page 6
User’s interface ------------------------------------------------------------------------------------------ page 7
Functions menu ------------------------------------------------------------------------------------------ page 7
DMX control mode -------------------------------------------------------------------------------------- page 9
Spare parts ------------------------------------------------------------------------------------------------ page 16

2
Dimensions & weight
Weight: 5,2 Kg
Technical data
- Aluminium body with cooling fins
- IP66 protection rate
- Thermal-shock resistant glass, IK08
- The projector can be installed in any position
- Input voltage range: from 85 to 265 Vac
- Frequency: 50-60 Hz
- 0,95 PFC electronically controlled
- Current controlled led
- Max power consumption: 44W (When all led are on at max power)
- 12 LEDs full colour 3.6W P5 by SEOUL Semiconductors (each LED’s case contain 77Lumen of RGB dices)
- High quality 35mm PMMA lenses by FRAEN
- Works via signal DMX
- Works in stand alone mode (Master/Slave)
- Can works in stand alone mode via infra-red remote control
- LED remote control code AS148
Storage
The projector, in its original packing, must be kept in covered, dry areas with a temperature between –10°C and +50°C.
Attention, the projector will be damaged during the unpacking.
Admissible environmental conditions
The projector was engineered and produced to function in outdoor areas with an air temperature ranging between -20°C and
+50°C (thanks to inside high-temperature control) and with a humidity level between 30 and 90%.
When choosing the installation, please make sure that the device is not exposed to extreme heat or in small area.

3
Installation
The projector can be installed in any position, use diameter 10mm holes of the steel bracket to fix the projector.
Unscrew the side screws to adjust the projector body angle.
We suggest to install a supplementary safety steel chain or cable
The area exposed to the wind is 0.08 square meters.
Unscrew two upper screws to open the lid and have access to the display.
Example of installation
If only one projector is on stand alone mode the signal cable is not necessary.
If the projectors are driven by a DMX controller or projector Master drive other projectors Slave, they need to be connected
together, with DMX signal cable, following the instructions of this manual.
The DMX signal is generated by a DMX controller, the signal cable goes in and out from each projector up to the last one.
The projectors will execute the same scenes if the DMX addresses are the same (factory set is 1) or they can be driven one by
one if the DMX addresses are different from each other.
Default mode 7C d: each projector uses 8 DMX channels
Projector 1: DMX address 1 Projector 2: DMX address 9 Projector 3: DMX address 17………….
If the DMX controller is not switched on, the projectors can be in black-out mode, generate light at 15% (default setting) or
generate light at 100%. Change this parameter at – DM.DE of menu.
It is possible to use MASTER/SLAVE function: One projector (Master) functioning in stand alone mode with resident
programs and a group of projector (Slave) execute, thanks to dmx signal and signal cables, the same sequences of colours.
The projectors can be fed from different power sources, it is not necessary to switch on the projectors at the same time.

4
Signal cable selection
Use only shielded and twisted cables with EIA485 (RS485) standards. The cable must be low capacity and with an impedance
between 82 and 120 ohm. It is preferable not to use audio cables.
The wire size we recommend is 26 AWG or higher.
If the projector have cable clamps, the external diameter of cable must be compatible with cable clamps.
We suggest to use our selection signal cable.
CAV99/040: Flexible signal cable for in-door.
One pair of cable plus shield and inside safety wire.
Impedance 120 Ohm.
CAV99/037: Polyurethane flexible signal cable for out-door.
One pair of cable plus shield drain wire and inside safety Kevlar wire.
Impedance 120 Ohm.
EIA485 specifications
It is preferable:
- Not to insert more than 32 projectors for each DMX chain.
- Not to use more than 150m of signal cable (low quality cable) or 300m of signal cable (good quality cable).
- Not to duplicate “T” way the signal cable, use a DMX Splitter.
Standard DMX controllers have only one signal out-put. If more than 32 projectors are used it is necessary to have a signal
SPLITTER, that will duplicate the signal in 2 or more lines.
If the signal cable is very long, it is necessary to install a signal AMPLIFIER on the DMX line (at least every 300m of good
quality cable), so that it will repeat the signal to the following projectors.
It is preferable, on the last projector of the dmx signal chain, to insert a resistor (from 82 to 120 ohm) between positive and
negative terminal (+ and -).

5

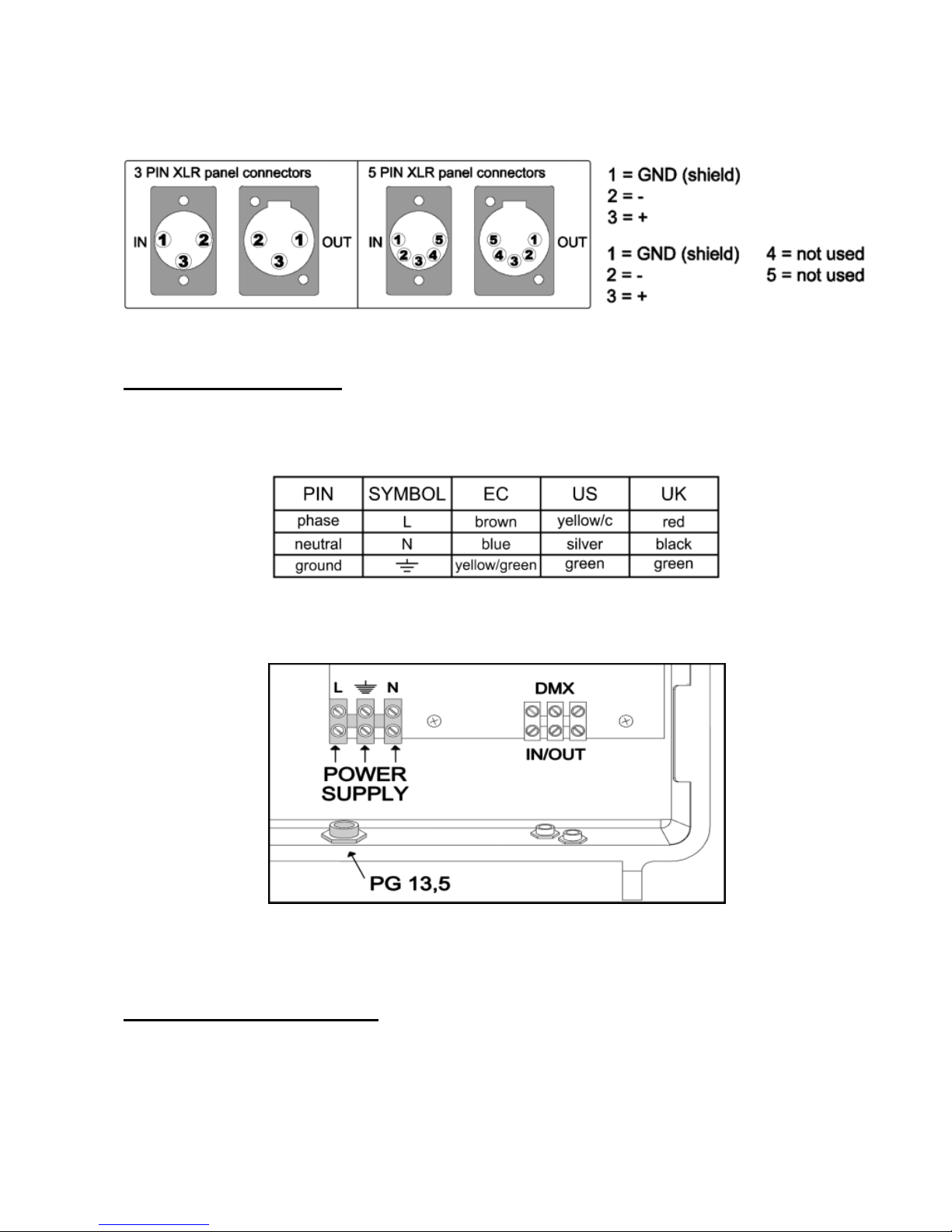

Always, use Male XLR 3 or 5 pin connector to connect the projectors to the DMX controller.
Solder on PIN 1 of the XLR connector the shield of the signal cable, on PIN 2 solder the negative (example: black wire of
cable) and on PIN 3 solder the positive (example: red or white wire of the cable). The sequences and the colours has to be the
same on the terminal connection blocks, do not change the sequences.
Power supply connection
It is advised to check the electric system before installation. From 85Vac to 265Vac (50 o 60 Hz).
Disconnect mains power supply before any operations.
Connect the fixture to the mains. See the table and the drawing for the colours of the connection cable.
Do not power the projector with a dimmer circuit
Protect the electric system with highly sensitive differential circuit breaker, 30mA.
When in doubt, consult a qualified electrician.
The cable’s diameter must be compatible with the cable clamp of the projector (PG 13.5), diameter from 6 to 12mm.
Projector is complete grounded, it is necessary to connect the middle terminal connection block at grounding system.
DMX signal cable connection
The IN and OUT signal cables must be connected directly to the terminal block inside the projector. Use the PG9 cable clamps
on the projector).
The external diameter of cable must be included between 4 and 7mm (PG9 cable clamps).

6

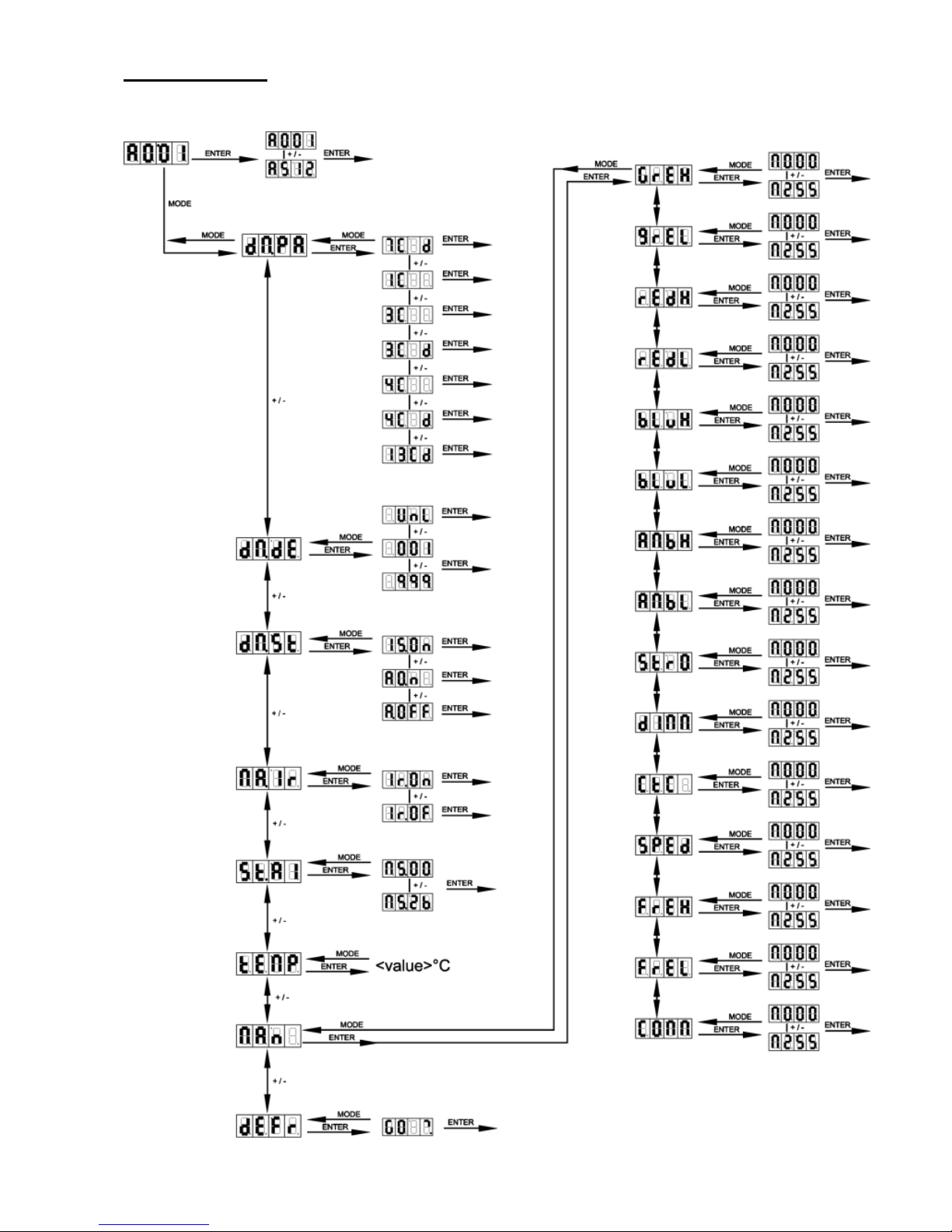

Schematic menu
Following the list of menu and submenu.

7

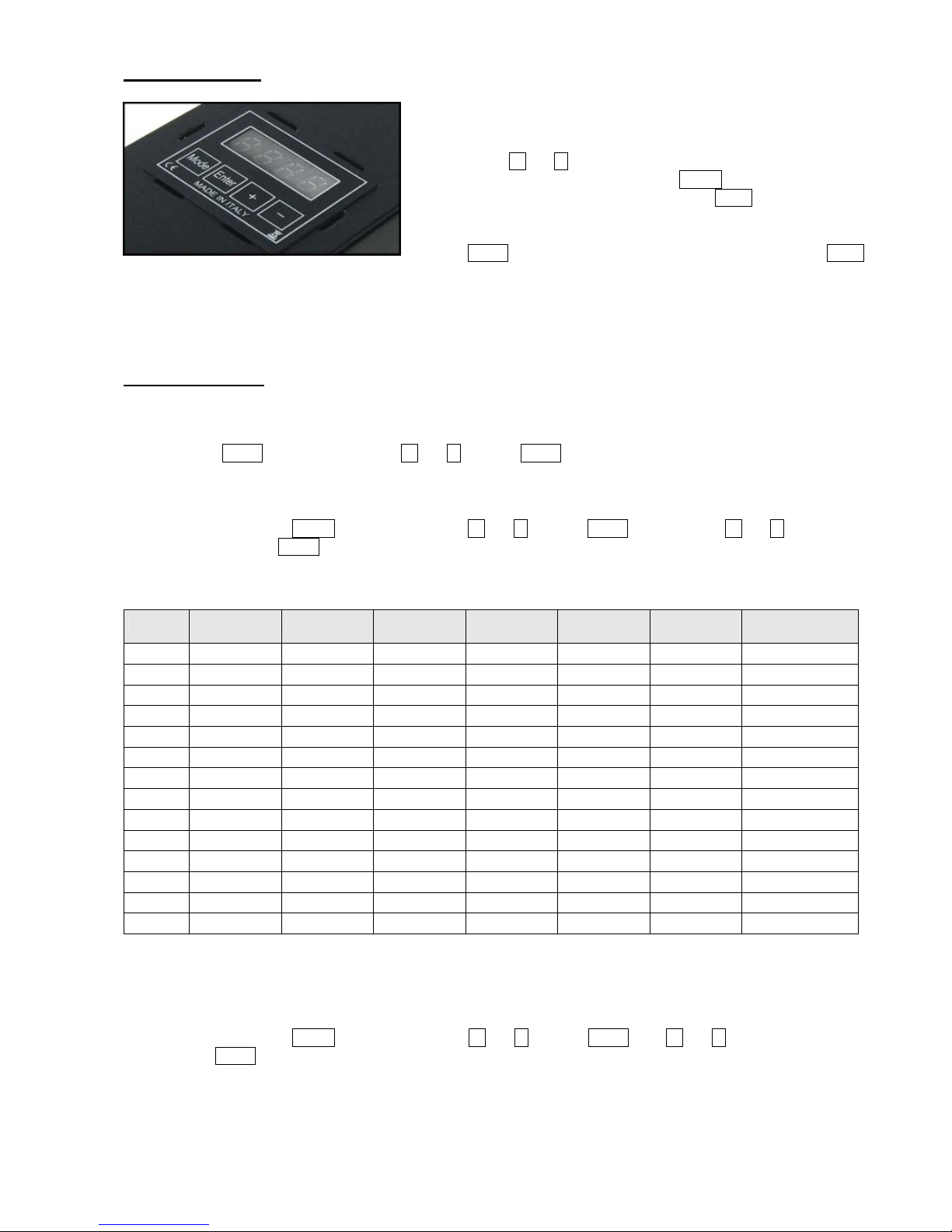

User’s interface
Use display interface to modify: functions, DMX starting address and to set
stand alone mode.
Use the buttons + and -to surf the menu’s function.
To enter into the menu, you have to push the Mode button and after that you
can search for the desiderate function and push the Enter button to enter in
it.
Push the Enter button to change DMX starting address and press the Enter
button to confirm.
In the address view mode, for example A.001, if the point after the letter A is blinking the board is receiving DMX signal, if
the point is static there’s no DMX signal.
Functions menu
- A.001: (dmx address) DMX starting address (first channel).
Default value 001
Go into pushing Enter , choose the value with + and - and push Enter to confirm.
- DM.PA: (dmx patch) Patch of the board, from 1 to 14 dmx channel.
Default value 7C d
Go to this submenu pushing Mode , choose DM.PA with + and - and push Enter to enter in. Use + and - to select the
desiderate patch and push Enter to confirm
On the table below you can see the summary of the channels, go to page 10 to see the detailed functions.
Ch. dmx 7C d 1C 3C 3C d 4C 4C d 13C d
1 Green Dimmer Green Green Green Green Green
2 Red Red Red Red Red Green fine
3 Blue Blue Blue Blue Blue Red
4 Amber Dimmer Amber Red fine
5 Strobe sync Dimmer Blue
6 Strobe Blue fine
7 Strobe delay Amber
8 Dimmer Amber fine
9 Strobe
10 Dimmer
11 CTCwhite
12 Fadespeed
13 Frequency
14 Frequency fine
- DM.DE: (dmx delay). When DMX signal is missing, the board keeps the last DMX value received for a set period
according to this functions. After the programmed seconds, the board will execute the function according to DM.ST function,
so you can have: black-out, leds on at 15% or led on at 100%.
Default value 003 seconds
Go to this submenu pushing Mode , choose DM.DE with + and - and push Enter . Use + and - to select the desiderate
value and push Enter to confirm. Time is setted in seconds, the value start from UNL (unlimited) to 999.
- DM.ST: (leds state when DMX signal isn’t received). When the board is switched on and DMX signal is missing, the
board can do this functions: black-out, leds on at 15% or led on at 100%.
Default value 15.ON

8
Go to this submenu pushing Mode , choose DM.ST with + and - and push Enter . Use + and - to select the desiderate
value and push Enter to confirm
Admissible mode:
15.ON, (15% ON) r,g,b,a channels ON at 15%
A.ON, (ALL ON) r,g,b,a channels ON at 100%
A.OFF, (ALL OFF) r,g,b,a channels OFF
- MA.IR: (master infrared) Whit I.R. sensor cabled, the board can run one of the stored Chase or do a fixed colour, that can
be controlled by the LED REMOTE.
LED REMOTE has 10m (free air) capacity.
Default value ON
Go to this submenu pushing Mode , choose MA.IR with + and - and push Enter . Use + and - to select the ON or OFF
and push Enter to confirm.
With red button of the LED REMOTE, you can switch ON or OFF the leds (ATTENTION: when you switched OFF the led,
the board is still running!!! ), with P+ e P- you can choose the program or change the colour. This function allows to use the
MASTER/SLAVE function.
ATTENTION: Disable MA.IR function on Slave boards. Two boards in Master mode can do several errors on DMX
transmission.
- ST.AL:(stand alone) The board can run in StandAlone mode with Master/Slave function.
Default value MS00
Go to this submenu pushing Mode , choose ST.AL with + and - and push Enter . Use + and - to select the macro
needed and push Enter to run it.
The board run in loop mode the Macro selected from M01 to M26 and output the DMX signal (master mode) for the other
board (slave).
To use Master/Slave function, all the boards need to be patched with the dmx patch 7C d !
StandAlone mode remains also if power supply is interrupted.
Macro Mode Colour changing
time (seconds)
Colour holding
time (seconds)
MA01 SLOW rainbow without amber 20 5
MA02 MEDIUM rainbow without amber 10 5
MA03 FAST rainbow without amber 5 5
MA04 SLOW rainbow without amber 20 2
MA05 MEDIUM rainbow without amber 10 2
MA06 FAST rainbow without amber 5 2
MA07 Very SLOW rainbow without amber 40 NO
MA08 SLOW rainbow without amber 20 NO
MA09 MEDIUM rainbow without amber 10 NO
MA10 FAST rainbow without amber 5 NO
MA11 SLOW Random colours without amber 10 NO
MA12 MEDIUM Random colours without amber 5 NO
MA13 FAST Random colours without amber 2 NO
MA14 SLOW rainbow + amber 20 5
MA15 MEDIUM rainbow + amber 10 5
MA16 FAST rainbow + amber 5 5
MA17 SLOW rainbow + amber 20 2
MA18 MEDIUM rainbow + amber 10 2
MA19 FAST rainbow + amber 5 2
MA20 Very SLOW rainbow + amber 40 NO
MA21 SLOW rainbow + amber 20 NO
MA22 MEDIUM rainbow + amber 10 NO
MA23 FAST rainbow + amber 5 NO
MA24 SLOW Random colours + amber 10 NO
MA25 MEDIUM Random colours + amber 5 NO
MA26 FAST Random colours + amber 2 NO

9
- TEMP:(temperature) When NTC is connected, you can see heater’s temperature in Celsius degrees. The board has an
automatic control over the led’s power, so the leds are always under the safety temperature.
Go to this submenu pushing Mode , choose TEMP with + and - and push Enter to enter in. Push Mode to get out of this
function.
- MAN: (manual mode) Function to control manually all the channels.
Go to this submenu pushing Mode , choose MAN with + and - and push Enter .
In this submenu you can choose the channel that you want to control and assign values from 0 to 255. The board run
immediately the chosen values. Dmx patch used is 13C d with 14 dmx channels and 16bit colours control, with value from 0 to
255 for each channel.
Use COMM function to put all the channel values to zero (reset).
When the board is disconnected from Main, the manual mode is reset!!
- DEF.r: (default reset) With this function you can restore all the default values.
Go to this submenu pushing Mode , choose DEF.r with + and - and push Enter and when the display shows “go?” push
another time Enter to confirm, push Mode if you don’t want to reset.
All the values will be restored to default, except the DMX address!
DMX control mode
Default mode: 7C d
CHANNEL 1: GREEN, to control the light output of the green leds, from OFF to the Max Power.
DMX value function
0 Led OFF
From 1 to 254 Proportional Light output increase
255 Led at max power
CHANNEL 2: RED, to control the light output of the red leds, from OFF to the Max Power.
DMX value function
0 Led OFF
From 1 to 254 Proportional Light output increase
255 Led at max power
CHANNEL 3: BLUE, to control the light output of the blue leds, from OFF to the Max Power.
DMX value function
0 Led OFF
From 1 to 254 Proportional Light output increase
255 Led at max power
CHANNEL 4: AMBER, to control the light output of the amber leds, from OFF to the Max Power.
DMX value function
0 Led OFF
From 1 to 254 Proportional Light output increase
255 Led at max power
CHANNEL 5: STROBE SYNC
This channel is similar to a reset, it is used to synchronized the strobe effect of more projectors.
If during strobe mode the projectors aren’t flashing at the same time they have lost synchronism, use this channel to
synchronized them again.
To activate this function just modify the dmx value of this channel, then electronic board will generate one single synchronized
pulse.
Example: During the execution of one program with Sync value 0, give a different value to the channel (example 10. The next
pulse will be given when the channel will use any values different from 10 etc…)
