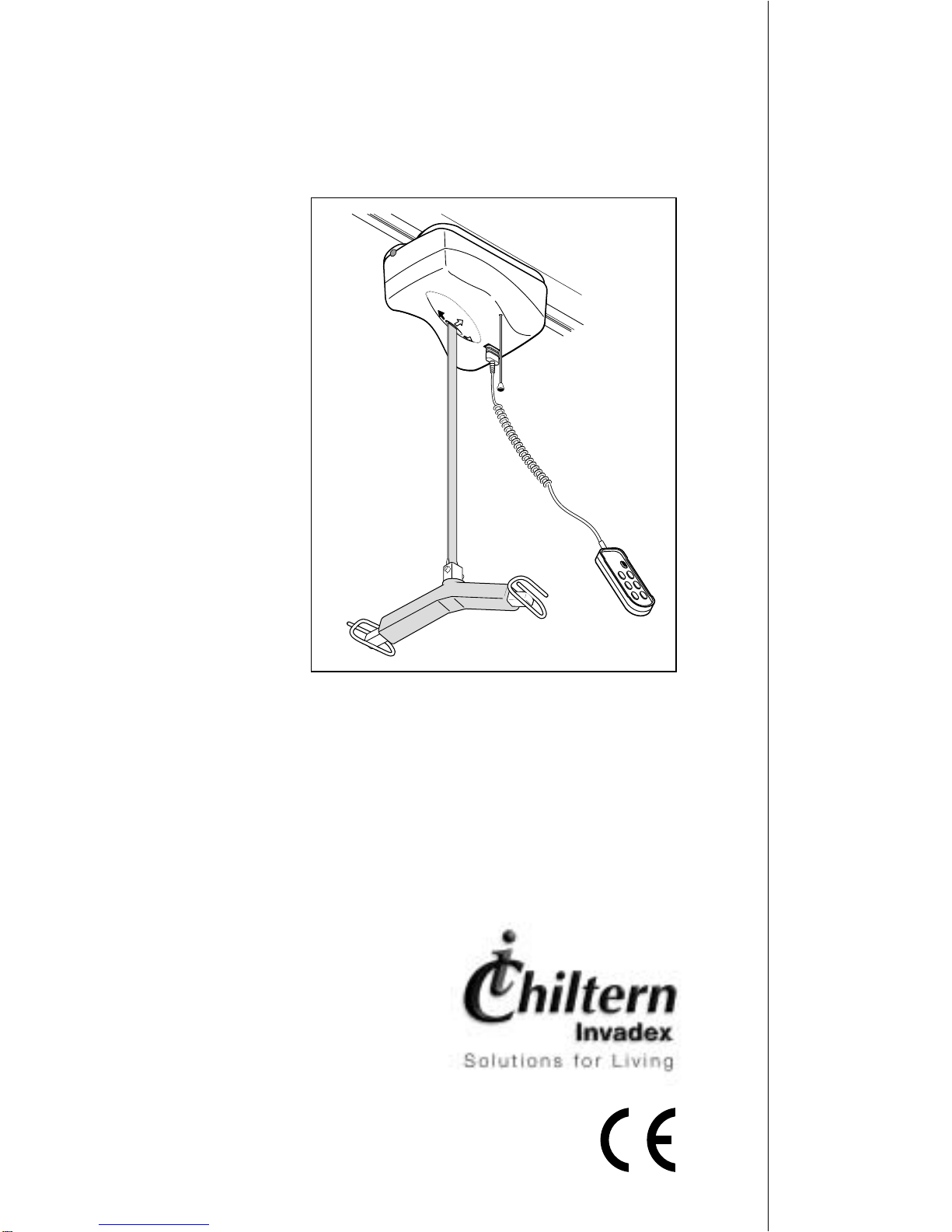

Chiltern Invadex Wispa 200 Series User manual

Overhead Hoists
user guide
Wispa
200/300 Series
Series 200/300

User Guide
1
Contents
Overhead Hoists
Theseproductshavebeendesignedtothe
highest standards with safety, strength and
quality in mind.
Follow the recommendations in this guide to
ensuremaximumbenefitfromyourOverhead
Hoist.Shouldyouexperienceanydifficulties
pleaseconsultthetroubleshootingguide,priorto
contacting your Overhead Hoist supplier.
Read the safety section of this guide prior to use,
this is contained on page 2.
Thingstoconsiderbeforeusingthe
Overhead Hoist ................................................2
Using the controls ...........................................4
Emergency Lowering Cord .............................5
Charging the Hoist...........................................6
Servicing and maintenance ............................7
Parts ..................................................................7
Troubleshooting...............................................8
Hoist Specification ..........................................9
Warranty .........................................................10
Hoist Service Record.....................................11

Chiltern Invadex Overhead Hoist
2
•Ensurethatall users read this guide before
operating the hoist.
•Do not operate the Overhead Hoist
without training in the safe operation of the
hoist and slings.
•Only use slings which have been assessed as
suitablebyacompetentperson.
•Read the relevant Sling User Guide, which is
provided with each sling. It explains in detail how to
use slings correctly.
•Do not use the hoist if there is any doubt about
wear to the carry bar or there is fraying or stitch
damage to the lifting tape or slings, or if the hoist
itself is damaged in any way.
•Do not exceed the Maximum load of the hoist.
Wispa200L,200LT,200LTX 200kgs (31 Stone) (440 lb)
Wispa 300 272kgs (42 Stone) (598 lb)
•Ensure when the hoist is in use that the surrounding
area is clear and the person being lifted is clear
of all objects.
Safety
SafetyConsiderations
Intended Use of the Product
TheWispahoist has been designed to liftandtransferaless able person
with the help of a carer. It should be used with a Wispa sling or other lifting
accessories from the Chiltern Invadex range, as assessed by a trained
person.
Note: Not all slings and accessories are compatible with this hoist. If you are
unsurepleasecontactyournearestChilternInvadexregionaloffice.
The correct and appropriate use of this product will reduce the risks
associatedwithmanualpatienthandling. Thelifting/transferringtaskshould
beassessedandplanned by a trained person.

User Guide
3
•Hoists should only be used to lift vertically. Lifting at
ananglewillweartheliftingtapeprematurely.
•Returnthe hoist to the charging position when
not in use.
•The outer case, mechanical parts and track should
onlyberemovedbyaqualified service engineer,
trainedbyChilternInvadex.
•Do not touch any of the moving parts in the hoist
unitorinthetrack.ContactChilternInvadexfor
assistance.
•Take care when attaching or removing a sling as a
swinging carry bar could cause injury.
•For maximum comfort always move the user in one
movementandavoidstop/startingthehoist.
Some occupants are reassured if the carer holds
them whilst the hoist is traversing.
Duringuse
Overhead
Hoist
Afteruse

Chiltern Invadex Overhead Hoist
4
Emergency stop reset
(not seen from below)
Handcontrols
Seven Button Hand Control
Using the Controls
3 Button Hand Controls
(Wispa Hoists)
PleaseNote:Thehandsetisthe correct way round when the cable is
atthetop.
5 Button Hand Controls
(Wispa Hoists)
Traverse
Reset
Lifting
Reset
Lifting
Three Button Hand Control Five Button Hand Control
Lowering
Traverse
Lowering
Traverse
Lowering
Traverse
Traverse
X-Y
Reset
Lifting
Traverse
X-Y
Carry Bar 7 Button Hand
Controls
Hand Control
Socket
Lifting Tape
Indication light
Emergency stop/
Emergency lowering
ThreeButtonHandControl
Theliftingfunctioniscontrolledbytheupand down arrows on the handset.
The reset button is the red button in the top right hand corner on the handset.
It resets the hoist for normal operation e.g after an alarm signal (refer to
troubleshootingsectiononpage8).

User Guide
5
FiveButtonHandControl
Thefivebuttonhand control has the same function buttons as the three
buttonhandcontrolwiththeadditionofatraversingfunction.
The traversing function is controlled by the red buttons, on the handset. The
buttons are colour coded with a solid red arrow and an outline red arrow.
These colours correspond to the direction travel arrows on the underside of
the hoist case.
To control the direction of the hoist, view the coloured direction arrows
mounted on the hoist and press the button on the hand control which
corresponds in colour to the arrow on the hoist.
The reset button is the red button in the top right hand corner on the handset.
It resets the hoist for normal operation e.g after an alarm signal (refer to
troubleshootingsectiononpage8).
SevenButtonHandControl
Thesevenbuttonhandcontrolhas the same function buttons as the five
buttonhand control, with the addition ofthe tracking for the X-Y system.
The tracking X-Y function is controlled by the blue buttons, on the handset.
The buttons are colour coded with a solid blue arrow and an outline blue
arrow. These colours correspond to the direction travel arrows on the
underside of the hoist case.
To control the direction of the hoist, view the coloured direction arrows
mounted on the hoist and press the button on the hand control which
corresponds in colour to the arrow on the hoist.
The reset button is the red button in the top right hand corner on the handset.
It resets the hoist for normal operation e.g after an alarm signal (refer to
troubleshootingsectiononpage8).

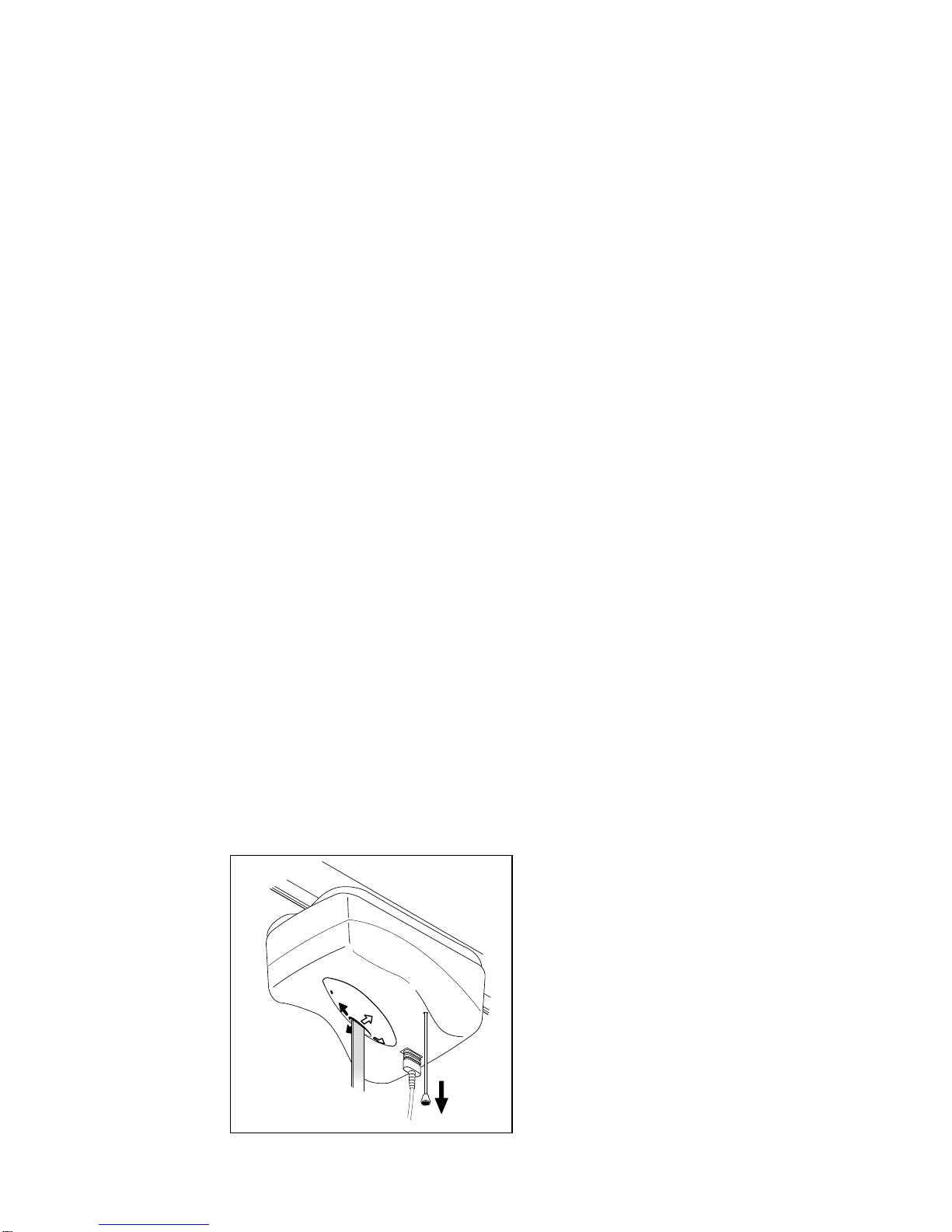

Emergency Stop
Thered pull cord provides an
emergency cut out. If the cord
is pulled once then the
emergency stop is activated.
To reset, pull the short piece of
cord located on the top face of
thehoist.Proceedto press the
redresetbuttonlocatedonthe
handset.Threebeepssound
when the hoist is then reset and
readytouse.
Fig1.

Chiltern Invadex Overhead Hoist
6
Charging Wispa Hoists
When not in use it is VERY important to return the hoist to the end of the
track where the charging unit for the batteries is housed. To engage the
hoist with the charger, traverse the hoist to the end of the track. Correct
engagementissignalledwhenthecharging light glows red. Once the hoist is
engaged,chargingisautomatic.Afteraperiodoftimethelightwillflashgreen
toindicatecontinuouscharge ok. No further actions are required to charge the
batteries.Thebatteries cannot beovercharged.
Testing the Emergency Lowering Device
Please Note: The emergency lowering device uses a seperate battery to
allow the occupant of the hoist to be lowered in the event of an emergency.
Theemergencyloweringdevice should be tested and the battery replaced if
necessary at each service and after use. Frequent testing of this device in
non-emergencysituationswillquicklydischargethebattery.
Battery Low Indicator
Thebatterylowindicatorwillbeep with the appropriate audio sequence and
flashingredlightwhen the hoist’sbatteriesareinneedofcharging.This is
unlikely to happen unless the hoist is used for long periods of time without
charging,or the hoist has not been properly ‘parked’in itscharger,to recharge
thebatteries.
Always return the hoisttothechargingposition.
Afull list of audio warning signals are included in appendixAon page 8.
MaximumLoad
Thehoisthasinbuiltsafetyfeatureswhichpreventthemaximumloadbeing
exceeded.
Note:
Thehoistwillnotliftbeyondthemaximumratedload.
Emergency Lowering
In the unlikely event of a power failure or hoist malfunction the user may be
lowered using the emergency lowering cord.
To operate, pull the cord fully and hold.To reset follow the instructions as for
emergencystop.

User Guide
7
Servicing and Maintenance
Based upon EN10535 and health and safety executive guidance Chiltern
Invadex recommend that hoists are fully serviced, including a load test, at
least every 12 months with an interim six monthly inspection to LOLER
requirements.Pricesareavailable from Chiltern Invadex Service Offices.The
frequencyofservicing should be increased in areas where the environment
orheavyusagemaycausedeteriorationoftheequipment. Furtherdetails
can be obtained from any Chiltern Invadex Office, shown on the back of this
booklet.
Chiltern Invadex and its Authorised Dealers are able to carry out all
aspects of servicing and maintenance work.
Maintenance of this equipment should only be conducted by engineers
trained and certified by Chiltern Invadex.
Keep the service record (at the back of this booklet) up to date.
DO NOT USE IF:
1. There is any damage to the hoist.
2. There is fraying or stitch damage to the lifting tape,
or slings.
Toensuremaximumcleanliness
Wipe with a dry cloth (track and hoist). For stubborn marks use a damp cloth
andamildcleanser.Always read the manufacturers instructions prior to
applyingthecleanser.
Slings should be washed in accordance with the instructions on the label,
sewnintothesling.
Parts
item description qty
1 3 Button Hand Control 300-00120 1
2 5 Button Hand Control 300-00121 1
3 7 Button Hand Control 300-00122 1
1 2 3

Chiltern Invadex Overhead Hoist
8
symptom suggested cause solution
Hoistlackingpower Battery power Batteries need
is low charging
Hoistmakesbeeping Referto Refer to
sound AppendixAbelow Appendix A below
Lightonhoist Nopower Ensure that the power is
does not work at switched on at the mains
pointofcharging
AppendixA Hoist: Audible/ solution
Visual Posts
1.Powerupandself 3Beeps,norepeat HoistOK.Noaction
test, hoist reset (lightgreen) required.
2.Weightoverload 1 beep+pause, Removeexcessweight.
continuous Resethoistwithhandset.
(redflashing)
3. Low backupbattery 2 beeps + pause, Return tochargeposition
continuous
(redflashing)
4.Lowmain12V Battery 3 beeps+ pause Returntochargeposition
continuous
(redflashing)
5.Lowmain24V battery 4 beeps + pause Return to chargeposition
continuous
(redflashing)
6. Emergencystop 4 beeps + pause Resetemergencystop
cordpulled continuous and then reset hoist with
(redflashing) handset
Troubleshooting
Allmodels
symptom suggested cause solution
Hoist cutsoutwhilst Twistedtapeor Ensure that tape is not
lifting Maximum load twisted and that the tape is
exceeded vertical. Check weight on
hoist. If hoist is beeping refer
to Appendix A
Liftingtapemay ServiceEngineerrequired.
bereversedon
thespool.
Hoistliftswhendown
buttonispressed
To reset the hoist with the handset press and hold the red reset button on the
handsetuntil3 beepsareheard(see 1 above).

User Guide
9
Lifting capacity 200 Kg (31 stone)(440 lb) Models: 200L,200LT & 200 LTX
272 Kg (42 stone)(598 lb) Models: 300
Case construction ABS case flame retardant
Lifting Range Approximately 2020mm**
No of Lifts per Charge 200*
Battery voltage 24 vdc
Overload cut out The hoist cannot lift more than 1.5 times the maximum load,
ie 300kg for 200kg model and 408kg for the 272kg hoist.
Hand control Electronic hand control
Track Aluminium extruded track
Low battery indication Audible warning device on hoist + visual
Clearance dimension Top of track to bottom of carrybar hook at max height is 490mm
(see Fig. A)
*620mm up and down continuous cycle with average 75kg (11.3 stone) patient weight.
**This is adjustable and should be set by the installer to meet the
requirements of the user. Typically the carry bar would stop about 300mm from the floor.
CE MARK
The Chiltern Invadex Wispa Hoist carries the CE mark and complies with EC Directives:
Medical Device Directive(93/42/EEC)
EMC Directive (89/336/EEC)
Low voltage Directive (73/23/EEC)
Furtherassistance
Please telephone any Chiltern Invadex Divisional Office for further assist-
ance. Remember that service calls made after the guarantee period will be
chargeable. If the maintenance of the equipment is the responsibility of a
third party, for example the Social Services, please contact them in the first
instance.
Hoist Specification
a 215mm
b 420mm
c 270mm
d 460mm
e 525mm
f 2020mm
Fig.A
Label indicates serial number

Chiltern Invadex Overhead Hoist
10
Warranty
YourChilternInvadexOverheadHoistcarriesa12monthwarrantyfromthe
dateofpurchase,subjecttothe following :-
1. Should you experience any problems with our workmanship
or materials within the first 12 months period please contact
your point of purchase.
2. Repairs made during the warranty period will be carried out
free of charge, provided the product has been used strictly
in accordance with the guidelines set out in this user guide.
3. Our warranty does not cover replacements, adjustments or
repairs which may be required as a result of normal wear
and tear, wilful or accidental damage, misuse, neglect or
any other cause which is beyond the control of
Chiltern Invadex.
4. Modifications and repairs made to this product by
unauthorised persons will render the warranty void.
5. Only parts manufactured or approved by Chiltern Invadex
shall be used to repair this product. Use of unauthorised parts
will invalidate all warranties and remove all liability from
Chiltern Invadex for the safety of this product.
6. Chiltern Invadex shall in no event be liable for any damages,
costs or expenses arising from any claim made under this
warranty (save for any legal liability of Chiltern Invadex for
death or personal injury resulting from the company’s
negligence in respect of its products).
7. This warranty does not affect your statutory consumer rights.

User Guide
11
Wispa Hoist Service Record
Serviced By
(company) .......................................................................................
Telephone no....................................................................................
Engineers training cert. no. Signature
................................................................ .................................
Date: .............................. Load Tested To: .............................Kgs
Comments..........................................................................................
...........................................................................................................
Serviced By
(company) .......................................................................................
Telephone no.......................................................................................
Engineers training cert. no. Signature
...................................................................... .................................
Date: .............................. Load Tested To: ..........................Kgs
Comments .........................................................................................
...........................................................................................................
Serviced By
(company) .......................................................................................
Telephone no.......................................................................................
Engineers training cert. no. Signature
...................................................................... .................................
Date: .............................. Load Tested To: ..........................Kgs
Comments .........................................................................................
...........................................................................................................

Chiltern Invadex Overhead Hoist
12
Wispa Hoist Service Record
Serviced By
(company) .......................................................................................
Telephone no....................................................................................
Engineers training cert. no. Signature
................................................................ .................................
Date: .............................. Load Tested To: .............................Kgs
Comments..........................................................................................
...........................................................................................................
Serviced By
(company) .......................................................................................
Telephone no.......................................................................................
Engineers training cert. no. Signature
...................................................................... .................................
Date: .............................. Load Tested To: ..........................Kgs
Comments .........................................................................................
...........................................................................................................
Serviced By
(company) .......................................................................................
Telephone no.......................................................................................
Engineers training cert. no. Signature
...................................................................... .................................
Date: .............................. Load Tested To: ..........................Kgs
Comments .........................................................................................
...........................................................................................................

Dealers Name
..........................................................................
Address
..........................................................................
..........................................................................
.......................PostCode.................................
Telephone........................................................
Your Serial Number is
..................................
Date of purchase
...........................
Models
covered
200/300
series
Please fill in the information below for
future reference

Overhead Hoists
FM 40009
FM 21085
Q
U
A
L
I
T
Y
•
S
A
F
E
T
Y
•
S
E
R
V
I
C
E
•
Series 200/300
14
ChilternInvadexLtd
6WedgwoodRoad
BicesterOxfordshire
OX264UL
Tel:[phone]
Fax:[phone]
OverseasEnquiries
Tel: [phone]
Fax:[phone]
Web:www.chilterninvadex.co.uk
E-mail:[email protected]
ChilternInvadex(NI)Ltd
5BallooWay
BallooIndustrialEstate
BangorCountyDown
BT197QZ
Tel:[phone]
Fax:[phone]
ChilternInvadexLtd
Unit16 Evans Business Centre
68-74QueenElizabethAvenue
HillingtonIndustrialEstate
Glasgow G52 4NQ
Tel:[phone]
Fax:[phone]
Copyright © Chiltern Invadex Ltd. The design of the product shown in this User Guide is vested in Chiltern Invadex Ltd and should not be copied or
reproduced in anyway whatsoever without the express permission in writing of Chiltern Invadex Ltd.
Published by: Chiltern Invadex Ltd 6 Wedgwood Road Bicester Oxon OX26 4UL Registered in England No: 1182024
In Ireland: Chiltern Invadex (NI) Ltd 5 Balloo Way Balloo Industrial Estate Bangor County Down BT19 7QZ Registered No: 19958CINV182.0510/04
