Quantum Synergy Mobility Scooter User manual

(US) 866-800-2002 .(Canada) 888-570-1113
Visit us on the web: www.quantumrehab.com
*Call your Quantum Sales Representative for available Quick Ship models.
SYN-9-30-08

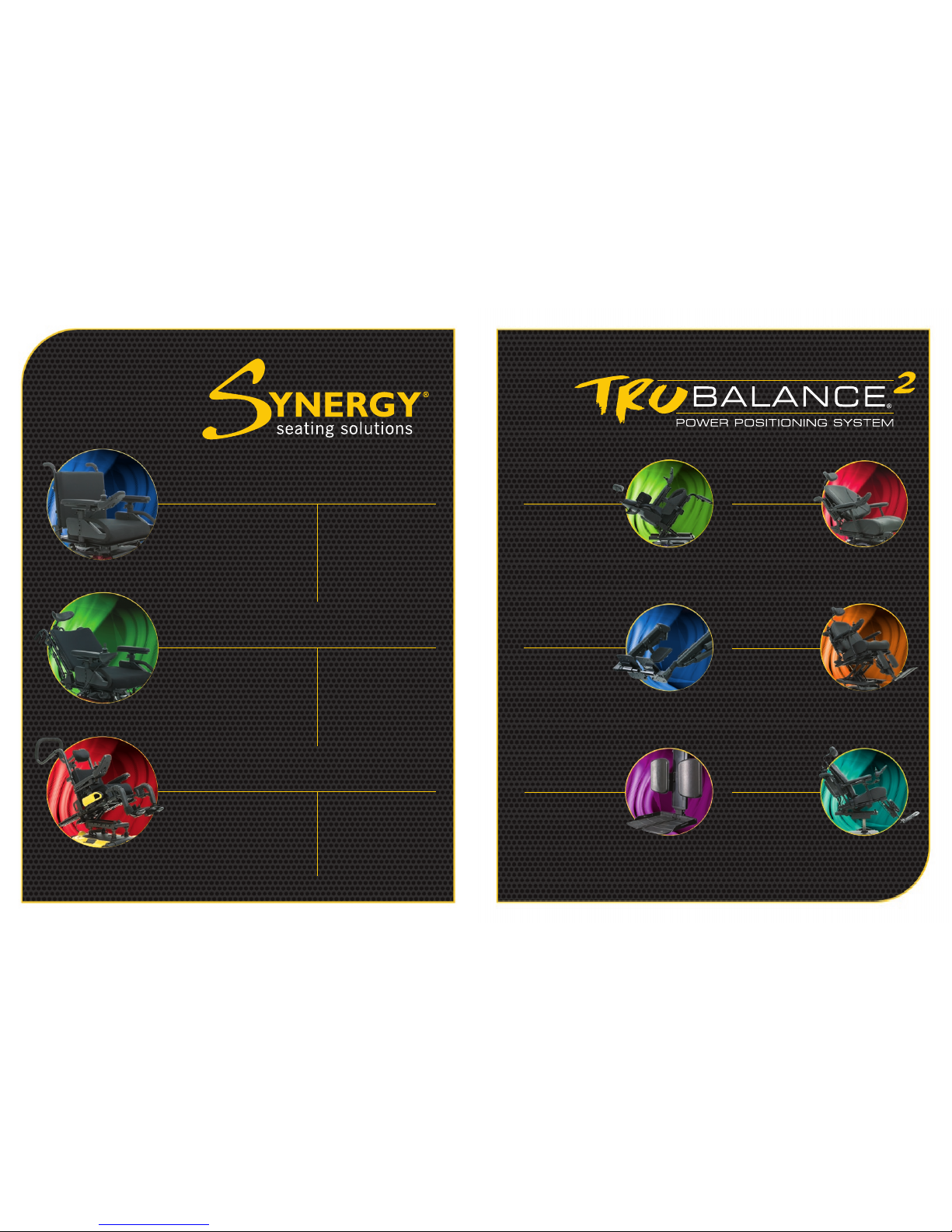

SYNERGY®
SOLUTION®1
SYNERGY®
SOLUTION®
SYNERGY®
STRUCTURETM 2
SYNERGY®
SIMPLICITYTM
SYNERGY®
SHAPE
Tremendous comfort and moderate
pressure management
▪High-density polyurethane foam
construction
▪Exclusive wrap-and-lift design for
pressure management
▪Coccyx and sacral relief
▪ Four-way stretch, fluid resistant upper cover
Innovative, two layered design for
exceptional pressure management
and positioning
▪High-density polyurethane foam
construction
▪Coccyx and sacral relief
▪Soft gel top layer for skin protection
▪Four-way stretch, fluid resistant upper cover
Unique modular design for
advanced pressure management
and maximum comfort
▪Pressure management overlay
with extra deep twin-cell fluid
insert
▪Optional modular positioning
components
▪Soft gel inserts for added protection
▪Extra fluid insert for added adjustability
Contoured comfort and superb pressure
management
▪Dual layer foam construction with viscoelastic
surface layer
▪Unique one hand, one motion quick release
▪Contoured design for proper positioning
▪Easy depth and angle adjustment
▪Available in standard, tall, and low back heights
▪Ultrasoft, leather-like cover
▪High-density HR polyurethane base for long
lasting comfort
▪Viscoelastic foam top layer to manage
pressure, promote proper circulation and
provide comfort
▪Easily added to TRU-Balance®and other
Synergy®seats
▪Adjustable lumbar support and lateral bolsters to dial in
positioning comfort
▪Modular seating components allow use of alternate seating cushions
TRU-COMFORTTM
▪All of the benefits of
TRU-Comfort Seating
▪Four-way stretch, fluid
resistant cover
▪Additional 1/2” of viscoelastic
foam in seat cushion for maximum
comfort and pressure management
TRU-COMFORTTM PLUS
ADVANCED FUNCTIONALITY
|
ADVANCED DESIGN
SYNERGY®
SPECTRUM®
Customized comfort and superb positioning and
pressure management
▪Extra deep well
▪Choice of twin-cell lightweight fluid or
viscoelastic foam insert
▪Viscoelastic top layer
▪2 cover system to prevent shearing with
interior liner
Three-component design for pressure management,
positioning and long-lasting comfort
▪Exclusive wrap-and-lift design for pressure
management
▪Twin-cell gel insert
▪Viscoelastic top layer
▪2 cover system to prevent shearing with interior liner

The Synergy®Manual Tilt is designed to provide
pediatric clients with the positioning benefits
of a parent/caregiver controlled manual tilt system.
The Synergy Manual Tilt features an optional
pediatric stroller-type push handle for ease of
use and a gas spring assist for maximum support
and controlled movement through the tilt motion.
The Synergy®Manual Recline combines the
unmatched versatility of the Synergy Seat with an
infinite range of recline from 90 to 180 degrees.
The dual gas strut design provides the caregiver
with assistance through the entire recline motion
for smooth comfortable operation. The Synergy
Manual Recline Seat comes standard with a solid
curved back pan and a 2 ½” raised pivot point to
reduce shear forces.
SYNERGY®SEATING SYSTEM
▪Easily adjustable and versatile design
that can grow with the client
▪Easy customization
▪500 lbs. weight capacity
▪Several width and depth adjustment
packages ranging from 10” to 24”
▪Accepts a wide variety of after-market
seats and backs
▪75 lbs. weight capacity
▪Adjustable widths of
10” - 12”, 12” - 14”,
▪Adjustable depths of 10” - 14”
▪Mercury drive lockout
▪Attendant activated recline seat
▪10” - 24” wide / 10” - 24” deep
▪300 lbs. weight capacity
▪180 degrees of recline
▪55°of tilt
▪Lower standard seat-to-floor
height
▪Simplified width and depth
adjustments
▪Maintains center of gravity shift
▪New safety switches
TRU-BALANCE®2
POWER TILT
▪95°to 168°of recline
▪300 lbs. weight capacity
▪Does not increase seat-to-floor
height
▪Standard shear reduction and
reclining armrests
▪Available with TRU-Balance 2
Power Tilt
TRU-BALANCE®2
POWER RECLINE
▪Offers 7” of lift with power
elevating seat
▪Allows access to batteries
when seat is elevated
▪300 lbs. weight capacity
▪Allows drive capability at
¼ speed when elevated
PLEASE NOTE: Some seating systems may not be available on all
power bases. Please contact Quantum Customer Service for availability.
▪8” of articulation
▪90°- 170°of elevation
▪6-way adjustable calf pads
▪Bi-lateral, angle adjustable
split foot platform
TRU-BALANCE®2
POWER ARTICULATING
FOOT PLATFORM
▪70 or 80°angle
▪Actuator is mounted to the
outside of leg rest, and will not
increase the seat-to-floor height of the
seating system
▪Connected with a ¼” headphone-style jack
connector (pull out in order to release)
▪Standard with depth and height adjustable calf pads
▪4” articulation or 6” articulation
▪Drop-in or swing-away
TRU-BALANCE®2
POWER ARTICULATING
LEG RESTS
▪Delivers 10” of elevation with
50°of tilt
▪Four-point mount lift for
maximum stability and
low seat-to-floor heights
▪Maximum versatility and ease
of adjustment
▪Available with power recline,
power front riggings, and
TRU-Comfort seating
▪300 lbs. weight capacity
TRU-BALANCE®2
LIFT & TILT
The Quantum®Synergy®Seating System offers
a clean, streamlined appearance and unparalleled
ease of adjustment. The seating system’s unique
design allows for height, width, depth, and back
angle adjustments to be made quickly and easily
in the field. The Synergy Seat interfaces with most
types of seat and back cushions, and was designed
to be the most user-friendly system available today.
FEATURES
SYNERGY®MANUAL RECLINE FEATURES
SYNERGY®MANUAL TILT FEATURES
TRU-BALANCE®2
POWER ELEVATING
SEAT
