chinesport Arnold 150 User manual

process tolerance: +/- 1,5 cm
BA No.: 02.09.103/01-12
Patient Hoist – Arnold 150
User Instructions
GB
Dimensions / cm
Art. No.: 14500
Se
r
ial Number
m
ax.
1
50
kg
carrying load
100
65
54
110
176
13
Important advisories
!
•Read this User Instructions before first time use of the Hoist and keep it at hand for the user.
•Adhere to all advisories, especially the safety advisories.
•Keep this User Instructions booklet at hand for future use and subsequent sales.
CHINESPORT SPA
Via Croazia 2 – 33100 UDINE
(Italy)
Tel. ++39 0432 621621
Fax ++39 0432 621620
www.chinesport.com

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 2 -
Product description
Picture shows:
A Column
B Hoist arm
C Base frame
D Foot pedal
E Swivel castors, front
F Swivel castors with wheel locks
G Swivel carrier (4 hooks)
H Bolt for swivel carrier
I Handle bow soft grip
J Drive system (motor, hoisting unit)
K Control unit
L Hand switch
M Rechargeable battery
Z Nameplate for product
Nameplate
Always observe allowable
maximum patient body weight !
The name-plate is very important for product
identification, and thus must not be removed.
Table of contents
1. General advisories 3
1.1 Introduction 3
1.2 Intended proper use 3
1.3 Operating comfort 3
1.4 Accessories / sling 3
2. Warranty 3
3. Spare parts ordering, complaints 3
4. Re-use, lifetime 3
5. Disposal 3
6. Symbol advisories 3
7. Safety advisories for use 4
8. Product specifications 4
8.1 Delivery scope 4
8.2 Technical specifications 4
9. Spare parts 5
10. Setting up for use 5
11. Charging the battery 6
11.1 Rechargeable battery 6
11.2 Connecting and charging 7
11.3 Charge level
11.4
Removing the rechargeable battery 7
12. Emergency OFF function 7
13. Manual switch 7
14. Wheel brakes 8
15. Emerg. lower / jam protection 8
15.1 Electrical emergency lowering 8
15.2 Mechanical emergency lowering
Notabsenku
ng
8
16. Stability – spreading the base 8

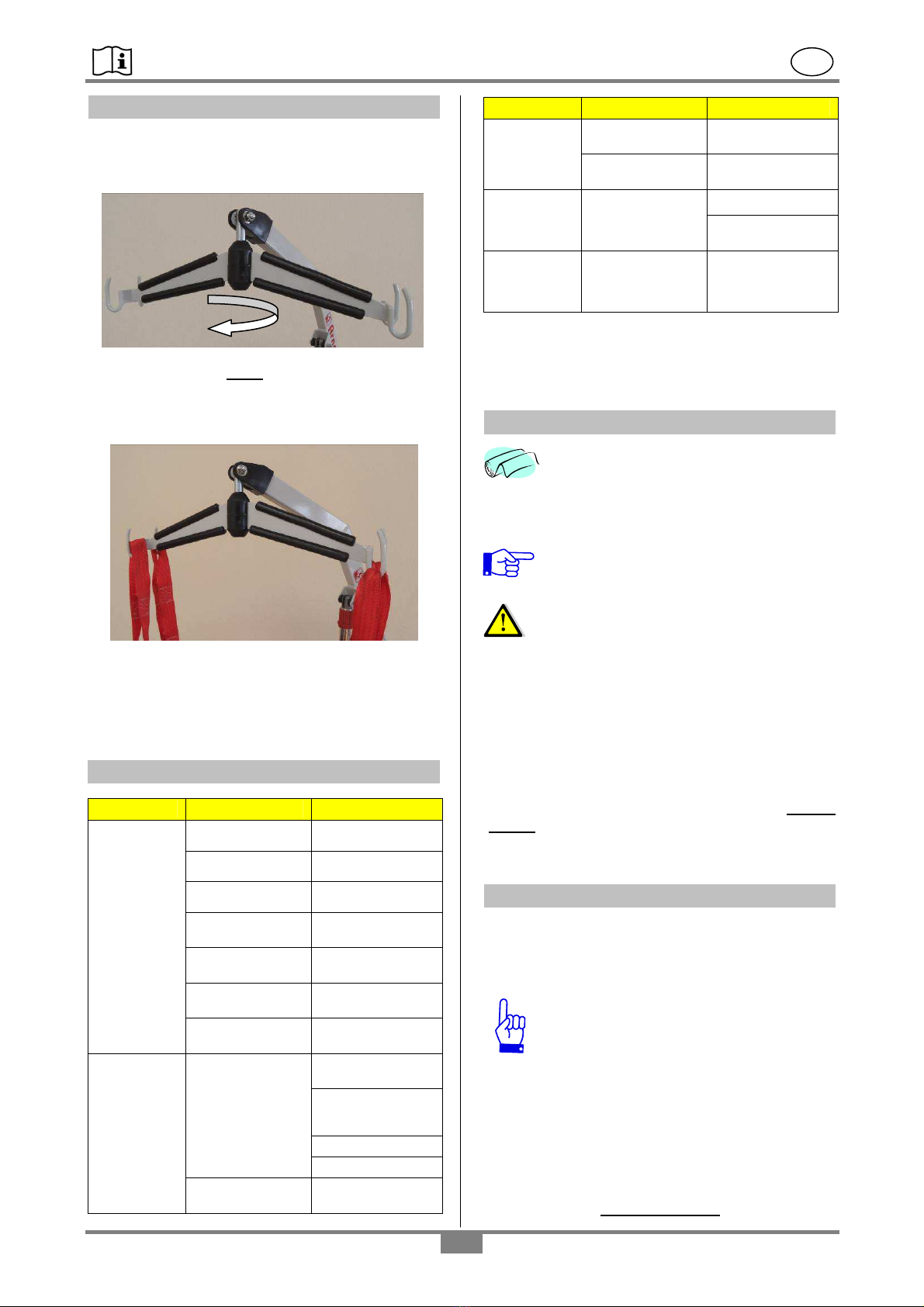

17. Hoist arm (carrier for sling) 9
18. Troubleshooting 9
19. Care 9
20. Maintenance 9
21. Spare parts 11
We recommend, if possible, keeping the
packaging for later transport. This will
allow secure packaging in the event of a
return transport
.
B
A
L
C
J
I
D
F
E
H
G
K
M
Z

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 3 -
1. General advisories
1.1 Introduction
In these User Instructions you will find information
and advisories for start-up, use, operation,
maintenance and care of the Patient Hoist Arnold
150.
1.2 Intended proper use
The Patient Hoist is for use in care facilities, clinics
and home purposes. The lifter described herein is
exclusively for moving (lifting and transferring) a
patient in a sling.
max. carrying load 150 kg
The Patient Hoist may not be used for longer
transport distances, or to other floors, or travel
over uneven surfaces. It may not be used for other
purposes such as transporting other objects. Also
observe the local ambient conditions when using
the Patient Lifter (see: page 4-5 / section 8.2).
1.3 Operating comfort
The Patient Hoist is equipped with an electrical
hoisting unit, low charge protection, emergency
lowering, emergency OFF function and a
rechargeable battery.
The rechargeable battery allows the Patient Hoist
to be used independently of an external energy
supply for a certain period of time (depending on
the charge level of the battery) and so increases
mobility during use.
The base frame can be spread apart simply by
activating the foot pedal, and thus increases
stability. The rear castor wheels can be easily
locked with the brake lever using your foot.
Using the hand switch, the lifter arm can be moved
up or down without any jerky movement and
steplessly via a motorised drive unit.
1.4 Accessories / sling
Various sling systems are available as accessories
for individual seating requirements and areas of
applications.
Use only REBOTEC accessories, as only these
can assure a trouble-free and safe function.
2. Warranty
There is a 2-year warranty on the Patient Hoist
Arnold 150.A prerequisite for the warranty is use
in accordance to the requirements outlined herein,
as well as conducting regular maintenance.
Excluded are all wear parts.
Not observing the User Instructions, improper
maintenance, unauthorised modifications done to
the product without the manufacturer’s permission
automatically lead to the immediate nullification of
warranty and product liability.
The delivery date written on the delivery note
applies as the valid start date of the warranty
period.
3. Spare parts orders, complaints
To exclude incorrect spare parts deliveries and to
ensure rapid processing of complaints, always
provide the product name, serial number (SN) and
the product’s year of manufacture. You can find
this information on the Lifter’s nameplate.
4. Re-use, lifetime
The product is designed for re-use. The re-use
(lifetime) depends on the product’s condition.
Before re-use, maintenance of the hoist must be
conducted and the applicable instructions
concerning safety, care, and maintenance must be
fully adhered to.
The expected lifetime of the Patient Hoist can be
up to 5 years when used properly and the safety
instructions, maintenance intervals and care
instructions are followed.
Beyond this time period, the Patient Hoist can be
used further if it is still in a safe condition (after a
complete inspection).
5. Disposal
This product consists of various combined
materials (metal, plastic, electrical parts, power
pack battery) and so it cannot be disposed of
through the regular household waste. This must be
done separately according to the local and national
regulations for environmental protection and raw
material recycling. Please contact your local
disposal company or environmental officials for
further information.
6. Symbol advisory
The following symbols are found on the nameplate
and in the User Instructions.
Symbol - nameplate:
Read the User Instructions booklet!
Product conforms to the Medical
Products Directive 93/42/EEC.
Year of Manuf. Serial No
Product Product
Symbols in the User Instructions:
Important advisory Language
or information!
SN
GB

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 4 -
Caution – Follow safety advisories!
Care Maintenance
Protection class: IPX4
X- No identification number given
4-Protection against water spray from all directions
7. Safety advisories for use
When using the Patient Hoist, the following
safety advisories must be observed:
•Before the first use, the User Instructions must
be read completely in order to avoid faulty
operation or hazards.
•Before each use, check the Patient Hoist for
visible damage or deficiencies.
•Operating and adjusting the Patient Hoist must
be done only by persons who are knowledgeable
and trained on how to properly handle the
Patient Lifter. This requires the ability to use the
unit with patients.
•Patient Hoist used in wet rooms may be exposed
to humidity moisture, chlorine and heat, which
can lead to oxidation that appears as a white
coating.
•When functional faults or damage of any type
occurs, then the Patient Hoist may not be used.
Danger of breakage!
•The max. allowable load of 150 kg may not be
exceeded because no safe operation can be
assured.
•Whenever using a sling, be sure that it is
securely hung to the carrier of the Patient Hoist.
Do not use any sling that shows signs of
damage.
•Do not place any objects between the main
column and the drive axis. No perpendicular
loads may be applied to the drive axis.
•The patient must not hold onto the drive axis.
•No weight loads may be hung onto the holder for
an extended time period.
Danger of injury !
•The Patient Hoist may not be operated while it is
being charged up.
•The Patient Hoist may be used only inside on
even, slip-free surfaces. Using the Patient Hoist
on slopes, grades or inclinations must be
avoided due to the increased risk.
•Use caution when travelling in tight spaces.
Paths used by the Patient Hoist must be cleared
before they are travelled on.
•Sudden movements and pushing, as well as
patient-swinging must be avoided because of an
increased risk of an accident.
•Never leave the patient unsupervised when
using the Patient Hoist! An unforeseen
movement or action by the patient may lead to a
possible risk of injury.
•In the event of an emergency lowering of the
patient, use extreme caution to avoid putting the
patient in danger. In difficult situations, seek the
assistance of another person.
•Check for a secure connection between the
carrier and the lifter arm.
Danger! Function hazard!
•It must be assured that no humidity reaches
inside the electrical systems.
(Observe protection class!)
•Do not open up the control / drive / battery unit or
hand switch systems!
•Do not charge up the rechargeable battery in wet
rooms (e.g.: bathrooms, shower stalls).
8. Product specifications
8.1 Delivery scope
The product has been carefully inspected in the
factory for freedom of defects and for
completeness. After having received it, carefully
check over the product for possible transport
damages and for completeness .
•1 Patient Hoist “Arnold 150” (main frame)
•1 control unit
•1 rechargeable battery
•1 recharging cable
•1 manual switch with hanging grip
•1 User instructions
8.2. Technical specifications
We reserve the right to make technical developments
and improvements with respect to the design shown
in the User Instructions.

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 5 -
Ratings Patient Hoist Arnold 150
Carrying load max. 150 kg (body weight)
Product weight 41 kg (without accessories)
Space req. max.
L x W x H Standing: 110 x 65 x 200
cm
(Lifter arm all the way up)
Wheels Ø Front: d = 75 mm
Rear: d = 100 mm with lock
Turning Ø ca. 135 cm
Lift height 65 cm to 176cm
Lift cycles
Approx. 45 double lifts (depending on wt. and charge)
Lifting unit Stepless and without jerking
Protection class II
Switch duration 2 min operation / 18 min. pause
Voltage 230-240V AC/50 Hz (control unit)
Control unit IP54 24V DC / 5A
Drive, compl. IP54 24V DC / 5A
Hand switch IPX4 24V DC
Charging unit IPX4 230V/24V, 500 mA
Power-pack IP54 24V DC / 5 Ah
Operate/storage 5°
°°
°C to 45°
°°
°C / -10°
°°
°C to 50°
°°
°C
Operate/storage Air humidity max. 85%
Safety -
Mechanical emergency lowering
- Power-pack low charge
- Power surge switch off
process tolerance: +/- 1,5 cm
9. Spare parts
Article No. Name, description
02.09.103 User Instructions - Arnold 150
02.10.066 Maintenance book
02.10.063 Instruction aid - sling
Spare parts
see side 11

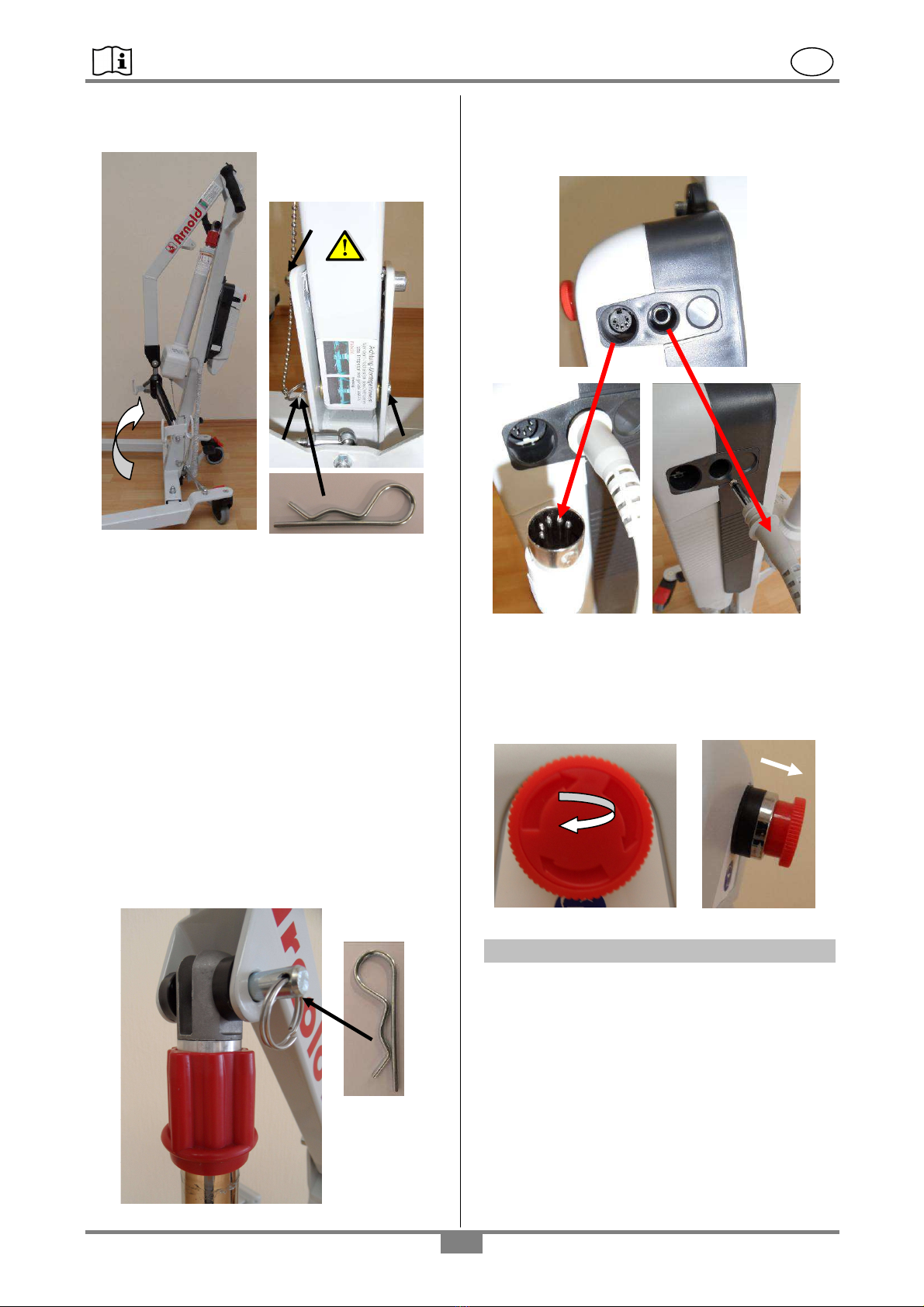

10. Setting up the Patient Hoist for use
The product is delivered partially pre-assembled.
The following assembly instructions must be
carried out before first-time use.
Step 1: Unpack
Remove the Patient Hoist out of the packaging and
place it on a level floor.
Lock the wheel castors (see: page 8, section 14)
so that the Hoist cannot roll away.
Step 2: Install the control-/battery unit
Securely screw the control unit (K) to the column
(A) using both M6x16 screws (1) (included in the
accessories) using an (SW5) Allen key.
Be sure that the red button of the control unit is
correctly positioned, facing the handle!
Step 3: Set up the column
Before setting up column (A), first unlock the wheel
brakes (F). To avoid damaging the paint coating on
the column, first straighten the pedal (D).
Next lock the wheel brakes!
Step 4: Install the column
Remove the ring (1) from the bolt (2) “or spring
clip(3)” and then pull the bolt completely from the
hole.
F F
A
D
K
1 1
A
1
3
2

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 6 -
The column (A) can now be set up together with
the lifter arm (B).
By inserting bolt (1) into the borehole, the column
(A) is arrested.
Next secure the bolt against slipping out by
installing the screw ring (2) “or spring clip” and
then tighten the M10 cap nut (3) to the column (A).
Step 5: Install the Hoist axis
To mount the drive motor to the Hoist axis, first
remove the key ring and bolt (1) “or spring clip (2)”
from the hole of the Hoist arm (A).
Next lift up the Hoist arm (A) and align the
borehole of the Hoist axis (X) with the Hoist arm.
Then insert the bolt and secure it with the key ring.
Now the Hoist arm is secured.
Be sure that the key ring or spring clip
is fully closed!
Step 6: Cable connections
Carefully insert plug (1) of the drive unit into the
jack (X) and the plug (2) of the hand switch into
jack (Y) on the side of the control unit (K).
Step 7: Emergency OFF button
Before starting up the Patient Hoist, the
emergency OFF button must be deactivated. To
do this, rotate the button clockwise until it pops
out.
11. Charging the battery
11.1 Rechargeable battery
If the lifting and lowering of the Hoist arm becomes
noticeably slower, then the battery charge is too
low.
Recharge the battery as soon as possible! This
extends the lifetime of the rechargeable batteries.
Rechargeable batteries that are not used for an
extended period of time should be recharged every
3 months in order to avoid low charges. Otherwise
the charging capacity of the battery is negatively
impacted.
The lifetime of the batteries depends on the
loading and the charge level.
1
2
3
A Y X
1
2
K
B A
X
A
1 2

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 7 -
11.2 Connecting and charging
Observe the following instructions!
•Check over the charging unit to be sure that the
connector cables or the plugs are not damaged.
DO NOT USE cables or plugs that are damaged!
•Check the power mains supply (230-240V/50Hz)
and power supply fuse protection for the
charging unit.
•The charging unit and the rechargeable battery
may not be opened under any circumstances!
•The Patient Hoist may not be operated while
it is being charged!
Insert the flat plug (1) of the charging cable (see
accessories) into the jack (C) of the control unit
and then insert the plug (2) into the wall outlet.
Depending on the battery charge level, the
charging process can be as long as 10 hours. If
the charging process lasts longer than 10 hours,
then the rechargeable battery or the charging unit
is defective.
After charging, pull out the plug from the outlet and
then wind the cable around the holder for storage.
11.3 Charge level / indicator lamps
The LED charge level indicator lamp is located
below the window of the control unit. The LED
display is visible when looking directly at the
window from above.
Indicator / LED
LED-dark: Battery capacity is sufficient
LED-green: Battery is fully charged!
LED-red: If the red LED illuminates when
activating the hand switch, then
it means the battery capacity is
too low.
Battery must be recharged!
11.4 Removing the rechargeable battery
The battery can be removed for replacing or for
storing.
Look at the diagram on the battery unit.
12. Emergency OFF function
By pressing the red emergency OFF button, it
locks into position. The drive system is interrupted
and cannot be operated with the manual switch. It
is activated in emergency situations and in the
event proper operation of the Patient Hoist is
impaired.
By rotating the emergency OFF button clockwise,
it will pop back out and is thus released. The drive
unit can then be operated using the manual switch.
13. Manual switch
The drive unit is activated with the manual switch
(stepless adjustment) and activates “lifting“
and “lowering“ of the Hoist arm.
2
1
C
Stop
Start

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 8 -
For the desired action, the button is kept pressed
down. When releasing the button, the drive
automatically stops.
14. Wheel brakes
Both wheel brakes are an important safety feature
whenever using the Patient Hoist. The back swivel
castors are equipped with wheel locks and allow
locking of the rear wheels.
Danger – Risk of tipping over!
Both rear wheels must be locked.
Press the wheel lock
levers down with your
foot. The wheels are
now locked and the
direction is secured.
Be sure that the wheels
are not swivelled
inwards.
The wheel brakes can
be released simply by
lifting up the lever with
your foot.
15. Emergency lowering / jamming protection
15.1 Electric emergency lowering
If the hand switch is out of order due to a defect,
yet the electrical system is still able to function
(battery is sufficiently charged), then the lifting axis
can be lowered one more time by using the
emergency OFF button.
15.2 Mechanical emergency lowering
In the event the patient becomes exposed to an
emergency situation, or an electrical defect occurs
with the drive motor, or the control unit fails or the
battery is completely uncharged, then it is
necessary to use the mechanical emergency
lowering system.
Before using the emergency lowering, it is
absolutely necessary to interrupt the power supply
from the battery. Press the emergency OFF
button!
Danger! Risk of injury!
When using emergency mechanical lowering,
do not stand under the Hoist arm!
Start lowering
Grab the red rotary grip and
pull it downwards until it
clicks into position. For
lowering the drive axis, grab
the red rotary grip and turn it
counter-clockwise.
Stop lowering
Let go of the red rotary grip
and turn clockwise a half
turn until it clicks into
position. Lowering is now
blocked.
16. Stability – spreading the base
The foot pedal allows the spreading of the base
members (left and right) and thus facilitates
moving the unit to the area of use. Press the foot
pedal all the way down to the stop.
Danger of tipping over!
Spread the base members only when the rear
wheel locks are fully disengaged!
Not spread apart
Spread apart
Lift
“UP“
Lower
“DOWN“
Hold the button
pressed down
to lower!

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 9 -
17. Hoist arm (carrier for slings)
The carrier is for hanging slings in which the
patient can be held and lifted up and transferred.
The carrier can be rotated 360°
Hanging the sling must be done using all four
hooks so that the load is evenly distributed.
Abide fully to the maintenance instructions for the
carrier (see: page 9, section 20).
Depending on the application, there are several
different types of slings systems offered by
REBOTEC. To assist you in selecting the most
suitable sling system, a guide is available(see:
page 5, section 9).
18. Troubleshooting
Fault Poss. cause Correction
Emergency OFF
button is activated Disengage emergency OFF.
Bad electrical
connection Check the connection.
Defective power
cable Inspect the cable.
Battery is too low Charge up battery.
Lift unit is jammed Check for freedom
of movement.
Battery has no
contact Re-install battery, Check position.
Drive does not
function
No battery Insert battery.
Check power mains,
Check power cable
and contact and for
damage
Battery is defective,
Display does not
illuminate green
after the end of
charging
Display/LED faulty
Battery does
not charge
Battery not fully or
not quite installed
Fully install battery,
Fault Poss. cause Correction
Battery capacity is
too low. Charge up battery.
Lifter arm
does not drive
all the way up
or down Lifter arm is
jammed Loosen the screws at the column.
Button(s) defective.
Manual switch
does not
function
Button(s) have no
function Check cable / plug
contact.
Greatly
reduced
speed, loud
noise
Motor, drive
defective
Do not operate the
drive system. Do
maintenance!
19. Care
In general the Patient Lifter can be cleaned
using a mild conventional cleaning and
disinfecting agent. Simply wipe the product
with clean water and cloth, and then wipe
dry with a clean cloth.
Maximum cleaning temperature of
65°
°°
°C must be observed!
The Patient Hoist must not be washed
inside an automatic washing unit!
Do not use an abrasive scouring agent or cleaner
(read the product instructions!) that contain
aggressive solvents (acids, thinners, benzene). Do
not use stiff cleaning brushes, as these will
damage the painting or cause deposits to build up
on the steel parts and other materials.
Emergency lowering
The emergency lowering mechanism may not be
treated with oil, grease or other lubricant. This will
lead to faulty function when lowering.
20. Maintenance
Accidents or damage may be caused by the late
detection of wear and/or improper use, as well as
irregular or no maintenance.
For safety reasons and for preventing
accidents, the Lifter must undergo a
complete maintenance at least once a
year. (Refer to the Medical Products Act
and the local regulations.)
For documenting maintenance, REBOTEC offers a
maintenance manual (see: section 9).
Here you will find all information concerning the
scope of maintenance and forms for
documentation.
You can order this instruction manual or download
it at our website: www.rebotec.de.

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 10 -
Maintenance scope
Check at regular intervals:
(The time intervals depend on the frequency of use
and the condition of the product).
•The product for visible damage
(cracks, breakage, loose parts).
•All screw connections for tightness
(especially the wheels and carrier).
•Emergency lowering at least semi-annually
(malfunctions – carry out maintenance!)
•Rolling smoothness, castor function
(replace any defective castors).
•Drive unit function, test manual switch.
(Replace defective articles).
•Cable connections and plugs for damage.
•Sealing edges of the control and battery unit.
•Test the emergency OFF function.
•Inspect the accessories for deficiencies.
If you have questions concerning
maintenance and repairs to the chair, then
contact an authorised dealer or medical
equipment supply outlet.
When making repairs, use only original spare parts
from REBOTEC. Observe all advisories concerning
guaranty and warranty.
Never make any unauthorised modifications or
conversions to the product. These will only
adversely affect the safety and function of the
Lifter. In such cases the manufacturer
overtakes no liability.
Follow all the instructions when ordering spare
parts, re-use and product lifetime of the Lifter.
After a complete maintenance or repair of the Lifter
is done, we recommend a complete cleaning for
assuring hygiene. Follow the cleaning instructions.
Maintenance of the carrier hanging connection
The bolts and brass washers must be checked for
wear at each annual inspection. By pushing up the
carrier, the support with the brass washers is
pushed through the opening of the rubber cap.
If there is a lot of wear in the bolts or washers, then
they must be replaced.
Notes:

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 11 -
21. Spare parts: Arnold 150/320.01
No. Art.-No. name piece
1 420.70.71 Linear motor drive, type B/(5A) 1
2 420.11.72 control unit, type B/ (24VDC / 5A) 1
3 420.11.73 battery unit, type B/ (24VDC / 5Ah) 1
4 420.70.75 Hand switch, type B/(24VDC) 1
6 443.10.80 castor (Ø 75 mm) 2
7 441.10.81 castor with brake (Ø 100 mm) 2
8 420.00.15 pedal rubber covering 2
9 420.00.12 foot pedal 1
10 420.28.83 rod angle joint (L=280 mm) 2
11 420.00.84 handle Ø 22 mm 2
12a 420.00.43 bolt D25x155 1
12b 420.00.49 brass washer for bolt D25x5,5 1
13 420.0042 carrier 150 complete 1
14 420.70.74 recharging cabel 1
11
4
14
1
6
13
7 10
9
8
2
3
12a/b

CHINESPORT SPA / BA No.: 02.09.102/01-12 GB
- 12 -
Manufacturer:
REBOTEC
®
Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: [phone]
Telefax: (+49) 5431/9416-66
http://www.rebotec.de
E-mail: [email protected]
