Huawei LUNA2000-15-S0 User manual

HUAWEI TECHNOLOGIES CO., LTD.
LUNA2000-(5-30)-S0
Quick Guide
Issue: 04
Part Number: 31500GCU
Date: 2022-03-10

1
1Product Overview

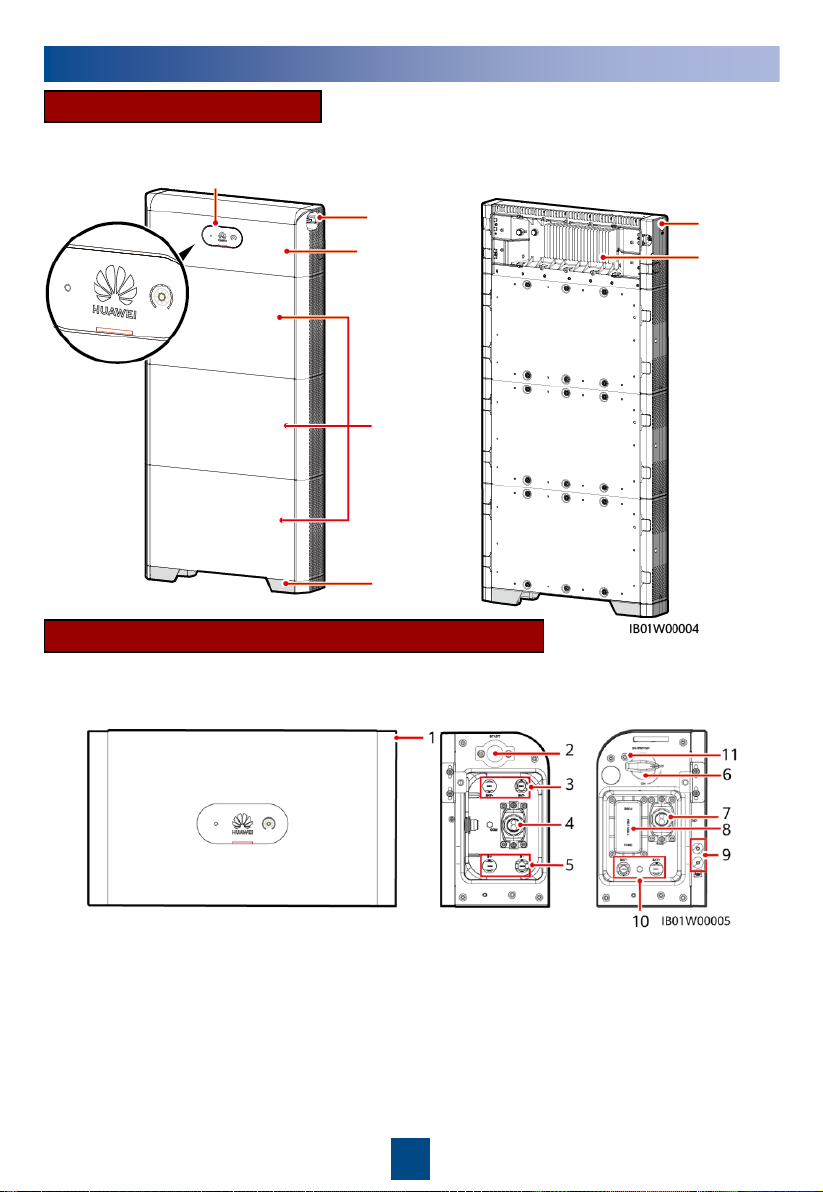

LUNA2000 Battery Appearance
Floor-
mounted
base
Power
control
module
Battery
expansion
modules
DC switch Black start
switch
Heat sink
Indicator
Note: The 15 kWh model is used as an example.
Power Control Module and Battery Expansion Modules
The LUNA2000 battery consists of a power control module and battery expansion modules. The
power control module is 5 kW, and a battery expansion module has a standard capacity of 5
kWh.
(1) Power control module
(DCDC)
(2) Black start switch
(3) Battery terminals
(BAT+/BAT
–)
(4) COM port (COM)
(5) Battery cascading
terminals (B+/B
–)
(6) DC switch (DC SWITCH)
(7) COM port (COM)
(8)
Fuse (9) Ground
point
(10) Battery terminals (
BAT-
/BAT+)
(11) Locking screw hole for the DC
switch (M4)a
Front view Left view Right view
Copyright © Huawei Technologies Co., Ltd. 2022.
All rights reserved.
The LUNA2000 battery is applicable to the grid-tied or off-grid systems of residential rooftop PV
plants. It can store and release electric energy based on service requirements.

2
Battery Capacity Description
The battery supports power and capacity expansion. Two power control modules can be connected
in parallel. One power control module supports a maximum of three battery expansion modules.
(1) Battery expansion module
(2) Boss for alignment
(3) Battery cascading
terminals (B+/B
–)
(4) Battery cascading
terminals (B+/B–)
(5) COM port (COM)
(6) Ground point
(7) Heat sink
(8) Ground point
Front view Left view Right view
Signal cable DC input cable
5 kWh
10 kWh
15 kWh 20 kWh
25 kWh 30 kWh
Note a: (Optional) Remove the plastic cap and install a locking screw for the DC switch to prevent
misoperations.

3
Residential Rooftop PV System for Grid Connection
The residential rooftop PV system for grid connection generally consists of the PV module,
LUNA2000 battery, grid-tied inverter, management system, AC switch, and power distribution
box (PDB).
2Device Installation
Installation Requirements
2.1
Installation Environment
Note：Dashed boxes indicate optional components.
If a battery pack is dropped or violently
impacted during installation, internal damage
may occur. Do not use such battery packs;
otherwise, safety risks such as cell leakage
and electric shock may arise.

4
Installation Environment Requirements
•The installation and use environment must meet relevant international, national,
and local standards for lithium batteries, and are in accordance with the local laws
and regulations.
•Ensure that the battery is not accessible to children and away from daily working or
living areas, including but not limited to the following areas: studio, bedroom,
lounge, living room, music room, kitchen, study, game room, home theater,
sunroom, toilet, bathroom, laundry, and attic.
•When installing the battery in a garage, keep it away from the drive way. It is
recommended that the battery be mounted on the wall higher than the bumper to
prevent collision.
•When installing the battery in a basement, keep good ventilation. Do not place
flammable or explosive materials around the battery. It is recommended that the
battery be mounted on the wall to avoid contact with water.
•Install the battery in a dry and well-ventilated environment. Secure the battery on a
solid and flat surface.
•Install the battery in a sheltered place or install an awning over it to avoid direct
sunlight or rain.
•Install the battery in a clean environment that is free from sources of strong
infrared radiation, organic solvents, and corrosive gases.
•For areas prone to natural disasters such as floods, debris flows, earthquakes, and
typhoons/hurricanes, take corresponding precautions for installation.
•Keep the battery away from fire sources. Do not place any flammable or explosive
materials around the battery.
•Keep the battery away from water sources such as taps, sewer pipes, and sprinklers
to prevent water seepage.
•Do not install the battery in a position where it is easy to touch as the temperature
of the chassis and heat sink is high when the battery is running.
•To prevent fire due to high temperature, ensure that the vents and the cooling
system are not blocked when the battery is running.
•Do not expose the battery to flammable or explosive gas or smoke. Do not perform
any operation on the battery in such environments.
•Do not install the battery on a moving object, such as ship, train, or car.
•In backup power scenarios, do not use the battery for the following situations：
a. Medical devices substantially important to human life.
b. Control equipment such as trains and elevators, which may cause personal injury.
c. Computer systems of social and public importance.
d. Locations near medical devices.
e. Other devices similar to those described above.
•Do not install the battery outdoors in salt-affected areas because it may corrode. A
salt-affected area refers to the region within 500 meters from the coast or prone to
sea breeze. The regions prone to sea breeze vary with weather conditions (such as
typhoons and monsoons) or terrains (such as dams and hills).

5
Installation Space
Mounting Hole Dimensions

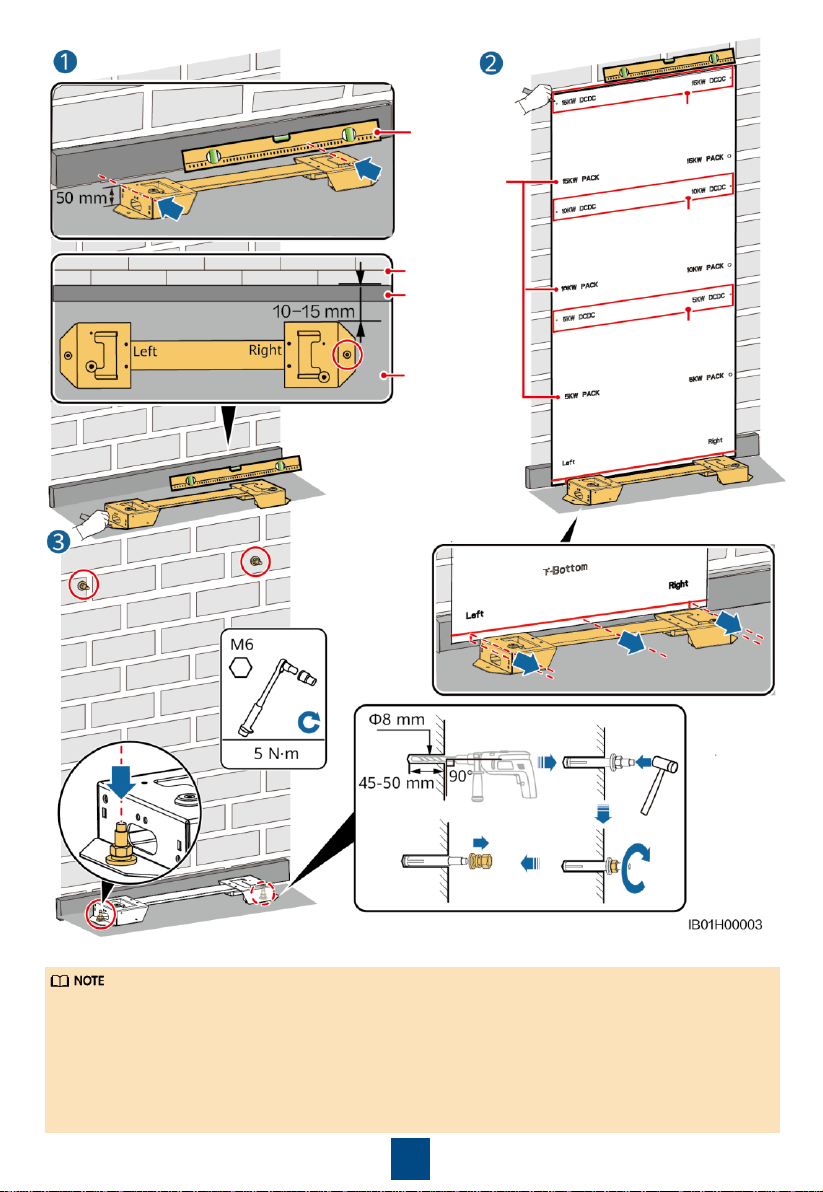

Installing the Floor Support
2.2
Avoid drilling holes in the water pipes and cables buried in the wall.
INVERTER
First Battery PACK
DCDC (one PACK used)
DCDC (two PACKs used)
Second Battery PACK
Third Battery PACK
DCDC (three PACKs used)

6
•The M6x60 expansion bolts delivered with the battery are mainly used for solid concrete walls
and concrete floors. If other types of walls and floors are used, ensure that the walls and floors
meet the load-bearing requirements (one battery expansion module weighs 50 kg) and select
the bolts by yourself.
•The power control module (DCDC) must be fixed on the wall. If the device is installed
in an area prone to earthquakes or vibration, you can mark the battery module
mounting holes and drill holes to install expansion bolts in step 2.
Keep a distance of
10 mm to 15 mm
between the support
and the wall surface.
Align the
marking-off
template with the
upper surface of
the floor support.
Ground
Level Mounting holes for the
15 kWh module
Mounting holes for the
10 kWh module
Mounting holes for the
5 kWh module
Wall
Baseboard
Marking line
(Optional)
Pack
mounting
holes
If holes cannot be drilled on the ground, the battery expansion
modules must be secured on the wall.

7
Installing Battery Expansion Modules
2.3
•The following describes how to install the battery expansion modules for a 15 kWh model.
•The installation of battery expansion modules for 5 kWh and 10 kWh models is the same.
One battery expansion module is installed for a 5 kWh model, and two battery expansion
modules are installed for a 10 kWh model.
1. Install the battery expansion modules and power control module on the support.
Align the first battery
expansion module with
the support on the floor
support.
Install the connecting
pieces on both sides
and tighten the four
screws.
Install the remaining battery modules and power module from bottom to top. After
installing a module, secure the left and right connecting pieces, and then install the
next module.

8

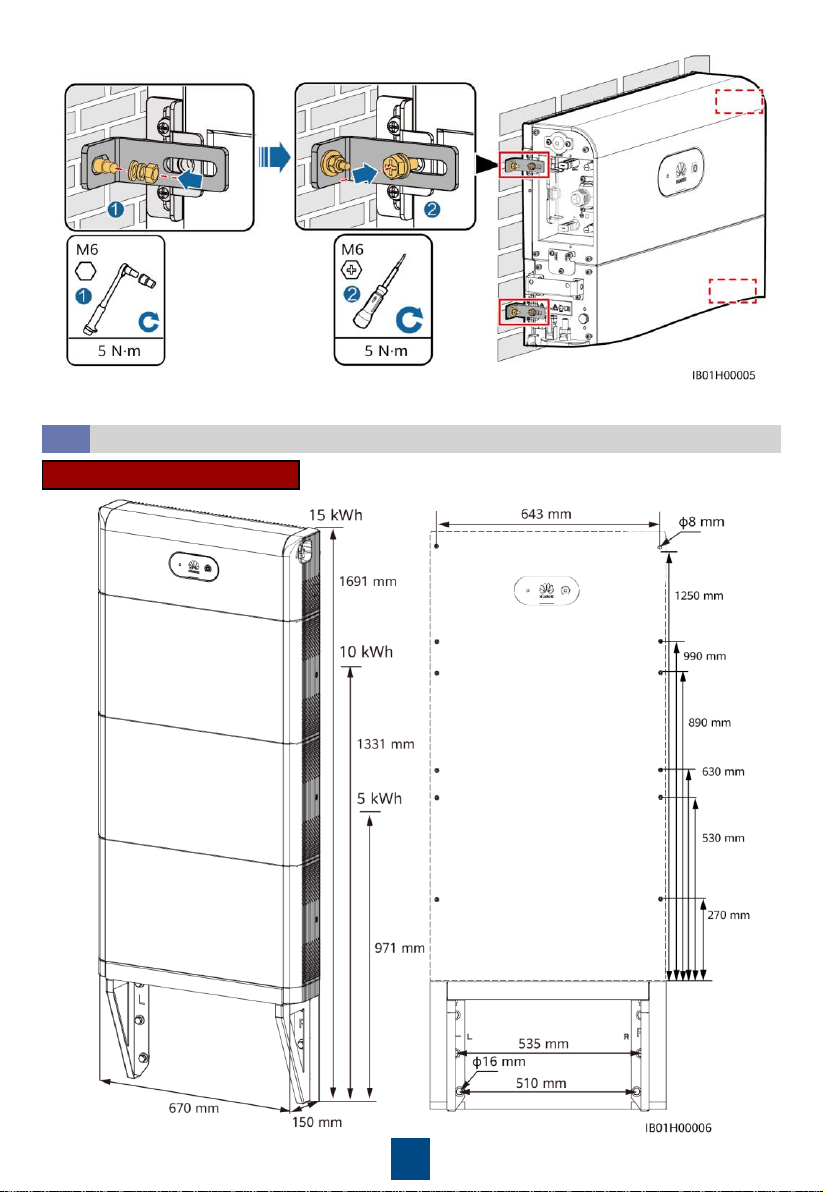

2. Secure the power control module to the wall.
Wall-mounted Installation
2.4
Mounting Hole Dimensions
You can adjust the
connecting piece
vertically to align
with the screw holes.
3. (Optional) Secure the battery expansion modules to the wall by referring to step 2.
(Optional)
First Battery PACK
DCDC (one PACK used)
DCDC (two PACKs used)
Second Battery PACK
Third Battery PACK
DCDC (three PACKs used)

9
Level
Wall
Ground
Mounting holes
for the 15 kWh
module
Mounting holes
for the 5 kWh
module
Mounting holes
for the 10 kWh
module
Support
For floor-mounted installation, the base is 50 mm high. If waterproofing requirements cannot be
met, the battery can be installed on a wall. The mounting kits need to be purchased separately.
For wall- and floor-mounted installation, ensure that the load-bearing capacity meets the
requirements (one battery expansion module weighs 50 kg).
.

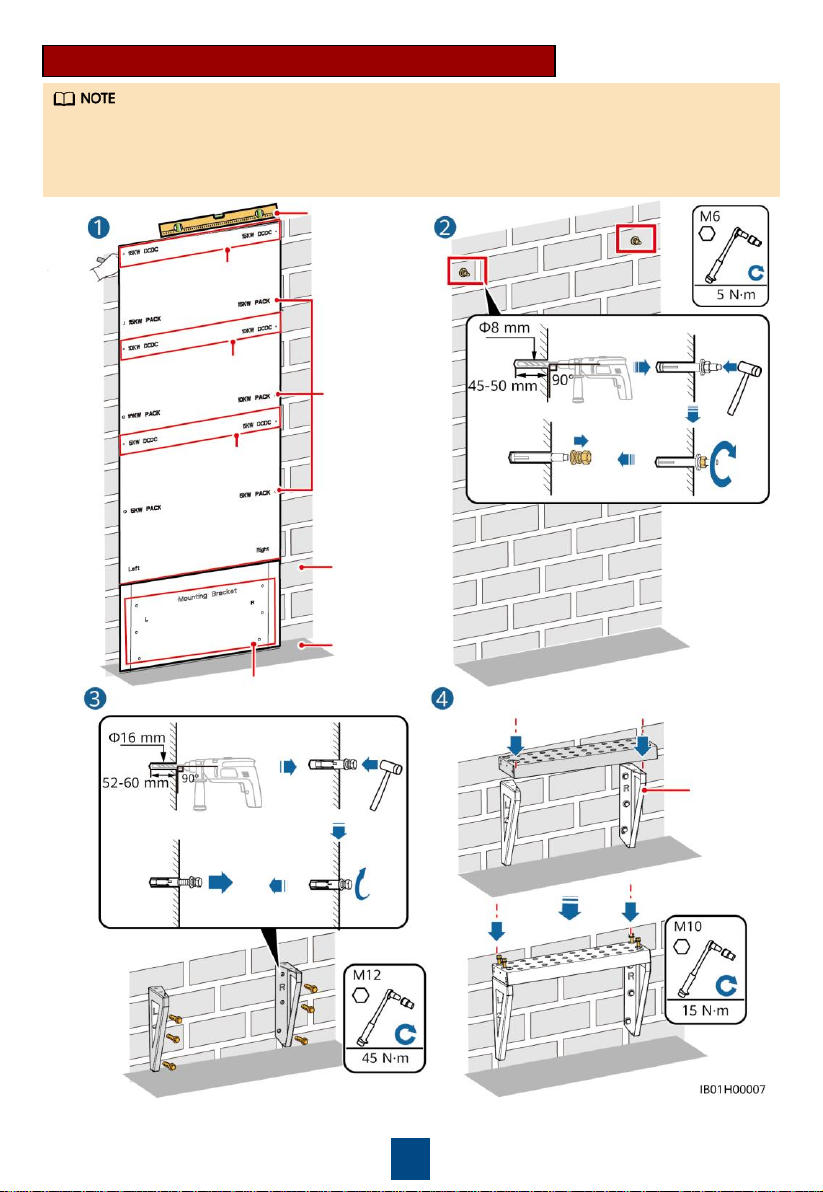

Installing the Support for Wall-mounted Installation
Mounting holes for
support
(Optional)
Pack
mounting
holes

10
18
2
Installing an Internal Ground
Cable

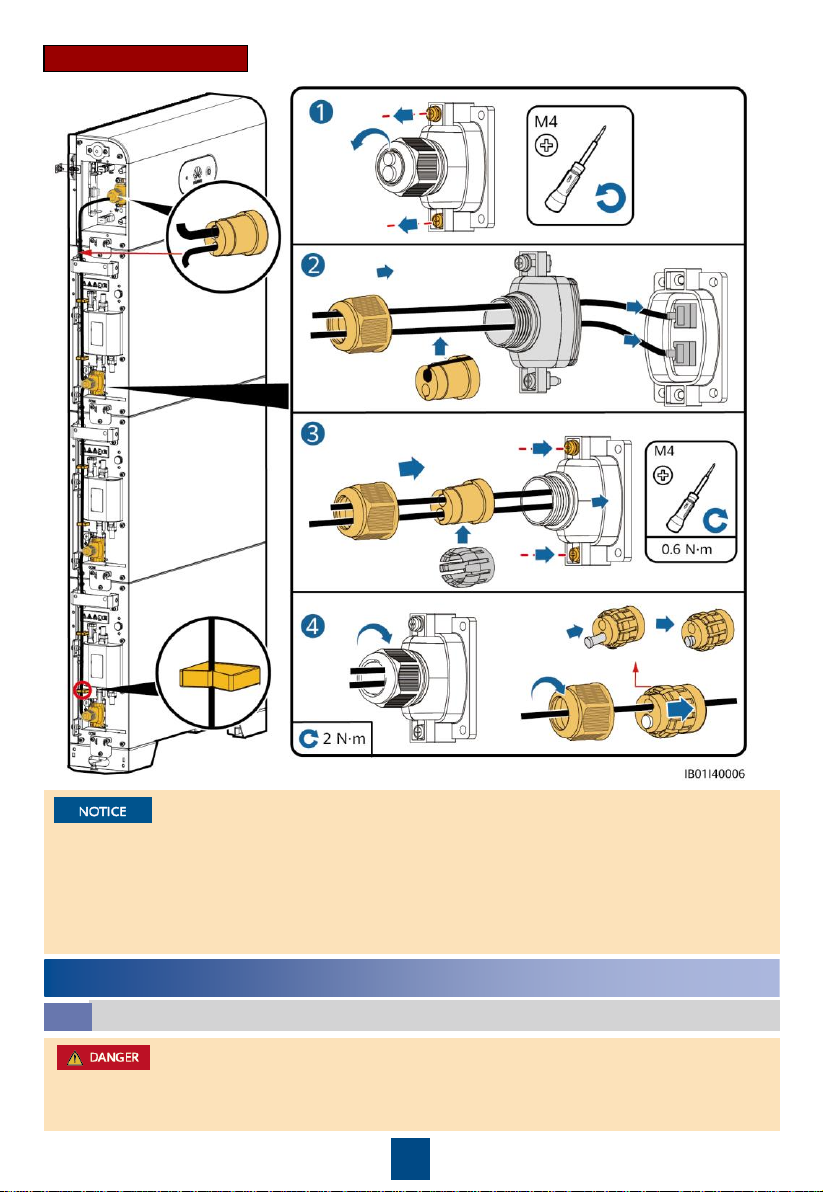

3.1 Installing Internal DC
Terminals
3.2
Connect the ground
points of modules in
sequence, and secure
the ground cable using
a ground screw.
•Connect cables in accordance with local installation laws and regulations.
•Before connecting cables, ensure that the DC switch on the battery and all the switches
connected to the battery are set to OFF. Otherwise, the high voltage of the battery may
result in electric shocks.
3Internal Electrical Connections of the Battery
•Internal electrical cables are delivered with the battery, see the Packing List in the packing
case.
•The Amphenol terminal is used as the DC terminal between the power control module and
the battery expansion modules.

11

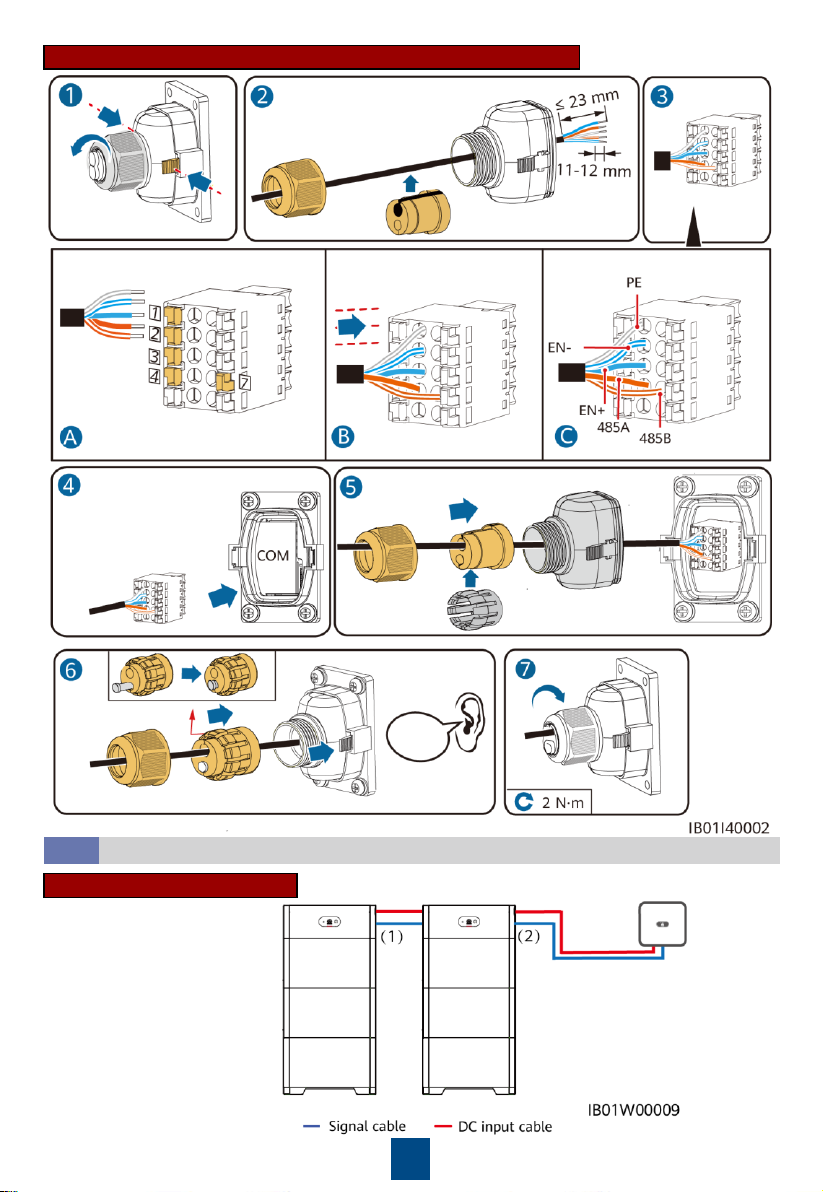

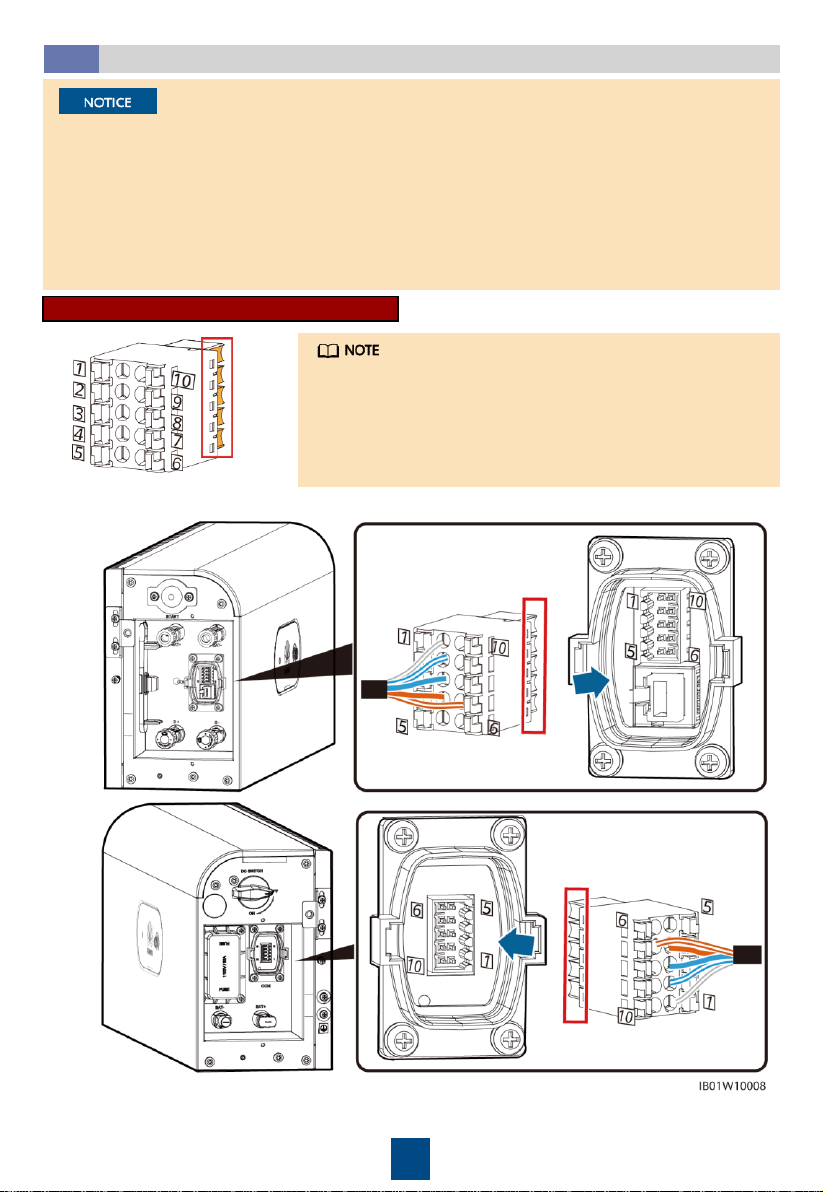

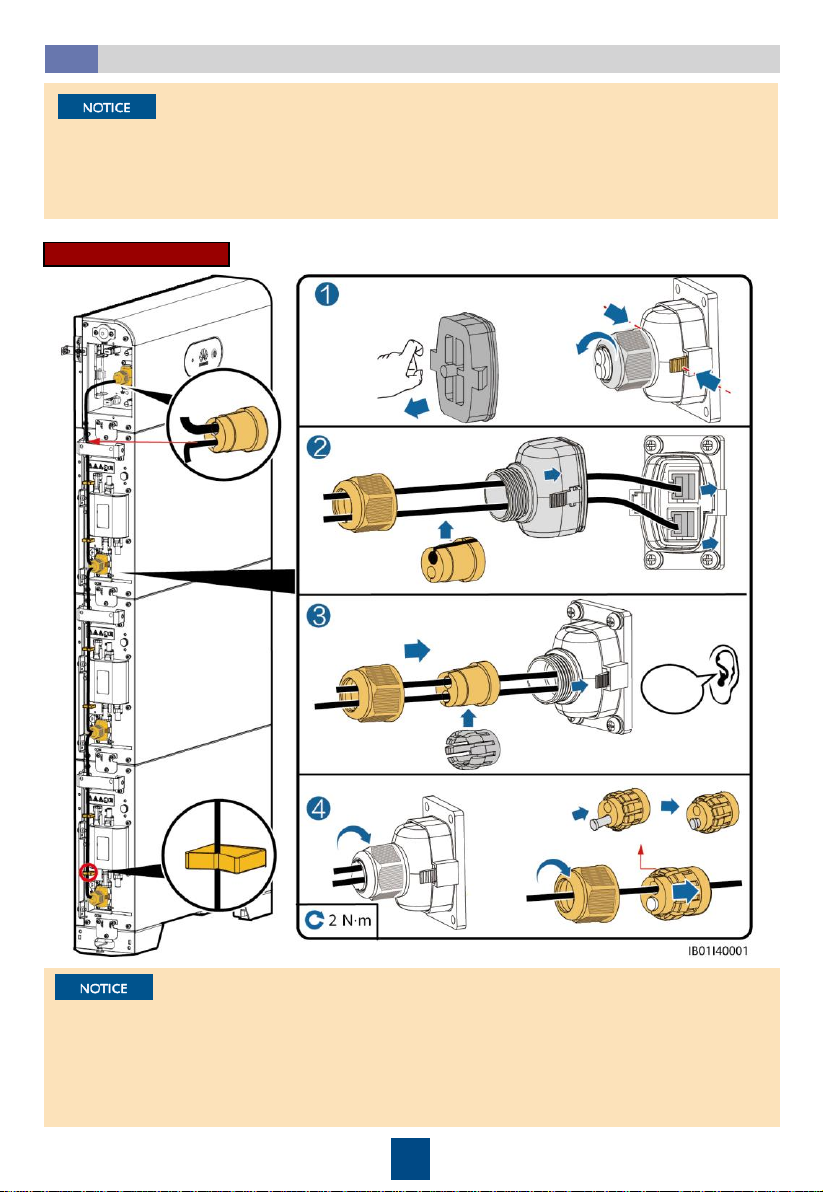

Connecting Internal Signal Cables
3.3
2
Terminal of
battery
modules
Terminal of
power
module
•When a communications terminal is connected to a single network cable, a waterproof rubber
plug must be installed. Do not install a cable with a diameter of 5 mm into a Ф7 mm rubber
plug.
•After inserting the terminal shell into the COM port, shake the terminal shell left and right
and pull it back to ensure that it is securely installed, and tighten the nut (ensure that the
rubber plug is tightly compressed). Otherwise, the waterproof performance is affected.
Click
Securing With Clips
•The protective housing of the communications terminal delivered with the device can be
fastened with clips or screws based on the actual diagram.
•Install signal cables with a diameter of 5 mm and rubber plugs as described in this section. Do
not use signal cables with a diameter of 7 mm.

12
2
Preparing Cables
4.1
4External Electrical Connections of the Battery
•When a communications terminal is connected to a single network cable, a waterproof rubber
plug must be installed. Do not install a cable with a diameter of 5 mm into a Ф7 mm rubber
plug.
•After inserting the terminal shell into the COM port, shake the terminal shell left and right
and pull it back to ensure that it is securely installed, and tighten the nut (ensure that the
rubber plug is tightly compressed). Otherwise, the waterproof performance is affected.
Securing With Screws
Before connecting cables, ensure that the DC switch on the battery and all the switches
connected to the battery are set to OFF. Otherwise, the high voltage of the battery may result in
electric shocks.

13
Installing a Ground Cable
4.3
No.
Cable
Type
Conductor Cross
-
Sectional Area
Range
Outer Diameter
1
Ground cable
Single
-core outdoor
copper
-core cable
10 mm
2
-
2
DC input power cable
(inverter to battery
and battery to
battery)
Common outdoor PV
cable in the industry
4
–6 mm2
5.5
–9 mm
3
Signal cable (inverter
to battery and battery
to battery)
Outdoor shielded
twisted pair cable (8
cores)
0.20
–1mm2
6.2
–7mm
Routing Cables Out of the Cable Hole
4.2
Before connecting external cables, route
the cables through the cable hole to avoid
disconnecting after installation.
Prepare cables based on site requirements.
•Ground a ground point of the power control module.
•Apply silica gel or paint around the ground terminal after the ground cable is connected.
Power control module
•Connect cables in accordance with local installation laws and regulations.
•The DC input power cable and signal cable between the battery and the inverter must be less
than or equal to 10 m.

14
Assembling DC Connectors
Click
Positive metal
terminal
Negative metal
terminal
Ensure that the cable
cannot be pulled out
after being crimped.
Positive
connector
Negative
connector
Use the wrench
shown in the figure
to tighten the
locking nut. When
the wrench slips
during the
tightening, the
locking nut has
been tightened.
Ensure that cable
polarities are
correct.
PV-CZM-22100/19100
PV-MS-HZ
Open-end
wrench
Installing DC Input Power Cables
Use dedicated insulated tools to connect cables. Ensure that battery cables are connected to
correct polarities. If the battery cables are reversely connected, the battery may be damaged.
1. You are advised to connect the battery terminals (BAT+ and BAT–) on the switch side to the
inverter and connect the other side to the cascaded battery.
2. For battery terminals, use the delivered Staubli MC4 positive and negative metal terminals and
DC connectors. Using incompatible positive and negative metal terminals and DC connectors
may burn the cables or damage the module. The resulting device damage will not be covered
under warranty.
Installing DC Input Power Cables
4.4

15
•When laying out a signal cable, separate it from power cables and keep it away from strong
interference sources to prevent communication interruption.
•Ensure that the protection layer of the cable is inside the connector, that excess core wires
are cut off from the protection layer, that the exposed core wire is totally inserted into the
cable hole, and that the cable is connected securely.
•Use a plug to block the idle cable hole with the waterproof rubber ring, and then tighten the
locking cap.
•If multiple signal cables need to be connected, ensure that the outer diameters of the signal
cables are the same.
Installing a Signal Cable
4.5
It is recommended that the right side of COM port be
connected to the inverter and the left side of the COM port
be connected to the cascaded batteries. The communications
terminal insertion directions on the left and right side of the
COM port are different. Insert the communications terminals
in the directions shown in the figures.
Pins 6–10 are close to the
groove side.
Communications Terminal Description
Left
Right

16
COM Port Pin Definitions
No.
Label
Definition
Description
1
PE
Ground point on the shield layer
Ground point on the shield layer
2
Enable
-
Enable signal GND
Connects to the enable signal GND of the
inverter.
3
Enable+
Enable signal
+
Connects to the enable signal of the
inverter.
4
485A
RS485A,
RS485 differential
signal
+
Connects to the RS485 signal port + of the
inverter or cascaded batteries.
5
6
485B
RS485B, RS485 differential
signal
–
Connects to the RS485 signal port
–of the
inverter or cascaded batteries.
7
8
CANL
Extended CAN bus port
Used for signal cable cascading in battery
cascading scenarios.
9
CANH
Extended CAN bus port
Used for signal cable cascading in battery
cascading scenarios.
10
PE
Ground point on the shield layer
Ground point on the shield layer
The communications terminals on the inverter side need to be connected to RS485+\RS485-,
EN+\EN-, and PE. The communications terminals on the cascading side need to be connected to
RS485+\RS485-, EN+\EN-, CANH\CANL, and PE.
Pins 6–10 are close to the groove side.

17
Connecting the Communications Terminal to the Inverter
Cascading Networking
(1) Communications terminal for
cascaded batteries
(2) Communications terminal
connected to the inverter
(Optional) Cable Connections in Cascading Scenarios
4.6
Insert the terminals
according to the
silkscreen number.
6pin–10pin are close to
the groove side.
Click

18
Connecting the Communications Terminal for Cascaded Batteries
Cascading DC Input Connection
Prepare DC connectors and connect DC battery cascading terminals (BAT+ and BAT–) for cascaded
batteries. For details, see section 4.4 "Installing DC Input Power Cables."The Staubli MC4 positive
and negative metal terminals and DC connectors on the cascading side need to be purchased by
customers.
Insert the terminals
according to the
silkscreen number.
Pins 6–10 are close to
the groove side.
4.7 Connecting Cables to the Inverter
SUN2000-(2KTL-6KTL)-L1
Click
•When a communications terminal is connected to a single network cable, a waterproof rubber
plug must be installed.
•After inserting the terminal shell into the COM port, shake the terminal shell left and right
and pull it back to ensure that it is securely installed, and tighten the nut (ensure that the
rubber plug is tightly compressed). Otherwise, the waterproof performance is affected.

19
COM Port Pin Definitions
No
.
Label
Definition
Description
3
485B2
RS485B, RS485
differential signal–
Used for connecting to
the RS485 signal ports of
the battery.
4
485A2
RS485A, RS485
differential signal+
5
GND
GND
Used for connecting to
GND of the enable signal.
6
EN+
Enable
signal+
Used for connecting to
the enable signal of the
battery.
SUN2000-(3KTL-10KTL)-M1
No.
Label
Definition
Description
5
PE
Ground point on
the shield layer
Ground point on the
shield layer
7
485A2
RS485A, RS485
differential signal+
Used for connecting
to the RS485 signal
ports of the battery.
9
485B2
RS485B, RS485
differential signal
–
11
EN
Enable
signal+
Used for connecting
to the enable signal of
the battery.
13
GND
GND
Used for connecting
to GND of the enable
signal.
COM Port Pin Definitions
Battery terminals (BAT+/BAT–)
COM port (COM)
COM port (COM)
Battery terminals (BAT+/BAT–)
