Thank you for your purchase of Wh Portable Power
Station. Building up a power system for your mobile house or
when go camping hunting, With Portable Power Station you can
easily set up a power system for ceiling fans, RV lighting,
laptops, and phones. Keep basic stuff charged up easily.
To ensure safety and avoid any property damage, please read
this manual before use and follow its guidance.
Important Safety Instructions
Please be sure to observe the following for safe use
It indicates that attention should be paid to fire, rupture and
high temperature when operating the product. Specific
attention is described in the figure.
This means that this behavior is prohibited when operating a
product. Specific prohibited content is described in the icons
or text in or near the icons.
Represents the mandatory operation of the product in
accordance with the instructions. Specific mandatory content
is described in graphics or text in or near the figure number.
01
DANGER
Please do not disassemble, repair or transform, which may
cause electric shock, heat, fire and other dangers.
Do not put the product near the fire source or put it into the
fire or heat, which will cause fire or burns and other dangers.
This product can not be charged and used in dew, bathhouse,
rain and other places; do not use water to clean the product, it
will cause electric shock, heat, fire and other dangers.
Do not use metal to contact AC output interface. It may cause
electric shock, fever, fire and other dangers.
Please do not use it as general waste disposal. Electricity
shock, heat and fire may occur in the garbage collection truck.
'$1*(5
WARNING
Please keep the place clean for use and storage. Powder or
small metal contact terminal may cause short circuit,
accidents such as smoke or fire.
Be sure to check before use. In case of any abnormality such
as breakage, crack, leakage, fever and AC line breakage,
please stop using the product immediately.
Remove the AC cable from the socket when lightning strikes
during charging. When it thunders, a large current from the
socket may be generated Into a fever, fire, fire and other
accidents.
Please charge in the specified voltage range
(AC 100-240V).Otherwise, it may cause heating, fire, fire and
other accidents.
Do not let children use this product. Or it may cause accidents
or injuries.
0
Note
Please stop using the product immediately when there is any
abnormality such as rusting, peculiar smell, fever, etc.
Do not allow this product and the AC cable to get wet with
water or other liquids. It may cause short circuit, heat, fire,
etc.
Please carefully read the operating instructions of the
electrical products to be connected.
1MFBTFDIBSHFVTFUIJTQSPEVDUVOEFS˭TUPSBHFUIJT
QSPEVDUVOEFS˭PUIFSXJTFNBZDBVTFQPPSQFSGPS
NBODFPSIFBUVQ
Be sure to turn off the main power button during storage to
prevent unnecessary discharge of the battery and prevent
electric shock.
About the 1280Wh Portable Power Station

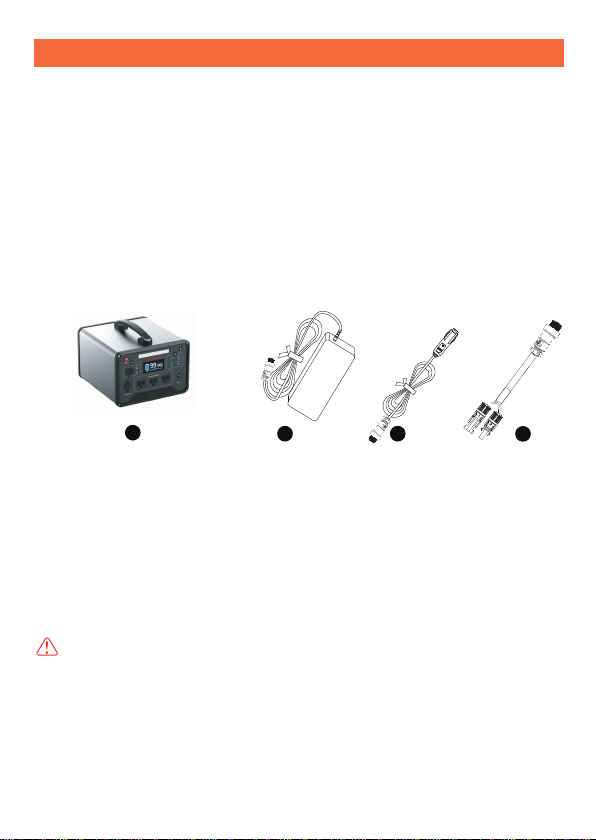

1.What’s in the box
1280Wh Portable Power Station×1
AC Adaptor (Including AC Charging Cable)×1
Cigarette Lighter Cable×1
DC to MC 4 Cable x 1
User Manual×1
12 3 4
Note: Picture is only for reference, pls take the product as the standard.
03
2.Product Introduction
LED Light Button
86%3RZHU%XWWRQ
86%2XWSXW3RUW
$&3RZHU%XWWRQ
Main Power Button
DC Power Button
DC 1292XWSXWPort
DC 129Car Cigarette Lighter Output Port
5. Charging Port( DC Input )
6. LCD Screen
7. LED Light
$& Output Port
Type-C PD Output
Port
Reset Hole
1. Battery Capacity Indicator
2. Battery Remaining Time
3. Input/Output Power
4. DC ON /OFF
5. USB ON /OFF
LCD Screen
TYPE-C ON /OFF
AC ON /OFF
50/60HZ
9.Low-temperature Indicator
10 Over-temperature Indicator
11. Fan Indicator
0
Β
Θ
Γ
ΕΔ
Ζ
Η
Κ
Ύ
ΐ
Α
Ώ
Ι
9
(1). AC Charger Charge the Product
LCD Battery Display:
The LCD Battery Display indicates the charge levelDQGWKH
UHPDLQLQJFDSDFLW\
When charging it, you will notice a battery segment blinking with
1 second interval.
This indicates the current charge status and the number under
INPUT shows the real-time charging power. Once it is fully
charged, all battery segments will be lit and remain solid.
Overtemperature indicator Display:
When the discharge temperature is greater than ˭ degrees,
the over-temperature protection indicator will be displayed on the
screen for 5 seconds.
Radiator indicator Display:
The fan will turn on when the power supply LQWHUQDOtemperature
reaches 113℉degrees.
Using Portable Power Station
Important Tips Before Use
Note: Please charge the product to 100% before using.
When charging the product, the battery capacity display icon on
LCD screen will be on dynamic status, after the battery is
charged fully, the display icon will on static status.
1 Charging
Note: Always use the standard AC charger that comes with
the product.
0

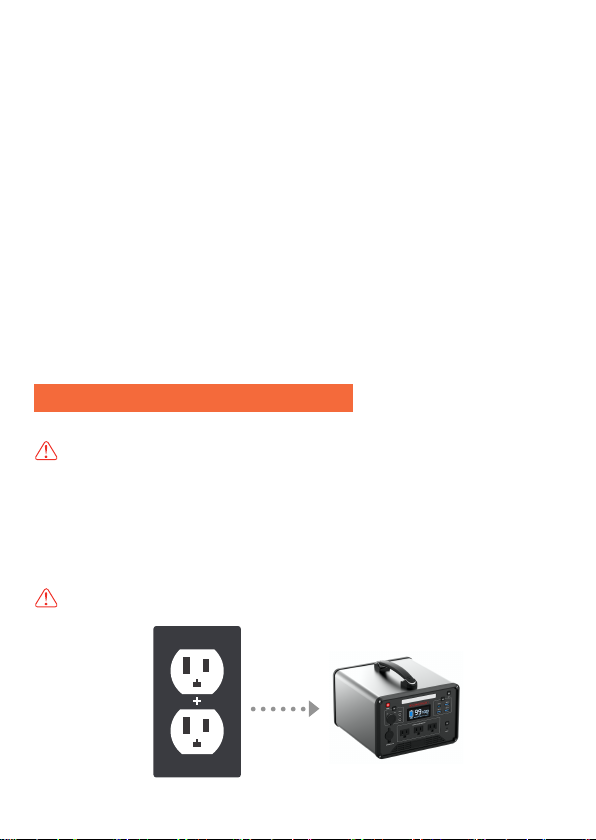

1 Connect the product and socket with the AC charger in the
package.
2 Please unplug the charger when charging completed.(it takes
about -hrs to fully recharge the product if using W
AC adapter charger).
3 Please use our adaptor, non-standard adapters may cause
defects in the product.
Note: It is normal for this product to get hot during charging.
Note: Make sure that the wiring is in good contact, otherwise
the contact terminals may melt at high temperatures.
1 Connect the product and the cigarette lighter socket with the
cigarette lighter cable in package.
2 Charge the product after starting the car.
Note: Make sure that the wiring is in good contact,
otherwise the contact terminals may melt at high temperatures.
Note: 7KHFDUQHHGVWREHVWDUWHGEHIRUHLWFDQFKDUJHWKH
SURGXFWRWKHUZLVHLWPD\UXQRXWRIEDWWHU\SRZHU.

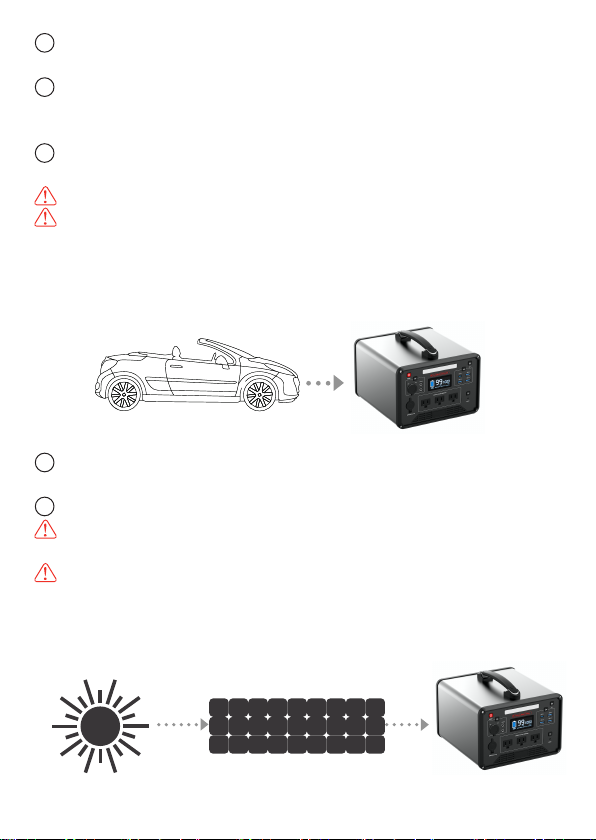

(2) . Car Charger Charge the Product
(3) . Solar Panel Charge the Product
0
Please note: 6RODUSDQHOVQHHGWREHSXUFKDVHGVHSDUDWHO\
1 Choose suitable solar panel(YROWDJH12~24V /0D[
::
2 Put the solar panel under strong sunshine, face to the sun
SRVLWLYHO\
3 Take the 0&to Aviationconnector FDEOH, connect the
solar panel and the product.
4 When the product is charged fully by the Solar, it will stop
charging automatically. Please take out the charging cable, and
turn off our product.
Note: Please make sure the cable connecting is correct and
stable, or will cause the connector in high temperature status or
sparking.
Note: Please charge the product under 32-113℉temperature
environment.
Note: During the charging, it is normal situation if the product is
getting a little bit hot.
Note: The charging time is different when light intensity is
different.
Note: If you choose the solar panel which is with MC4 connec-
tor, please make sure the positive and negative poles of solar
panels are connected correctly. Refer to the following connection
chart.
0
Solar panel PV+
Solar panelPV-
Connecting cable PV+
Connecting cable PV-
2 Battery Life
3 Estimation of Backup Time
4.1 Buttons Operation
10W
1
80
.
80
2
2
90
.
90
5W LCD TV
.
5
1.
Note: The above data are for reference only. The backup time
varies with the power of different loads.
4. Operation Instruction
1 Main Power Button32:(5
Power on: 3UHVVDQGKROG the main power buttonand the LCD
screen lights up.
Power off: Press and hold the main power buttonWKH/&'
VFUHHQZLOOEHRII
2 DC Power Button
DC power on : 3UHVV the DC button, the LCD will GLVSOD\³
´
The portable power station is designed to retain up to 80% of its
original capacity at 2000 complete charge cycles when operating
under normal conditions.
Q: How to calculate the working time for your devices?
A: 1. AC output working time=wh * 0.85/the power of your device
For example, assume your power of device is 50W, working time
willbe wh * 0.85/0w=hrs ( rough calculated )
2. DC and USB output working time=wh * 0.95/the power of your
device
DC power off: 3UHVV the DC button, and the LCD will
disappear “ ”.
3 AC Power Button
AC power on: 3UHVV the AC button, the LCD will
display “ ”.
AC powe3UHVV the AC button,the LCD will
disappear “ ”.
4 USB Button
USB power on: 3UHVV the USB button, the LCD will
display “ ”.
USB pow3UHVVthe USB button,the LCD will
disappear “ ”.
5 LED Button
LED power on: Press the LED button in turn, the order of
LED light will be: Micro bright--half bright--fullbright-turn off.
LED SRZHURIf: 3ress DQGKROGthe LED button,the LED
lights will be turned off.
SOS LED power on: Double-Press the LED button and the
SOS light will be turned on.
SOS LED power off: Press the LED button and the SOS
light will be turned off.
6 6HWWKHGLVSOD\VFUHHQWRpower saving mode
Turn on the 'power' button, the screen is always bright. Double click
the 'power' button, the screen becomes to power saving mode.
Then double click the 'power' button, the screen will be always
bright again.
6HW$&RXWSXWIUHTXHQF\
3UHVVWKH32:(5DQG$&EXWWRQDWWKHVDPHWLPH$IWHU
UHOHVHLQJWKHEXWWRQ$&RXWSXWIUHTXHQF\ZLOOFKDQJHEHWZHHQ
+=DQG+=
Note::KHQQRNH\LVSUHVVHGDIWHU32:(5LVWXUQHGRQWKH
VWDWLRQZLOOWXUQRIIWKHSRZHUDXWRPDWLFDOO\.,IDQ\EXWWRQRI$&
86%'&LVSUHVVHGEXWQRORDGDQGWKHSRZHUVKRZLWZLOOEH
FORVHGDIWHUKRXUV
4.2 Output Ports(Connectible Devices)
1 USB Output Port:
It help to eliminates the need for using multiple chargers,and can
intelligently charge your smartphone, MP3 player, digital camera,
electronic reader, tablet computer, etc.
Single USB port maximum output is 18W(Support the Quick
Charge technology)
2 Type-C PD Output Port:
Be used for smart phones, tablets, etc. Maximum
output is 60W. 6XSSRUWPXOWLSURWRFROPRGHVXSSRUW
PXOWLEUDQGHTXLSPHQW
3 DC 12V 5521 Output Port:
Mainly used for LED light EDQG lighting.
Single DC output ports maximum output is 12V/4A
4 DC12V Cigarette Lighter Output Port:
)RU9HKLFOH5HIULJHUDWRUYHKLFOHDLUSXPSYHKLFOHYDFXXP
FOHDQHU and other 12V equipment.Maximum power output is
12V/10A (120W)
Note:DC output is suitable for most products in the market.
Some products with instantaneous high current may trigger
over-current protection.
1
Note: Turn off these buttons to save power when no
using.To prevent power consumption.
1
5 AC Output Port:
)RU/DSWRS&DPHUD79PRQLWRUSRZHUWRROVEUHDWKLQJPDFKLQH
HOHFWULFEODQNHWDQGRWKHU$&SRZHUZRUNLQJHTXLSPHQWSingle AC
port maximum power output is 0W
Note: AC output uses electrical products with power below
0WRUSHDNSRZHUEHORZ:HTXLSPHQW
Other Considerations:
Note: Please make sure that the connected electrical products
can work properly before using this product.
Note: The output will stop automatically after overload protec-
tion.
Note: ,IWKHRXWSXWVWRSVUHSHDWHGO\VWRSXVLQJLW
LPPHGLDWHO\1RWWREHXVHGXQWLOWKHSUREOHPLVVROYHG
Product Storage and Maintenance
Troubleshooting
1. Full charge the machine before storage.
2. Switch off WKH 32:(5 button.
3. If there is any dirt, soak and wring out the cloth to wipe it clean.
4. Please do not use gasoline, volatile oil, thinner, kerosene, etc.
which have the function of dissolving the resin.
5. Keep it in dry and less dusty place. Temperature within 14℉-
149℉ , avoid direct sunlight.
6. Please full charge the product at least once every WKUHHmonths.
Note: Please do not keep it ORQJWLPHin the car, trunk,
loading platform or other hot place under direct sunlight. It may
cause the product failure, degradation or thermal problem.
When not in use,please turn off the 32:(5,otherwise the
internal circuit is still in power consumption.
When applying inverters,consumers are requested to use electri-
cal and electronic equipment that is officially certified and
approved.
If the product cannot charge or power other devices, please check
according to following steps:
1. Make sure the 32:(5 button is turned on.
2. Make sure the AC and DC 86% buttons are on.
3. Check the battery capacity, if it’s lower than 10%, please
recharge the product as soon as possible.
4. Make sure the load power connected didn’t exceed the limit
power of this product, each port has a limit for the power
connected.
If you can’t clear the trouble after above steps, please contact our
after sale service center.
1
1
ƔHow to check the state of charge?
The battery icon display on the LCD display shows the battery
level and charge status.
Ɣ+RZWRFDOFXODWHKRZORQJLWZLOOZRUN?
AC output working time=wh * 0.85/the power of your device
For example, assume your power of device is 500W, working
time will be wh * 0.85/50w=hrs ( rough calculated )
DC and USB output working time=wh * 0.95/the power of
your device
ƔWhat kind of a "mini cooler" or "mini-fridge" couldthis
unit power?
There are two output port to power these devices.
$&RXWSXWSRUWVFDQEHXVHGWR power the device which power
less than 0W.
DC output is Max 120W, It could power the devicewhich power
less than 120W . It is better to choose DC portpower supply
refrigerator, and the output without powerconsumption maintains
more power.
ƔCan you use this battery to jump start your cars
battery?
No, it could not be used to jump start car battery.
ƔHow to extend the using time of CPAP ?
Recommend to turn off its humidifier, heater, and set a lower
pressure. If there is a DC cable, well use the 12v plug. Because
DC output without power consumption maintains more power.
ƔHow long does it lost on a single charge?
It will lasts about \HDUV if you do not use it after a full
charge.%XWWKHEDWWHU\QHHGVWREHUHFKDUJHGDWOHDVWRQFHHYHU\
WKUHHPRQWKVWRPDLQWDLQLWVSHUIRUPDQFH
ƔCan you charge the battery using solar while charging
your phone at the same time?
Yes, you can.,WLVQRWUHFRPPHQGHGWRXVHKLJKSRZHUDSSOLDQFHV
ZKHQUHFKDUJLQJ
Frequently Asked Questions and Answers
Ɣ :LOOWKLVEHDEOHWRSRZHUXSWKHURXWHUIRUDFFHVVLQJ
internet?
It can, but how long it will run will depend upon the current draw
of the router.
Ɣ 'RHVWKHEDWWHU\XVHUUHSODFHDEOHE\KLPVHOI"
No, it doesn't.
Ɣ &DQWKH$&RXWSXWFDUU\D+RXVHKROGUHIULJHUDWRURU
air conditioner?
No.it can’t.
Ɣ +]+]IUHTXHQF\VZLWFKLQJIDFWRU\VHWWLQJ+]
How to set up: Long press the power button to turn the product
on, then Press and hold the power button or AC button at the
same time to select 50Hz and 60Hz. The frequency displayed on
the LCD will change accordingly.
Ɣ +RZGR\RXUHVHWIDFWRU\6HWWLQJVUHERRWV\VWHP"
Please insert the reset hole with a toothpick to restore the
factory setting (reboot system).
1
1
Specification
0W
0W
AC110V±10%RU$&9
129
10A
:ORDG:
Wh
4$
12-24 VDC
00W MAX2SWLRQDO)DVWFKDUJLQJPRGH:0$;
12.8 V
Lithium iron phosphate (LiFePO4）
<HV
11.2V-14.6V
5V99
PD (60W)
5V, 9V ,12V, 15V, 20V
Max18W
Capability
Frequency
Rated Voltage
Rated Current
Rated Voltage
Rated Current
Rated Voltage
Rated Current
Rated Output
While the 32:(5 button is on, press the LED light button in turn,
the order of LED light will be: Micro bright--half bright--fullbright--
turn offSOS Light : Double-Press the LED button and the SOS light
will beturned on.
50/60Hz(Adjustable)
12V
Suitable for most mobile phones
Rated Voltage
Rated Power
Peak Power
Quick Charge
Technology
Charging
Agreement
Storage Enviroment
Input
Input Power
Rated Capacity
Rated Voltage
Battery Cell Type
Voltage Range
BMS Safety System
General
14℉-149℉
32℉-113℉Working Temperature
AC Output
DC12V Output
USB Output
Type-C
Output
LED Lighting
DC12V Output
(Cigarette
Lighter)
1
Product Net weight
PP
Product Size
NJ
Note:
Solar FRQWUROOHU: MPPT
Warranty (1-Year-Limited)
The manufacturer’s warranty is void under the following circum-
stances but not limited to:
• Improper or inadequate maintenance or modification.
• Accident, misuse, abuse, contamination, or other external causes.
• The use of unspecified adapter and accessories.
• Damages that occurs as a result of one’s failure to follow the
instructions.
8Iه٦ةـٕꨵ
彂》䪕铢僈剅
CN1000
湡妃
㸝Ⰼחꟽׅꅾ銳ז岤䠑✲갪
8Iه٦ةـٕꨵ彂חאְג3
ه٦ةـٕꨵ彂⢪欽ׅ5
醢ㅷך⥂盗הًٝذشٝأ2
زٓـٕءُ٦ذ؍ؚٝ2
״ֻ֮颶㉏ה㔐瘷3
➬圬5
⥂鏿6
Table of contents
