Christie Matrix StIM User manual

Matrix StIM/SIM
SETUP GUIDE
020-100397-02

Matrix StIM/SIM
SETUP GUIDE
020-100397-02

NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These lim-
its are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference
in which case the user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
決 匶匶垚 櫋怺殯 Ͳ 匏  求嵢 洊沖砒洇穯姷嵣汊 穢 匶匶決欪城 砖廪沖 嬖垚 斲殯沖垚 決洖汊 渂汞穞柢匶 愚岂彶  儆洛 歾汞 滆櫳櫖昢 斲殯穞垚 冉
汊徯洇求嵢穯城埪 .
The equipment is designed and manufactured with high-quality materials and components that can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from regular waste. Please
dispose of this equipment appropriately and according to local regulations. In the European Union, there are separate collection systems for
used electrical and electronic products. Please help us to conserve the environment we live in!
Copyright © 2012 Christie Digital Systems USA, Inc. All rights reserved. All brand names and product names are trademarks, registered trade-
marksortradenamesoftheirrespectiveholders.CanadianmanufacturingfacilityisISO9001and14001certified.Performancespecificationsare
typical, but may vary depending on conditions beyond Christie's control such as maintenance of the product in proper working conditions. Per-
formance specifications are based on information available at the time of printing. Every effort has been made to ensure accuracy, however in
some cases changes in the products or availability could occur which may not be reflected in this document. Christie reserves the right to make
changes without notice or obligation.
WARRANTY
For complete information about Christie’s limited warranty, please contact your Christie Dealer. In addition to the other limitations that may be
specified in Christie’s limited warranty, the warranty does not cover:
(a) Damage occurring during shipment, in either direction.
(b) Projector lamps (See Christie’s separate lamp program policy).
(c) Damage caused by use of a projector lamp beyond the recommended lamp life, or use of a lamp supplied by a supplier other than Christie.
(d) Problemscaused by combinationof theequipment withnon-Christie equipment,such asdistribution systems, cameras,video taperecord-
ers, etc., or use of the equipment with any non-Christie interface device.
(e) Damage caused by misuse, improper power source, accident, fire, flood, lightning, earthquake or other natural disaster.
(f) Damage caused by improper installation/alignment, or by equipment modification, if by other than Christie service personnel.
(g) For LCD projectors, the warranty period specified applies only where the LCD projector is in ‘normal use. “Normal use” means the LCD
projector is not used more than 8 hours a day, 5 days a week. For any LCD projector where ‘normal use” is exceeded, warranty coverage
under this warranty terminates after 6000 hours of operation.
(h) Failure due to normal wear and tear.
PREVENTATIVE MAINTENANCE
Preventative maintenance is an important part of the continued and proper operation of your projector. Please see the Maintenance section for
specified maintenance items as they relate to your projector and/or model. Failure to perform maintenance as required, and in accordance with
the maintenance schedule specified by Christie, will void the warranty.

Table of Contents
Matrix StIM/SIM Setup Guide i
020-100397-02 Rev. 1 (11-2012)
1: Introduction
1.1 Using this Manual........................................................................................................................1-1
1.1.1 Labels and Marking .............................................................................................................1-1
1.1.2 Safety Warnings and Guidelines..........................................................................................1-1
1.2 Purchase Record and Service Contacts .......................................................................................1-2
1.3 Key Features ................................................................................................................................1-2
1.4 List of Components .....................................................................................................................1-3
2: Installation
2.1 Unpack the Projector ...................................................................................................................2-1

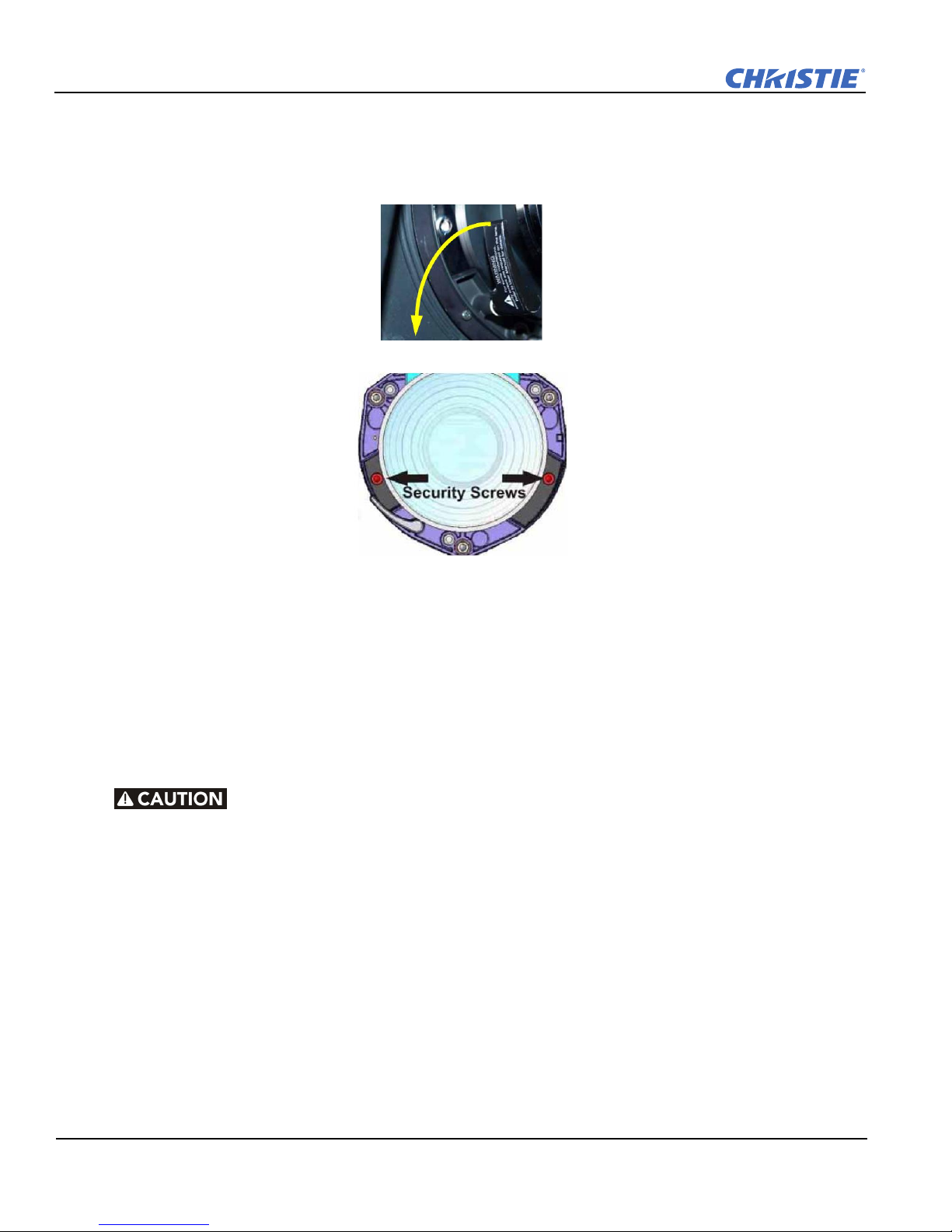

2.2 Install the Projection Lens ...........................................................................................................2-2
2.3 Lift, Transport and Mount the Projector......................................................................................2-2
2.4 Installation Considerations ..........................................................................................................2-3
2.4.1 Throw Distance....................................................................................................................2-3
2.4.2 Vertical and Horizontal Position..........................................................................................2-4
2.4.3 Ventilation ...........................................................................................................................2-4
2.5 Connecting Sources .....................................................................................................................2-5
2.5.1 DVI Digital Video ...............................................................................................................2-5
2.5.2 Dual Link DVI Input Card...................................................................................................2-5
2.6 Power Connection........................................................................................................................2-6
2.6.1 Connect to AC .....................................................................................................................2-6
2.6.2 Power the Projector ON.......................................................................................................2-6
2.6.3 Disconnect from AC ............................................................................................................2-6
2.7 Using Multiple Projectors............................................................................................................2-6
2.7.1 Matching Colors in Multiple Screens ..................................................................................2-7
3: Setup
3.1 Optical Alignment .......................................................................................................................3-1
3.1.1 Basic Optical Alignment Procedure ....................................................................................3-1
3.1.2 Boresight Alignment (Advanced Optical Alignment Procedure)........................................3-1
3.2 Adjust Software to Optimize the Image ......................................................................................3-3
3.2.1 AccuFrame...........................................................................................................................3-4
3.2.2 Geometry and Color Adjustment.........................................................................................3-4
3.2.3 Brightness Uniformity .........................................................................................................3-6
3.2.4 Edge Blending......................................................................................................................3-7
3.2.5 Color Adjustments ...............................................................................................................3-9
3.2.6 Black Level Blending ..........................................................................................................3-9
3.3 Advanced Menu Controls............................................................................................................3-10
3.3.1 Diagnostics and Calibration Menu ......................................................................................3-10
3.3.2 InfraRGB Menu ...................................................................................................................3-11
3.3.3 Configure Lighting Mode Menu..........................................................................................3-13
3.3.4 InfraRGB Target and Adjustments Menu............................................................................3-14
3.4 Setting Up for Infrared ................................................................................................................3-15
3.4.1 Choose a Video for IR .........................................................................................................3-15
3.4.2 Choose a Video Mode..........................................................................................................3-15

ii Matrix StIM/SIM Setup Guide
020-100397-02 Rev. 1 (11-2012)
Table of Contents
3.4.3 Adjust the IR Brightness Only .............................................................................................3-16
3.4.4 Change the Brightness Levels of the Light Modes ..............................................................3-16
4: Basic Operation
4.1 Using the IR Remote....................................................................................................................4-1
4.1.1 Wired Remote ......................................................................................................................4-1
4.1.2 IR Remote Commands .........................................................................................................4-1
4.2 Main Menu...................................................................................................................................4-5
4.3 On-line Help.................................................................................................................................4-6
5: Troubleshooting
5.1 Troubleshooting Guidelines.........................................................................................................5-1
5.2 System Warnings / Errors ............................................................................................................5-1
5.2.1 LED Status Display On the Projector ..................................................................................5-2
5.2.2 Error Codes ..........................................................................................................................5-3
5.3 Power ...........................................................................................................................................5-4
5.3.1 Projector Does Not Power ON.............................................................................................5-4
5.4 Light Module ...............................................................................................................................5-5
5.4.1 Light Module Suddenly Goes OFF......................................................................................5-5
5.5 Displays........................................................................................................................................5-5
5.5.1 The Projector is ON, but There is No Display.....................................................................5-5
5.5.2 The Display is Jittery or Unstable........................................................................................5-5
5.5.3 The Display is Faint .............................................................................................................5-5
5.5.4 The Upper Portion of the Display is Waving, Tearing or Jittering......................................5-5
5.5.5 Portions of the Display are Cut OFF or Warped to the Opposite edge................................5-5
5.5.6 Display Appears Compressed (Vertically Stretched) ..........................................................5-6
5.5.7 Data is Cropped from Edges ................................................................................................5-6
5.5.8 Display Quality Appears to Drift from Good to Bad, Bad to Good ....................................5-6
5.5.9 Display has Suddenly Froze.................................................................................................5-6
5.5.10 Colors in the Display are Inaccurate ..................................................................................5-6
5.5.11 Display is Not Rectangular ................................................................................................5-6
5.5.12 Display Is “Noisy” .............................................................................................................5-6
5.6 ArrayLOC ....................................................................................................................................5-7
5.6.1 Cannot Find Color Adjustment Controls .............................................................................5-7
5.6.2 Color/Image Settings Are Grayed Out.................................................................................5-7
5.6.3 Sensor Is Not Calibrated (yellow alert)................................................................................5-7
5.6.4 Invalid Target Gamut (yellow alert) ....................................................................................5-7
5.6.5 Unable to Achieve Target Brightness and Gamut (yellow alert).........................................5-7
6: Specifications
6.1 Regulatory....................................................................................................................................6-1
6.1.1 Safety ...................................................................................................................................6-1
6.1.2 Environmental Regulations..................................................................................................6-1
6.1.3 Emissions .............................................................................................................................6-1
6.1.4 Electromagnetic Compatibility ............................................................................................6-2

Table of Contents
Matrix StIM/SIM Setup Guide iii
020-100397-02 Rev. 1 (11-2012)
6.1.5 Immunity..............................................................................................................................6-2
6.2 Display.........................................................................................................................................6-2
6.3 Power Requirements ...................................................................................................................6-3
6.4 Light Module ...............................................................................................................................6-3
6.5 Physical Specifications ................................................................................................................6-3
6.6 Environment ................................................................................................................................6-5
6.7 Standard Components..................................................................................................................6-5
6.8 Optional Accessories ...................................................................................................................6-6
6.9 Inputs ..........................................................................................................................................6-6

Matrix StIM/SIM Setup Guide 1-1
020-100397-02 Rev. 1 (11-2012)
1 Introduction
1.1 Using this Manual
This manual is intended for trained users authorized to operate professional high-brightness projection
systems. Only Christie accredited personnel trained specifically by Christie on light module replacement and
safety may handle the light module.
Disclaimer: Every effort is made to make sure the information in this document is accurate and reliable. However, due to constant research, the
information in this document can change without notice. Christie Digital Systems USA, Inc. assumes no responsibility for omissions or inaccuracies.
Updates to this document are published regularly, as required. Please contact Christie Digital Systems USA, Inc. for availability.
1.1.1 Labels and Marking
Observe and follow all warnings and instructions marked on the projector.
Danger symbols indicate a hazardous situation which, if not avoided, will
result in death or serious injury.
Warning symbols indicate a hazardous situation which, if not avoided, could
result in death or serious injury.
Caution symbols indicate a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE! Information provided with this heading alerts users to key points of interest where equipment
damage may be possible, but not related to personal injury.
1.1.2 Safety Warnings and Guidelines
Be aware of the caution label on the projector warning of
possible eye hazard if the projected visible and invisible LED
radiation light is viewed directly through certain optical
instruments at close range.
The projector is a class 2M source of visible and
invisible LED radiation. Directly viewing the LED
output with certain optical instruments (for example,
eye loupes, magnifiers and microscopes) within a
distance of 100 mm (3.94”) may pose an eye hazard.

1-2 Matrix StIM/SIM Setup Guide
020-100397-02 Rev. 1 (11-2012)
Section 1: Introduction
1.2 Purchase Record and Service Contacts
If a problem is encountered with any part of the projector, contact your dealer. Usually servicing is performed
on site. If you have purchased the projector, fill out the information below and keep with your records.
* The serial number can be found on the license label located on the back of the projector.
1.3 Key Features
• Native WUXGA, 1920 x 1200 resolution
• 10-bit image processing module
• Display of RGB, NTSC, PAL, and SECAM video inputs and HDTV formats
• Picture-in-Picture display
• Edge Blending ability via software for seamless displays
• Dual frequency IR sensor for use with standard IR remote and optional long-range dual frequency remote
• Memory for up to 99 custom “channels” (source setups)
• Intuitive on-screen menu system
• Built-in GPIO port to enable active control of external devices
• LED display for projector status monitoring
• Multiple control options including RS-232 and RS-422
• On-board ChristieNETsoftware
• Universal AC input 100-240 VAC, 50/60Hz
• Dual Image Processing Card (DIPC)
• InfraRGB mode interleaves 2 independent (RGB and IR) inputs
Dealer:
Dealer or Christie Sales/Service Contact Phone Number:
Projector Serial Number*:
Purchase Date:
Installation Date:
Default Gateway
DNS Server
Projector IP Address
Subnet Mask

Section 1: Introduction
Matrix StIM/SIM Setup Guide 1-3
020-100397-02 Rev. 1 (11-2012)
1.4 List of Components
Make sure these components were received with the projector:
• Projector Head Module (PHM), with attached Illumination Module (LM)
• Electronics Module (EM)
• Warranty Card
• Web Registration Form
• Line Cord (rated, North American)
NOTE: Each projection system requires a User Kit (P/N: 125-107109-XX). If you did not receive a User Kit or
if you want to purchase additional kits, you can order them separately.

Matrix StIM/SIM Setup Guide 2-1
020-100397-02 Rev. 1 (11-2012)
2 Installation
2.1 Unpack the Projector
The projector is shipped assembled with the projection lens shipped separately. The lens must be installed
before setting up the projector.
1. Remove the projector from the box and packing material. NOTE: Save packing material for at least one
projector in case a projector needs to be shipped for service.
2. Connect the Electronics Module to the Projector Head Module and Light Module.

2-2 Matrix StIM/SIM Setup Guide
020-100397-02 Rev. 1 (11-2012)
Section 2: Installation
2.2 Install the Projection Lens
1. Remove the rear lens cap from the lens. Keep the front lens cap on the lens.
2. Rotate the lens clamp to the OPEN position.
3. Remove and retain the 2 security screws from the lens mount.
4. Align the lens interface plate with the lens mount.
5. Fully insert the assembly straight into the lens mount opening without turning. NOTICE: Make sure the
lens is not inserted at an angle as this can cause damage.
6. Rotate the lens clamp to the CLOSED position.
7. Install the security screws removed in step 3. NOTICE: Security screws MUST be installed.
8. Remove the front lens cap.
2.3 Lift, Transport and Mount the Projector
•Mount the projector to a sturdy, flat surface that fits the entire projector. Use all 4 mounting
points to secure the projector to the surface. Use only the Christie approved projector
mounts designed for your projector.
•Maintain a minimum clearance of 25 cm (10”) around the projector, called a “stay out zone”,
for air circulation and clearance for cable connections to the input panel. Insufficient stay
out zone clearance can cause the projector to overheat during operation and/or place undue
stress on source connections.
The projector should be lifted by 2 people. Use a stable cart to transport the projector. See 6.5 Physical
Specifications for mounting hole locations, dimensions and other restrictions.

Section 2: Installation
Matrix StIM/SIM Setup Guide 2-3
020-100397-02 Rev. 1 (11-2012)
In typical front and rear screen installations the projector can be mounted to a secure and level surface. The
projector can be mounted in any orientation without affecting performance.
2.4 Installation Considerations
2.4.1 Throw Distance
Throw distance determines the necessary distance between the projector and the screen in order to achieve the
image size required to fill your screen size.
Throw ratio is defined as:
Percentage offset is defined as:
For example, using a 1.2:1-1.6:1 zoom lens set at its widest (1.2:1) throw ratio, throw distance would roughly
be 1.2 x screen width.
IMPORTANT: Use the lens and screen size to calculate the precise throw distance. Due to lens manufacturing
tolerances for lens focal length, actual throw distance can vary ±2% between lenses with the same nominal
throw ratio.
NOTES: 1) Offsets are subject to ±7% centering tolerance. 2) Image size outside the specified width range may
result in reduced image quality. 3) Throw distance is measured from the marked exit pupil position on the lens,
to the screen. 4) 100% offset is defined as having all pixels shifted beyond the axis. 5) Offsets are measured
from optical lens centre, which may not coincide with mechanical centre.
CHRISTIE Lens
Throw Distance
Offset Percentage (%) / Offset
Pixel (px)
SpecifiedThrowDistance Range
Horizontal Vertical Inches Meters
Min Max Min Max
0.64:1 11% (211) 26% (312 px) 40 120 1.0 3.1
1.2-1.6 75% (1440) 150% (1656 px) 59 213 1.5 5.4
0.75:1 80% (1536) 134% (1608 px) 28 102 0.7 2.6
Throw Ratio throw distance
screen width
-----------------------------------2%=
% Offset # of pixels of offset
half vertical panel resolution
-------------------------------------------------------------------- 1 0 0=

2-4 Matrix StIM/SIM Setup Guide
020-100397-02 Rev. 1 (11-2012)
Section 2: Installation
2.4.2 Vertical and Horizontal Position
The projection lens and the screen type determine the vertical and horizontal position of your projector in
relation to the screen. Ideally, you should position the projector as perpendicular to the screen as possible to
project a rectangular image instead of keystoned (trapezoidal). The vertical position of the image (above or
below the optical axis) and the horizontal position of the image (left or right of optical axis) can both be offset
by adjusting the lens mount. The type of projection lens installed determines the amount of offset available.
Horizontal offset is also limited by the amount of vertical offset applied. NOTE: Offsets are subject to ±7%
centering tolerance.
Vertical offset can be expressed as:
Horizontal offset can be expressed as:
2.4.3 Ventilation
NOTICE: Do not obstruct the air exchange to the projector.
The projector vents provide ventilation, both for intake and exhaust.
• Do not block or cover these openings.
• Do not install the projector near a radiator or heat register, or within an enclosure.
• Make sure there is a minimum clearance of 25 cm (10”) on all sides of the projector.
% V-Offset # of pixels of offset
half vertical panel resolution
-------------------------------------------------------------------- 1 0 0=
% H-Offset # of pixels of offset
half horizontal panel resolution
--------------------------------------------------------------------------- 100=

Section 2: Installation
Matrix StIM/SIM Setup Guide 2-5
020-100397-02 Rev. 1 (11-2012)
2.5 Connecting Sources
All source connections are made to the input panel of the Electronics Module (EM). Each input is labeled for
easy identification. Using the correct cable(s), connect your source. An interconnection label is available for
reference on the light module. The Input Panel has slots for 1 image processor board and up to 4 optional input
cards. The input cards are hot swappable; they can be plugged in and out while the projector is running.
However, the image processor should only be replaced when the projector is OFF or in STANDBY mode.
The video card installed in your projector determines the type of video sources available. These video cards are
supported:
• High-Definition Multimedia Interface/Twin HDMI (High-Definition Multimedia Interface)
• Analog BNC
• Dual SD/HD-SDI (Serial Digital Interface)
• Dual Link DVI
• Video Decoder
These cards slide into any of the available option slots. One or more of the option slots may be used with any
combination of option cards, including multiples of the same card type. Up to 2 active inputs can be displayed
at any time, either from 1 card or from 2 cards. These 2 inputs can be routed to outputs or to the main or
secondary video image. NOTE: Use only high-quality shielded cables for all connections.
The LEDs located on the faceplate of each input card will indicate the following:
• Power ON - Green
• Signal Valid - Green
• Signal Invalid - OFF
2.5.1 DVI Digital Video
Use the DVI-I connector to connect either analog or digital video devices to the projector. Use a cable with
DVI-I connectors at both ends to connect devices that transmit digital and analog video signals.
NOTE: For true digital output from devices that transmit digital signals, connect to the DVI-I connector.
2.5.2 Dual Link DVI Input Card
This card accepts a maximum 330MHz DVI-D or 165MHz HDMI signal via the DVI-I connector without
High-Bandwidth Digital Content Protection (HDCP) and analog video signals over the DVI-I or 15-pin VGA
connector. The module can simultaneously support a digital signal on the DVI input and an analog signal on
the VGA port, however it does not support 2 analog signals at the same time. There are 4 LEDs on the module
faceplate. PWR indicates power is applied and the card is initialized, and the other 3 LEDs on the right-side of
the corresponding connectors indicate that a valid signal has been detected.

2-6 Matrix StIM/SIM Setup Guide
020-100397-02 Rev. 1 (11-2012)
Section 2: Installation
2.6 Power Connection
Do not operate if the AC supply and cord are not within the specified voltage
and power range. The North American rated line cord is supplied with this
projector. For all other regions, use only a regionally approved line cord,
power plug and socket. Do not use a damaged line cord.
2.6.1 Connect to AC
The input voltage to the projector must be capable of 100-240 VAC. Use only a correctly rated line cord.
1. Connect an approved line cord to the projector AC receptacle, located on the Light Module (LM).
2. Connect the 3-pronged end of the line cord to a grounded AC outlet. NOTE: The outlet must be near the
equipment and easily accessible.
2.6.2 Power the Projector ON
1. Flip the power switch on the LM to the ON position. The projector takes about 2 minutes to initialize. The
status light beside the LED window turns yellow. NOTE: The Electronics Module has a circuit breaker
which is generally left ON. Certain error conditions can turn the circuit breaker OFF. The circuit breaker
must be ON for proper projector function.
2. Using the remote keypad, press the POWER key, and then the UParrow.
3. Press one of the input keys on the remote to select and display the image for the source connected. For
more information on the keys available on the remote and their function, see 4.1.2 IR Remote Commands.
2.6.3 Disconnect from AC
Do not turn the main power switch to the OFF position or disconnect the
projector until the cooling fans have stopped.
1. Stop the projector.
2. After the internal cooling fans stop, move the main power switch on the light module to the OFF position.
3. Disconnect the line cord from the wall outlet.
2.7 Using Multiple Projectors
NOTICE! When working with more than 2 projectors, work left to right, top to bottom.
When an installation requires multiple projectors, use the RS-232 serial ports to daisy chain the units together
and control the group with a single keypad or a computer/controller connected to the first projector. In such a
network, you can choose to broadcast commands to the entire group, or use the PROJ key as desired to limit
responses to an individual projector. Alternatively, you may want to add projectors to a hub on an Ethernet
network.

Section 2: Installation
Matrix StIM/SIM Setup Guide 2-7
020-100397-02 Rev. 1 (11-2012)
2.7.1 Matching Colors in Multiple Screens
In a multiple-projector wall, you will likely want to precisely match color and intensity from image-to-image
so that the full wall is as uniform as possible.
The following table lists the recommended steps for setting up and matching projectors in an array.
Flat, straight-forward alignment
(Use the options available in:
Menu > Configuration > Geometry and Color)
Complex geometry
(Use Twist software for geometry correction and
blending, see the Twist User Manual)
Geometry Correction Twist™Software - Warping
Edge Blending Twist™Software - Blending
Black Blending Do not use black blending if Twist software is used for
geometry correction.
Brightness Uniformity Twist™Software - Brightness Uniformity
ArrayLOC adjusts colors automatically ArrayLOC adjusts colors automatically
