Christie Modular Series User manual

Modular Series Cabinet
Single, Double and Triple
Product and Assembly Manual
dachristie.com
[phone]
Product numbers 1506, 1511 and 1519 Please read all relevant parts of
this document carefully before
commencing product assembly.
Product and Assembly Manual 6868_00

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
2| Table of contents
1 GENERAL INFORMATION 3
1.1 Safety instructions 4
1.2 How to read this manual 4
1.3 Manufacturer’s liability 5
1.4 Conditions of use 5
1.5 Description 5
1.6 Disposal 6
2 SPECIFICATIONS 6
2.1 Siting Guidelines 7
2.2 Tools required 7
2.3 Specifications 7
3 MODULAR SINGLE CABINET ASSEMBLY AND INSTALLATION 8
3.1 Single Cabinet - dimensions | Figure 1 9
3.2 Single Cabinet - services and footings | Figure 2,3 10
3.3 Single Cabinet - boxed contents and parts identification | Figure 4 12
3.4 Assembly and installation | Figure 5, 6, 7, 8, 9, 10, 11 13
4 MODULAR DOUBLE CABINET ASSEMBLY AND INSTALLATION 21
4.1 Double Cabinet - dimensions | Figure 12 22
4.2 Double Cabinet - services and footings | Figure 13, 14 23
4.3 Double Cabinet - boxed contents and parts identification | Figure 15 25
4.4 Assembly and installation | Figure 16, 17, 18, 19, 20, 21, 22 26
5 MODULAR TRIPLE CABINET ASSEMBLY AND INSTALLATION 34
5.1 Triple Cabinet - dimensions | Figure 23 35
5.2 Triple Cabinet - services and footings | Figure 24, 25 36
5.3 Triple Cabinet - boxed contents and parts identification | Figure 26 38
5.4 Assembly and installation | Figure 27, 28, 29, 30, 31, 32, 33 39
6 OPTIONS AND ACCESSORIES 47
7 CLEANING AND MAINTENANCE 49
7.1 Safety considerations 50
7.2 Environmental considerations 50
7.3 Cleaning and general maintenance 50
7.4 Cleaning waste containers | Figure 34 51
8 WARRANTY 53

Installation and User Manual 6820_00
3General information |
1.

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
4
1.1 Safety instructions
| General information
Risk of personal injury
• Altering the product or variation from the
original specification may result in injury
and void the Product Warranty
• Use personal protection equipment
including gloves, safety glasses, and ear
protection during installation
• Do not sit or stand on the barbecue
cabinet at any time
Risk of damage to the product
• During assembly, take suitable
precautions against scratching surfaces
and components
• Corrosive cleaning products may
damage the surfaces and coatings,
voiding any warranty claim. Use only
non-toxic, pH-neutral cleaning products
(with a pH between 6 and 9)
• Products intended for cleaning mild steel
may damage stainless steel surfaces
and must not be used
• Do not place heavy objects on
the benchtop
1.2 How to read this manual
Chapter headings and subheading are listed in the Table of Contents along with the
relevant page numbers.
Key words:
• “Must” and “must not” are mandatory instructions
• “Should’ and “should not” are advisory instructions
The following icon is used throughout the manual
Warning or Caution icons warn how to
prevent personal injury and product damage

Installation and User Manual 6820_00
5General information |
1.3 Manufacturer’s liability
The manufacturer declines all liability for damage to persons or property caused by:
• The use of non-original spare parts
• Use of the product other than as intended
• Modifying or tampering with any part of the product
• Not observing the instructions contained in this Product and Assembly Manual
1.5 Description1.4 Conditions of use
• The product must be assembled,
installed and maintained in accordance
with the manufacturer’s instructions
• Christie cabinets are intended for use
with a Christie cooktop only
• Christie accepts no responsibility for
Warranty repairs made without prior
authorisation
• This manual should be kept in its entirety
for the design life of the product
• The safety instructions in Section 1.1
form part of the conditions of use
• Cabinets are shipped flat-packed
to reduce transportation costs and
facilitate site access. They are ready for
assembly by following the step-by-step
instructions in this manual
• Stainless-steel, aluminium, and concrete
fibre cement (CFC) construction provides
ultimate vandal resistance and ease of
cleaning and maintenance
1.6 Disposal
• The product does not contain substances considered hazardous to health or the
environment, according to current (2019) Australian and European directives
• When disposing of the product, please remove and deliver the metal components to an
appropriate recycling facility
• Christie appliances are packaged in non-polluting and recyclable materials. Please
recycle according to local regulations

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
6
2.
SPECIFICATIONS
| Specifications

Installation and User Manual 6820_00
7Specifications |
• Barbecue facilities should be installed in plain view, where they can be monitored for
safe and appropriate use
• Ensure there are no climbing aids that will allow children to access the cooking surface
• Cabinet doors require a minimum 1000 mm clearance to fully open
• Ensure there is at least 1200 mm clearance above barbecue cooking surfaces
• Due to the nature of this product, it requires clear access. The recommended minimum
slab size is 900 mm larger than the overall cabinet footprint on all sides
• Recommended slab thickness is 100 mm
The Christie Modular Series barbecue cabinets are constructed from extruded aluminium,
compressed fibre cement, and stainless steel for ultimate durability and corrosion resistance.
Christie Modular Series cabinets include a range of options. The modular nature of the
product allows for the inclusion of various doors, dividers, sinks and cooktop combinations.
Note: All illustrations and instructions apply only to standard cabinets. Some
assembly and parts supplied for custom configurations may vary from what is
specified in this manual.
2.1 Siting Guidelines
DO NOT locate under combustible materials.
2.2 Tools required
2.3 Specifications
• Cordless drill/driver or screwdriver with
#2 Phillips Head
• Masonry drill with 8 mm masonry drill bit
• Masonry anchors to suit 8 mm
diameter hole
• Spanner to suit masonry anchors
• 10 mm spanner
• Caulking gun
Note: All cabinets require a minimum of four masonry anchors.

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
8
3.
MODULAR
SINGLE CABINET
assembly and installation
(For Modular Series Double Cabinet installation, see Section 4)
| Single cabinet assembly and installation

Installation and User Manual 6820_00
9Single cabinet assembly and installation |
Dimensions: 1000 mm width x 750 mm depth x 900 mm height
Weight: 100 kg (without cooktop)
Cooktop cut-out: 495 mm x 495 mm
3.1 Single Cabinet - dimensions
FIG. 1
1000 mm
FRONT
SIDE REAR
692 mm
692 mm
900 mm
750 mm

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
10
3.2 Single Cabinet - services and footings
Footings and underground services:
• Bring up underground services (electrical conduits, gas and water pipes and waste
outlets) in the highlighted areas only
• Position the gas or electric services relative to the preferred location and orientation of
the cooktop
WARNING: All work on underground services must be carried out only
by suitably qualified trades people i.e. electricians or gas fitters.

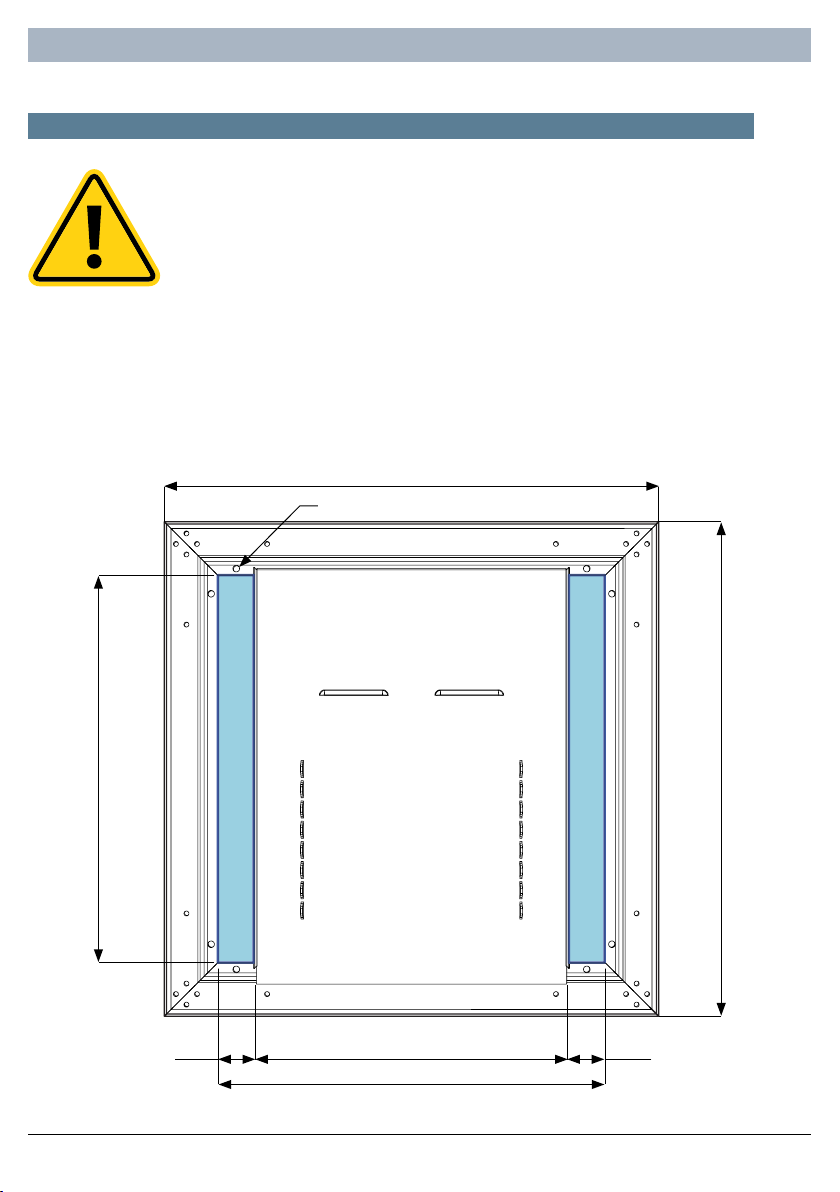

FIG. 2
| Single cabinet assembly and installation
692 mm
SERVICES SERVICES
550 mm
550 mm
692 mm
430 mm60 mm 60 mm
ANCHOR POINTS (8)

Installation and User Manual 6820_00
11Single cabinet assembly and installation |
3.2 Single Cabinet - services and footings
TERMINATING THE SERVICES:
Terminate services for standard cabinet configurations in the locations indicated below.
These locations will differ, depending on whether gas or electric cooktops are installed.
For Christie CC2 Gas Barbecue Cooktop:
• The gas inlet is on the right-hand side when facing the front of the cooktop
• The power supply cable is on the right-hand side when facing the cooktop
• Position the 10A electrical socket (GPO) at least 600 mm above ground (if required)
• Position the battery box on either side of the waste container (if required)
For Christie Electric CC2 Barbecue Cooktop:
• The 1m electric cable with plug terminates into the left-hand side when facing the front
of the cooktop
• Position the 15A electrical socket (GPO) at least 600 mm above ground
FIG. 3

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
12
Christie Single Modular Cabinets are supplied with the following boxed contents:
1. (1) x Stainless steel benchtop
2. (2) x Channel frames (supplied attached to the benchtop)
3. (4) x Corner posts
4. (3) x Compressed fibre cement panels
5. (3) x Stainless steel fascia panels (#4finish or powder coated)
6. (4) x 6 mm nuts and washers (Not shown)
7. (1) x Access door
8. (1) x Waste collection tray
9. (1) x Waste tray slide
10. (1) x Tube of silicone (Not shown)
11. (2) x Access door keys (supplied attached to access door) – (Not shown)
12. (23) x M4 Self tapping screws (Not shown)
13. Installation and User Manual
3.3 Single Cabinet - boxed contents and parts identification
FIG. 4
| Single cabinet assembly and installation
1
2
4
5
2
3
9
7
8

Installation and User Manual 6820_00
13Single cabinet assembly and installation |
STEP 1
Open the carton and review the boxed contents section relevant to your product model.
Check that all listed parts are present. Contact Christie immediately if you notice any
discrepancies.
STEP 2
Open the benchtop carton and unpack the channel frames by removing all 6 mm retaining
nuts (and washers) with a 10 mm spanner. Keep these aside for use later. Leave the
benchtop in the carton.
3.4 Assembly and installation
Wear suitable personal protective equipment (PPE) at all
times. Please read all relevant installation instructions before
assembling the cabinet.

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
14
3.4 Assembly and installation
| Single cabinet assembly and installation

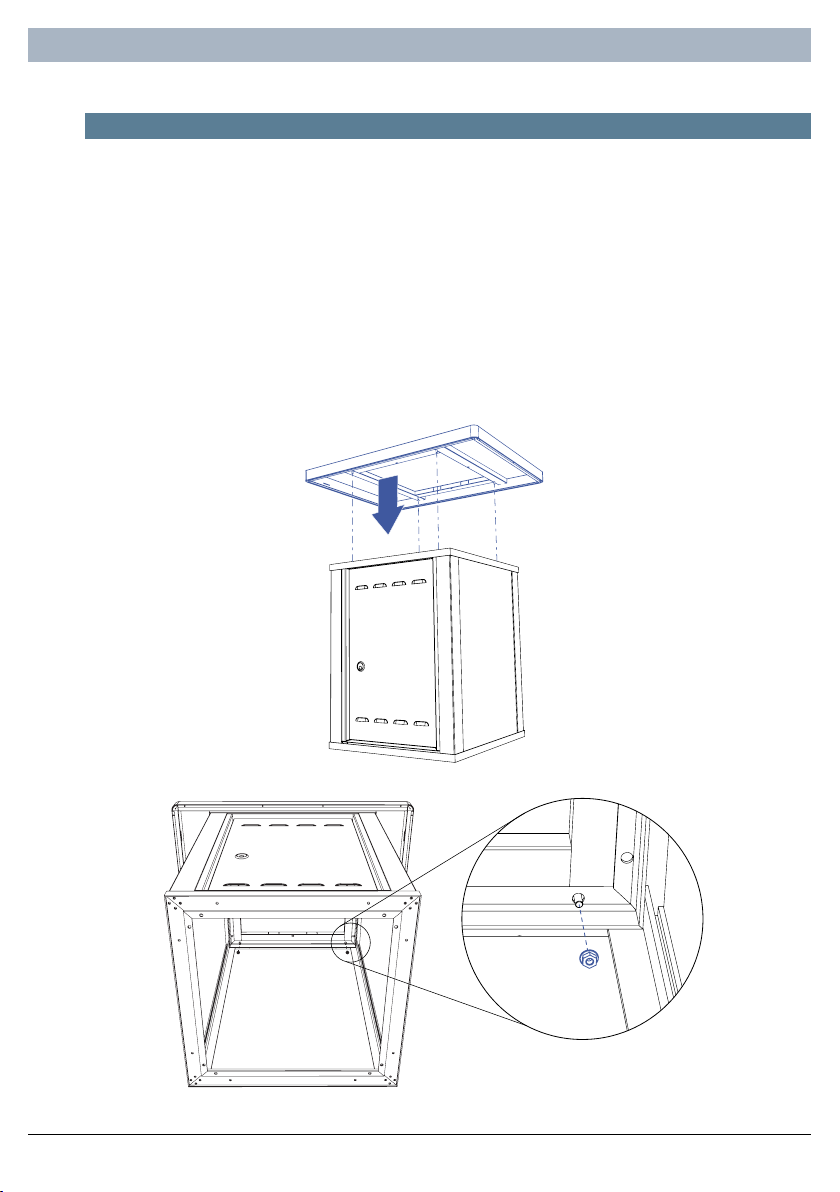

FIG. 5
STEP 3

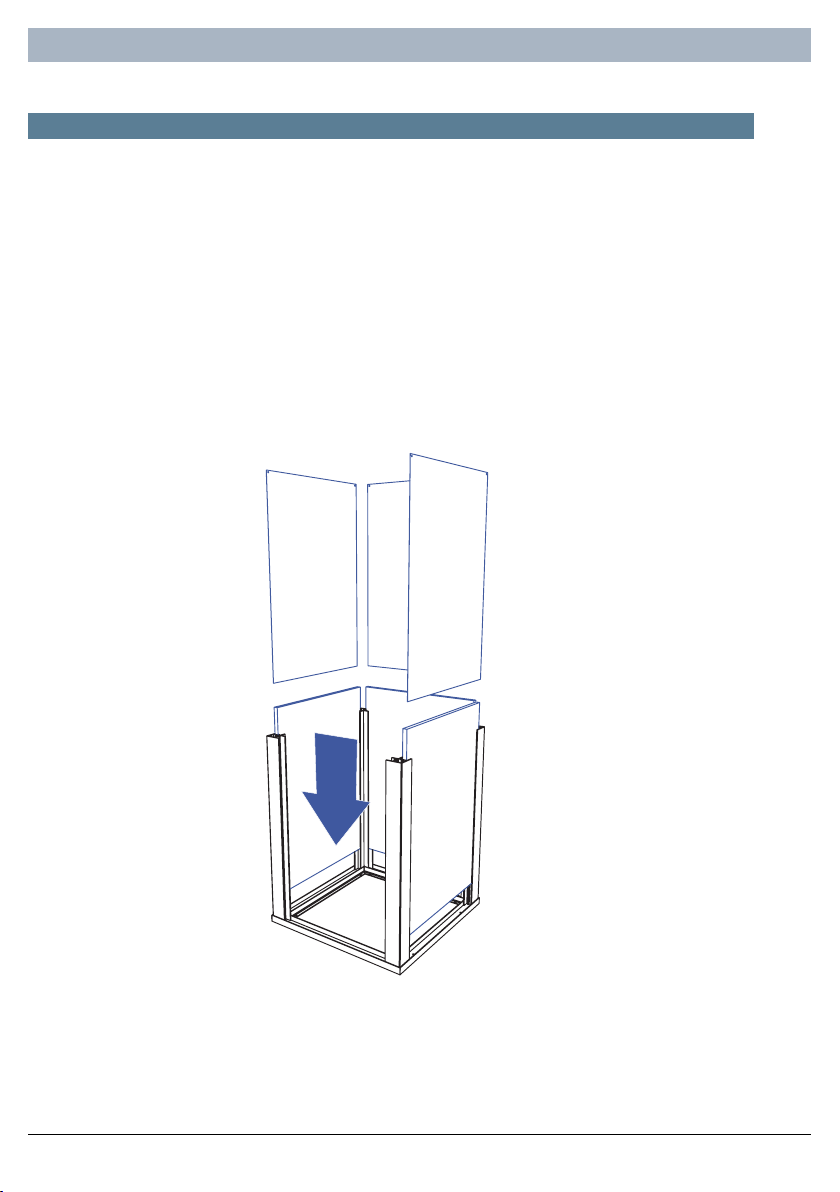

Assemble the bottom channel frames and posts before fixing into
the final position. Once the assembly is complete, it will be turned
over by 180 degrees.
1. Locate the (2) x channel frames and (4) x corner posts.
2. Assemble the channel frames and corner posts.
3. Secure the top channel frame using (16) x 10G self tapping screws.
Note: Do not fix the bottom channel frame until Step 8.

Installation and User Manual 6820_00
15Single cabinet assembly and installation |
FIG. 6
STEP 4

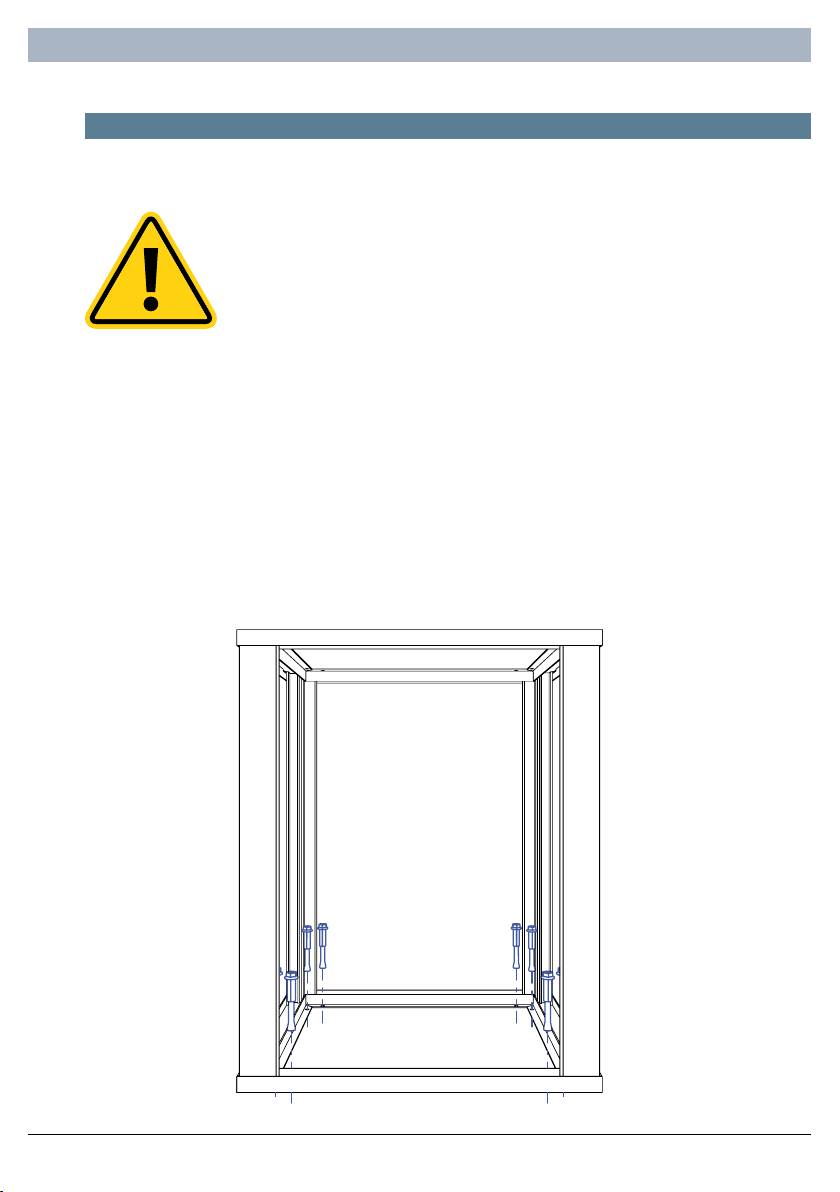

The cabinet frame must be turned over before fixing.
Do not locate fixings where the access door is located. The bolt
head will prevent the door from seating correctly into the frame.
1. Roll the cabinet frame over so that the fixed channel frame is on the ground.
2. Place the cabinet frame in the final fixed position.
3. Mark out the fixing holes.
4. Move the cabinet frame to one side and drill the fixing holes with an 8 mm drill bit.
5. Move the cabinet frame back into the final fixing position and align the pre-drilled fixing
holes with the frame. Bolt down with suitable masonry anchors.
Important: It is critical to the operation of the appliance that the cabinet is stable and level.
Use packers to resolve minor levelling discrepancies or a bed of mortar for larger gaps.
3.4 Assembly and installation

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
16
3.4 Assembly and installation

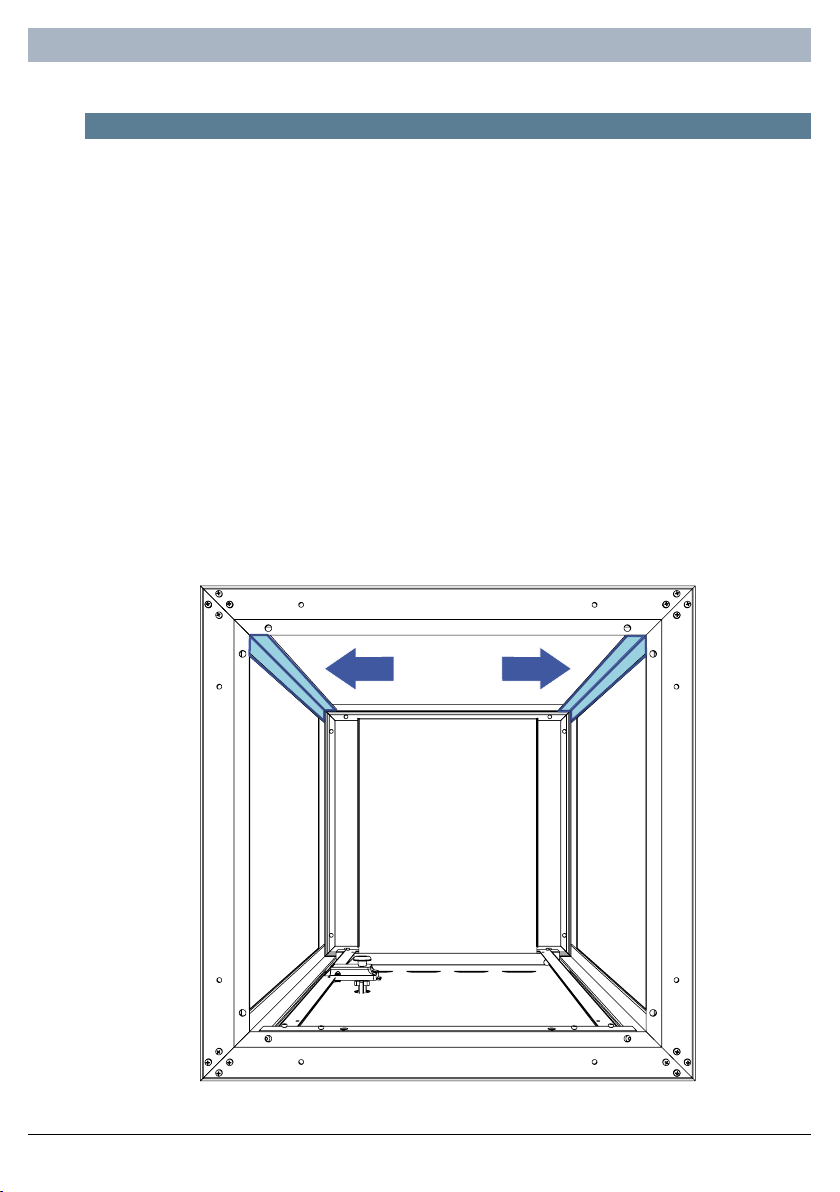

STEP 5
1. Remove the unsecured channel frame from the top of the posts.
2. Identify the location of the access door. Do not install panels into this space.
3. Install the compressed fibre cement and stainless steel fascia panels together as a pair.
4. With two people, lift the panels and slide them into the channel guides between two
posts. Repeat this for all remaining panels.
Note: Stainless steel panels will have a protective film on the outer surface. Peel back
the protective film slightly along each long edge before installing.
FIG. 7
| Single cabinet assembly and installation

Installation and User Manual 6820_00
17
3.4 Assembly and installation

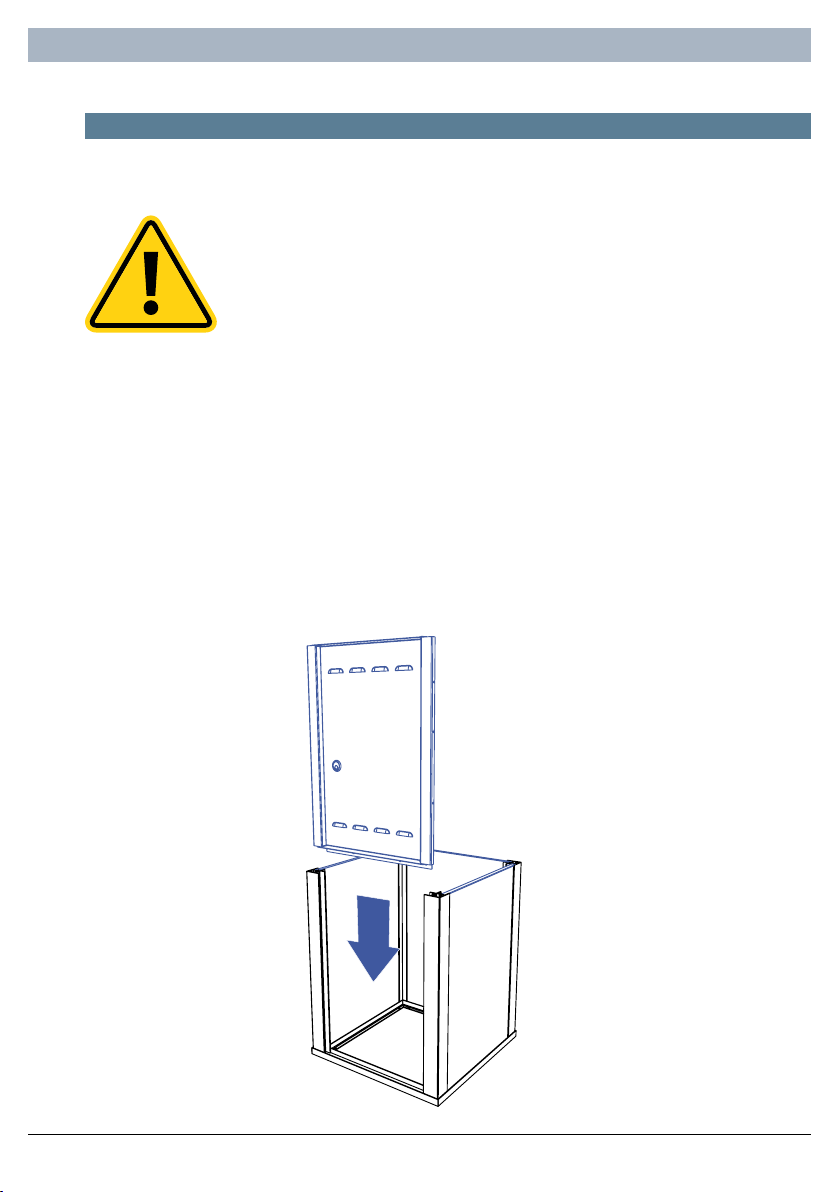

STEP 7
1. Unpack the access door and slide it into the channel guides between two posts.
2. Locate the keys and place them into the door lock. Lock the door latch into the
open position.
Note: Brushed stainless steel finish doors will have a protective film. Remove the
film before installation.
If your installation has 240v Power outlets (GPO’s), install these now. Complete the gas
provisioning (if required).
WARNING: Services must only be connected by a suitably qualified
person i.e. electrician or gas fitter.
STEP 6
FIG. 8
Single cabinet assembly and installation |

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
18
3.4 Assembly and installation
STEP 8
1. Replace the top channel frame.
2. Secure the channel frame using (16) x 10G self tapping screws.
Note: A rubber mallet may assist in getting the frame to seat correctly
FIG. 9
| Single cabinet assembly and installation

Installation and User Manual 6820_00
19
3.4 Assembly and installation
STEP 9
1. Remove the benchtop from the carton and gently lower it onto the cabinet.
2. Ensure that the locating tabs on the underside of the benchtop slide into the corresponding
slots in the channel frame.
3. Secure the benchtop to the frame using the (4) x 6 mm washers and nuts provided
(removed in Step 2).
4. Remove the protective film from the benchtop.
FIG. 10
Single cabinet assembly and installation |

Modular Series Cabinet Single, Double and Triple (Product numbers 1506, 1511 and 1519)
20
3.4 Assembly and installation
STEP 10

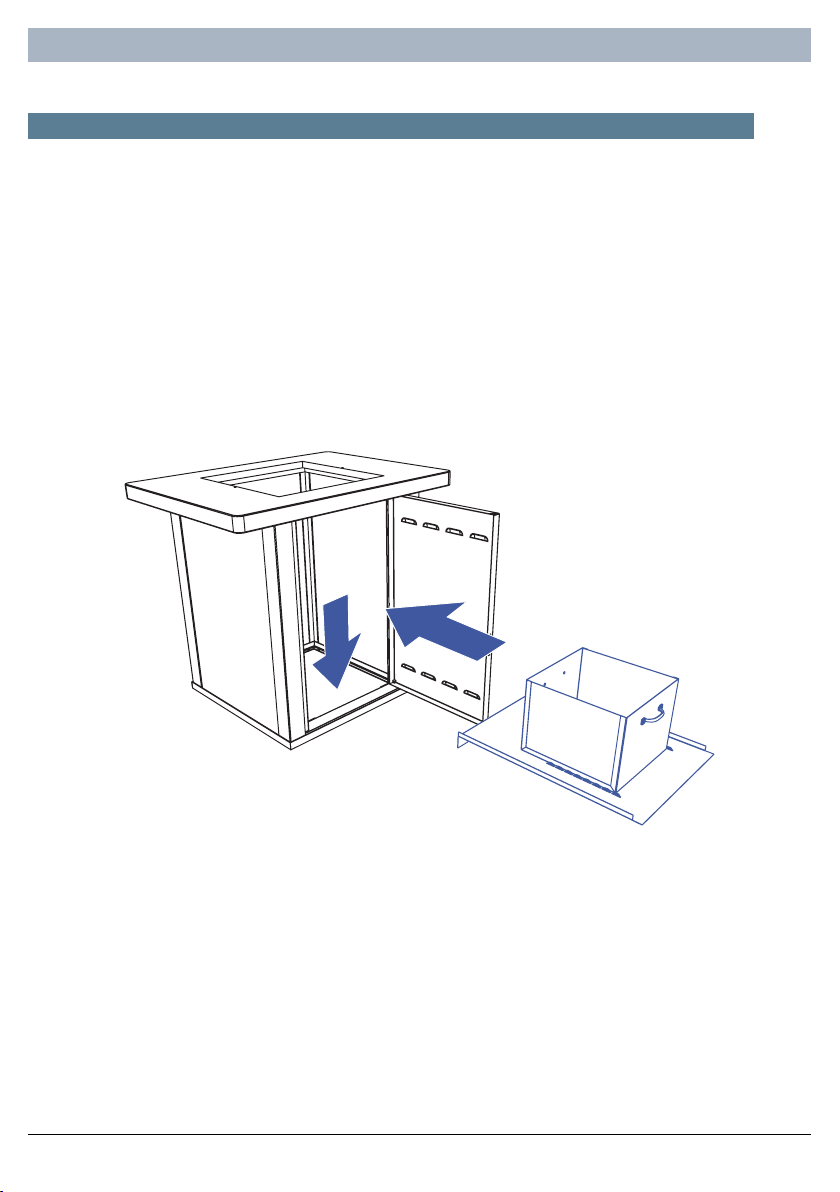

1. Install the waste tray slide below the cooktop cut out, ensuring that it rests on the
bottom of the door frame in a level position.
2. Slide the waste container onto the slide. If you are using a grease trap, ensure that the
overflow faces the cabinet door.
3. Close the door, ensuring that the keys are in your possession.
Important: Ensure that the waste container or grease trap is installed and prepared in
accordance with the instructions in Section 7.4 of this manual.
STEP 11
1. Remove all remaining protective film from the benchtop and panels.
2. Use the silicone provided to seal the gap between the outside of the panels and the frame.
This will secure the panels and prevent them from rattling.
Installation of your Modular Series Cabinet is now complete. Please consult the relevant
installation instructions for any additional items, such as the barbecue cooktop.
FIG. 11
| Single cabinet assembly and installation
