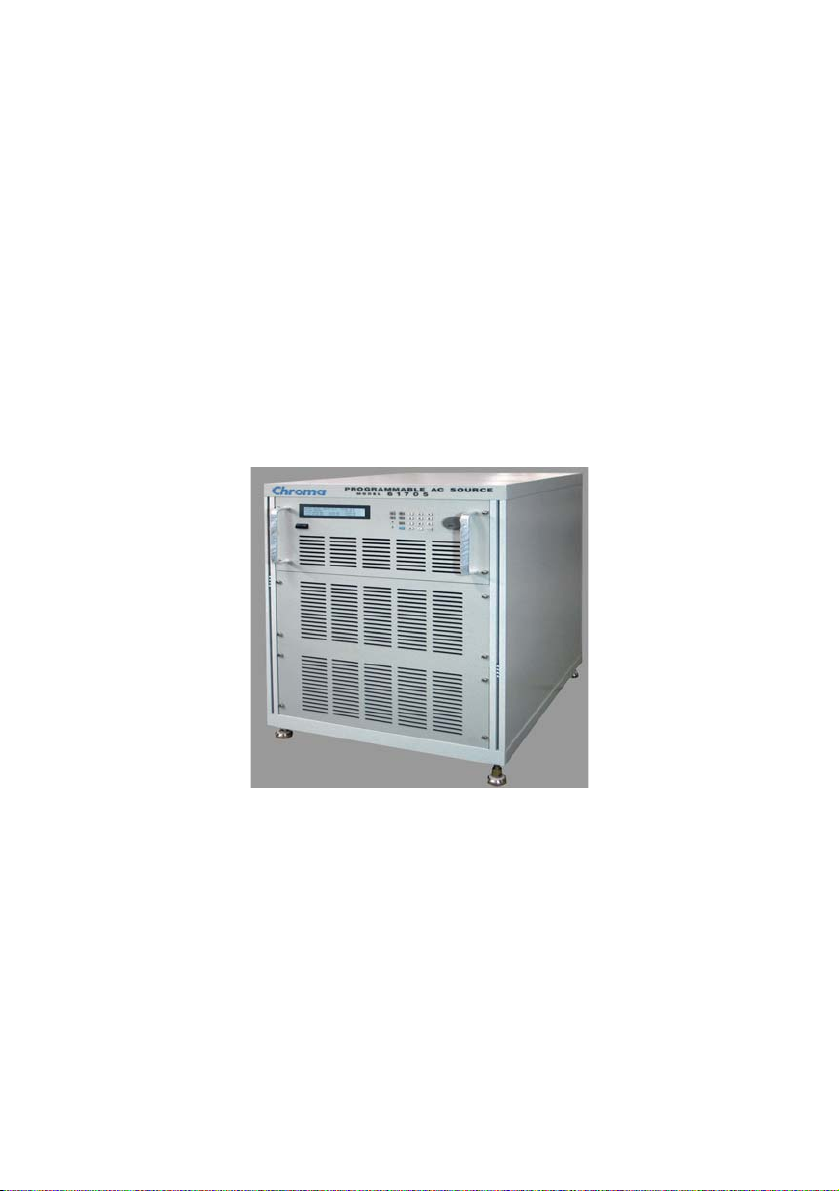

Chroma 61705 User manual

1
Programmable AC Source
61705
Quick Start Guide

Programmable AC Source
61705
Quick Start Guide
Version 1.0
March 2010
P/N A11 000906

ii
Legal Notices
The information in this document is subject to change without notice.
Chroma ATE INC. makes no warranty of any kind with regard to this
manual, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Chroma ATE INC.
shall not be held liable for errors contained herein or direct, indirect, special,
incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
CHROMA ATE INC.
66 Hwa-Ya 1st Rd., Hwa-Ya Technical Park, Kuei-Shan 33383, Taoyuan
County, Taiwan
Copyright Notices. Copyright 2010 Chroma ATE INC., all rights reserved.
Reproduction, adaptation, or translation of this document without prior
written permission is prohibited, except as allowed under the copyright
laws.

iii
Warranty
All Chroma instruments are warranted against defects in material and
workmanship for a period of one year after date of shipment. Chroma
agrees to repair or replace any assembly or component found to be
defective, under normal use during this period. Chroma's obligation under
this warranty is limited solely to repairing any such instrument which in
Chroma's sole opinion proves to be defective within the scope of the
warranty when returned to the factory or to an authorized service center.
Transportation to the factory or service center is to be prepaid by the
purchaser. Shipment should not be made without prior authorization by
Chroma.
This warranty does not apply to any products repaired or altered by
persons not authorized by Chroma, or not in accordance with instructions
furnished by Chroma. If the instrument is defective as a result of misuse,
improper repair, or abnormal conditions or operations, repairs will be billed
at cost.
Chroma assumes no responsibility for its product being used in a
hazardous or dangerous manner either alone or in conjunction with other
equipment. High voltage used in some instruments may be dangerous if
misused. Special disclaimers apply to these instruments. Chroma
assumes no liability for secondary charges or consequential damages and
in any event, Chroma's liability for breach of warranty under any contract or
otherwise, shall not exceed the purchase price of the specific instrument
shipped and against which a claim is made.
Any recommendations made by Chroma for use of its products are based
upon tests believed to be reliable, but Chroma makes no warranty of the
results to be obtained. This warranty is in lieu of all other warranties,
expressed or implied, and no representative or person is authorized to
represent or assume for Chroma any liability in connection with the sale of
our products other than set forth herein.
CHROMA ATE INC.
66 Hwa-Ya 1st Rd., Hwa-Ya Technical Park,
Kuei-Shan 33383, Taoyuan County, Taiwan
Tel: [phone]
Fax: [phone]
http://www.chromaate.com

Material Contents Declaration
A regulatory requirement of The People’s Republic of China defined by specification
SJ/T 11364-2006 mandates that manufacturers provide material contents
declaration of electronic products, and for Chroma products are as below:
Hazardous Substances
Lead Mercury CadmiumHexavalent
Chromium Polybrominated Biphenyls Polybromodiphenyl Ethers
Part Name
Pb Hg Cd Cr6+ PBB PBDE
PCBA °O O O O O
CHASSIS °O O O O O
ACCESSORY °O O O O O
PACKAGE O O O O O O
“O” indicates that the level of the specified chemical substance is less than the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.
“°” indicates that the level of the specified chemical substance exceeds the threshold level
specified in the standards of SJ/T-11363-2006 and EU 2005/618/EC.
1. Chroma is not fully transitioned to lead-free solder assembly at this moment; however,
most of the components used are RoHS compliant.
2. The environment-friendly usage period of the product is assumed under the operating
environment specified in each product’s specification.
Disposal
Do not dispose of electrical appliances as unsorted municipal waste, use separate
collection facilities. Contact your local government for information regarding the
collection systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into the food
chain, damaging your health and well-being. When replacing old appliances with
new one, the retailer is legally obligated to take back your old appliances for
disposal at least for free of charge.
iv

CE-Conformity Declaration
For the following equipment:
Product Name: Programmable AC Source
Model Name: 61705
Manufacturer’s Name: Chroma ATE Inc.
Manufacturer’s Address: 66 Hwa-Ya 1st Rd., Hwa-Ya Technical Park,
Kuei-Shan Hsiang, Taoyuan Hsien, Taiwan
is herewith confirmed to comply with the requirements set out in the Council
Directive on the
Approximation of the Laws of the Member States Relating to Electromagnetic
Compatibility
(89/336/EEC) and electrical equipment designed for use within certain voltage
limits (73/23/EEC;93/68/EEC)
For electromagnetic compatibility, the following standards were applied:
EMC: EN61326 : 1998/A2 : 2002
EN55011 : 1998/A1 : 1999(Group 1, Class A)
IEC 61000-4-2 : 1995/A1 : 1998/A2 : 2000
IEC 61000-4-3 : 1996/A1 : 1998/A2 : 2000
IEC 61000-4-4 : 1995/A1 : 2000
IEC 61000-4-5 : 1995/A1 : 2000
IEC 61000-4-5 : 1996/A1 : 2000
v
For safety requirement, the following standard was applied:
Safety: EN61010-1(1993)+A2(1995)
Taiwan August, 2005
Place Date Vice President,
Engineering
Warning:
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.

Safety Summary
The following general safety precautions must be observed during all phases of
operation, service, and repair of this instrument. Failure to comply with these
precautions or specific WARNINGS given elsewhere in this manual will violate
safety standards of design, manufacture, and intended use of the instrument.
Chroma assumes no liability for the customer’s failure to comply with these
requirements.
BEFORE APPLYING POWER
Verify that the power is set to match the rated input of this
power supply.
PROTECTIVE GROUNDING
Make sure to connect the protective grounding to prevent an
electric shock before turning on the power.
NECESSITY OF PROTECTIVE GROUNDING
Never cut off the internal or external protective grounding
wire, or disconnect the wiring of protective grounding terminal.
Doing so will cause a potential shock hazard that may bring
injury to a person.
FUSES
Only fuses with the required rated current, voltage, and
specified type (normal blow, time delay, etc.) should be used.
Do not use repaired fuses or short-circuited fuse holders. To
do so could cause a shock or fire hazard.
DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE
Do not operate the instrument in the presence of flammable
gases or fumes. The instrument should be used in an
environment of good ventilation.
DO NOT REMOVE THE COVER OF THE INSTRUMENT
Operating personnel must not remove the cover of the
instrument. Component replacement and internal
adjustment can be done only by qualified service personnel.
vi

vii
WARNING 1. Lethal voltage. AC sources can supply 426 V peak at their
output.
2. DEATH on contact may result if the output terminals or
circuits connected to the output are touched when power is
applied.
Safety Symbols
DANGER – High voltage.
Explanation: To avoid injury, death of personnel, or damage
to the instrument, the operator must refer to an explanation in
the instruction manual.
High temperature: This symbol indicates the temperature is
now higher than the acceptable range of human. Do not
touch it to avoid any personal injury.
Protective grounding terminal: To protect against electrical
shock in case of a fault. This symbol indicates that the
terminal must be connected to ground before operation of
equipment.
WARNING
The WARNING sign denotes a hazard. It calls attention to a
procedure, practice, or the like, which, if not correctly
performed or adhered to, could result in personal injury. Do
not proceed beyond a WARNING sign until the indicated
conditions are fully understood and met.
CAUTION The CAUTION sign denotes a hazard. It may result in
personal injury or death if not noticed timely. It calls
attention to procedures, practices and conditions.
ACOUSTIC NOISE INFORMATION
This product has a sound pressure emission (at the operator‘s side) <
65dB(A).

Programmable AC Source 61705 Quick Start Guide
ix
Table of Contents
1. General Information.......................................................................1
1.1 Introduction..................................................................................1
1.2 Key Features...............................................................................1
1.3 Names of Parts............................................................................2
1.3.1 The Front Panel..................................................................2

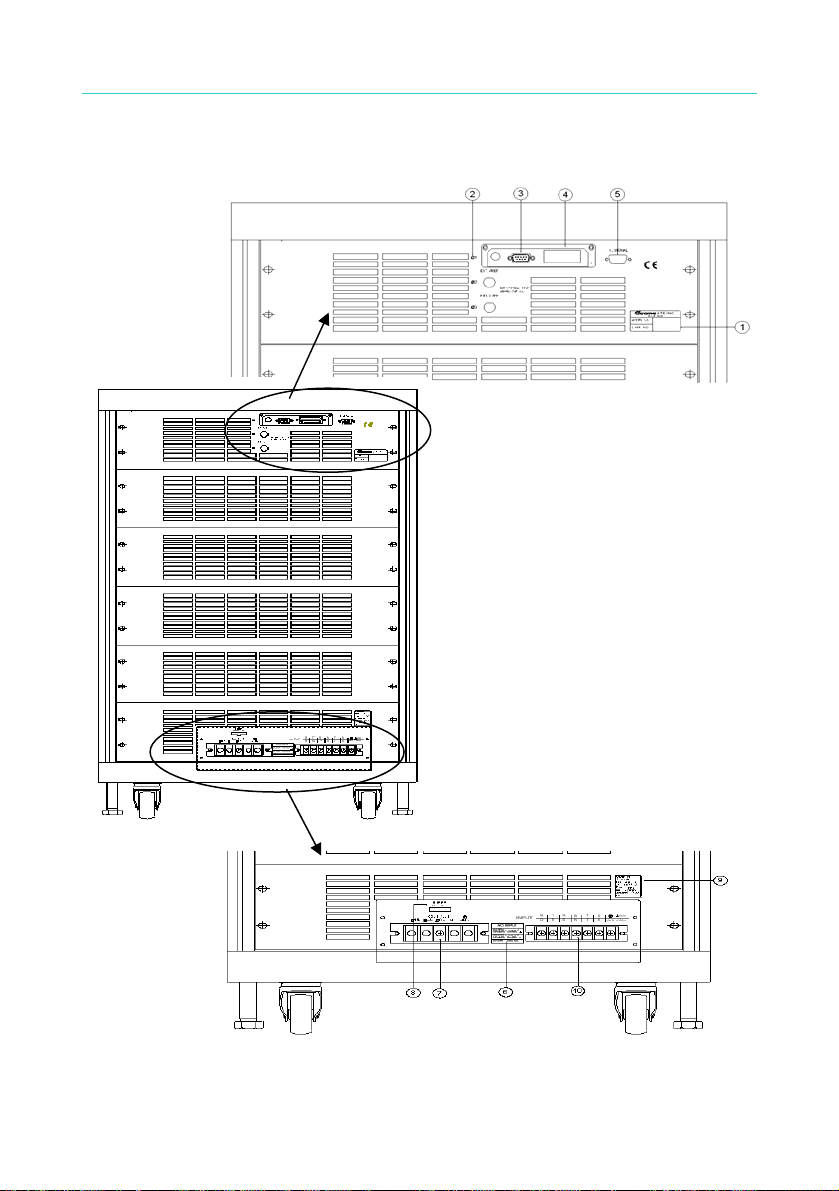

1.3.2 The Rear Panel...................................................................5

Programmable AC Source 61705 Quick Start Guide
1
1. General Information
1.1 Introduction
The Chroma AC Source 61705 is a high efficiency, 3-phase AC power
source which provides sine wave output with low distortion, and accurate
measurement of power. The DSP microprocessor generates accurate,
stable output voltage and frequency. The PWM design of power stage
allows for full volt-ampere into loads. The front panel has both RPG
(rotary pulse generator) and keypad controls for setting the output voltage
and frequency. The LCD provides a complete operating state of the unit
to the user. Remote programming is accomplished either through the
GPIB bus or the RS-232C serial port.
1.2 Key Features
A. Configuration
zLocal operation from the keypad on the front panel.
zRemote operation via GPIB or RS-232C interface.
zProtection against Over-power, Over-current, Over-temperature and
Fan-fail.
zTemperature controlled fan speed.
zBuilt-in output isolation relays.
B. Input/Output
zSelective output voltage (Neutral to Line) with full scale of 150V/300V.
zInput voltage range 61705: 190 ~ 250Vac.
zMeasurement of V, I, P, CF and PF.
zRemotely inhibited control.
zAC ON/OFF output signal.

Programmable AC Source 61705 Quick Start Guide
1.3 Names of Parts
1.3.1 The Front Panel

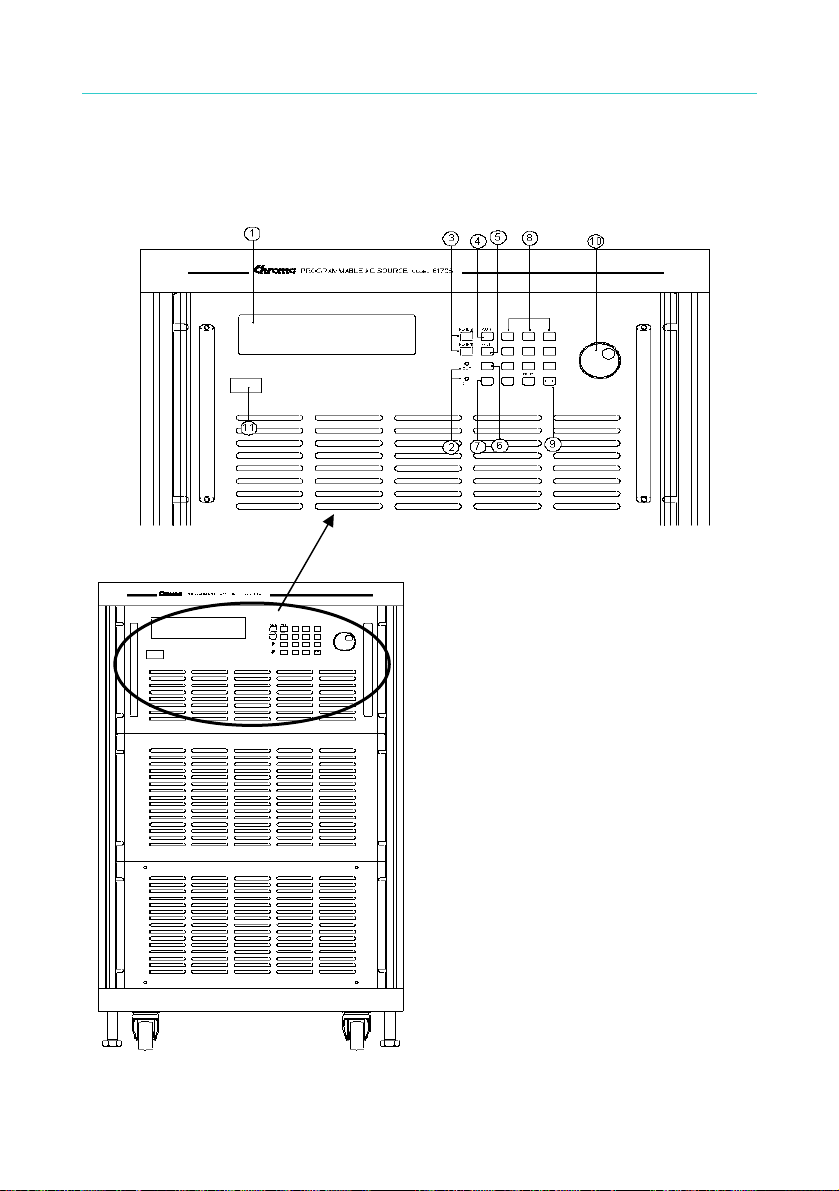

Figure 1-1 The Front Panel
2

Programmable AC Source 61705 Quick Start Guide
3
Table 1-1 The Description of the Front Panel
Item Symbol Description
1 Display:The LCD displays the configuration,
output setup, and measurement results.
2
Indicator LED:“OUT” and “SHIFT”, for showing
activation of output and shift mode, are available
and located on the keypad area next to the
corresponding keys.
3


---------or--------
PAGE 
PAGE 
Cursor moving keys: These two keys move the
cursor to different directions respectively. In
normal mode, pressing any of these two keys will
change the place of the cursor. Under shift
mode, these keys enable the LCD display to
change to the last page or next page if or 
patterns appear in the lower right of display.
4
PAGE/EXIT
---------or---------
SAVE
PAGE or EXIT command key: Pressing this key
will switch the LCD display between MAIN PAGE
and CHOICE PAGE, or change to CHOICE PAGE
in each functional list. Under shift mode,
pressing this key in CHOICE PAGE, it can save
the system data.
5
Õ/ -
----------or---------
RECALL
Backspace and Minus command key: Pressing
this key will erase the keyin number. It may
show “-“ if there is no number. Under shift mode,
pressing the key in CHOICE PAGE, it can recall
system data.
6
OUT/QUIT OUT/QUIT command key:Pressing this key may
enable the AC Source output voltage or quit the
output voltage.
7
SHIFT Shift mode selection key: Pressing this key will
switch the AC Source from normal operational
mode to shift mode.
8
0 to 9 , and
•
------------or-----------
HELP
Numeric and decimal keys:The digital and
decimal keys can program the numeric data.
9 ENTER
ENTER key: It is to confirm the setting of
parameters.

Programmable AC Source 61705 Quick Start Guide
10 RPG:The programming data and options can be
inputted by turning the RPG to the desired ones.
11 Main power switch: It powers on or off the AC
Source.
4

Programmable AC Source 61705 Quick Start Guide
1.3.2 The Rear Panel
5
Figure 1-2-2 The Rear Panel
Figure 1-2 The Rear Panel

Programmable AC Source 61705 Quick Start Guide
Table 1-2 The Description of the Rear Panel
Item Name Description
1 Label The label includes model number, serial number of
the AC Source.
2 Ext. Ref.
The BNC connector inputs control waveform
amplitude from external analog signal. (This function
is reserved now.)
3 RS-232C
The 9-pin, D-type female connector transfers control
commands to and from the remote PC for remote
operation.
4 GPIB Connector A remote controller using GPIB bus is connected to the AC Source through this connector for remote
operation.
5 TTL SIGNAL
The 9-pin, female connector transmits the control
signals (fault_out, remote inhibit, and AC_ON).
6 Warning Label A warning for the leakage current.
7 Output
Connector This connector outputs power to the loading device.
8 Remote Sense Connector It senses directly at the terminals of the load to eliminate any voltage drop on the connecting cable.
Reverse polarity is not allowed.
9 Power Line in
Connector Power line input is connected to the AC Source through this connector.
For more detail information, please see the User’s
Manual in the CD attached to the shipment.
6

Programmable AC Source 61705 Quick Start Guide
7
