Digital Power Meter 66201/66202 Quick Start Guide
vii
Table of Contents
1. Overview..................................................................................1
1.1 Product Introduction .................................................................1
1.2 Inspection.................................................................................1
1.3 Ambient Environment...............................................................2
1.4 Power Line Connection............................................................2
1.5 Fuse..........................................................................................3
1.6 Time for Warm-Up....................................................................4
1.7 Cleaning ...................................................................................4
2. Panel Description ...................................................................5
2.1 Front Panel...............................................................................5
2.2 Rear Panel................................................................................8
2.3 Examining Firmware Version ...................................................9
3. Operation...............................................................................10
3.1 Preparation before Test..........................................................10
3.2 Connecting Test Device .........................................................10
3.2.1 Standard Connection.........................................................10
3.2.2 Connecting with A662003 Fixture......................................12
3.3 Test Function & Operation .....................................................13
4. Using Remote Control .........................................................14
4.1 Overview.................................................................................14
4.2 USB Interface.........................................................................14
4.3 Definition of GPIB Address.....................................................15

Digital Power Meter 66201/66202 Quick Start Guide
1
1. Overview
1.1 Product Introduction
This 66201/66202 Digital Power Meter manual covers the product model
of 66201 and 66202. 66201/66202 is a digital power meter with voltage
and current auto ranging function that can identify PASS / FAIL of UUT
based on the inputted specification. Its front panel has 4 sets of
7-segment LCDs that can display AC voltage, current and the
measurements of active power / power factor / apparent power / reactive
power concurrently. The valid measurement ranges are 0 ~ 500 Vrms
for AC voltage, 0 ~ 20Arms for AC current, 0 ~ 10KW for active power, 0 ~
1.000 for power factor, 0 ~ 10KVA for apparent power and 0 ~ 10KVAR
for reactive power.
66201/66202 Digital Power Meters can also connect to PC via GPIB
(IEEE standard 488-1978) and USB interfaces to perform measurements
automatically when on line.
1.2 Inspection
Before shipment, this instrument was inspected and found to be free of
mechanical and electrical defects. As soon as the instrument is
unpacked, inspect for any damage that may have occurred in transit.
Save all packing materials in case the instrument has to be returned. If
damage is found, please file claim with carrier immediately. Do not
return the instrument to Chroma without prior approval.

Digital Power Meter 66201/66202 Quick Start Guide
1.3 Ambient Environment
(1) Do not use the meter in a
dusty or vibrating location.
Do not expose it to sunlight
or corrosive gas. Be sure
that the ambient
temperature is 0°C ~ +40°C
and the relative humidity is
20% ~ 80%.
Keep away from the followings:
Dust
Direct Sunlight
66202
V
ibr ation Co rrosive
Gas
Noise
So urce
66202
Power Filter
Please install a po wer filter in
case of interference from high
power noise.
(2) The meter has been
carefully designed to
reduce the noise from the
AC power source.
However, it should be used
in a noise-free or as low as
possible environment. If
noise is inevitable, please
install a power filter.
(3) The meter should be stored
within the temperature
range -40°C ~ +85°C. If
the unit is not to be in use
for a long time, please
store it in the original or
similar package and keep it
from direct sunlight and
humidity to ensure its
accuracy when using
again.
1.4 Power Line Connection
Before plugging in the power cord, make sure the power switch is off and
the voltage selector on the rear panel meets the required voltage. Please
use the power supply frequency of 50Hz or 60Hz.
2

Digital Power Meter 66201/66202 Quick Start Guide
3
MODEL NO.
SERIAL NO.
CAT II
ALL INPUT
500Vrms
500Vrms
500Vrms
20Arms
V+ V-
I+ I-
CONTROL
0Hz / 60 Hz 30 VA Max
AC LINE FUSE
T500mA/250V
GPIB
USB
! !
SIGNALS
VOLTAGE RANGE
~90 to 130V / 180 to250V
5
!
!
!
1.5 Fuse
There is one fuse installed in the rear panel, please be aware of the
following when replacing it:
(1) First turn off the power and unplug the power cord before changing
the fuse.
(2) Since visual check cannot ensure the fuse to be used is appropriate,
it is necessary to test its resistance to see if it is below 15Ωwhich is
normal when checking.
(3) When replacing the fuse, use a finger or a flat screwdriver to press
the cover of fuse holder gently and turn it counter clockwise for 60
degree, the cover will be unlocked from the holder for 3mm.
(4) Remove the over and replace the fuse with a new one (must be
same as the original fuse.)
(5) Press the cover down into the holder by a finger or a flat screwdriver
and turn it clockwise for 60 degree to secure it.
Table 1-1 Specification of Fuse
Specification Note
Power Fuse Slow blow 0.5A Applicable for AC 190V ∼250V
WARNING To prevent fire from occurring it is required to use the
fuse of same type and same specification when
replacing it.

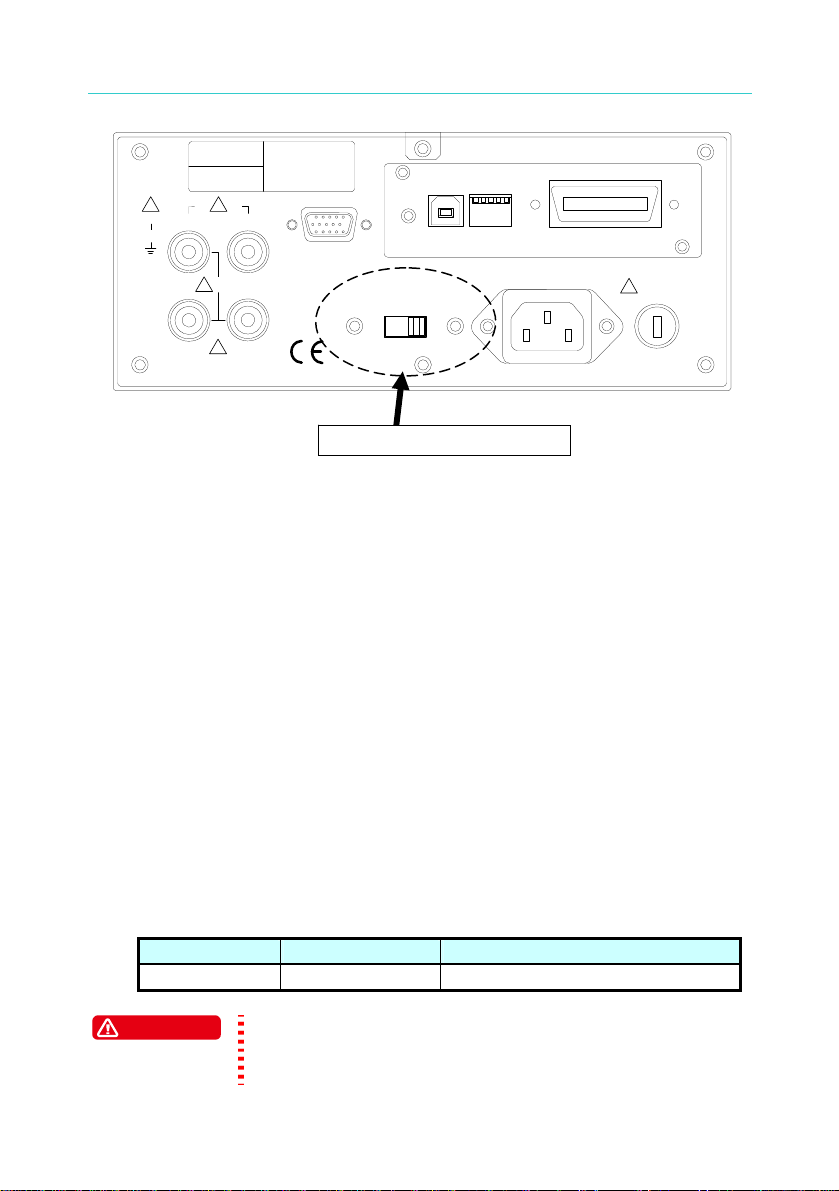

Voltage Selector

Digital Power Meter 66201/66202 Quick Start Guide
4
1.6 Time for Warm-Up
All functions of this meter are active when it is powered on; however, to
meet the accuracy listed in the specification it is suggested to warm-up for
at least 60 minutes.
1.7 Cleaning
Ensure all cables and power cords are removed before cleaning the
hardware. Use a dry cloth to clean the chassis. As the rear panel of
power meter connects to the internal circuit board, to avoid damaging the
hardware due to short circuit internally it is not allowed to wipe it with
damp cloth.

Digital Power Meter 66201/66202 Quick Start Guide
2. Panel Description
2.1 Front Panel

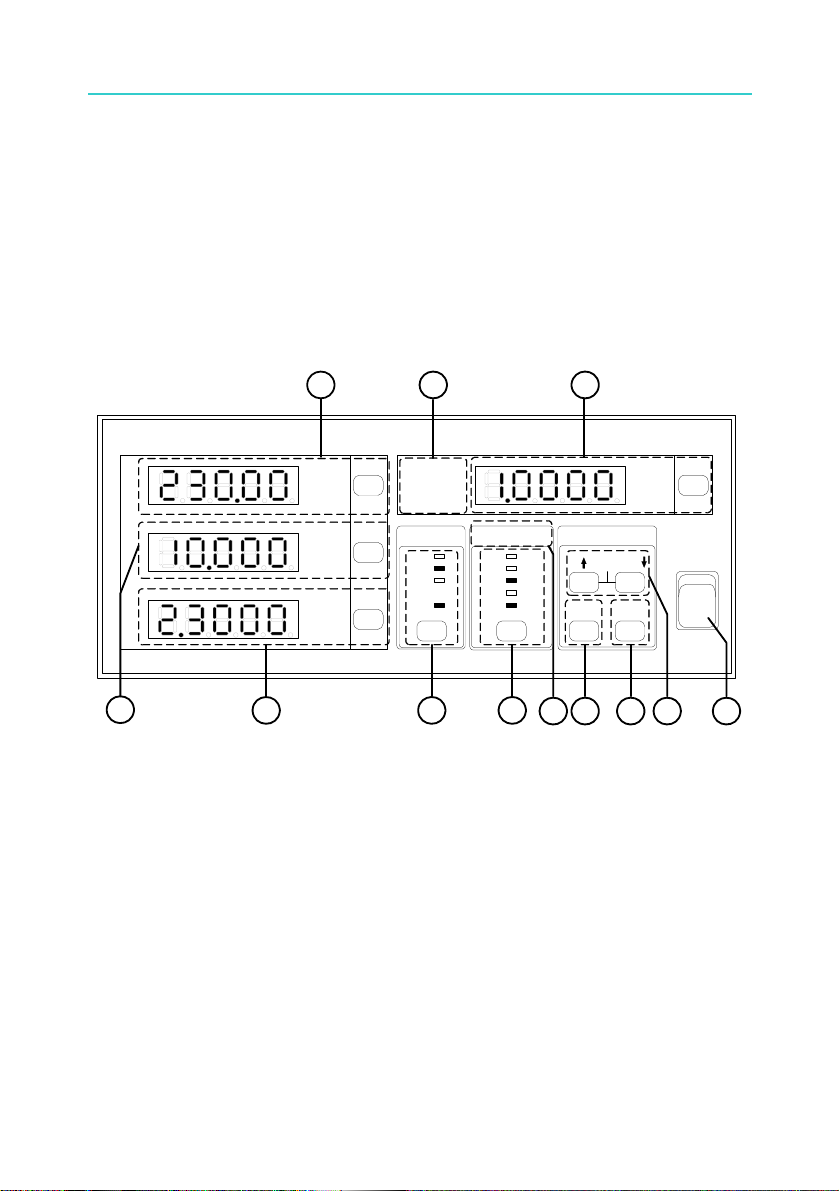

Figure 2-1 and Figure 2-2 show the front panel of 66201 and 66202 digital
power meters with parts described from item (1) to (12) as listed below.
For detail operation procedures, please see the User’s Manual in the CD
attached to the shipment.
組織管理期刊
AUTO
AUTO
150
300
500
VOLTAGE CURRENT
SHUNT
2
0.4
0.1
0.01
SYSTEM
Cali
Setup Trig /
Enter
ON
OFF
I
O
GO/NG
PASS Limit
Meas
RMT
FAIL
PF F
CF
V
Vpk+
Vpk-
mA
I
Ipk+
Ipk-
W
P
F
V
A
VAR
Chroma DIGITAL POWER METER MODEL 66201
123
65 710
9
812 11
4
Hold
Hold
Figure 2-1 Front Panel of 66201 Digital Power Meter
5

Digital Power Meter 66201/66202 Quick Start Guide
20
8
2
0.2
AUTO AUTOAUTO
150
300
500
VOLTAGE CURRENT
SHUNT
2
0.4
0.1
0.01
LHSYSTEM
Cali
Setup Trig /
Enter
ON
OFF
I
O
GO/NG
PASS
Shunt
Limit
Meas
RMT
FAIL
Is/Trig
PF F
E
CF
THDv
THD
V
Vpk+
Vpk-
mA
I
Ipk+
Ipk-
Is
W
PF
VA
VAR
Chroma DIGITAL POWER METER MODEL 66202
1236 57109
812 11
4
k
Hold
Hold
Figure 2-2 Front Panel of 66202 Digital Power Meter
(1) Power Switch ：It is the power switch to turn the meter ON or
OFF.
(2) ↑↓ Arrow Keys ：The up and down arrow keys can be used to
select the parameters when in Setup. Press
these two keys concurrently will go to
automatic calibration function.
(3) Trig/Enter
Function Key
：It is the confirmation key for various
parameters when in Setup.
(4) Setup Key ：It is the function setup key that can select
various functions for setting and the indicator
above will show the selected item.
(5) Current Shunt
Indicator
：It shows the state of Shunt module in use for
current detection. (Note 1)
(6) Current Range
Selection Key
：It is the selection key for AUTO and specified
current range. The indicator above shows the
selected range. (Note 2)
(7) Voltage Range
Selection Key
：It is the selection key for AUTO and specified
voltage range. The indicator above shows the
selected range.
(8) Voltage
Measurement
Display
：It is the voltage readout indicator that can
switch to display V, Vpk+ and Vpk-. The
mapping indicator will be on when selected.
(9) Current
Measurement
：It is the current readout indicator that can
switch to display I, Ipk+, Ipk- and Is (Inrush
6

Digital Power Meter 66201/66202 Quick Start Guide
7
Display current). The mapping indicator will be on
when selected. For instance, when the mA
indicator is on it means the unit is mA. (Note
3)
(10) Power
Measurement
Display
：It is the power readout indicator that can
switch to display W, PF, VA and VAR. The
mapping indicator will be on when selected.
(11) Special
Measurement
Display
：It can switch to display PF, CF and F. The
mapping indicator will be on when selected.
(Note 4)
(12) Function Setting
Indicator
：It shows the setting mode when in Setup or
shows PASS/FAIL when executing GO/NG.
When the RMT LED is on, it indicates the
system is under remote control. (Note 5)
Note 1. 66201 Digital Power Meter is applicable for small current
range measurement only, so there is no Current Shunt
indicator.
2. 66201 Digital Power Meter is applicable for small current
range measurement only, so there is no high current range
indicator.
3. 66201 Digital Power Meter provides the measurements of I
(current RMS), Ipk+ (positive peak current) and Ipk-
(negative peak current) only.
4. 66201 Digital Power Meter provides the parameters of PF
(Power Factor), CFi (Crest Factor of Current) and F
(Frequency).
5. 66201 Digital Power Meter has Limit and Meas function for
setting.

Digital Power Meter 66201/66202 Quick Start Guide
2.2 Rear Panel
Figure 2-3 shows the rear panel of 66201/66202 digital power meter with
parts described from item (1) to (9) as listed below.
MODEL NO.
SERIAL NO.
CAT II
ALL INPUT
500Vrms
500Vrms
500Vrms
20Arms
V+ V-
I+ I-
CONTROL
SIGNALS
VOLTAGE RANGE
~90 to 130V / 180 to 250V
50Hz / 60Hz 30VA Max
AC LINE FUSE
T500mA/250V
GPIB
USB
! !
!
!
!
1234
5 6 7 8 9

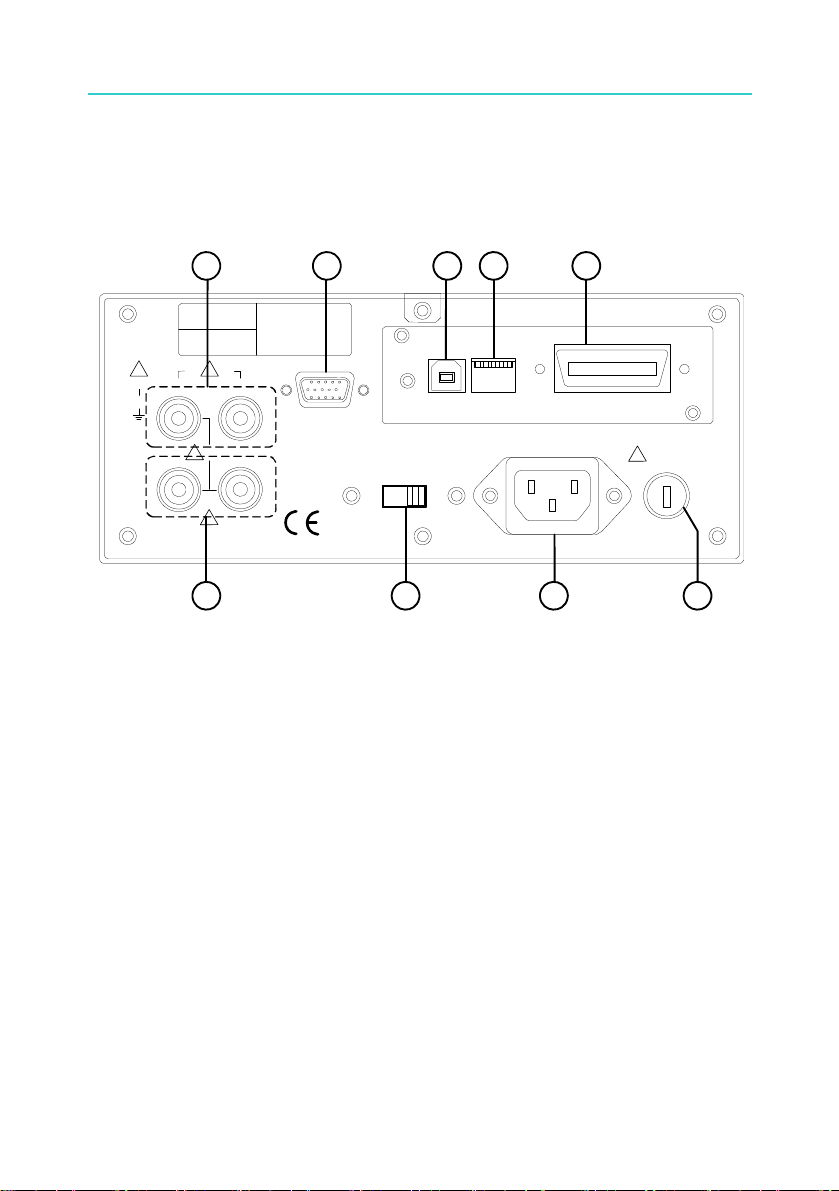

Figure 2-3 Rear Panel of 66201/66202 Digital Power Meter
(1) Fuse Holder ：It is the fuse holder for power supply.
(2) AC LINE Inlet ：It is the power supply connection socket
that is connected by power cord.
(3) VOLTAGE Range
Switch
：AC input voltage selector that can switch to
110V or 220V.
(4) Voltage
Measurement Input
Terminal
：It is the positive/negative terminal input for
voltage test point.
(5) Current
Measurement Input
Terminal
：It is the positive/negative terminal input for
current test point.
(6) Control Signal
Input/Output
Terminal
(7) USB Interface Port
(8) ADDRESS DIP
Switch
：It is the DIP switch for setting GPIB
interface address.
(9) GPIB Interface Port
8

Digital Power Meter 66201/66202 Quick Start Guide
2.3 Examining Firmware Version
1. Power on the 66201/66202 Digital Power Meter.
2. When the panel is in normal state, press Setup and Enter
simultaneously. The screen shows:
The Model No. is 66202, F/W version is 1.20 and FPGA program version
is 1.00.
20
8
2
0.2
AUTO AUTOAUTO
150
300
500
VOLTAGE CURRENT
SHUNT
2
0.4
0.1
0.01
LHSYSTEM
Cali
Setup Trig /
Enter
ON
OFF
I
O
GO/NG
PASS
Shunt
Limit
Meas
RMT
FAIL
Is/Trig
PF F
E
CF
THDv
THD
V
Vpk+
Vpk-
mA
I
Ipk+
Ipk-
Is
W
PF
VA
VAR
Chroma DIGITAL POWER METER MODEL 66202
k
Hold
Hold
Model
Firmware
version
FPGA
code
version
Figure 2-4 66202 Digital Power Meter Firmware Version Check
3. Press Setup to return to measurement screen when version is
confirmed.
For more detail information, please see the User’s
Manual in the CD attached to the shipment.
9

Digital Power Meter 66201/66202 Quick Start Guide
3. Operation
3.1 Preparation before Test
(1) Before plugging in the power cord, make sure the power switch is off
and the voltage selector on the rear panel meets the required
voltage.
(2) If there is a need to change the voltage, ensure the fuse used
matches the voltage selected. See section 1.5 Fuse for the
specification.
WARNING It is required to remove the power cord when replacing
the fuse or changing the input voltage to avoid the
hazard of electric shock.
3.2 Connecting Test Device
3.2.1 Standard Connection
66201/66202 Power Meter has two types of connection. Its
measurement theory is shown in Figure 3-1 (a) and (b).
AC
VAC UUT
Unit Under
Test
Power Meter
IAC
V_drop
AC
IAC
UUT
Unit Under
Test
Power Meter
A_leakage
VAC
(a) (b)

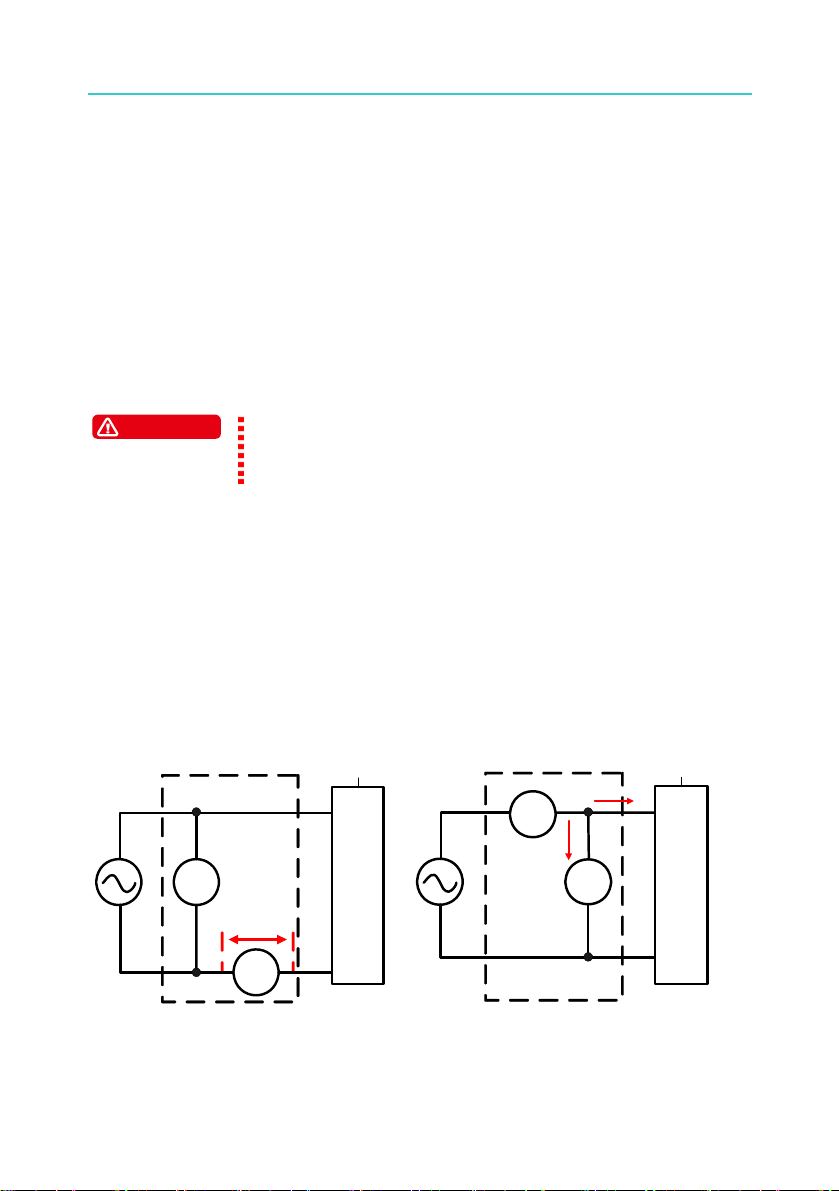

Figure 3-1 Measurement Theory for Power Meter Connection
10

Digital Power Meter 66201/66202 Quick Start Guide
The connection of Figure 3-1(a) is more accurate for current
measurement; however, the voltage measurement may have small errors
due to the voltage difference of current meter. It is applicable for the
UUT with medium or small power. Its connection with 66201/66202
Power Meter is shown in Figure 3-2.
The connection of Figure 3-1(b) is more accurate for voltage
measurement, but the current measurement will add the leakage current
from voltage meter. It is applicable for the UUT with medium or larger
power. Its connection with 66201/66202 Power Meter is shown in Figure
3-3.
MODEL NO.
SERIAL NO.
CAT II
ALL INPUT
500Vrms
500Vrms
500Vrms
20Arms
V+ V-
I+ I-
! !
!
!
LNG
66202
AC Source
UUT

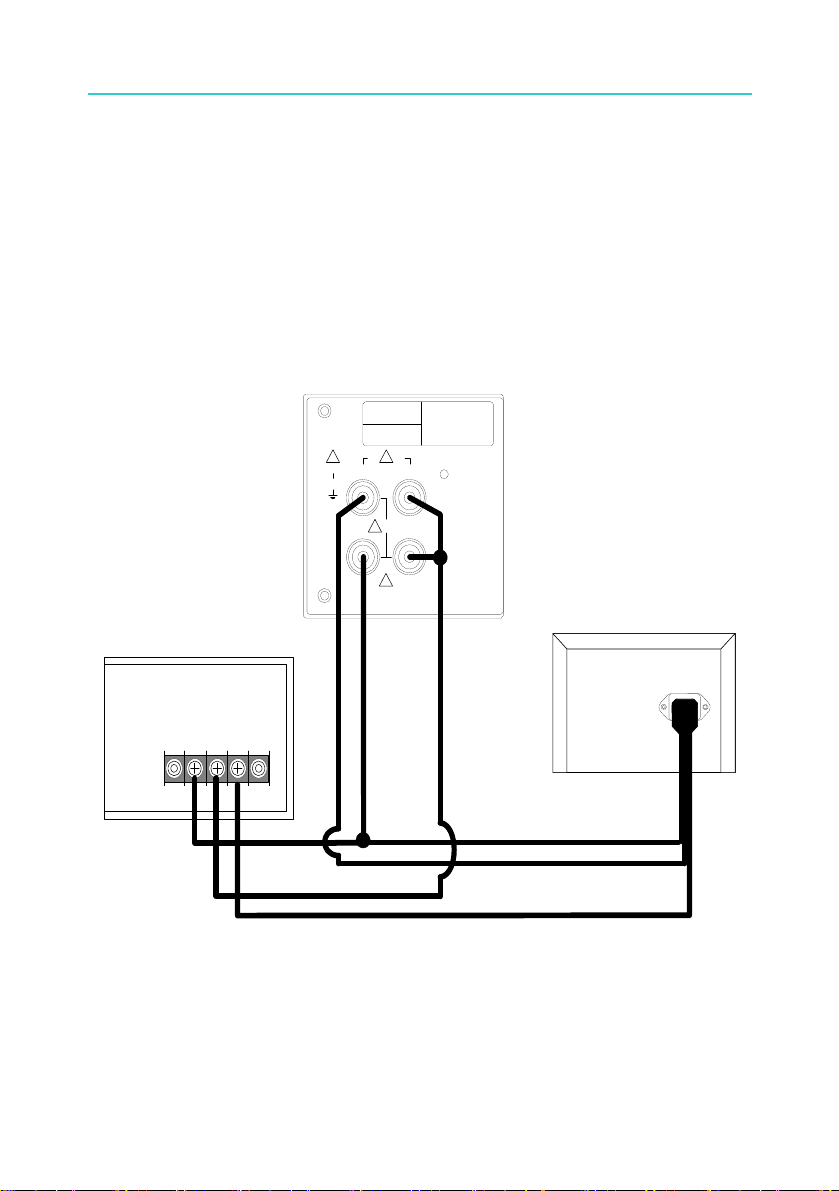

Figure 3-2 66201/66202 Power Connecting Diagram (for Figure 3-1(a))
11
