Ciara ORION HF210-G5 User manual

ORION HF210-G5
User Manual

1
1. About this User Manual
This user manual contains the information on Installation and maintenance of the ORION HF210-G5.
Caution: Experienced technicians should perform the Installation and maintenance.
Document title: ORION HF210-G5
Document number: Revision 03
Document update date: January 2021
The following Notes, Cautions and Warnings might appear in this user manual.
Note: Explains an important point or tip to help you to better use of the product.
Caution: Indicates the potential damage to hardware or loss of data, security problems, or performance issues and tells you to avoid the problem.
Warning:Indicates that an action or step can result in physical harm, property or hardware damage.
To avoid damaging your server, perform the following steps before you begin working inside the server.
1. Ensure that you follow the Safety Instruction.
2. Ensure that your work surface is flat and clean to prevent the server cover from being scratched.
3. Turn off your server.
4. Disconnect all network cables from the server.
CAUTION: To disconnect a network cable, first unplug the cable from your server and then unplug the cable from the network device. After you finish working inside
the server, replace all covers, panels, and screws before connecting to the power source.
Safety instructions:
Use the following safety guidelines to protect your server from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this
document assumes that the following conditions exist:
You have read the safety information that shipped with your server.
A component can be replaced or, if purchased separately, installed by performing the removal procedure in the reverse order.
Copyright © 2019 CIARA Technologies, a Hypertec brand. All Rights Reserved.

2
2. Table of Contents
Contents
1. About this User Manual................................................................................................................................................................................................................................................ 1
2. Table of Contents ......................................................................................................................................................................................................................................................... 2
3. ORION HF210-G5 Specifications................................................................................................................................................................................................................................... 5

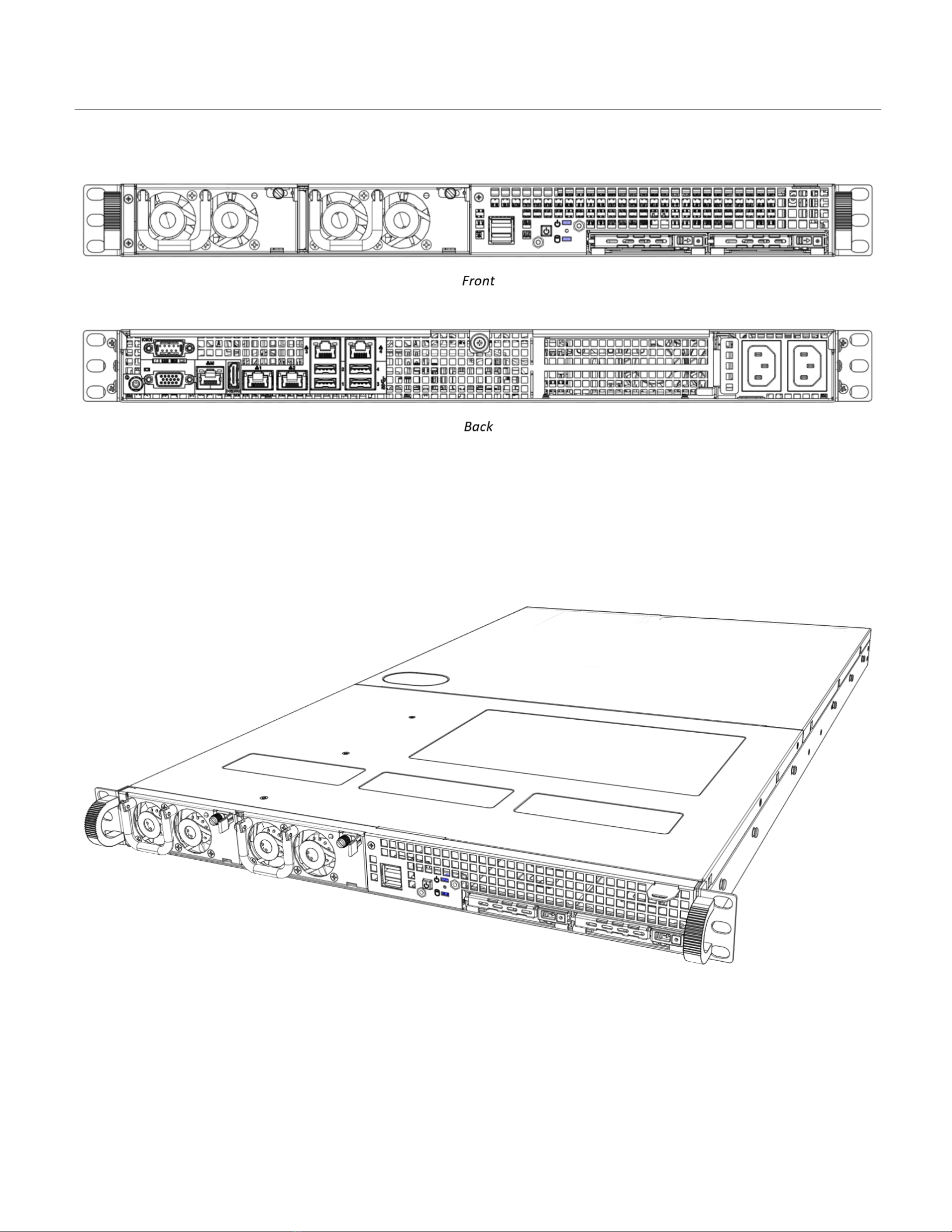

4. Chassis Overview.......................................................................................................................................................................................................................................................... 6

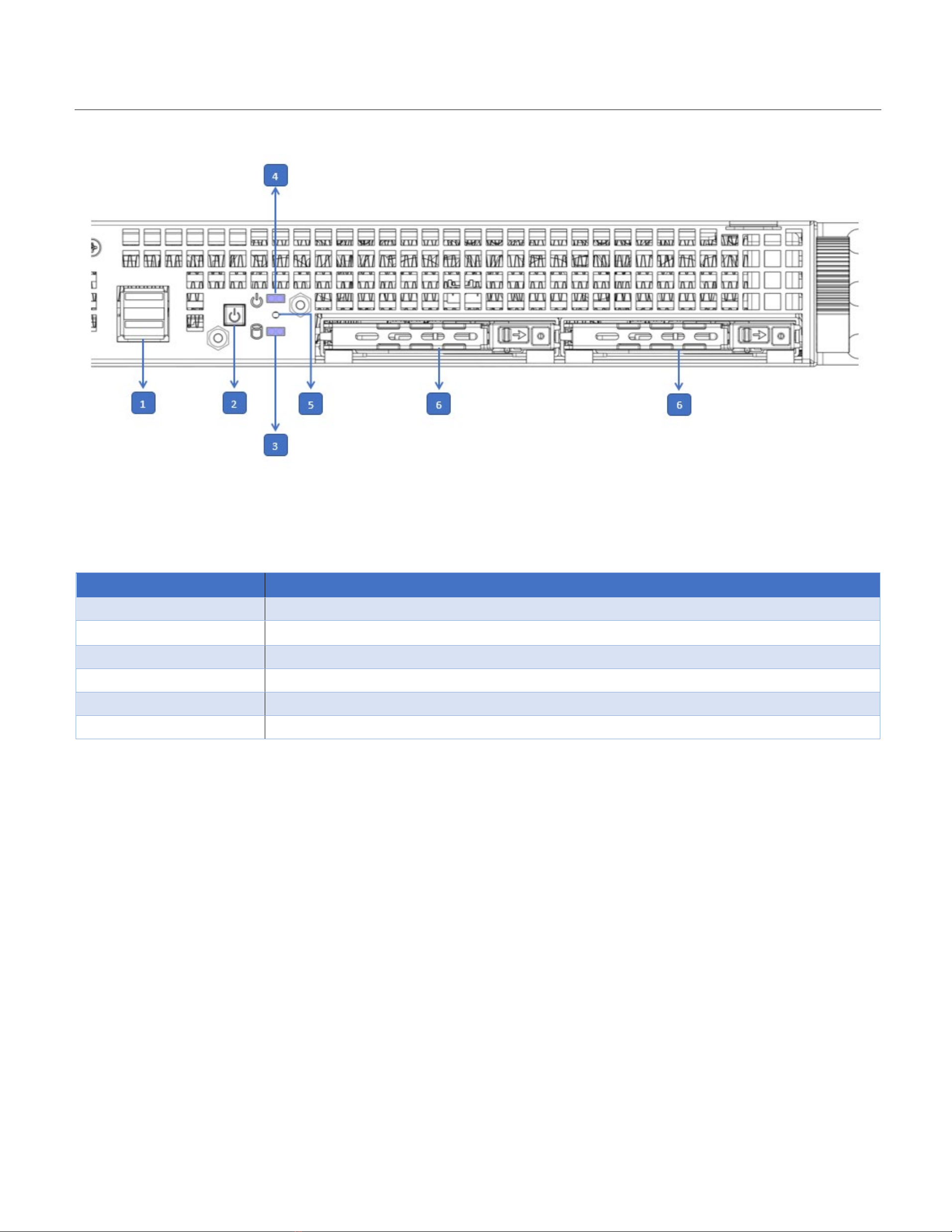

5. Front Panel Components.............................................................................................................................................................................................................................................. 7
6. Back Panel Components............................................................................................................................................................................................................................................... 8

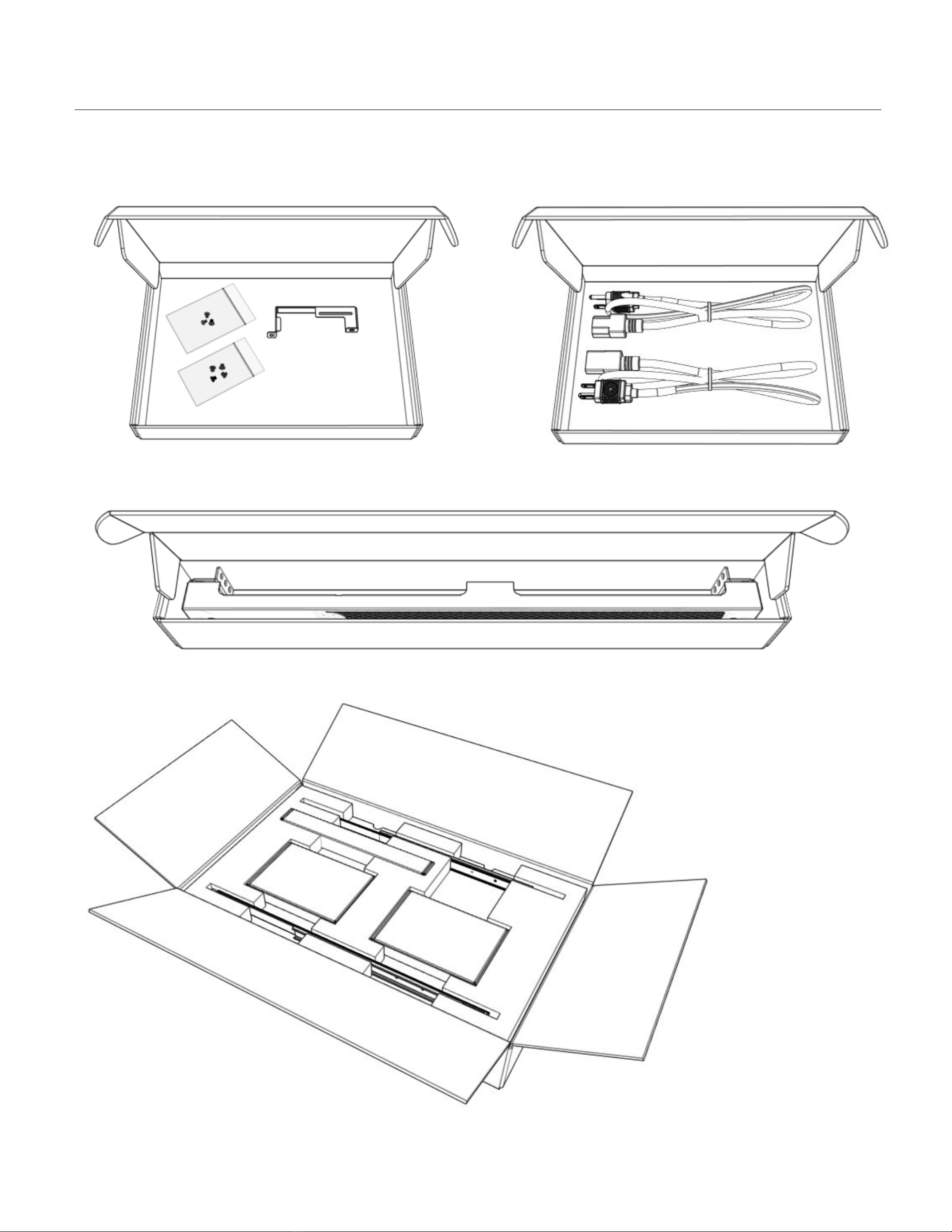

7. Accessory Boxes & Rails ............................................................................................................................................................................................................................................... 9
8. Labelling ..................................................................................................................................................................................................................................................................... 10
8.1 Power supplies cage ................................................................................................................................................................................................................................................. 10

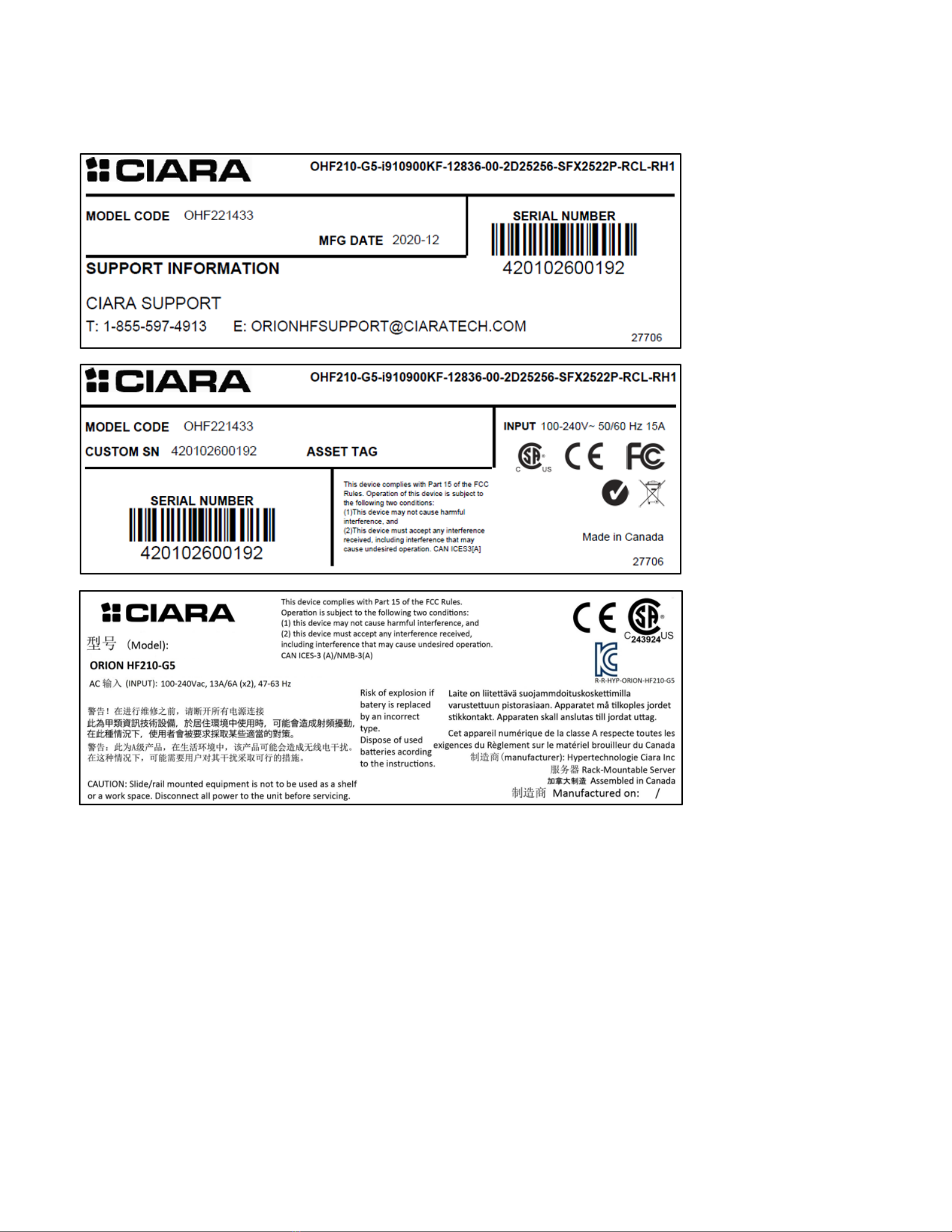

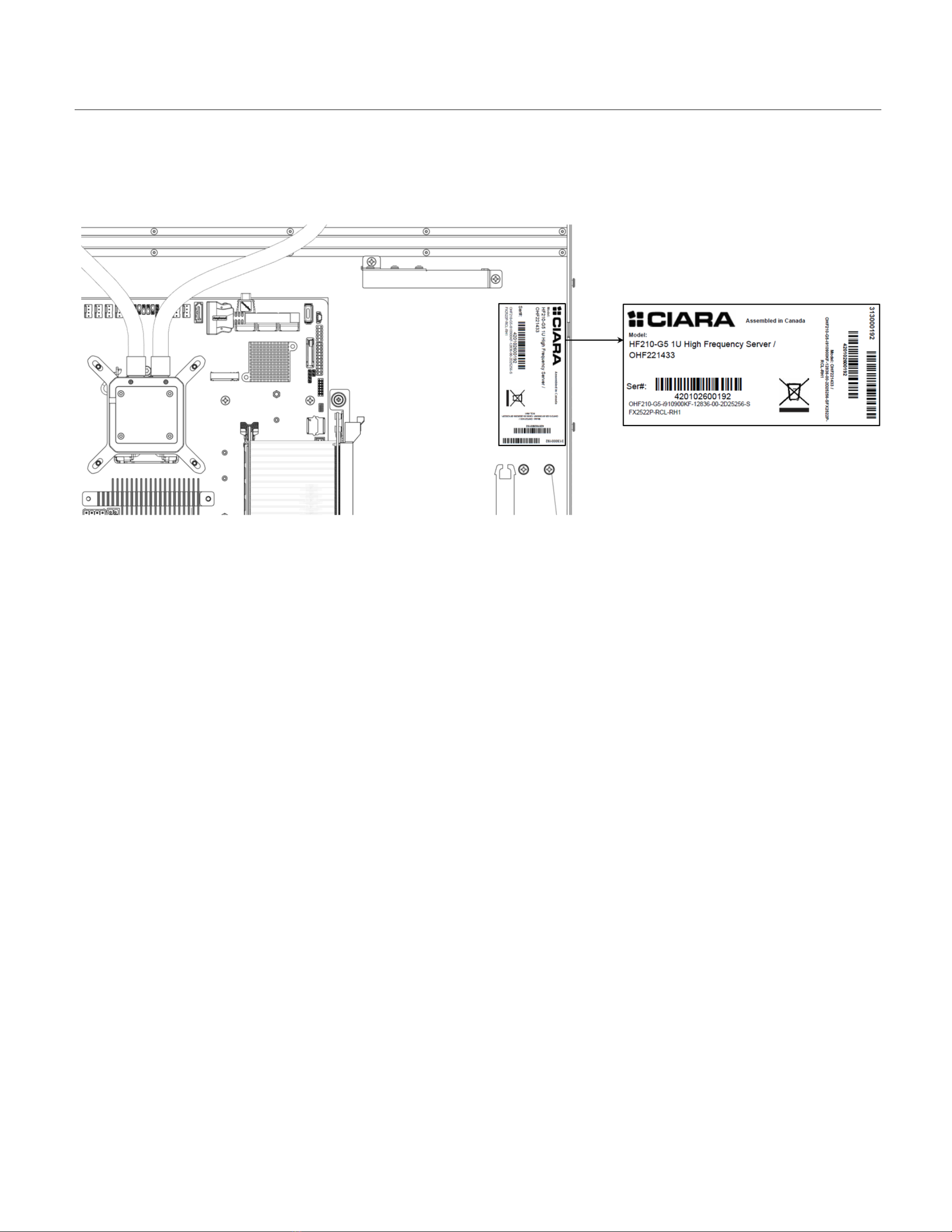

8.2 Serial Number and Model Number Labels on Mylar ................................................................................................................................................................................................ 11
8.3 HDD trays ................................................................................................................................................................................................................................................................. 11
8.4 Support and Certification Labels .............................................................................................................................................................................................................................. 12

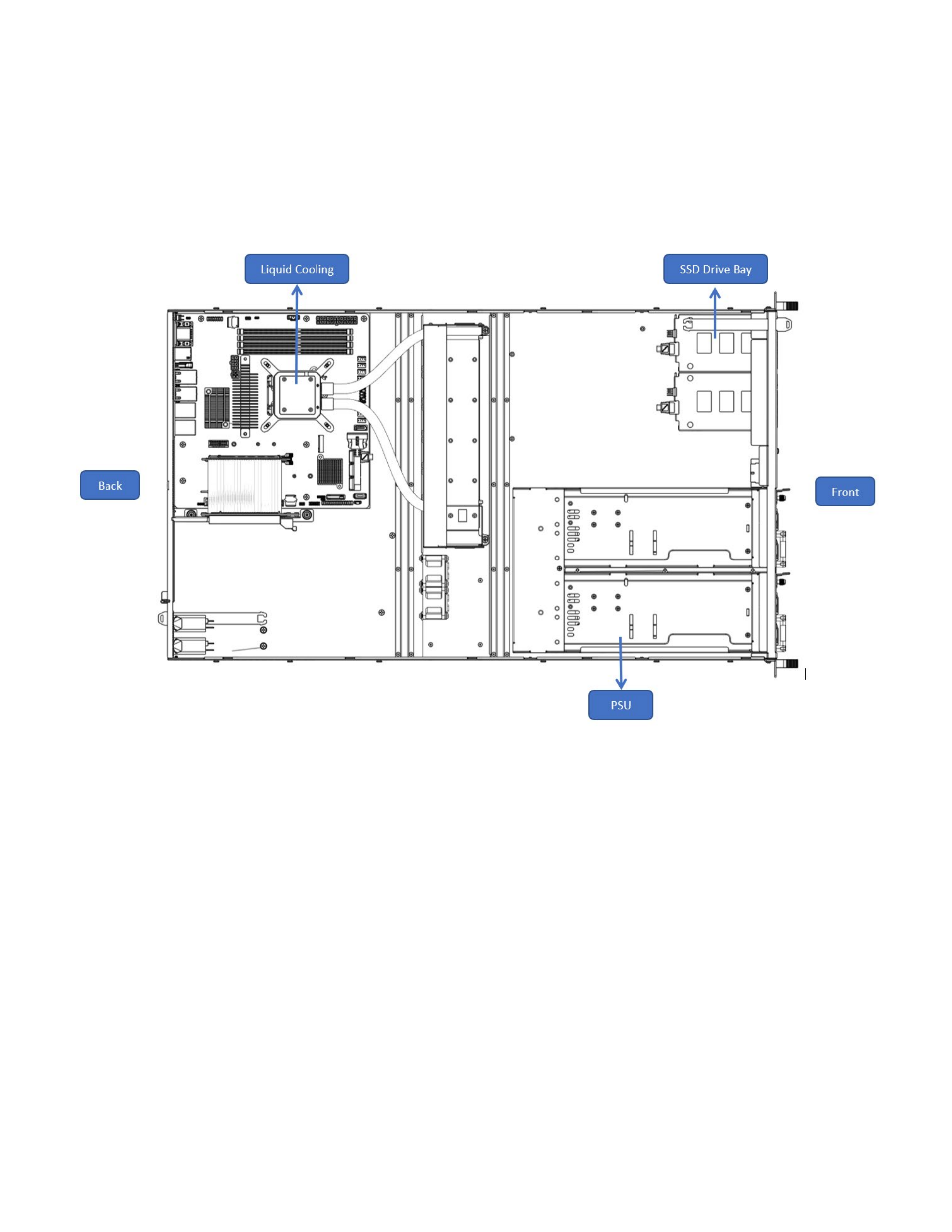

9. Chassis Layout......................................................................................................................................................................................................................................................... 13
10. Motherboard Layout .............................................................................................................................................................................................................................................. 14
11. Detailed Motherboard Layout................................................................................................................................................................................................................................ 16
11.1 Connector Functionality ......................................................................................................................................................................................................................................... 17

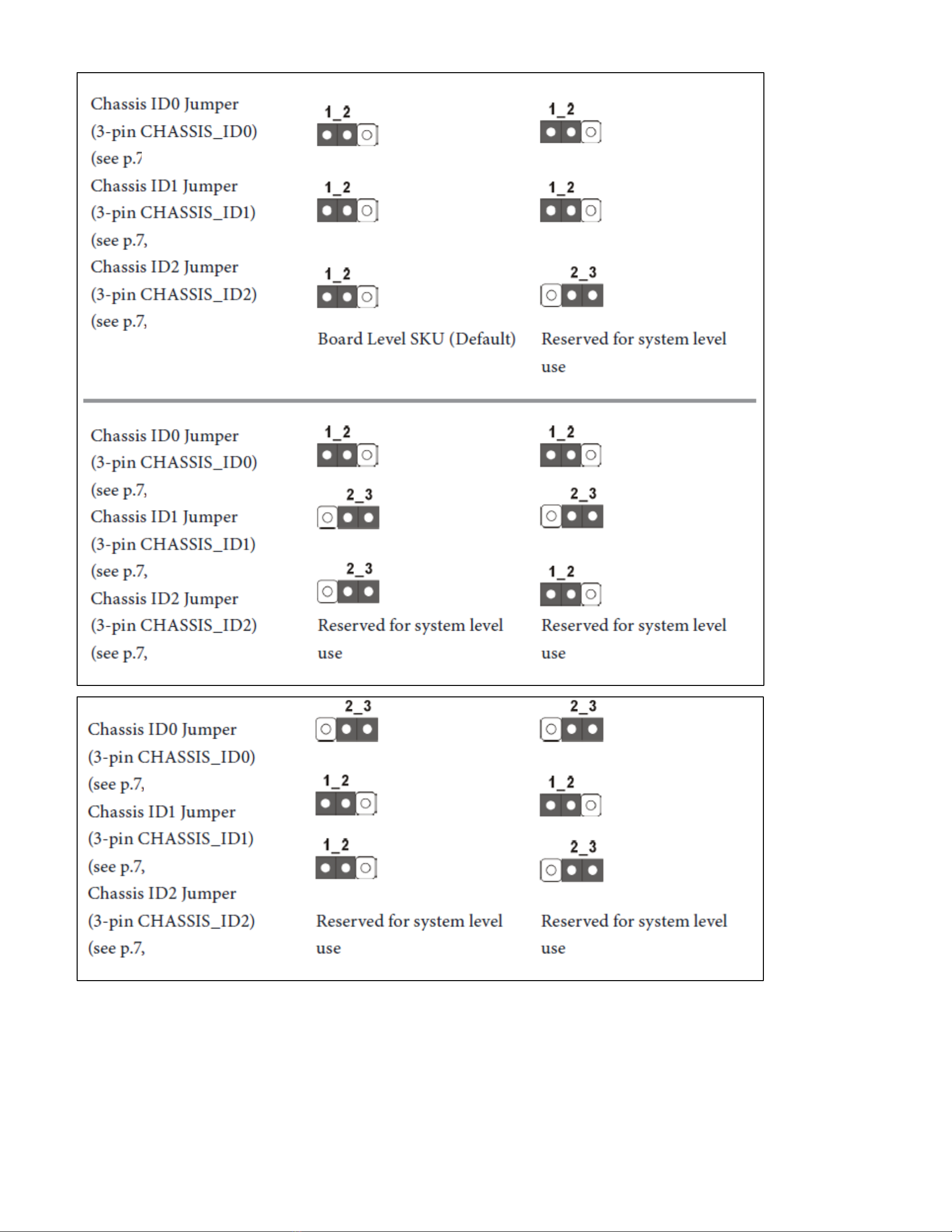

11.2 Jumper Functionality.............................................................................................................................................................................................................................................. 18
11.3 LED Functionality.................................................................................................................................................................................................................................................... 20
11.4 Block Diagram......................................................................................................................................................................................................................................................... 21
12. Removing the Chassis Cover................................................................................................................................................................................................................................... 22
13. Installing the Chassis Cover .................................................................................................................................................................................................................................... 23
14. How to clear the CMOS with battery and pad........................................................................................................................................................................................................ 24
14.1 Clear CMOS by Battery ........................................................................................................................................................................................................................................... 24
14.2 Clear CMOS by CMOS Pad ...................................................................................................................................................................................................................................... 26
15. How to replace the CMOS battery:......................................................................................................................................................................................................................... 27
16. Replacing PCIE Card................................................................................................................................................................................................................................................ 29
16.1 Replacing PCIE Card 1............................................................................................................................................................................................................................................. 29
16.2 Replacing PCIE 2 Card............................................................................................................................................................................................................................................. 32
17. Removing and Installing Memory Modules............................................................................................................................................................................................................ 34
17.1 Removing Memory Module.................................................................................................................................................................................................................................... 34
17.2 Installing Memory Module ..................................................................................................................................................................................................................................... 35
18. Replacing Swappable SSD....................................................................................................................................................................................................................................... 37
19. Replacing GPU ........................................................................................................................................................................................................................................................ 39
20. Rack Mounting ....................................................................................................................................................................................................................................................... 44
21. Plugging the Power Cords....................................................................................................................................................................................................................................... 47
22. Turning on the System............................................................................................................................................................................................................................................ 48
23. Dr. Debug codes ..................................................................................................................................................................................................................................................... 49
24. Accessing BIOS: ...................................................................................................................................................................................................................................................... 50
24. 1 BIOS Menu............................................................................................................................................................................................................................................................. 51
24.2 Navigation Keys...................................................................................................................................................................................................................................................... 51
25. Configuring BMC IP-Address Settings for remote management............................................................................................................................................................................. 52
25.1 Configuring the BMC IP-Address Settings for Remote management in BIOS Utility............................................................................................................................................... 52
25.2 Configuring the Static BMC IP-Address Settings for Remote management in BMC Web-GUI................................................................................................................................ 55
26. Using the BMC (IPMI) Web User Interface ............................................................................................................................................................................................................. 59
27. Accessing the BMC (IPMI) Management Console................................................................................................................................................................................................... 60
28. Viewing and Configuring the BMC (IPMI) Management Console ........................................................................................................................................................................... 61
28.1 Menu bar................................................................................................................................................................................................................................................................ 62
28.2 Quick Button and Logged-in User........................................................................................................................................................................................................................... 62
28.3 Dashboard .............................................................................................................................................................................................................................................................. 63

3
28.3.1 Product Information........................................................................................................................................................................................................................................ 63
28.3.2 Firmware Information ..................................................................................................................................................................................................................................... 63
28.3.3 Network Information....................................................................................................................................................................................................................................... 64
28.3.4 Sensor Monitoring........................................................................................................................................................................................................................................... 64
28.3.5 Event Logs ....................................................................................................................................................................................................................................................... 64
28.4 Sensors ................................................................................................................................................................................................................................................................... 65
28.4.1 Sensor detail:................................................................................................................................................................................................................................................... 65
28.5 System Information ................................................................................................................................................................................................................................................ 66
28.5.1 FRU Information .............................................................................................................................................................................................................................................. 66
28.5.2 Chassis Information ......................................................................................................................................................................................................................................... 66
28.5.3 Board Information ........................................................................................................................................................................................................................................... 66
28.5.4 Product Information ........................................................................................................................................................................................................................................ 66
28.6 Logs & Reports ....................................................................................................................................................................................................................................................... 68
28.6.1 IPMI Event Log................................................................................................................................................................................................................................................. 68
28.6.2 Video Log......................................................................................................................................................................................................................................................... 69
28.7 Settings................................................................................................................................................................................................................................................................... 70
28.7.1 Data & Time..................................................................................................................................................................................................................................................... 71
28.7.2 External User Services ..................................................................................................................................................................................................................................... 72
28.7.2.1 External User Services Page...................................................................................................................................................................................................................... 72
28.7.2.2 LDAP/E-directory Settings ........................................................................................................................................................................................................................ 72
28.7.2.3 Active Directory Settings .......................................................................................................................................................................................................................... 74
28.7.2.4 RADIUS Settings........................................................................................................................................................................................................................................ 75
28.7.3 KVM Mouse Settings ....................................................................................................................................................................................................................................... 78
28.7.4 Log Settings ..................................................................................................................................................................................................................................................... 79
28.7.4.1 Log Settings Policy .................................................................................................................................................................................................................................... 79
28.7.5 Media Redirection Settings ............................................................................................................................................................................................................................. 80
28.7.5.1 General Settings ....................................................................................................................................................................................................................................... 81
28.7.5.2 VMedia Instance Settings ......................................................................................................................................................................................................................... 81
28.7.5.3 Remote Session ........................................................................................................................................................................................................................................ 82
28.7.6 Network Settings ............................................................................................................................................................................................................................................. 83
28.7.6.1 Network IP Settings .................................................................................................................................................................................................................................. 83
28.7.6.2 Network Bond Configuration.................................................................................................................................................................................................................... 85
28.7.6.3 DNS Configuration .................................................................................................................................................................................................................................... 85
28.7.7 PAM Order Settings ......................................................................................................................................................................................................................................... 87
28.7.8. Platform Event Filter....................................................................................................................................................................................................................................... 88
28.7.8.1 Event Filters.............................................................................................................................................................................................................................................. 88
28.7.8.2 Alert Policies............................................................................................................................................................................................................................................. 90
28.7.8.3 LAN Destinations ...................................................................................................................................................................................................................................... 91
28.7.9 Services............................................................................................................................................................................................................................................................ 93
28.7.10 SMTP Settings................................................................................................................................................................................................................................................ 95
28.7.11 SSL Settings.................................................................................................................................................................................................................................................... 96
28.7.11.1 View SSL Certificate ................................................................................................................................................................................................................................ 96
28.7.11.2 Generate SSL Certificate ......................................................................................................................................................................................................................... 97
28.7.11.3 Upload SSL Certificate ............................................................................................................................................................................................................................ 97
28.7.12 System Firewall.............................................................................................................................................................................................................................................. 98
28.7.12.1 General Firewall Settings........................................................................................................................................................................................................................ 98
28.7.12.2 General Firewall Settings........................................................................................................................................................................................................................ 99
28.7.13 User Management....................................................................................................................................................................................................................................... 101
28.7.14 Video Recording .......................................................................................................................................................................................................................................... 103
28.7.14.1 Port Firewall Rules................................................................................................................................................................................................................................ 104
28.7.15 Keep Share NIC Link Up ............................................................................................................................................................................................................................... 106
28.7.16 FAN Settings ................................................................................................................................................................................................................................................ 107
28.7.16.1 Open Loop Control Table...................................................................................................................................................................................................................... 107
28.7.16.2 Close Loop Control Table ...................................................................................................................................................................................................................... 107
28.7.16.3 Temperature Sensor and Corresponding Fan Table ............................................................................................................................................................................. 108
28.7.16.4 FAN Mode............................................................................................................................................................................................................................................. 109

4
28.7.17. CPU Profile Selection .................................................................................................................................................................................................................................. 110
28.8 Remote Control .................................................................................................................................................................................................................................................... 111
28.9 Image Redirection ................................................................................................................................................................................................................................................ 112
28.9.1 Remote Media............................................................................................................................................................................................................................................... 112
28.10 Power Control .................................................................................................................................................................................................................................................... 113
28.11 Miscellaneous..................................................................................................................................................................................................................................................... 114
28.11.1 UID Control.................................................................................................................................................................................................................................................. 114
28.11.2 Post Snoop................................................................................................................................................................................................................................................... 114
28.12 Maintenance ...................................................................................................................................................................................................................................................... 115
28.12.1 Backup Configuration .................................................................................................................................................................................................................................. 115
28.12.2 Restore Configuration ................................................................................................................................................................................................................................. 115
28.12.3 Firmware Image Location ............................................................................................................................................................................................................................ 115
28.12.4 Firmware Update......................................................................................................................................................................................................................................... 116
28.12.5 BIOS Update ................................................................................................................................................................................................................................................ 116
28.12.6 Restore Factory Defaults ............................................................................................................................................................................................................................. 117
28.12.7 Reset............................................................................................................................................................................................................................................................ 117
28.13 Sign Out.............................................................................................................................................................................................................................................................. 118
29. Updating Bios and ME .......................................................................................................................................................................................................................................... 119
30. Profile Loading in BIOS ......................................................................................................................................................................................................................................... 126
31. Downloading and Uploading a Profile in Linux ..................................................................................................................................................................................................... 128
31.1 Downloading an existing Overclocking Profile...................................................................................................................................................................................................... 128
31.2 Uploading a Overclocking Profile.......................................................................................................................................................................................................................... 130
32. Drivers & Tools ..................................................................................................................................................................................................................................................... 132
32.1 Drivers Downloading ......................................................................................................................................................................................................................................... 132
32.2 Monitoring CPU Frequency in Linux ..................................................................................................................................................................................................................... 133
32.2.1 i7z .................................................................................................................................................................................................................................................................. 133
32.2.2 Turbostat....................................................................................................................................................................................................................................................... 134
32.3 Verifying CPU Frequency for Windows............................................................................................................................................................................................................... 134

5
3. ORION HF210-G5 Specifications
The ORION HF210-G5 is a single socket, 1U rackmount form factor server and supports the following specification.
Form Factor
1U
Chipset
Intel® Z490
Processor
Intel® Core™ i9-10900KF - 10 Cores Overclocked Up to 5.3GHz*, 20.00 MB Cache, LGA1200
Highly Overclocked L3 Cache (Ring Architecture)
Cooling System
High Performance Liquid Cooled System, Closed Loop and Maintenance Free
Memory
Up to 128 GB (4x 32GB) DDR4-3600MHz non-ECC Dual Channel Low Latency CAS Memory
Network
Controller
(2) Intel® X710 10GbE RJ45 Port + (1) Intel® i210AT 1GbE RJ45 Port (NCSI) +
(1) Dedicated Management
1GbE RJ45 Port
Storage Controller
Onboard Intel® Z490 Express Chipset SATA 6Gbps Controller
Support RAID 0, 1, 5 and 10 Intel® Rapid Storage Technology (Optional Hardware RAID)
Drive Bays
(2) 2.5” SATA 6Gbps hot-swap drives HDD/SSD
(1) M.2 PCIe 3.0 x4 NG
FF-2242/2280 (42mm or 80mm)
(1) M.2 PCIe 3.0 x4 NGFF
-2242/2280/22110 (42mm, 80mm or 110mm)
Expansion Slots
(1) PCIe 3.0 x16 Full Height Full Length Dual Width (FHFLDW)
or
(2) PCIe 3.0 x8 Full Height Full Length Single Width (FHFL)
Validated Network
Adapt
ers
SolarFlare / Xilinx: Flaeron Series & X2 Series
Mellanox: ConnectX-3, 4, 5 & 6 Series
ExaBlaze: ExaNIC X10, X25 & X40 Series
Validated FPGA
Adapters
SolarFlare / Xilinx X2 Series
Mellanox
ConnectX-3, 4, 5 and 6 Series
ExaBlaze
ExaNIC X10, X25 and X40 Series
I/O Ports
(2) USB 3.1 Gen2 Type-A, (2) USB 3.1 Gen1 Type-A, (1) HDMI DB15, (1) Serial Port DB9,
(2) 10GbE RJ45 LAN, (1) 1GbE RJ45 LAN, (1) 1GbE RJ45 Management LAN
System
Management
AST2500 Advanced Graphics & Remote Management Processor
IPMI 2.0 Compliant
Web
-based user interface for remote management & iKVM
Remote, unblocked, BIOS
-level access and control
Chassis Features
QCode for easy troubleshooting
Tool
-Less Rail kit
Power Supply
820W Redundant (1+1) High Efficiency 80 PLUS® Platinum
Environment
Operating: 10ºC to 35ºC (50ºF to 95ºF) @ 8% to 80% (non-condensing)
Non
-operating: -40ºC to 60ºC (-40ºF to 140ºF) @ 20% to 95% (non-condensing)
Dimensions
(DxWxH)
30.6” x 17.3” x 1.7” (778mm x 440mm x 44mm)
Estimated Weight
37.4 lb / 16.5 kg
Warranty
CIARA’s limited hardware warranty includes a one year, parts and labour with return to CIARA USA or Canada. Customers may purchase an extended warranty of up to 3
years on parts and labour with different support levels. Please contact
CIARA at 1-877-242-7272 for complete warranty details including limitations and transferability.
OS Support
Microsoft® Windows® Server 2016 R2, Microsoft® Windows® Server 2019, Linux® RHEL 7.5 (minimum KERNEL: 3.10.0-862.el7), CentOS™ 7.5 (minimum KERNEL: 3.10.0-
862.el7), Debian 9.5 (minimum KERNEL: 4.15), Ubuntu 18.04 (minimum KERNEL: 4.15), support for other versions available upon r
equest.
Notes
*Maximum clock speed may vary depending on applications and workloads.

6
4. Chassis Overview
The following illustrations are the ORION HF210-G5 chassis Front, Back and Side views.

7
5. Front Panel Components
ITEM
DESCRIPTION
1
2x USB 3.1 Gen1
2
Power Button
3
HDD LED
4
Power LED
5
Reset
6
2x Drive Bay

8
6. Back Panel Components
ITEM
DESCRIPTION
1
UID Switch (UID1)
2
VGA Port (VGA1)
3
Serial Port (COM1)
4
LAN RJ-45 Port (IPMI_LAN)
5
HDMI Port (HDMI)
6
10G LAN RJ-45 Port (LAN1)
7
10G LAN RJ-45 Port (LAN2)
8
USB 3.1 Gen2 Ports (USB31_1_2)
9
1G LAN RJ-45 Port (LAN3)
10
USB 3.1 Gen2 Ports (USB31_3_4)
11
1G LAN RJ-45 Port (LAN4)
12
PCIe x16 (FH/FL/DW)
13
PCIe x8
14
2x Power Outlet
1
2
3
4
5
6
7
8
10
9
11
12
13
14
14

9
7. Accessory Boxes & Rails
The ORION HF210-G5 server includes (2) accessory boxes:
Accessory Box #1 with GPU Cables and Brackets Accessory Box #2 with (2) Power Cables
Also the ORION HF210-G5 server includes (1) bezel box:
The rails, bezel box and both accessory boxes are placed as shown below in the box with the server.

10
8. Labelling
This section contains information on the different labels found on the server.
8.1 Power supplies cage

11
8.2 Serial Number and Model Number Labels on Mylar
Front
Back
8.3 HDD trays
Model Number
Serial Number
Model Number
Serial Number

12
8.4 Support and Certification Labels

13
9. Chassis Layout
The following illusration shows inside of the ORION HF210-G5 system.

14
10. Motherboard Layout
The following picture shows the motherboard layout in the ORION HF210-G5 system.

15
Feature
Specification
Form factor
mATX
Processor Support Support Intel® 10th Gen. Core™ i9/i7/i5/i3, Pentium, Celeron® Series Processors
Chipset
Intel® Z490
Memory
4 x 288-pin DDR4 DIMM slots
Support up to 128GB DDR4 non-ECC UDIMM
LAN
2 x RJ45 GLAN by Intel® i210
2 x RJ45 10G base-T by Intel® X710-AT2
1 x RJ45 Dedicated IPMI LAN port by RTL8211E
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports Dual LAN with Teaming function
Supports PXE
LAN1 supports NCSI
VGA / VRAM Integrated in BMC with DDR4 256MB VRAM
BMC
ASPEED AST2500
Expansion Slot
Slot 6: Gen3 x16 link, auto switch to x8 link if Slot 4 is occupied (Physical x16, EE x16/x8 (from CPU), shared with Slot 4)
Slot 4: Gen3 x8 link (Physical x8, EE x0/x8 (from CPU), shared with Slot 6)
Slot 7: Gen3 x1 link (Physical x1, EEx1 (from PCH))
Storage
6 x SATA3 6Gb/s (SATA0-5, SATA_0 supports SATA DOM)
Rear IO Connector
1x HDMI Port, 1x VGA Port, 1x Serial Port, 1x UID
2x USB 3.2 Gen1 Type-A (5Gbps), 2x USB 3.2 Gen2 Type-A (10Gbps)
4 +1 RJ45 Gigabit Ethernet LAN ports
LAN Ports with LED (ACT/LINK LED and SPEED LED)
Internal Connector
ATX Power 1x (24-pin) + 1x (8-pin) + 1x (4-pin)
Front Panel Connector 1x (RST, PWRBTN, HDDLED, PWRLED)
Fan Header 7x (1CPU/4Front/2Rear)
USB 3.2 Gen1 Header 1x (supports 2 USB 3.1 Gen1 ports)
USB 2.0 Header 1x (supports 2 USB 2.0 ports)

16
11. Detailed Motherboard Layout
The following illustration shows the detailed motherboard layout in the ORION HF210-G5 system.

17
1. Front VGA Header (FRNT_VGA1) 24. SATA3 Connector (SATA_5)
2. 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1, Blue) 25. SATA3 Connector (SATA_6) (Not supported for Z490D4U-2L2T)
3. PSU SMBus (PSU_SMB1) 26. SATA3 Connector (SATA_7) (Not supported for Z490D4U-2L2T)
4. ATX Power Connector (ATXPWR1) 27. SATA3 DOM Connector (SATA_0), Red
5. 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2, White) 28. SATA DOM Power Connector (SATA_PWR1)
6. Chassis Fan Connector (FAN1) 29. System Panel Header (PANEL1)
7. Chassis Fan Connector (FAN2) 30. Auxiliary Panel Header (AUX_PANEL1)
8. Chassis Fan Connector (FAN3) 31. Non Maskable Interrupt Button (NMI_BTN1)
9. Chassis Fan Connector (FAN4) 32. SPI TPM Header (SPI_TPM_J1)
10. Chassis ID0 Jumper (CHASSIS_ID0) 33. Front LAN LED Connector (FRONT_LED_LAN34)
11. Security Override Jumper (SEC_OR1) 34. USB 2.0 Header (USB_1_2)
12. Chassis ID1 Jumper (CHASSIS_ID1) 35. SATA SGPIO Connector (SATA_SGPIO1)
13. Chassis ID2 Jumper (CHASSIS_ID2) 36. ME Recovery Jumper (ME_RECOVERY1)
14. CPU PECI Mode Jumper (PECI1) 37. BMC SMBus Header (BMC_SMB_1)
15. Chassis Speaker Header (SPEAKER1) 38. Intelligent Platform Management Bus Header (IPMB_1)
16. Chassis Fan Connector (FAN5) 39. TPM Header (TPM1)
17. Chassis Fan Connector (FAN6) 40. Clear CMOS Pad (CLRMOS1)
18. Chassis Fan Connector (FAN7) 41. Thermal Sensor Header (TR1)
19. SATA3 Connector (SATA_1) 42. M.2 Socket (M2_2) (Type 2260/2280)
20. USB 3.1 Gen1 Header (USB3_1_2) 43. M.2 Socket (M2_1) (Type 2260/2280/22110)
21. SATA3 Connector (SATA_2) 44. PWM Configuration Header (PWM_CFG1)
22. SATA3 Connector (SATA_3) 45. ATX 12V Power Connector (ATX12V2)
23. SATA3 Connector (SATA_4) 46. ATX 12V Power Connector (ATX12V1)
Connectors, Jumpers, and LED Functionality
11.1 Connector Functionality
Item
Connector
Description
3
PSU SMBus (PSU_SMB1)
Power Management Bus
4
ATX Power Connector (ATXPWR1)
24pin ATX Power Connector
19
SATA3 Connector (SATA_1)
SATA Connector
20
USB 3.1 Gen1 Header (USB3_1_2)
USB 3.1 Connector
21
SATA3 Connector (SATA_2)
SATA Connector
22
SATA3 Connector (SATA_3)
SATA Connector
23
SATA3 Connector (SATA_4)
SATA Connector
24
SATA3 Connector (SATA_5)
SATA Connector
27
SATA3 DOM CONNECTOR (SATA_0), RED
SATA Connector
29
System Panel Header (PANEL1)
Front Panel Connector
43
M.2 Socket (M2_1) (Type 2260/2280/22110)
M.2 Drive Connector
45
ATX 12V Power Connector (ATX12V2)
4pin ATX 12V Power Connector
46
ATX 12V Power Connector (ATX12V1)
8pin ATX 12V Power Connector

18
11.2 Jumper Functionality

19
