CIARRA CAS75206W User manual

Model Number:
CAS75206W
CAS75206P
CAS75206
www.ciarraappliances.com
CAB75206W
CAB75206P
CAB75206

Dear customer:
Thank you so much for your purchase, please
read this instruction manual carefully before
installation & use.
If you have any question, please contact us at:
E-mail: [email protected]
1

2
CONTENTS
Safety--------------------------------------------3-4
Specifications--------------------------------------5
Before Using the Cooker Hood ---------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-16
Install the Hood-------------------------------------------8-15

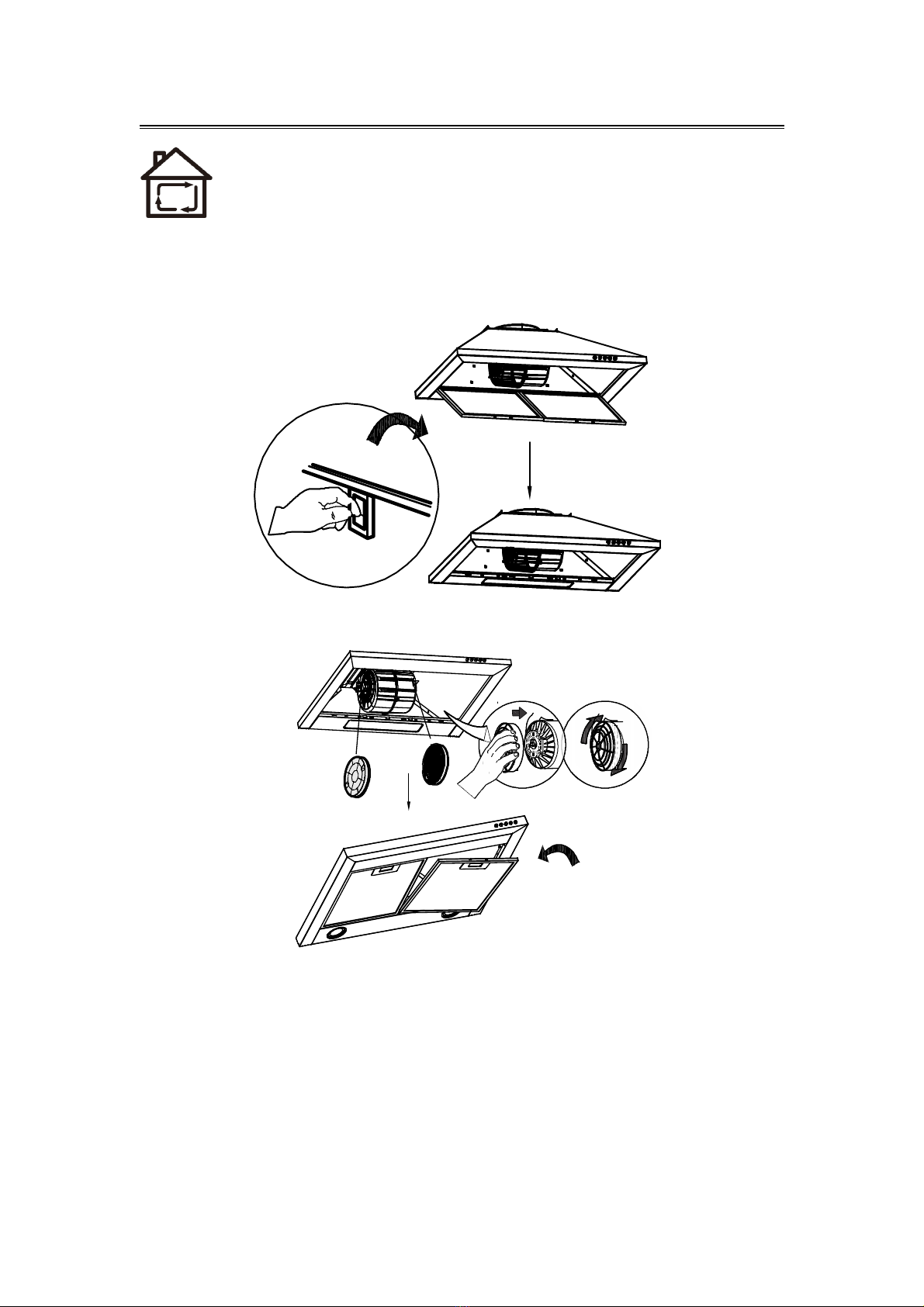

Carbon Filter Installation------------------------------------16
Operation---------------------------------------18-29
Push button-------------------------------------------------18
Touch control--------------------------------------------19-20
Smart life APP -------------------------------------------21-23
Voice control--------------------------------------------24-29
Cleaning and Maintenance---------------------30-32
Grease Filter------------------------------------------------30
Carbon Filter -----------------------------------------------30
Stainless Steel Cleaning ------------------------------------30
Painted Finish Cleaning-------------------------------------30
LED Replacement----------------------------------------31-32
Troubleshooting-----------------------------------33
Environmental Protection -------------------------34

Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
range hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3

Safety
! WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
!CAUTION
For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. off range hood.
Your hood motor has a thermal overload which will automatically
shut off the motor if it becomes overheated. The motor will restart
when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct
air outside — Do not exhaust air into spaces within walls or ceiling or
into attics, crawl space or garage.
When installing, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
Please read specification label on product for further information
and requirements.
4

Specifications
SKU CAS75206P
CAB75206P
CAS75206
CAB75206
CAS75206W
CAB75206W
Voltage 120V/60Hz
Power of Motor 1 x 200W
Power of lamps 2 x 3W 2 x 1.5W 2 x 1.5W
Appliance
Dimension
29.53*19.69*25.28-40.16(inch)
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior notice.
5

Before Using the Cooker Hood
CAUTION: Before proceeding to the installation, check If items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the cooker hood. It is the installer’s
responsibility to comply with installation clearances specified on
the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
Part 1 : Wall Plug X 9
Part 2 : 0.16"*1.18" Screws X 9
Part 3 : 0.16"*0.32" Screws X 6
Part 4 : Aluminum Exhaust Pipe X 1
Part 5 : Cable Ties X 2
Part 6 : Installation Manual X 1
Part 7 : 1:1 Installation Diagram X 1
Part 11 : Cooker Hood Body X 1
Part 12 : Lower Chimney X 1
Part 13 : Upper Chimney X 1
Part 9 : Upper Chimney Bracket X 1
Part 10 : Wall Bracket X 1
Part 8 : Lower Chimney Bracket X 1
COMPONENTS:
6

Prepare for Installation
Prepare for Installation:

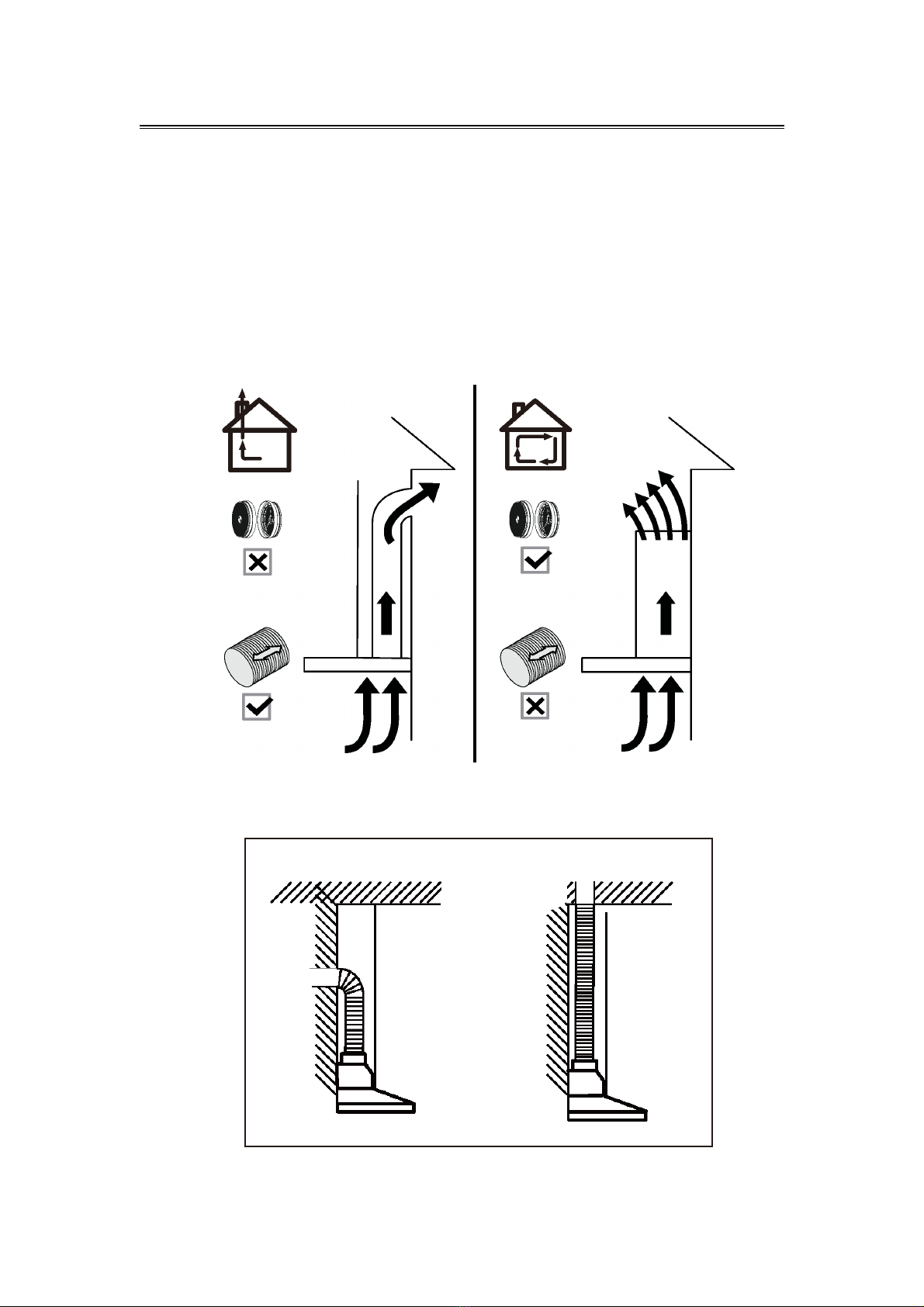

a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top
vented hole and the exhaust pipe is not required.
Extraction Mode: You can install the 59" long and 6" diameter
aluminum exhaust pipe for extracting, which is included in the
installation kit.
b) When possible, use at least 2 foot straight runs before any turns. Larger
duct work may be required for best performance with longer duct runs.
c) Before installation, don't connect the power.
7

Installation
Install the Hood（Extraction）:
1) Remove allprotective polyfilm from the hood and/or parts.
2) Recommend installation height: 25.6"~29.5" above the cooktop
for best extraction.
Required height over gashob:29.5";
Required height over electric hob:25.6".
25.6"
29.5"
8

Installation
3) First use a pencil to mark the installation position on the wall, then
use a Measuring Tape to measure the height from the stove surface
to the hood (the center point of aluminum grease filter) and use a
Spirit Level Ruler to maintain the level, then use a pencil to draw a
horizontal line along the level.
4) Poke the 7 perforated positions on the 1:1 Installation Diagram, then
align the with button line of the hood on the Installation Diagram
with the horizontal line on the wall, then tape the Installation
Diagram to the wall, and use a pencil to mark the perforated
positions on the wall in the corresponding positions.
Spirit Level Ruler
25.6" 29.5"
1:1 Installation Diagram
Tape
COMPONENTS:
Part 7: 1 :1 Installation Diagram X 1
9

Installation
5) Determine the maximum chimney installation height according to
the actual scenario and mark the chimney installation locations
along the center line of the Installation Diagram.
6) Remove the Installation Diagram, drill the holes that have been
marked on the wall with an Electric Drill (8mm drill), and hammer
the Wall Plug into the wall.
Chimney
installation
locations
Wall Plug
COMPONENTS:
Part 1: Wall Plug X 9
10

Installation
7) Use three 0.16"*1.18" Screws tofasten the Wall Bracket on the wall.
8) Remove the aluminum grease filter and hang the hood on the
corresponding hook of the Wall Bracket.
0.16"*1.18" Screws
0.16"*1.18" Screws
COMPONENTS:
Part 2: 0.16"*1.18" Screws X 3
Part 10: Wall Bracket X 1
11

Installation
9) Use a Spirit Level Ruler to measure whether the hood is in a
horizontal level, and use two 0.16"*1.18" Screws tolock into the
safety hole position of the hood (not mandatory, according to user's
wishes to choose whether to lock).
NOTE:
Make sure you remove the tape on the damper and check if the
damper opens and closes freely, otherwise it make noises, and the
cooker hood will be shaking.
10) Tear off the tape from the air outlet.
Spirit Level Ruler
0.16"*1.18" Screws
Tape
COMPONENTS:
Part 2: 0.16"*1.18"Screws X 2
12

Installation
11) Install the Aluminum Exhaust Pipe into the air outlet and lock it with
a Cable Tie; the other end of the Aluminum Exhaust Pipe will be
pulled upward to outdoor and lock it with a Cable Tie (Note: This
step can be ignored if use as recirculation mode with carbon filter).
12) Use two 0.16"*0.32" Screws to fasten the Lower Chimney Bracket on
the Lower Chimney.
Aluminum
Exhaust Pipe
Lower Chimney
Upper Chimney
Lower
Chimney
Bracket
Upper
Chimney
Bracket
Lower Chimney
Bracket
Lower Chimney
0.16"*0.32"
Screws
Cable Tie
COMPONENTS:
Part 4: Aluminum Exhaust Pipe X 1
Part 5: Cable Tie X 1
COMPONENTS:
Part 8: Lower Chimney Bracket X 1
Part 12: Lower Chimney X 1
Part 3: 0.16"*0.32" Screws X 2
6"
13

Installation
13) Insert the Lower Chimney into the hood and fix it to the
corresponding positioning holewith two 0.16"*0.32" Screws. (Note:
That the power cord needs to go through the chimney and connect
the power).
14) Use two 0.16"*1.18" Screws to lock the Lower Chimney Bracket into
the corresponding positioning holes on the wall.
Power Plug
0.16"*0.32" Screws
4*30mm
Screws
COMPONENTS:
Part 3: 0.16"*0.32" Screws X 2
COMPONENTS:
Part 2: 0.16"*1.18" Screws X 2
14

Installation
15) Use two 0.16"*1.18" Screws tolock the Upper Chimney Bracket to the
corresponding positioning holes on the wall.
Upper Chimney
0.16"*1.18"
Screws
16) Put the Upper Chimney into the Lower Chimney, and then pulled
to the height of the Upper Chimney Bracket.
COMPONENTS:
Part 9: Upper Chimney Bracket X 1
Part 2: 0.16"*1.18"Screws X 2
COMPONENTS:
Part 13: Upper Chimney X 1
15

Installation
17) Use two 0.16"*0.32" Screws toassemble the Upper Chimney on the
Upper Chimney Bracket.
0.16"*0.32" Screws
Upper
Chimney
Bracket
18) Turn the LED lights on/off, and test whether the functions are working
properly.
COMPONENTS:
Part 3: 0.16"*0.32" Screws X 2
16

Installation
Carbon Filter Installation（Recirculation）:
1. Carbon filter can be used to trap odors.
In order to install the carbon filter, the grease filter should be
detached first. Press the lock and pull it down.
3. If the carbon filter needs to be replaced, please turn it in the anti-
clockwise direction.
NOTE:
Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood
will be reduced.
The carbon filter should be changed every 3 months depending on
the conditions of use.
2. Place the carbon filter into the unit and turn it in the clockwise
direction to lock it in place.
17

Always turn your hood on before you begin cooking to establish an
air flow in the kitchen.
Operate the hood as follows:
SKU CAS75206P
CAB75206P
CAS75206
CAB75206
CAS75206W
CAB75206W
Control Push Button Touch control Touch+Wifi+App+Voice control
with ALEXA and Google Home
Push button
Off button
It's used to turn off the fan.
Low Speed button
For air ventilation with barely no noise; or simmering with very
little smoke and steam.
Medium Speed button
For your everyday cooking purpose.
High Speed button
High-Speed for stir-fry or cooking with lots of smoke and grease
produced.
Light button
When lights are OFF, press this button once to turn ON the lights. Press
this button again to turn OFF the lights.
Operation
CAS75206P CAB75206P
18
