CIARRA CBCS5913A User manual

Model Number:
CBCS5913A
www.ciarraappliances.com

EN
1
Dear customer:
Thank you so much for your purchase, please read
this instruction manual carefully before installation
& use.
If you have any question, please contact us at:
E-mail: [email protected]
INSTALLATION AND USER'S MANUAL Page
3-18
BENUTZERHANDBUCH&INSTALLATION
SANLEITUNG
Seite
20-37
MANUEL DE L’UTILISATEUR ET
D’INSTALLATION
Page
39-56
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
SVENSKA
POLSKI
INSTALLAZIONE E MANUALE
DELL’UTENTE
Pagina
57
MANUAL DE USUARIO E
INSTRUCCIONES DE INSTALACIÓN
Página
58
INSTALLATIE- EN
GEBRUIKERSHANDLEIDING
Pagina
59
INSTALLATION- OCH
BRUKSANVISNING Sida
60
INSTRUKCJA INSTALACJI I
UŻYTKOWANIA
Strona
61

EN
2
CONTENTS
Safety------------------------------------------- 3-4
Specifications--------------------------------------5
Before Using the Cooker Hood ---------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-12
Install the Hood-------------------------------------------8-11
Carbon Filter Installation------------------------------------12
Operation----------------------------------------- 13
Cleaning and Maintenance --------------------14-16
Grease Filter------------------------------------------------14
Carbon Filter -----------------------------------------------14
Stainless Steel Cleaning ------------------------------------14
Painted Finish Cleaning-------------------------------------14
LED Replacement----------------------------------------15-16
Troubleshooting-----------------------------------17
Environmental Protection -------------------------18

EN
Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug or disconnect the
cooker hood from the power supply.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3

EN
Safety
! WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
!CAUTION
For indoor use only.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials and vapors.
To avoid motor bearing damage and noisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. off cooker hood.
Your hood motor has a thermal overload which will automatically
shut off the motor if it becomes overheated. The motor will restart
when it cools down. If the motor continues to shut off and restart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire and to properly exhaust air, be sure to duct
air outside — Do not exhaust air into spaces within walls or ceiling or
into attics, crawl space or garage.
When installing, servicing or cleaning the unit, it is recommended to
wear safety glasses and gloves.
Please read specification label on product for further information
and requirements.
4

EN

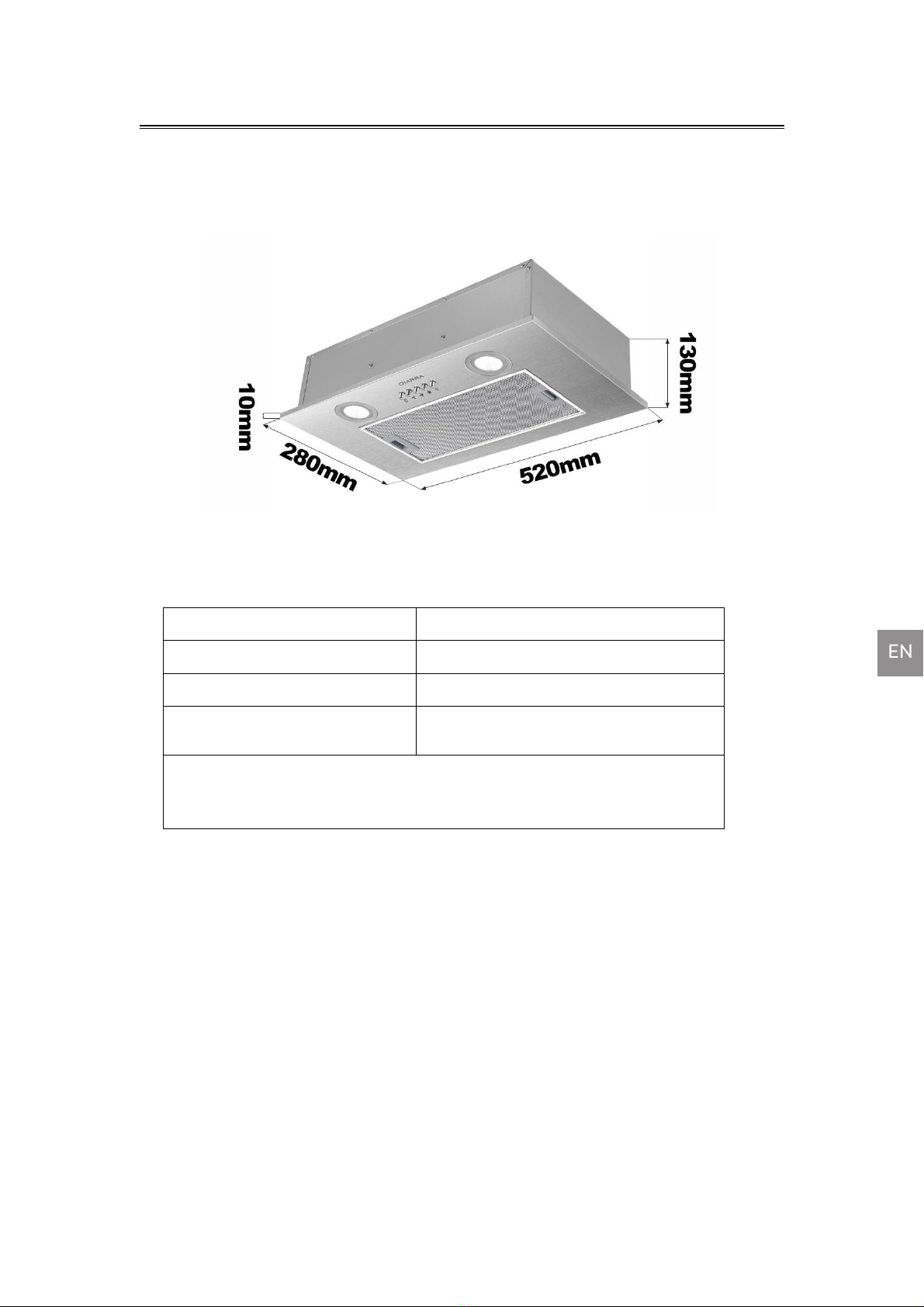

Specifications
Voltage 220V-240V~ 50Hz
Power of Motor 1 x 70W
Power of lamps 2 x 2W
Appliance Dimension
520*280*130mm
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
5

EN
Before Using the Cooker Hood
CAUTION: Before proceeding to the installation, check if items
are missing or damaged, contact the manufacturer.
Observe all governing codes and ordinances. Have a qualified
technician install the cooker hood. It is the installer’s
responsibility to comply with installation clearances specified on
the model/serial rating plate. The manufacturer declines all
responsibility for improper installation and does not accept
responsibility for appliance warranty in the event of damage
caused by incorrect installation.

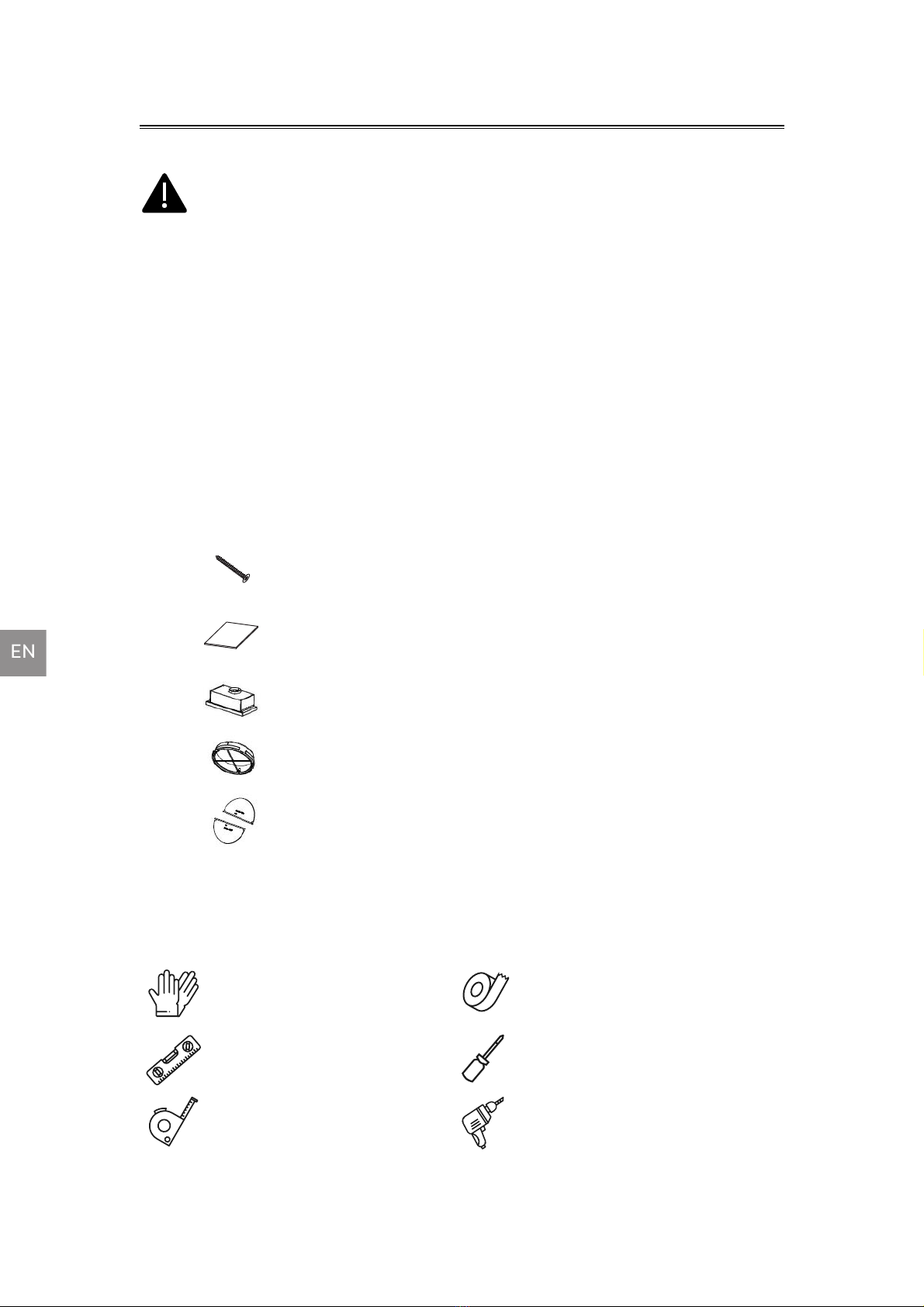

COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
Part 1: 4*20mm Screws X 4
Part 2: Installation Manual X 1
Part 3: Cooker Hood Body X 1
Part 5: Windbreak Blade X 1
Part 4: Outlet X 1
6

EN
Prepare for Installation

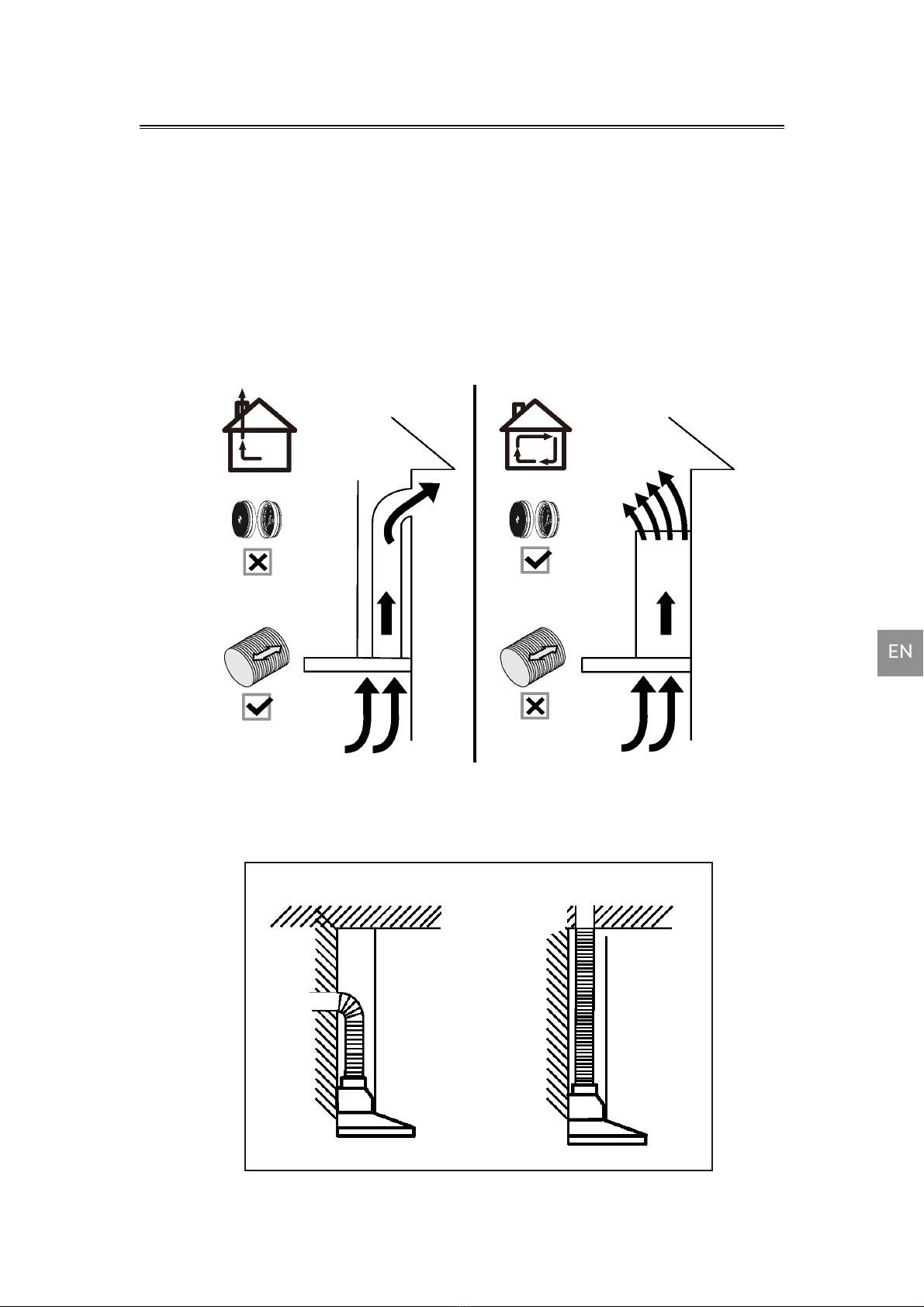

Prepare for Installation:
a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top vented
hole and the exhaust pipe is not required.
Extraction Mode: You can install the 1.5m long and 120mm diameter
aluminum exhaust pipe for extracting, which is included in the
installation kit.
b) When possible, use at least 60cm straight runs before any turns.
Larger duct work may be required for best performance with longer
duct runs.
c) Before installation, don't connect the power.
7

EN
Installation
Install the Hood（Extraction）:
1) Remove all protective poly film from the hood and/or parts.
2) Recommend installation height: 65~75cm above the cooktop for
best extraction.
Required height over gas hob: 750mm;
Required height over electric hob: 650mm.
650mm
750mm
8

EN
Installation

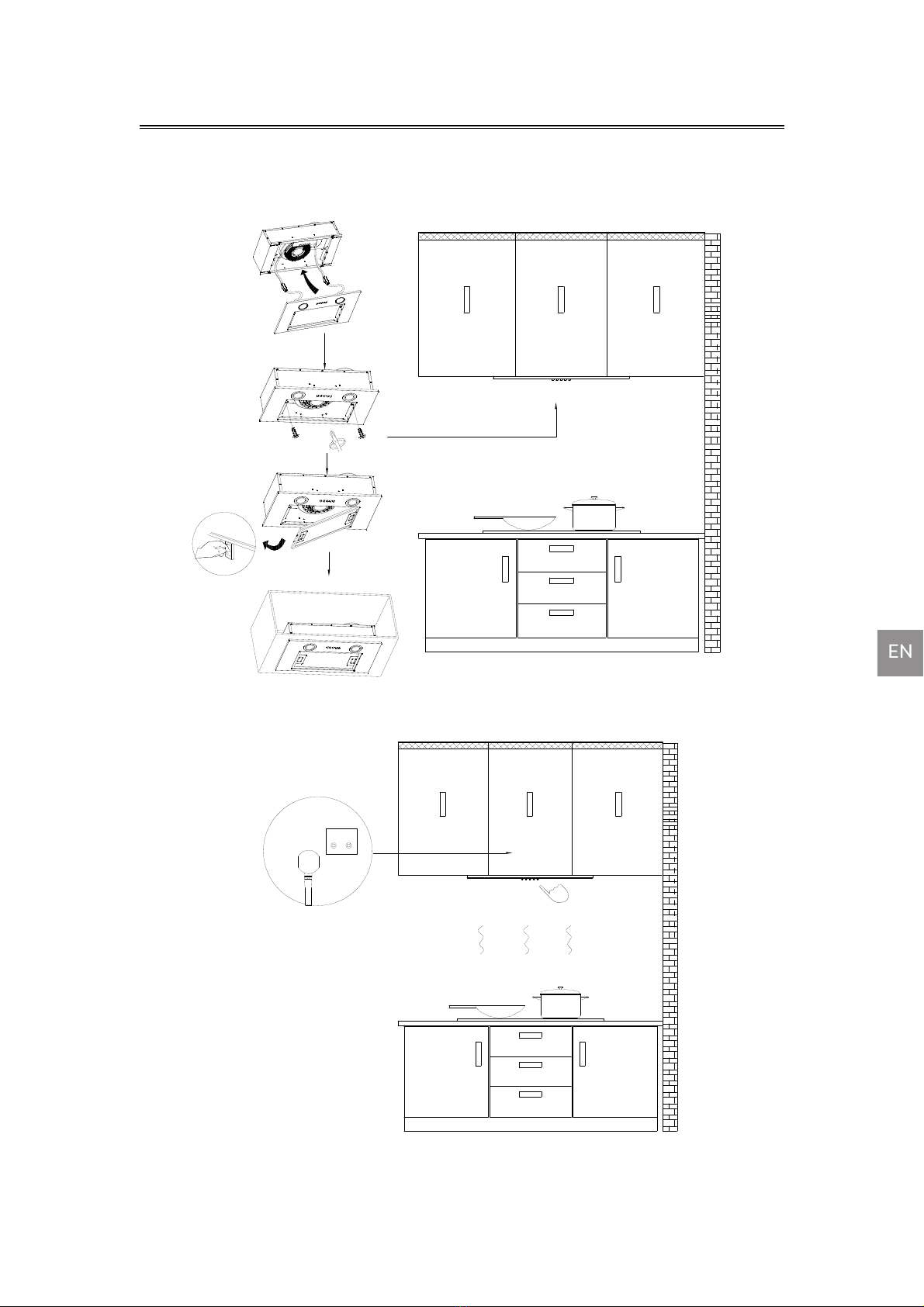

3) Using a drilling tole to open a rectangle hole of 250*490mm on the
cabinet.
4) Put the outlet onto the cooker hood. Press the lock on the left of
the grease filter and pull it downward.
9

EN

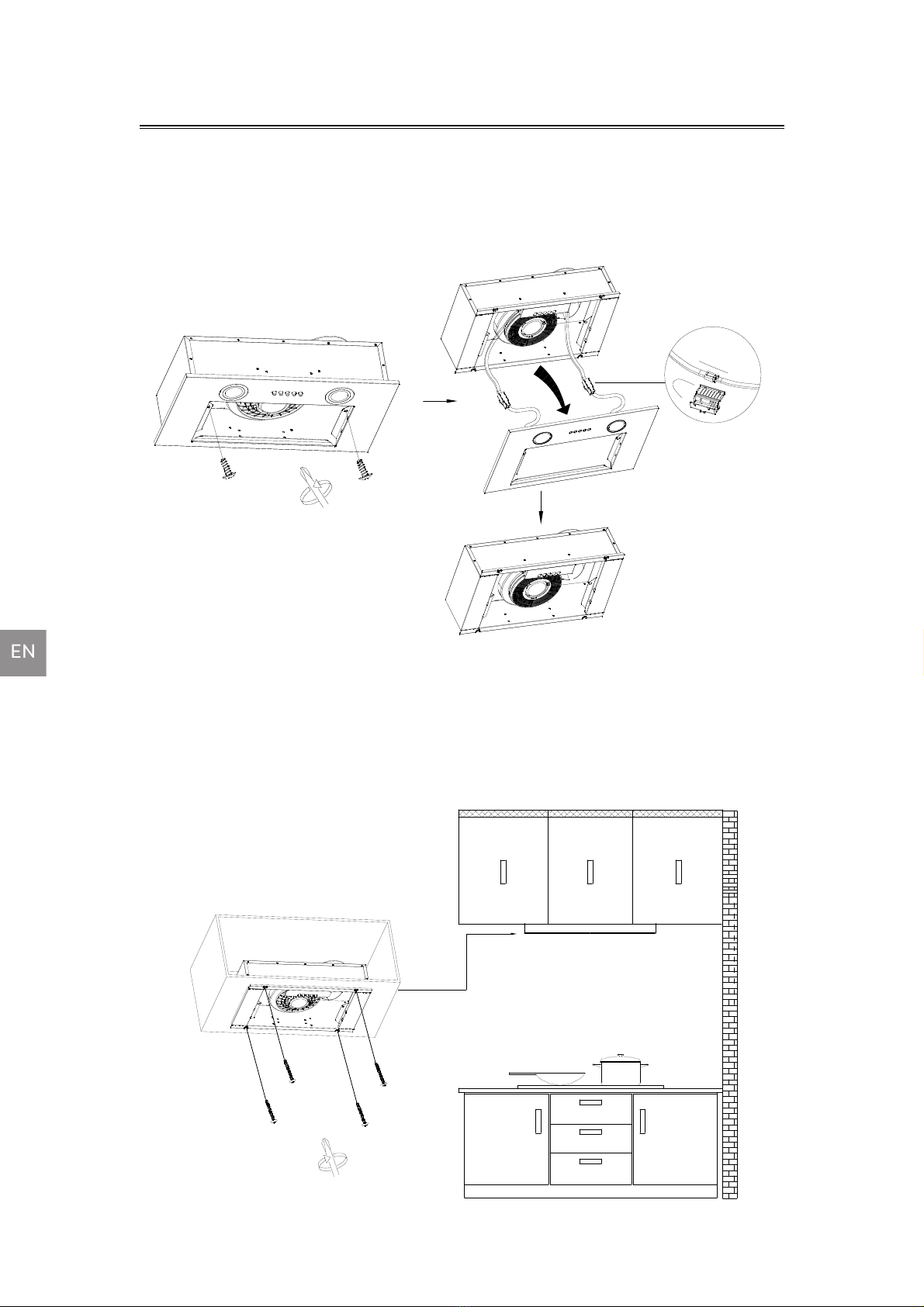

Installation
5) Loosen the two screws of the front panel, pull down the front panel
and pull out the lamp line. Open the power protection cover and
disconnect the plug. Then the front panel could be removed.
6) Put the cooker hood into the rectangle hole of the cabinet. Use four
4 * 30mm screws to lock into the corresponding position of the
pencil marked in the cabinet to fix the cook hood.
10

EN
Installation
7) Insert the plug of LED light into the power protection box and close
the cover. Then install the front panel and drill 2 pieces of setscrews.
Then install the aluminum grease filter back.
8) Connect the power and turn the LED lights on/off in order to test
whether the functions are working properly.
NOTE:
Make sure you remove the tape on the outlet and check if the
damper opens and closes freely, otherwise it make noises, and the
cooker hood will be shaking.
11

EN
Installation
Carbon Filter Installation（Recirculation）:
1. Carbon filter can be used to trap odors.
In order to install the carbon filter, the aluminum grease filter should
be detached first. Press the lock and pull it down.
2. Place the carbon filter into the unit and turn it in the clockwise
direction to lock it in place.
3. If the carbon filter needs to be replaced, please turn it in the
anti-clockwise direction.
NOTE:
Make sure the carbon filter is securely locked.
When the carbon filter is installed, the suction of the cooker hood
will be reduced.
The carbon filter should be changed every 2-4 months depending
on the conditions of use.
12

EN
Operation
13
Always turn your hood on before you begin cooking to establish an
airflow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off
the hood. This will help to keep the entire kitchen clean and fresh.

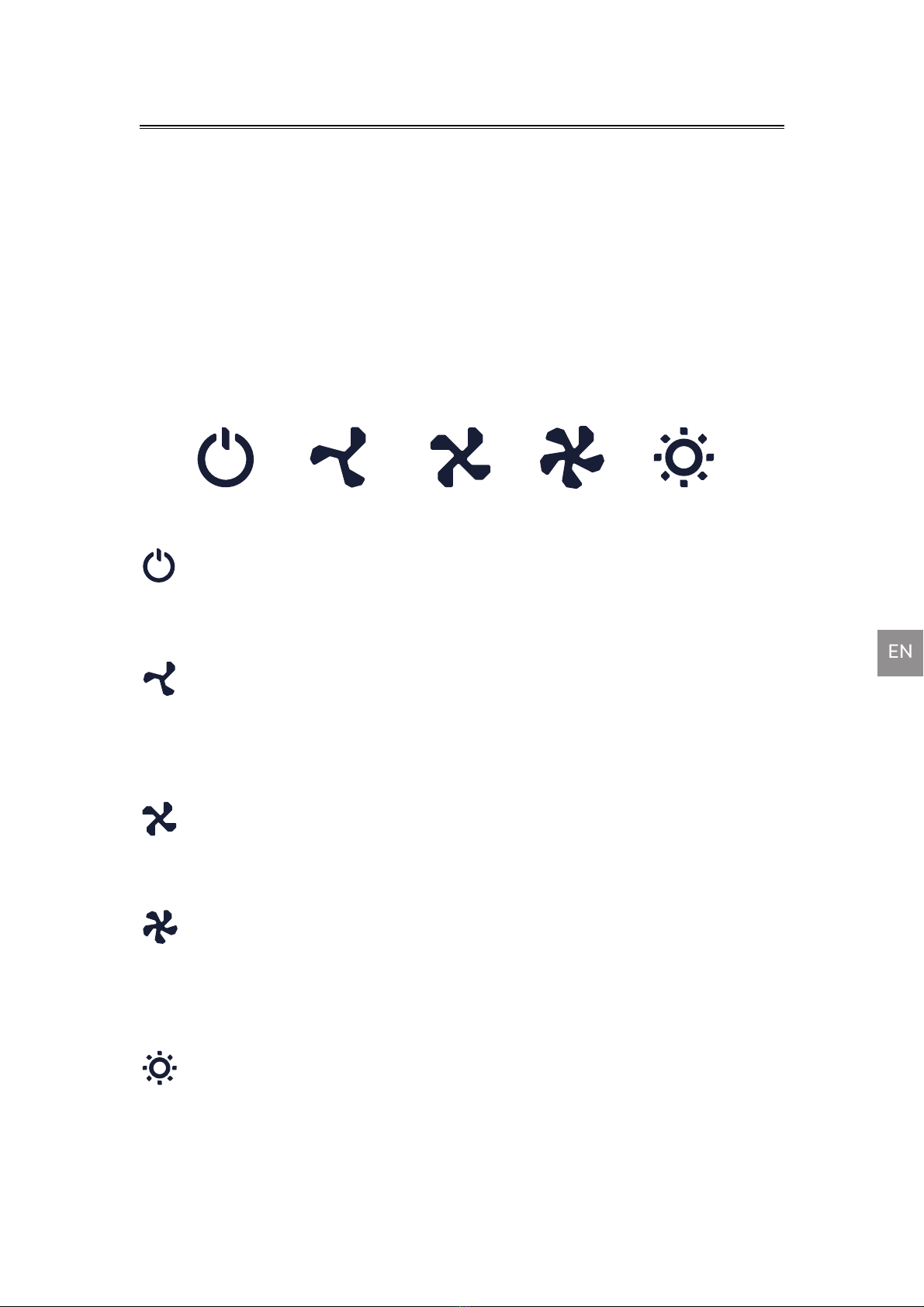

Mechanical Push button
Operate the hood as follows:
Off button
It's used to turn off the fan.
Low Speed button
For air ventilation with barely no noise; or simmering with very little
smoke and steam.
Medium Speed button
For your everyday cooking purpose.
High Speed button
High-Speed for stir-fry or cooking with lots of smoke and grease
produced.
Light button
When lights are OFF, press this button once to turn ON the lights. Press
this button again to turn OFF the lights.

EN
Cleaning and Maintenance
Proper maintenance of the Cooker Hood will assure proper performance
of the unit. Before cleaning unit, unplug or disconnect the cooker hood
from the power supply.
GREASE FILTERS
The grease filters should be cleaned frequently. Can be cleaned in
dishwasher under high temperature without using any detergent.
CARBON FILTER
The carbon filter should be changed every 2-4 months depending on the
conditions of use. Replace more often if your cooking style generates lots
of greases, such as stir frying. These filters are not washable and cannot
be reused. Refer to installation instructions included with a carbon filter.
STAINLESS STEEL CLEANING
Do:
Regularly clean it with a cloth or rag soaked with warm water and
mild soap or liquid dish detergent.
You may also use a specialized household stainless steel cleaner.
Don't:
Use any steel or stainless-steel wool or any other scrapers to remove
stubborn dirt.
Use any harsh or abrasive cleansers.
Let plaster dust or any other construction residues reach the hood.
During construction/ renovation, cover the cooker hood to make sure no
dust sticks to the stainless-steel surface.
Avoid when choosing a detergent:
Any cleaners that contain bleach will attack stainless steel.
Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
Any combustible products used for cleaning such as acetone,
alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration occurs,
use a finish polish such as automotive polish. (DO NOT use a rough
abrasive cleaner or porcelain cleaner.)
14

EN
Cleaning and Maintenance
LED REPLACEMENT
Circular LED lamp:
CAUTION ：
Before cleaning or repairing and replacing accessories, please make
sure to shut down the power before operation, so as to avoid electric
shock, damage to human body and even endanger life safety!
1. Turn off the hood and unplug the power outlet. Detach the
aluminum grease filter in order for you to replace the LED lamp.
2. Push the LED lamp holder out from the cabinet by hand, or use
slotted screwdriver to prize up the LED lamp around the edges, pull
out the LED lamp and the wire together.
15

EN
Cleaning and Maintenance
3. Open the power protection cover, pull out the plug and replace the
corresponding model of the LED lamp.
4. Turn the power on and test all blower and light functions to ensure
they are operating properly.
Insert the new LED light gently into the light socket, please make
sure you aim at the grooves on the lighting panel when installing.
Push the LED light in until it is flushed with the light panel.
5. Put the grease filter back on, you are good to go.
PULL OUT
OPEN
16

EN
Troubleshooting
17
If problem persists after the above checks, please contact CIARRA
Customer Care Centre for assistance.
Problem Possible Cause Solution
Extractor
hood does
not turn on
No electrical supply
Make sure that range hood
is plugged into powered
outlet. Test outlet with other
device if not working
My range
hood has
poor
performance
Inadequate ventilation
Ensure that the kitchen is
sufficiently ventilated to
allow entry of fresh air
The range hood and
cooktop are too far
away from each other
Optimal distance is
65~75cm above the cooktop
for best extraction
Check and make sure
the tape holding down
the damper flaps at the
vent hole are removed
before use
Remove the tape holding
down the damper
Grease filters clogged
with grease build-up
Clean the grease filters or
replace the grease filters
Carbon filters clogged
with grease build-up Replace new carbon filters
Motor is running but no
extraction
Please contact CIARRA
Customer Care Service
My range
hood is noisy
Check inside the range
hood for any loose
debris and remove Please contact CIARRA
Customer Care Service
If the noise is from the
motor, please contact
our Customer Care
Service
Lights are
not working
Light is damaged
Replace with new LED lamp;
remove grease filters, reach
inside behind the control
panel and locate the wire
with clip behind the light
housing.
The light wire terminal is
loose Reset the connection

EN
Environmental Protection
Waste electrical products should not be disposed with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
18
