CIARRA CBCB6906D User manual

Model Number:
CBCS6906D
CBCB6906D
www.ciarraappliances.com

EN
1
Dear customer:
Thank you so much for your purchase, please read
this instruction manual carefully before installation
& use.
If you have any question, please contact us at:
E-mail: [email protected]
INSTALLATION AND USER'S MANUAL Page
3-22
BENUTZERHANDBUCH&INSTALLATION
SANLEITUNG
Seite
24-45
MANUEL DE L’UTILISATEUR ET
D’INSTALLATION
Page
47-68
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
SVENSKA
POLSKI
INSTALLAZIONE E MANUALE
DELL’UTENTE
Pagina
69
MANUAL DE USUARIO E
INSTRUCCIONES DE INSTALACIÓN
Página
70
INSTALLATIE- EN
GEBRUIKERSHANDLEIDING
Pagina
71
INSTALLATION- OCH
BRUKSANVISNING Sida
72
INSTRUKCJA INSTALACJI I
UŻYTKOWANIA
Strona
73

EN
CONTENTS
Safety--------------------------------------------3-4
Specifications--------------------------------------5
Before Using the Cooker Hood ---------------------6
Prepare for Installation ----------------------------7
Installation--------------------------------------8-16
Install the Hood-------------------------------------------8-14
Carbon Filter Installation---------------------------------15-16
Operation------------------------------------------17
Cleaning and Maintenance---------------------18-20
Grease Filter------------------------------------------------18
Carbon Filter------------------------------------------------18
Stainless Steel Cleaning-------------------------------------18
Painted Finish Cleaning-------------------------------------18
LED Replacement----------------------------------------19-20
Troubleshooting-----------------------------------21
Environmental Protection -------------------------22
2

EN
Safety
!WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
Use this unit only in the manner intended by the
manufacturer. Ifyou have questions, contact the
manufacturer at the address or telephone number listed in
the warranty.
Before servicing or cleaning unit, unplug ordisconnect the
cooker hood from the power supply.
This appliance isnot intended for useby persons (including
children) with reduced physical, sensory ormental
capabilities, or lack of experience andknowledge, unless
they havebeen given supervision orinstruction concerning
use of the appliance bya person responsible for their safety.
Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting.
When cutting or drilling into a wall or ceiling, do not damage
electrical wiring and other hidden utilities.
Ducted fans must always be vented to the outdoors.
Ensure the requirements of the local authorities are adhered
to concerning the discharge of exhaust air.
This unit must be grounded.
When applicable local regulations comprise more restrictive
installation and/or certification requirements, the
aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
Clean cooker hood frequently. Grease should not be allowed
to accumulate on fans, filters or in exhaust ducts.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
3

EN
Safety
! WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT
OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. IF THE FLAMES DO NOT GO OUT
IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
a) You own a Class ABC extinguisher and you know how to
operate it.
b) The fire is small and contained in the area where it
started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
!CAUTION
For indoor useonly.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials andvapors.
To avoid motor bearing damage andnoisy and/or unbalanced fan
blade, keep drywall spray, construction dust, etc. offcooker hood.
Yourhood motor has a thermal overload which will automatically
shut offthe motor ifitbecomes overheated. The motor will restart
when itcools down. Ifthe motor continues to shut offandrestart,
have the hood serviced.
Always follows the cooking equipment manufacturer’s requirements
regarding the ventilation needs.
To reduce the risk of fire andto properly exhaust air, besure toduct
air outside — Do not exhaust airinto spaces within walls or ceiling or
into attics, crawl space orgarage.
When installing, servicing or cleaning the unit, itisrecommended to
wear safety glasses andgloves.
Please read specification label on product for further information
and requirements.
4

EN
Specifications
Voltage 220V-240V~ 50Hz
Power of Motor 1 x 70W
Power of lamps 1 x 1W
Appliance Dimension 599*298~453*200mm
(W x D x H)
Note: The manufacturer reserves the right to change any
technological improvement or modification without prior
notice.
55

EN
Before Using the Cooker Hood
CAUTION: Before proceeding to the installation, check ifitems
are missing or damaged, contact the manufacturer.
Observe allgoverning codes andordinances. Have a qualified
technician install the cooker hood. Itisthe installer’s
responsibility to comply with installation clearances specified on
the model/serial rating plate. The manufacturer declines all
responsibility for improper installation anddoes not accept
responsibility for appliance warranty inthe event of damage
caused byincorrect installation.

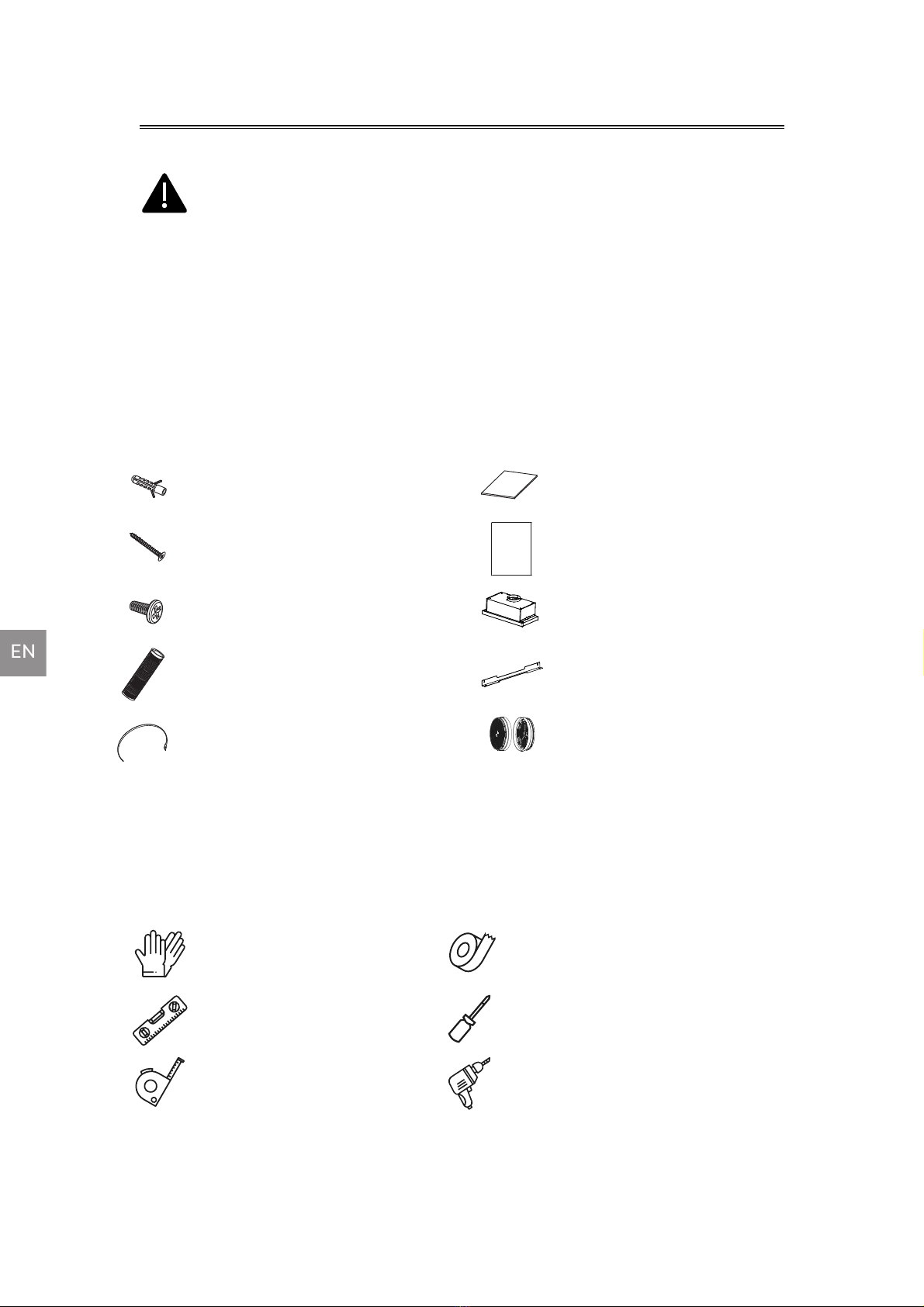

COMPONENTS:
YOU WILL BE NEEDING THESE TOOLS FOR INSTALLATION
1.Protective Gloves
2.Spirit Level Ruler
3.Measuring Tape
4.Double Sided Tape or Tape
5.Cross-Head Screwdriver Set
6.Electric drill and 8mm drill
Part 1 : Wall Plug X 4
Part 2 : 4*30mm Screws X 6
Part 3 : 4*8mm Screws X 2
Part 4 : Aluminum Exhaust Pipe X 1
Part 5 : Cable Ties X 2
Part 6 : Installtion Manual X 1
Part 7 : 1:1 Installation Diagram X 1
Part 8 : Cooker Hood Body X 1
Part 10 : Carbon Filter X 2
Part 9: Back Bracket X 1
(CBCF002×2)
6

EN

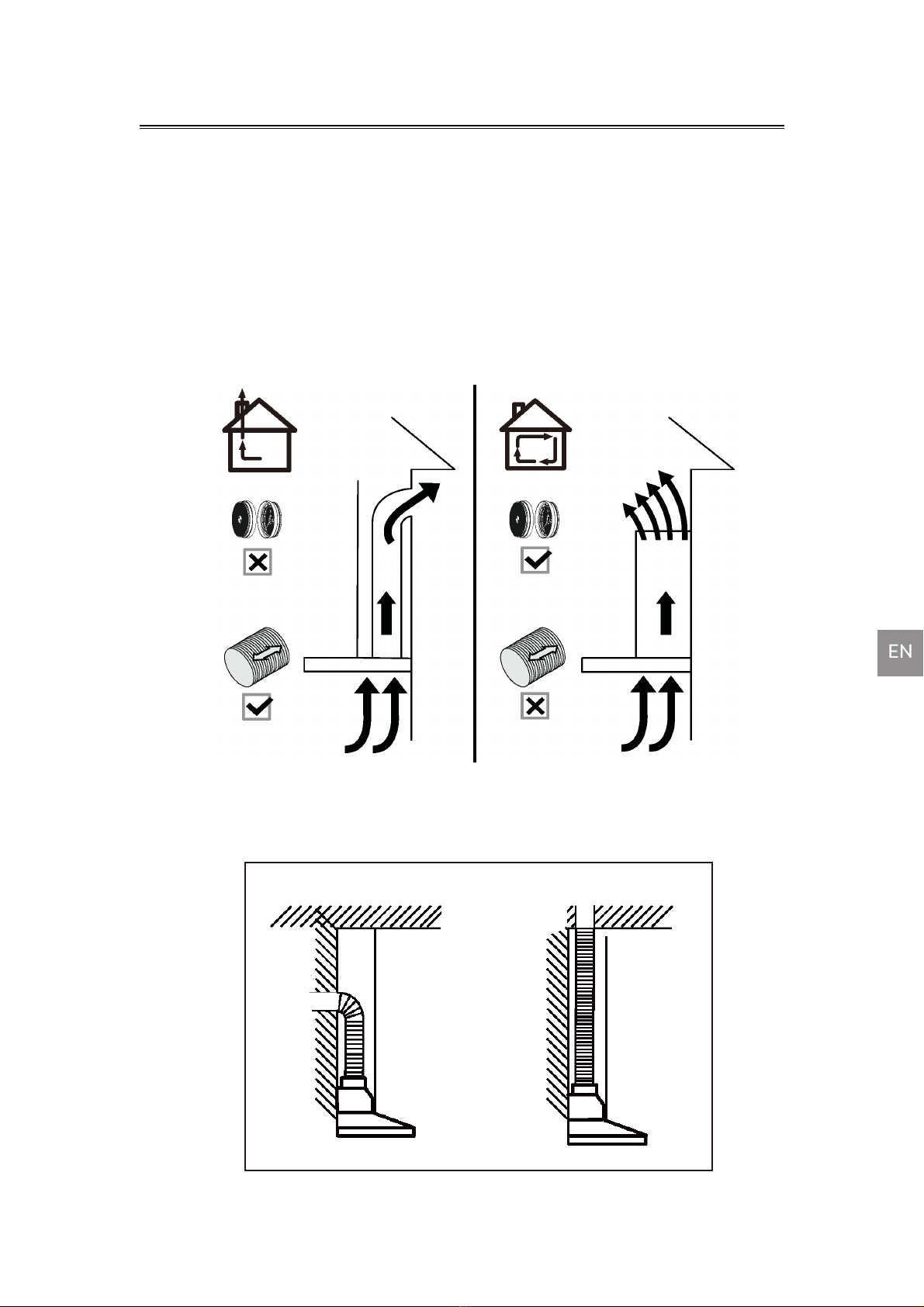

Prepare for Installation
Prepare for Installation:
a) Ventilation Mode
Recirculation Mode: Recirculating with carbon filter (required), the
smells and odors can be filtered and vented through the top vented
hole and the exhaust pipe is not required.
Extraction Mode: You can install the 1.5m long and 150mm diameter
aluminum exhaust pipe for extracting, which is included in the
installation kit.
b) When possible, use at least 60cm straight runs before any turns.
Larger duct work may be required for best performance with longer
duct runs.
c) Before installation, don't connect the power.
7

EN
Installation

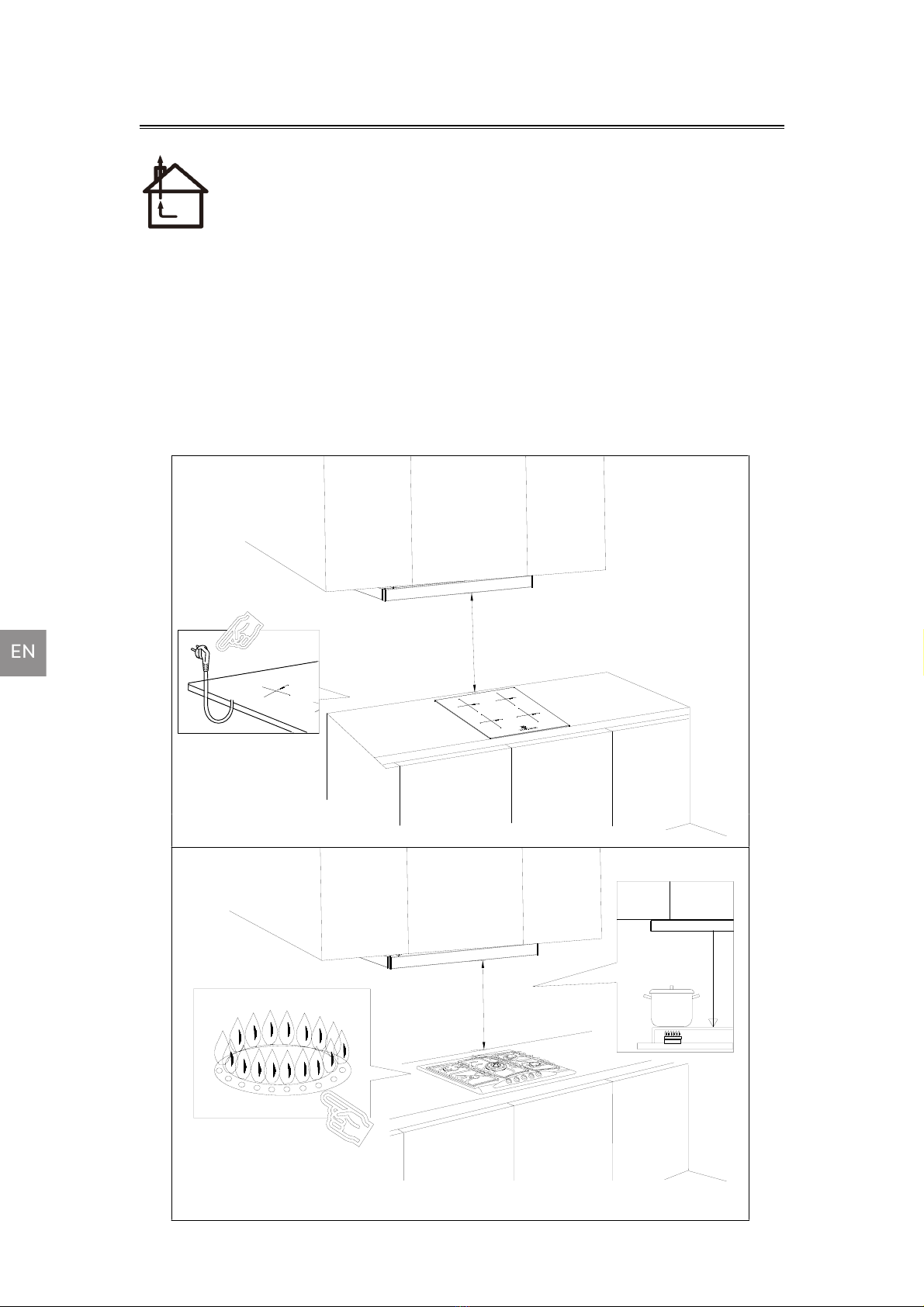

Install the Hood（Extraction）:
1. Remove all protective poly film from the hood and/or parts.
2. Recommend installation height: 65~75cm above the cooktop for
best extraction.
Required height over gas hob: 750mm;
Required height over electric hob: 650mm.
650mm
750mm
8

EN
Installation

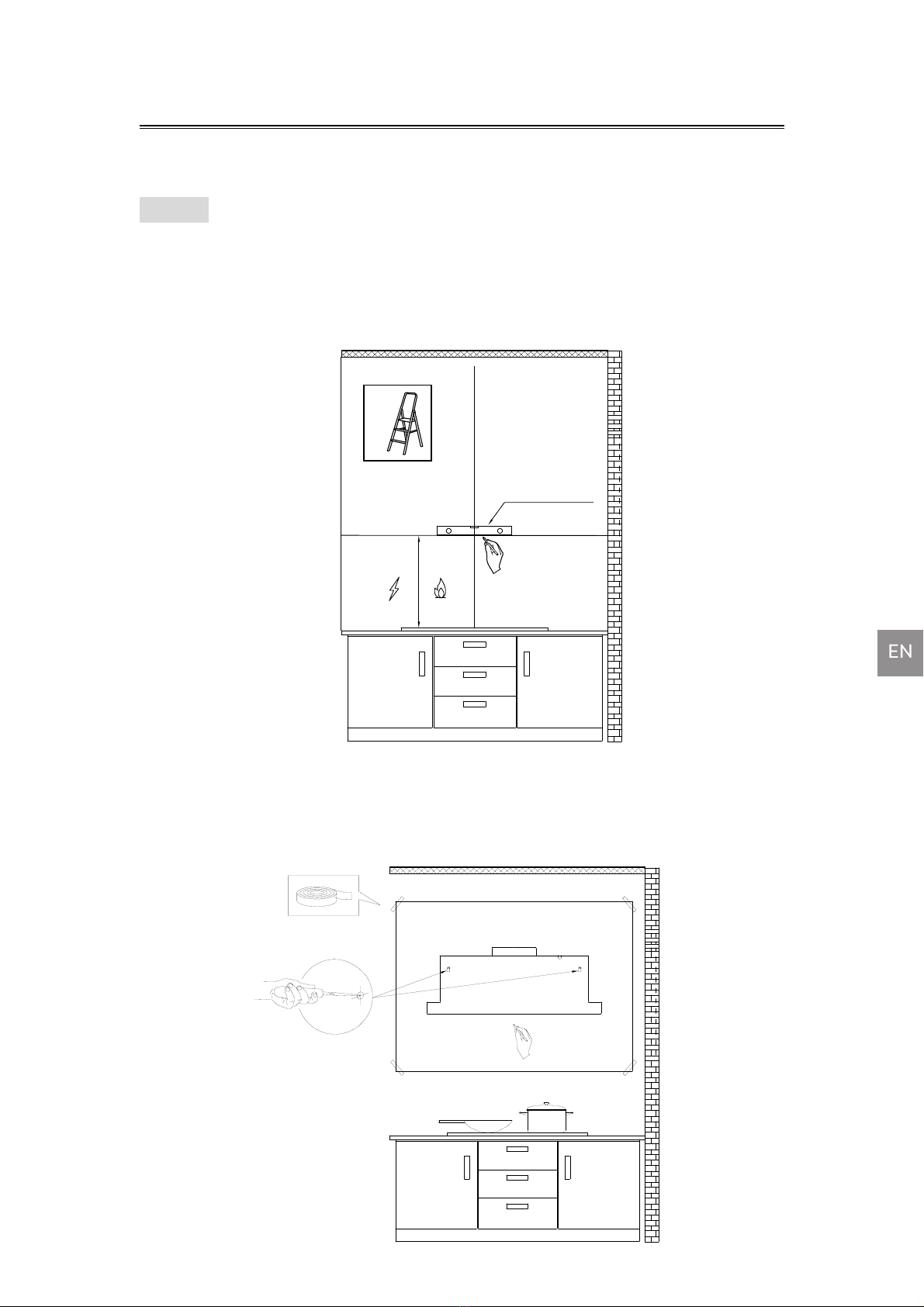

3. This product can be installed in two different ways. If the cooker
hood is installed on the wall, please follow Way 1.
Way 1:
1) First use a pencil to mark the installation position on the wall,
then use a Measuring Tape to measure the height from the stove
surface to the hood (the center point of aluminum grease filter) and use
a Spirit Level Ruler to maintain the level, then use a pencil to draw a
horizontal line along the level.
2) Poke the 2 perforated positions on the 1:1 Installation Diagram,
then align with the button line of the hood on the Installation Diagram
with the horizontal line on the wall, then tape the Installation Diagram
to the wall, andusea pencil to mark the perforated positions on the
wall inthe corresponding positions.
Spirit Level Ruler
650mm 750mm
9

EN
Installation

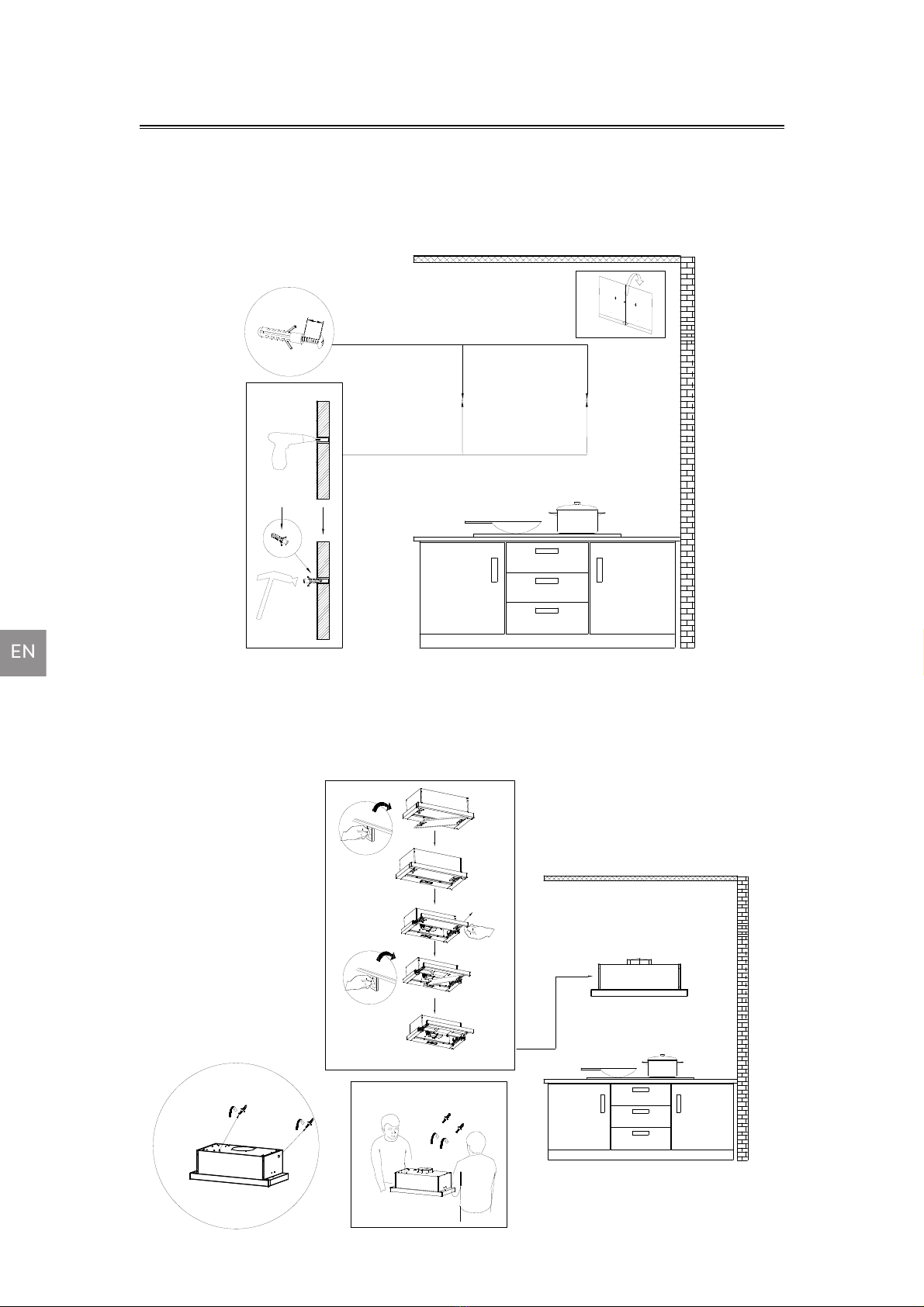

3) Remove the Installation Diagram, drill the holes that have been
marked on the wall with an Electric Drill (8mm drill), and hammer the
Wall Plug into the wall. Insert the two wall plugs with 4 * 30mm screws,
do not lock too tight them first, and leave a gap of no less than
5~10mm;
4) Press the lock on the left of the grease filter and pull it downward.
Pull out the slide and detach the other grease filter.Then put the cooker
hood onto the two screws and lock the screws tight.
5mm
wall plug
10

EN
Installation

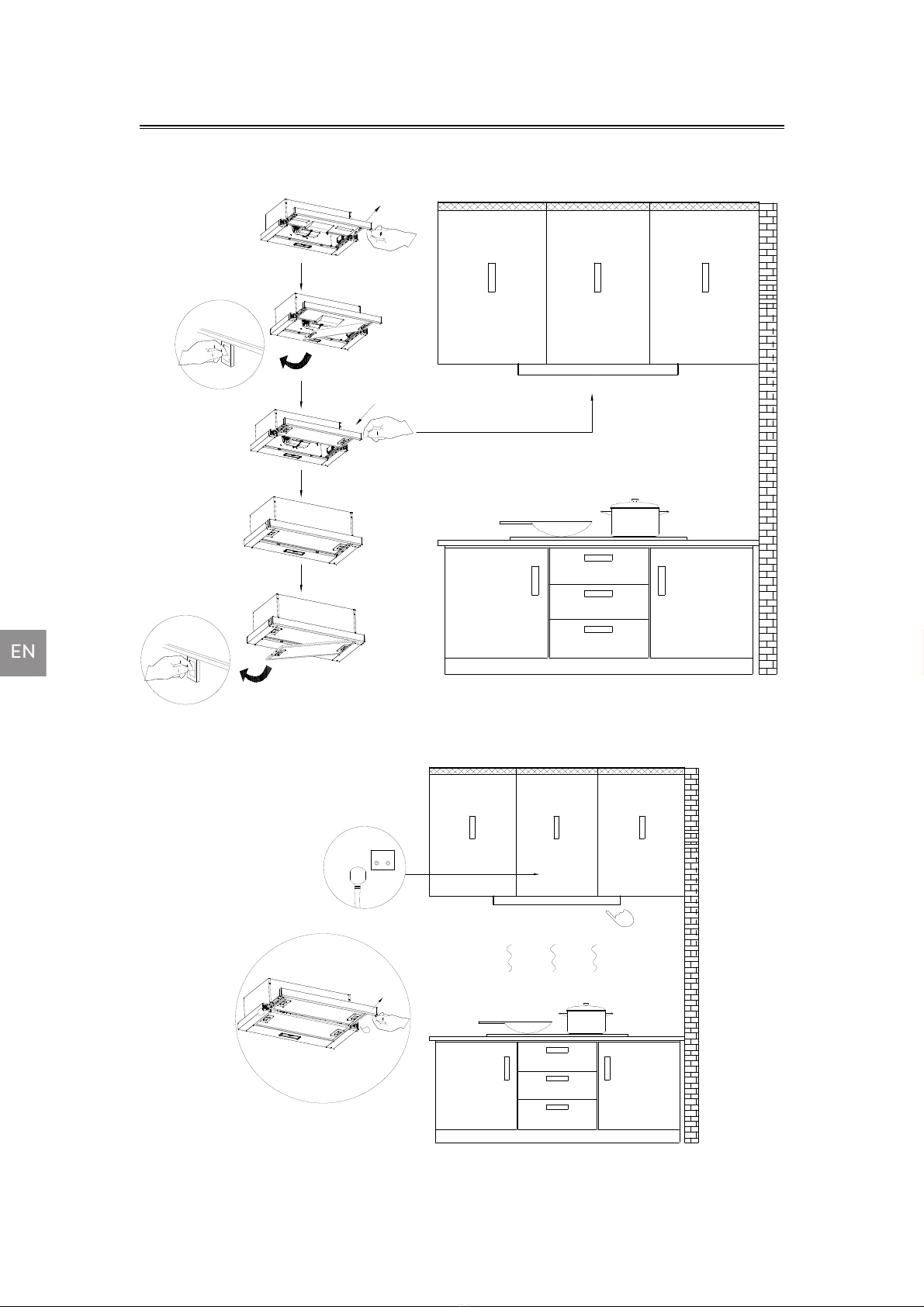

5) Pull out the slide and install the grease filter back on the slide,
then push it into the cooker hood and install the other grease filter.
6) Connect the power and pull out the slide. Then turn the LED
lights on/off to test whether the functions are working properly.
11

EN
Installation

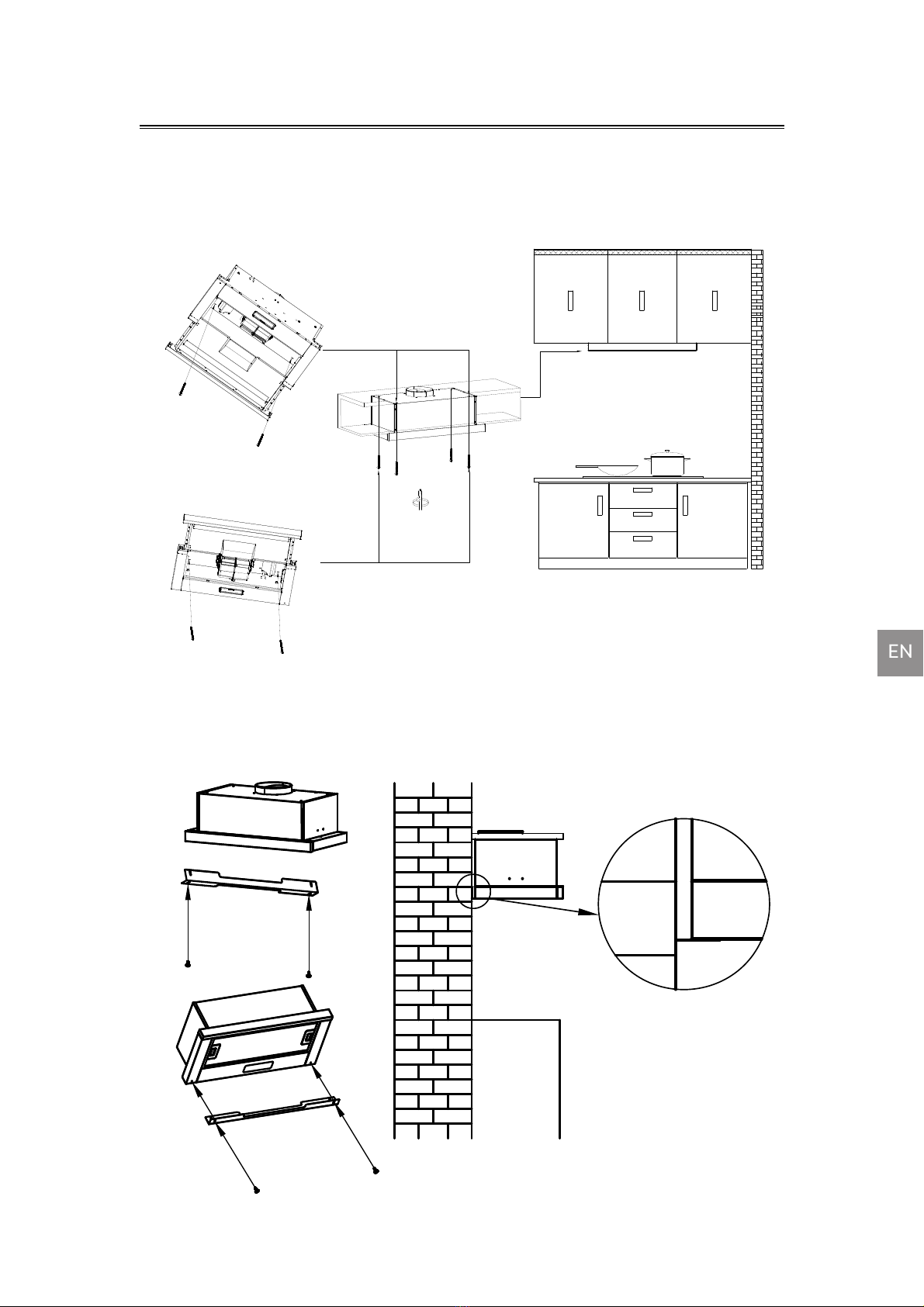

4. If the cooker hood is installed at the bottom of the cabinet, please
follow Way 2 below.
Way 2:
1) Use the drilling tool to open a 165mm diameter air pipe hole and
a power cord hole at the bottom of the cabinet according to the
installation diagram.
2) Press the lock on the left of the grease filter and pull it downward.
Pull out the slide and detach the other grease filter.Then put the cooker
hood under the cabinet.
∅165mm
12

EN
Installation
3) Align the air ventilation port of the cook hood with the cabinet
ventilation hole at the bottom, pass the power cord through the power
hole, and then use four 4 * 30mm screws to lock into the corresponding
position of the cabinet to fix the cook hood.
4) If there is a gap between the hood and the wall, you can install
the Back Bracket, as shown in the figure, use two 4*8 screws to fix the
back Bracket on the hood, and adjust the position of the back Bracket
to the wall according to the actual situation.
13

EN
Installation
5) Pull out the slide and install the grease filter back on the slide,
then push it into the cooker hood and install the other grease filter.
6) Connect the power and pull out the slide. Then turn the LED
lights on/off to test whether the functions are working properly.
NOTE:
Make sure you remove the tape on the damper and check if the
damper opens and closes freely, otherwise it make noises, and the
cooker hood will be shaking.
14

EN
Installation

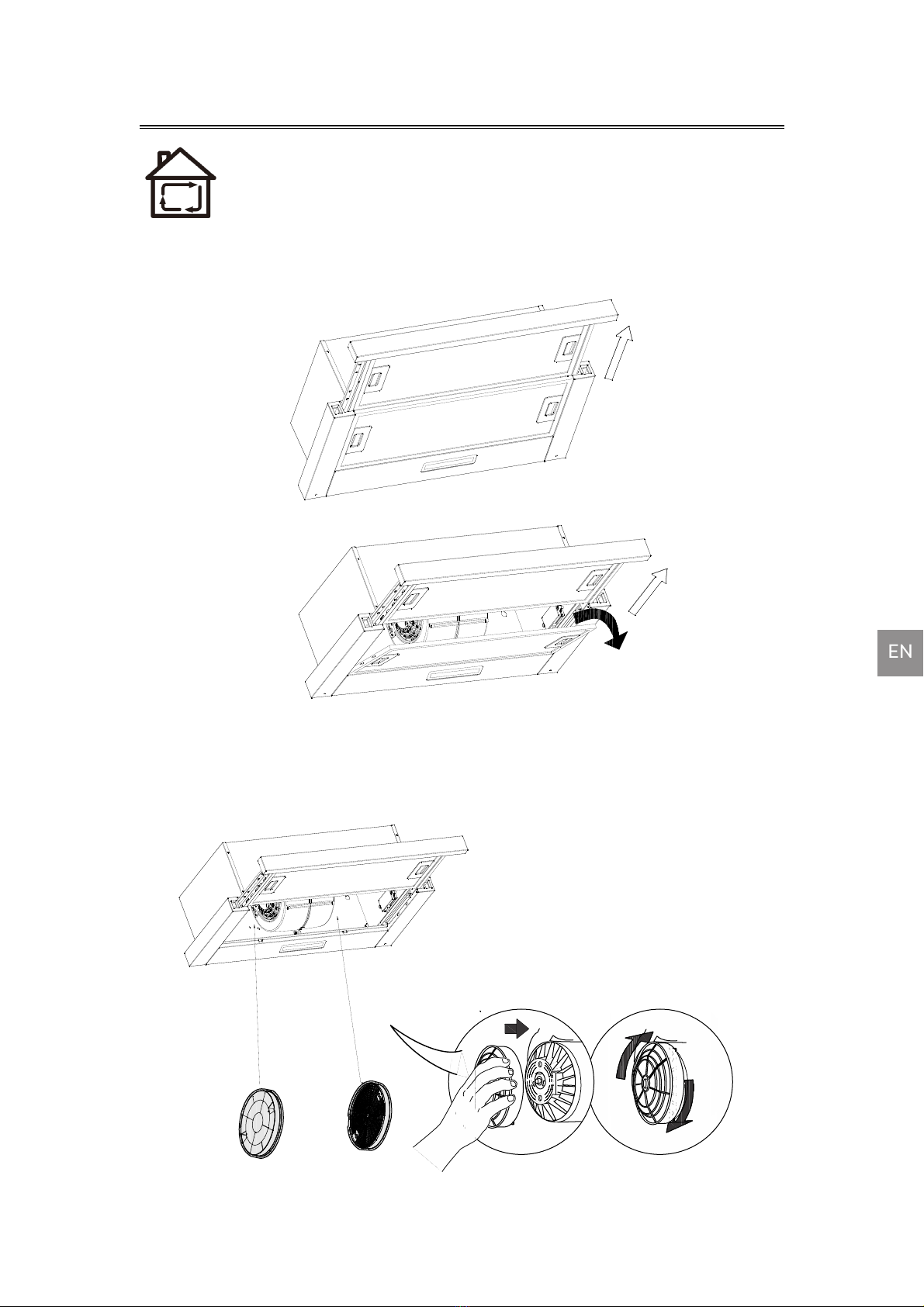

Carbon Filter Installation（Recirculation）:
1. Carbon filter can be used to trap odors.In order to install the carbon
filter, the grease filter should be detached first. Pull out the slide and
remove the grease filter.
2. Plug the activated carbon filter into the unit and turn it in clockwise
direction. Repeat the same on the other side. If replacement, please
turn it in anti-clockwise direction.
15

EN
Installation
3. Install the grease filter back and push the slide back in the cooker
hood.
NOTE:
Make sure the carbon filter issecurely locked.
When the carbon filter isinstalled, the suction of the cooker hood
will be reduced.
The carbon filter should bechanged every 2-4 months depending
on the conditions of use.
16

EN
Operation
Always turn your hood on before you begin cooking to establish an
airflow in the kitchen.
Let the blower run for a few minutes to clear the air after you turn off
the hood. This will help to keep the entire kitchen clean and fresh.

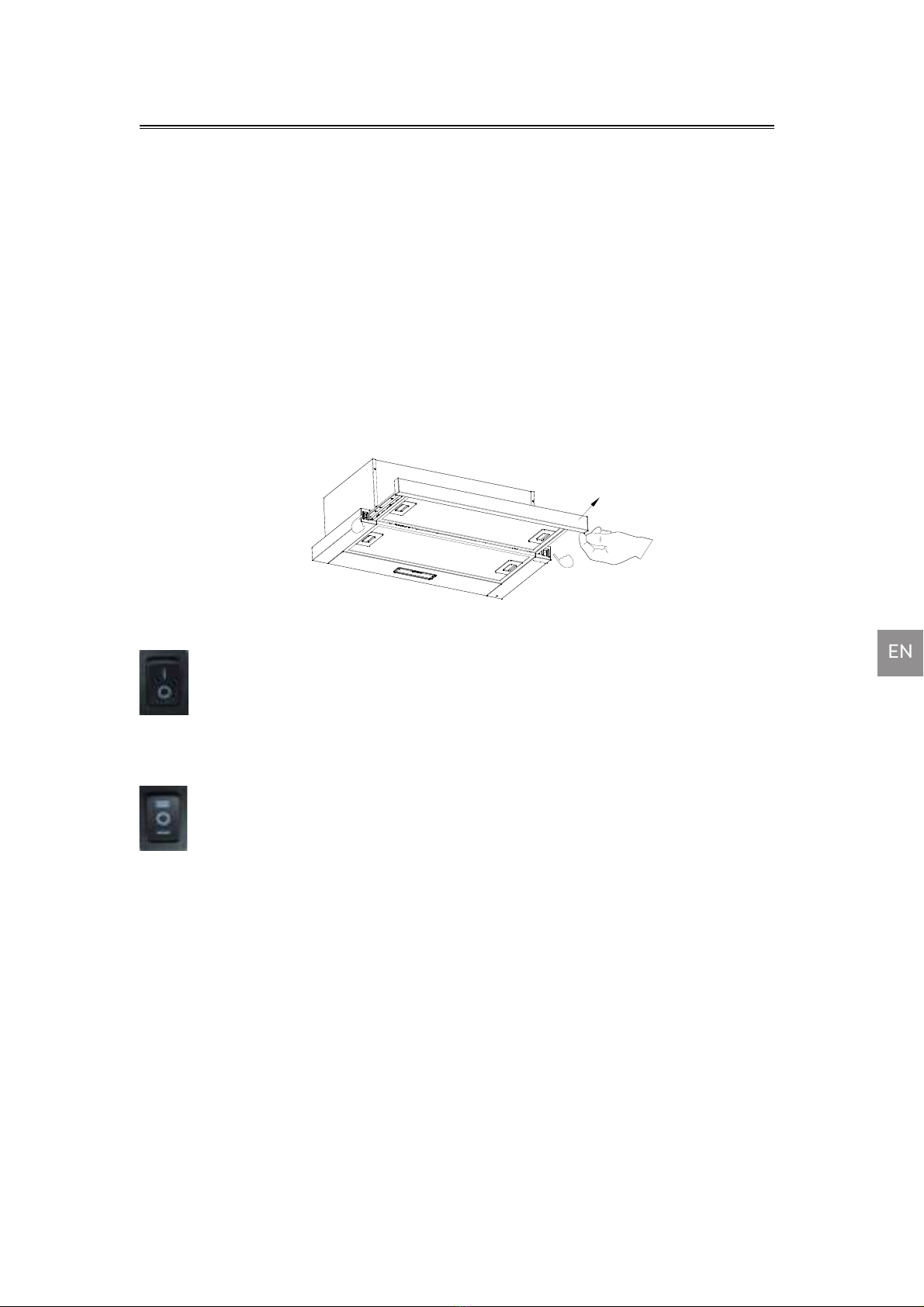

Mechanical Rocker button
Operate the hood as follows:
It just appear in TELESCOPIC MODEL. You need to pull out the slide
before usage.
Light button
On the left side of hood.
Speed button
On the right side of hood.
“=”: high speed level.
“－”: Low speed level.
“o”: Off
17

EN
Cleaning and Maintenance
Proper maintenance of theCooker Hood will assure proper performance
of the unit. Before cleaning unit, unplug or disconnect the cooker hood
from the power supply.
GREASE FILTERS
The grease filters should be cleaned frequently. Can be cleaned in
dishwasher under high temperature without using any detergent.
CARBON FILTER
The carbon filter should bechanged every 2-4 months depending on the
conditions of use. Replace more often ifyour cooking style generates lots
of greases, such as stir frying.These filters arenot washable andcannot
be reused. Refer to installation instructions included with a carbon filter.
STAINLESS STEEL CLEANING
Do:
Regularly clean it with a cloth or rag soaked with warm water and
mild soap or liquid dish detergent.
You may also use a specialized household stainless steel cleaner.
Don't:
Use anysteel orstainless-steel wool or anyother scrapers to remove
stubborn dirt.
Use anyharsh or abrasive cleansers.
Let plaster dust or anyother construction residues reach the hood.
During construction/ renovation, cover the cooker hood to make sure no
dust sticks to the stainless-steel surface.
Avoid when choosing a detergent:
Any cleaners that contain bleach will attack stainless steel.
Any products containing: chloride, fluoride, iodide, bromide will
deteriorate surfaces rapidly.
Any combustible products used for cleaning such as acetone,
alcohol, ether, benzol, etc., are highly explosive and should never
be used close to a range.
PAINTED FINISH CLEANING:
Clean with warm water and mild detergent only. If discoloration occurs,
use a finish polish such as automotive polish. (DO NOT use a rough
abrasive cleaner or porcelain cleaner.)
18
