CIDOO V75 Pro User manual
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:

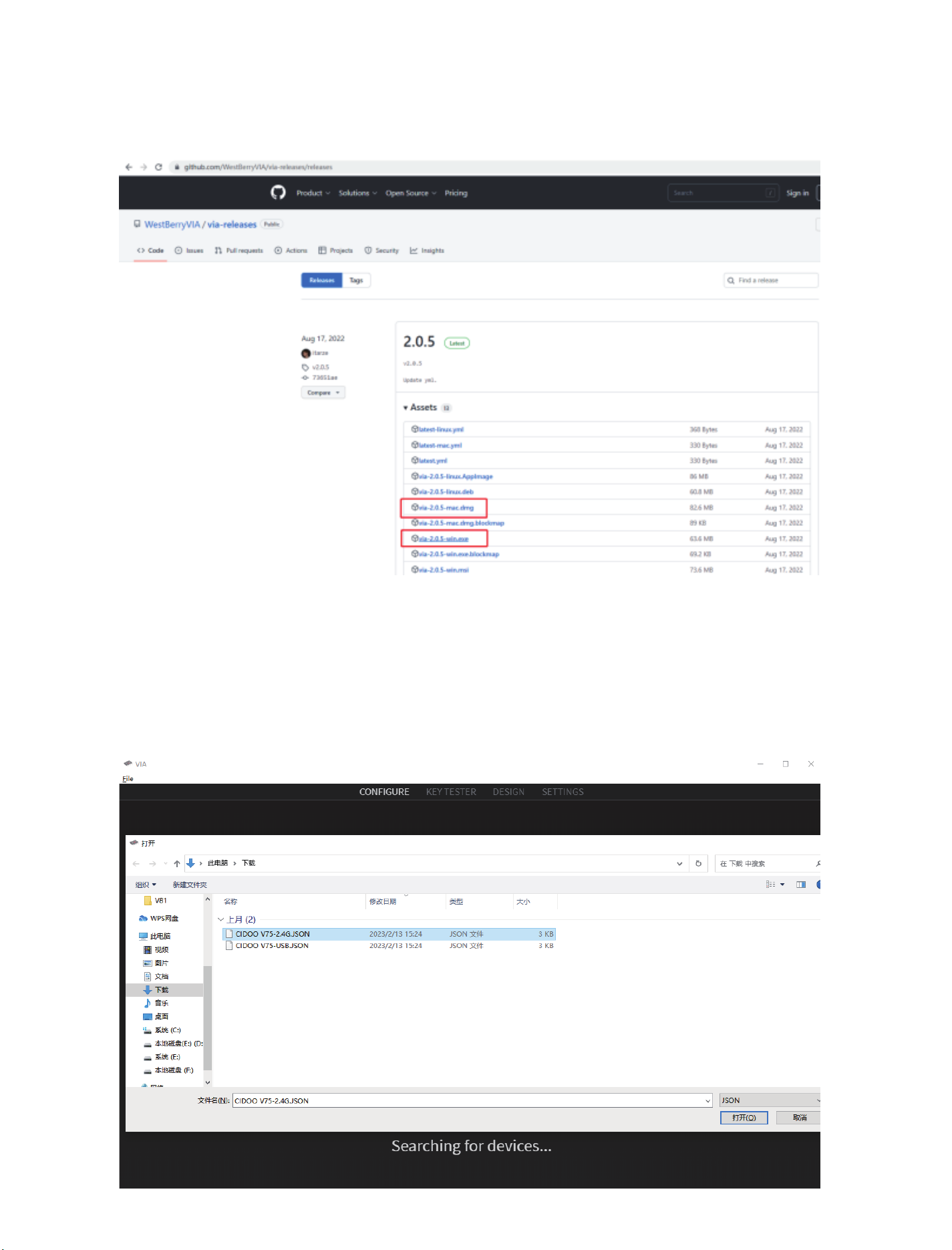

1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom

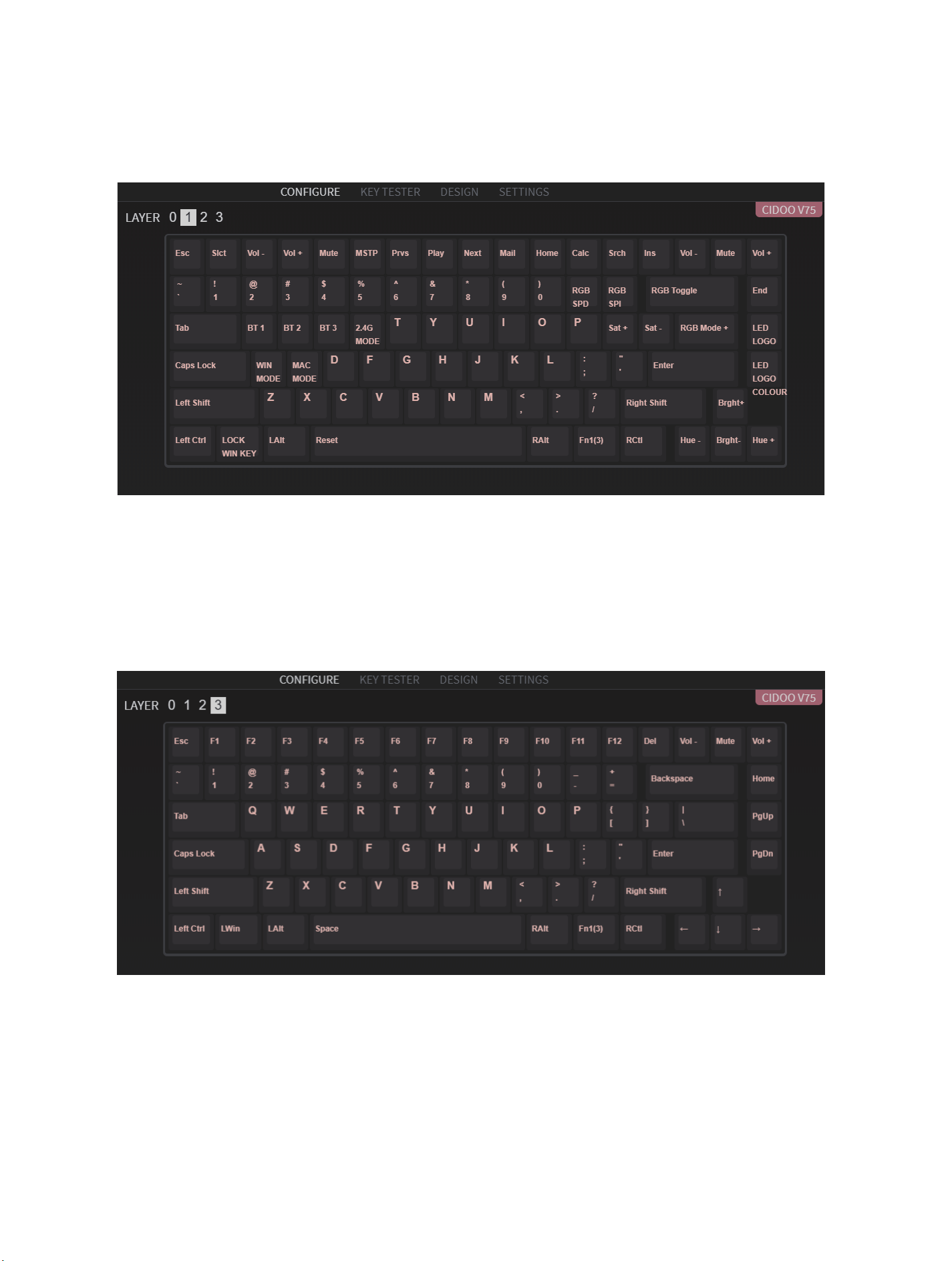

CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
欢迎您选购赤度V75机械键盘，希望您使用愉快， 功能操作说明请参以下内容。
Thank you for purchasing our V75 mechanical keyboard , We hope you
will be pleased with both the product and service you received . The
following is a detailed introduction of the functions and operation method
of this product.
Default Hot Keys
Hold FN + listed keys to activate
LED Setting Keys
FN+↑: LED backlight brightness Increase
FN+↓: LED backlight brightness decrease
FN+←: LED backlight hue increase
FN+→: LED backlight hue decrease
FN+\|: Toggle LED backlight mode
FN+ -_: LED backlight speed decrease
FN+=+ : LED backlight speed increase
FN+]}: LED backlight saturation decrease
FN+[{: LED backlight saturation increase
FN+Backspace :Turn off/on the key area backlight
FN+PG UP：Toggle LOGO LED light mode
FN+PG DN: Toggle LOGO LED light color
FN+Space: Long press FN+Space for 3 seconds to reset the
keyboard to the factory setting.
Media Keys
FN+A: Windows System FN+S: Mac System
FN+F1: Music Player FN+F2: Volume -
FN+F3: Volume + FN+F4: Mute
FN+F5: Previous FN+F6: Play\Pause
FN+F7: Next FN+F8: Stop
FN+F9: Email FN+F10: Web
FN+F11: Calculator FN+F12: Search
FN+WIN : Lock \Unlock Win FN+DEL: INSERT
FN+HOME:END
The upper right knob switch rotates clockwise to increase volume, counter
clockwise to decrease volume, and presses down to mute.
USB Wired/BT5.0/2.4G Tri Mode Pairing Method:
Wired Mode:
Please toggle the mode switch to wired mode .(From left to right are 2.4Ghz
→Wired→BT) and then insert USB cable into your computer, the keyboard
backlight lights on and turns to the default of RGB backlight effect, it means
connection successful.
Bluetooth® Pairing Instructions:
Perform the following steps to pair this keyboard with your device(s).
1.This Bluetooth keyboard can be paired with up to three devices at the
same time. Please toggle the mode switch to the Bluetooth mode .(From
left to right are 2.4Ghz →Wired →BT ). Q key or W key or E key will flash .
2.Long press FN + Q or FN+W or FN+E for 3~5 seconds to enter pairing
mode. At this time, the Q /W/E key will flash blue quickly indicates that
keyboard is ready to connect.
3.Open the Bluetooth settings on your device and scan for available devices.
Locate and select the device name entry. “CIDOO V75-1” for FN+Q ;
“CIDOO V75-2” for FN+W , “CIDOO V75-3” for FN+E .
4. Once the keyboard has connected to your device, the Q/W/E key will
cease flashing, and light on after Bluetooth pairing was successful. Short
press "FN" and "Q" or “FN” and "W" or “FN” and “E” keys to switch paired
Bluetooth device.
The Bluetooth connection has memory . It will disconnect when power off
the keyboard ,and the keyboard will re-connect to the last device when power
on the keyboard again.
2.4G mode Usage method:
1.Please toggle the mode switch to 2.4Ghz mode . From left to right are
2.4Ghz →Wired→ BT. ”R” key will flashes green .
2.Plug the receiver into USB port of the device .The “R “ key will cease
flashing and the keyboard backlight turns to the default of RGB backlight
effect, it means connection successful.
2.4Ghz pairing instruction
The keyboard 2.4Ghz mode is default paired . If you need to re-pair 2.4Ghz
mode , Please perform the following operations :
Long press FN+R key enter 2.4g pairing mode . At this time, "R" key
flashes green color quickly. Insert 2.4G dongle to USB port . After the
connection is successful, "R" key stops blinking and goes to steady color
and turns to the default of RGB backlight effect, it means connection
successful.
Auto sleep mode
In Bluetooth and 2.4G mode, after 5 minutes without key press ,the
backlight will turn off to conserve the battery , any key press will be
awaken the keyboard.
In Bluetooth mode, the deep sleep mode will be entered after 30 minutes
without key press, and the Bluetooth is disconnected. Press any key to
exit the deep sleep mode, and the RGB back light will turn up and connect
back to Bluetooth.
Battery Charging Indicator：
When the battery power of the keyboard is low (the battery power is less
than 3.5V), the FN key will keep flashing red. When charging, the FN key
will be steady red light. After fully charged ,the FN key will turn off red light
and back to current RGB backlight .
Custom Configuration
CIDOO V75 supports using the VIA program to change key layout
Note：Make sure your keyboard is properly plugged into your computer .
VIA installation steps are as follows:
1.Please visit https://github.com/WestBerryVIA/via-releases/releases to
download the latest VIA application for your computer’s OS here. As following
photo shows:
2.Download CIDOO V75-2.4g JSON or CIDOO V75-USB. json file from
CIDOO official website (WWW.CIDOOO.COM )and upload it to VIA
software, Open VIA software, select ‘File’, then ‘Import Keymap’, then
select the corresponding JSON file, USB JSON file should be used in
wired mode, 2.4G JSON should be used in 2.4G mode. As shown below:
灯光设置按键
FN+↑: 背光灯效亮度增加 FN+↓: 背光灯效亮度减小
FN+←: 背光灯色相减 FN+→: 背光灯色相加
FN+\|:切换背光灯效 FN+ -_: 背光灯效速度减小
FN+=+ : 背光灯效速度增加 FN+]}: 背光灯饱和度减
FN+[{: 背光灯饱和度加
FN+Backspace : 关闭/开启按键区背光灯
FN+PG UP：LOGO灯切换灯效 FN+PG DN: LOGO灯切换颜色
FN+Space: 长按FN+Space三秒键盘恢复到出厂设置
多媒体按键
FN+A: Windows 系统 FN+S: Mac 系统
FN+F1: 音乐播放器 FN+F2: 音量减
FN+F3: 音量加 FN+F4: 静音
FN+F5: 上一曲 FN+F6: 播放\暂停
FN+F7: 下一曲 FN+F8: 停止播放
FN+F9: 邮件 FN+F10: 主页
FN+F11: 计算器 FN+F12: 搜索
FN+WIN : 锁定\解锁 WIN键 FN+DEL: INSERT
FN+HOME:END
旋钮功能：右上角旋钮开关顺时针旋转为音量加， 逆时针旋转为音量减，
下压为静音
有线/蓝牙5.0/2.4G 三种模式连接方法
有线模式：
请将键盘左上角三段拨动开关打至中间USB处(从左至右依次为：2.4G→有线
→蓝牙)并将USB线插入到你的电脑设备中，键盘背光灯亮起并变为默认的RGB
灯效，则表示连接成功。
VIA Tri-mode Aluminum Mechanical Keyboard
PRO
Cidoo VIA Tri-mode Aluminum Mechanical Keyboard
A Customizable Keyboard that Supports VIA Software
蓝牙模式配对方法:
请按照以下步骤将键盘和您的设备来进行蓝牙配对
1.V75 蓝牙键盘最多可同时连接3个蓝牙设备. 打开键盘左上角三段拨动开关
至右边位置 (从左至右依次为：2.4G→有线→蓝牙). 此时Q键或者W键或者E
键闪烁，按住 FN + Q 或者按住 FN + W 或者按住FN + E 3-5秒. 当对应按键
灯光指示灯开始快速闪烁蓝色，表示键盘在可连接状态.
2.在要连接的设备上打开蓝牙，搜索并选择其中一组FN + Q对应设备名
CIDOO V75-1，FN + W对应设备名CIDOO V75-2，FN + E对应设备名
CIDOO V75-3，点击连接配对
3.键盘与你的设备连接成功后，对应按键指示灯会停止闪烁并亮起背光，短
按FN+Q或者FN+W 或者FN+E键可切换已经配对好的蓝牙设备。
关闭键盘电源开关蓝牙断开，重新打开电源开关，CIDOO V75会默认回连
到蓝牙断开前使用的设备
2.4G模式使用方法:
请将键盘左上角三段拨动开关打至左边靠近USB接口位置(从左至右依次为：
2.4G→有线→蓝牙),此时R键会闪烁绿色，并将接收器插入电脑USB接口中，此
时R键停止闪烁，背光灯亮起，则表示2.4G设备已连接成功。
2.4G对码方法:
键盘出厂默认已经完成2.4G对码，如果需要重新配对，可按如下方法重新对码.
长按FN+R 3~5秒，“R”键指示灯闪烁绿色，再将接收器插入USB接口，“R”键停
止闪烁，键盘背光灯亮起并变为默认的RGB灯效，则表示对码成功。
自动休眠模式
蓝牙和2.4G模式时，键盘无按键操作5分钟后背光关闭，按任意按键唤醒键盘
蓝牙模式时，键盘无按键操作30分钟后进入深度休眠模式，蓝牙断开，按任
意按键将退出深度休眠模式，RGB背光亮起并回连蓝牙
充电指示灯：
当键盘的电池电量低时（电池电量小于3.5V）FN键会持续闪烁红灯，充电时
FN键会常亮红灯， 充满后FN键会熄灭红色并跟随当前按键背光效果
层3：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按键
为MO(3)保存后，长按MO(3)按键层3将被激活使用
按键说明
自定义设置
赤度V75支持VIA 程序改键布局
注意：请确保您的键盘已正确插入电脑设备
VIA 安装步骤如下:
1.请访问https://github.com/WestBerryVIA/via-releases/releases选择您需
要的最新的VIA软件然后下载并安装在电脑上 .如下图
2.从赤度官网下载CIDOO V75-2.4G.JSON或者CIDOO V75-USB.JSON文件
并上传到VIA软件，网址为： WWW.CIDOOO.COM . 打开VIA软件后，
选择File ， 再选择Import Keymap, 再选择对应的JSON文件，USB JSON文
件请在有线模式下使用，2.4G JSON请在键盘2.4G使用模式下使用， 如下图
3.如下画面表示VIA软件安装完成并成功连接.
3.The VIA software is installed and connected successfully if it is show as
below photo.
If VIA software does not recognize your keyboard, please contact our
customer service staff for assistance
VIA will automatically detect your keyboard compatibility if it's plugged in.
Keyboard memory is persistent, which means that wherever you plug in
keyboard, it remembers the settings.
On the top half of VIA software, choose one key which you want to change
by your mouse, and then select the key on the bottom half of VIA software,
and it was effected.
See below for more information about configuration
Macros setting
Macro Settings
CIDOO V75 does not have physical multimedia keys, you can remap the
keys through the VIA software to achieve the function.
CIDOO V75 is configured with 4 layers from 0 to 3 by default, and each
individual key can have multiple functions.
This is important for smaller keyboards, where there aren’t enough physical
keys to do all the functionality you need.
Special keys setting
Here you can remap the key to replace the special key to the key you want,
to achieve the quick operation of the function.
QMK LED light
CIDOO V75 VIA software provides many different RGB lighting effects by
default. You can change the lighting brightness, speed, color and customize
the lighting effect you want. You can also change the key to operate the
lighting effect you set.
Others custom
CIDOO V75 Layers allow you to configure your keyboard with more
behaviors than its number of physical keys .
CIDOO V75 default customized 0-3 layer keyboard layout.
Layer0：This layer will be activated when your keyboard connected to
the Windows system.
Layer0：This layer will be activated when your keyboard connected to
the Mac system.
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
Layer2：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac and key mapped any key to MO(2), save and
then long press it.
Layer3：This layer will be activated when your keyboard’s system toggle
switch to Windows or Mac , key mapped any key to MO(3), save and
then long press it.
Layer1：This layer will be activated when your keyboard’s system toggle
switched to Windows or Mac system and long press Fn1(3) key.
QMK灯光
CIDOO V75 VIA软件中默认提供了多种不同的RGB灯光效果，你可以在上面改
变灯光亮度，速度，颜色以及定制你自己想要的灯光效果，也可以更改按键来
操作你设定好的灯光效果.
其他客制化
CIDOO V75提供其他功能按键的客制化改键
CIDOO V75默认定制的0-3层键盘布局图
层0：当你使用键盘连接到Win系统设备时，层0将被激活使用
层0：当你使用键盘连接到Mac系统设备时，层0将被激活使用，其中按键
Left Alt=Left Option Left Win=Left Command Right Alt= Right Option
如果VIA软件无法识别您的键盘，请联系我们的客服人员寻求帮助
如果您的键盘已经插入VIA会自动检测你的键盘是否兼容。键盘记忆是持久
的，这意味着无论你在哪里插入键盘，它都会记住设置。
在VIA软件页面上半部分，鼠标点击选择你想要更改的按键，然后再用鼠标
点击VIA软件页面下半部分中你想要更改的按键，该按键功能生效.
更多设置板块请见以下说明：
宏设置
CIDOO V75按键中没有设置多媒体按键，在此可以通过VIA软件映射多媒体
按键到你想要的按键上，实现多媒体快捷操作.
CIDOO V75默认配置了0-3层4个层级，每个单独的按键都可以拥有多个功能.
这对于较小的键盘很重要，因为它们没有足够的按键来实现所需的所有功能。
特殊键设置
在此可以通过按键变更功能将特殊按键替换到你想要的按键上，实现该功能的
快捷操作.
层1：当你使用键盘连接到Win/Mac系统设备时，长按Fn1(3)按键层1将被
激活使用
层2：当你使用键盘连接到Win/Mac系统设备时，通过VIA改键设置任意按
键为MO(2)保存后，长按MO(2)按键层2将被激活使用
Keys Descriptions:
Hue+ 灯效色相加
Sat+ 灯效饱和度+
RGB Md+ 下一个RGB灯光模式
RGB Tog... 关闭/开启键盘背光
Win... 切换Windows模式
Mac... 切换Mac模式
Hue- 灯效色相减
Sat- 灯效饱和度-
BT 1 蓝牙设备1对码
BT 2 蓝牙设备2对码
BT 3 蓝牙设备3对码
Brght+ 键盘背光亮度+
Lock Win 锁Windows键
USB Mode 切换USB有线模式
RGB SPD RGB灯光速度-
Brght- 键盘背光亮度-
RGB SPI RGB灯光速度+
Fn1(3) 长按Fn1(3),层1将激活
MO(2) 长按MO(2),层2将激活
MO(3) 长按MO(3),层3将激活
Hue+ Hue Increase
Sat+ Light Saturation+
RGB Md+ RGB Mode Next
RGB Tog... Turn On/Off Backlight
Win... Switch to Windows mode
Mac... Switch to Mac Mode
Hue- Hue Decrease
Sat- Light Saturation
BT 1 Bluetooth Device 1
BT 2 Bluetooth Device 2
BT 3 Bluetooth Device 3
Brght+ Backlight Brightness Increase
Lock Win Lock Windows Key
USB Mode Switch To USB Mode
RGB SPD RGB Speed Increase
Brght- Backlight Decrease
RGB SPI RGB Speed Increase
Fn1(3) Layer 1 will be activated
when long press Fn1(3)
MO(2) Layer 2 will be activated
when long press MO(2)
MO(3) Layer 3 will be activated
when long press MO(3)
V75
Table of contents
Other CIDOO Keyboard manuals
