CIE iCUE 4000X RGB User manual

iCUE 4000X RGB
iCUE 4000X RGB
中塔式PC机箱
Mid-Tower PC Case
官方网站：corsair.com
技术服务热线：400 841 7130
支持：support.corsair.com
博客：corsair.com/blog
论坛：forum.corsair.com
微信：CorsairRMA
© 2020-2021 CORSAIR MEMORY, Inc. 版权所有。
实物可能与所示图片不同。进口商：可赛尔 (深圳) 贸易有限公司
产地：中国 | 产品：机箱 | 49-002128 AB
© 2020-2021 CORSAIR MEMORY, Inc. All rights reserved.

简体中文 ........................................................ 1
ENGLISH..................................................... 11

230mm 453mm
466mm
1 2

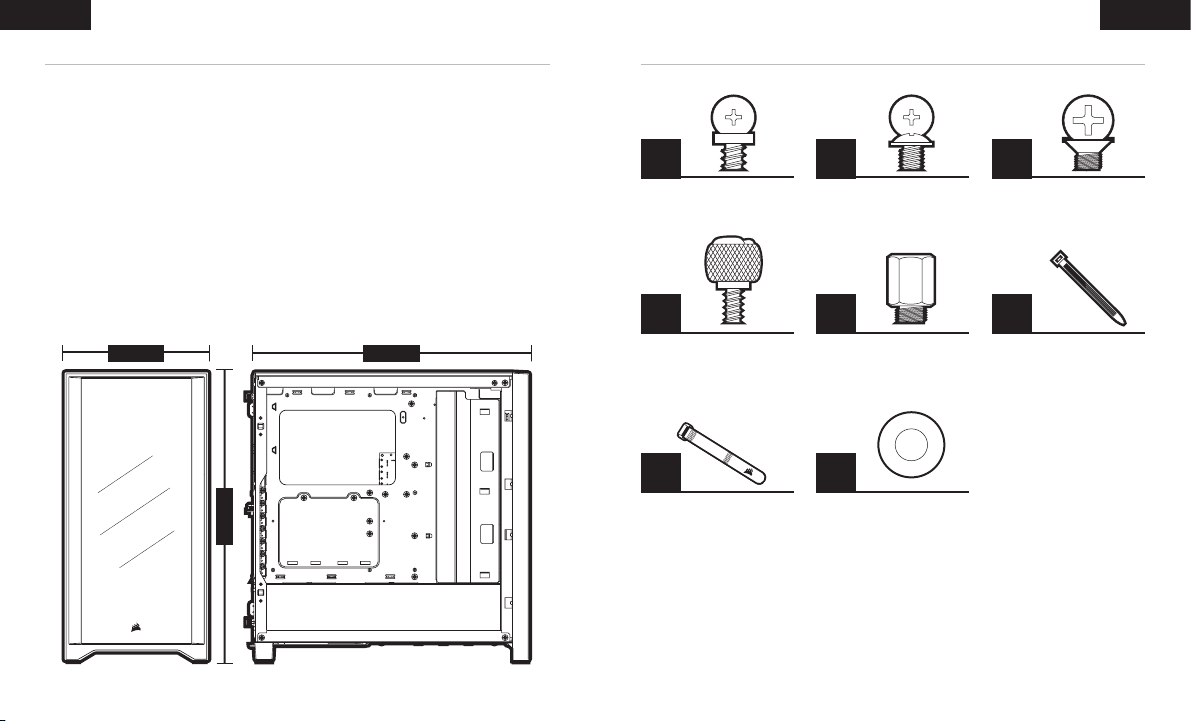

机箱规格
长度 ................................................................................................................................................................ 453mm
宽度 ................................................................................................................................................................ 230mm
高度 ................................................................................................................................................................ 466mm
最大 GPU 长度 ............................................................................................................................................... 360mm
CPU 高度上限 .................................................................................................................................................170m m
PSU 长度上限 ................................................................................................................................................ 220mm
风扇位置：
正面 ....................................................................... 3 个 120mm 风扇 / 2 个 140mm 风 扇（ 随 附 3 个 120mm 风扇）
顶部 ..................................................................................................................2 个 120mm 风扇 / 2 个 140mm 风扇
背面 ........................................................................................................................................................ 120mm 风扇
散热器兼容性：
正面 .................................................................................................................................................360mm / 280mm
顶部 .........................................280mm 风扇搭配 CORSAIR LPX DRAM / 240mm 风扇搭配所有 CORSAIR DRAM
背面 .................................................................................................................................................................120mm
配件目录
x20
风 扇 螺 丝（ 短 型 ）
x18
MBD / HDD 螺丝
x8
ODD / SDD 螺丝
简体中文 简体中文
x4
x3
指旋螺丝
Velcro 扎带
x3
主板压铆螺柱
x8
垫片
x12
束线带

3 4
可互换的侧面板
拆卸侧面板

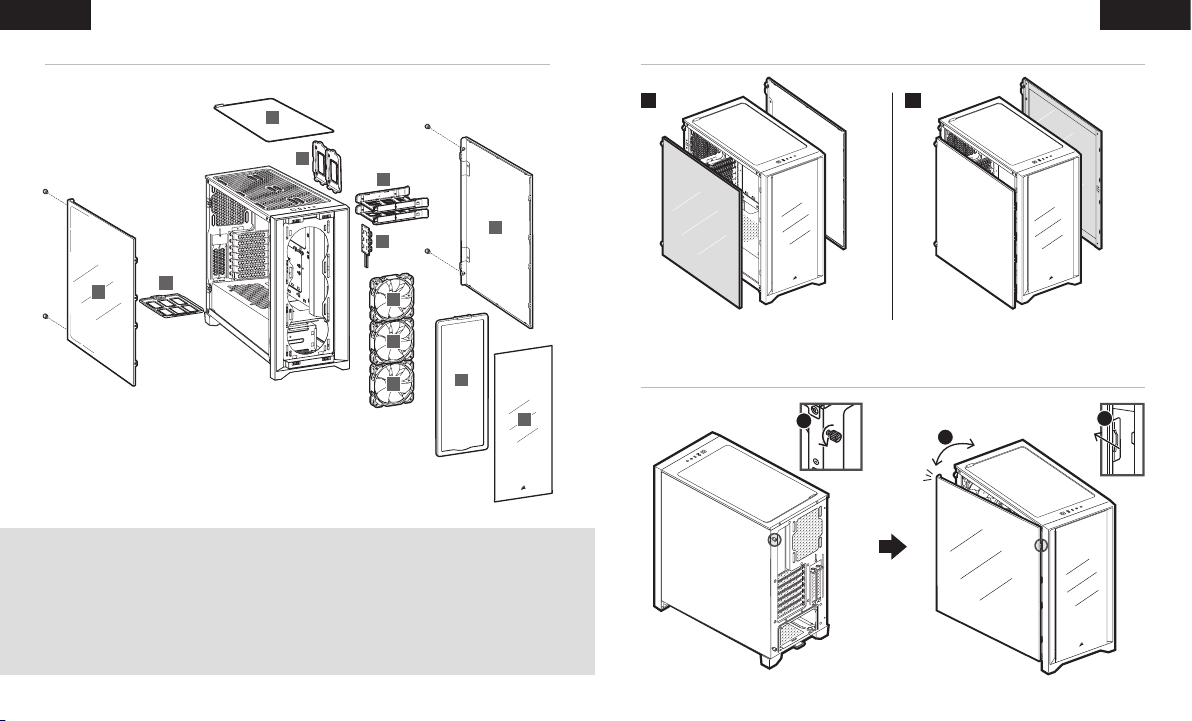

机箱特点
A— 钢化玻璃侧面板
B— 3x 滤尘器
C— 3x 120MM RGB 风扇
D— 2x SSD 托架
E— 2x HDD 托架
F— 固定侧面板
G— 钢化玻璃前饰板
H— LIGHTING NODE CORE
A
A B
B
B
E
F
C
C
C
D
B
简体中文 简体中文
1
2
3
H
G

ATX
E-ATX
ATX
MATX
ITX
E-ATX (305mm x 277mm)
5 6
简体中文 简体中文

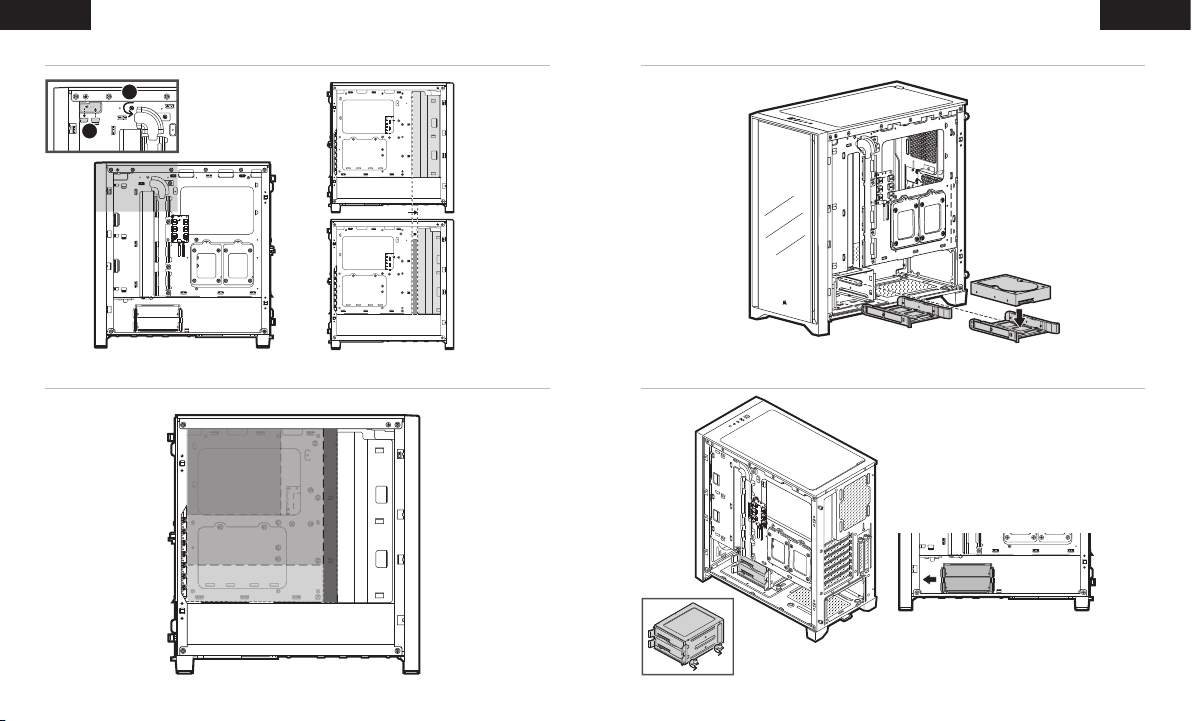

移动线缆杆
安装母板
安装 HDDS
移动 HDD 托架
1
2

7 8
简体中文 简体中文
安装 SSDS 安装 PCI-e 卡
安装 PSU 拆除前饰板
A
B

USB 3.0
USB 3.1 Type-C HD AUDIO
POWER SW
RESET SW
POWER LED
+
POWER LED –
9 10

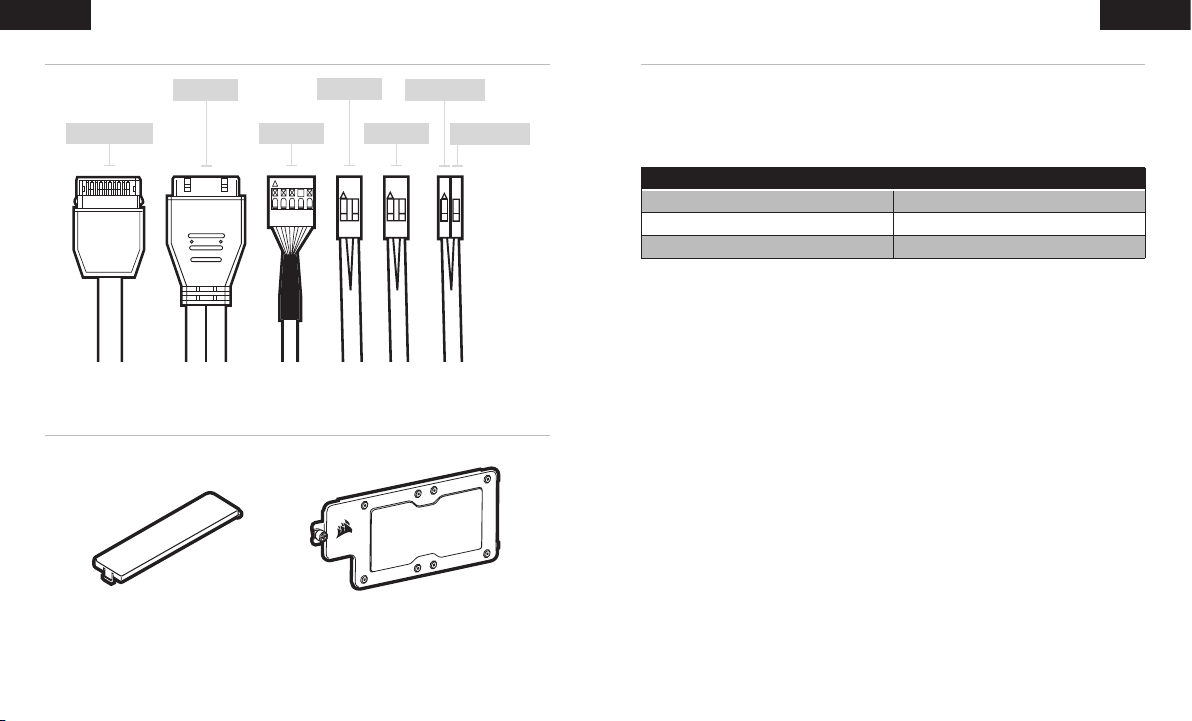

安装前置 I/O 连接器
配件已上市
常见问题
简体中文 简体中文
1. 极性是否影响 I/O 板电源和重置接头？
不，仅影响 LED 接头。
2. 如果我收到的机箱受损或其中一台风扇不再工作，我该与谁联系？
请前往 support.corsair.com 申请 RMA，我们可以更换损坏部件。
3. 风扇可安装的位置？
要了解本机箱的详细信息，请登录 corsair.com 访问产品页面。
风扇安装位置
正面 3x 120mm / 2x 140mm
顶部 2x 120mm / 2x 140mm
背面 120mm
PSU 盖板 主板附件托架

230mm 453mm
466mm
11 12
CASE SPECIFICATIONS
Length .............................................................................................................................................................453mm
Width ...............................................................................................................................................................230mm
Height ..............................................................................................................................................................466mm
Maximum GPU length .....................................................................................................................................360mm
Maximum CPU height .....................................................................................................................................170mm
Maximum PSU length......................................................................................................................................220mm
Fan locations:
Front .................................................................................................... 3x 120mm / 2x 140mm (3x 120mm included)
To p ..........................................................................................................................................2x 120mm / 2x 140mm
Rear .................................................................................................................................................................120mm
Radiator compatibility:
Front ................................................................................................................................................ 360mm / 280mm
To p ............................................................... 280mm with CORSAIR LPX DRAM / 240mm with all CORSAIR DRAM
Rear .................................................................................................................................................................120mm
ACCESSORY KIT CONTENTS
x20
Fan screws (short)
x18
MBD / HDD screws
x8
ODD / SSD screws
ENGLISH ENGLISH
x4
x3
Thumbscrews
Velcro straps
x3
Motherboard standoff
x8
Washers
x12
Cable ties

13 14
INTERCHANGEABLE SIDE PANELS
REMOVING THE SIDE PANELS
CASE FEATURES
A— TEMPERED GLASS SIDE PANEL
B— 3x DUST FILTERS
C— 3x 120MM RGB FANS
D— 2xSSD TRAYS
E— 2x HDD TRAYS
F— SOLID SIDE PANEL
G— TEMPERED GLASS FRONT PANEL
H— LIGHTING NODE CORE
A
A B
B
B
E
F
C
C
C
D
B
ENGLISH ENGLISH
1
2
3
H
G

ATX
E-ATX
ATX
MATX
ITX
E-ATX (305mm x 277mm)
15 16
ENGLISH ENGLISH
MOVING THE CABLE BAR
INSTALLING THE MOTHERBOARD
INSTALLING HDDS
MOVING THE HDD CAGE
1
2

17 18
ENGLISH ENGLISH

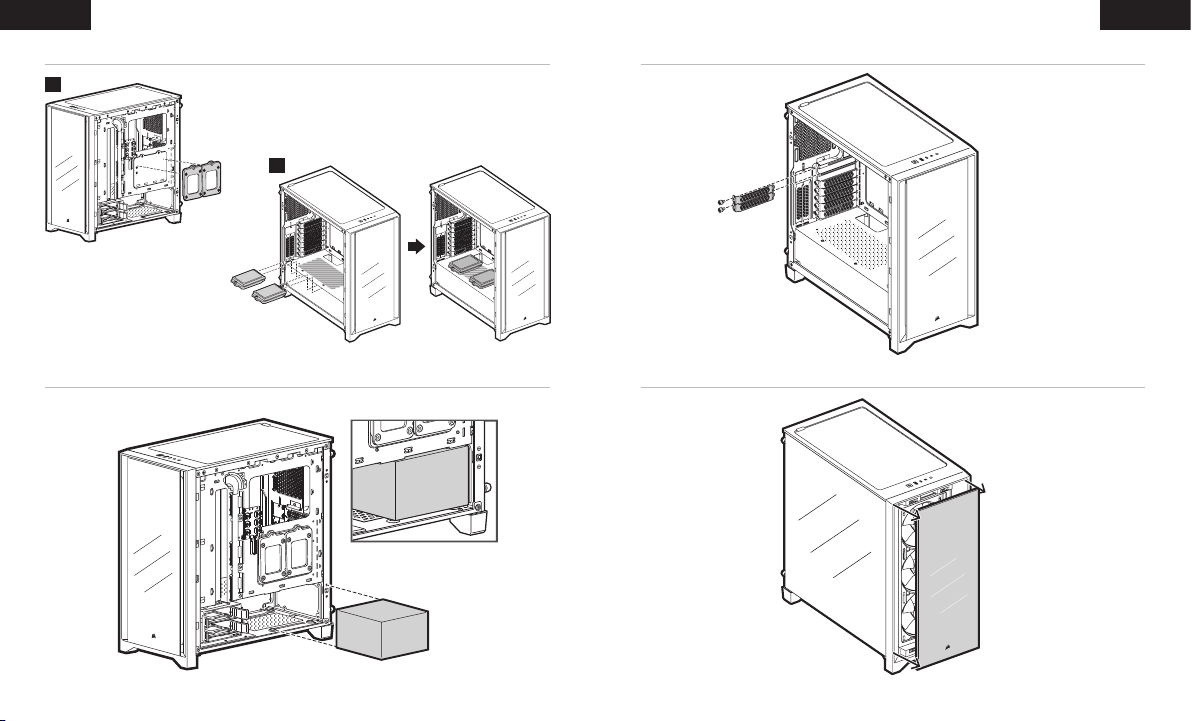

INSTALLING SSDS INSTALLING PCI-e CARDS
INSTALLING PSU REMOVING THE FRONT BEZEL
A
B

USB 3.0
USB 3.1 Type-C HD AUDIO
POWER SW
RESET SW
POWER LED
+
POWER LED –
19 20

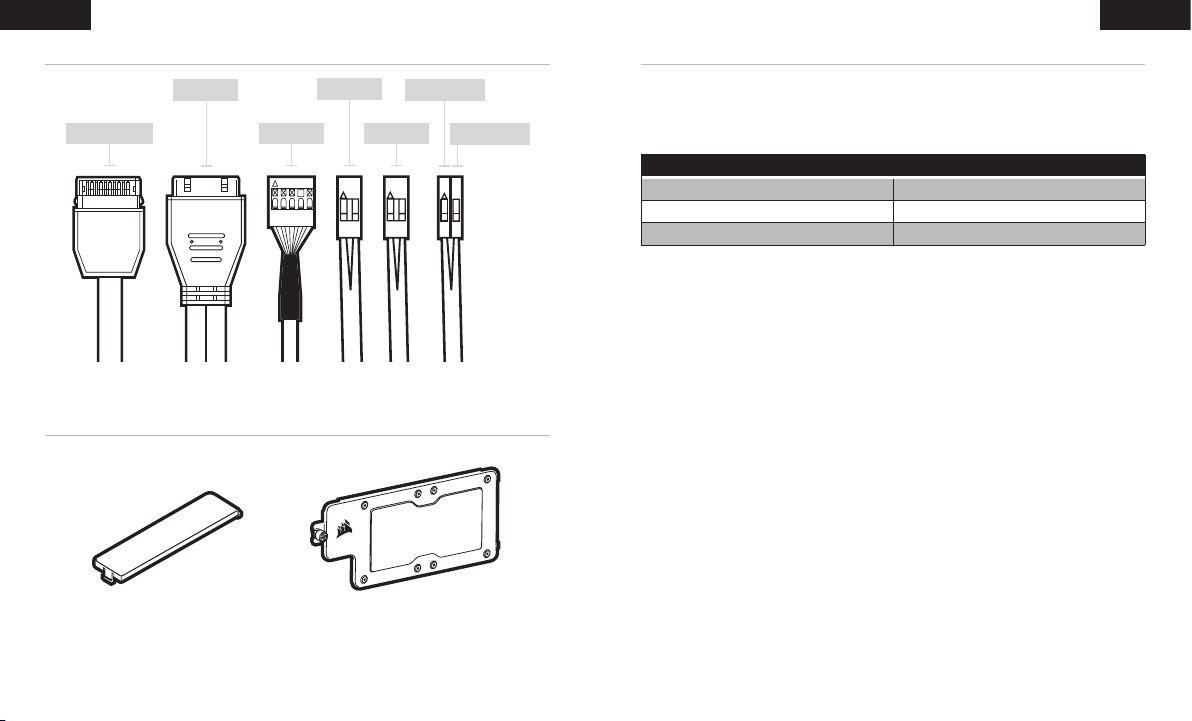

INSTALLING THE FRONT I/O CONNECTORS
ACCESSORIES AVAILABLE FOR PURCHASE
FREQUENTLY ASKED QUESTIONS
ENGLISH ENGLISH
1. Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers.
2. Who should I contact if I received my case damaged or one of the fans is no longer working?
Please go to support.corsair.com and request an RMA so that we can replace
the damaged part(s).
3. Where can I mount a fan?
To learn more about this case visit the product page at corsair.com.
Fan mount locations
Front 3x 120mm / 2x 140mm
Top 2x 120mm / 2x 140mm
Rear 120mm
PSU cover plate Motherboard accessory tray
