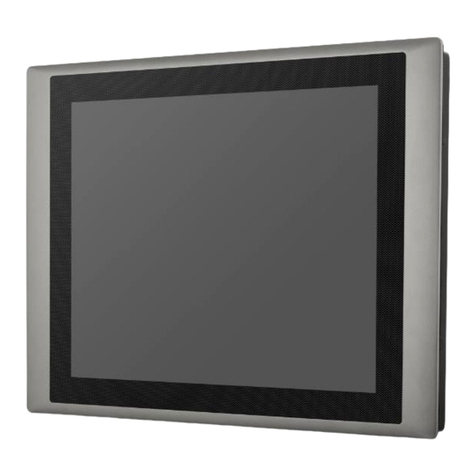

Cincoze CS-117C-R10 User manual

Convertible Display Module
8.4“ - 24” TFT-LCD Sunlight Readable Display Module
Version: V1.04
Convertible Display Module
CS-100 Series
User Manual

CS-100 Series | User Manual 2
Contents
Preface..................................................................................................................................................3
Revision ........................................................................................................................................3
Copyright Notice ..........................................................................................................................3
Acknowledgement .......................................................................................................................3
Disclaimer.....................................................................................................................................3
Declaration of Conformity............................................................................................................4
Product Warranty Statement.......................................................................................................4
Technical Support and Assistance................................................................................................5
Conventions Used in this Manual ................................................................................................6
Safety Precautions........................................................................................................................6
Package Contents.........................................................................................................................7
Ordering Information...................................................................................................................9
Chapter 1 Product Introductions .......................................................................................................10
1.1 Overview ..............................................................................................................................11
1.2 Key Features.........................................................................................................................11
1.3 Hardware Specification ........................................................................................................12
1.3.1 CS-108C-R10..................................................................................................................12
1.3.2 CS-110HC-R10 ...............................................................................................................14
1.3.3 CS-112HC-R10 ...............................................................................................................16
1.3.4 CS-115C-R10..................................................................................................................18
1.3.5 CS-117C-R10..................................................................................................................20
1.3.6 CS-119C-R10..................................................................................................................22
1.3.7 CS-W121C-R10 ..............................................................................................................24
1.3.8 CS-W124C-R10 ..............................................................................................................24
Chapter 2 System Setup.....................................................................................................................28
2.1 Connecting with PC Module or Monitor Module ................................................................29
2.2 Installing Panel Mount .........................................................................................................31

CS-100 Series | User Manual 3
Preface
Revision
Revision
Description
Date
1.00
First Released
2021/11/16
1.01
Add CS-W121C Display Module
2021/12/28
1.02
Add CS-W124C Display Module
2022/02/25
1.03
Partial model revised
2022/08/19
1.04
Correction Made
2024/01/30
Copyright Notice
© 2022 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied,
modified, or reproduced in any form or by any means for commercial use without the prior written
permission of Cincoze Co., Ltd. All information and specification provided in this manual are for
reference only and remain subject to change without prior notice.
Acknowledgement
Cincoze is a registered trademark of Cincoze Co., Ltd. All registered trademarks and product names
mentioned herein are used for identification purposes only and may be trademarks and/or
registered trademarks of their respective owners.
Disclaimer
This manual is intended to be used as a practical and informative guide only and is subject to
change without notice. It does not represent a commitment on the part of Cincoze. This product
might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of
the publication.

CS-100 Series | User Manual 4
Declaration of Conformity
FCC
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
CE
The product(s) described in this manual complies with all application European
Union (CE) directives if it has a CE marking. For computer systems to remain CE
compliant, only CE-compliant parts may be used. Maintaining CE compliance also
requires proper cable and cabling techniques.
RU
UL Recognized Components have been evaluated by UL for factory installation
within equipment where the component’s limitations of use are known and
investigated by UL.
UL Recognized Components have conditions of acceptability that describe how
components can be used within end products.
Product Warranty Statement
Warranty
Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and
workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of
purchase by the original purchaser. During the warranty period, we shall, at our option, either
repair or replace any product that proves to be defective under normal operation. Defects,
malfunctions, or failures of the warranted product caused by damage resulting from natural
disasters (such as by lightening, flood, earthquake, etc.), environmental and atmospheric
disturbances, other external forces such as power line disturbances, plugging the board in under
power, or incorrect cabling, and damage caused by misuse, abuse, and unauthorized alteration or
repair, and the product in question is either software, or an expendable item (such as a fuse,
battery, etc.), are not warranted.
RMA
Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a
RMA number from us. Our staff is available at any time to provide you with the most friendly and

CS-100 Series | User Manual 5
immediate service.
◼RMA Instruction
⚫Customers must fill in Cincoze Return Merchandise Authorization (RMA) Request
Form and obtain an RMA number prior to returning a defective product to Cincoze
for service.
⚫Customers must collect all the information about the problems encountered and
note anything abnormal and describe the problems on the “Cincoze Service Form”
for the RMA number apply process.
⚫Charges may be incurred for certain repairs. Cincoze will charge for repairs to
products whose warranty period has expired. Cincoze will also charge for repairs to
products if the damage resulted from acts of God, environmental or atmospheric
disturbances, or other external forces through misuse, abuse, or unauthorized
alteration or repair. If charges will be incurred for a repair, Cincoze lists all charges,
and will wait for customer’s approval before performing the repair.
⚫Customers agree to ensure the product or assume the risk of loss or damage during
transit, to prepay shipping charges, and to use the original shipping container or
equivalent.
⚫Customers can be sent back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the system. If the components
were suspected as part of the problems, please note clearly which components are
included. Otherwise, Cincoze is not responsible for the devices/parts.
⚫Repaired items will be shipped along with a "Repair Report" detailing the findings
and actions taken.
Limitation of Liability
Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use,
whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed
the original selling price of the product. The remedies provided herein are the customer’s sole and
exclusive remedies. In no event shall Cincoze be liable for direct, indirect, special or consequential
damages whether based on contract of any other legal theory.
Technical Support and Assistance
1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about
the product.
2. Contact your distributor or our technical support team or sales representative for technical
support if you need additional assistance. Please have following information ready before you
call:
⚫Product name and serial number
⚫Description of your peripheral attachments
⚫Description of your software (operating system, version, application software, etc.)
⚫A complete description of the problem

CS-100 Series | User Manual 6
⚫The exact wording of any error messages
Conventions Used in this Manual
Safety Precautions
Before installing and using this device, please note the following precautions.
1. Read these safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Disconnected this equipment from any AC outlet before cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and
must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
8. Use a power cord that has been approved for using with the product and that it matches the
voltage and current marked on the product’s electrical range label. The voltage and current
rating of the cord must be greater than the voltage and current rating marked on the product.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
This indication alerts operators to an operation that, if not strictly observed, may result in
severe injury.
(Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement
observée, peut entraîner des blessures graves.)
WARNING
(AVERTIR)
This indication alerts operators to an operation that, if not strictly observed, may result in
safety hazards to personnel or damage to equipment.
(Cette indication avertit les opérateurs d'une opération qui, si elle n'est pas strictement
observée, peut entraîner des risques pour la sécurité du personnel ou des dommages à
l'équipement.)
CAUTION
(ATTENTION)
This indication provides additional information to complete a task easily.
(Cette indication fournit des informations supplémentaires pour effectuer facilement
une tâche.)
NOTE
(NOTE)

CS-100 Series | User Manual 7
13. Never open the equipment. For safety reasons, the equipment should be opened only by
qualified service personnel.
If one of the following situations arises, get the equipment checked by service personnel:
⚫The power cord or plug is damaged.
⚫Liquid has penetrated into the equipment.
⚫The equipment has been exposed to moisture.
⚫The equipment does not work well, or you cannot get it work according to the user's
manual.
⚫The equipment has been dropped and damaged.
⚫The equipment has obvious signs of breakage.
14. CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of
Used Batteries According to the Instructions.
ATTENTION: Risque d'explosion si la batterie est remplacée par un type incorrect. Mettre au
rebus les batteries usagées selon les instructions.
15. Equipment intended only for use in a RESTRICTED ACCESS AREA.
16. Ensure to connect the power cord of power adapter to a socket-outlet with earthing
connection.
17. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not
dispose of in fire.
Package Contents
Before installation, please ensure all the items listed in the following table are included in the
package.
CS-108C-R10
Item
Description
Q’ty
1
CS-108C Display Module
1
2
Panel Mounting Kit
1
CS-110HC-R10
Item
Description
Q’ty
1
CS-110HC Display Module
1
2
Panel Mounting Kit
1

CS-100 Series | User Manual 8
CS-112HC-R10
Item
Description
Q’ty
1
CS-112HC Display Module
1
2
Panel Mounting Kit
1
CS-115C-R10
Item
Description
Q’ty
1
CS-115C Display Module
1
2
Panel Mounting Kit
1
CS-117C-R10
Item
Description
Q’ty
1
CS-117C Display Module
1
2
Panel Mounting Kit
1
CS-119C-R10
Item
Description
Q’ty
1
CS-119C Display Module
1
2
Panel Mounting Kit
1
CS-W121C-R10
Item
Description
Q’ty
1
CS-W121C Display Module
1
2
Panel Mounting Kit
1
CS-W124C-R10
Item
Description
Q’ty
1
CS-W124C Display Module
1
2
Panel Mounting Kit
1
Note: Notify your sales representative if any of the above items are missing or damaged.

CS-100 Series | User Manual 9
Ordering Information
Model No.
Product Description
CS-108C-R10
8.4" TFT-LCD 1600 nits SVGA 4:3 Display Module with
Projected Capacitive Touch
CS-110HC-R10
10.4" TFT-LCD 1500 nits XGA 4:3 Display Module with
Projected Capacitive Touch
CS-112HC-R10
12.1" TFT-LCD 1500 nits XGA 4:3 Display Module with
Projected Capacitive Touch
CS-115C-R10
15" TFT-LCD 1800 nits XGA 4:3 Display Module with Projected
Capacitive Touch
CS-117C-R10
17" TFT-LCD 1500 nits SXGA 5:4 Display Module with
Projected Capacitive Touch
CS-119C-R10
19" TFT-LCD 1600 nits SXGA 5:4 Display Module with
Projected Capacitive Touch
CS-W121C-R10
21.5" TFT-LCD 1000 nits Full HD 16:9 Display Module with
Projected Capacitive Touch
CS-W124C-R10
24" TFT-LCD 1000 nits Full HD 16:9 Display Module with
Projected Capacitive Touch

CS-100 Series | User Manual 10
Chapter 1
Product Introductions

CS-100 Series | User Manual 11
1.1 Overview
CS-100 Series is TFT-LCD touch display module. It offers ultra high brightness and high resolution,
allowing viewers to see clear images even under any bright ambient light or direct sunlight
environments. CS-100 Series is a rugged and reliable display solution featuring wide range
operating temperature -20°C to 70°C, a solid aluminum die-casting front bezel and true flat IP65
front panel protection. Supporting Convertible Display System (CDS) technology, CS-100 Series
allows you to configure, upgrade and maintain your display system according to your need.
1.2 Key Features
⚫8.4”~24” TFT-LCD with Ultra High Brightness and High Resolution
⚫Wide Range Operating Temperature -20°C to 70°C
⚫True Flat IP65 Front Panel Protection
⚫Rugged Aluminum Die-casting Bezel
⚫Convertible Display System (CDS) Technology Supported

CS-100 Series | User Manual 12
1.3 Hardware Specification
1.3.1 CS-108C-R10
Model Name
CS-108C
Display
LCD Size
•8.4" (4:3)
Max. Resolution
•800 x 600
Brightness (cd/m2)
•1600
Contract Ratio
•600 : 1
LCD Color
•16.2M
Pixel Pitch
•0.213 (H) x 0.213 (V)
Viewing Angle
•160 (H) / 140 (V)
Backlight MTBF
•50,000 hrs(LED Backlight)
Touchscreen
Touchscreen Type
•Projected Capacitive Touch
Physical
Dimension (WxDxH)
•262 x 186.2 x 56.2mm
Weight
•1.58kg
Construction
•Flat Rugged Aluminum Die-casting Bezel
Environment
Front Panel Protection
•IP 65 Compliant
Operating Temperature
•Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature
•-20°C to 70°C
Relative Humidity
•85% RH @ 40°C (non-condensing)
Safety
•UL, cUL, CB, IEC, EN 62368-1
* Product Specifications and features are for reference only and are subject to change without prior
notice. For more information, please refer to the latest product datasheet from Cincoze's website.
External Layout

CS-100 Series | User Manual 13
Dimension
Unit: mm

CS-100 Series | User Manual 14
1.3.2 CS-110HC-R10
Model Name
CS-110HC
Display
LCD Size
•10.4" (4:3)
Max. Resolution
•1024 x 768
Brightness (cd/m2)
•1500
Contract Ratio
•1400 : 1
LCD Color
•16.2M
Pixel Pitch
•0.206 (H) x 0.206 (V)
Viewing Angle
•178 (H) / 178 (V)
Backlight MTBF
•50,000 hrs(LED Backlight)
Touchscreen
Touch Type
•Projected Capacitive
Physical
Dimension (WxDxH)
•295 x 227.3 x 56.2mm
Weight
•2.24kg
Mechanical Construction
•Flat Rugged Aluminum Die-casting Bezel
Environment
Front Panel Protection
•IP 65 Compliant
Operating Temperature
•Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature
•-20°C to 70°C
Relative Humidity
•80% RH @ 40°C (non-condensing)
Safety
•UL, cUL, CB, IEC, EN 62368-1
* Product Specifications and features are for reference only and are subject to change without prior
notice. For more information, please refer to the latest product datasheet from Cincoze's website.
External Layout

CS-100 Series | User Manual 15
Dimension
Unit: mm

CS-100 Series | User Manual 16
1.3.3 CS-112HC-R10
Model Name
CS-112HC
Display
LCD Size
•12.1" (4:3)
Max. Resolution
•1024 x 768
Brightness (cd/m2)
•1500
Contract Ratio
•700 : 1
LCD Color
•16.7M
Pixel Pitch
•0.24 (H) x 0.24 (V)
Viewing Angle
•160 / 160
Backlight MTBF
•30,000 hrs (LED Backlight)
Touchscreen
Touch Type
•Projected Capacitive
Physical
Dimension (WxDxH)
•345 x 265.3 x 57 mm
Weight
•3.16 kg
Construction
•Flat Rugged Aluminum Die-casting Bezel
Environment
Front Panel Protection
•IP 65 Compliant
Operating Temperature
•Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature
•-20°C to 70°C
Relative Humidity
•80% RH @ 40°C (non-condensing)
Safety
•UL, cUL, CB, IEC, EN 62368-1
* Product Specifications and features are for reference only and are subject to change without prior
notice. For more information, please refer to the latest product datasheet from Cincoze's website.
External Layout

CS-100 Series | User Manual 17
Dimension
Unit: mm

CS-100 Series | User Manual 18
1.3.4 CS-115C-R10
Model Name
CS-115C
Display
LCD Size
•15" (4:3)
Max. Resolution
•1024 x 768
Brightness (cd/m2)
•1800
Contract Ratio
•800 : 1
LCD Color
•16.2M
Pixel Pitch
•0.297 (H) x 0.297(V)
Viewing Angle
•160 / 150
Backlight MTBF
•50,000 hrs (LED Backlight)
Touchscreen
Touchscreen Type
•Projected Capacitive Touch
Physical
Dimension (WxDxH)
•408 x 312.4 x 59.2 mm
Weight
•4.36kg
Construction
•Flat Rugged Aluminum Die-casting Bezel
Environment
Front Panel Protection
•IP 65 Compliant
Operating Temperature
•Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature
•-20°C to 70°C
Relative Humidity
•80% RH @ 40°C (non-condensing)
Safety
•UL, cUL, CB, IEC, EN 62368-1
* Product Specifications and features are for reference only and are subject to change without prior
notice. For more information, please refer to the latest product datasheet from Cincoze's website.
External Layout

CS-100 Series | User Manual 19
Dimension
Unit: mm

CS-100 Series | User Manual 20
1.3.5 CS-117C-R10
Model Name
CS-117C
Display
LCD Size
•17" (5:4)
Max. Resolution
•1280 x 1024
Brightness (cd/m2)
•1500
Contract Ratio
•800 : 1
LCD Color
•16.7M
Pixel Pitch
•0.264 (H) x 0.264 (V)
Viewing Angle
•160 / 140
Backlight MTBF
•50,000 hrs (LED Backlight)
Touchscreen
Touchscreen Type
•Projected Capacitive Touch
Physical
Dimension (WxDxH)
•450 x 350 x 63.2mm
Weight
•5.64 kg
Construction
•Flat Rugged Aluminum Die-casting Bezel
Environment
Front Panel Protection
•IP 65 Compliant
Operating Temperature
•Ambient with Air flow: -20°C to 70°C (extended temperature peripherals)
Storage Temperature
•-20°C to 70°C
Relative Humidity
•80% RH @ 40°C (non-condensing)
Safety
•UL, cUL, CB, IEC, EN 62368-1
* Product Specifications and features are for reference only and are subject to change without prior
notice. For more information, please refer to the latest product datasheet from Cincoze's website.
External Layout
