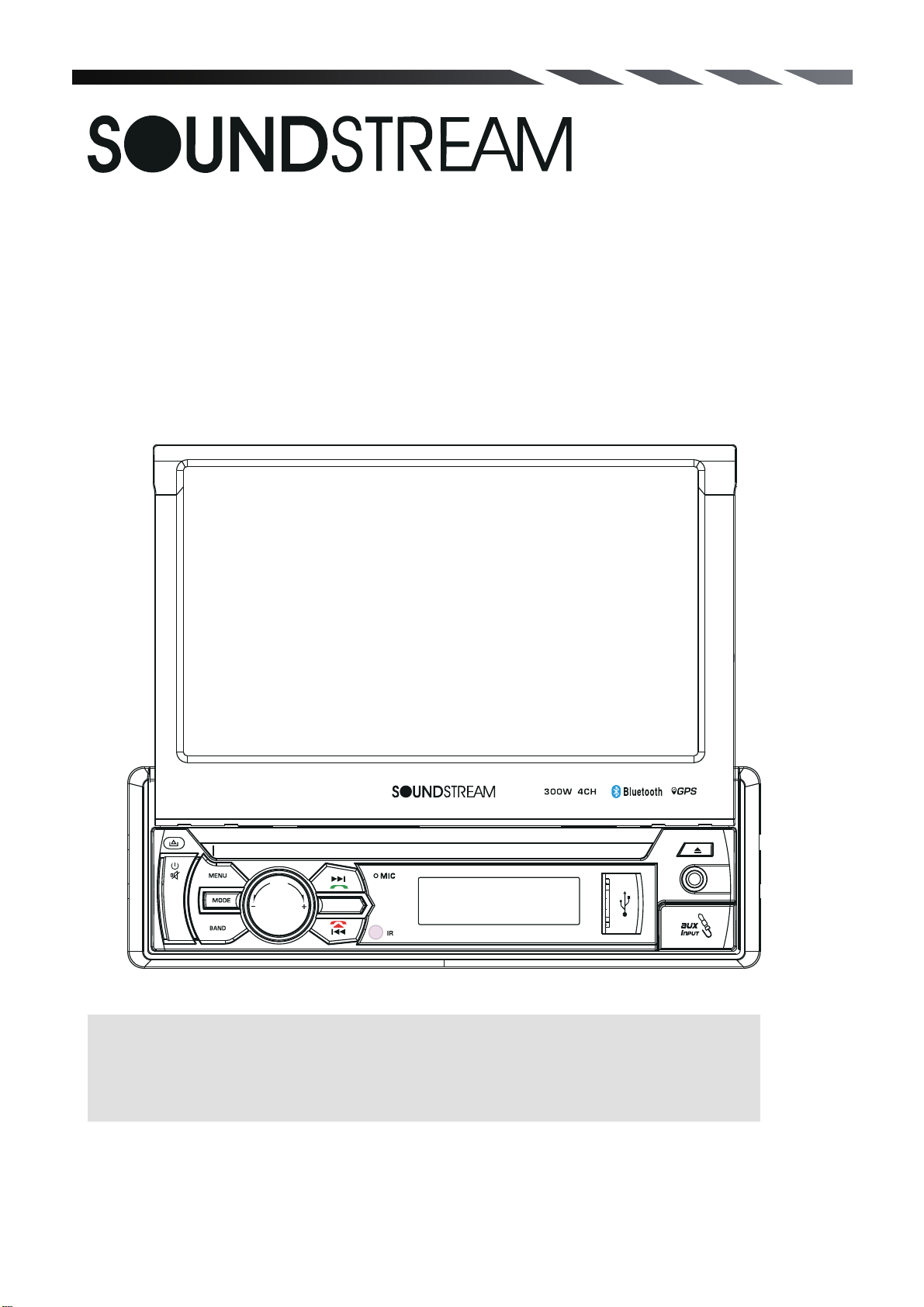

Soundstream VRN-75HB User manual

VRN-75HB
In-Dash 7” Monitor
Touch Screen
DVD
Built-in GPS
/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Owner’s Manual
Take the time to read through this owner’s manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new GPS/DVD-receiver.
VRN-75HB
VOL
OPEN/TILT
GPS

2
WARNING!
To promote safety, certain functions are disabled unless the parking brake is on. The Unit is
designed to detect parked status and must be connected to the power supply side of the
parking brake switch. Improper connection or use of his connection may violate applicable law
and may result in serious injury or damage. To avoid the risk of damage and injury and the
potential violation of applicable laws, this unit is not for use with a video screen that is visible to
the driver.
To avoid the risk of accident and the potential violation of applicable laws, the front Video
image feature should never be used while the vehicle is being driven. Also, other video
displays should not be in a location where it is a visible distraction to the driver. In some
countries or states the viewing of images on a display inside a vehicle even by persons
other than the driver may be illegal. Where such regulations apply, they must be obeyed
and this unit’s DVD features should not be used.
Please remember to wear your seat belt at all times while operating your vehicle. If you are
ever in an accident, your injuries can be considerably more severe if your seat belt is not
properly buckled.
The supplier waves any and all liability when these warnings are not followed.
OPERATION PRECAUTIONS
Only connect to a 12Vdc battery and negative grounding.
Avoid placing the product in direct sunlight, in areas with high levels of dust, high
temperatures (over 40°C) or high humidity (over 90%). In case of high temperatures, cool
down the car interior by means of ventilation or air-conditioning.
Operate in well ventilated areas.
Do not turn on or off the product in short intervals. When turning the unit off, wait for at least
10 seconds prior to turning the unit on again. Do not operate the player with scratched,
bended or broken discs and when a disc is not loaded properly, do not force it into the
player.
Do not watch video playback while driving which will cause serious danger and risks of
traffic accident. It may violate the laws and regulations.
(There may be exceptional case, i.e., using rear view camera and navigation system)
Do not install the unit where the operation for safety driving is restrained.
Do not disassembly the unit by yourself, if need repairing, please take the unit to the after
service center.
Do not open and close the monitor manually, it may damage the monitor tilt system.
Do not touch the LCD screen by hard objects, it may damage or give scratch to the LCD
screen.
If the back of monitor touches dashboard or air-conditioner inlet etc after open the monitor ,
then setup TILT level in monitor TILT menu to prevent damage from repeat touching.
Car parking under direct sunlight may increase the temperature inside the car and the unit
may not be in proper operation, please try it again after the temperature returns to normal.
Do not replace the fuse on the power cable without professional guidance, using improper
fuse may cause damage to the unit or even cause burn the unit.
Do not use irregular shaped Disk.
IR remote control operation may be hindered by monitor when the monitor is opened, thus
please use the remote control at the similar level of remote control receiver.
Do not install the unit where the cooling fan is blocked.

3
CONTENTS
WARNING! .................................................................................................................2
OPERATION PRECAUTIONS....................................................................................2
CONTENTS................................................................................................................3
ACCESSORIES..........................................................................................................4
INSTALLATION / UN-INSTALLATION .......................................................................5
WIRING CONNECTIONS...........................................................................................6
PANEL........................................................................................................................8
REMOTE CONTROL................................................................................................10
REMOVE BATTERY.................................................................................................12
MAIN MENU............................................................................................................. 13
◆RADIO PLAYER...................................................................................................13
◆DVD PLAYER ......................................................................................................14
◆USB/SD/MMC CARD OPERATION......................................................................14
◆AV-IN MODE.........................................................................................................15
◆SETTING CONTROL............................................................................................15
◆Phone Link
............................................................................................
17
◆GPS Setting
........................................................................................... .
17
◆Bluetooth
............................................................................................
17
◆Aux Mode
............................................................................................
19
OTHER FUNCTIONS ...............................................................................................20
MAP INSTRUCTION ...............................................................................................20
NOTES ON DISC .....................................................................................................28
TROUBLESHOOTING..............................................................................................29
TECHNICAL SPECIFICATIONS............................................................................... 30

4
ACCESSORIES
Package contains the following accessories for installation and operation of the unit.
(1) Washer, Spring
Washer, M5 Nut 1 each
(2) Mounting Strap 1
(3) Bolt 1
(4) Screw 4
(5) Mounting Collar 1
(6) Release Key 2
(7) Screw 1
(8) Rubber Cushion 1
Noted:
Product image may vary from the actual delivery.
Warrant
y
card User Manual
Remote Control
Trim ring
Power Cable
GPS cable
SD card （MAP)
VRN-75HB
In-Dash 7” Monitor
Touch Screen
DVD
Built-in GPS
/CD/MP3/MP4
AM/FM Radio
With Bluetooth
Owner’s Manual
Take the time to read through this owner’s manual.
Familiarity with installation and operation procedures will help you obtain the best
Performance from your new GPS/DVD-receiver.
VRN- 75HB
VOL
OPEN/ TILT
GPS

5
INSTALLATION / UN-INSTALLATION
Note
Before starting installation of the unit, make sure the wiring is connected properly.
Use only the parts provided with the unit to ensure proper installation.
The use of unauthorized parts may cause malfunction.
Install the unit where it does not get in the driver’s way and will not injure the passenger in case
there is a sudden stop, like an emergency stop.
INSTALLATION （Figure 1）
Insert Half Sleeve into dash-board hole and bend mount tabs outwards to fix it
If necessary, place the mount strap at the rear of the unit and fix it with provided washer as
figure 2.
Push the unit into the Half Sleeve until you hear a click sound
Place Trim Ring over the unit and installation is completed as figure 3. (Some vehicle may
not need Trim Ring)
UN-INSTALLATION
Insert the supplied extraction keys into the unit and pull the unit out with keeping the extraction
keys. (as Figure. 4)

WIRING CONNECTIONS
NOTE: Never connect cable to the system while it is connected to the battery power. Whenever
the unit is disconnected from the battery, the preset memory will be erased and the unit will go
back to its factory defaults.
Note: To watch video the parking wire should be connected to break signal. 2 cables is
connected to a Hands-Free device (not included).
Parking wire
Note: The parking wire is connected with brake signal; for safety, the programs can be seen on
the monitor after braking the car.
6
2A
Parking brake lead
Brown wire
Brake light
12V
battery
Car frame

7
Connecting the reversing line to taillight on the car
After connecting, when you start up the reverse gear, the unit will receive the picture from car
rear view camera.
Note:
- Only use groundless loudspeakers.
- Use only loudspeakers of minimal 40Watt, using fewer watts may result in damaging
your loudspeakers at higher volumes.
- Use 4~8 Ω(Ohm impedance) loudspeakers only; using higher or lesser impedance may
damage the unit.
- Do not use 3-cable loudspeakers and do not connect the loudspeakers minus to the car
body (GND). The unit is using a BTL circuit and each loudspeaker must be connected
with insulated cables according the diagram.
- Loudspeaker cables and/or optional external power amplifiers must always be about
30cm away from the antenna and/or antenna extension parts.
Connect the speakers according the following diagram, incorrect connections will damage the
unit or your loudspeakers
Correct Speaker Connection
+
-
12V
Car frame
Battery
Reverse driving light
Car frame
Pink wire
Rear view video camera lead
P
R
N
D
L
2
Gearbox
White
Green
Grey
Purple

8

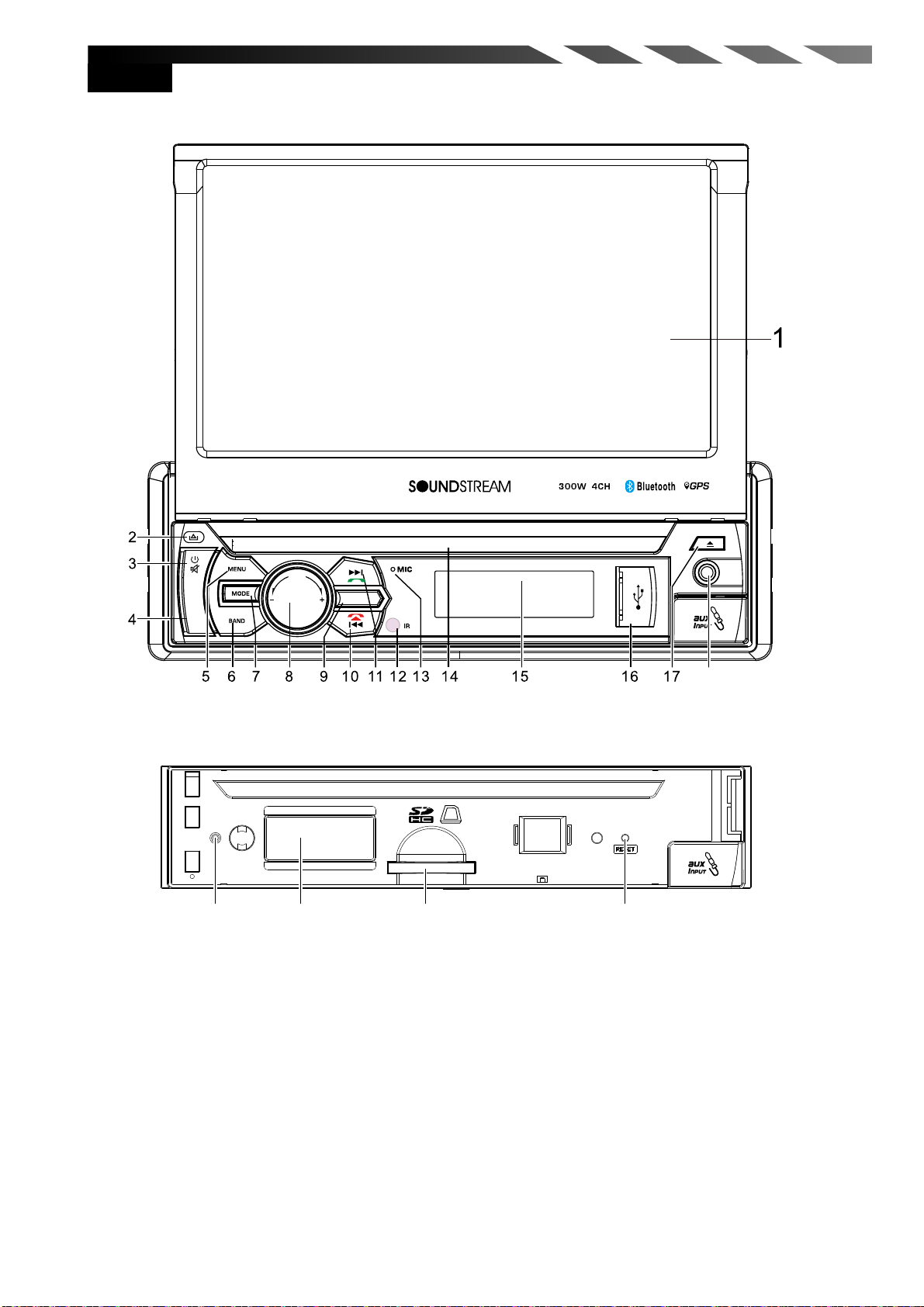

PANEL
1. Touch panel
3. POWER/MUTE
POWER: Press it to turn on the unit. Press and hold for 2 seconds to turn the unit off.
MUTE: Press it to MUTE the volume output, press it again to resume volume when the
power on.
VRN-75HB
VOL
OPEN/TILT
GPS
18
19 20 21 22
2. Release button
Press to detach and release the front panel. When the unit was released, it will switch off
automatically after a few second. Detach/Attach the Panel: Press REL button and pull out the
left side to detach the panel. To attach it, insert the right side first and then press the left side
until hear a click sound.

6. BAND
In Radio mode, press it to change radio band in sequence of FM1 →FM2 →FM3 →AM1 →
AM2.
8. VOL Knob
VOL Knob: Adjust the volume level by turning the knob clockwise to increase or
counterclockwise to decrease.
10. button (optional)
In Radio mode, press to start automatic searching, press and hold for two seconds to start
manual searching, then press them to tune each frequency step upward.
In DVD / SD / USB mode, press button to skip to the next track. Press button and hold for
two seconds to activate fast forward (FF) search in a track.
In BLUETOOTH mode, press to answer a coming call or hang up while calling.
11. button (optional)
In RADIO mode, press to start automatic searching, press and hold for two seconds to start
manual searching, then press to tune each frequency step downward.
In DVD / SD / USB mode, press button to skip to the previous track. Press button and hold
for two seconds to activate fast reverse (REW) search in a track.
In Bluetooth mode, press to make a call after inputted a phone number or accept an
incoming call.
4. GPS button
Press it to enter GPS mode.
5. MENU button
Press it to back to home page.
7. MODE button
Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB
device in the unit), CARD (if there is a SD/MMC card in the unit), Bluetooth and AV IN.
13.MIC
12.IR Sensor
IR Remote control signal receiving window. Max distance is 6-8 meters, 45 angels.
14.DISC slot
15.Info Display
Information Display LCD when operation the unit.
9. OPEN/TILT button
Press this to open and close the TFT monitor. WARNING: Do not obstruct the monitor while in
the opening or closing cycle, this may cause damage to the monitor mechanism and is NOT
covered under warranty.
18.AUX Jack
Put the AV plug into the AUX jack which was marked on front
panel.
9
16.
17.
USB slot
|
|
Press and hold for 2 second to adjust the Monitor tilt angle: TILT ANGLE 1 => TILT ANGLE 2
=> TILT ANGLE 3 => TILT ANGLE 4.
USB slot, for Multimedia playback files only. Insert a USB into this slot and the unit will
automatically start reading and playback it. Supported Music File Format: MP3, WMA
Files
EJECT button
Press to eject a disc. If the disc is not removed for about 10 seconds after eject, the disc is
reinserted automatically.

REMOTE CONTROL
2. MODE button
Press it to select the mode: Radio, DISC (if there is a disc in unit), USB (if there is a USB
device in the unit), CARD (if there is a SD/MMC card in the unit) and AV IN.
3. PLAY/PAUSE button
In DVD mode, press it to stop playback, press again to resume.
4Mute button
: Short press this button to mute the volume output, press it again to resume volume.
Long press it enters to Bluetooth mode.
5. BAND/ RDM（Only for BT）
10
1.POWER
Press it to turn on or turn off the unit.
19.Anti-Theft LED flash
20.Connector
21.GPS MAP CARD
22.Reset button
Default to factory setting。

11
In Radio mode, press to change radio band in sequence of FM1 →FM2 →FM3 →AM1 →
AM2
In DVD mode, press it to play randomly.
6. Cursor buttons
Use the buttons to select the menu item. The title it track or to show next frame.
7. MENU button
Press it to show main menu, in DVD mode, long press it to enter TITLE MENU (Enable only if
the DVD disc with title menu).
8. SUBTITLE button
Press it to select the subtitle language (Available only if the disc with subtitle function).
9. Cursor buttons
Use the buttons to select the menu item. The title it track or to show next frame.
10. ENTER button
Press it to confirm selection or setting.
11. Cursor buttons
Use the buttons to select the menu item. The title it track or to show next frame.
12. SETUP button
In DVD mode press it to enter the setup menu.
13. EJECT button
Press it to eject the disc.
14. Cursor buttons
Use the buttons to select the menu item. The title it track or to show next frame.
15. ANGLE button (Only for BT)
In DVD mode, press it repeatedly to change the viewing angle (Available only with a recorded
DVD file or DVD disc that has this function).
16. INT button (Only for BT)
Press it to activate the intro function. You can play the beginning of every track for 10 seconds
in sequence.
17. P.SCN/ RPT
In SD CARD/ USB mode, press to repeat REP 1 => REP DIR => REP ALL
In DVD mode, press to start repeat REP OFF=>REP Chapter=>REP Title=>REP Off.
In Radio mode: PS (Preset Scan): Press to scan all preset stations in the memory of the current
band and stay on each memory stations for about 5 seconds.
AS (Auto Save): Long press to save the stations with good reception automatically.
18. STEREO/MONO (PTY only for RDS/ * only for BT)
Press STEREO button to select STEREO or MONO.
19. VOL+ button
Press to increase volume level.
20. A-B/ZOOM button
During playback, press it at the starting point of section you want to repeat (A), press this
button again at the ending point of the section you want to repeat (B), section A-B repeating
starts. Press it again to cancel the A-B repeat function.
Press it and hold for two seconds in DVD mode to zoom the image in or out in the sequence of
ZOOM 2-> ZOOM 3-> ZOOM 4-> ZOOM 1/2-> ZOOM 1/3-> ZOOM 1/4.
21. LOUD (Only for RDS)
Press to set LOUD on or OFF.
22. / seek- button
In DVD mode, Press button to skip to the previous track. Press and hold button for two
seconds to activate fast reverse (REW) search in a track.
In RADIO mode, press button to start searching automatic, press and hold for two seconds to
start manual searching. Button Frequency down.

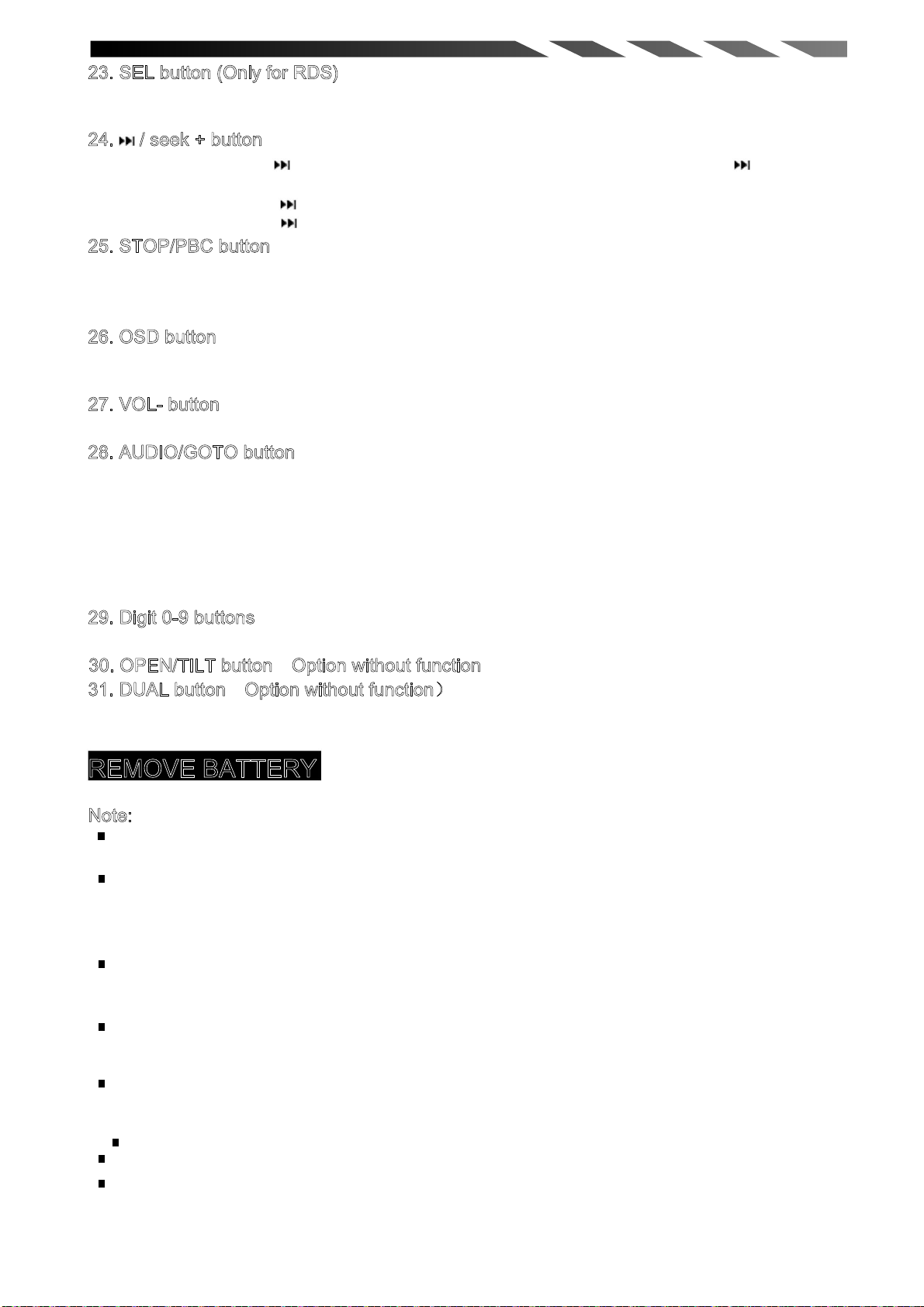

23. SEL button (Only for RDS)
Press it to enter the SOUND SETTING menu, and press Cursor UP/DN buttons to choose an
item and press cursor left/right buttons to set the item. Press SEL button again to exit the menu.
24. / seek + button
In DVD mode, Press button to skip to the next track. Press it and hold button for two
seconds to activate fast forward (FF) search in a track.
In RADIO mode, press button to start searching automatic, press and hold for two seconds to
start manual searching button Frequency up.
25. STOP/PBC button
Press it to Stop playback from the current position, press it again to final stop to the very
beginning. Press PLAY/PAUSE button to play.
Press and hold for two seconds to set PBC on/ off in VCD mode.
26. OSD button
In DVD mode press it to enter the OSD menu, press and hold for 2 seconds to set video setup.
(RED /GREEN /BLUE /BRIGHT / CONTRAST /SHARP /COLOR RESET /BACK)
27. VOL- button
Press to decrease volume level.
28. AUDIO/GOTO button
In DVD mode press it to select the audio language.
In VCD mode, press it to select the sound track in the sequence of MONO L =>MONO R
=>STEREO.
Go to: in DVD mode，press and hold for 2 seconds to show TIME SEARCH menu, select
number and confirm to go to certain position directly. When press button to enter
TITLE/CHAPTER selection mode, select number and confirm to go to certain TITLE or
CHAPTER position directly.
29. Digit 0-9 buttons
In radio mode, select 1-6 the desired band; In DVD mode, select track.
30. OPEN/TILT button（Option without function）
31. DUAL button（Option without function）
REMOVE BATTERY
Note:
The distance may vary according to
the brightness of ambient light.
If the remote is not used for an
extended period of time, remove the
battery to prevent possible damage
from battery leakage and corrosion.
Do not place any objects between
the remote control unit and the
sensor on the unit.
Do not drop the remote control onto the floor; it will damage it beyond repair.
Do not use the remote control unit, while simultaneously operating the remote control unit
of any other equipment; they may interfere resulting in improper operation.
The battery normally last for about one year although depending how often the remote
control is used. If the remote control unit isn’t working even when it is operated near the unit,
replace the battery with a new battery of the same make and use only a lithium cell battery
type: CR2025 (3V).
Dispose empty batteries in accordance with your local governmental regulations.
Do not short-circuit, disassemble, heat or dispose of fire or flames the battery.
Keep the battery out of reach of children, should the battery be swallowed, immediately
consult a doctor.
12

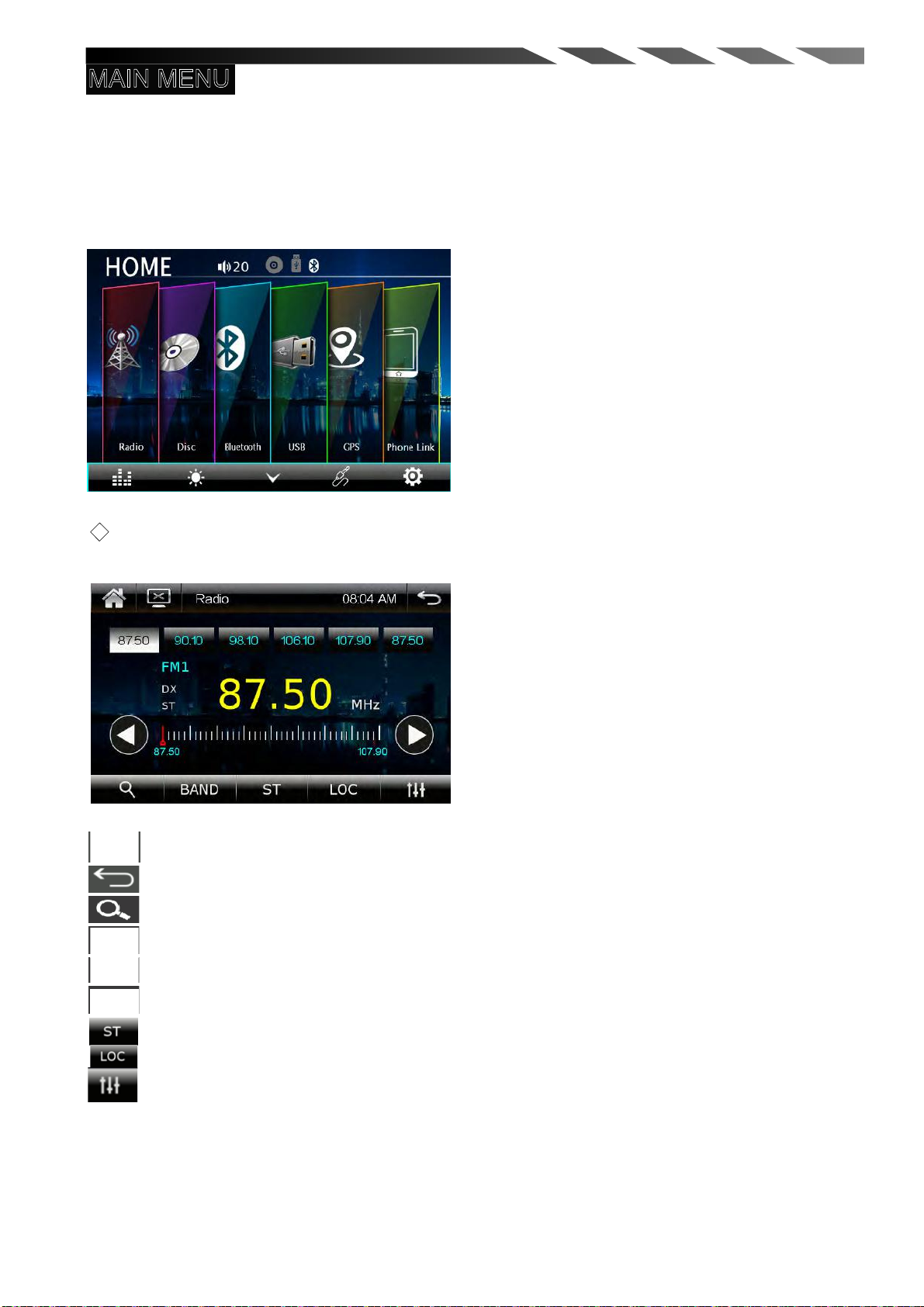

MAIN MENU
The best way to discover the program is to explore each screen in detail, and to find out how to
move from one to another. Read this chapter for a guided tour.
Unit starts by displaying the Main menu.
This is the root of the screen hierarchy, and you can simply access all features by tapping on
the touch screen buttons.
Tap the icons to enter a desired mode.
13
◆RADIO PLAYER
To start Radio, tap RADIO button on main menu screen.
Touch this button to go into home page.
Return button.
Touch this button to select program type.
Touch this button to search backward stations.
Touch this button can choose FM1=>FM2=>FM3=>AM1=>AM2.
Touch this button to search forward stations.
Touch this button can select ST or Mono.
Touch this button can select DX or LOC .
Touch this button adjust the EQ, it can choose User =>Rock =>Pop=> Jazz=>Electric
=>Flat => User.
Note: When a radio signal is not received, When a radio signal is not received, the default for
mono mode, once received stereo radio signal, automatically converted to ST mode.

14
◆DVD PLAYER
Tostart DVDPlayer,tap DVDicon from main menu screen.
TOUCH SCREEN MENU
In DVDmode touch itreturn to DVD menu.
In VCDmode touch it can choose PBCONor OFF.
Touch it to skip to the previous track.
Touch it to pause/play.
Touch it to skip to the next track.
Pressit to repeat REPCH=> REPTT=> REPALL.
Touch it to turn on / off random playback.
Touch it will eject the Disc.
.
Touch it the screenwill be dark,touch anywhere on thescreenand the screenwill light
up .
Touch this button adjust the EQ,it can choose User=>Rock =>Pop=> Jazz=>Electric
=>Flat => User.
Note:
1. DVD Player willautomatically start playing when you insert anyDVDdisc,MEMORYcard or
USBdevice.
2.Warning displays if the vehicle is moving for driver's safety.
3.DVDPlayer will not only play video, butalso picture and music files aswell.
◆USB INTERFACE OPERATION
When aUSBisplayed, the screen will show following interface:
Toplay MP3/ MP4files from aUSBflash memo ry, insert a USBflash memory into the USB
port on the back of the unit. Theunit will play automatically MP3/MP4/JPEG files.
Touch it to skip to the previous track.
Touch it to pause/play.
Touch it to skip to the next track.

15
Press it to repeat REP 1 => REP DIR => REP ALL.
Touch it to turn on / off random playback.
Press it to select file.
Press it to select title (only the file has many files).
Press it to repeat REP CH => REP TT => REP ALL.
Touch this button adjust the EQ, it can choose User
=>Rock =>Pop=> Jazz=>Electric =>Flat => User.
Touch it to enter TITLE MENU (you can choose music, move, picture and Video to play).
◆SETTING CONTROL
To start SETTING, tap SETUP icon on main menu. Your device has default system settings.
You can customize the settings to suit your personal needs. Once you change settings, your
new settings will remain until you change it again.
Language: Tap it to choose English, Chinese, Portuguese, Deutsch,
Espanol, Italiano, Bahasa Indonesia, Arabic, Hebrew, Turkish,
Russian, Persian, Thai and French.
Beep sound: Turn on or off Beep sound.
Subwoofer: Turn on or off Subwoofer.
Reversing Mute: Turn on or off mute when reversing mode.
Date& Time: Setting date and time
SWC: Show SWC section
About: Show about section.
Setup

16
Time & Date Wallpaper
Tap Time & Date setting button to setup time and date. Tap Wallpaper button to setup wallpaper
Radio Area
.
SWC About
Tap SWC item to program Steering Wheel Control Just show you the firmware version
Audio Sound
About Sound Effect Tap Sound item to setting the sound position.
Radio Area: tap it can choose radio area such as
USA, China, Europe, Russia, Australia, Middle
East and Japan.

17
PHONE LINK SCETION
(1)Note
a.Only support Android system,support two-way control.
b.Theconnection must beunder the screenunlocked.
c.Bluetooth must be connected to have sound output.
(2)Connection method
a.Connect the phone date cable.
b.Open the phone developer option interface
and turn on USBdebugging.
c.Automatic into phone link interface,like below
picture.
(3)Corresponding to the role of the icon
Exit the phone link quit
Volume adjustment
Return to the mobile home page
Return to the previous operation
Screensave
Forcelandscape
GPS SCETION
To start GPSmode, please insert SDcard in GPSsloton the front panel. Firstly tap GPSico
on Main Menu to enter to GPSMenu; Secondly tap Setting icon and touch Navi path to
choose Map; Thirdly return and touch Navigationicon onGPSmenu to enter to GPS.You can
choose road and run GPS. Tap Setting icon you also can setting Language and
Volume,Calibrate,See SysInfoand choose Time Zone.
Note:In GPSmode, pressthe volume button( / ) on the panel can set the volume
the system or GPS mode on the screen.
GPS Menu Enter GPS Path
Choose Map Enter the GPS
-\Storage card\iGO
Primo.exe

18
BULETOOTH SCETION
Warning: Driving and having a Telephone conversation at the same time is dangerous, please
park your car before having a telephone conversation. The supplier waves any and all liability
when this warning is not followed.
To enter Bluetooth mode, you can tap Bluetooth icon on Main menu or long press
the mute/Bluetooth button on the Remote Control or press mode button on remote or on front
panel.
Connect Bluetooth
A user can make own choice by tap the buttons.
Tap Dial button to enter call mode.
Tap this button can see the received calls.
Tap this button can see the dialed calls.
Tap this button can see the missed calls ．
Tap this button can see phone book.
Tap this button can see pairing mode or list, and indicate Bluetooth device name and pin
code.
Tap Music button to start Bluetooth Music player.
Tap this button making call or accept calling.
Tap this icon to clear dialing number and move beside icon position.
Pairing Mode
At the 1st time when using BLUETOOTH, you need to pair the mobile phone first.When a
phone have not been paired with the unit, the BT icon and Pairing mark will blink continually on
the panel.
When the unit have connect with phone, the BT icon will turn on and the Mobile phone name (if
available) will be display on the panel.
According to mobile pairing device manual,after searching new device(Power Acoustik), select
it, input password "0000" and confirm ok, device paring is finished.
The text ‘Enter Number’ will shows on the panel after the pairing is completed. It means device
is connected and ready for BLUETOOTH communication.
Auto-connect – Disconnect
When power on the unit, the last paired phone will be connected to the device via Bluetooth
automatically, after searching about one minute, if the device cannot find the paired phone, it
will stop searching. When in standby mode (unconnected), long press Bluetooth button on
remote control to active auto-connect function and the device will search the last paired phone.
If you want to disconnect the Bluetooth connection, turn off the Bluetooth on the phone.

19
1. Dial BUTTON
Tap on Dial button to enter call mode.
In Call mode, the unit can be used as your phone. Making and receiving calls are possible with
BLUETOOTH. Simply tap phone number and tap button to make a call, and tap
button to hang up.
1.) Tap button shortly to delete a wrong digit, or press Reject/INT button on remote to
delete all the numbers at once.
2) Tap button the device automatically makes a call to the latest call in its call log.
Voice Transfer
During a call, you can change a call from Bluetooth mode to phone by tapping Transfer
button.
If you want to have a call in Bluetooth mode again, you can tap Transfer button.
NOTE: the phone book only supports Western Characters. Any difference in character will be
shown such as “+, * or # ”
2. (A2DP) Music Mode
Tap Music button to listen music in Bluetooth mode.
You can select the function with the key for previous,
play or pause,stop and next.
A2DP (Advanced Audio Distribution Profile) Music
Player
A2DP can receive the music from the mobile phone,
amplified by car audio.
signal from the mobile phone, amplified by the car
audio and played out by the car speakers.
Notice: your mobile phone need to support A2DP.
Tap the buttons on the screen as shown, or press corresponding buttons (PAUSE/PLAY,
PREVIOUS/NEXT) on remote control to Play/Pause, Previous, Next music files.
AUX IN MODE
To start AUX-IN Mode, tap on AUX-IN button
from main menu screen. Connect the external
audio signal source to this unit. Select AUX-IN
mode in the main menu.

20
OTHER FUNCTIONS
Subwoofer
Connect the subwoofer to the unit using sub output (see electrical diagram). Tap it on
screen enter into main menu setting choose EQ, or touch this icon directly enter to EQ
mode set subwoofer ON to enable subwoofer.
Parking
When the car is stopped and the parking brake is working, the screen can display the video
image, otherwise the screen can't display the video image
Back View Camera
This unit is equipped with back view camera output. The camera is used to observe the
situation behind the vehicle when you are backing the car.
Please connect your back view camera with the back car video input. And connect the reverse
wire for back a car with the rear gear light. Rear view camera picture will be enabled when you
are backing the car.
