Cineversum Static Cinemascope Lens Kit User manual

www.cineversum.com
Part. No.: R599864
Static Cinemascope Lens Kit
ASSEMBLY AND CALIBRATION
Ref: T9006100 Rev: 02

R599864 - Assembly and Calbration User Manual 2
Changes
Cineversum provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including but
not limited to the implied warranties or merchantability and tness for a particular purpose. Cineversum may
make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any
time without notice.
This publication could contain technical inaccuracies or typographical errors. Changes are periodically made to
the information in this publication; these changes are incorporated in new editions of this publication.
Copyright
All right reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be
recorded, transmitted or stored in a retrieval system without the prior written consent of Cineversum.
Guarantee
Cineversum provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of
guarantee. On receipt, the purchaser must immediately inspect all delivered goods for damage incurred during
transport, as well as for material and manufacturing faults. Cineversum must be informed immediately in
writing of any complaints. If the purchaser or third party caries out modications or repairs on goods delivered
by Cineversum, or if the goods are handle incorrectly, in particular if the systems are commissioned operated
incorrectly or if, after the transfer of risks, the goods are subject to inuences not agreed upon in the contract, all
guarantee claims of the purchaser will be rendered invalid. Not included in the guarantee coverage are system
failures which are attributed to programs or special electronic circuitry provided by the purchaser, e.g. interfaces.
Normal wear as well as normal maintenance are not subject to the guarantee provided by Cineversum either.
The environmental conditions as well as the servicing and maintenance regulations specied in this manual must
be complied with by the customer.
Trademarks
Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights
of their respective holders. All brands and product names mentioned in this manual serve as comments or
examples and are not to be understood as advertising for the products of their manufactures.

R599864 - Assembly and Calbration User Manual 3
TABLE OF CONTENTS
1.0  MOUNTINGTHELENS......................................................................................................4
1.1 Fixing the Anamorphic lens to the lens mount...............................................................................4
1.2 Ceiling mounting............................................................................................................................4
1.3 Table mounting...............................................................................................................................4
2.0  LENSALIGNMENT ..............................................................................................................5
2.1 Adjusting the 16:9 picture without the Anamorphic lens...............................................................5
2.2 Adjusting the tilt and the Anamorphic lens vertical position ........................................................6
2.3 Adjusting the Anamorphic lens angle. ...........................................................................................7
2.4 Adjusting the Anamorphic lens Focus............................................................................................8
3.0  PROJECTOR-SIDECONFIGURATION.......................................................................9
3.1 Congure the Picture Geometry for 2.35:1 Sources ......................................................................9
3.2 Congure the Picture Geometry for 16:9 Sources .........................................................................9
4.0  PROJECTIONDISTANCES............................................................................................ 10
5.0  DIMENSIONS ....................................................................................................................... 10

R599864 - Assembly and Calbration User Manual
Mounting the Lens
4
The optional Static Anamorphic Lens kit
The Static Anamorphic Lens kit features a very high-quality spherical anamorphic lens. It should be xed in front
of the projector to eliminate the ugly and annoying black bars from the movies that can now been seen in their
original cinemascope aspect ratio.

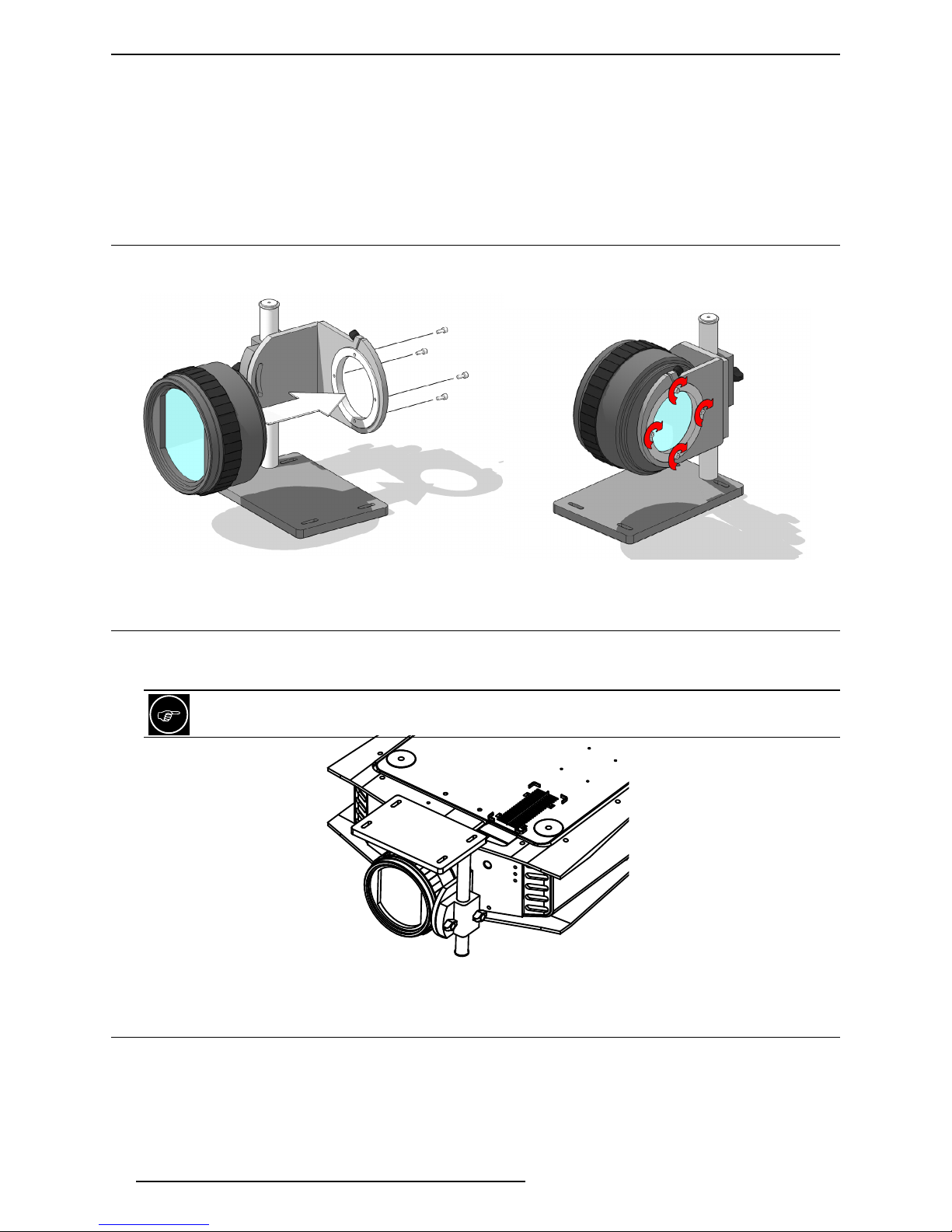

1.0  MOUNTING THE LENS
1.1  Fixing the Anamorphic lens to the lens mount
The Static Anamorphic Lens kit can be used in ceiling or table position. To facilitate the lens install, the Anamorphic
lens is mounted on a dedicated mount that features 3 axis movements.
M3 screws
Assemble the lens to the xing plate using the 4x M3 screws. Tighten the screws to x the lens.
1.2  Ceiling mounting
To mount the lens stand in ceiling position, you must x the lens mount to the ceiling. You can use the drilling
mask available to download.
Note that the mount plate is 10 mm thick, use screws with a length of minimum 3 cm for wall xing.
Make sure that the Anamorphic Lens is centered with the projector lens.
1.3  Table mounting
In table position, you can x the lens mount in place with at least 2 screws.

Lens ALignMent
R599864 - Assembly and Calbration User Manual 5
2.0  LENS ALIGNMENT
2.1  Adjusting the 16:9 picture without the Anamorphic lens

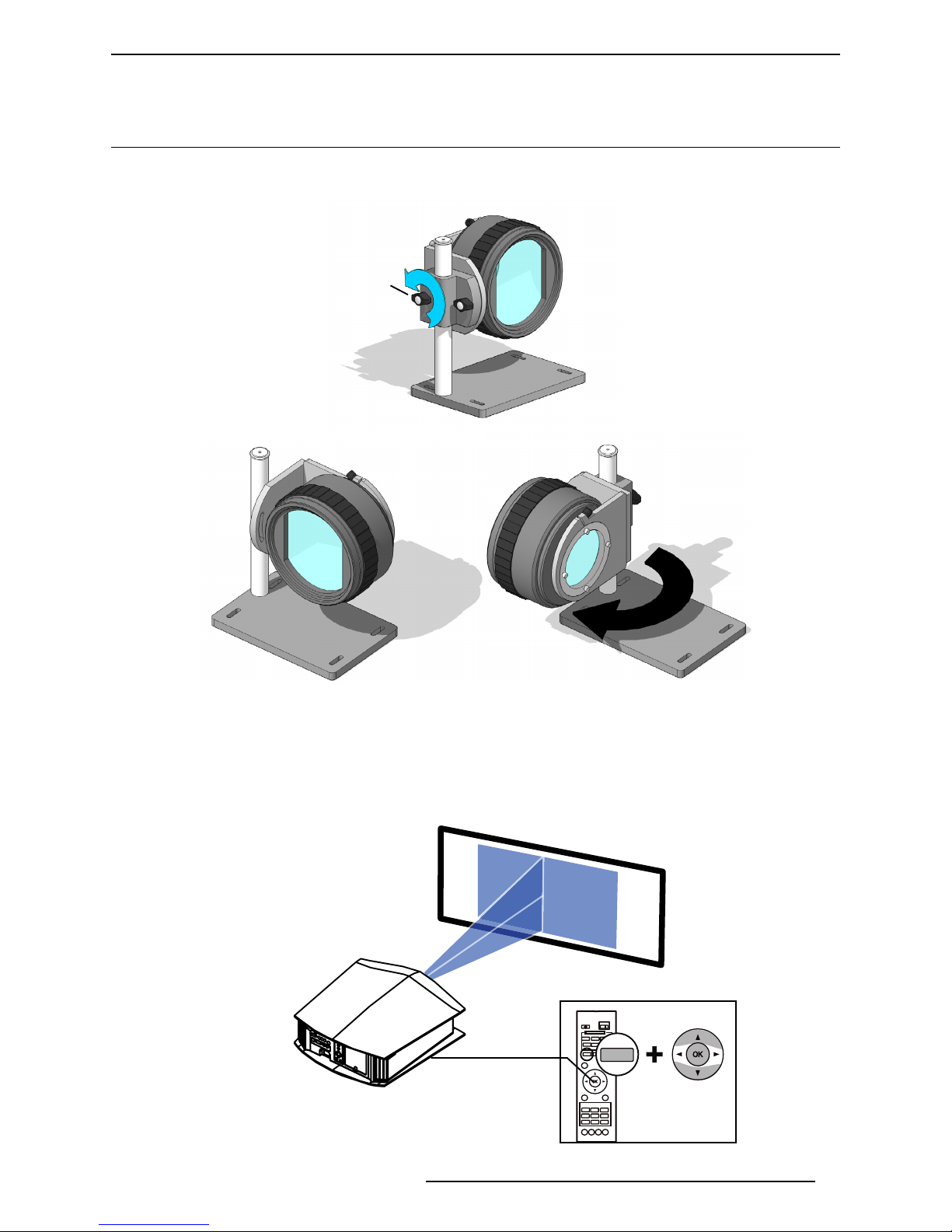

To calibrate the Static Anamorphic Lens kit, the projector need to be perfectly positioned and focused. To do so
set a 16:9 picture, and disengage momentarily the Anamorphic lens.
A
Release the knob A to momentarily disengage the Anamorphic lens.
With a 16:9 picture, adjust the picture Position, Zoom and Focus. To do so you can use the internal pattern or any
external calibration pattern.
The 16:9 picture must ll the height of the screen as pictured below. These adjustments are made by using
the Zoom and the vertical/horizontal shift of the projector. When the 16:9 picture is correctly centered, put the
Anamorphic lens back in place.
ZOOM
BACK
TEST
LIGHT
ASPECT
HIDE
PC
HDMI 1
VIDEO
HDMI 2
S-VIDEO
COMP.
LENS
STAND BY
MENU
CINEMA
3
USER2THX
PICTURE MODE
INPUT
CINEMA
1
CINEMA
2
NATURAL
STAGE
DYNAMIC
USER1
ON
LENS

R599864 - Assembly and Calbration User Manual
Lens ALignMent
6

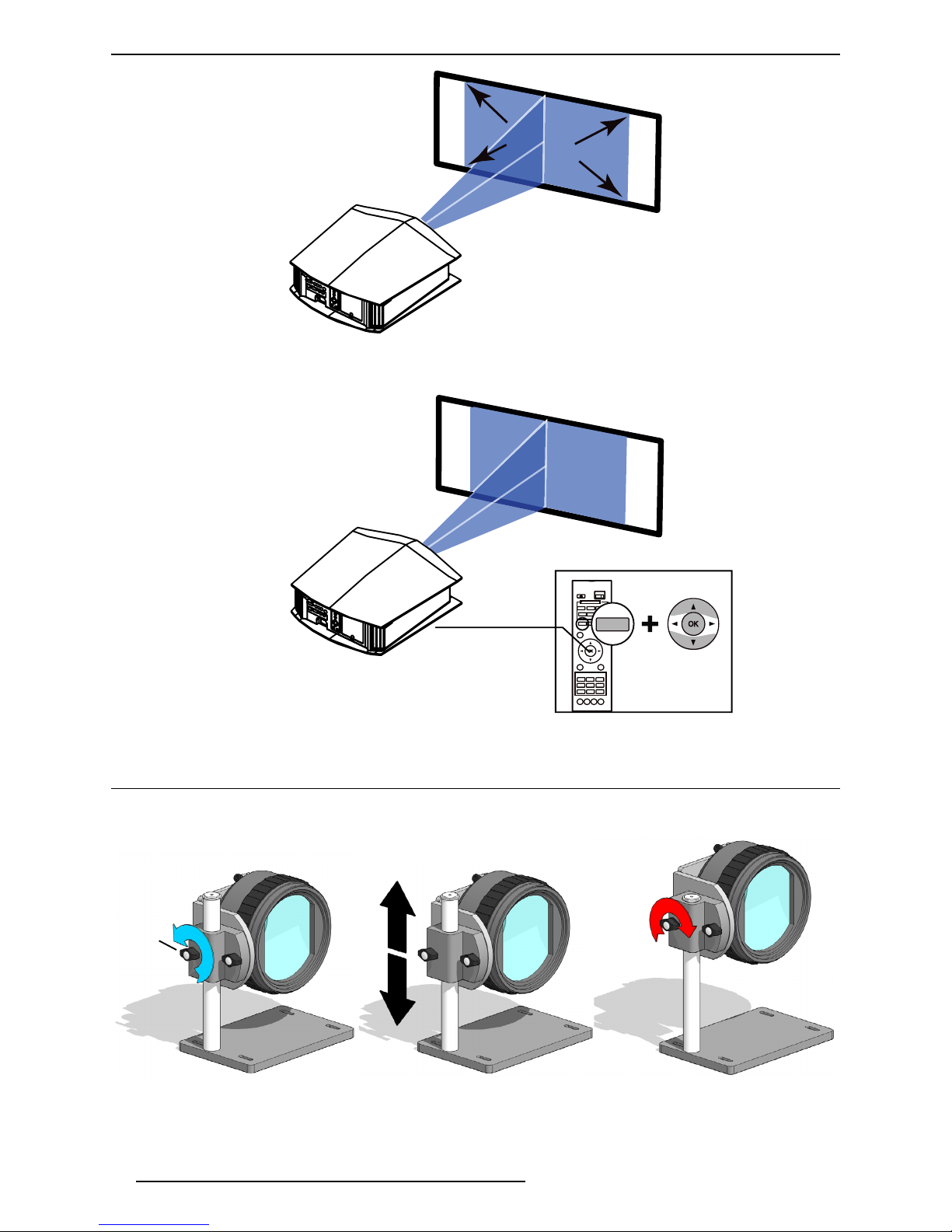

ZOOM
After disengaging the Anamorphic lens, adjust the Zoom until the picture fullls the height of the
cinemascope screen
FOCUS
BACK
TEST
LIGHT
ASPECT
HIDE
PC
HDMI 1
VIDEO
HDMI 2
S-VIDEO
COMP.
LENS
STAND BY
MENU
CINEMA
3
USER2THX
PICTURE MODE
INPUT
CINEMA
1
CINEMA
2
NATURAL
STAGE
DYNAMIC
USER1
ON
LENS
Adjust the picture Focus

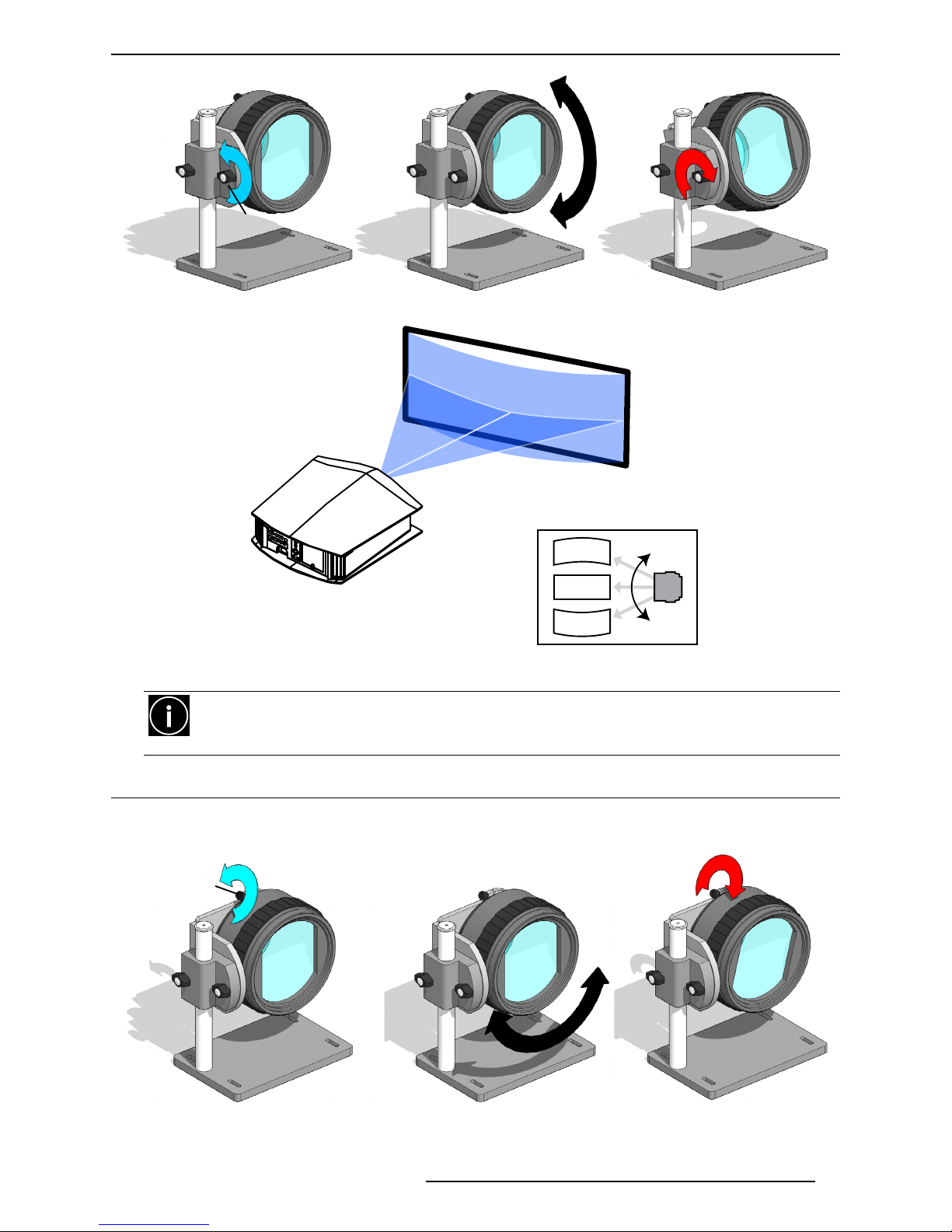

2.2  Adjusting the tilt and the Anamorphic lens vertical position
To correctly adjust the barrel or/and pincushion effects, you must adjust the Anamorphic lens tilt and vertical
position. To do so, use both knob A and B as described below.
A
Release knob A to adjust the correct vertical position.

Lens ALignMent
R599864 - Assembly and Calbration User Manual 7
B
Release knob B to adjust the Anamorphic lens tilt.
Pincushion and barrel effects depend of the lens tilt.
You may obtain a residual pincushion effect at the screen when using a throw ratio between 1.5:1 and
1.8:1 or a projection distance shorter than 5 meters. It is recommended to install your projector at a
minimum distance of 5 meters from the screen and using 1.8:1 or higher throw ratio.

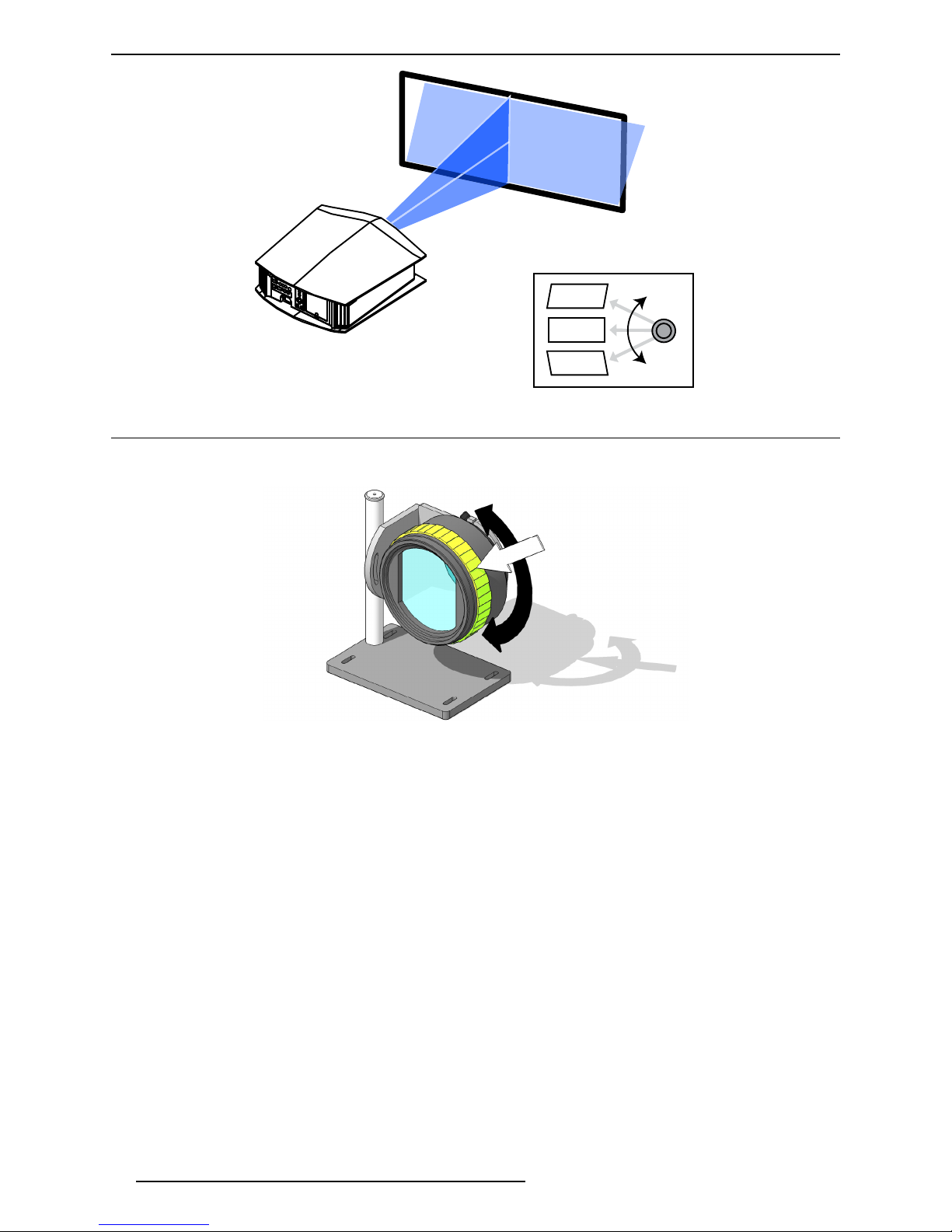

2.3  Adjusting the Anamorphic lens angle.
When the there is some skew to the picture, that means that the Anamorphic lens is angled slightly. To restore
the parallelism of the picture, you may release knob/bolt C and rotate the Anamorphic lens as describe below.
C
Adjust the Anamorphic lens angle to eliminate the visible skew.

R599864 - Assembly and Calbration User Manual
Lens ALignMent
8
2.4  Adjusting the Anamorphic lens Focus
To adjust the Anamorphic lens focus, turn clockwise or anti-clockwise the manual focus ring until you obtain a
clear picture.
Turn clockwise or anti-clockwise the focus ring on the Anamorphic lens

Projector-side configurAtion
R599864 - Assembly and Calbration User Manual 9

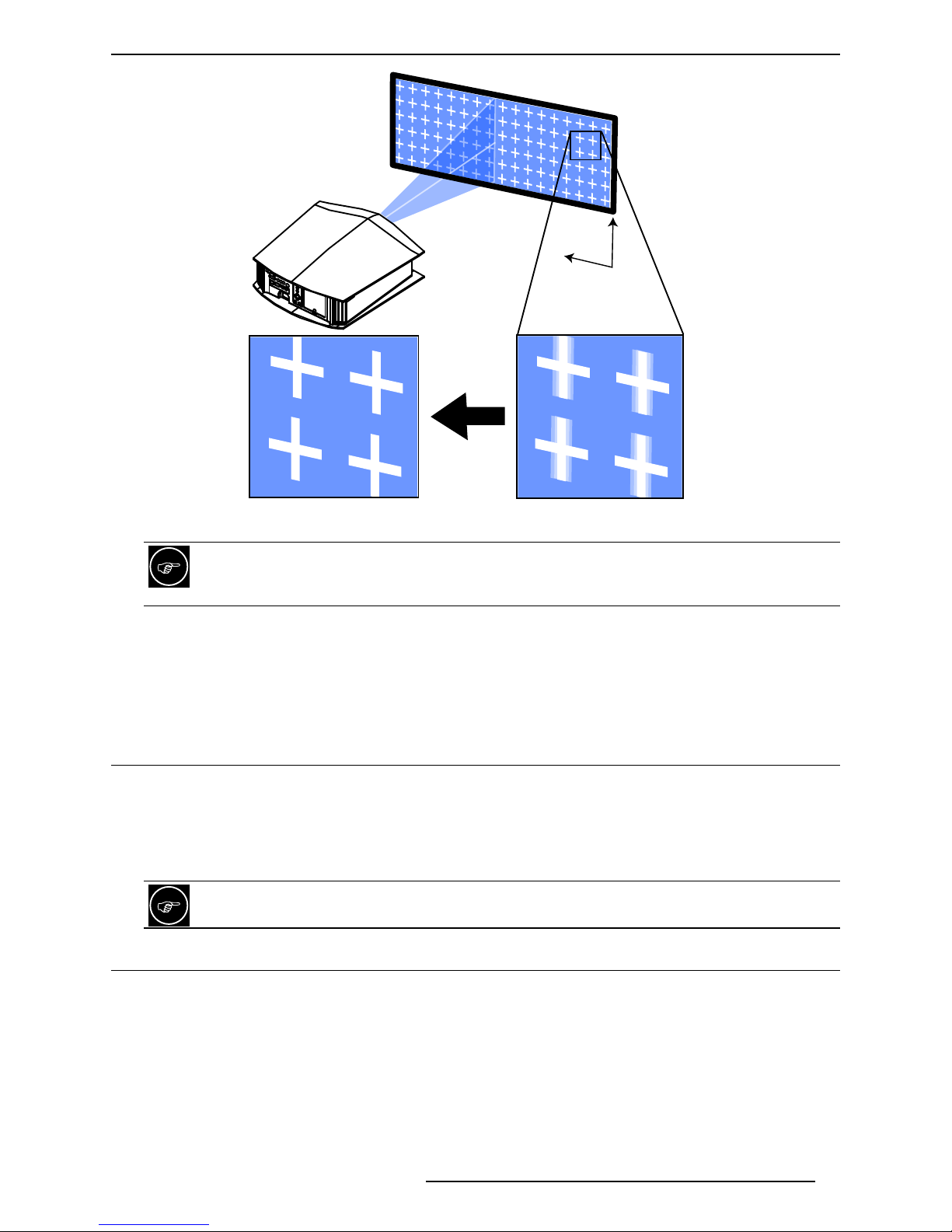

X-AXIS
Y-AXIS
Focused Not focused
Note that the Anamorphic lens focus will only change the focus on the x-axis. If the picture is not focus on
the y-axis, that means that the general focus is not correct. You may then set the global focus by adjusting
it directly from the projector, using the projector remote control.
3.0  PROJECTOR-SIDE CONFIGURATION
3.1  CongurethePictureGeometryfor2.35:1Sources
Apply Anamorphic Mode A function:
When a 2.35:1 source is input and the Static Anamorphic Lens kit is mounted, you need to use the projector
“Anamorphic Mode A” to vertically stretch the picture and to obtain a full screen 2.35:1 image without distortion.
Browse into the projector menu, and apply the V-stretch function:
• Menu > Installation > Anamorphic Mode > Mode A
A faster way to operate this change is to congure a programmable IR-Remote Control or to use RS-232
commands to change Anamorphic modes.
3.2  CongurethePictureGeometryfor16:9Sources
Apply Anamorphic Mode B function:
When selecting a 16:9 video source, the picture needs to be squeezed horizontally if the Static Anamorphic Lens kit
is mounted. To do so, you need to use the projector “Anamorphic Mode B” to obtain a without distortion a 16:9
picture into the 2.35:1 screen.
Browse into the projector menu, and apply the H-squeeze function:
• Menu > Installation > Anamorphic Mode > Mode B

R599864 - Assembly and Calbration User Manual
Projection distAnces
10

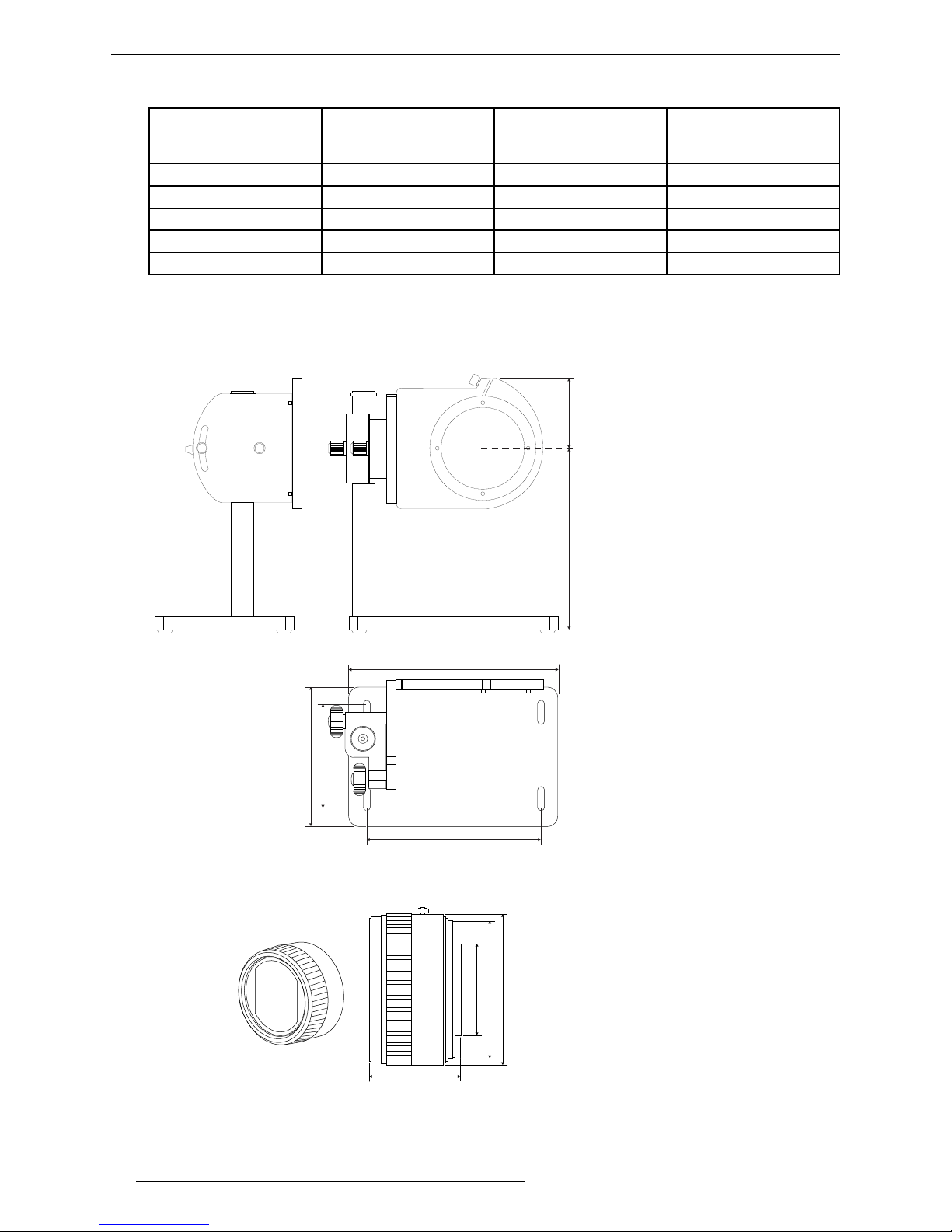

4.0  PROJECTION DISTANCES
Projection Screen
Diagonal Size
(Aspect Ratio 2.35:1)
Projection Screen
Base Size
Projection Screen
Height
AssemblyandCalbration
Projection Distance
107” (272 cm) 98.4” (250 cm) 41.7” (106 cm) 400 cm - 518 cm
128” (325 cm) 118.1” (300 cm) 50.4” (128 cm) 405 cm - 620 cm
149” (378 cm) 137.8” (350 cm) 58.7” (149 cm) 472 cm - 722 cm
170” (452 cm) 157.5” (400 cm) 66.9” (170 cm) 538 cm - 824 cm
200” (508 cm) 184.3” (468 cm) 77.5” (197 cm) 633 cm - 970 cm
• The projection screen sizes and projecting distances in the table above are provided only as a guide. Please
use them as reference during installation.
5.0  DIMENSIONS
83,5 mm
83 mm
125 mm
137 mm
90 mm
150 mm
120 mm
180 mm
80-170 mm
60 mm

Contact information
TEC - CineVERSUM
7, rue La Caille, 75017 Paris, France
www.cineversum.com
Part. No. R599864
