1. Introduction
Wi-beee is a new method for electrical data acquisition,
to ease your decision making when understanding the
use of electrical energy. Based on the patented DINZE-
RO system, our “clip-on” technology consists of easily
clipping the device onto the wire or simply at the top
of an MCB and, once powered-up, it will start converting
the measured parameters into info, by sending them via
wireless.
These units can be installed at any point of the installa-
tion and will help detect any hot-spot where the current
is not being used efficiently and therefore very much
help in drastically reducing energy consumption by re-
motely activating the alarms when the desired limits are
passed.
All these energy demands are suitably registered in a
data base. The right decisions can be taken with this
application.
4

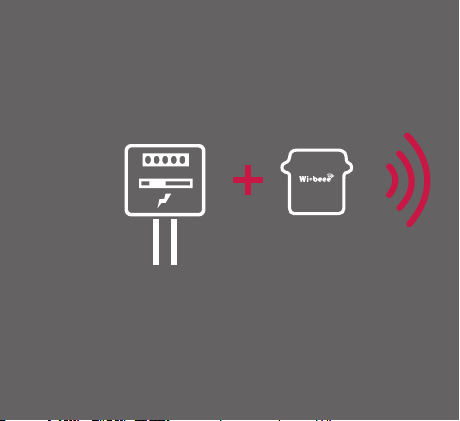

Electrical Panel Wi-beee
Overview
5

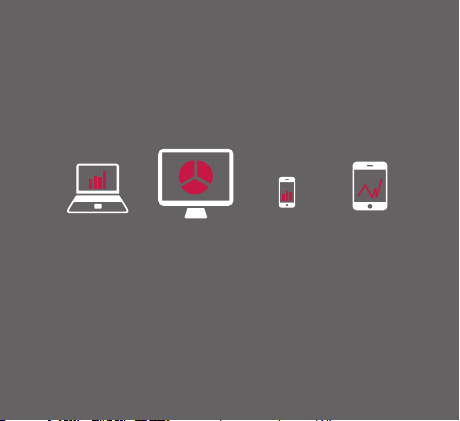

Laptop PC Smartphone Tablet
6
1
Instructions

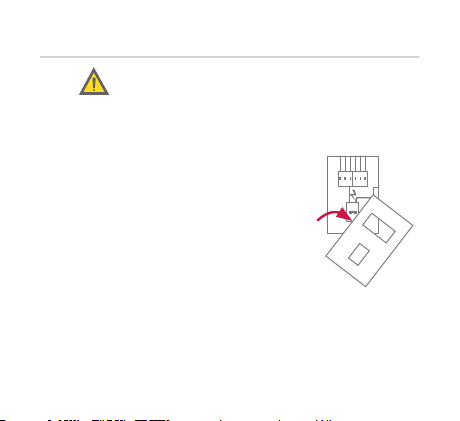

1. Remove the protective panel.
2. Install the device, be careful
with the neutral terminal (N)
this one must correspond with
the neutral cable of your ins-
tallation (your device could be
damaged if a bad installation is
made).
3. Put the magnetics connectors in
direction to circuit breaker.
Before using Wi-beee ensure that the con-
ditions are the appropriate for working,
and that the protection equipment is the
adequate.
4. Press the device to ensure the engage.
5. Put the conductor of each line close to the Wi-
beee body.
7
Attention!
Refer to manual
Double
Isolation
SYMBOLS
6. Verify that the led red is on and blink.
7. After a few seconds, the led blue turns blinking.
Do not apply around or remove from hazar-
dous live conductors.
8
Direct share modeApp mode
1. On your smartphone/
tablet, use the Wi-Fi
connection set- tings to
connect to Wibeee.
2. You can get access to
the net configuration
and instantane- ous
measures through your
browser.
http://192.168.1.150
User: user
Password: user
2
1. Scan the QR code to down-
load the app or get it from:
http://wibeee.circutor.com
2. Open the app
Wibeee CIRCUTOR
3. Follow the steps indica-
ted by the app.
9
1. Now you have access
to analysis your data
trough
Wibeee CIRCUTOR.
3
2. Or you can get access
to analysis your data,
through the website:
http://wibeee.circutor.com
10
1. Safety Precautions
The Wi-beee has been designed and
tested to fulfil the safety standard:
UNE-EN61010-2-030:2011;
UNE-EN 61326-1:2006;
EN 301 489-17 V2.2.1
Prior to use the Wi-beee for the first
time, read the following carefully:
1. Circutor does no take responsibility for
damage or physical injury that may be
caused as a result of improper installa-
tion or use of equipment.
2. Use of the Wi-beee on uninsulated
conductors is limited to 265 V~to
power frequency.
3. Do not expose the to aggressive or
explosive environment.
Technical
Specifications
11
2. External Connections
1. Direct connection to circuit breaker up to 65A.
(85V ... 265 V~)
2. Requires Internet access through a wireless network
3. Requirements system administrator.
You must open the following ports :
- Port 8080 for Http Get/Post.
- Port 53 for DNS.
- Port 80 for Internet.
4. Do not use the Wi-beee if there any reason to think
that its no operating properly or that it is faulty.
5. For measuring in uninsulated conductor use the appro-
priate and necessary personal protection equipment.
12
4.Wi-beee Set-up on Breaker Installation
N L N L1 L2 L3
3. LEDs
Red LED
Blinking Powered device
Blue LED, it indicates the connection status
Slow blinking (1s) No link to a Wi-Fi network
Fast blinking( <1s) Link to a Wi-Fi network
Fixed on Sending data over the network
Single-phase Three-phase
13
5. Technical Features(1)
5.1 Electrical Features
5.2 Electrical Safety
Voltage Range 85... 265V~
Frequency Range 50 Hz - 60 Hz
Consumption of equipment 1.5 VA ... 4.5 VA
Isolation Double Isolation
Protection Class II IEC/EN 61010-1:2010
5.3 Measurements range
Nominal range current 500mA ... 65 A
Accuracy 2% + Variation in range of use (5.5)
Nominal range voltage 85... 265 V~
Accuracy 2% + Variation in range of use (5.5)
Power : Accuracy 4% + Variation in range of use (5.5)
Communications Transceptor Wi-Fi IEEE 802.11
Frequency Range 2.405-2.48 GHz
Encryption AES128
Certification FCC (EE. UU.), IC (CANADÁ), ETSI (EUROPA)
5.4 Communications
(1) The metrological specifications given are provided with adjustable field.
14
5.5 Variations in Range of Use
Quantity of influence Range of influence Typical Máx.
Temperature -10°C ... +45°C 0,3%
Relative humidity 10% 90% 0,3%
Crosstalk (current) 0,9%
External stray fiel (current) 1%
Conductor position 2% 3%
Adjust Full Scale 0,2% 0,4%
Distance between wire and
sensor 2,5%/0.1mm
5.6 Standards
Standards
UNE-EN 61010-2-030:2011
UNE-EN 61326-1:2006
EN 301 489-17 V2.2.1
Operating temperature -10°C ... 45°C
Storage temperature -40°C ... 85°C
Protection degree IP20
Surround Self-extinguishable
UNE 21031 90°C
Maximum altitude 2000 m
5.7 Mechanical and Environment features
15
5.8 Dimensions
80
50,5
28
20
22
4950,5
28
20
22
Single-phase
Three-phase
