Runpotec GF3 User manual

WWW.RUNPOTEC.COM
INSTRUCTION MANUAL
GF3 Glass Fiber Ø 3 mm
Cable pulling system

WWW.RUNPOTEC.COM
2
RUNPOTEC GmbH
Irlachstrasse 31
A-5303 Thalgau
Tel.: [phone]
Fax: [phone]
[email protected]
www.runpotec.com
GF3
VIDEO
Overview 3
Introduction 4
Safety information 4
GF3 description 4
Scope of delivery 4
Commissioning / meter counter 5
Easy and quick service access 5
Automatic glide back protection 6
Repairs 6
Technical information glass fiber rod 6
Application Cable pulling loop with RTG 6 thread 6
Accessories / combination products 7
RC2 inspektion-camera 7

RUNPOTEC GmbH – Irlachstrasse 31 – A-5303 Thalgau
Tel.: [phone] – Fax: DW 35 – [email protected]
3
Scope of delivery
B
H
L
B
L
1
5
6
2
7
8
9
3
4
C
B
D
F
GH
M
I
K
J
L
E
Sample image
Overview 3
Introduction 4
Safety information 4
GF3 description 4
Scope of delivery 4
Commissioning / meter counter 5
Easy and quick service access 5
Automatic glide back protection 6
Repairs 6
Technical information glass fiber rod 6
Application Cable pulling loop with RTG 6 thread 6
Accessories / combination products 7
RC2 inspektion-camera 7
A

WWW.RUNPOTEC.COM
4 ENGLISH
Read the safety information on www.runpotec.com before use. The
GF3 - Glass Fiber Ø 3 mm is used exclusively for pushing into pipes
Ø 10 - 50 mm and for pulling in cables and lines. No liability is accep-
ted for any other use! Please note the information on the special glue
(item no. 30050) at www.runpotec.com
1Ergonomic holding and carrying handle
2RG7 - Guiding head with kink protection incl. swivel
3Kink protection
4Automatic glide back protection / lever
5Display with integrated digital meter counter – m/ft
6Reset button / activate, reset and switch from m to ft
7Button to open the box
8Accessories-/ repair box
9Easy service access – open with a single screw
AGF3 - Box incl. RG7 - guiding head with front thread
BAccessory box with repair kit
CButton battery CR 2032
D1 x Special glue 3 g
E1 x Ergonomic pulling grip
F1 x Cable pulling loop with RTG Ø 6 mm thread and Schutzkappe
G1 x Kink protection
H2 x Mounting wrench
I3 x Eyelet Ø 7 mm, RTG Ø 6 mm thread
J1 x Coupling joint for Ø 3 mm
K6 x Adhesive joint for Ø 3 mm
L1 x Starting head Ø 11 mm, RTG Ø 6 mm thread
M1 x Fiber glass rod Ø 3 mm with 2 x kink protection
GF3 description
Scope of delivery
Safety information
Introduction
RUNPOTEC appreciates your purchase of a GF3 - Glass Fiber Ø 3 mm.
These instructions for use provide information on safe use of your GF3
- Glass Fiber Ø 3 mm. Read the instructions for use thoroughly before
commissioning. If you have any questions about commissioning,
assembly, safety and applications, or problems, please contact your
dealer or RUNPOTEC. You will find our contact data on page 2.

RUNPOTEC GmbH – Irlachstrasse 31 – A-5303 Thalgau
Tel.: [phone] – Fax: DW 35 – [email protected]
ENGLISH 5
AGF3 - Box incl. RG7 - guiding head with front thread
BAccessory box with repair kit
CButton battery CR 2032
D1 x Special glue 3 g
E1 x Ergonomic pulling grip
F1 x Cable pulling loop with RTG Ø 6 mm thread and Schutzkappe
G1 x Kink protection
H2 x Mounting wrench
I3 x Eyelet Ø 7 mm, RTG Ø 6 mm thread
J1 x Coupling joint for Ø 3 mm
K6 x Adhesive joint for Ø 3 mm
L1 x Starting head Ø 11 mm, RTG Ø 6 mm thread
M1 x Fiber glass rod Ø 3 mm with 2 x kink protection

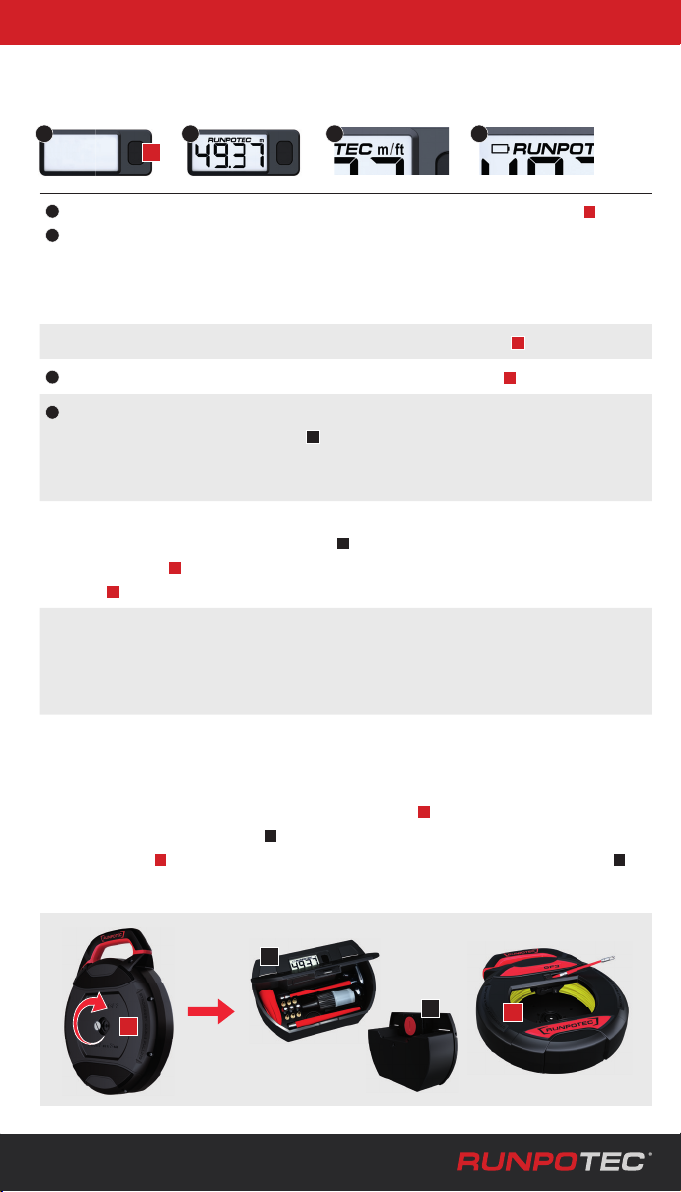

Commissioning / meter counter
Easy and quick service access
On the back of the GF3 box, loosen the screw 9in the middle to be able to
remove the accessory box B. After removing you have easy access to the
fiberglass rod 10 for repair or replacement or for changing the battery Con
the back of the accessory box.
6
1Activate the display (meter counter): Briefl y press the reset button 6once.
2Caution! Measurement only takes place when the display is activated
(moving the fiberglass rod is not enough). The display is automatically
switched off after one minute of inactivity. Info: No manual switch-off
possible.
Set the meter counter to 0: Briefly press the reset button 6once.
3Meter (m)/Feet (ft) switch: Hold down the reset button 6for 4 seconds.
4Battery symbol: When the symbol lights up in the display, the battery on
the back of the accessory box Cneeds to be replaced. (button battery
CR 2032). If no symbol appears in the display, the battery voltage is OK.
Battery life is approximately 3 years with average use.
Measurement Accuracy: In order to ensure the correct functioning of the
meter counter, the accessory box Bmust be firmly fixed in the GF3 box
with the screw 9. After installing the accessory box, briefly press the reset
button 6once. Check measuring wheel for contamination and wear!
Measured value display – meters (m) / feet (ft):
0 – 99.99 m/ft 2 decimal places after the point
100.0 – 999.9 m/ft 1 decimal place after the point
Negative measured value possible (minus in front of the value)
1 2 3 4
C
9
B
10

WWW.RUNPOTEC.COM
6 ENGLISH
Alle Abbildungen sind Symbolfotos. Änderungen und Druckfehler vorbehalten.
Automatic glide back protection
Prevents the fi berglass rod with the guiding head incl. kink pro-
tection from slipping back into the GF3 box and thus always
being at hand. Repair etc.: press the glide back protection
4 to the left to be able to push the fi berglass rod with the
guiding head including kink protection into or out of the box.
Repairs
Technical information glass fiber rod
Application Cable pulling loop with RTG 6 thread
4
CLEAN
10 min
C
CLEAN
10 min
C
CLEAN
10 min
C
Optional - calibrate
Breaking situation
Gluing with adhesive joint
Saw off
A A B
10 min 10 min
A A
B
10 min
10 min
C = 12 mm
A = 7 mm
Breaking situation
Fix the RG7 - guiding head
with mounting wrench
Saw off
Fix eyelet
Repair of fiberglass rod with
coupling joint (centre of rod)
Repair of fiberglass rod with adhesive joint and kink protection
(bar beginning or bar end)
10
1. 2.
12
mm


CLEAN
Rod Rec. pipe Ø Bending radius w. e. j. Bending radius rod Breaking load Total breaking load
Ø
3 mm 10 – 50 mm 38 mm 28 mm 450 kg 130 kg
R
R
Cabel from
Ø 2 – 12 mm
Two cabel
Cabel with
plug
Attach cable Application cable pulling loop
Glue
Stripping

RUNPOTEC GmbH – Irlachstrasse 31 – A-5303 Thalgau
Tel.: [phone] – Fax: DW 35 – [email protected]
ENGLISH 7
RC2 inspektion-camera – areas of application with different
RUNPOTEC cable pulling systems
GF3 Glass Fiber Ø 3 mm Length Item no.
with integrated digital meter
counter – ft/m,
2 x kink protectionon
fiberglass rod
16-piece accessories
20 m
30 m
50 m
10192
10193
10195
GF3 Glass Fiber Ø 3 mm Length Item no.
without meter counter
2 x kink protectionon
fiberglass rod
16-piece accessories
20 m
30 m
50 m
10196
10197
10198
Replacement fi berglass rod Length Item no.
Ø 3 mm, incl. RG7 - Guiding
head with front thread and
eyelet Ø 7 mm incl. swivel
20 m
30 m
50 m
20816
20817
20818
Repairing-kit GF3 Ø 3 mm Item no.
15-parts, 1 x RG7 - Guiding head
with front thread,
2 x Kink protection,
1 x Special glue,
2 x Mounting wrench,
6 x Adhesive joint, 1 x Eyelet,
1 x Coupling joint,
1 x Starting head
20819
GF3 – RC2 – Special offer Item no.
1 x GF3 Glass Fiber Ø 3 mm –
cable pulling system – 30 m
with integrated digital meter
counter – ft/m
+
1 x RUNPOTEC inspection-
camera with 30 m cable
on a spool in the system case
with extensive accessories
11146
Accessories / combination products
For small pipes from
Ø 20 mm – 50 mm
and up to a length of
50 meters
For waste water, ventilation
pipes etc.
from Ø 40 mm – 300 mm,
protection rating IP 67
For shafts, underfl oor ducting,
cavity wall, suspendet
ceilings, ventilation inspection
and servicing, etc.
GF3 – Glass Fiber Ø 3 mm Fiber glass rod from Ø 4,5 mm RUNPOSTICKS
integrated digital
meter counter – ft/m

WWW.RUNPOTEC.COM
RUNPOTEC PRODUCTS
VERSION: 2023-01
WWW.RUNPOTEC.COM
For cable – Ø from
Ø 16 mm – 40 mm
For cables, single wires, ropes,
pipes mit Ø 2 mm to Ø 32 mm
Incl. double run-out s
ystem and meter counter
For cable diameter
Ø 4 mm – 100 mm
Ideal for suspended ceilings,
cable ducts, cavity walls, etc...
pre-assembled,
incl. support rollers
load bearing
capacity 215 kg
For heavy cable cable drums
from Ø 450 mm – Ø 2000 mm
to 1700 kg
For drums up to
4500 kg – Ø 1600 mm
For horizontal cable
pulling up to 800 Kg
To gently pull cables
around corners
for horizontal
cable pull
For protected pulling
of ready-made
cables including plugs
The problem solver for low pipe
cross section Ø 16 – 32 mm
Multifunction mandrel for
cable bundles or individual wires
For small- to mid-sized
cable drums
Integrated digital
meter counter – m/ft
For all cable drums,
cable bundles and pipes
up to 800 kg
Profi cable pulling system
RUNPO 5 – Ø 5,3 mm
Digital cable length
measuring device
RM 35
Fiberglass rod
GF4.5 / GF6 / GF7.5 /
GF9 / GF11 / GF15
Cable pulling grip
RUNPO Z
RTG 6
LOOP
Push rod set
RUNPOSTICKS
Cable drum roller
PRO 530 / PRO 670
Roll-off rails
AS 900
Cable drum lifter
RUNPOLIFTER 4500 Set
Capstan winch
CW 800 E
Cable guide roller
CHAIN / SHAFT / 90 DEGREES
Polyester cable
pulling rope
incl. steel reel
Cable pulling loop
HOOK / GEWINDE
Profi cable roller
XB 300 – X BOARD
Cable pulling system
GF3 Glass fiber rod Ø 3 mm
Profi cable roller
XB 500 – X BOARD
Profi cable pulling system
cable bundles or individual wires
For heavy cable cable drums
2000 mm
For cables, single wires, ropes,
Mechanical cable pulling tool
RT 2008
