Cisco Small Business RV215W User manual

Quick Start Guide

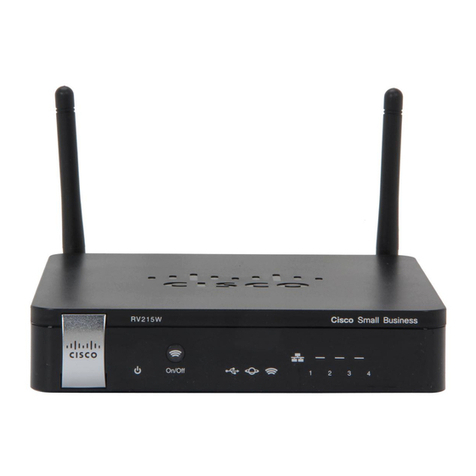

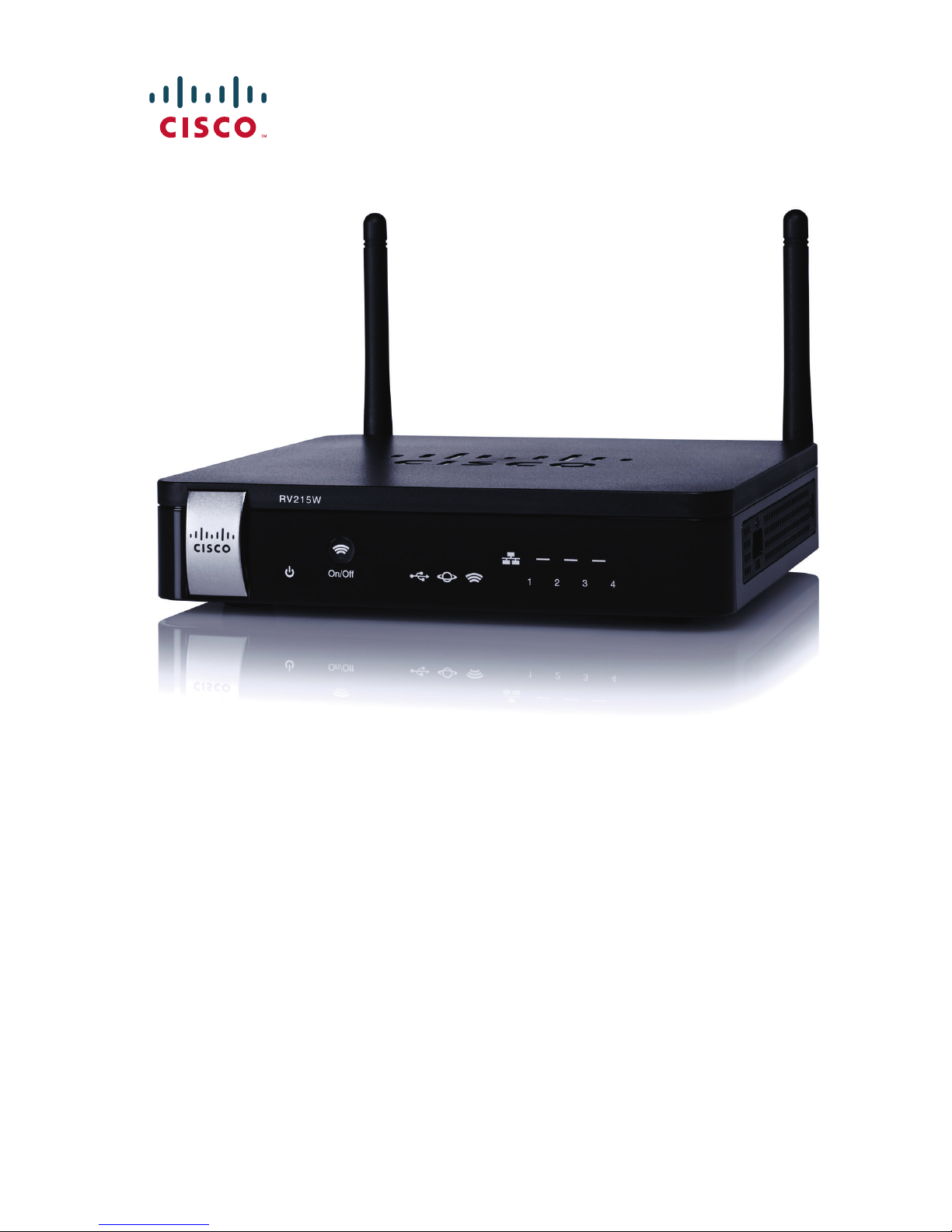

Cisco RV215W Wireless-N VPN Firewall
Package Contents
•Wireless-N VPN Firewall
•Ethernet Cable
•Power Adapter
•Quick Start Guide
•Documentation and Software on CD-ROM

2 Cisco RV215W Wireless-N VPN Firewall
Welcome
Thank you for choosing the Cisco RV215W Wireless-N VPN Firewall.
This guide describes how to physically install your Cisco RV215W and
launch the web-based Device Manager.
Mounting the Cisco RV215W
Placement Tips
To prevent the firewall from overheating or being damaged:
• Ambient Temperature—Do not operate it in an area that exceeds an
ambient temperature of 104°F (40°C).
•AirFlow—Be sure that there is adequate air flow around the firewall.
• Mechanical Loading—Be sure that the firewall is level and stable to
avoid any hazardous conditions.
Place the device on a flat surface so that it sits on its four rubber feet.
Cisco RV215W Features
Front Panel
Power Solid green when the device is powered on and
booted.
Flashes green when the device is booting or
loading the firmware.
USB Solid green when the USB dongle is recognized
and the USB drive is ready.
Flashes green every second when the USB
dongle is successfully connected to the Internet
Service Provider (ISP) and the port is receiving
and sending data.
Flashes every 3 seconds when an error is
detected and the USB dongle is not recognized.
Off when no USB device is connected.
1
2

Cisco RV215W Wireless-N VPN Firewall 3
Back Panel
RESET—The RESET button has two functions:
•To reboot the unit and retain the current configuration, press and hold
RESET for at least 3, but no more than 10 seconds, by using a paper clip
or a pen tip.
•To reboot the unit and restore the factory default configuration, press
and hold in the RESET button for more than 10 seconds. Changes you
have made to the Cisco RV215W configuration are lost.
LAN (1-4)—RJ-45 device connections to link local area network devices,
such as PCs, print servers, or switches, to the firewall.
WAN (Internet)—Internet device connection for connecting the firewall to a
wide area network device, such as a cable or DSL modem.
POWER—Switch that toggles power to the device on or off.
12VDC—Power port that connects the firewall to the provided 12VDC
power adapter.
WAN Solid green when the firewall is connected to the
Internet by using a wired connection.
Off when it is not connected to the Internet or it is
connected by using a USB dongle.
Flashes when it is sending or receiving data over
the wired connection.
Wireless Off when the wireless radio is disabled (switched
off).
Flashes green when the wireless radio is
transmitting or receiving data.
The button, when held for 5 seconds or more,
switches the wireless radio on or off. The button
and the LED is solid green when the wireless
radio is enabled (switched on).
LAN (1-4) The numbered lights correspond to the LAN
ports on the back panel.
Lit green when the corresponding port is
connected to a device. Flashes green when the
port is sending or receiving data.

4 Cisco RV215W Wireless-N VPN Firewall
Side Panel
USB—Type A USB port on the right side of the housing that supports
3G/4G/LTE USB dongles.
Connecting the Equipment
You must connect a PC to the firewall by using an Ethernet cable to
perform the initial configuration. After the initial configuration,
administrative tasks can be performed through the network or by using a
wireless connection.
To connect a PC to the Cisco RV215W for initial configuration:
Step 1 Power off all equipment, including the cable or DSL modem, the PC,
and the Cisco RV215W.
Step 2 Use an Ethernet cable to connect your cable or DSL modem to the
WAN port on the firewall.
Step 3 Connect another Ethernet cable from one of the LAN (Ethernet)
ports to the Ethernet port on the PC.
Step 4 Power on the cable or DSL modem and wait until the connection is
active.
Step 5 Connect the power adapter to the firewall 12VDC port.
Caution Use only the power adapter that is supplied with the firewall.
Using a different power adapter could damage the device.
The POWER button is on by default. The power light on the front
panel is solid green when the power adapter is connected
properly and the firewall is finished booting.
Step 6 Plug the other end of the adapter into an electrical outlet. Use the
plug (supplied) specific to your country.
Step 7 Continue with the instructions in the Using the Setup Wizard to
configure the firewall.
3

Cisco RV215W Wireless-N VPN Firewall 5
Using the Setup Wizard
The Setup Wizard and Device Manager are supported on Microsoft
Internet Explorer 6.0 or later, Mozilla Firefox 3.0 or later, and Apple Safari 3.0
or later. To configure the firewall by using the Setup Wizard:
Step 1 Power on the PC that you connected to the LAN1 port in Step 3 of
the Connecting the Equipment section. Your PC becomes a DHCP
client of the firewall and receives an IP address in the 192.168.1.xxx
range.
Step 2 Launch a web browser window on your PC.
Step 3 In the address bar, enter the default IP address of the firewall,
192.168.1.1. A site security certificate message displays. The
Cisco RV215W uses a self-signed security certificate. This
message appears because the firewall is not known to your PC.
Step 4 Click Continue to this website (or the option shown on your
particular web browser) to continue. The login page appears.
Step 5 Enter the username and password. The default username is cisco.
The default password is cisco. Passwords are case sensitive.
Step 6 Click Log In. The Router Setup Wizard is launched.
Step 7 Follow the on-screen instructions to set up your firewall. The
Router Setup Wizard tries to automatically detect and configure
your connection. If it is unable to do so, it might ask you for some
information about your Internet connection. Contact your ISP for
this information.
Step 8 Change the password as instructed by the Router Setup Wizard or
follow the instructions the Changing the Administrator Username
and Password section. You are required to log into the device with
the new username and password.
The Device Manager Getting Started page appears. It displays the
most common configuration tasks.
Step 9 Click one of the listed tasks or a task listed in the navigation bar to
complete the configuration.
Step10 Save any additional configuration changes and log out of Device
Manager.
4

6 Cisco RV215W Wireless-N VPN Firewall
Changing the Administrator Username and Password
To change the administrator username and password on the firewall:
Step 1 From the Getting Started page, select Change Default
Administrator Password or select Administration > Users.
Step 2 Check Edit Admin Settings.
Step 3 Enter a new username in Administrator Account Settings. We
recommend that you do not use cisco.
Step 4 Enter the old password.
Step 5 Enter the new password. Passwords should not contain dictionary
words from any language or be the default password. They should
contain a mix of uppercase and lowercase letters, numbers, and
symbols. Passwords must be at least 8 but no more than 30
characters in length.
Step 6 Enter the new password again to confirm.
Step 7 Click Save.

Cisco RV215W Wireless-N VPN Firewall 7
Where to Go From Here
For EU lot 26 related test result, please check this web page:
www.cisco.com/go/eu-lot26-results.
Support
Cisco Support
Community
www.cisco.com/go/smallbizsupport
Cisco Support and
Resources
www.cisco.com/go/smallbizhelp
Phone Support Contacts www.cisco.com/en/US/support/
tsd_cisco_small_business
_support_center_contacts.html
Cisco Firmware
Downloads
www.cisco.com/go/smallbizfirmware
Select a link to download firmware for Cisco
products. No login is required.
Cisco Open Source
Requests
www.cisco.com/go/
smallbiz_opensource_request
Cisco Partner Central
(Partner Login Required)
www.cisco.com/web/partners/sell/smb
Product Documentation
Cisco RV215W
Administration Guide
www.cisco.com/go/rv215w
5
