Cisco NCS 1004 User manual

Install Cisco NCS 1004
This chapter contains procedures to install Cisco NCS 1004.
•Rack Compatibility, on page 1
•Install NCS 1004 on an EIA/ANSI/ ETSI Rack, on page 3
•Stacking NCS 1004, on page 16
•General Power and Grounding Requirements, on page 17
•Power Supply, on page 19
Rack Compatibility
This section provides rack compatibility details for the Cisco NCS 1004.

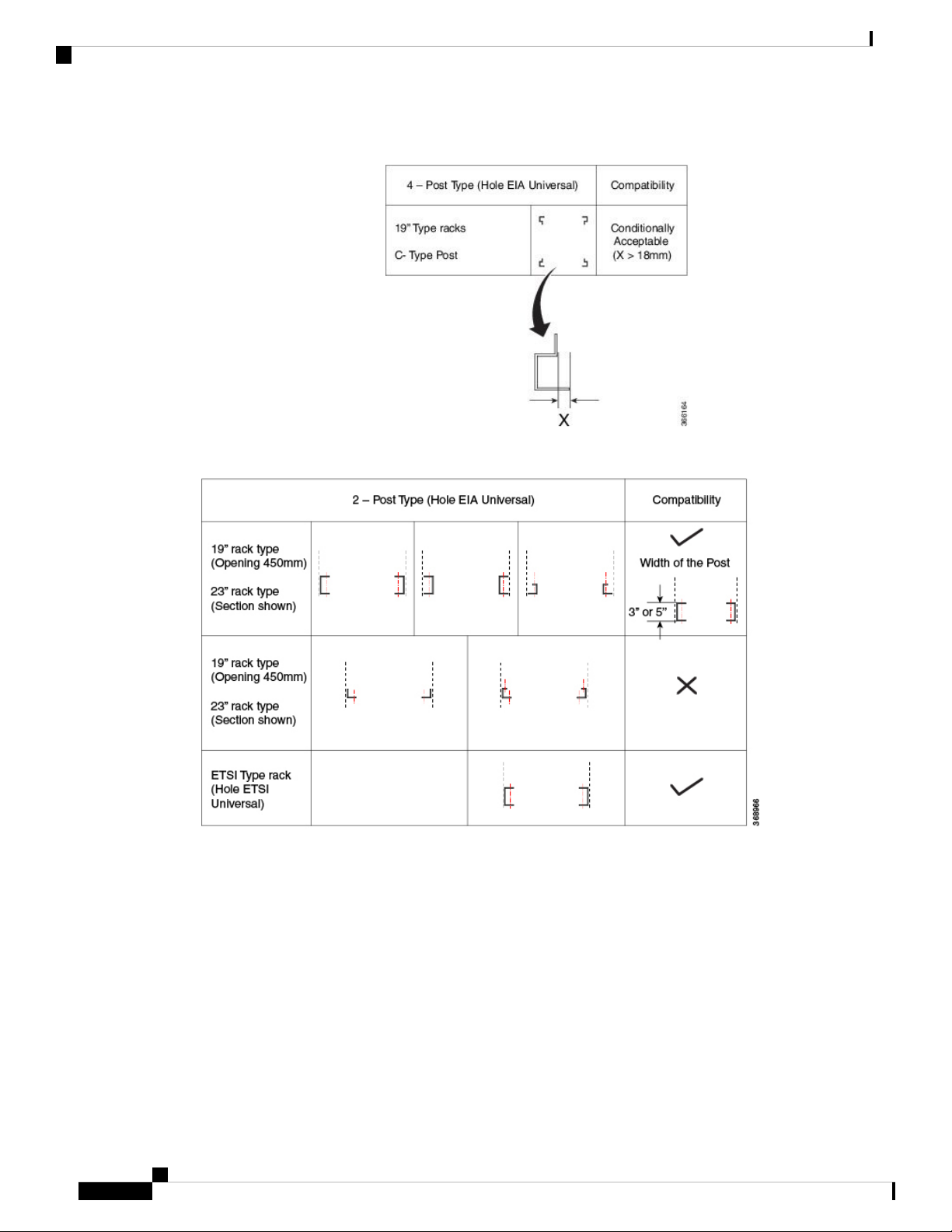

Figure 1: Four Post Rack Type
Install Cisco NCS 1004
1

Figure 2: Four Post Rack Type
Figure 3: Two Post Rack Type
Install Cisco NCS 1004
2
Install Cisco NCS 1004
Rack Compatibility

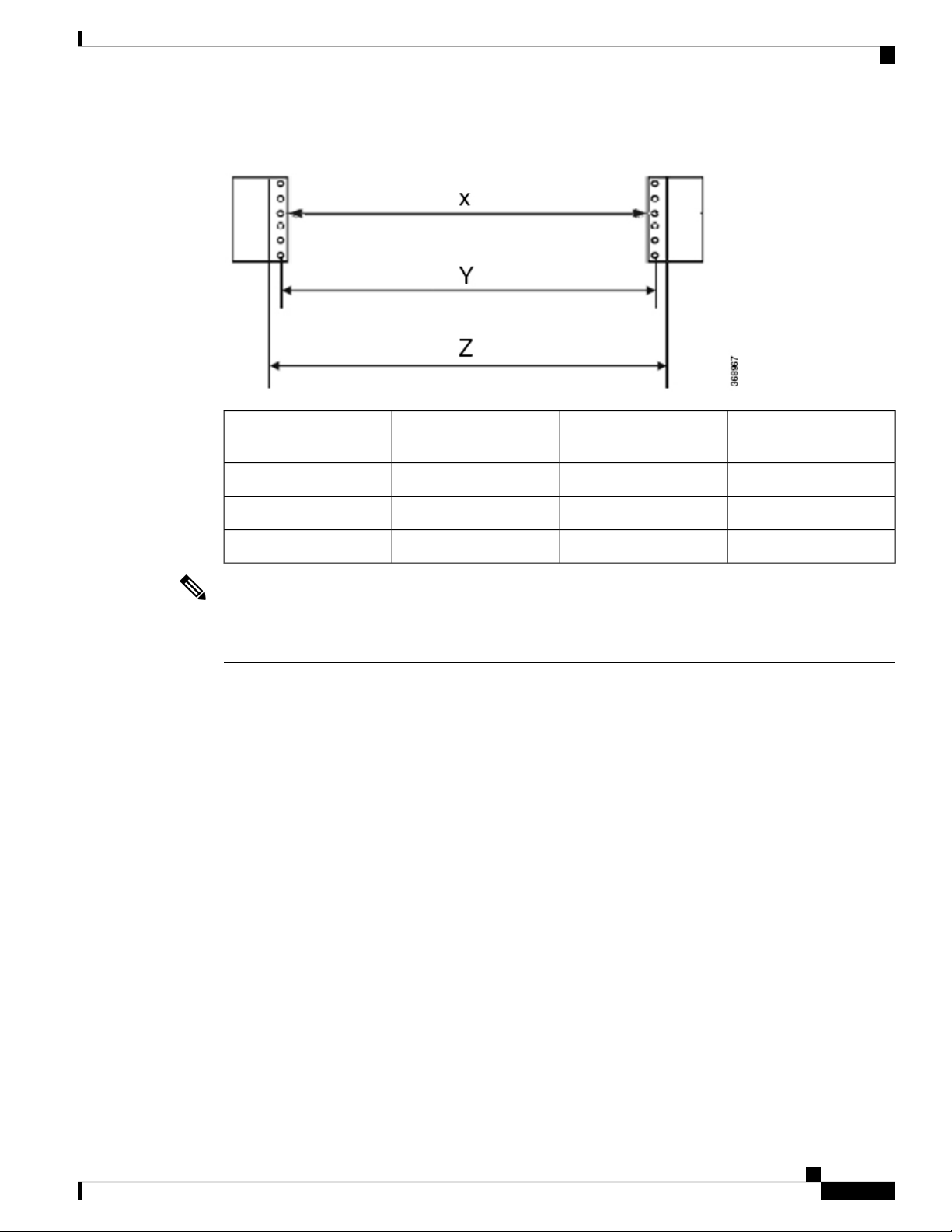

Figure 4: Rack Specification
Mounting Flange
Dimension Z
Rack Mounting Hole
Center-Center Y
Rack Front Opening XRack Type
482.6mm (19")465mm (18.312")450.8mm (17.75")19" racks
584.2mm (23")566.7mm (22.312")552.45mm (21.75")23" racks
533.4mm(21")515.0mm(20.276")500.0mm(19.68")ETSI racks
The distance between the front and the rear post in a four post rack is 427 mm (closed position) and 707 mm
(open position).
Note
Install NCS 1004 on an EIA/ANSI/ ETSI Rack
It is mandatory to fix the fiber management brackets for all the cards in the chassis before installing the Cisco
NCS 1004 chassis onto the rack. See Attach Fiber Management Bracket section for the detailed procedure.
Install Cisco NCS 1004
3
Install Cisco NCS 1004
Install NCS 1004 on an EIA/ANSI/ ETSI Rack

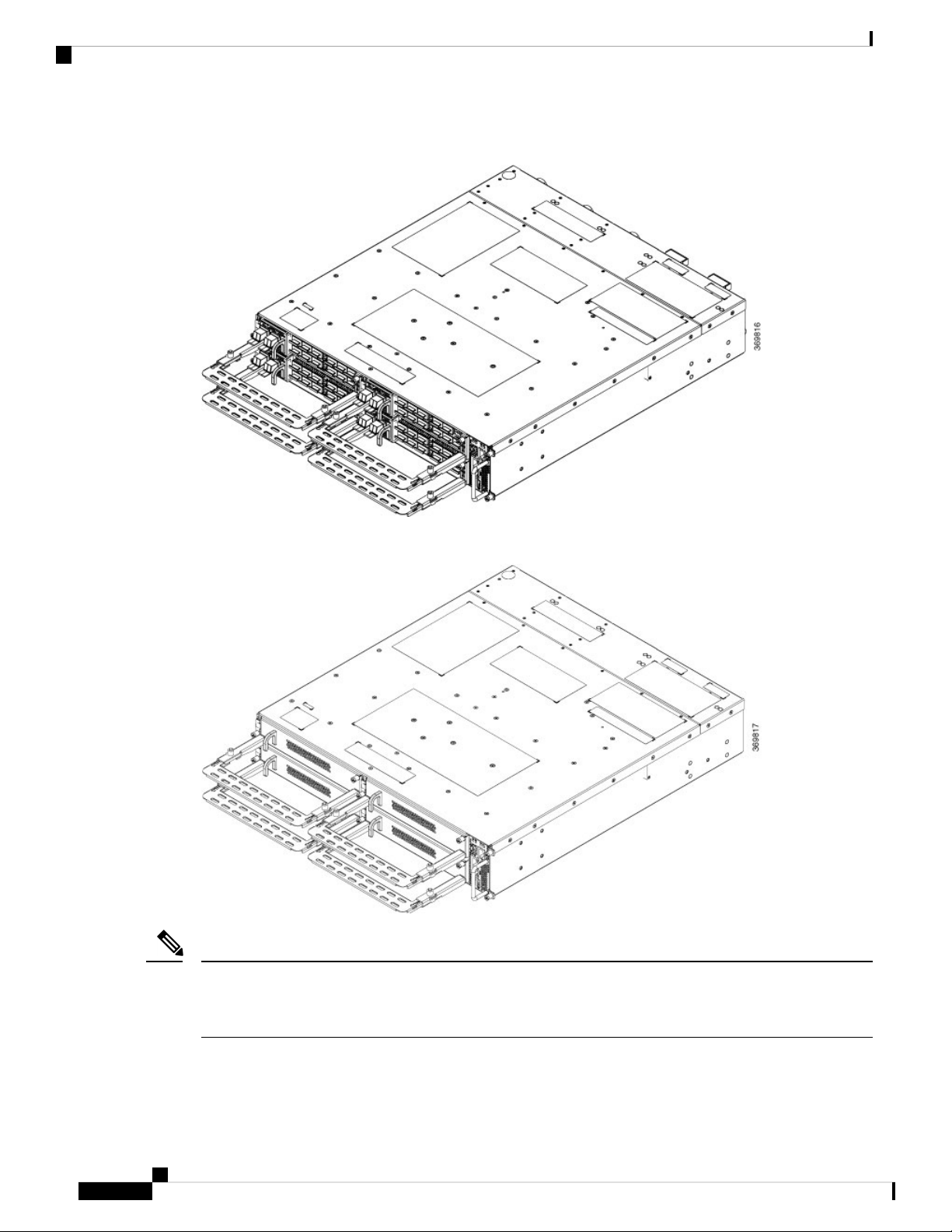

Figure 5: Line Cards fitted with Fiber Management Bracket
Figure 6: Filler Cards fitted with Fiber Management Bracket
In ETSI racks, to maintain a footprint of 600 mm, the cabinet door cannot be installed and the horizontal bar
of the fiber management bracket should be maintained at the shortest length. See Adjusting the Fiber
Management Bracket.
Note
Install Cisco NCS 1004
4
Install Cisco NCS 1004
Install NCS 1004 on an EIA/ANSI/ ETSI Rack

The sliding rail must be used only for first chassis positioning. The chassis must be fixed with screws on the
front side.
Caution
Use only the fastening hardware provided with Cisco NCS 1004 to prevent loosening, deterioration, and
electromechanical corrosion of the hardware and joined material.
Caution
Before you begin
Ensure the rack is compatible. See the Rack Compatibility section.
Step 1 Attach the left and right mounting brackets to the chassis using the screws (48-2029-01) and tighten them to a torque
value of 1.5 N-m.
The left and right brackets have been marked accordingly.

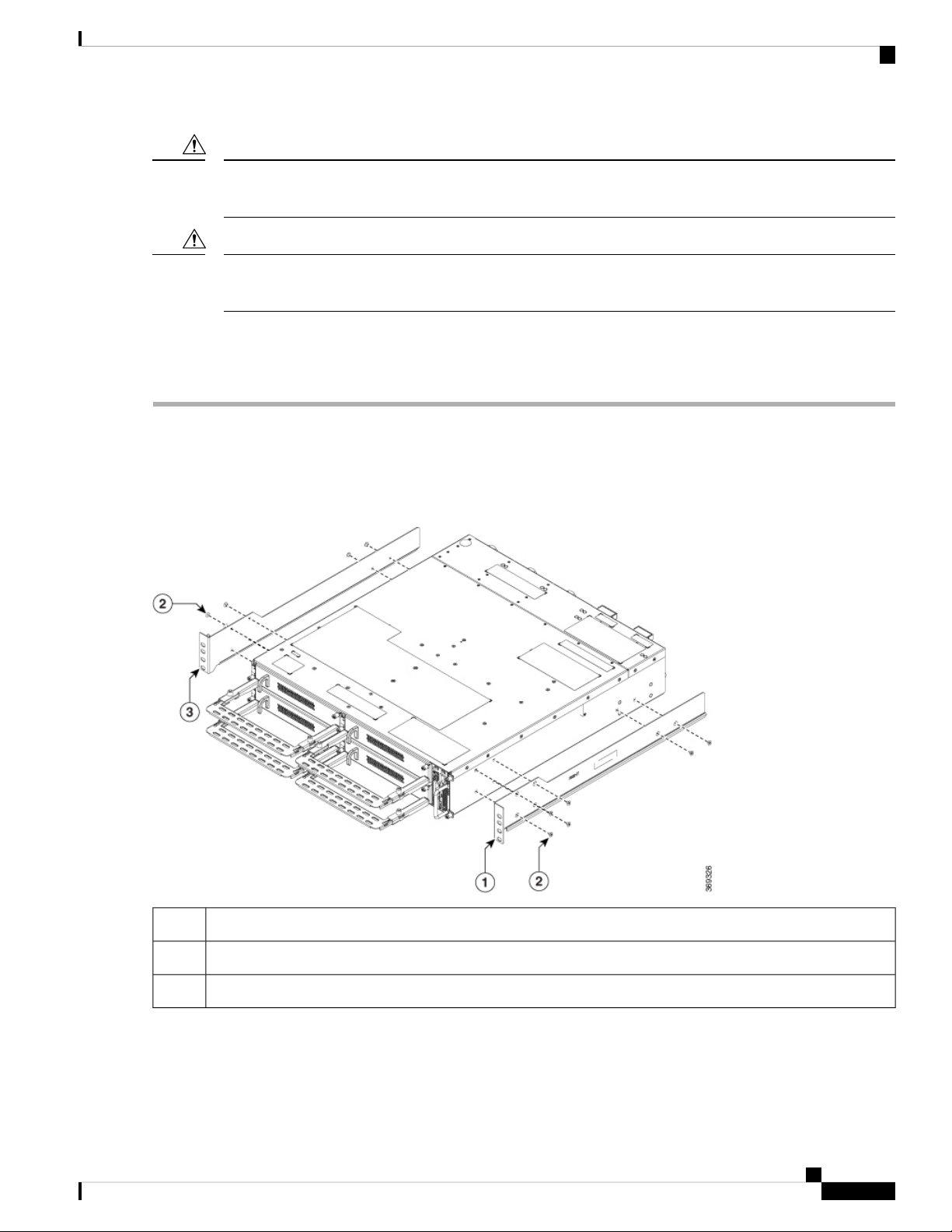

Figure 7: Fixing the Brackets
Right Bracket (700-116388-01)1
Screws used for brackets2
Left Bracket (700-116386-01)3
Step 2 Install the four post slider or two post slider on the rack.
a) Install Two Post Slider into an EIA/ANSI Rack
b) Install Four Post Slider into an EIA/ ANSI Rack
Install Cisco NCS 1004
5
Install Cisco NCS 1004
Install NCS 1004 on an EIA/ANSI/ ETSI Rack

c) Install Two Post Slider into an ETSI Rack
d) Install Four Post Slider into an ETSI rack
Step 3 Insert the chassis (with brackets) onto the sliders assembled on the rack.
Step 4 After the chassis is completely inserted, fasten the chassis with four screws (48-101524-01) on each side of the bracket,
and using a number-2 Phillps screwdriver, tighten them to a torque value of 4.65 N-m.
See Install Air Filter for the air filter installation procedure, before you fasten the chassis to the rack.
Install Two Post Slider into an EIA/ANSI Rack
This procedure has details about installing the two post slider into an EIA/ ANSI rack.
Step 1 Identify the two post slider and adjust the length of the slider (3" to 5").
Slide the inner sliders and adjust the length to mate with the rack surface.
Figure 8: Two Post Slider Identification
Check for marking on the sliders; the right and the left sliders are indicated.1
Step 2 Integrate the two post slider with the rack. The procedure for 23" and 19" rack is discussed here:
• 19" rack - the slider can be directly fitted on to a 19" rack. On the front side, insert only the top most screw of the
slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side, insert three screws (48-101524-01)
and tighten to a torque value of 4.65 N-m.
• 23" rack - the slider is fitted on to a 23" rack using an adapter (refer the following image). The formed surface must
always face the inner side of the rack post. On the front side of the adapter (towards the chassis), insert only the top
most screw of the slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side (towards the
chassis), insert three screws (48-101524-01) and tighten them to a torque value of 4.65 N-m. For the adapter portion
which is towards the rack, all the six screws are fitted on the front and rear side.
Install Cisco NCS 1004
6
Install Cisco NCS 1004
Install Two Post Slider into an EIA/ANSI Rack

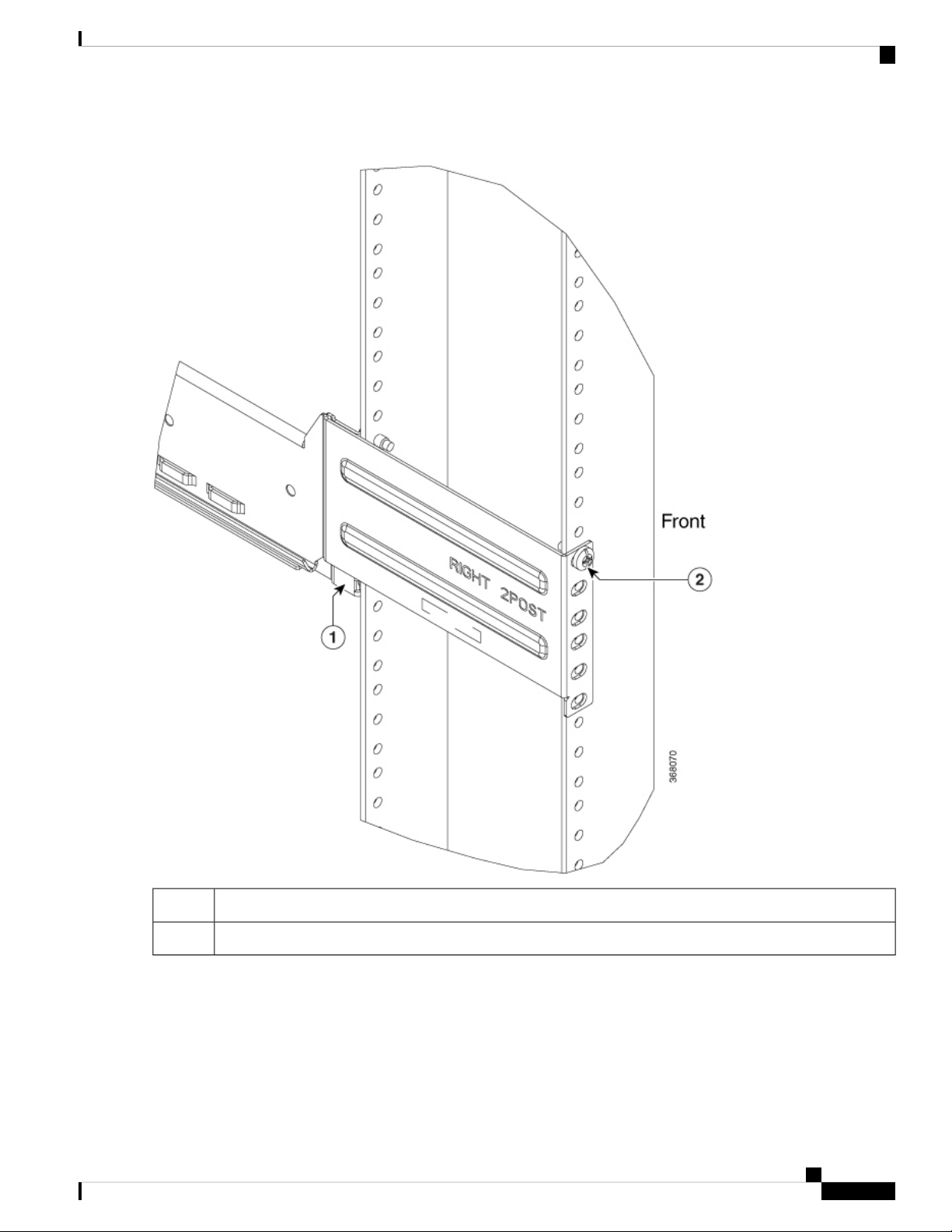

Figure 9: Two Post Slider Integration - 19" Rack
Inner surface of the sliding bracket.1
Slider fixing screws (48-101524-01)2
Install Cisco NCS 1004
7
Install Cisco NCS 1004
Install Two Post Slider into an EIA/ANSI Rack

Figure 10: Two Post Slider Integration - 23" Rack
Adapter1
Slider fixing screws (48-101524-01)2
Install Four Post Slider into an EIA/ ANSI Rack
This procedure has details about installing the four post slider into an EIA/ ANSI rack.
Step 1 Identify the four post slider and adjust the length of the slider.
Slide the inner slider arm and adjust the length to mate with the rack surface.
Install Cisco NCS 1004
8
Install Cisco NCS 1004
Install Four Post Slider into an EIA/ ANSI Rack

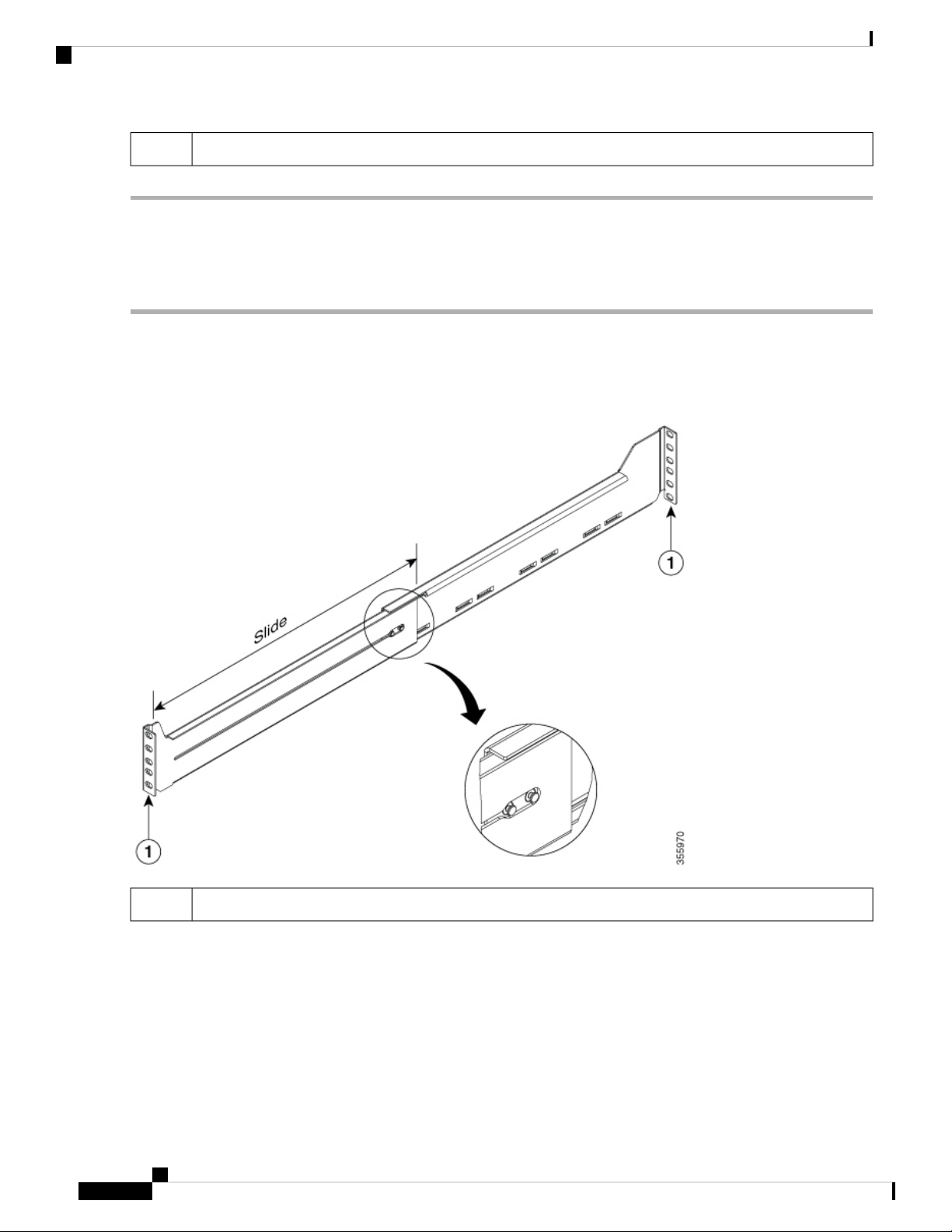

Figure 11: Four Post Slider Identification
Slide and adjust the length of the slider arm.1
Step 2 Integrate the four post slider with the rack. The procedure for the 23" and 19" rack is discussed here:
• 19" rack - the slider can be directly fitted on to a 19" rack. On the front side, insert only the top most screw of the
slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side, insert five screws (48-101524-01)
and tighten them to a torque value of 4.65 N-m.
• 23" rack - the slider is fitted on to a 23" rack using an adapter (refer the following image). The formed surface must
always face the inner side of the rack post. On the front side (towards the chassis), insert only the top most screw
of the slider (48-101524-01) and tighten it to a torque value of 4.65 N-m. On the rear side (towards the chassis),
insert five screws (48-101524-01) and tighten them to a torque value of 4.65 N-m. For the adapter portion which is
towards the rack, all the six screws are fitted on the front and rear side.
Install Cisco NCS 1004
9
Install Cisco NCS 1004
Install Four Post Slider into an EIA/ ANSI Rack

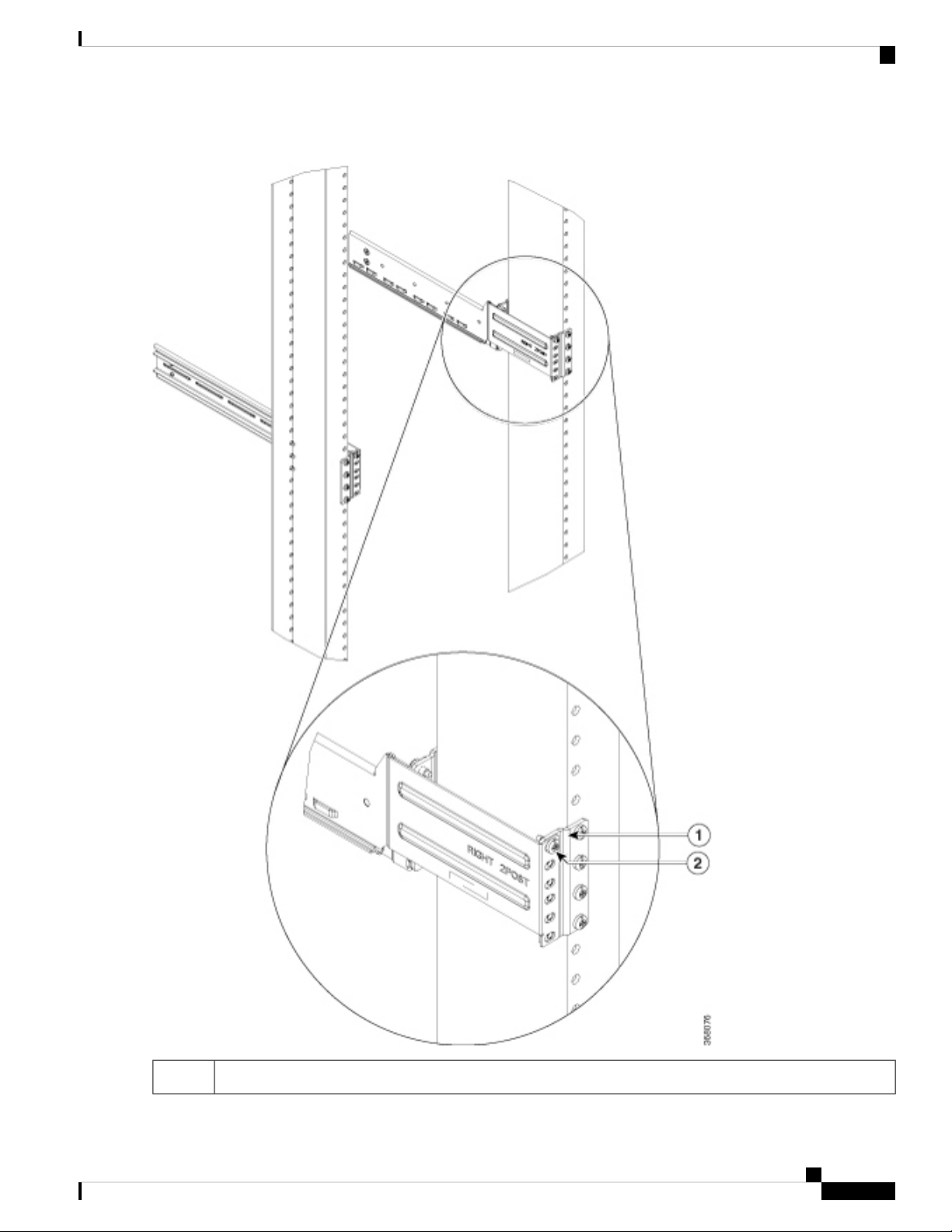

Figure 12: Four Post Slider Integration - 19" Rack
Edge surface of the slider1
Slider fixing screws (48-101524-01)2
Install Cisco NCS 1004
10
Install Cisco NCS 1004
Install Four Post Slider into an EIA/ ANSI Rack

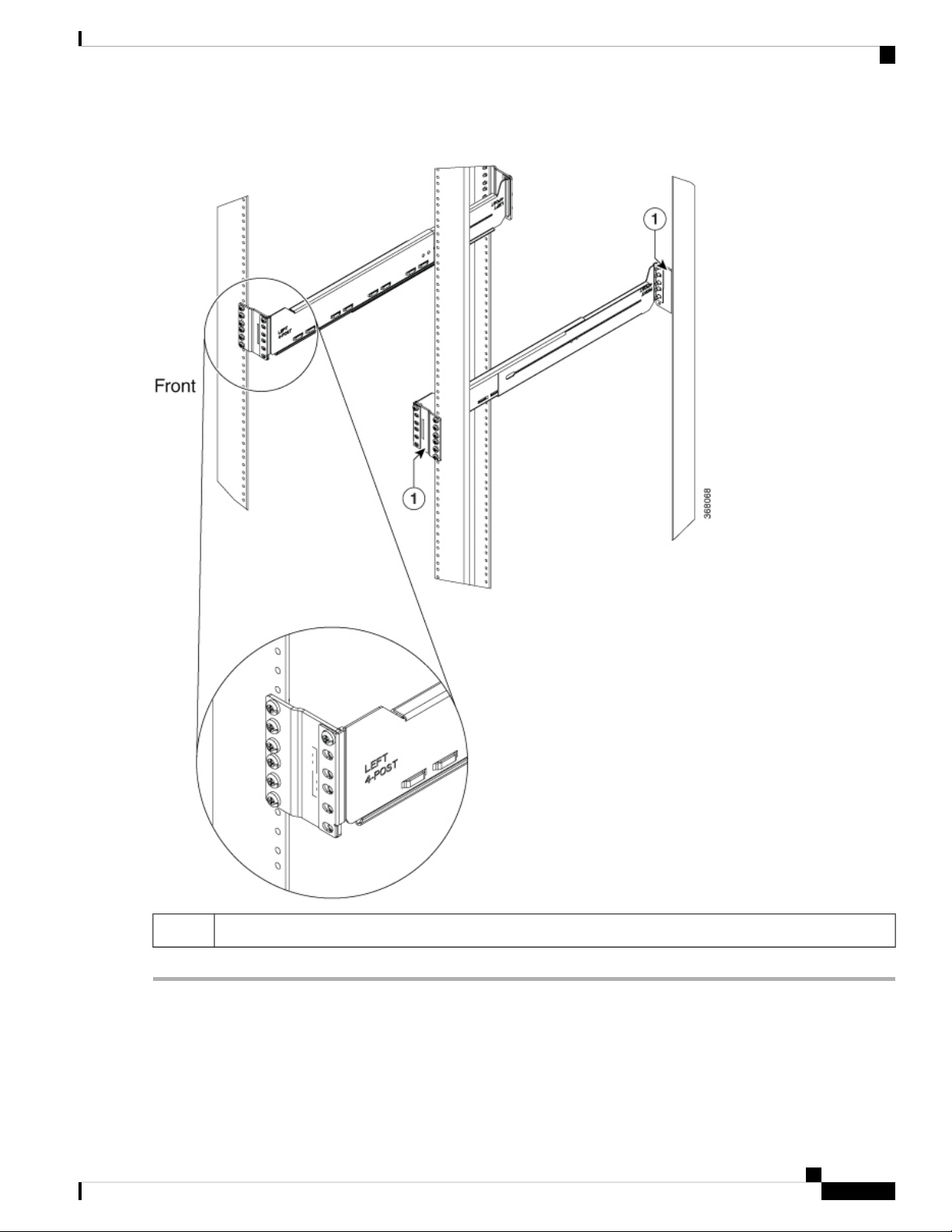

Figure 13: Four Post Slider Integration - 23" Rack
Adapter1
Install Two Post Slider into an ETSI Rack
This procedure has details about installing the two post slider into an ETSI rack.
Install Cisco NCS 1004
11
Install Cisco NCS 1004
Install Two Post Slider into an ETSI Rack

Step 1 Identify the two post slider and adjust the length of the slider (3" to 5").
Slide the inner sliders and adjust the length to mate with the rack surface.
Figure 14: Two Post Slider Identification
Check for marking on the sliders; slide the inner sliders to adjust the length.1
Step 2 Integrate the two post slider with the rack.
The slider is fitted on to an ETSI rack using an adapter (refer the following image). The formed surface must always face
the inner side of the rack post. On the front side, insert only the top most screw of the slider (48-101524-01) and tighten
it to a torque value of 4.65 N-m. On the rear side, insert three screws (48-101524-01) and tighten them to a torque value
of 4.65 N-m.
Install Cisco NCS 1004
12
Install Cisco NCS 1004
Install Two Post Slider into an ETSI Rack

Figure 15: Two Post Slider Integration - ETSI Rack
Adapter1
Install Cisco NCS 1004
13
Install Cisco NCS 1004
Install Two Post Slider into an ETSI Rack

Slider fixing screws (48-101524-01)2
Install Four Post Slider into an ETSI rack
This procedure has details about installing a four post slider in to an ETSI rack.
Step 1 Identify the four post slider and adjust the length of the slider.
Slide the inner slider arm and adjust the length to mate with the rack surface.
Figure 16: Four Post Slider Identification
Slide and adjust the length of the slider arm.1
Step 2 Integrate the four post slider with the rack.
The slider is fitted on to an ETSI rack using an adapter (refer the following image). The formed surface must always face
the inner side of the rack post. On the front side, insert only the top most screw of the slider (48-101524-01) and tighten
it to a torque value of 4.65 N-m. On the rear side, insert five screws (48-101524-01) and tighten them to a torque value
of 4.65 N-m.
Install Cisco NCS 1004
14
Install Cisco NCS 1004
Install Four Post Slider into an ETSI rack

Figure 17: Four Post Slider Integration - ETSI Rack
Adapter1
Install Cisco NCS 1004
15
Install Cisco NCS 1004
Install Four Post Slider into an ETSI rack

Stacking NCS 1004
While stacking multiple Cisco NCS 1004 chassis in a rack, it is recommended to start at the bottom. Install
the first chassis of the stack at the bottom and move upwards.

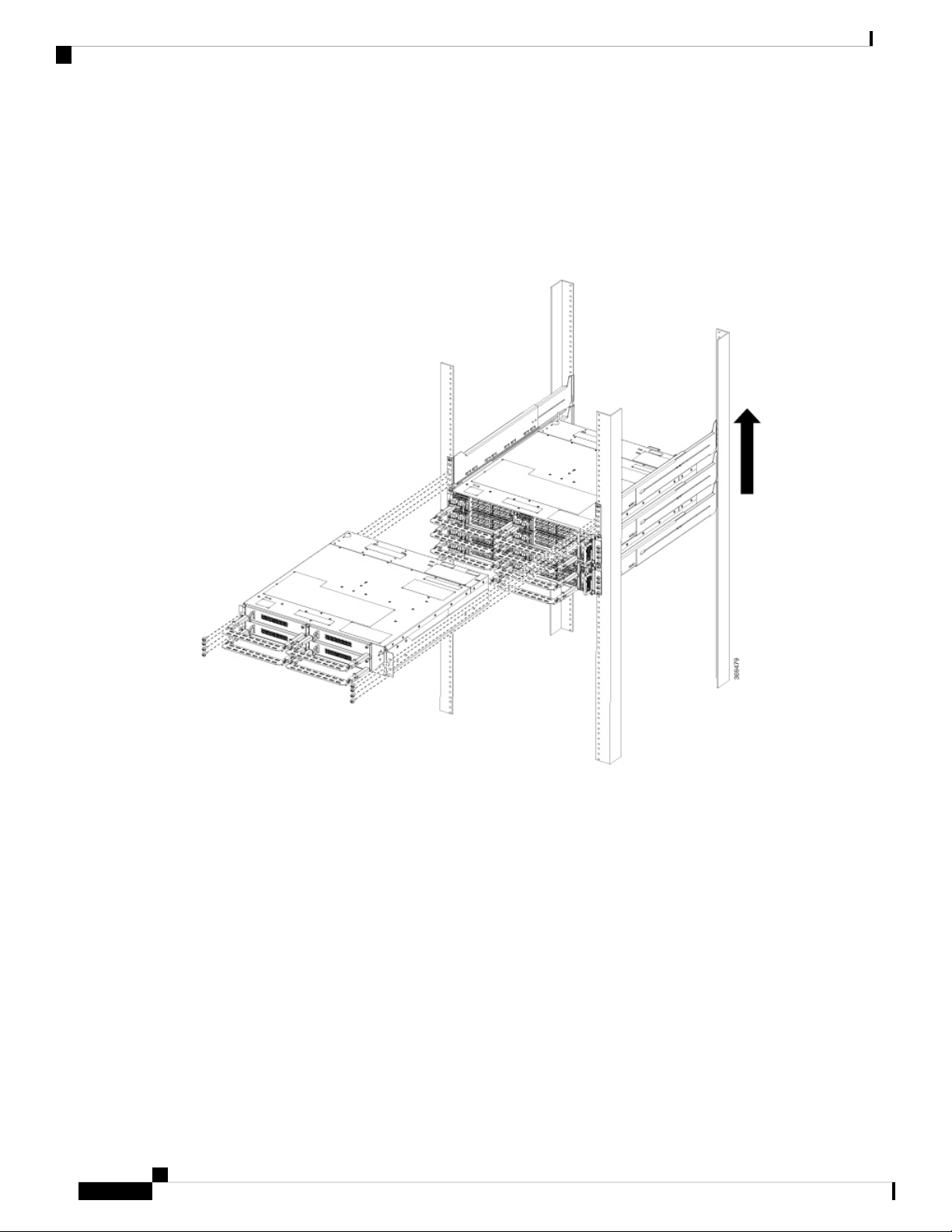

Figure 18: Stacking the NCS 1004
Install Cisco NCS 1004
16
Install Cisco NCS 1004
Stacking NCS 1004

Figure 19: Stacking the NCS 1004
General Power and Grounding Requirements
General power and grounding requirements are:
• Installation of the routing system must follow national and local electrical codes:
• In the United States: United States National Fire Protection Association (NFPA) 70 and United
States National Electrical Code (NEC).
• In Canada: Canadian Electrical Code, part I, CSA C22.1.
• In other countries: International Electrotechnical Commission (IEC) 60364, parts 1 through 7.
• Two separate and independent AC or DC power sources are needed to provide 2N redundancy for system
power. Each power source requires its own circuit breaker.
• Each power source must provide clean power to the site. If necessary, install a power conditioner.
• The site must provide short-circuit (over-current) protection for devices.
• Proper grounding is required at the site to ensure that equipment is not damaged by lightning and power
surges.
Install Cisco NCS 1004
17
Install Cisco NCS 1004
General Power and Grounding Requirements

Ground lug connection is mandatory for the AC chassis version too.
Note
• Site power planning must include the power requirements for any external terminals and test equipment
you will use with your system.
Be sure to review the safety warnings in the Cisco Network Convergence System Regulatory Compliance
and Safety Information for the Cisco Network Convergence System 1004 before attempting to install the
chassis.
Note
Ground NCS 1004
This task provides the grounding details for the NCS 1004 chassis. In the installation of the chassis, ground
lug should be connected first.
There is one grounding point provided at the rear side of the NCS 1004 chassis. The following warning label
is affixed on the chassis.
High leakage current, earth connection essential before connecting supply.
Warning
When terminating the frame ground, do not use soldering lug connectors, screwless (push-in) connectors,
quick connect connectors, or other friction-fit connectors.
Caution
Step 1 Verify that the office ground cable is connected to the top of the rack and the office ground, according to local site practice.
Step 2 Remove any paint and other nonconductive coatings from the surfaces between the shelf ground and bay frame ground
point. Clean the mating surfaces and apply appropriate antioxidant compound to the bare conductors.
Step 3 Attach one end of the shelf ground cable (#6 AWG cable) to the ground point using the specified dual-hole lug connector.
Install Cisco NCS 1004
18
Install Cisco NCS 1004
Ground NCS 1004

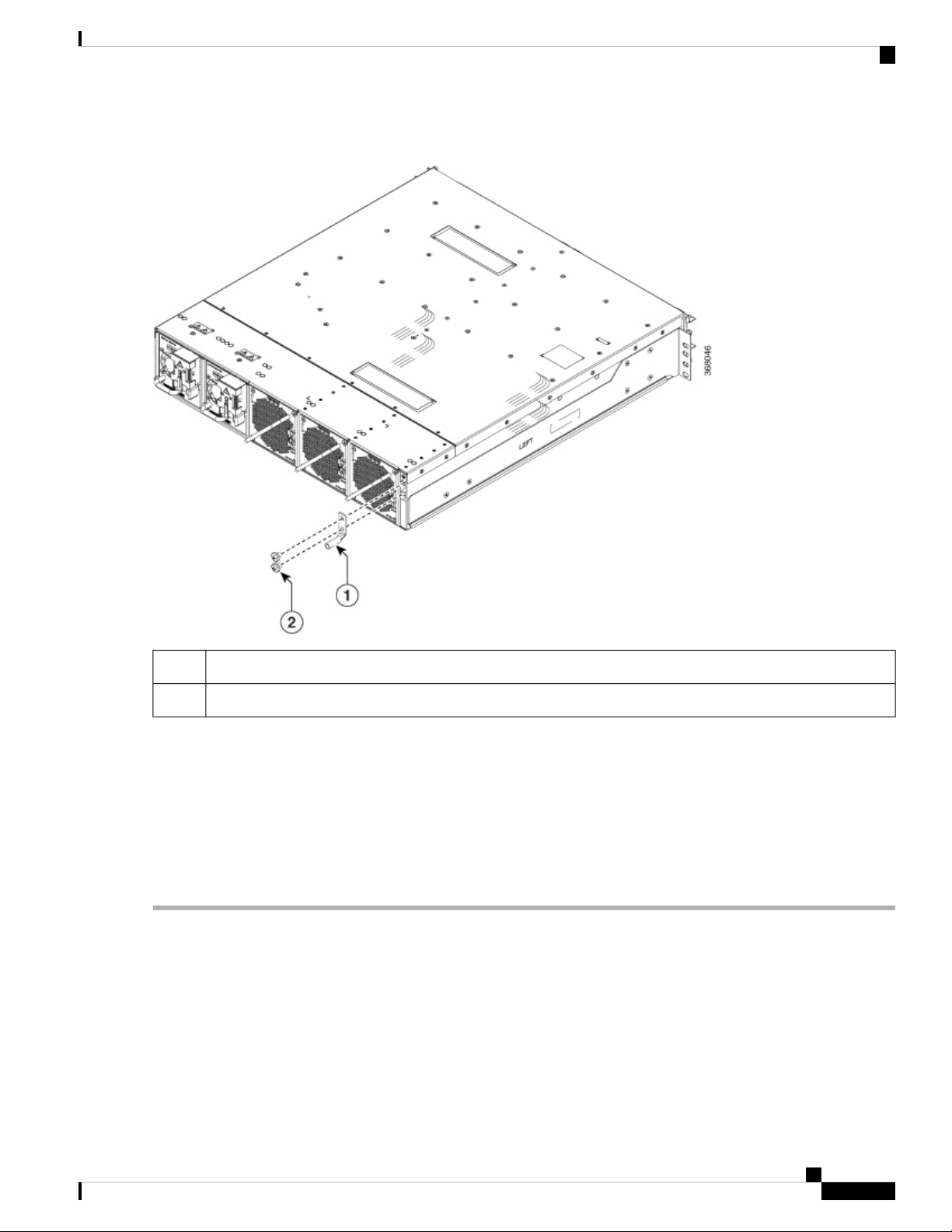

Figure 20: NCS 1004 Ground Lug
Lug1
Screws used for the lug2
The orientation of the lug cable is always at the bottom side.
For ETSI racks, 180-degree lugs are used to maintain the chassis footprint of 600 mm.
Ensure a gap of 50 mm below the chassis for routing the cables.
Note
Step 4 Tighten the M5 pan-head screw (48-1169-01) to a torque value of 3.1 N-m.
Step 5 Attach the other end of the shelf ground cable to the bay frame using a dual-hole lug connector according to the equipment
rack frame specifications.
Power Supply
The NCS 1004 has two slots for 2.1kW AC redundant Power Supply Units (PSU). Both the PSUs must be
installed in the chassis at all times, except during replacement. When only one PSU is inserted in the chassis,
the Power Module Redundancy Lost major alarm is raised.
Install Cisco NCS 1004
19
Install Cisco NCS 1004
Power Supply

PSU power de-rating and option table , including ambient temperature details are here. The power details are
for input power.
• AC high voltage range input - 2100 W upto 40-degree C for 1 PSU; 2100 W upto 55-degree C for 2
PSUs (for a short duration, as specified by Telcordia GR-63-Core).
• AC low voltage range input - 1300 W upto 40-degree C for 1 PSU; 1300 W upto 55-degree C for 2 PSUs
(for a short duration, as specified by Telcordia GR-63-Core).
• DC power supply - 2100 W upto 40-degree C for 1 PSU; 2100 W upto 55-degree C for 2 PSUs (for a
short duration, as specified by Telcordia GR-63-Core).
The NCS 1004 chassis needs to have both the PSUs at all times. In case, one of the PSUs is not energized
(due to a fault or missing mains), ensure that the system works at an ambient temperature of not more than
40 C.
Caution
For DC-DC (2000W @12Vout)
• Input Voltage Rating = -48Vdc / -60Vdc
• Max. Input current @48Vdc = 44A
• Input Voltage range = 40.5 Vdc – 72 Vdc (operating)
• Input turn ON Voltage = -42 Vdc max
• Recommended FUSE rating = 60A max. per feed
For the AC-DC (2000W (HL) / 1300W (LL) @12Vout)
• Input Low Line (LL) Nominal voltage = 100Vac – 127Vac
• Input High Line (HL) Nominal voltage = 200Vac – 240Vac
• Max Input current @100Vac = 15A
• Max Input current @200Vac = 12A
• Input frequency rating = 50/ 60 Hz
• Input LL voltage range = 90Vac - 140 Vac
• Input HL voltage range = 180Vac - 264 Vac
• Input frequency range = 47Hz – 63Hz (nominal 50/60Hz)
• Input turn ON voltage = 80Vac / 175 Vac (LL/ HL)
• Recommended FUSE (HL) = 16A
• Recommended FUSE (LL) = 20A
For the trip time response, the breaker trip curve may be "D" or faster.
Install Cisco NCS 1004
20
Install Cisco NCS 1004
Power Supply
