Installing the
Cisco ONS 15216-MD-40-ODD and
15216-MD-40-EVEN Mux/Demux
Patch Panels
Introduction
This document explains how to install and operate the Cisco ONS 15216 100 GHz
40-channel mux/demux patch panel.
The Cisco ONS 15216 40-channel mux/demux patch panel is a new ONS 15216
FlexLayer unit that allows 40-channels of ITU wavelengths to be placed onto a
single fiber, and removes 40-channels of ITU wavelengths from a single fiber.
The ONS 15216 40-channel mux/demux patch panel can be odd or even patch
panels:
•15216-MD-40-ODD=: 40-channels spaced at 100 GHz on the Odd ITU grid
•15216-MD-40-EVEN=: 40-channels spaced at 100 GHz on the Even ITU
grid
The only difference between the 15216-MD-40-ODD and 15216-MD-40-EVEN
is the operating 100 GHz ITU grid. See “Channel Wavelength Allocation” section
on page 5 for C-band channel wavelength plan for the odd and even patch panels.

Introduction
2
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
The patch panel can combine 40-channels of ITU wavelengths spaced at 100 GHz
to a denser DWDM signal and separate the combined signal to 40-channels of ITU
wavelengths spaced at 100 GHz. To increase the network capacity, the patch panel
is plugged with an interleaver and deinterleaver module and is used along with
another patch panel of a different grid. The interleaver module combines the
signals from the 15216-MD-40-ODD and 15216-MD-40-EVEN patch panels
spaced at 100 GHz to a denser DWDM signal spaced at 50 GHz and the
deinterleaver module splits the combined signal (80 channel signal) to the
15216-MD-40-ODD and 15216-MD-40-EVEN patch panels in the opposite
direction.
For installing the interleaver and deinterleaver module, refer to the “Installing
Cisco ONS 15216-MD-ID-50 Optical Interleaver and Deinterleaver Pluggable”
guide.
Safety Information
Before you install, operate, or service the Cisco ONS 15216 100 GHz 40-channel
mux/demux odd and even patch panels, you must read the Regulatory Compliance
and Safety Information for Cisco Optical Transport Products document for
important safety information and warning translations.
The Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN
patch panels are compliant with the GR 1089, UL60950 /CSA 22.2 No. 60950-00,
and IEC 60950 standards.
Laser Radiation Emission Restrictions
The Class 1M Laser safety and warning label is affixed to the
Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN patch
panels and indicates that the product should never be used or installed in an
optical network with emissions higher than Class 1M.
Warning Class 1M laser radiation when open. Do not view directly with optical
instruments. Statement 281

3
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Product Description
Laser Safety During Operation
Warning Invisible laser radiation may be emitted from disconnected fibers or
connectors. Do not stare into beams or view directly with optical instruments.
Statement 1051
Electrical Safety
The Cisco ONS 15216-MD-40-ODD and Cisco ONS 15216-MD-40-EVEN patch
panels are optically and electrically passive and require no electrical connections.
No electrostatic discharge (ESD) or other electrical safety considerations apply.
Product Description
The Cisco ONS 15216 40-channel mux/demux patch panel is a new
ONS 15216 FlexLayer unit that allows 40-channels of ITU wavelengths to be
placed onto a single fiber, and removes 40-channels of ITU wavelengths from a
single fiber.
The patch panel works with 100 GHz WXC cards. When the patch panel works
with 50 GHz WXC cards, the patch panel must be used with a pluggable
interleaver and deinterleaver module along with another patch panel of a different
grid.
The patch panel can be used in:
•Standalone or with existing FlexLayer OADMs
•Multiplex Add/Drop for single module ROADM
•Multiplex Add/Drop for 50 GHz WXC
Features
The patch panel provides signal multiplexing and demultiplexing in 100 GHz
channel spacing DWDM systems. It is optically and electrically passive and
requires no temperature control. It uses fused fiber coupler technologies and a

Product Description
4
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
birefringent crystal technology platform. The ultra-low dispersion of the patch
panel coupled with the wide bandwidth reduces the concerns of dispersion
accumulation and bandwidth narrowing, making the patch panel ideal for
Multi-OADM Metro ring or mesh-based architectures.
Some of the operating features of the patch panel include:
•Low dispersion
•Low insertion loss
•High channel isolation
•Wide clear bandwidth
•Full C-band coverage
•Multiplex and demultiplex 40-channels
•Athermal design
Functional Description
The functional unit of the ONS 15216 odd and even patch panel is the passive
A-Thermal AWG (arrayed waveguide grating) optical module. The AWG optical
module comprises of the mux and demux module as shown in Figure 1.
Figure 1 Mux and Demux AWG Modules
275696
COM-TX
MON-TX
AUX-RX
ATH-40-MUX-C
Ch1-RX
Ch2-RX
Ch3-RX
Ch40-RX
99% 90%
1% 10%
Athermal
1 x 40
AWG
COM-RX
MON-TX
ATH-40-DMX-C
Ch1-TX
Ch2-TX
Ch3-TX
Ch40-TX
99%
1%
Athermal
1 x 40
AWG

5
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Product Description
The multiplexer (mux) module combines signals from Chi-RX ports
(40-channels) into the aggregated COM-TX port. An integrated tap-coupler
combines the aggregated signals with the additional external sources injected at
AUX-MUX port. An integrated tap-coupler splits 1% of the aggregated signals
towards MON-MUX port that is used for monitoring purpose.
The demultiplexer (DMX) module separates the aggregated signals into
individual Chi-TX ports. An integrated tap-coupler splits 1% of the aggregated
signals coming from COM-RX port towards MON-DMX port that is used for
monitoring purpose.
Channel Wavelength Allocation
Table 1 describes the C-band channel wavelength plan for the odd and even patch
panels.
Table 1 C-Band Channel Wavelength Plan
Channel Wavelength Channel Wavelength
15216-MD-40-ODD 15216-MD-40-EVEN
Channel
Label
Frequency
(THz)
Wavelength
(nm)
Channel
Label
Frequency
(THz)
Wavelength
(nm)
1 195.9 1530.33 1 195.85 1530.72
2 195.8 1531.12 2 195.75 1531.51
3 195.7 1531.90 3 195.65 1532.29
4 195.6 1532.68 4 195.55 1533.07
5 195.5 1533.47 5 195.45 1533.86
6 195.4 1534.25 6 195.35 1534.64
7 195.3 1535.04 7 195.25 1535.43
8 195.2 1535.82 8 195.15 1536.22
9 195.1 1536.61 9 195.05 1537.00
10 195 1537.40 10 194.95 1537.79
11 194.9 1538.19 11 194.85 1538.58
12 194.8 1538.98 12 194.75 1539.37

Product Description
6
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
13 194.7 1539.77 13 194.65 1540.16
14 194.6 1540.56 14 194.55 1540.95
15 194.5 1541.35 15 194.45 1541.75
16 194.4 1542.14 16 194.35 1542.54
17 194.3 1542.94 17 194.25 1543.33
18 194.2 1543.73 18 194.15 1544.13
19 194.1 1544.53 19 194.05 1544.92
20 194 1545.32 20 193.95 1545.72
21 193.9 1546.12 21 193.85 1546.52
22 193.8 1546.92 22 193.75 1547.32
23 193.7 1547.72 23 193.65 1548.11
24 193.6 1548.51 24 193.55 1548.91
25 193.5 1549.32 25 193.45 1549.72
26 193.4 1550.12 26 193.35 1550.52
27 193.3 1550.92 27 193.25 1551.32
28 193.2 1551.72 28 193.15 1552.12
29 193.1 1552.52 29 193.05 1552.93
30 193 1553.33 30 192.95 1553.73
31 192.9 1554.13 31 192.85 1554.54
32 192.8 1554.94 32 192.75 1555.34
33 192.7 1555.75 33 192.65 1556.15
34 192.6 1556.55 34 192.55 1556.96
35 192.5 1557.36 35 192.45 1557.77
36 192.4 1558.17 36 192.35 1558.58
37 192.3 1558.98 37 192.25 1559.39
Channel Wavelength Channel Wavelength
15216-MD-40-ODD 15216-MD-40-EVEN
Channel
Label
Frequency
(THz)
Wavelength
(nm)
Channel
Label
Frequency
(THz)
Wavelength
(nm)

7
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Installation
This section explains how to:
•Unpack and Verify the Equipment
•Install Odd and Even Patch Panels
•Install and Route Fiber-Optic Cables
Unpack and Verify the Equipment
This procedure describes the steps for unpacking and verifying the equipment.
Step 1 Unpack and inspect the module. The package should include these components:
•Patch panel module
•Production test report form showing the manufacturer's part number and
serial number, Cisco part number, date, and device description
•Packing slip
Step 2 Compare the equipment received with the packing slip and the equipment list that
customer service provided. If there are any discrepancies, notify the Customer
Service Center.
Step 3 Check for external damage. Visually check all components and immediately
report any shipping damage to your customer service representative. Have this
information ready:
•Invoice number of shipper (see packing slip)
38 192.2 1559.79 38 192.15 1560.20
39 192.1 1560.61 39 192.05 1561.01
40 192 1561.42 40 191.95 1561.83
Channel Wavelength Channel Wavelength
15216-MD-40-ODD 15216-MD-40-EVEN
Channel
Label
Frequency
(THz)
Wavelength
(nm)
Channel
Label
Frequency
(THz)
Wavelength
(nm)

Installation
8
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
•Model and serial number of the damaged unit
•Description of damage
•Effect of damage on the installation
•Packing slip
Install Odd and Even Patch Panels
The patch panel is a new ONS 15216 FlexLayer unit that can be installed either
above or below the DWDM generating equipment according to the local site
practice.
The patch panel is 2 rack unit (RU) high. Each package includes one set of the
following brackets:
•19-inch (482.6-mm) or 23-inch (584.2-mm) reversible (two-way) mounting
brackets that can be rotated to fit either rack size. These reversible brackets
are used for EIA and IEC standard racks.
•ETSI brackets that are used for ETSI standard racks.
Note The unit is shipped with the mounting brackets in the 19-inch (482.6-mm)
position.
The patch panel is passive and requires no power cabling or connections. All
connectors are on the front panel and are equipped with LC/UPC bulkhead
adapters and with a USB Type A receptacle connector for Inventory purpose.
Fiber-optic cables equipped with the corresponding (LC/UPC) connector type are
used. The module ports are labelled on the front panel. The port assignments of
the module is provided in Figure 10 (odd patch panel) and Figure 11 (even patch
panel). Refer to Table 2 for port label description.
Caution Use only the fastening hardware provided with the ONS 15216 patch panel to
prevent loosening, deterioration, and electromechanical corrosion of the hardware
and joined material.

9
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Caution When mounting the ONS 15216 patch panel in a frame with a nonconductive
coating (such as paint, lacquer, or enamel) use either the thread-forming screws
provided with the ONS 15216 patch panel shipping kit or remove the coating
from the threads to ensure electrical continuity.
This procedure describes the steps to install the odd and even patch panels.
Step 1 Set the mounting brackets to the rack you are using.
Note The ONS 15216 odd or even patch panels can be mounted on
19-inch (482.6-mm), 23-inch (584.2-mm) EIA standard racks, on a
19-inch (482.6-mm) IEC rack, or on a 600 mm x 600 mm or 600 mm x 300 mm
ETSI racks.
A single patch panel is 17.21 inches (437.1 mm) wide and occupies 2 RUs (3.5
inch or 88.9 mm) in a rack.
The patch panel mounting brackets can be mounted such that the patch panels
project either 2.25, 5, 6, or 6.5 inches from the front of the EIA standard racks
fixing plane, or 40 mm from the front of the IEC or ETSI standard racks fixing
plane.
Figure 2 and Figure 3 show different offsets of the ANSI bracket positions and
also mentions the 40 mm position of the ETSI brackets. The 19-inch (482.6 mm)
brackets are shown for reference in the following figures.

Installation
10
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Diagram 1 in Figure 2 shows 2.25 inch Recess Location.
Diagram 2 in Figure 2 shows 5 inch Recess Location.
Figure 2 2.25” and 5” Recess Location
Diagram 1 in Figure 3 shows 6 inch Recess Location.
Diagram 2 in Figure 3 shows 6.5 inch Recess Location.
Diagram 3 in Figure 3 shows 40 mm Recess Location.
Figure 3 6” , 6.5” and 40 mm Recess Location
12
2.26
[57,4]
19˝ Bracket 19˝ Bracket
5.01
[127,2]
275687
12
3
275688
19˝ Bracket
6.54 REF
[166,2]
6.01
[152,6]
19˝ Bracket
1.54 REF
[39,2]
19˝ Bracket

11
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Step 2 Secure the unit to the rack using the mounting screws.
Step 3 Establish grounding for the patch panel. The ground position is present on the rear
side and the lateral side of the patch panel, as shown in Figure 4.
Note When the patch panel is installed in the ETSI 600x300 cabinet, only the lateral
ground position must be used.
Figure 4 Ground positions on the Cisco ONS 15216 Patch Panel
275710
Ground
Lug
Lock
Washer
Pan Head
Screw
Lateral Ground
Position
Rear Ground
Position

Installation
12
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Step 4 To open the front panel:
a. Drag the two front panel lock out mechanisms downward, as shown in
Figure 5.
b. Open the front panel to its maximum position.

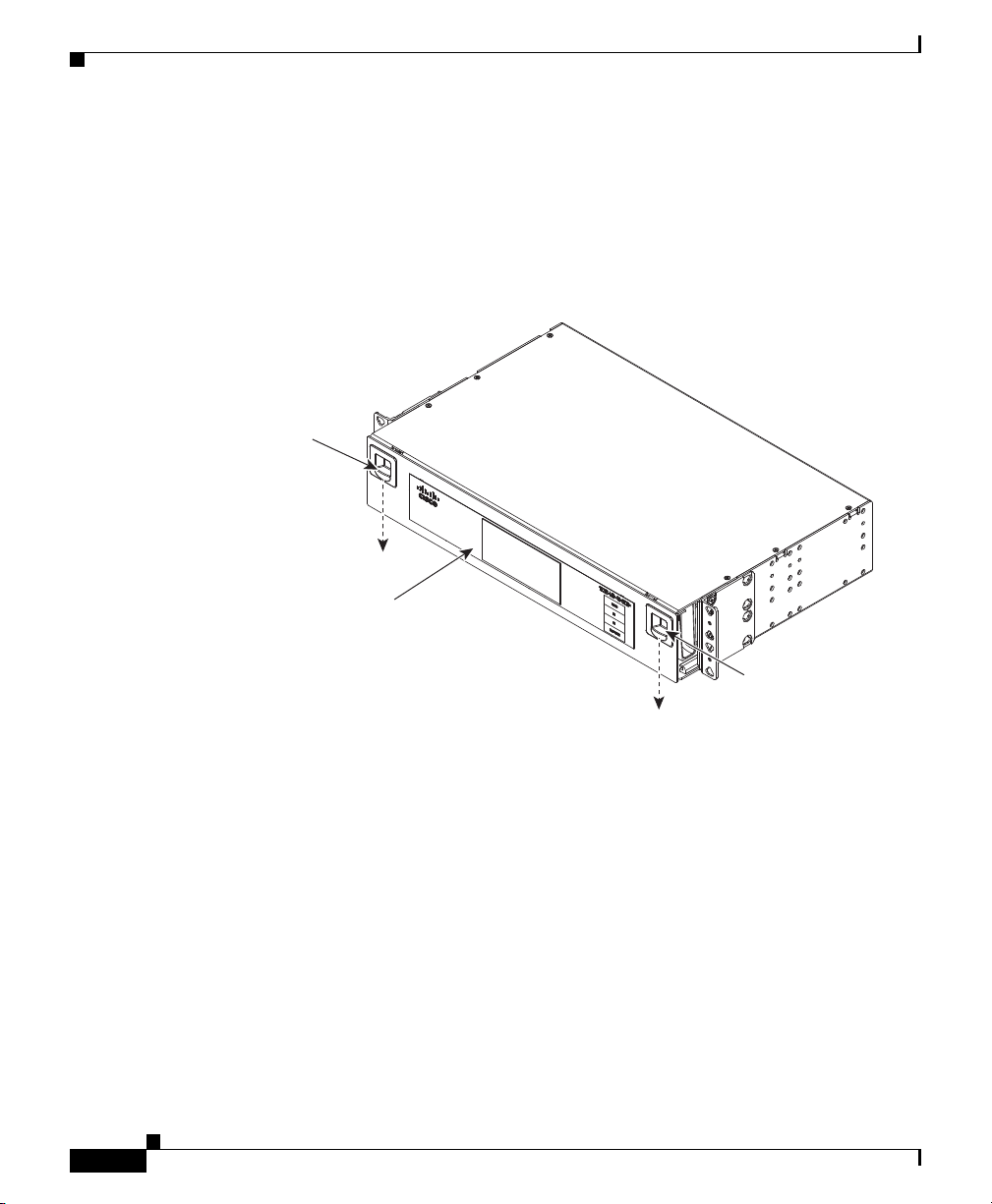

Figure 5 Cisco ONS 15216 Odd or Even Patch Panel (Closed Position)
275711
Front Panel
Lockout
Mechanism
Front Panel
Lockout
Mechanism
Front Panel

13
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Step 5 To extract the internal drawer of the patch panel:
a. Push the extraction latch with one hand. (See Figure 6.)
b. Pull the drawer holding the finger tab with the other hand. (See Figure 6.)

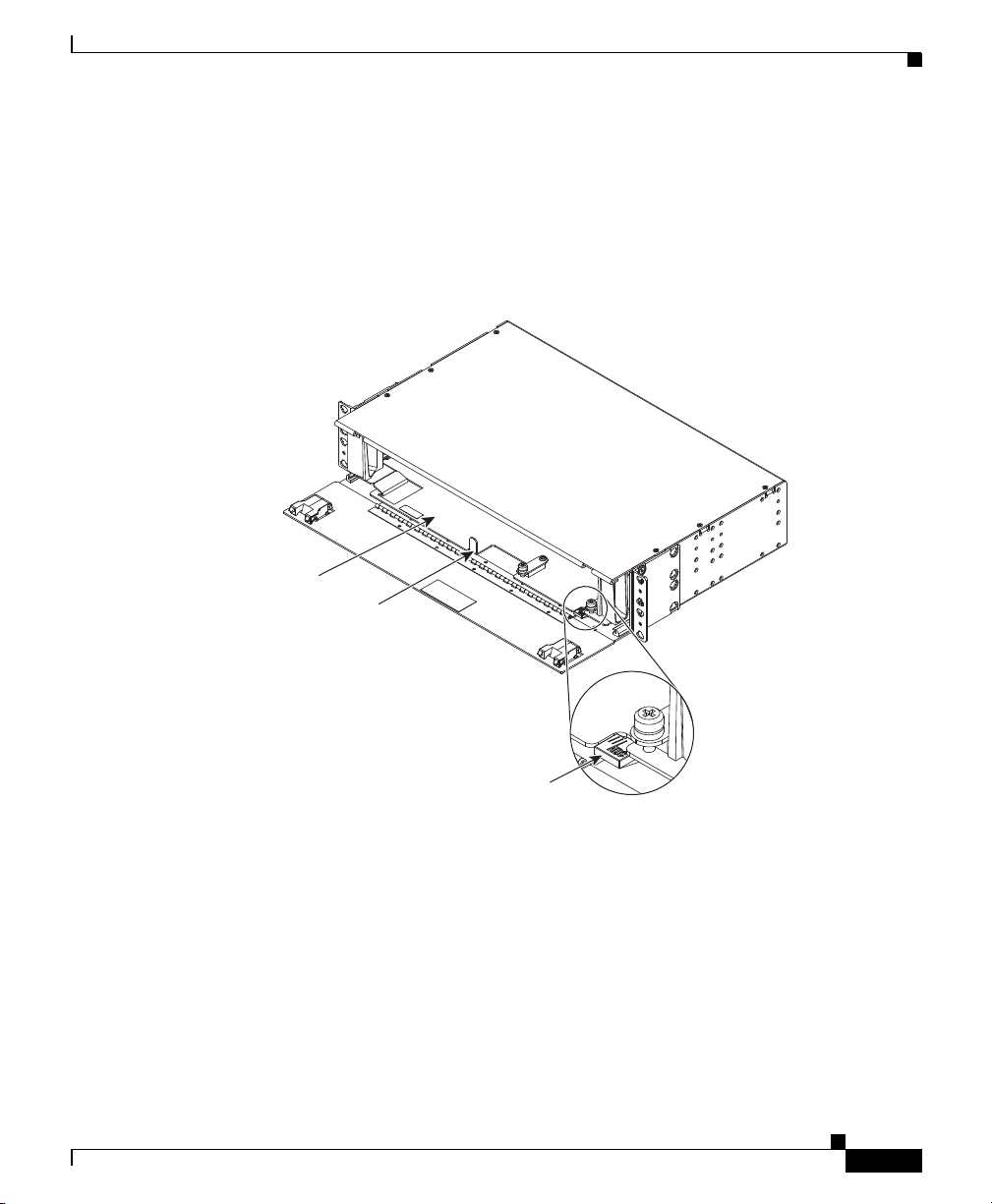

Figure 6 Cisco ONS 15216 Odd or Even Patch Panel—Opened Front
Panel and Drawer in the Recessed Position
275700
Extraction
Latch
Drawer
Finger
Tab

Installation
14
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
c. Extract the internal drawer from the patch panel until the insertion latch is
engaged, as shown in Figure 7.
Figure 7 Cisco ONS 15216 Odd or Even Patch Panel—Opened Front
Panel and Drawer in the Extracted Position
Step 6 To connect the fibers as appropriate:
a. Remove the LC adapter cap from the LC-LC adapter. (See Figure 7.)
b. Open the cable retention clip of the left or right fiber bend radius controller.
(See Figure 7.)
c. Route the cables through the left or right fiber bend radius controller.
(See Figure 7.)
275712
Insertion Latch
Left Fiber Bend
Radius Controller
Drawer
Cable Retention Clip
Right Fiber Bend
Radius Controller
LC Adapter
Cap
LC Adapter

15
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Refer to Table 2 for port label description, and Figures 10 and 11 for channel
identification port information. For fibering instructions, see the “Fiber-Optic
Connector Cleaning and Maintenance” section on page 20 and the “Install
and Route Fiber-Optic Cables” section on page 22.
Step 7 To connect the inventory USB Type A plug connector to the inventory USB Type
A receptacle connector:
a. Route the inventory USB cable through the left or right hand fiber bend radius
controller. (See Figure 8.)
b. Connect the USB Type A plug connector to the USB Type A receptacle
connector. (See Figure 8.)
Figure 8 Cisco ONS 15216 Odd or Even Patch Panel—Opened Front
Panel and Drawer in the Extracted Position
275699
Inventory USB Type A
Receptacle Connector
Right Fiber Bend
Radius Controller
Left
Fiber Bend
Radius
Controller

Installation
16
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Step 8 To secure the USB plug cable:
a. Unscrew the captive screw of the left or right USB cable clamp.
(See Figure 9.)
b. Rotate to open the USB cable clamp. (See Figure 9.)
c. Place the cable on the foam pad. (See Figure 9.)
d. Rotate the clamp to its original position. (See Figure 9.)
e. Tighten the captive screw to lock the USB cable. (See Figure 9.)

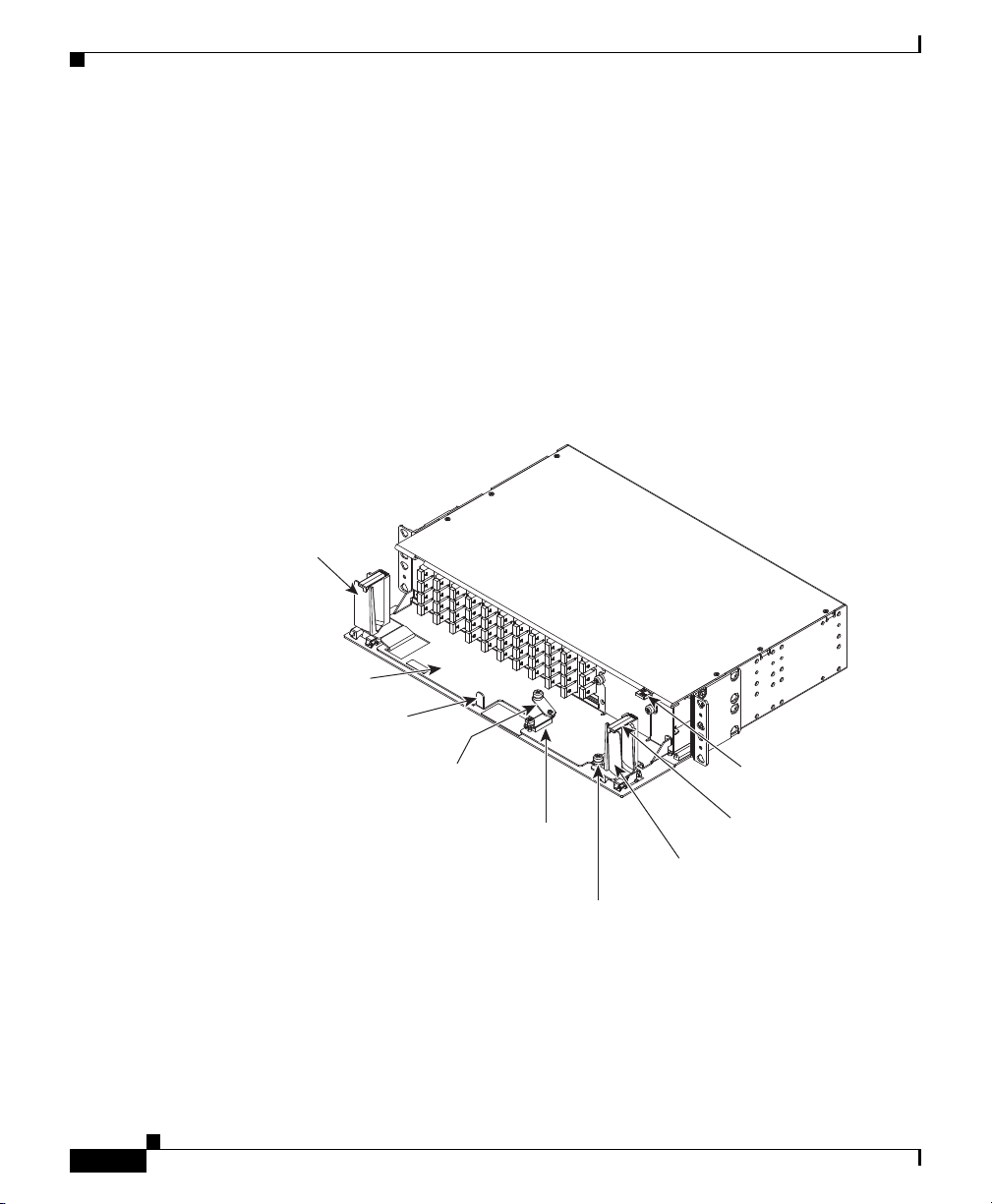

Figure 9 Cisco ONS 15216 Odd or Even Patch Panel—Opened Front
Panel and Drawer in the Extracted Position
275709
Insertion Latch
Left Fiber Bend
Radius Controller
Drawer
Finger
Tab
Cable Retention Clip
Right Fiber Bend
Radius Controller
Right USB
Cable Clamp
Foam Pad
Left USB
Cable Clamp

17
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Caution The ONS 15216-MD-40-ODD and 15216-MD-40-EVEN front panel features
LC/UPC bulkhead adapters. It uses fiber-optic cables equipped with the
corresponding (LC/UPC) connector type with no fiber pigtail leading out. Using
any other type of connector damages the connector and/or adapter.
Step 9 To place the patch panel in the closed working configuration:
a. Close the cable retention clips to secure the cables after all the cables are
connected and routed within the fiber bend radius controllers. (See Figure 9.)
b. Push the insertion latch with one hand. (See Figure 9.)
c. Push the drawer holding the finger tab with the other hand. (See Figure 9.)
d. Push the drawer inside the patch panel until the extraction latch is engaged.
(See Figure 6.)
e. Close the front panel until the front panel lockout mechanisms are engaged.
(See Figure 5.)
Port Label Description
Table 2 lists the connection ports, description, and the type of connectors used for
each port. All ports are on the drawer faceplate, which is equipped with optical
LC adapters and one USB Type A receptacle connector.
Table 2 Port Label Descriptions
Port Label Description Type of Connector
COM-RX Common input LC-UPC II
COM-TX Common output LC-UPC II
Chi_RX Channel input LC-UPC II
Chi_TX Channel output LC-UPC II
MON-DMX Monitor port-demux section LC-UPC II
MON-MUX Monitor port-mux section LC-UPC II

Installation
18
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Channel Identification Labels
The channel identification labels provide port identification. Two channel
identification labels are assembled on each patch panel.
The first channel ID label is placed on the front panel, and the second channel ID
label is placed on the drawer faceplate (near the LC-LC adapters).
Figure 10 and Figure 11 show the channel ID labels.
Figure 10 shows the Channel ID label placed on the odd patch panel.
Figure 10 Patch-Panel C-Band ID Label—Odd Module
AUX-MUX Auxiliary input-mux section LC-UPC II
INV USB inventory port USB Type A receptacle
connector
Port Label Description Type of Connector
12 3 4 5 6 7 8 91011
1532.6 nm 1531.8 nm 1531.1 nm 1530.3 nm
RX TX
RX TXRX TXRX TX
1535.8 nm 1535.0 nm 1534.2 nm 1533.4 nm
RX TX
RX TXRX TXRX TX
1538.9 nm 1538.1 nm 1537.4 nm 1536.6 nm
RX TX
RX TXRX TXRX TX
1542.1 nm 1541.3 nm 1540.5 nm 1539.7 nm
RX TX
RX TXRX TXRX TX
1545.3 nm 1544.5 nm 1543.7 nm 1542.9 nm
RX TX
RX TXRX TXRX TX
1548.5 nm 1547.7 nm 1546.9 nm 1546.1 nm
RX TX
RX TXRX TXRX TX
1551.7 nm 1550.9 nm 1550.1 nm 1549.3 nm
RX TX
RX TXRX TXRX TX
1554.9 nm 1554.1 nm 1553.3 nm 1552.5 nm
RX TX
RX TXRX TXRX TX
1558.1 nm 1557.3 nm 1556.5 nm 1555.7 nm
RX TX
RX TXRX TXRX TX
1561.4 nm 1560.6 nm 1559.7 nm 1558.9 nm
RX TX
RX TXRX TXRX TX
COM
EMPTY
AUX MON
MON
MUX
DMX
-
MUX
RX TX
INV
275697

19
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Installation
Figure 11 shows the channel ID label placed on the even patch panel.
Figure 11 Patch-Panel C-Band ID Label—Even Module
12 3 4 5 6 7 8 91011
1533.0 nm 1532.2 nm 1531.5 nm 1530.7 nm
RX TX
RX TXRX TXRX TX
1536.2 nm 1535.4 nm 1534.6 nm 1533.8 nm
RX TX
RX TXRX TXRX TX
1539.3 nm 1538.5 nm 1537.7 nm 1537.0 nm
RX TX
RX TXRX TXRX TX
1542.5 nm 1541.7 nm 1540.9 nm 1540.1 nm
RX TX
RX TXRX TXRX TX
1545.7 nm 1544.9 nm 1544.1 nm 1543.3 nm
RX TX
RX TXRX TXRX TX
1548.9 nm 1548.1 nm 1547.3 nm 1546.5 nm
RX TX
RX TXRX TXRX TX
1552.1 nm 1551.3 nm 1550.5 nm 1549.7 nm
RX TX
RX TXRX TXRX TX
1555.3 nm 1554.5 nm 1553.7 nm 1552.9 nm
RX TX
RX TXRX TXRX TX
1558.5 nm 1557.7 nm 1556.9 nm 1556.1 nm
RX TX
RX TXRX TXRX TX
1561.8 nm 1561.0 nm 1560.2 nm 1559.3 nm
RX TX
RX TXRX TXRX TX
COM
EMPTY
AUX MON
MON
MUX
DMX
-
MUX
RX TX
INV
275695

Installation
20
Installing the Cisco ONS 15216-MD-40-ODD and 15216-MD-40-EVEN Mux/Demux Patch Panels
78-19053-01
Fiber-Optic Connector Cleaning and Maintenance
Connector cleaning is required to maintain the performance of fiber-optic circuits.
It is important that both the LC/UPC connector at the end of the fiber-optic cable
and the mating bulkhead adapter on the front panel of the patch panel are clean
before the connection is made.
Warning Invisible laser radiation may be emitted from disconnected fibers or
connectors. Do not stare into beams or view directly with optical instruments.
Statement 1051
The following warning applies to disposal of chemicals and other materials used
to clean connectors and adapters:
Warning Ultimate disposal of this product should be handled according to all national
laws and regulations. Statement 1040
Note Before installing the fiber-optic cable, always perform the cleaning procedure for
cable connectors described in the following section. Whenever possible, inspect
each connector before connecting it to the mating bulkhead adapter on the front
panel.
Note The LC bulkhead adapters on the faceplate of the patch panel drawer are less
likely to get dirty if they are capped when not in use. Because the procedure for a
thorough cleaning of these adapters is complicated, Cisco recommends that you
use a commercially available cleaning kit and closely follow the instructions
included with the kit.
Customer Supplied Cleaning Materials
The Type A fiber optic connector cleaners (for example, CLETOP reel) are
recommended to clean the cable connectors, but are not supplied with the patch
panel.
