Citizen U040 User manual

32
1. Main Features
This watch is a combination quarts watch equipped with world time functions
which can easily call and display through button operations the time and calen-
dar of 30 cities in the world and UTC (Coordinated UniversalTime).
In addition to the alarm, chronograph and timer, it is equipped with an EL light
function to allow you to see the display in the dark.
CONTENTS
1. Main Features................................................................................. 3
2. Component Parts and their Functions ............................................ 4
3. Switching Digital Functions (Modes) .............................................. 6
4. How to Call theTime or Calendar of Each City in the World .......... 7
5. How toTurn on the EL Light ........................................................... 9
6. Setting the Analog Time ................................................................ 10
7. Setting the Digital Time [TME] ....................................................... 11
8. Using the Calendar [CAL].............................................................. 13
9. Using the Alarm [AL1/AL2] ............................................................ 16
10.Using the Chronograph [CHR]....................................................... 18
11.Using theTimer [TMR]................................................................... 20
12.Using the Zone Set Mode [SET].................................................... 23
13.Low Battery Warning Function....................................................... 25
14.All Reset Function ......................................................................... 26
15.Precautions.................................................................................... 27
16.Specifications ................................................................................ 33

54
Name of Parts/Modes Time Calendar Alarm 1 Alarm 2 Chronograph Timer Zone Set
A
Button A
Press button once ON/OFF switching ON/OFF switching Start/Stop Start/Stop
Press button for 2 EL light illuminated Alarm monitor Alarm monitor – – EL light iluminated
seconds or longer
B Button B
Press button once Switching of city Switching of city Switching of city Switching of city Split/Reset Restart/Reset Switching of city
Press button for 2 To correction To correction To correction To correction –– To correction
seconds or longe state state state state state
M
Button M Press button once Switching of mode Switching of mode
1Mode mark TME CAL AL1 AL2 CHR TMR SET
2Digital display Hour, Minute, Month, Date, Hour, Minute, Hour, Minute, Hour, Minute, Second, Minute, Second, Hour, Minutes,
Second, City Name City name or Day On/OF, City name On/OF, City name 1/100 seconds Set time (minute) On/OF, City name
3Time difference Display the time difference of indicated cities from UTC Display the time difference of indicated cities from UTC
display from UTC
4Crown To be used to set analog time To be used to set analog time
5Hour hand Always indicates “hours” Always indicates “hours”
6Minute hand Always indicates“minutes” Always indicates “minutes”
7Second hand Always indicates“seconds” Always indicates “seconds”
2. Component Parts and their Functions

76
3. Switching Digital Functions (Modes)
This watch has the following functions (modes).
Every time the button Mis pressed, the mode is changed sequentially.With the
mode mark, you can check the current mode.
Mode Mark Mode (Function)
TME Time
CAL Calendar
AL1 Alarm 1
AL2 Alarm 2
CHR Chronograph
TMR Timer
SET Zone Set
M
Mode mark
*If no button operation is done for 2 minutes or longer in Alarm 1, Alarm 2
and Zone Set modes, the watch will automatically return to Time mode.
4. How to Call theTime or Calendar of Each City in theWorld
You can easily call through button operations the time or calendar of a city set to
"On (display)" in the Zone Set mode.
<Operation Method>
(1) Select the time mode or calendar mode
by pressing the button M.
(2) Every time the button Bis pressed, the
time or calendar of the next city is dis-
played in the order (in the direction to
increase time difference) shown in the
table on the following page.
Every time the button Ais pressed with
the button Bpressed, the time or calen-
dar of the next city is displayed in the
reverse direction (direction to decrease
the time difference).
M
B
A
Time difference
from UTC

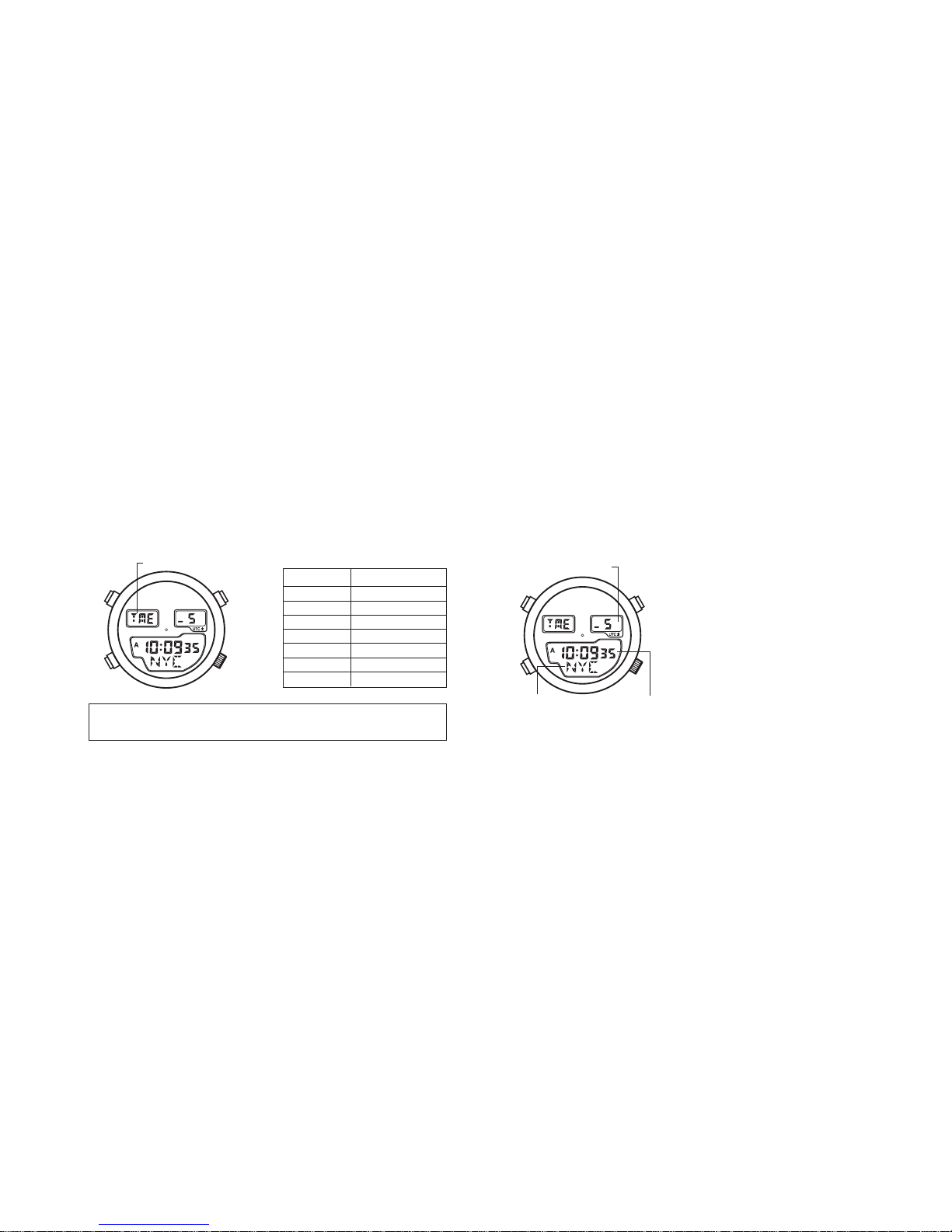

City name Time (calendar)
corresponding to a
city name

98
Cities andTime Difference from UTC (UniversalTime Coordinated) Displayed
byThis Watch
1UTC ±0 – 17 TYO Tokyo +9 ×
2LON London ±0 ○18 SYD Sydney +10 ○
3PARParis +1 ○19 NOU Nouméa +11 ×
4ROM Rome +1 ○20 AKL Auckland +12 ○
5CAI Cairo +2 ○21 HNL Honolulu -10 ×
6IST Istanbul +2 ○22 ANC Anchorage -9 ○
7MOW Moscow +3 ○23 LAX Los Angeles -8 ○
8KWIKuwait +3 ×24 DEN Denver -7 ○
9DXB Dubai +4 ×25 CHI Chicago -6 ○
10 KHI Karachi +5 ×26 MEX Mexico City -6 ×
11 DEL New Delhi +5.5 ×27NYC New York -5 ○
12 DAC Dacca +6 ×28 YUL Montreal -5 ○
13 BKK Bangkok +7 ×29 CCS Caracas -4 ×
14 SIN Singapore +8 ×30 RIO
Rio de Janeiro -3 ○
15 HKG Hong Kong +8 ×31 BUE
Buenos Aires -3 ×
16 PEK Beijing +8 ×
Watch
display Name of
City
Time
Difference Summer time
Watch
display Name of
City
Time
Difference Summer time
Universal Time
Coordinated
*It is possible to change through the same operations the city display in the
Alarm 1 mode, Alarm 2 mode, and Zone Set mode.
*Acity set to non-display (OFF) in the Zone Set mode is not displayed.
*Mark ○in the table indicates a city (region) implementing summer time and
mark ×a city (region) not implementing it.
*The time difference and summer time implementation in the table may change
depending on the circumstances of each country.(The table as of year 1999)
5. How toTurn on the EL Light
•If the button Ais pressed in the Time, Calendar, or Zone Set mode, the EL
light turns on.While the button is pressed, the EL light is kept turned on.
•The EL light turns on at the time of split time or stop operation during chrono-
graph measuring.

1110
6. Setting the AnalogTime

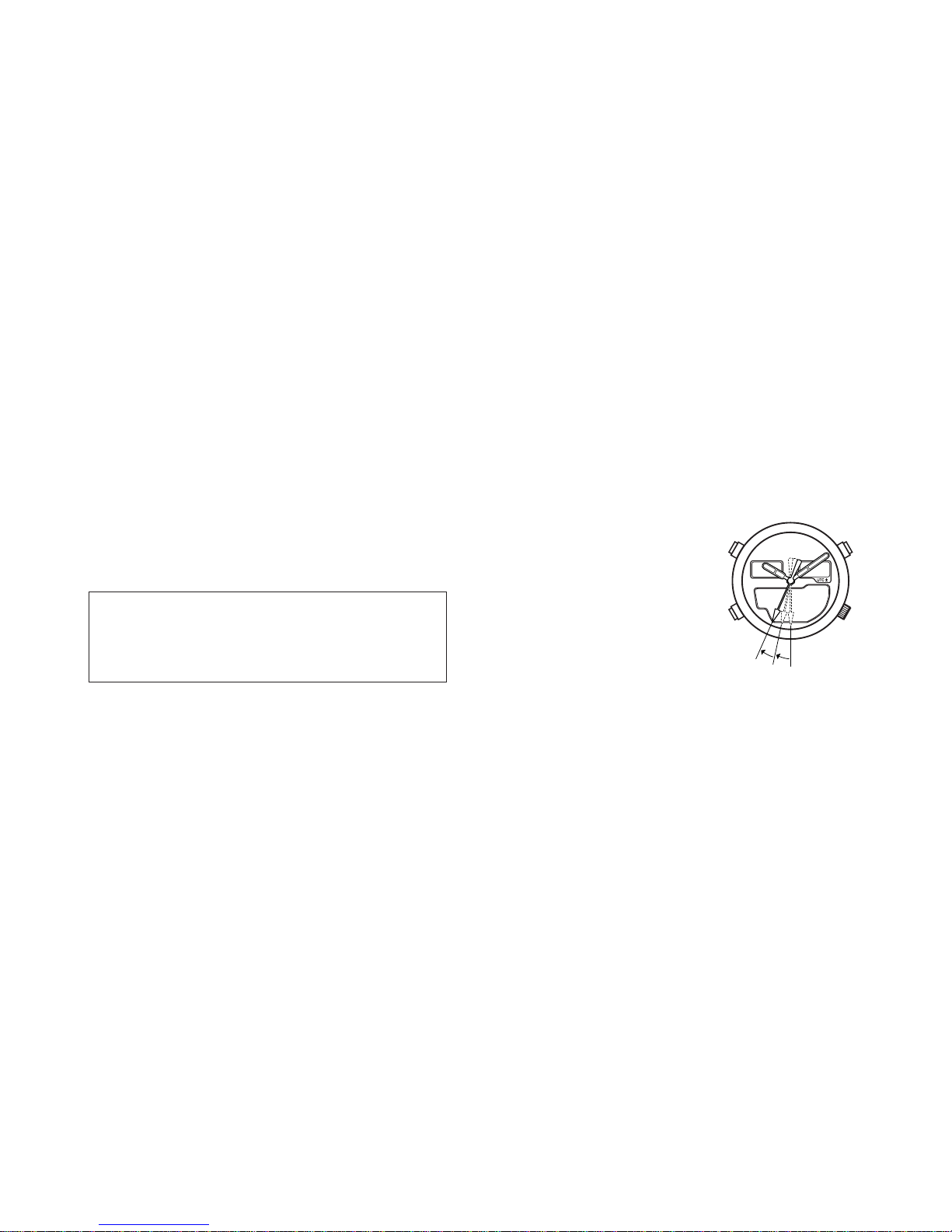

(1) When the crown is pulled, the
second hand stops.
(2) Turn the crown and set the
hands to the correct time.
(3) After the time is adjusted, push
the crown neatly to its normal
position. When the crown is
pushed in, the second hand
starts.
*Stop the second hand at the 0 position and then press the crown when the
digital display reaches zero seconds.The second hand will start moving in
synchronization with the digital display.
Second hand
Normal
position
Crown
Time adjustment position
7. Setting the DigitalTime [TME]
If the time of any of 30 cities and UTC is adjusted, the time of other cities is
automatically calculated and corrected on the basis of time difference.
[NormalTime Display] (1) Press button Mto set the Time mode
[TME].
(2) Press the button Bto show a city whose
time is to be corrected.
(3) If the button Bis pressed continuously
for about 2 seconds, "SMT (abbreviation
of summer time)" and "On" or "OF" blink
and watch enter the correction state.The
blinking figures can be corrected.
(4) Press the button Aand switch summer
time setting (On) or non-setting (OF) of
the city.
(5)Every time the button Bis pressed, the
blinking figures change in the sequence
of [second →minute →hour → 12 hours/
24 hours].Have a desired figures blink.
M
B
A
Time difference
from UTC
City name Time

1312
(6) Press the button Ato correct the blinking figures.
•If the button Ais pressed in the state of second correction, the second is
corrected to 00. (When the second is 30 to 59, the minute is carried 1
minute.)
•Every time the button Ais pressed in the state of hour or minute correc-
tion, the display advances one by one, and press and hold button Afor
rapid advancement.
•12/24 hour system switching is done every time the button Ais pressed.
(7) Press the button Mto return to the normal display.
*If the summer time is set (On), the time is advanced 1 hour from the current
time, and "SMT" is shown in the digital display. No summer time is available
for UTC.
*Make sure that the AM/PM indication is correct when setting the time in the
12-hour display system.
*Auto-Return to the normal Time display will be activated when the watch is
left in the correction state (blinking display) for about 2 minutes.
*If the button Mis pressed in the Time correction state, a quick return is
made to the normal Time display.
8. Using the Calendar [CAL]
Every time the button Ais pressed for 2 seconds or longer in the calendar mode,
city name display and day of week display are changed.
[Normal Calendar Display]

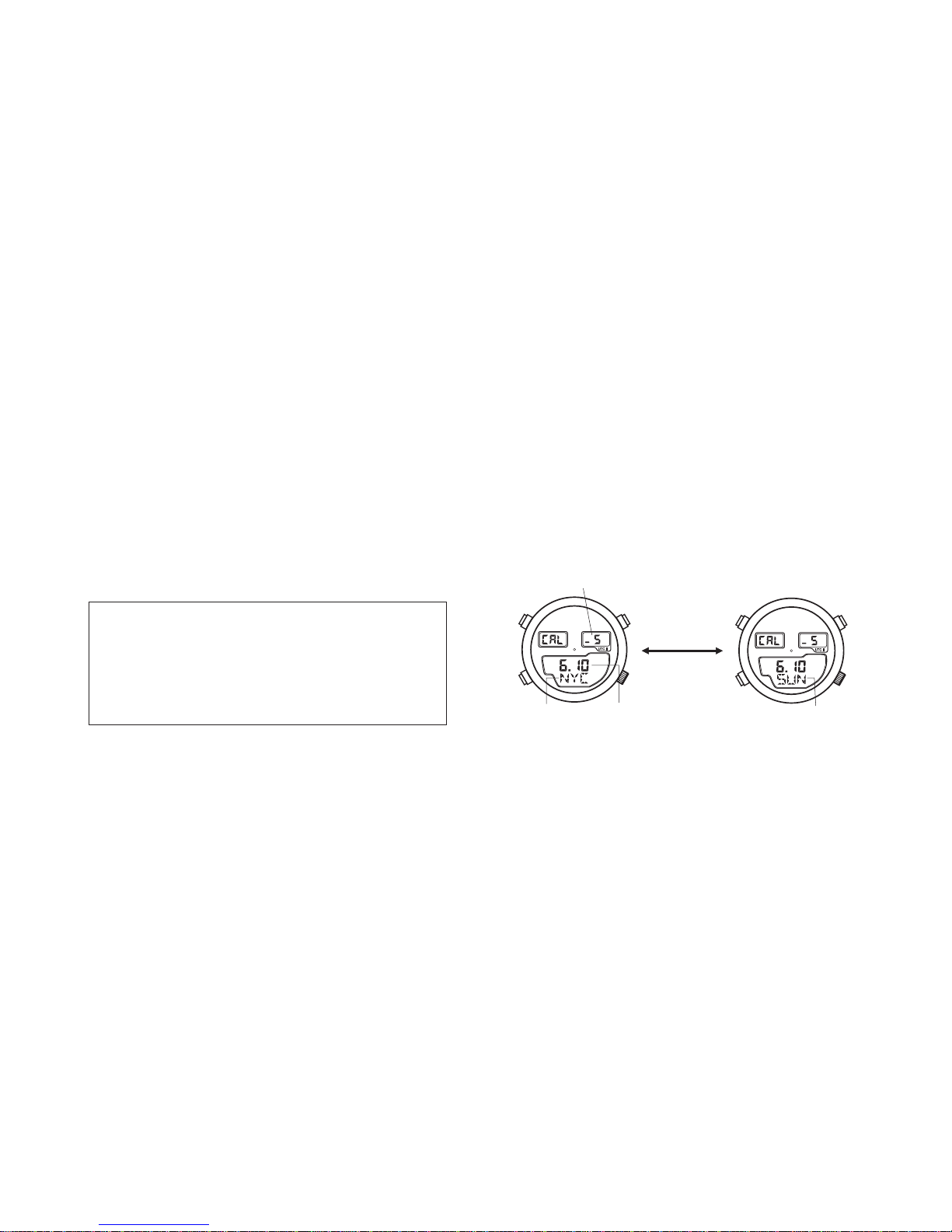

<City name display> <Day of week display>
M
B
A
Time difference from UTC
City name Month, Date
A
Day
Press the button A
for 2 seconds or
longer

1514
<Setting the Calendar>
If the calendar of any of 30 cities and UTC is set, the calendar of other cities is
automatically calculated and corrected on the basis of the time difference.
(1) Press the button Mto set the calendar mode (city name display).
(2) Press the button Band show a city whose calendar is to be corrected.
(3) If the button Bis pressed continuously for about 2 seconds, "Month" blinks
and watch enter the correction state.The blinking figures can be corrected.
(4) Every time the button Bis pressed in the correction state, the blinking fig-
ures change in the sequence of [Month → Date → Year]. Have a desired
figure blink.
(5) Press the button Ato correct the blinking figures.(Press and hold button A
for rapid advancement)
(6) Press the button Mto return to the normal display.
*Auto-Return to normal Calendar display will be activated when the watch is
left in Calendar correction state for about 2 minutes.
*If the button Mis pressed in the Calendar correction state, a quick return is
made to the normal Calendar display.
*Calendar can be set from 2001 through 2099 (displayed only at the time of
correction).
*Day of the week is automatically set with adjustment of Year, Month and
Date.
*The calendar is a full auto calendar.Once it is set, no month-end correction
including the leap year is required.
*If the calendar is set to a non-existing day, it is automatically corrected to
the first day of the following month when the normal display is restored.
(Example : February 30 →March 1)

1716
9. Using the Alarm [AL1/AL2]
Alarm 1 and Alarm 2 are different in sound only, and operating methods etc. are
all same.Once the alarm is set (On), the alarm sounds for about 15 seconds at
the set time every day.The alarm is stopped by pressing any of the buttons.
[Normal Alarm Display "ON"] <How to Set Alarm>
(1) Press the button Mto set Alarm
1 or Alarm 2 mode.
(2) Press the button Bto show a city
whose alarm is to be set.
(3) If the button Bis pressed con-
tinuouslyforabout 2 seconds, the
alarm is turned On and "Hour"
blinks.
(4) Press the button Ato correct the
"Hour." (Press and hold button A
for rapid advancement.)
(5) Press the button Bto blink the
"Minute".
(6) Press the button Ato correct the "Minute."
(7) Press the button Mto return to the normal display.
*If the watch is set to 12-hour display of Time mode, Alarm will also be set
to 12-hour display.
*Auto-Return to normal Alarm display will be activated when the watch is
left in Alarm correction state for about 2 minutes.
*If the button Mis pressed in the Alarm correction state, a quick return is
made to the normal Alarm display.
<To Switch Alarm On/OFF>
When button Ais pressed in normal Alarm display, "On" and "OF (OFF)" are
changed each time the button is pressed.When Alarm is set to "On", "A1" or
"A2" turns on in the digital display.
<Alarm Monitor>
Press and hold button Ain Alarm mode to make the Alarm monitor sound.
M
B
A
On or
OF (OFF)
City name
Alarm time Time difference
from UTC

1918
10. Using the Chronograph [CHR]
This chronograph allows you to measure and display to maximum "23 hours 59
minutes 59 seconds 99" in units of 1/100 of a second.After the completion of 24-
hour measurement, it returns to the reset display and stops.It is also possible to
measure split time (elapsing time).
[Chronograph Reset Display]
A
AA
A
A
BB
B
B
M
*1
Time difference from UTC
Hour, minute, second,
1/100 seconds *1: Auto-Return after 10 seconds.
Chronograph
Measuring Stop
Split Time
<ElapsedTime Measurement>
(1) Press the button Mto set the chronograph mode.
(2) When the button Ais pressed, it starts, and if the button Ais pressed while
measuring, it stops. Each time you press button A, start/stop is repeated.
(3) If the button Bis pressed while stopped, it returns to the reset display.
<SplitTime Measurement>
Every time the button Bis pressed during chronograph measuring, the newest
split time is displayed for about 10 seconds.(During the split display, "SPL" blinks
in the mode mark display portion.)
*The mode can be changed by pressing the buttonMeven during the chro-
nograph measuring.If the mode is returned to the chronograph mode again,
the continued measuring can be displayed. If the measuring exceeds 24
hours, however, return is made to the reset display.

2120
11. Using theTimer [TMR]
Timer can be set in units of 1 minute up to 60 minutes.
When the timer measuring is completed, the time-up sounds for about 5 sec-
onds.
[Timer Setting Display]
<To Set Timer>
(1) Press the button Mto set the
timer mode.
(2) Every time the button Bis
pressed, the set time is corrected
-1 minute.
(Press and hold button Bfor rapid
advancement.)
M
B
A
Time difference from UTC
Set time (minutes) Remaining time
(Minute, second)
<To Set Timer Measurement>
(1) Press the button Mto set the timer mode.
(2) If the button Ais pressed, the timer starts from the set time.
(3) If the button Ais pressed during measuring, it stops, and if the button Ais
pressed again, it restarts.
(4) If the button Bis pressed during stoppage, it returns to the set time.
B
B
A
A
A
*1
Auto-return to the set time
*1 :Timer restart function
If the button Bis pressed
during timer measuring, it
quickly returns to the set
time and restarts.
Set Time Measuring Time up
Stop

2322
*The mode can be changed by pressing the button Meven during timer
measuring.If it is returned to the timer mode again, the continued measur-
ing can be displayed. If the measuring of the set time is completed, how-
ever, it returns to the set time display.
12.Using the Zone Set Mode [SET]
As to the 30 cities and UTC (Coordinated UniversalTime) to be displayed by this
watch, display setting or non-display setting can be done for each city, and the
summer time of each city except UTC can be set.Only the cities having the city
display set (On) can be displayed inTimer, Calendar and Alarm modes.
[Normal Zone Set Display] <To Set the Zone Set Mode>
(1) Press the button Mto set the Zone
Set mode.
(2) Press the button Band show a city
to be set.
(3) If the button Bis pressed continu-
ously for about 2 seconds or longer,
"On" or "OF" blinks.
(4) Press the button Ato select dis-
play (On) or non-display (OF) of the
city.
(5) If the button Bis pressed, "SMT
(abbreviation of summer time)" and
"On" or "OF" blink.
M
B
A
Time difference
from UTC
Time
City name (blinking) On or OF (OFF)

2524
(6) Press the button Ato select the summer time setting (On) or cancel (OF).
In order to set for another city, watch enter the correction state for the next
city by pressing the button Bagain.Through the same operations sequen-
tially, display or non-display of cities should be selected and the summer time
setting should be done.(The city names can be advanced rapidly by continu-
ously pressing the button B.)
(7) After the setting for the cities is completed, press the button Mto return to
the normal display.
*If the display is set to "OF" for all the cities, the city name to be displayed
in each mode is only UTC.
*Auto-Return to normal Zone Set display will be activated when the watch
is left in Zone Set correction state for about 2 minutes.
*If the button Mis pressed in the Zone Set correction state, a quick return
is made to the normal Zone Set display.
13. Low BatteryWarning Function
When the battery approaches its life, the
movement of second hand is changed to 2-
second interval movement (2-graduation
movement every 2 seconds).
Although the time is correctly displayed, the
function will be limited as follows.
•EL light does not turn on.
•No sounding of alarm, time-up etc.
In such a case, you are advised to replace
the battery as soon as possible.
2 seconds 2 seconds

2726
15. Precautions
CAUTION Water-Resistance Performance
There are several types of water-resistant watches, as shown in the following
table.For correct use within the design limits of the watch, confirm the level of
water-resistance of your watch, as indicated on the dial and case, and consult
the table.
•Water-resistance for daily use (to 3 atmospheres):This type of watch is water-
resistant to minor exposure to water. For example, you may wear the watch
while washing your face; however, it is not designed for use underwater.
•Upgraded water-resistance for daily use (to 5 atmospheres):This type of watch
is water-resistant to moderate exposure to water.You may wear the watch while
swimming; however, it is not designed for use while skin diving.
•Upgraded water-resistance for daily use (to 10/20 atmospheres):This type of
watch may be used for skin diving; however, it is not designed for scuba or
saturated diving using helium gas.
14. All Reset Function
After the battery is replaced, be sure to do the following all-reset operation.
If a strong impact or static electricity is applied to the watch, the watch may make
abnormal display or malfunction (no display, continuous alarm sounding etc.),
though in a rare case.In such a case, do the following all-reset operation.
M
B
A
(1) Pull the crown out.
(2) Press buttons A, Band Msimul-
taneously. (All displays turn on.)
(3) If the crown is pushed in to its nor-
mal position, confirming sound is
heard.
This has completed the all-reset op-
eration.
After the all-resetting, correctly set the
time and modes before using.
Crown

2928
Examples of Use
Moderate exposure to
water (washing, kitchen
work, swimming, etc.)
Marine sports (skin
diving) Scuba diving (with air tank) Operation of the crown or button with
moisture visible
* WATER RESIST(ANT) xx bar may also be indicated as W.R. xx bar.
OK NO NO NO NO
OK OK NO NO NO
OK OK OK NO NO
Minor exposure to water
(washing face, rain, etc.)
Indication
Dial Case (caseback) Water-
resistant to 3
atmospheres
WATER RESIST(ANT)
10/20 bar or
WATER RESIST (ANT)
WATER RESIST(ANT)
5 bar or
WATER RESIST (ANT)
WATER
RESIST(ANT)
WATER RESIST
or no indication
WR 100/200 or
WATER RESIST
100/200
Water-
resistant to 5
atmospheres
Water-resistant
to 10/20
atmospheres
Specification
(The unit “bar”is roughly equal to 1 atmosphere.)
WR 50 or
WATER RESIST 50

3130
Cleaning theWatch
•Use a soft cloth to wipe off dirt, perspiration and water from the case and
crystal.
•Use a soft, dry cloth to wipe off perspiration and dirt from the leather band.
•To clean a metal, plastic, or rubber watchband, wash away dirt with mild soap
and water.Use a soft brush to remove dust and dirt jammed in the gaps in the
metal band.If your watch is not water-resistant, take it to your dealer.
NOTE: Avoid using solvents (thinner, benzine, etc.), as they may mar the finish.
WARNING Handling of the Battery
•Keep the battery out of the reach of small children. If a child swallows the
battery, contact a physician immediately.
CAUTION Replacing the Battery
•For replacement of the battery, take your watch to your dealer or Citizen Ser-
vice Center.
•Replace the battery as soon as possible if the service life of the battery has
expired.Leaving a depleted battery in the watch may result in leakage, which
can damage the watch severely.
CAUTION Operating Environment
•Use the watch within the operating-temperature range specified in the instruc-
tion manual.
CAUTION
•Be sure to use the watch with the crown pressed in (normal position). If your
watch has a screw-type crown, be sure to tighten the crown completely.
•Do NOT operate the crown or button with wet fingers or when the watch is wet.
Water may enter the watch and compromise water-resistance.
•If the watch is used in seawater, rinse with fresh water afterward and wipe with
a dry cloth.
•If moisture has entered the watch, or if the inside of the crystal is fogged up
and does not become clear within a day, immediately take the watch to your
dealer or Citizen Service Center for repair. Leaving the watch in such a state
will allow corrosion to form inside.
•If seawater enters the watch, place the watch in a box or plastic bag and imme-
diately take it in for repair. Otherwise, pressure inside the watch will increase,
and parts (crystal, crown, buttons, etc.) may come off.
CAUTION KeepYour Watch Clean
•Leaving dust and dirt deposited between the case and crown may result in
difficulty in pulling the crown out.Rotate the crown while in its normal position,
from time to time, to loosen dust and dirt and then brush it off.
•Dust and dirt tend to be deposited in gaps in the back of the case or band.
Deposited dust and dirt may cause corrosion and soil your clothing.Clean the
watch occasionally.

3332
16. Specifications
1. Caliber No.: U040
2. Type: Combination quartz watch
3. Accuracy: Within ±20 seconds/month
(Within a normal temperature range of +5˚C to +35˚C (41˚F to
95˚F when worn.)
4. Operating Temperature Range : 0˚C to +55˚C (32˚F to 131˚F)
5. Display Functions
Analog: • Hours, Minutes, Seconds (3 hands)
Digital: • Time: Hours, Minutes, Seconds, City name,Time differ-
ence from UTC
•Calendar: Month, Date, Day, City name,Year (only at the time
of adjustment), Time difference from UTC
•Alarm: Hours, Minutes, On or OF (OFF), City name,Time
difference from UTC
•
Chronograph: Hours, Minutes, Seconds, 1/100 seconds,Time dif-
ference from UTC, Split Time (24-hour measure-
ment)
Using the watch where temperatures are outside the specified range, may re-
sult in deterioration of functions or even stoppage of the watch.
•Do NOT use the watch in places where it is exposed to high temperature, such
as in a sauna.
Doing so may result in a skin burn.
•Do NOT leave the watch in a place where it is exposed to high temperature,
such as the glove compartment or dash-board of a car.
Doing so may result in deterioration of the watch, such as deformation of plas-
tic parts.
•Do NOT place the watch close to a magnet.
Timekeeping will become inaccurate if you place the watch close to magnetic
health equipment such as a magnetic necklace or a magnetic latch of a refrig-
erator door or handbag clasp or the earphone of a mobile phone. If this has
occurred, move the watch away from the magnet and reset the time.
•Do NOT place the watch close to household appliances that generate static
electricity.
Timekeeping may become inaccurate if the watch is exposed to strong static
electricity, such as is emitted from a TV screen.
•Do NOT subject the watch to a strong shock such as dropping it onto a hard floor.
•Avoid using the watch in an environment where it may be exposed to chemi-
cals or corrosive gases.
If solvents, such as thinner and benzine, or substances containing such sol-
vents come in contact with the watch, discoloration, melting, cracking, etc.may
result. If the watch comes in contact with mercury used in thermometers, the
case, band or other parts may become discolored.

34
•Timer: Minutes, Seconds, Setting time (60-minute mea-
surement), Time difference from UTC
•Zone Set: Display of city names/non-display setting, summer
time setting
6.
Additional Functions: •World time (Time and Calendar display of UTC and
30 cities in the world)
•EL Light Function
•Low Battery Warning Function
7. Battery: Battery No.: 280-207, Battery Code: CR2012
8. Battery Life Approx. 2 years. (Based on assumed use of Alarm 1
sound: 15 seconds/day, Alarm 2 sound: 15 seconds/2
days, Timer time-up sound: 5 seconds/day, EL Light: 3
seconds/day and Chronograph: 24-hour/week)
•These specifications are subject to change, for product improvement, without
prior notice.
