Citrocasa Fantastic M/SB User manual

Instruction Manual/Documentation
Version: 08.04.11
Citrocasa Fantastic M/AS Art.No.: 60.000 Version 01
Citrocasa Fantastic M/SB Art.No.: 60.500 Version 01
When ordering spare parts, be sure to mention machine type, article and serial number.
Freistaedter Strasse 315, P.O.Box 79, A-4046 Linz, Austria
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]

2
CONTENTS
1. IMPORTANT GENERAL INFORMATION
2. TECHNICAL SPECIFICATIONS
3. GUARANTEE
4. OPERATING INSTRUCTIONS
4.1. First steps
4.2. Choice of display language
4.3. Operating the machine
4.4. Cleaning
4.5. Important information
5. TROUBLESHOOTING
6 CERTIFICATES
7. MOST IMPORTANT SPARE PARTS

3
1. IMPORTANT GENERAL INFORMATION
This manual refers to the following model from Citrocasa:
Art.No.: 60.000 Fantastic M/AS Auto Start Version 01
Art.No.: 60.500 Fantastic M/SB Self Service Version 01
The technical data of the Citrocasa Orange juicer (tension, frequency and other data) is located on the
identification plate, which is both on the back page of this operating/instruction manual as well as on
the equipment itself.
For all technical questions, please refer to your official dealer or official customer service
representative and mention the article and serial number of your machine which can be found on
the rear side of the machine.
Before cleaning the machine, making any repairs or maintenance, please ensure that the machine
is unplugged from its power supply.
Citrocasa meets the necessary measures for a selective disposal of the devices brought on the
market and provides for an environmentally friendly subsequent treatment. Please dispose of your
machine in a proper way by contacting your official dealer/supplier.
Our machines are certified and in accordance with the , GS and TUV safety standards.
Before operating the machine for the first time, we ask you to please read the instruction manual
carefully.
For safety reasons, only authorized personal are allowed to make any repairs or changes on the
machine. Also, no protection or safety equipment is to be changed, removed or tampered with.
Due to the fact that no adjustments on the machine are necessary, we ask you to not open the
inside of the machine at any time.
Only authorized service technicians are permitted to make any repairs to the inside of the machine.
In case of damage to the machine, we ask you to either contact CITROCASA directly or contact
your dealer who supplied you with the machine.
Before cleaning the machine, always unplug the machine from its power supply
Only use original spare parts and accessories from citrocasa.
We give our best effort to provide you with a maximum amount of information in this document.
Should you need further information, we ask you to contact us or your dealer. We will be glad to
answer any questions you may have.
In our constant efforts to better our products, we reserve the right to make any changes to this
instruction manual without prior notice.

4
Should you have any suggestions to improvement, questions or comments, please feel free to
contact us with the contact information provided below:
Freistaedter Strasse 315, P.O.Box 79, A-4046 Linz, AUSTRIA
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Care is needed when handling cutting blade during cleaning.
Correct Disposal of this product:
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.

5
2. TECHNICAL SPECIFICATIONS:
MODEL
Fantastic M/SB
Fantastic M/AS
Oranges per minute
30 pieces
Measurements
78x38x55,5
Net weight (in kg)
55
Power supply
230V/50-60Hz
Power
0,20 kW
Fuse Protection
IPx1
Optimum fruit size
65 to 78 mm
3. GURANTEE
- Our quality and examination controls ensure that the machine was supplied in perfect condition.
- The guarantee covers all complaints caused by construction or material defects which influence
the optimal operation of the machine.
- The guarantee does not cover any damages caused by improper usage of the machine.
- Any changes to the identification plate nullify all possibilities of any guarantee claims.
- Only qualified service personal are allowed to make any repairs or changes on the machine, should a
3rd person work on the machine, this will make any guarantee claims invalid.
- Should you need service or spare parts, always mention the correct article number or serial number
of the machine.
GUARANTY DURATION: One (1) year from the time of installation.
EXCEPTIONS: LABOR COSTS, DRIVING COSTS, DELIVERY COSTS AND PARTS WHICH ARE
USED BY NATURAL WEAR AND TEAR.

6
4. OPERATING INSTRUCTIONS
4.1. FIRST STEPS
In order to achieve an optimum operation of the machine, please follow the below-mentioned steps
carefully.
-After unpacking and positioning the machine on a level surface, remove the front cover by
unscrewing the 2 fastening screws shown in Fig. 1. Lift the front cover out of its anchoring to
expose the pressing system.
Fig. 1

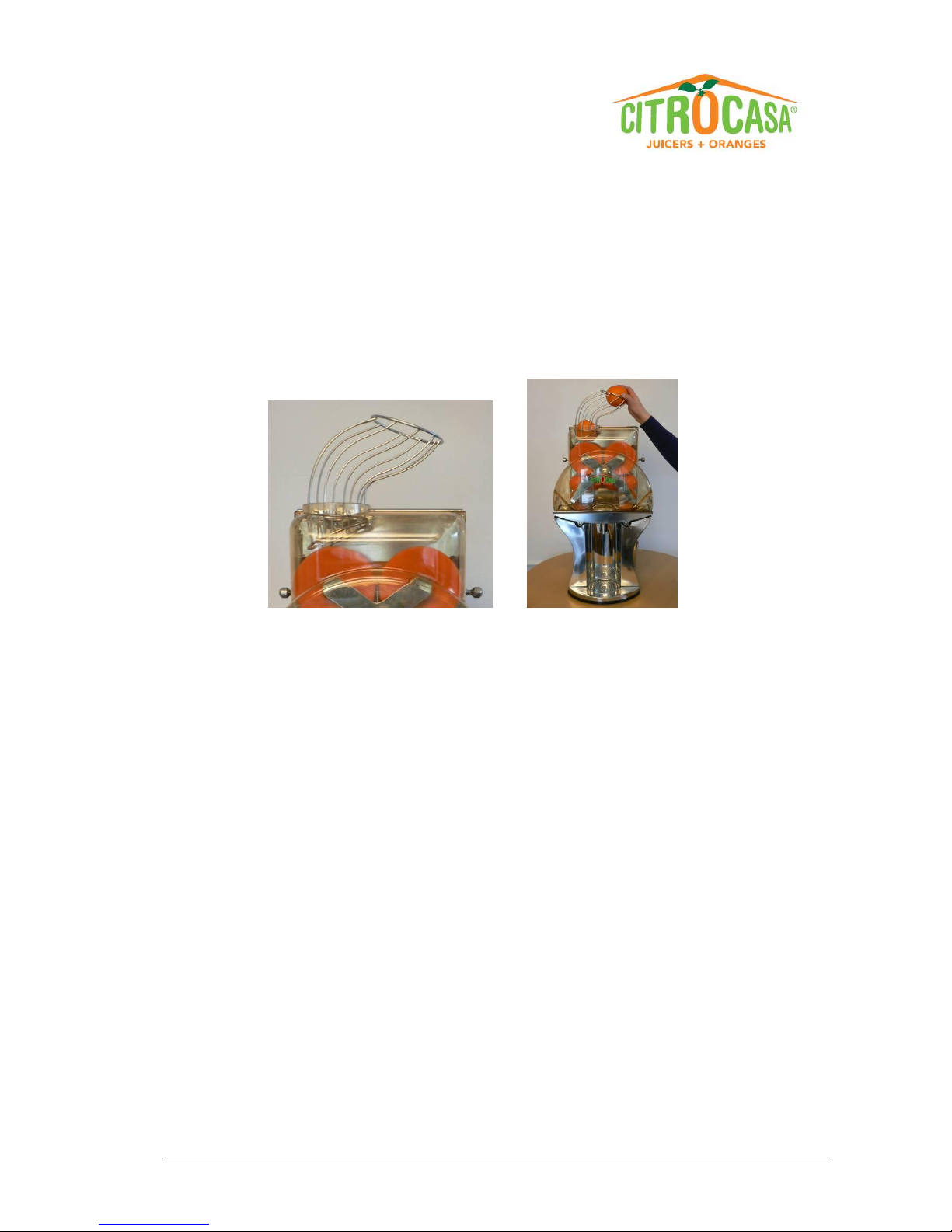

-Attach the supply tunnel by mounting it onto the support plate and secure the fixation lever (see
Fig. 2).
Fig. 2

7
-Place the peel basket and the drip cup as shown in Figs. 3 and 4.
Fig. 3 Fig. 4
-Make sure that the fruit sieve is in its proper position and that the front cover is closed (see Figs. 5
and 6).
Fig. 5 Fig. 6
-Ensure that the voltage is identical with that shown on the identification plate.
-Plug the machine into a standardized and grounded power supply socket. Switch on the main
power switch located at the side of the machine. (The red control lamp lights up, see Fig. 7.)
Fig. 7
Drip cup
Peel basket
Fruit sieve

8
4.2. CHOICE OF THE DISPLAY LANGUAGE
It is possible to choose between 4 different display languages:
English
German
Spanish
French
Please follow the points below, to choose your required display language.
-Fig. 8: Switch on the main power switch located at the side of the machine. The control
lamp lights up.
-Fig 9 No. 1: Select with the FUNC-Button the menu item “Choose language”
-Fig 9 Nr. 2/3: Select your required language by pressing the ON and OFF-Button together.
-Bild 9 Nr. 1: Afterwards select with the FUNC-Button the required menu item. Due to this
fact the display language is stored.
Fig. 8
Fig. 9
1.
2.
3.

9
4.3. OPERATING THE MACHINE
-Fill the supply tunnel with oranges. Do not use fruits larger than 80mm in size. To make sure that
the machine works properly, use fruits between 65 –78 mm in diameter.
(Figs. 10 and 11)
Fig. 10 Fig. 11

10
Operation of Citrocasa Fantastic M/SB Self Service

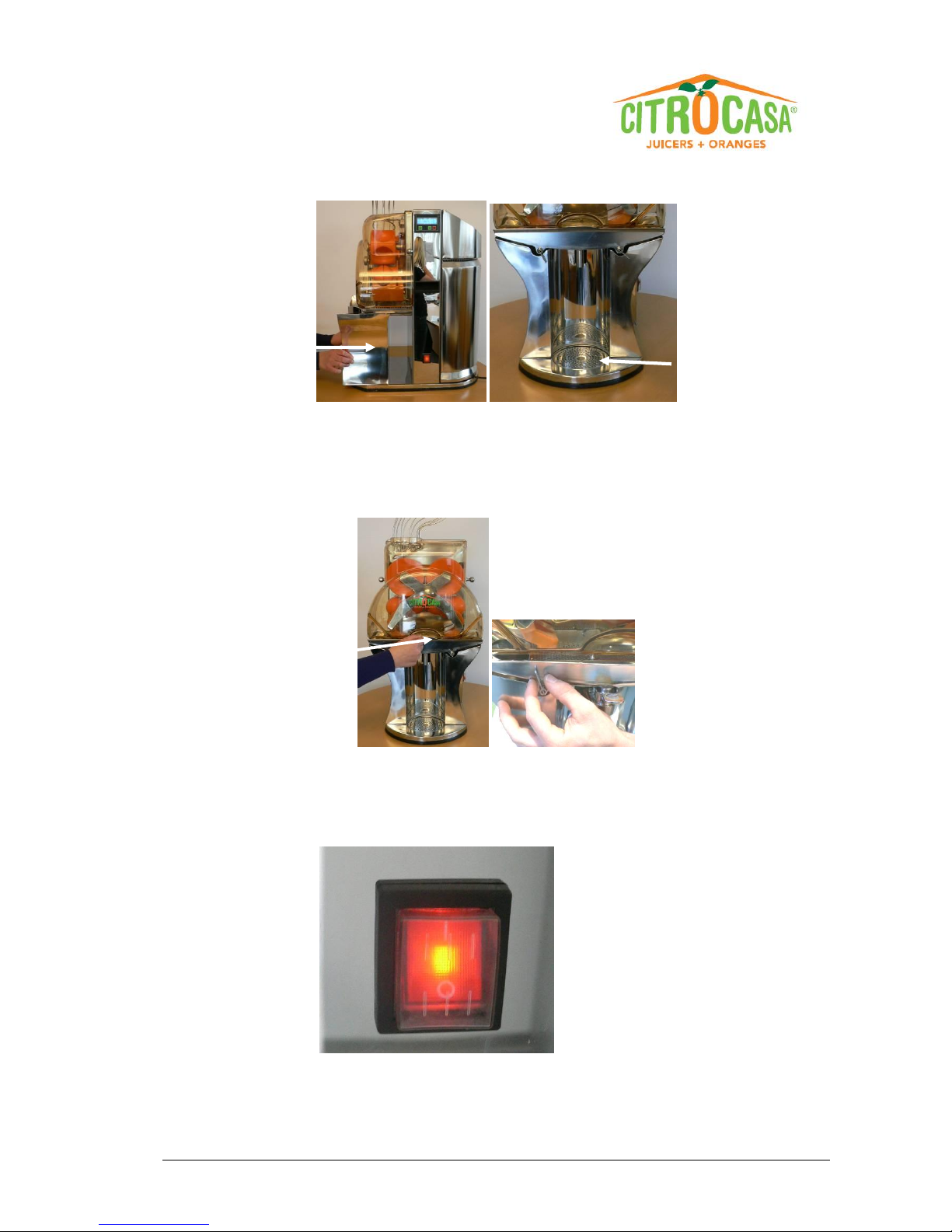

Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the
instructions mentioned below:
Self-Service Mode:
-Fig. 12: Switch on the main power switch located at the side of the machine. The red
control lamp lights up.
-Fig. 13 No. 1 FUNC button: Select the self-service mode by pressing this button. „Self
service Push “Press”“ is indicated on the display.
-Fig. 14: Stop and start the machine by pressing the self-service button. (tap)
Fig.12
Fig. 13
Fig. 14
1.

11
Continuous Mode:
-Fig. 15: Switch on the main power switch located at the side of the machine. The red
control lamp lights up.
-Fig. 16 No. 1 FUNC button: Select the continuous mode by pressing this button.
„Continuous Push “ON”“ is indicated on the display.
-Fig. 16 No. 2 ON button: Start pressing the fruits (continuous mode)
-Fig. 16 No. 3 OFF button: Stop pressing the fruits (continuous mode)
Fig. 15
Fig. 16
1.
2.
3.

12
Operation of Citrocasa Fantastic M/AS Auto Start
Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the
instructions mentioned below:
Auto-Start Mode
-Fig. 17: Switch on the main power switch located at the side of the machine. The red
control lamp lights up.
-Fig. 18 No. 1 FUNC button: Select the auto-start mode by pressing this button. „Fill in
oranges“ is indicated on the display.
-Fig. 19: The machine starts pressing as soon as oranges are fed into the supply tunnel and
it stops automatically as soon as there are no more fruits in the supply tunnel left.
Fig. 17
Fig. 18
Fig. 19
Fruit detection sensor
1.

13
Continuous Mode:
-Fig. 20: Switch on the main power switch located at the side of the machine. The red
control lamp lights up.
-Fig. 21 No. 1 FUNC button: Select the continuous mode by pressing this button.
„Continuous Push “ON”“ is indicated on the display.
-Fig. 21 No. 2 ON button: Start pressing the fruits (continuous mode)
-Fig. 21 No. 3 OFF button: Stop pressing the fruits (continuous mode)
Fig. 20
Fig. 21
1.
2.
3.

14
Bild 13
Display Functions of Fantastic Machines
-Fig. 22 No. 1 FUNC button: Press this function button to indicate the total number of
pressed fruits.
Fig. 22
-Fig. 23 No. 1 FUNC button: Press this function button to indicate the total operating hours
of the machine.
Fig. 23
1.
1.

15
4.4. CLEANING INSTRUCTION
In order to clean the machine properly, please follow the instructions below:
The below-mentioned cleaning steps are to be completed at least twice every 24 hours.
IMPORTANT: Before cleaning the machine, ensure that the machine is disconnected from
power (unplug the machine).
1. Either press the oranges remaining in the
supply tunnel or remove them by hand.
2. Unscrew the front cover screws (left and right).

16

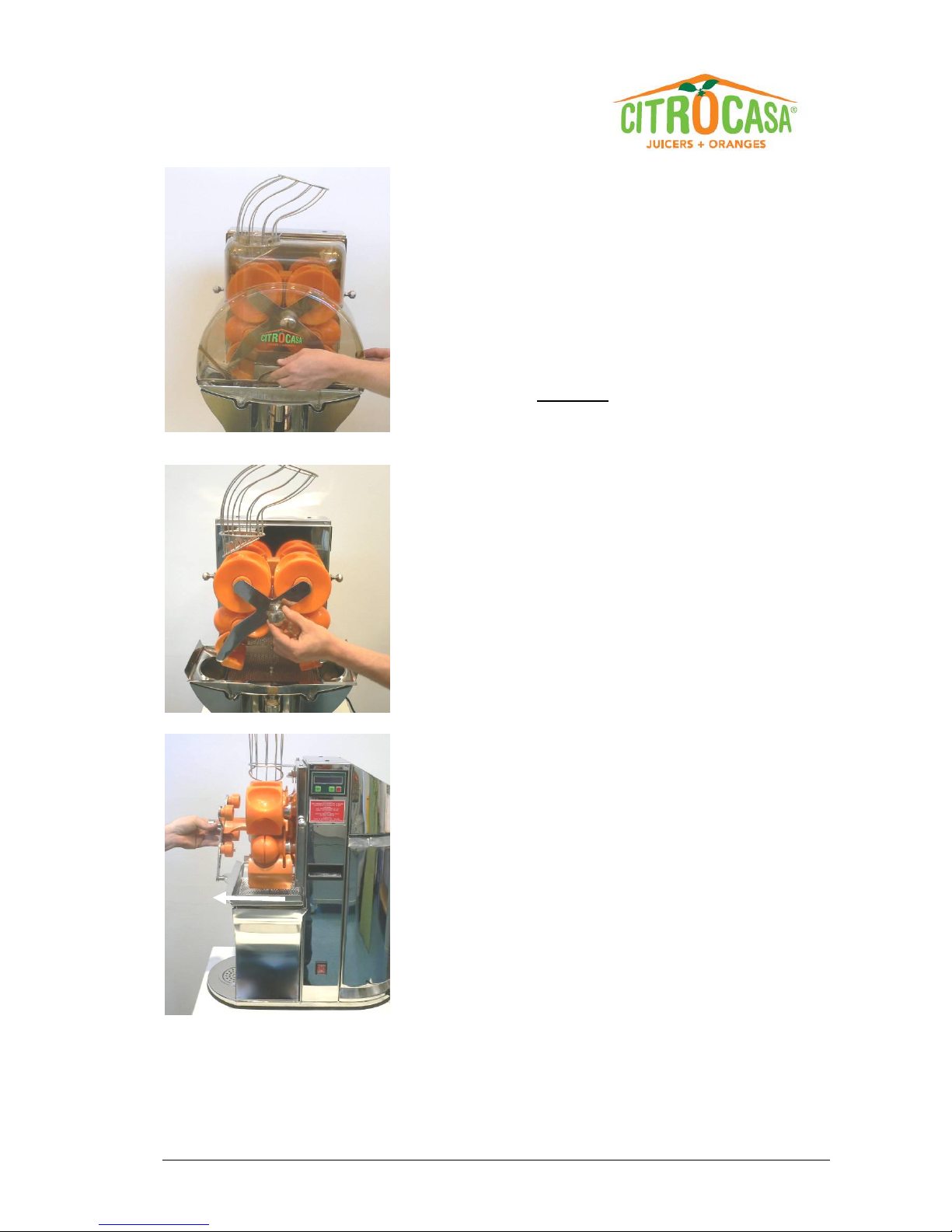

3. Remove the front cover:
Pull the lower part of the front cover slightly
towards the front. Then lift the cover away
from the retaining bolts.
Clean the hood with water (30 –50°C) and a
cleaning cloth to remove any juice and fruit
pulp residues. Rinse thoroughly with water (30
–50°C). Dry with disposable tissues.
CAUTION: Do not clean in a dishwasher!
4. Unscrew the cross holder screw.
5. Pull out the cross holder.

17

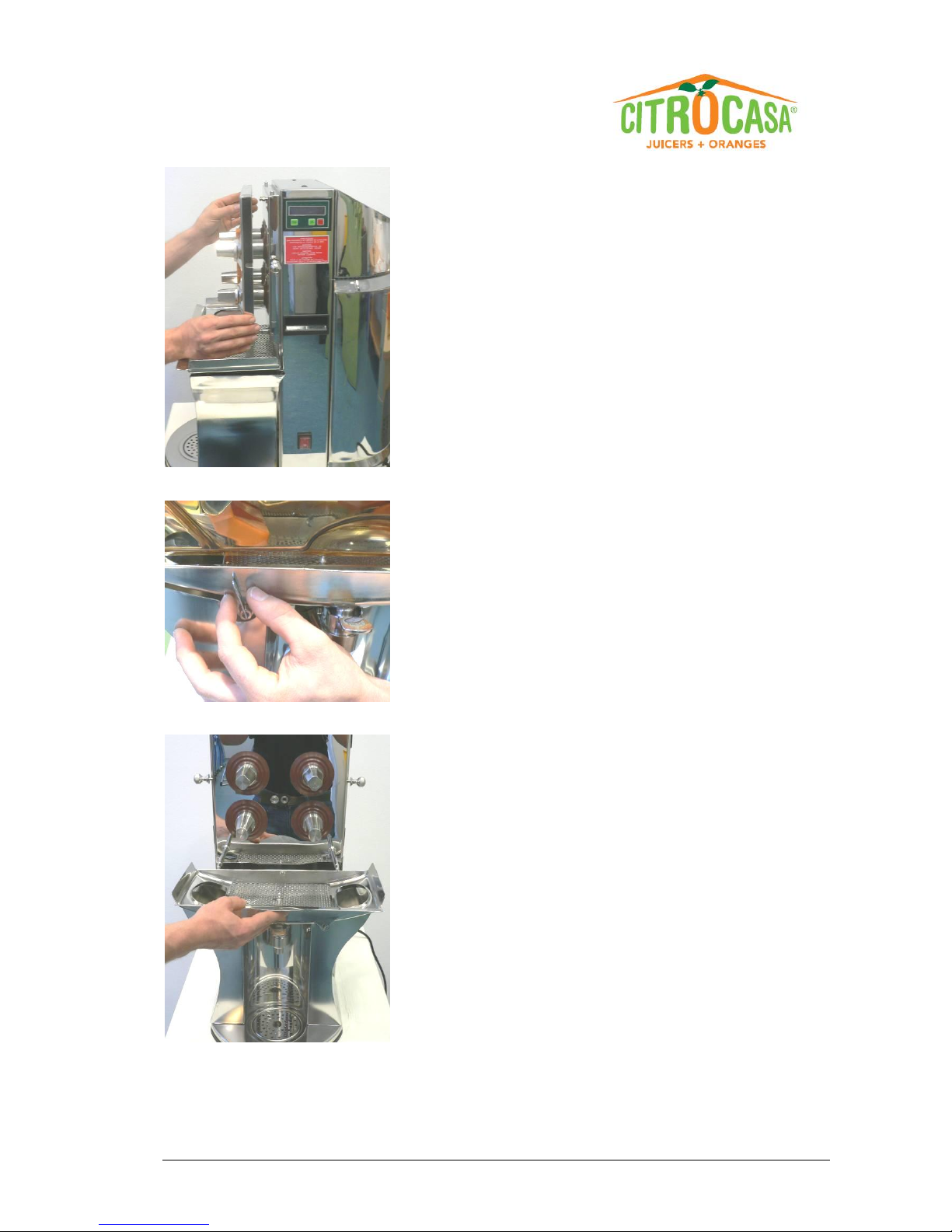

6. Separate the knife guide from the cross holder
by pulling out the cross holder screw.
(3 individual parts: cross holder, knife guide,
screw)
Caution: When reinstalling the knife make
sure that it rests in the correct position and that
the screw is properly tightened by hand.
In case of disregard, either the blade
system or the upper pressing units of the
machine might get damaged.
7. Remove the peel removers (right and left).

18

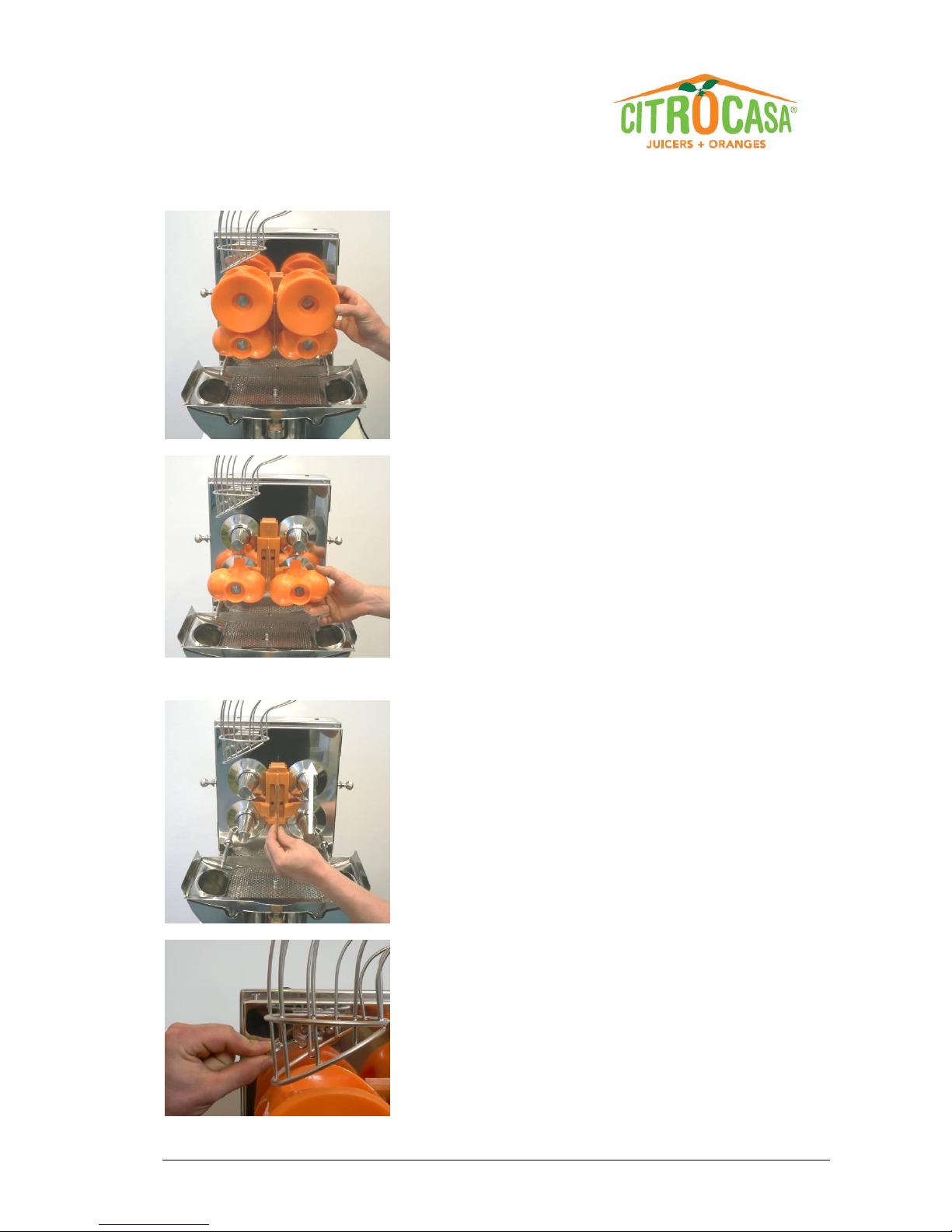

8. Remove the upper pressing units (right and
left).
9. Remove the lower pressing units (right and
left).
10. Lift the knife and pull it out.
11. Unclamp the fixation lever of the feeder and
remove the supply tunnel.

19

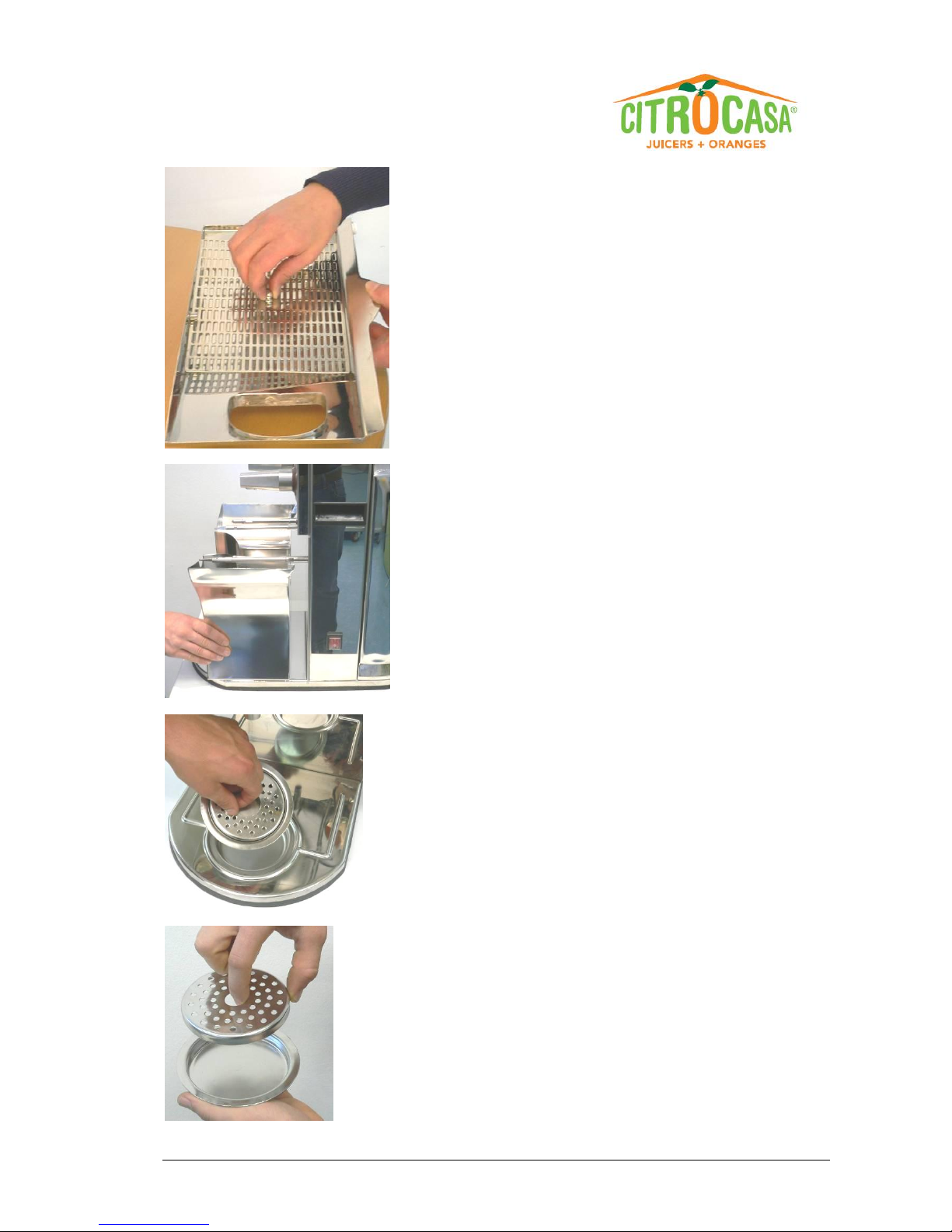

12. Remove the front plate / double cover.
13. Remove the fruit sieve support (left and right).
14. Pull out the fruit sieve support + fruit sieve.

20
15. Remove the fruit sieve from the fruit sieve
supporter.
16. Remove the peel basket.
17. Remove the drip cup.
18. Remove the sieve from the cup.
