CITROEN C2 User manual

IN BRIEF
4
I
E X T E R I O R
Rear parking assistance signal
This function warns you if an obstacle
is detected behind the vehicle whilst
reversing.
Tailgate
The split tailgate enables the loading
of items depending on their size and
the available space in the rear of the
vehicle.
Lower tailgate covered storage
This storage area enables you to keep
emergency equipment within easy
reach...

74

72

94
Rear seats
The modular seats allow you to make
space from the boot to transport
items.

85

A
C
B
A
A
B
IN BRIEF
5
I
Fuel tank
A.
Opening of the fuel fl ap.
B.
Opening of the fuel cap.
Tank capacity: approximately 41
litres.
A.
Locking/unlocking of the vehi-
cle from the interior.
Remote control key
A.
Locking of the vehicle.
B.
Unlocking of the vehicle.
C.
Key release/storage.
Manual central locking

19

73

113
O P E N I N G

B
2
1
A
C
IN BRIEF
6
I
Upper tailgate
Lower tailgate
Spare wheel and tools
O P E N I N G
Opening

After opening the upper tailgate,
use handle
B
to open the lower
tailgate
2
.
The maximum allowed
weight on the open
lower tailgate is
100 kg
.
Access to the spare wheel

Remove the plastic cover
C
to
access the spare wheel fi xing
system.
Access to the tools
The tools are stored behind theThe tools are stored behind the
Opening

After unlocking the vehicle with
the remote control or the key,
press on handle
A
and pull up
the upper tailgate
1
.
74

74

120

IN BRIEF
7
I
Stop & Start system
This system, linked to a SensoDrive
gearbox, allows the engine to switch off
when the vehicle is stopped and avoid
excessive fuel consumption.
Cruise control
This system allows you to automatically
maintain the speed of the vehicle at the
value programmed by the driver, without
the need to press on the accelerator.
Automatic air conditioning
The automatic air conditioning system
ensures your comfort and optimum cir-
culation of air in the passenger com-
partment.
SensoDrive gearbox
The automated 5-speed manual gear-
box gives you the choice of the com-
fort of automatic mode or the driving
pleasure of a manual gearbox.
I N T E R I O R

60

68

79

55

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
IN BRIEF
8
I

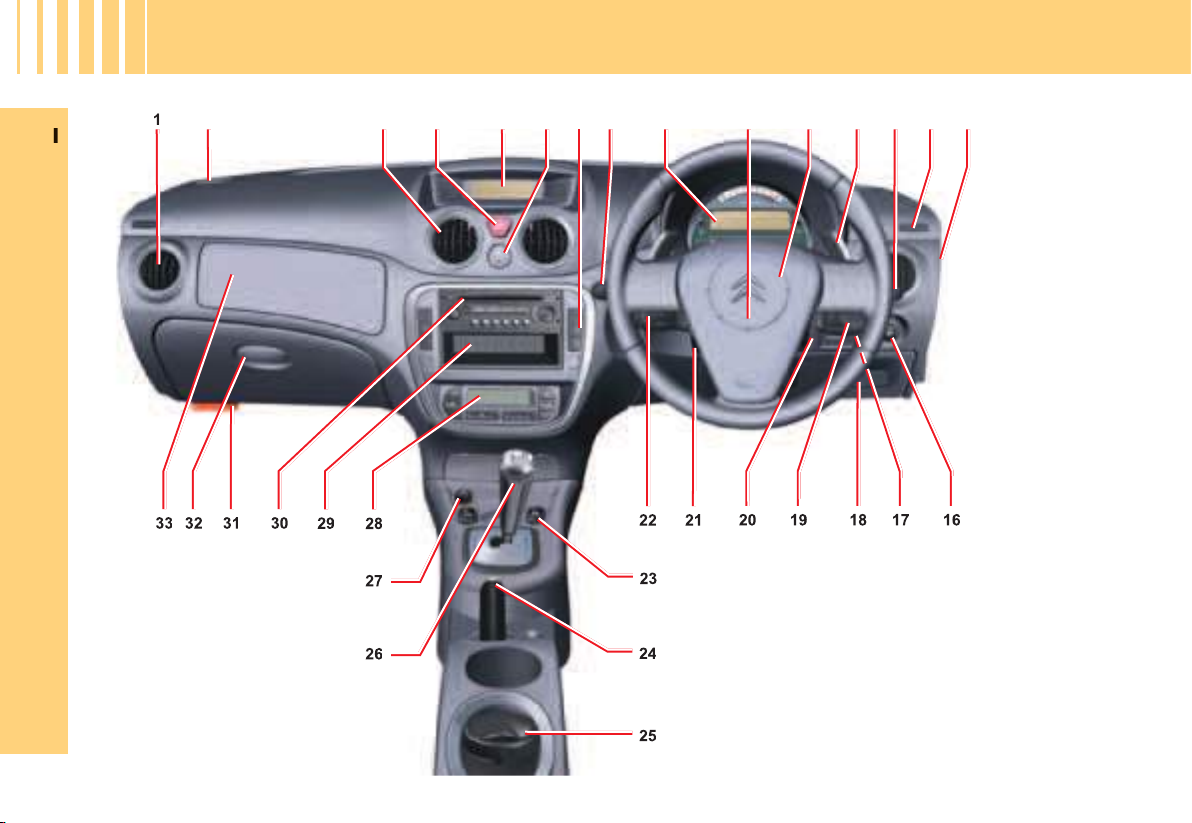

D A S H B O A R D

9
I
D A S H B O A R D
23
Front electric window controls.
24
Parking brake.
25
Moveable ashtray.
26
Rear electric window controls.
27
Gear lever.
28
Cigar lighter / 12 V acces-
sories socket (functions
with ignition switched on)
(Maximum power 120 W).
29
Air conditioning or heating/
ventilation.
30
Storage/CD changer.
31
Radio.
32
Bonnet release.
33
Lower glovebox :
• Vehicle document storage.
34
Passenger’s airbag.
12
Steering wheel gear controls
(SensoDrive gearbox).
13
Controls :
• Windscreen wipe.
• Screen wash.
• Rear screen wipe.
• Trip computer.
14
Window deicing and demisting
vent.
15
Key switch :
• Activation/Deactivation of
passenger’s airbag.
16
Electric door mirrors adjust-
ment.
17
Headlamps adjustment.
18
Access to fusebox.
19
Radio control under steering
wheel.
20
Steering lock - Ignition.
21
Steering column adjustment
control.
22
Controls :
• Cruise control.
• Speed limiter.
1
Lateral air vent.
2
Loudspeaker (Tweeter).
3
Central air vents.
4
Hazard warning lamps.
5
Display.
6
Doors and boot central locking
control.
7
Controls :
• Stop & Start.
• Parking assistance.
• Anti-intrusion alarm.
• Overspeed alert.
• ESP.
8
Controls :
• Lighting.
• Direction indicators.
• Foglamps.
• Rear foglamp.
9
Instrument panel.
10
Driver’s airbag.
11
Horn.

1
4
3
2
5
6
IN BRIEF
10
I
G E T T I N G S T A R T E D
Front seats

83
1.
Head restraint adjustment.
2.
Backrest angle adjustment.
3.
Longitudinal adjustment.
4.
Seat height and angle.
5.
Access to rear seats.
6.
Heated seats.

2
3
1
1
2
1
IN BRIEF
11
I
1.
Releasing by pulling lever.
2.
Locking by pushing lever.
Manual adjustment of
steering wheel height
Adjustment of exterior rear
view mirrors
1.
Selection of driver’s side mirror.
2.
Selection of passenger’s side
mirror.
3.
Foldback / Deployment.
Adjustment of interior rear view
mirror
1.
« Day / Night » mirror position
control.
G E T T I N G S TA RT E D

52

51

52

1
2
1
IN BRIEF
12
I
G E T T I N G S TA RT E D
Ignition switch
S.
Steering lock
position.
M.
Drive
position.
D.
Starting
position.
Front seat belt
1.
Height adjustment.
Electric window controls
1.
Driver’s electric window control.
2.
Passenger’s electric window
control.

51

25

53

A
B
IN BRIEF
13
I
Lighting
Ring A
Ring B
Front and rear foglamps.
Headlamps off.
Automatic lighting of head-
lamps.
Sidelamps.
Dipped or main beams.
Front screen wipe
Screen wipe
Rear screen wipe
2
: Fast wipe.
1
: Normal wipe.
I
: Intermittent wipe.
0
: Off.
Pressing downwards :
-
AUTO :
Automatic wipe.
-
Single wipe.
Off.
V I S I B I L I T Y

47

49

50
Intermittent rear screen wipe.
Timed rear screen wash and
wipe.
To deactivate automatic wipe,
put the control to position
I
, then
return it to position
0
.

IN BRIEF
14
I
V E N T I L AT I O N
Manual air conditioning

75
Automatic air conditioning :
you are advised to use the fully automatic setting, by
pressing on the AUTO button.

D
B
A
C
A
B
C
E
D
IN BRIEF
15
I
M O N I TO R I N G
Instrument panel
Controls panel
A.
Rev counter.
B.
Instrument panel screen.
C.
Fuel gauge.
D.
Dashboard lighting rheostat.
When the ignition is switched on,
the orange and red warning lamps
light up.
With the engine running, these
warning lamps should go out.
If the warning lamps remain lit,
refer to the appropriate page.
Warning lamps
The lighting of the warning lamp
indicates the status of the corre-
sponding function.
A.
Deactivation of Stop
& Start system.
B.
Deactivation of park-
ing assistance.
C.
Activation of alarm.

27

30

60

72

67
D.
Activation of over-
speed alert.
E.
Deactivation of ESP.

23

65

A
B
IN BRIEF
16
I
Driver’s seat belt fastening
detection
Deactivation of front
passenger’s airbag
The warning lamp lights up
if the driver’s seat belt has
not been fastened when the
ignition is switched on and
between 0 and 20 km/h.
Over 20 km/h, the warning lamp
fl ashes accompanied by a sound
signal for approximately 2 minutes.
After this it remains lit up.
1.
With the ignition off, insert the
key in switch
A
.
2.
Turn the key to the
«OFF»
position, the passenger’s
airbag is deactivated.
3.
The front passenger’s airbag
deactivation warning lamp,
on the instrument panel,
lights up when the ignition is
switched on.
Isofi x fastening system
Two rings
B
, located between the
backrest and the seat cushion,
allow a child seat to be fi tted.

30

88

89
PA S S E N G E R S A F E T Y

A
B
C
IN BRIEF
17
I
Stop & Start system
SensoDrive gearbox
B.
Control under steering wheel
«-»
.
C.
Control under steering wheel
«+»
.
This automated 5-speed manual
gearbox gives you the choice of
the comfort of automatic mode or
the driving pleasure of a manual
gearbox
A.
Gear lever.
Your vehicle may be fi tted with
a «Stop & Start» system, linked
to a SensoDrive gearbox, which
switches the engine off when the
vehicle is stopped (red lights, giv-
ing way, congestion…).
Whilst the vehicle is stopped, the
engine consumes no fuel, emits no
harmful gases and is completely
silent.
The engine restarts instantly, the
moment that you press the accel-
erator pedal.

55

60
D R I V I N G

IN BRIEF
18
I
D R I V I N G
Cruise control
Speed limiter
Instrument panel display

68

70
1.
Activation / Deactivation of
cruise control mode.
2.
Reduction of the programmed
speed.
3.
Increase in the programmed
speed.
4.
Start / Stop cruise control.
To programme or activate, the vehi-
cle speed must be over 40 km/h
(25mph).
Cruise control
Speed limiter
1.
Activation / Deactivation of
speed limiter mode.
2.
Reduction of the programmed
speed.
3.
Increase in the programmed
speed.
4.
Start / Stop speed limiter.
Cruise control or speed limiter
mode appears in the instrument
panel when selected.
To stop cruise control, you can
either :
- press on the brake pedal,
- press on control
4
,
- use control
1
,
- as a last resort, switch off the
engine.

B
A
II
19
R E M O T E C O N T R O L
Note:
The simultaneous use of
other high frequency equipment
(mobile telephones, domestic
alarms, etc.) may momentarily
hinder the operation of the remote
control.
If there is a permanent fault, the
remote control has to be reinitial-
ised. See “Changing remote con-
trol batteries”.
Central unlocking
A short press on control
B
unlocks your vehicle.
This operation is confi rmed by the rapid fl ashing of the direction indicators
and the lighting of the interior lamp (if the function is activated). It can also
deploy the exterior rear view mirrors.
Central locking – Deadlocking
A
short press
on button
A
locks your vehicle.
This is confi rmed by the lighting for around 2 seconds of the direction indica-
tors and by the interior lamp going out. It may cause the exterior rear view
mirrors to fold back.
If any of the doors, or the boot, is open or not properly closed, the central
locking does not operate.
For vehicles equipped with deadlocking, two successive presses on control
A
will operate deadlocking. It is then impossible to open the doors, either
from the inside or from the outside.
It is dangerous to operate the deadlocking when a person
is in the vehicle as unlocking is impossible from the inside
(without the remote control).

A
C
B
II
20
R E M O T E C O N T R O L
Changing the remote control battery
First, retract the key-carrier if necessary.
Unclip the housing by lifting at the rear (see diagram).
Battery:
CR 0523 of 3 V.
Re-initialisation of the remote control
After a change of battery, it may be necessary to re-initialise the remote
control. To do that, switch on the ignition and immediately action button
A
on your remote control to trigger the action desired. This may take some ten
seconds.
Note:
Make a careful note of the numbers for the keys and for the remote
control on the ASSISTANCE card. Keep this in a safe place.
Do not throw away the old batteries. They should be returned to a
CITROËN
dealer or deposited at a recognised collection point (a camera shop, for
example).
Except when reinitialising, the remote control cannot function
while the key is in the ignition, even when switched off.
Warning: by inadvertently actioning the remote control, when
for example it is in your pocket, you can unlock the vehicle
without your realising it.
However, if none of the doors is opened within thirty seconds
following an unlocking, the doors will automatically relock.
Warning: there is a risk of damage if the replacement battery
is not the correct one.
Only use batteries that are identical or equivalent to those
approved by CITROËN.
Only use batteries that
ies tha
Locating of the vehicle
To locate the vehicle on a carpark,
press button
A
, the interior lamps
come on and the direction indica-
tors fl ash for a few seconds. The
vehicle remains locked.
Folding and ejecting the key
Button
C
is for folding and eject-
ing the key from its housing in the
remote control.
If you do not press on button
C
,
you could damage the key mecha-
nism.

II
21
KEYS
It is dangerous to operate the deadlocking when a person
is in the vehicle as unlocking is impossible from the inside
(without the remote control).
The key number is on the label attached to the key.
Should you lose your key or remote control, a CITROËN dealer
can supply replacements.
Electronic immobiliser key
The key operates all the vehicle’s
locks as well as the ignition.
Note:
For safety reasons, a buzzer
will sound if you have switched off
the ignition and opened the driv-
er’s door without having removed
the ignition key.
The key can be used to deactivate
the front passenger’s airbag. See
“Airbags”.
Central locking using the key
A brief action with the key locks the vehicle.
Deadlocking: Central locking using the key
A second action straightaway with the key deadlocks the vehicle. It is then
impossible to open the doors from either inside or outside the vehicle.
Note:
With the vehicle stationary and the engine switched off, locking is sig-
nalled by the fl ashing of the interior locking control warning lamp.
If any of the doors, or the boot, is open or not properly closed, the central
locking does not operate.
Electronic immobiliser
The ELECTRONIC IMMOBILISER device locks the engine supply system.
The system activates automatically as the key is removed from the ignition.
All the vehicle’s keys contain an electronic immobiliser device.
After you switch on the ignition, a dialogue starts between the key and the
electronic immobiliser device.
If the key is not recognised, you cannot start the vehicle.
If this occurs, leave your vehicle immobilised and contact a CITROËN
dealer.
•
•

II
22
C O D E C A R D
A confi dential card is given to the
new owner when he takes delivery
of his new vehicle.
This card bears a hidden access
code for the use of the CITROËN
dealer when servicing the elec-
tronic immobiliser device.
Do not scratch the protective
strip
, the security of the immobi-
liser system depends on the infor-
mation below remaining covered.
Should the card be lost, your
immobiliser system can no longer
be considered secure.
In the event of a change of vehicle ownership, it is
essential
for the new
owner to possess the CODE card.
Keep it in a safe place.
Never leave it in the vehicle.
The key number is on the label attached to the key.
Should you lose your key or remote control, a CITROËN dealer
can supply replacements.
Should the confi dential card become lost, a CITROËN dealer
would have to undertake a major repair
Advice
Keep the code card bearing your personal electronic immobiliser number in
a safe place (never in the vehicle).
If any key modifi cations become necessary (addition, cancellation or replace-
ment of the key), It is
essential
to take the
confi dential card together with
all the keys
to a CITROËN dealer.
the key), It is

B
A
1
II
23
A N T I - I N T R U S I O N A L A R M
Your vehicle may be equipped with
an ANTI-INTRUSION ALARM. This
provides:
Exterior perimeter protection by
means of detectors on the vehi-
cle access points (doors, boot,
bonnet) as well as on the elec-
trical supply.
Interior volumetric protection
by means of ultrasonic sensors
(detecting movement inside the
passenger compartment). This
can be deactivated using the
control
1
.
•
•
The installation also has a siren,
and a warning lamp on the con-
trol
1
which is visible from outside
the vehicle, indicating the three
possible statuses of the alarm:
Alarm not active (disarmed),
warning lamp off.
Alarm active (armed), the warn-
ing lamp fl ashes slowly.
Alarm triggered (signalling an
intrusion), the warning lamp
fl ashes rapidly if the alarm is
deactivated by a press on the
control
B
. It stops as soon as
you switch on the ignition.
Note:
If there is a malfunction,
the warning lamp remains perma-
nently on.
•
•
•
Deactivation of the alarm
usng the remote control
The alarm is disarmed when you
unlock the vehicle (with a press on
button
B
on the remote control).
Deactivation of the alarm
with the key
Unlock the doors with the key. The
siren triggers. Enter the vehicle,
insert the key in the ignition and
turn it to the drive position to stop
the siren. Otherwise the siren will
continue for approximately 30 sec-
onds.
